Model Whirlpool KGCP483KSS02 48`` Stainless Steel Professional Cooktop (with gr – Common Parts & Diagrams

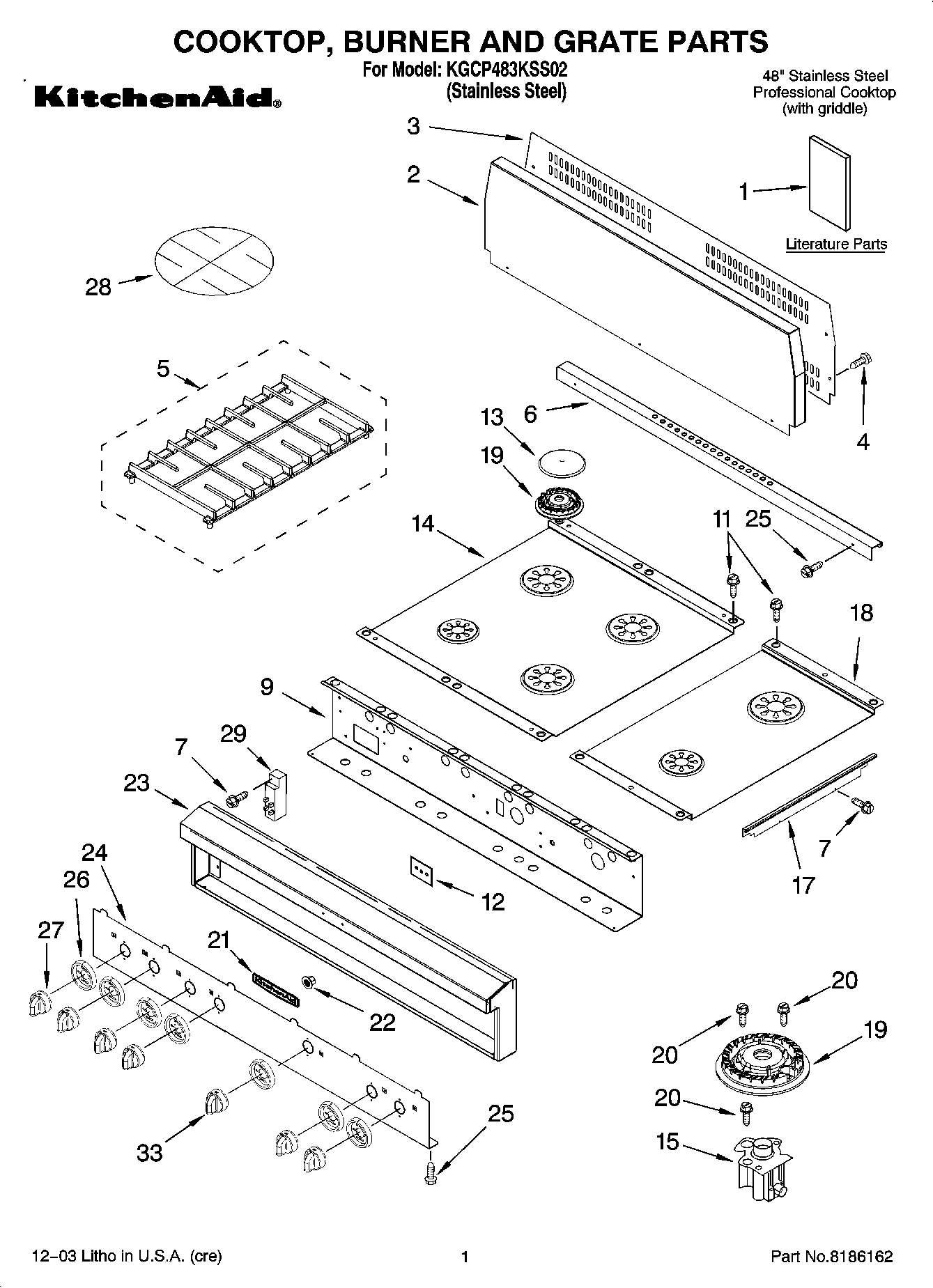

01 - COOKTOP, BURNER AND GRATE PARTS

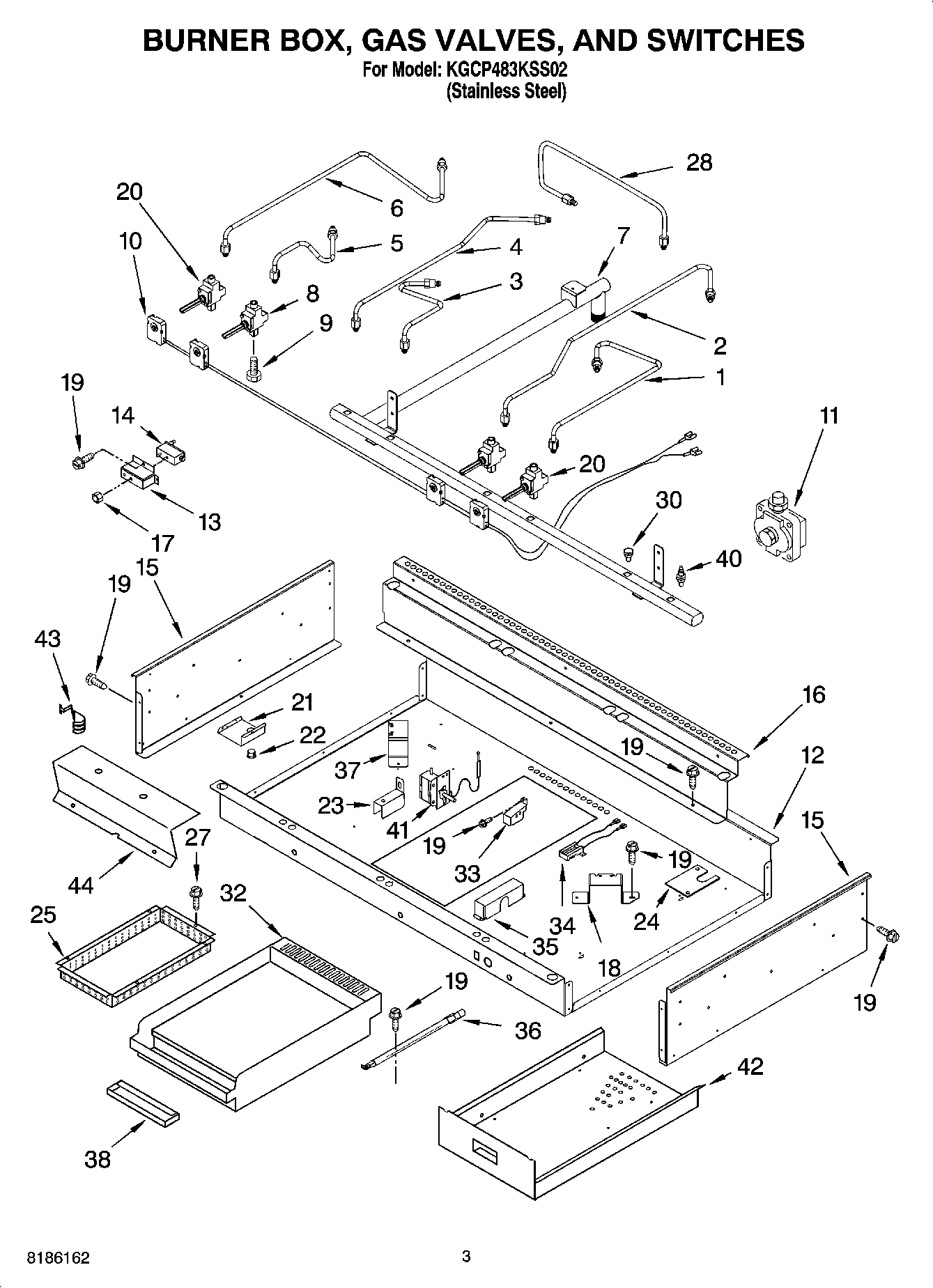

02 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool KGCP483KSS02 48`` Stainless Steel Professional Cooktop (with gr
1
Tubing, Gas Burner - RF WPL 4455040 Contact Us For Availability
2
Tubing, Gas Burner - RR WPL 4455041 Contact Us For Availability
3
Tubing, Gas Burner - CF WPL 4455151 Contact Us For Availability
4
Tubing, Gas WPL 4455152 Contact Us For Availability
5
Tubing, Gas Burner - CR Burner - LF WPL 4455153 Contact Us For Availability
6
Tubing, Gas Burner - LR WPL 4455154 Contact Us For Availability
7
Manifold (Includes Items 9 & 30) WPL 8284737 Contact Us For Availability
8
Valve, Burner (Turbo) WPL 4456818 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4456907 Contact Us For Availability
11
Screw WPL 4449040 Contact Us For Availability
12
Burner Box WPL 4457095 Contact Us For Availability
13
Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability
13
Bracket, Griddle Valve WPL 8284805 Contact Us For Availability
14
Valve, Griddle WPL 8284788 Contact Us For Availability
15
Side, Burner Box (Right Hand) WPL 8285487 Contact Us For Availability
15
Side, Burner Box (Left Hand) WPL 8285488 Contact Us For Availability
16
Support, Rear WPL 8284947 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
Control Frame WPL 8284939 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
24
Panel, Control WPL 8284799 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
25
Box, Burner Lower WPL 8285031 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, Griddle WPL 8284975 Contact Us For Availability
30
Plug, Manifold (closed) WPL 8284796 Contact Us For Availability
32
Module, Griddle WPL 8284759 Contact Us For Availability
33
Bracket, Ignitor WPL 8284800 Contact Us For Availability
34
Ignitor, Griddle WPL 8284941 Contact Us For Availability
35
Cover, Burner Spud WPL 8285038 Contact Us For Availability
36
Log Burner, Griddle WPL 8285051 Contact Us For Availability
37
Bracket, Thermo WPL 8284993 Contact Us For Availability
38
Tray, Drip WPL 8285569 Contact Us For Availability
40
Plug, Manifold (open) WPL 8284804 Contact Us For Availability
41
Griddle, Thermo WPL 8284765 Contact Us For Availability
42
Enclosure, Griddle WPL 8285056 Contact Us For Availability
44
Harness, Ign 42`` WPL 4456628 Contact Us For Availability
44
L.P. Orifice Spud Pack WPL 8284782 Contact Us For Availability
44
Bracket WPL 8284811 Contact Us For Availability
44
Power Cord FE02349 Bushing WPL 8285527 Contact Us For Availability
44
WIRING HARNESS PARTS WPL ARI87545A9 Contact Us For Availability
44
Miscellaneous WPL ARI87546A2 Contact Us For Availability
× ![]()
