Model Whirlpool KGCM860TBC0 – Common Parts & Diagrams
07 - COOK TOP KGCK80TBL

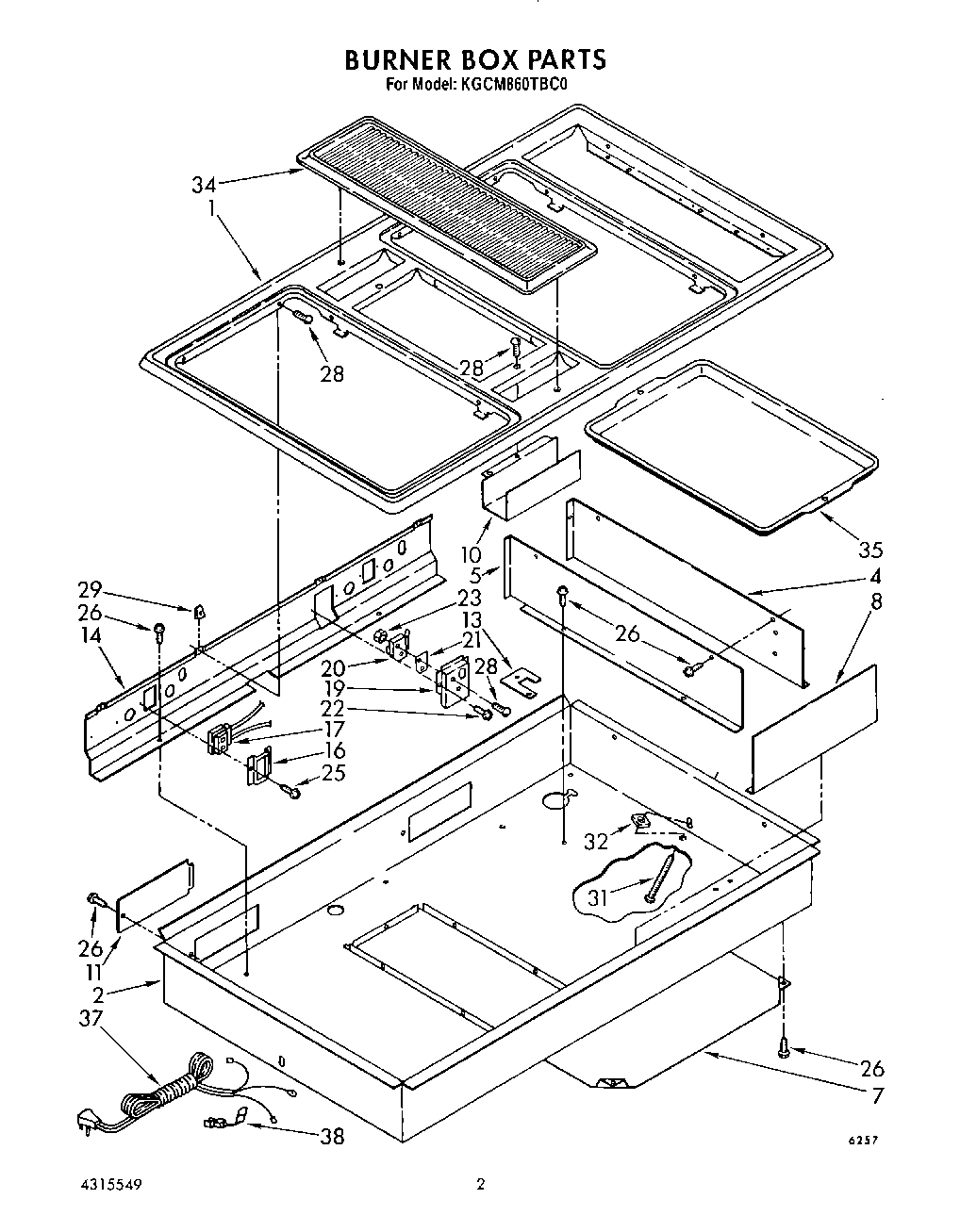

02 - BURNER BOX , LITERATURE AND OPTIONAL

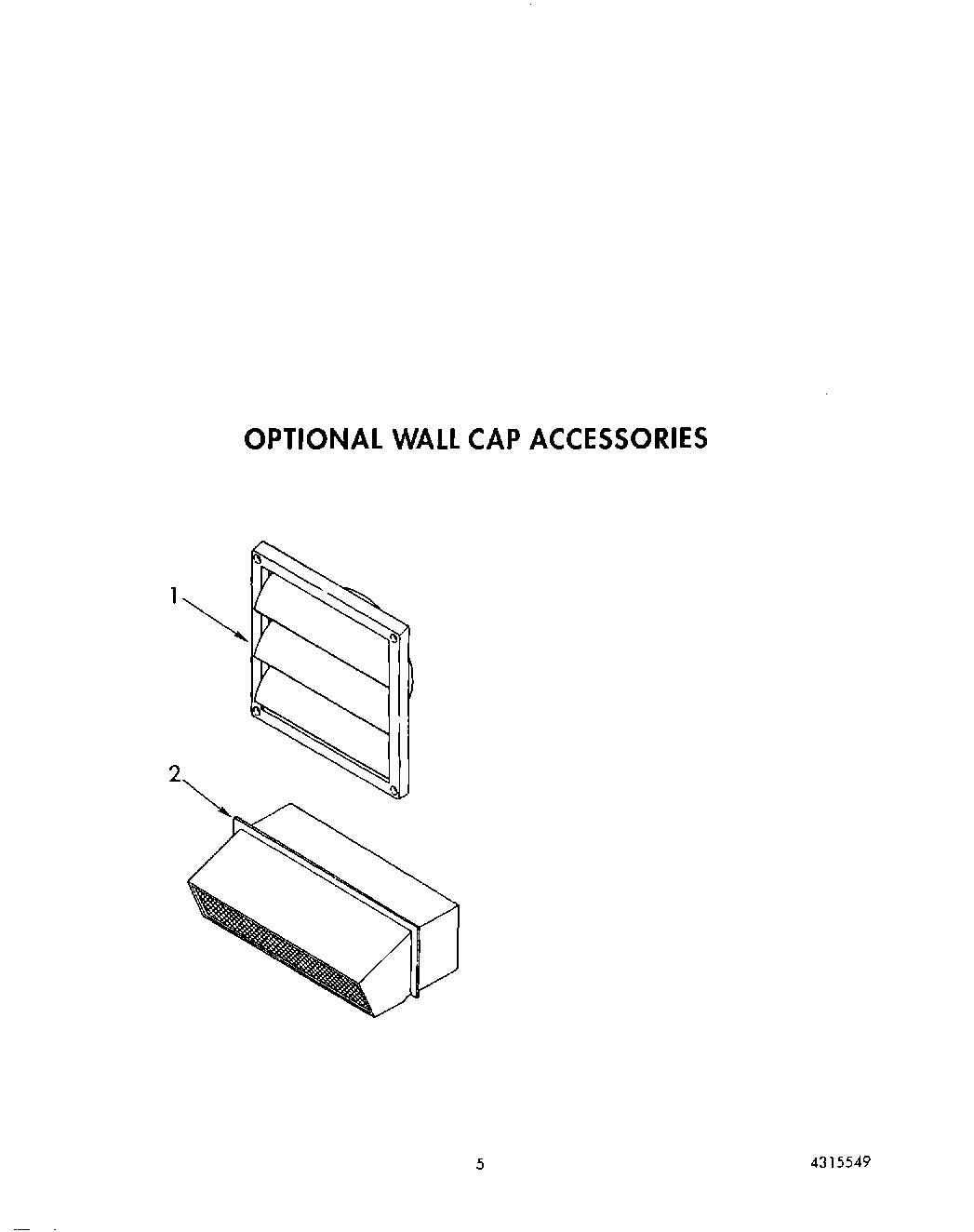

04 - LIT/OPTIONAL WALL CAP ACCESSORIES

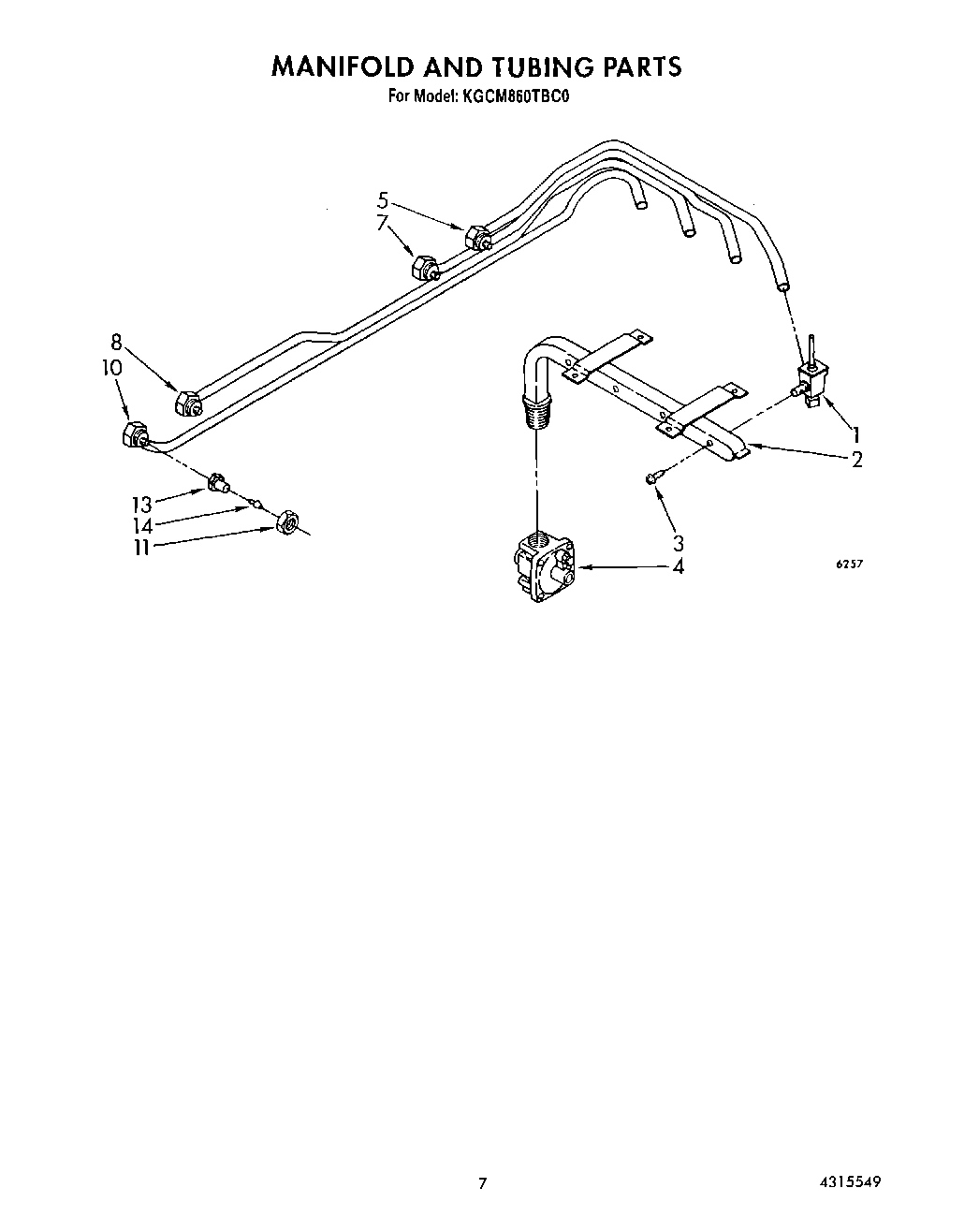

06 - MANIFOLD AND TUBING

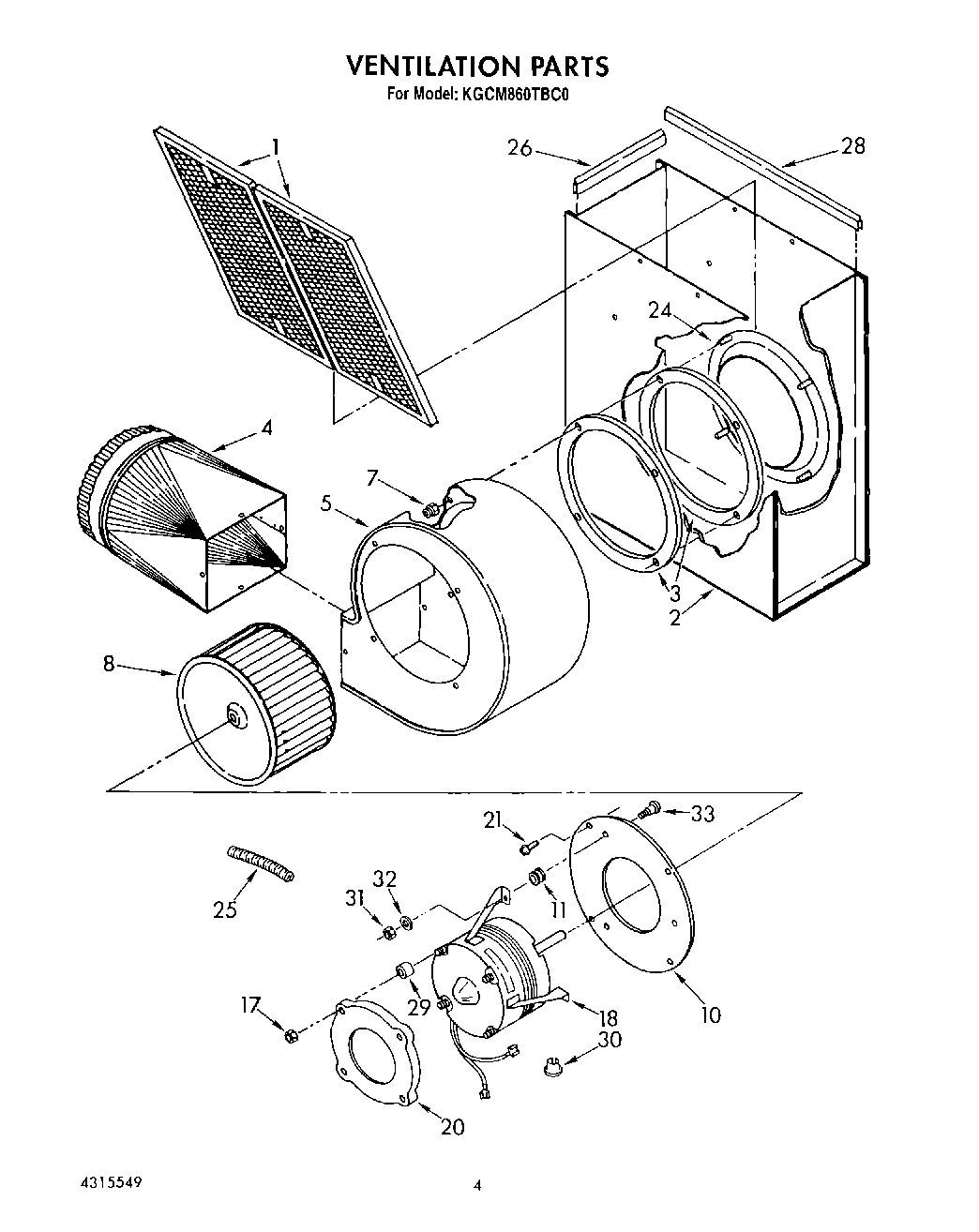

03 - VENTILATION

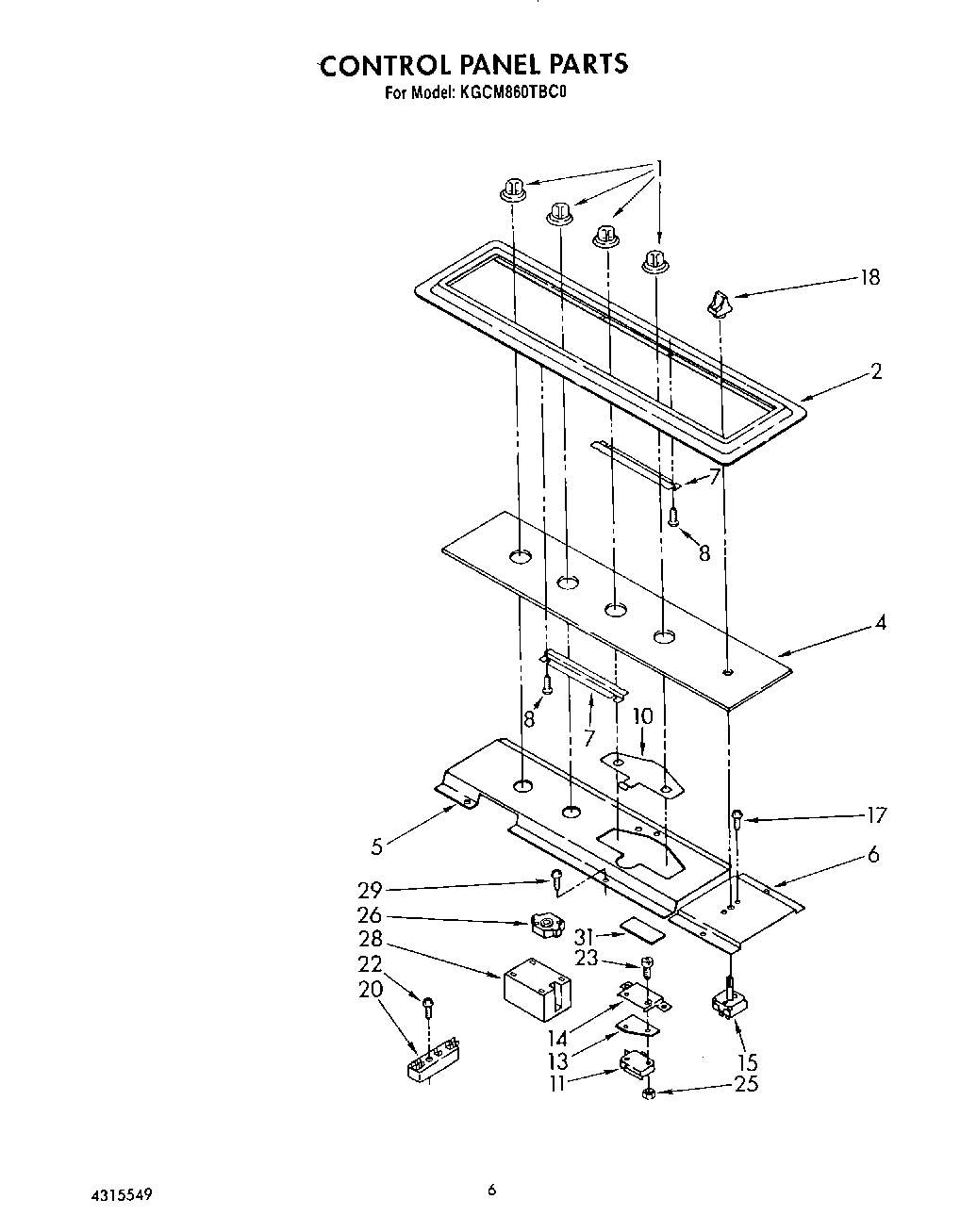

05 - CONTROL PANEL

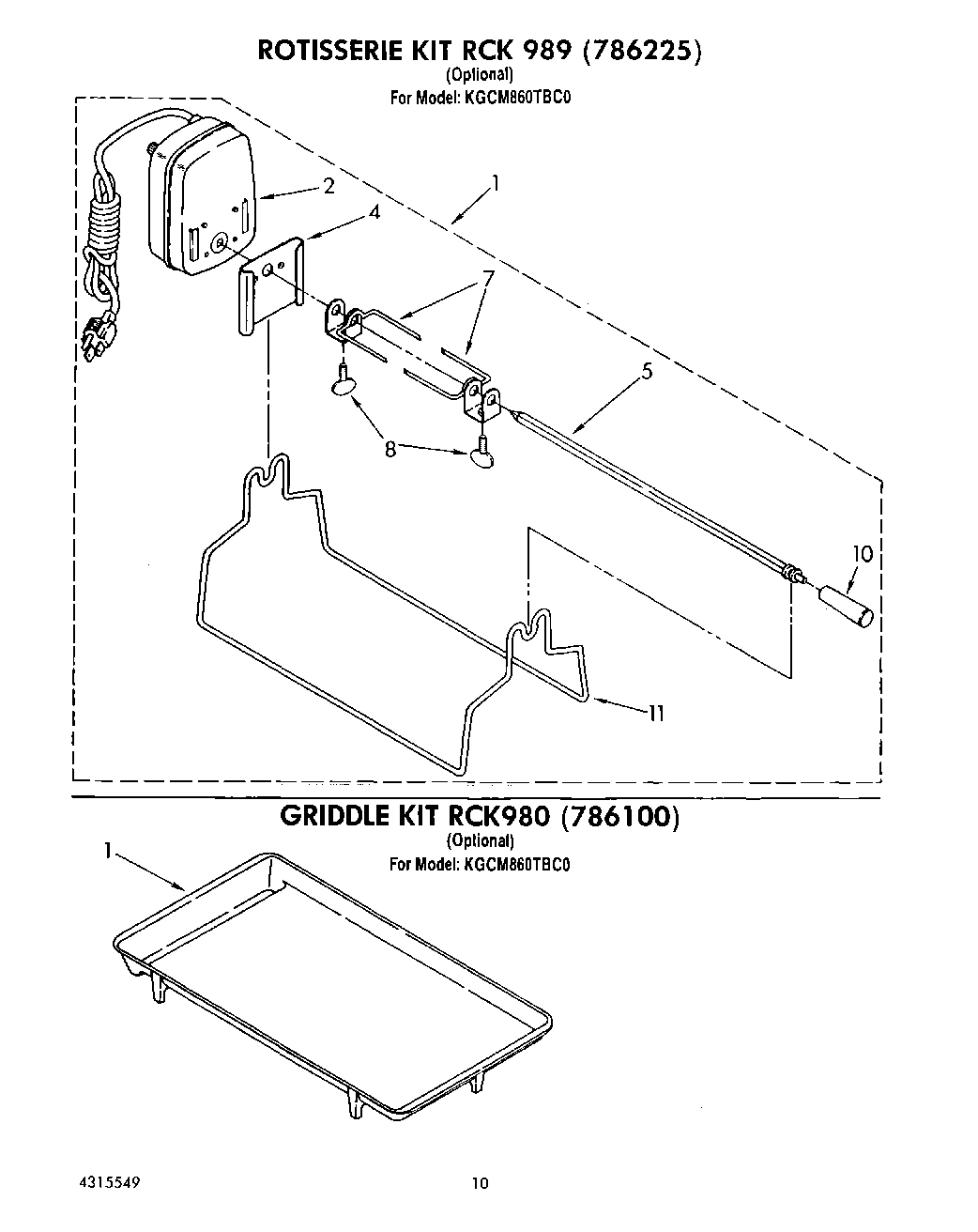

09 - ROTISSERIE KIT RCK989 , GRIDDLE KIT

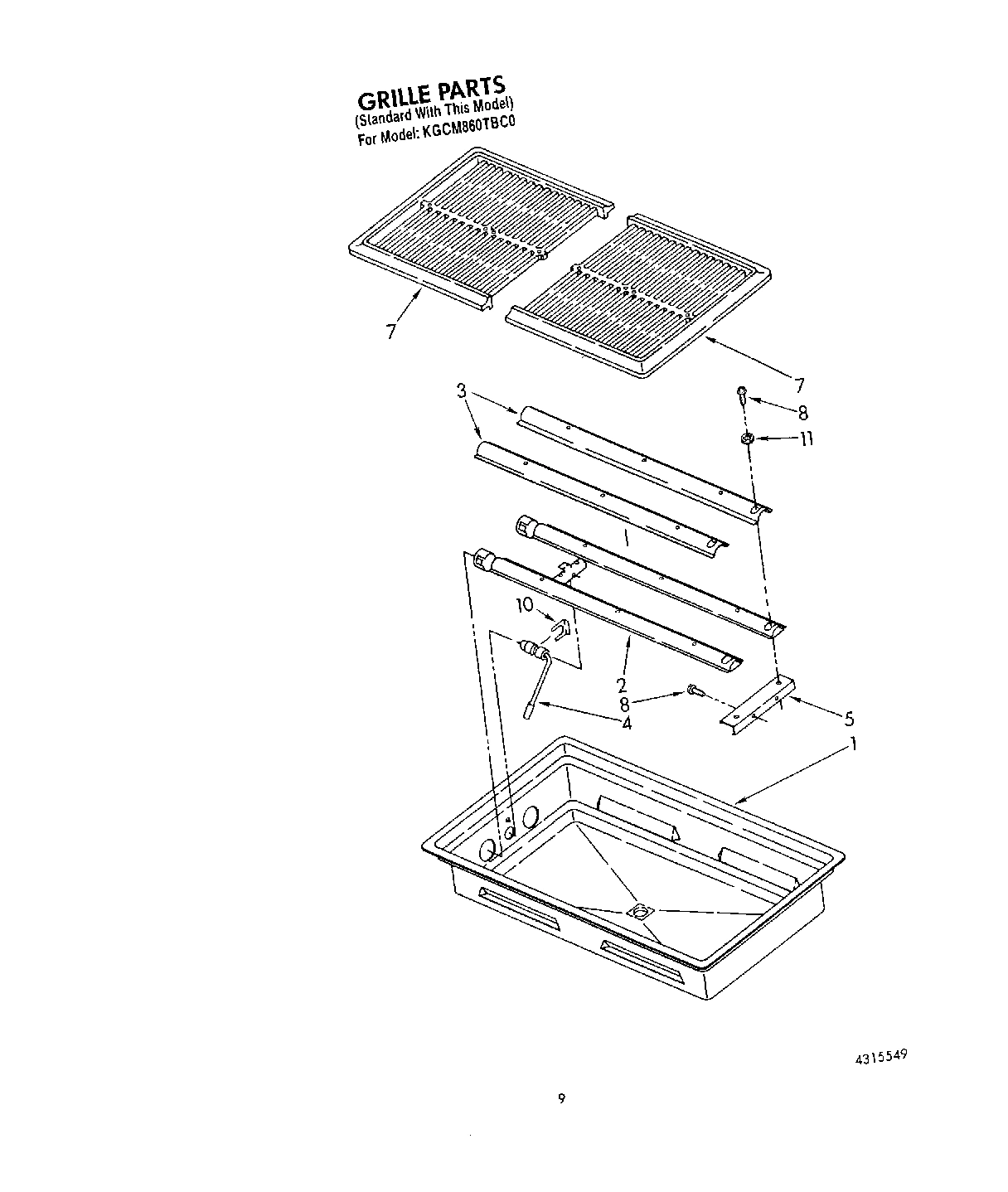

08 - GRILLE
Common parts from model Whirlpool KGCM860TBC0
List, Repair Parts WPL LIT4315549 Contact Us For Availability
Instructions, Installation WPL LIT4315568 Contact Us For Availability
Guide, Use & Care WPL LIT4315569 Contact Us For Availability
1
Top, Main WPL 4315558 Contact Us For Availability
1
6`` Diameter Duct System Wall Cap WPL 786244 Contact Us For Availability
1
Valve, Gas (Includes Tube Fitting) (4) WPL 786121 Contact Us For Availability
1
Filter Kit (Contains 2) WPL 786160 Contact Us For Availability
1
Knob, Valve (4) WPL 4315542 Contact Us For Availability
1
Kit, Rotisserie (Complete) WPL 786225 Contact Us For Availability
1
Pan, Grille WPL 4315615 Contact Us For Availability
2
Electrode Asm. WPL 4315555 Contact Us For Availability
2
Box, Burner WPL 786136 Contact Us For Availability
2
3 1/4 X 10`` Rectangular Duct System Wall Cap WPL 786247 Contact Us For Availability
2
Pipe, Manifold WPL 786122 Contact Us For Availability
2
Plenum WPL 4179323 Contact Us For Availability
2
Trim, Control Panel WPL 4315287 Contact Us For Availability
2
Motor, Rotisserie 60 Hz. WPL 786165 Contact Us For Availability
2
Burner, Grille WPL 786116 Contact Us For Availability
3
Bowl Drip (Small) WPL 4315560 Contact Us For Availability
3
Screw, Valve (With Seal) WPL 61441 Contact Us For Availability
3
Gasket, Motor Mounting WPL 4179303 Contact Us For Availability
3
Burner Baffle (2) WPL 4315554 Contact Us For Availability
4
Burner, Rear (Short Venturi) WPL 4315562 Contact Us For Availability
4
Sheild, Switch WPL 786137 Contact Us For Availability
4
Regulator WPL 786123 Contact Us For Availability
4
Transition 6`` WPL 4179340 Contact Us For Availability
4
Glass, Control Panel WPL 4315539 Contact Us For Availability
4
Bracket, Motor Mounting WPL 786166 Contact Us For Availability
4
Electrode, Grille WPL 786205 Contact Us For Availability
5
Burner, Power (Long Venturi) WPL 4315564 Contact Us For Availability
5
Shield, Heat Control WPL 786138 Contact Us For Availability
5
R.F. Orifice & Tubing Assembly WPL 786206 Contact Us For Availability
5
Scroll, Fan WPL 786154 Contact Us For Availability
5
Shield, Valve & Switch WPL 4315453 Contact Us For Availability
5
Spit, Rotisserie WPL 786164 Contact Us For Availability
5
Support, Grille Burner WPL 786118 Contact Us For Availability
6
Gasket WPL 4315566 Contact Us For Availability
6
Bracket, Switch Mtg. WPL 4315452 Contact Us For Availability
7
Wire Shield, Ignitor WPL 4315559 Contact Us For Availability
7
Baffle, Bottom WPL 786139 Contact Us For Availability
7
R.R. Orifice & Tube Assembly WPL 786207 Contact Us For Availability
7
Nut, Locking (4) WPL 786239 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
7
Skewer (2) WPL 786163 Contact Us For Availability
7
Grille (2) WPL 4315536 Contact Us For Availability
8
Burner Support Plate WPL 4315611 Contact Us For Availability
8
Shield, Front Heat WPL 786140 Contact Us For Availability
8
L.F. Orifice & Tube Assembly WPL 4315553 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
8
Screw, 4-40 X 1/4 (2) WPL 786226 Contact Us For Availability
8
Screw, Thumb (2) WPL 786162 Contact Us For Availability
9
Bowl Drip (Large) WPL 4315613 Contact Us For Availability
10
Connector, Electrode WPL 4315561 Contact Us For Availability
10
Shield, Sight WPL 786141 Contact Us For Availability
10
L.R. Orifice & Tube Assembly WPL 4315552 Contact Us For Availability
10
Plate, Motor Mounting WPL 4314921 Contact Us For Availability
10
Actuator, Switch WPL 786124 Contact Us For Availability
10
Handle, Rotisserie WPL 786161 Contact Us For Availability
11
Module Pan WPL 4315614 Contact Us For Availability
11
Lockwasher No.8 WPL 786283 Contact Us For Availability
11
Cover, Access (2) WPL 786142 Contact Us For Availability
11
Palnut (4) WPL 786275 Contact Us For Availability
11
Grommet, Motor Mounting (8) WPL 786234 Contact Us For Availability
11
Switch, Fan WPL 786366 Contact Us For Availability
11
Rack, Rotisserie WPL 786159 Contact Us For Availability
12
Burner Mixing Tube Rear WPL 4315563 Contact Us For Availability
13
Bracket, Manifold Support WPL 786143 Contact Us For Availability
13
Insulator, Switch WPL 786380 Contact Us For Availability
13
Orifice Hood (R.F. and R.R.) WPL 786277 Contact Us For Availability
13
Orifice Hood (L.F. and L.R.) WPL 786276 Contact Us For Availability
14
Grate, Top Burner WPL 4315541 Contact Us For Availability
14
Bracket, Orifice Mounting WPL 4315530 Contact Us For Availability
14
Orifice Pin WPL 786278 Contact Us For Availability
14
Bracket, Fan Switch WPL 786271 Contact Us For Availability
15
Burner Mixing Tube (Front) WPL 4315565 Contact Us For Availability
15
Switch, Fan (Manual) WPL 4315285 Contact Us For Availability
16
Bracket, Plug Block Mounting (2) WPL 786145 Contact Us For Availability
17
Screw, 8-32 X 3/16 WPL 786231 Contact Us For Availability
17
Plug Block (R.H.) WPL 4314928 Contact Us For Availability
17
Plug Block (L.H.) WPL 4314929 Contact Us For Availability
17
Screw, 6-32 X 3/16 (2) WPL 786245 Contact Us For Availability
18
Motor, 60 Hz. WPL 4315281 Contact Us For Availability
19
Shutter, Venturi WPL 4173100 Contact Us For Availability
19
Bracket, Fan Switch (Left Side) WPL 786129 Contact Us For Availability
19
Bracket, Fan Switch (Right Side) WPL 786147 Contact Us For Availability
20
Pin, Ground WPL 786204 Contact Us For Availability
20
Switch, Fan WPL 4179158 Contact Us For Availability
20
Cover, Motor WPL 4314924 Contact Us For Availability
20
Block, Terminal WPL 786132 Contact Us For Availability
21
Screw No.10 (4) WPL 4315567 Contact Us For Availability
22
Electrode, Spark WPL 4315570 Contact Us For Availability
23
Tube, Flash WPL 4315612 Contact Us For Availability
23
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
24
Screw, Shutter WPL 4159460 Contact Us For Availability
24
Orifice WPL 4179324 Contact Us For Availability
25
Electrode Shield WPL 4315616 Contact Us For Availability
25
Nut, Keps 4-40 (2) WPL 786260 Contact Us For Availability
25
Conduit WPL 786253 Contact Us For Availability
26
Switch, Spark (4) WPL 786130 Contact Us For Availability
26
Seal, Plenum End (2) WPL 786149 Contact Us For Availability
28
Seal, Plenum Side (2) WPL 786148 Contact Us For Availability
28
Module, Spark WPL 786323 Contact Us For Availability
29
U-Clip, Top Mounting (12) WPL 786264 Contact Us For Availability
29
Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability
30
Bushing WPL 4314925 Contact Us For Availability
31
Nut, No.10-24 (3) WPL 786439 Contact Us For Availability
31
Screw, Hold Down (2) WPL 786211 Contact Us For Availability
31
Insulator, Switch WPL 786210 Contact Us For Availability
32
Nut, 1/4-20 (2) WPL 786222 Contact Us For Availability
32
Washer (3) WPL 4314923 Contact Us For Availability
33
Bolt, 10-24 X 3/4 (3) WPL 4314922 Contact Us For Availability
34
Cover, Vent WPL 4315537 Contact Us For Availability
35
Pan, Grease WPL 786265 Contact Us For Availability
37
Cord, Power WPL 786217 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
38
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
38
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
38
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
38
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
38
Wire, White 14 Ga. 150 oC WPL 242826 Contact Us For Availability
38
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
38
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
38
Wire, Red 12 Ga. 150 oC WPL 242829 Contact Us For Availability
38
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
38
Wire, Yellow 14 Ga. 200 oC WPL 242832 Contact Us For Availability
38
Bushing, Power Cord WPL 786287 Contact Us For Availability
A1
Griddle WPL 786100 Contact Us For Availability
× ![]()
