Model Whirlpool KGCG260SOB4 – Common Parts & Diagrams
03 - GRILL AND GRIDDLE UNIT
05 - WIRING HARNESS

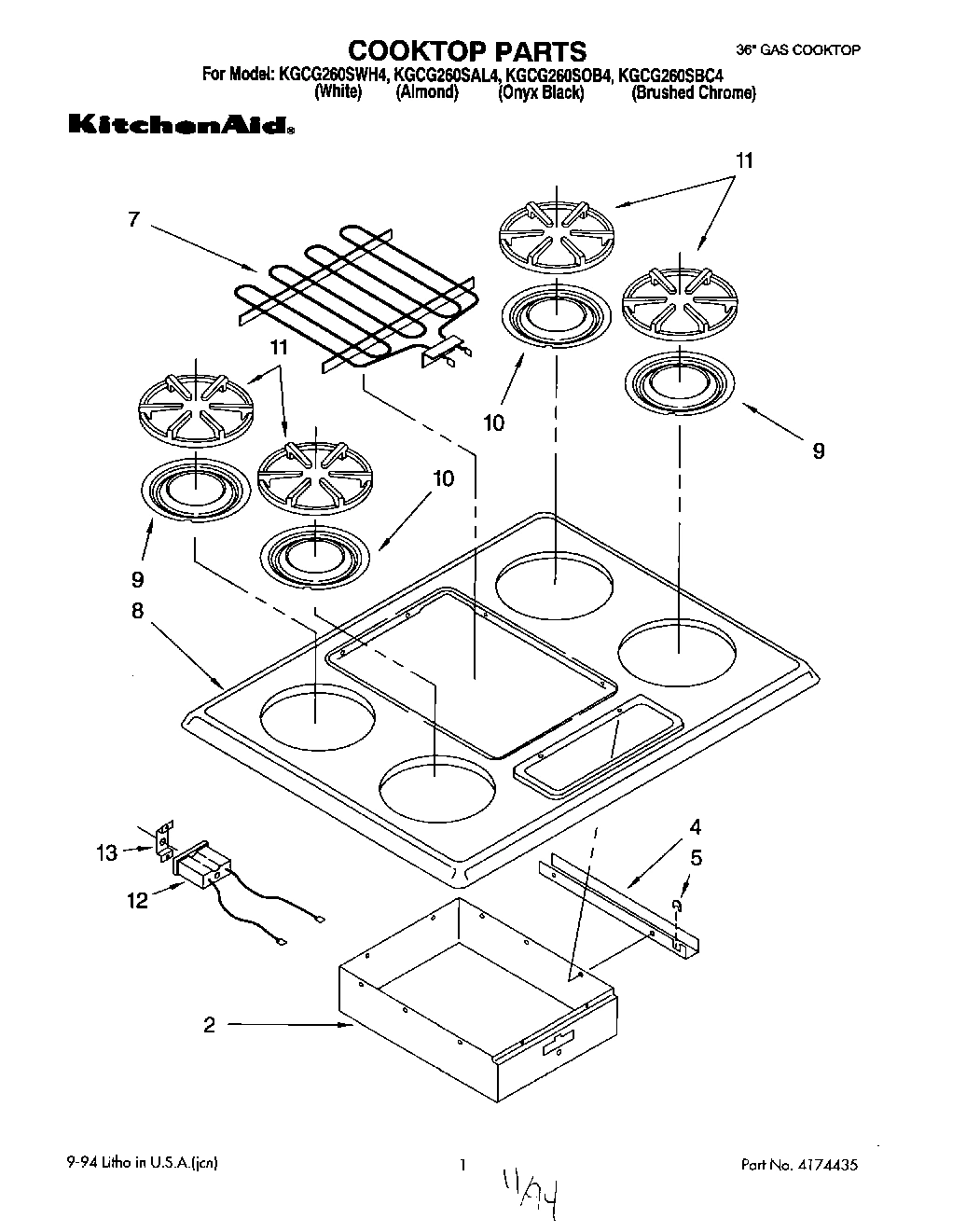

01 - COOKTOP, LITERATURE

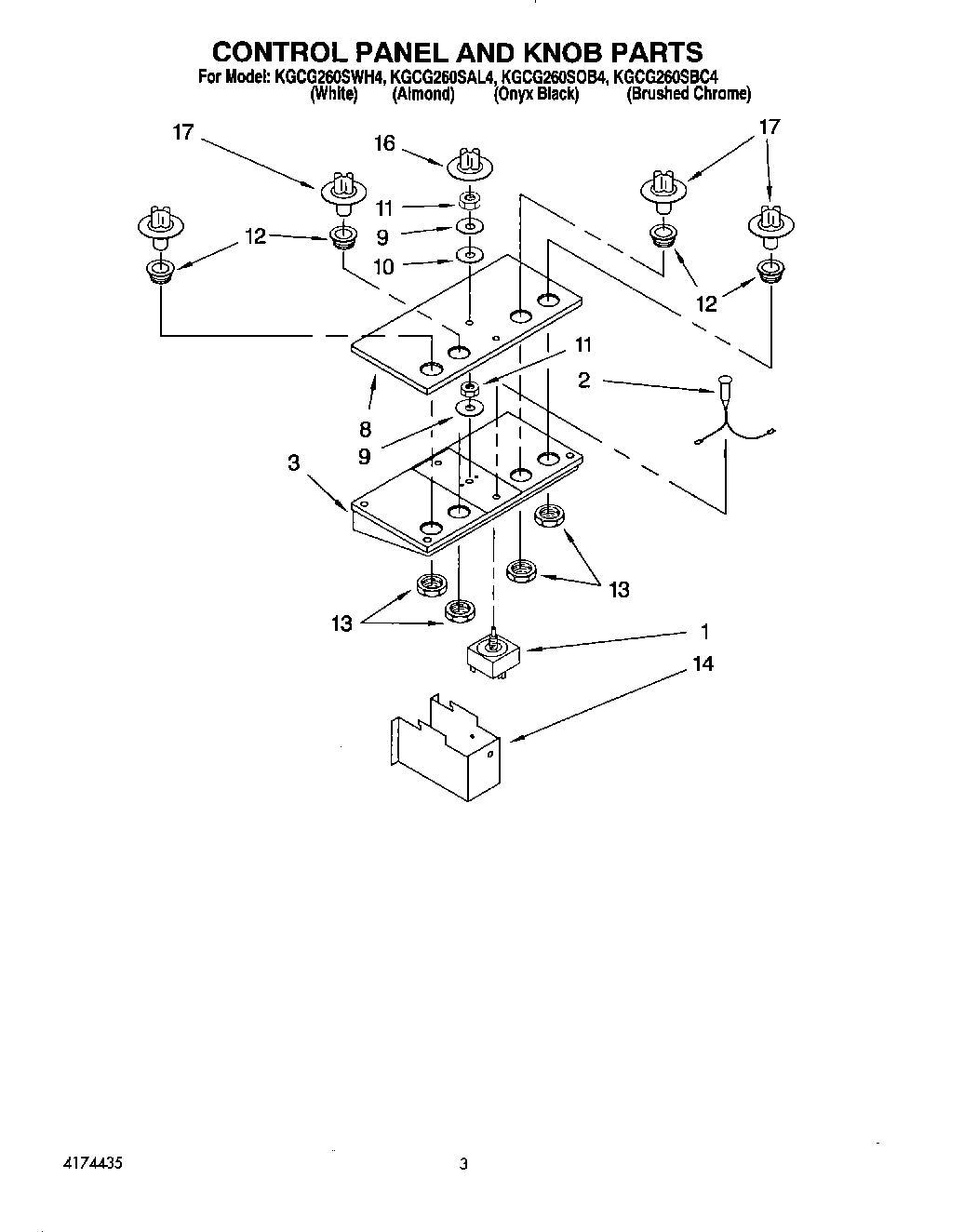

02 - CONTROL PANEL AND KNOB

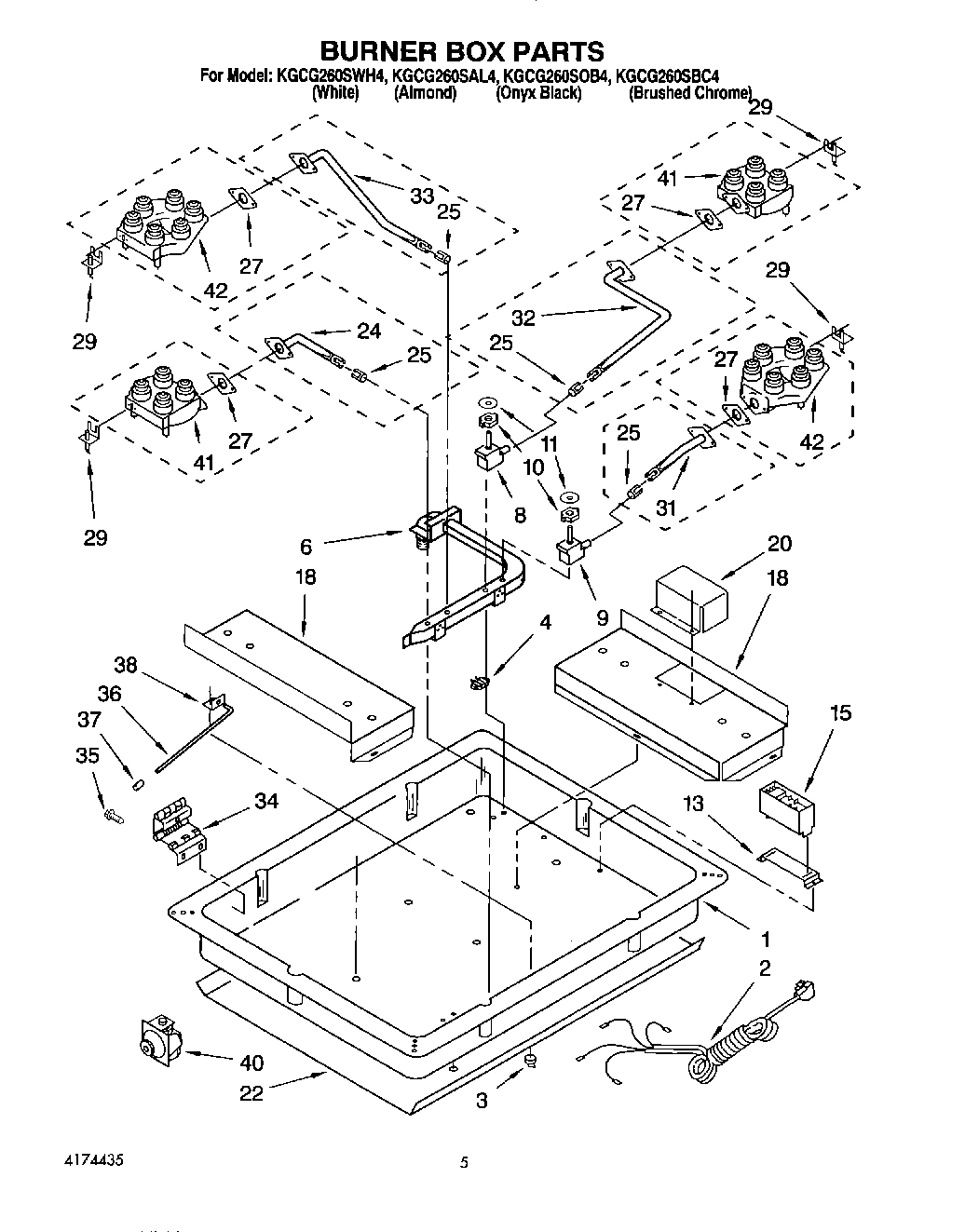

04 - BURNER BOX
Common parts from model Whirlpool KGCG260SOB4
Guide, Use & Care WPL LIT3185704 Contact Us For Availability
Instructions, Installation WPL LIT4174018 Contact Us For Availability
1
Wiring Harness (Electric Grill) WPL 3178599 Contact Us For Availability
1
Switch, Infinite WPL 3185110 Contact Us For Availability
1
Box, Burner WPL 3186732 Contact Us For Availability
2
Wiring Harness (Spark Module To Valve Switch) WPL 4173107 Contact Us For Availability
2
Pan, Heat Shield WPL 4173123 Contact Us For Availability
2
Light, Grill Indicator WPL 4173131 Contact Us For Availability
2
Power Cord WPL 4173105 Contact Us For Availability
3
Grate, Grill WPL 4164334 Contact Us For Availability
3
Nut (4) No.8-32 WPL 3179225 Contact Us For Availability
3
Screw (4), No.8-32x.500 WPL 3179226 Contact Us For Availability
3
Frame, Glass Mounting WPL 4173132 Contact Us For Availability
3
Bushing, Strain Relief WPL 3178602 Contact Us For Availability
4
Pan, Carmelizing WPL 4164306 Contact Us For Availability
4
Channel, Grill Harness WPL 4173124 Contact Us For Availability
4
Block, Terminal WPL 3178598 Contact Us For Availability
4
Wire, Spark Module To Terminal Block WPL 4173221 Contact Us For Availability
5
Pan, Grill WPL 3178709 Contact Us For Availability
5
Screw, Drive (2) (Channel Mounting) WPL 4159386 Contact Us For Availability
5
Bushing, Electrical (Harness Channel) WPL 4159045 Contact Us For Availability
6
Handle, Grill Cover WPL 4164376 Contact Us For Availability
6
Manifold Ass`y WPL 3178608 Contact Us For Availability
7
Cover, Grill WPL 4164318 Contact Us For Availability
7
Element, Grill (1700 W 120 V) WPL 3177527 Contact Us For Availability
8
Screw, Machine (2) (Handle Mounting) WPL 4159201 Contact Us For Availability
8
Cooktop (Brushed Chrome) WPL 3179330 Contact Us For Availability
8
Cooktop (Almond) WPL 3179331 Contact Us For Availability
8
Cooktop (White) WPL 3179332 Contact Us For Availability
8
Cooktop (Onyx Black) WPL 3179333 Contact Us For Availability
8
Panel, Control (Glass) (Kitchen Aid Name- pla WPL 4173133 Contact Us For Availability
8
Valve, Daisy (2) (Bolt Thru) WPL 4173110 Contact Us For Availability
9
Bowl, Drip (2) (Power Burner) WPL 3178706 Contact Us For Availability
9
Washer, Metal (2) WPL 4159607 Contact Us For Availability
9
Valve, Power (2) (Bolt Thru) WPL 4173111 Contact Us For Availability
10
Bowl, Drip (2) (Daisy Burner) WPL 3178707 Contact Us For Availability
10
Switch, Gas Ignitor (4) WPL 4173112 Contact Us For Availability
11
Grate, Burner (4) WPL 3178597 Contact Us For Availability
11
Nut, Hexagon Jam WPL 4159114 Contact Us For Availability
12
Receptacle, Grill Element WPL 3178640 Contact Us For Availability
12
Grommet, Control Panel Positioning (4) WPL 4173134 Contact Us For Availability
13
Screw, Drive (2) (Spark Module Bracket Mounti WPL 4159448 Contact Us For Availability
13
Hardware, Installation WPL 4164344 Contact Us For Availability
13
Clip, Grill Ground WPL 4173126 Contact Us For Availability
13
Locknut, Control Panel Positioning (4) WPL 4173135 Contact Us For Availability
13
Bracket, Spark Module WPL 4169250 Contact Us For Availability
14
Cover, Infinite Switch WPL 3178601 Contact Us For Availability
15
Module, Spark Ignition WPL 3186576 Contact Us For Availability
16
Knob, Control Panel WPL 4164307 Contact Us For Availability
17
Knob, Burner Control (4) WPL 4169279 Contact Us For Availability
18
Bracket, Burner Base (Right) WPL 3178600 Contact Us For Availability
18
Bracket, Burner Base (Left) WPL 4173116 Contact Us For Availability
20
Cover, Spark Module WPL 4173117 Contact Us For Availability
22
Pan, Heat Shield Burner Box WPL 4173118 Contact Us For Availability
24
Venturi (Left Front) (Includes Illus. 25 & 26 WPL 3178912 Contact Us For Availability
25
Mixer Valve WPL 3178501 Contact Us For Availability
25
Screw, Drive (Shutter Mounting) WPL 4159460 Contact Us For Availability
27
Gasket, Venturi To Burner WPL 4166263 Contact Us For Availability
27
Screw, Drive (2) (Venturi To Burner) WPL 4159186 Contact Us For Availability
31
Venturi (Right Front) (Includes Illus. 25 & 2 WPL 3178911 Contact Us For Availability
32
Venturi (Right Rear) WPL 4173121 Contact Us For Availability
33
Venturi (Left Rear) WPL 4173122 Contact Us For Availability
34
Hinge, Cooktop (2) WPL 4169248 Contact Us For Availability
36
Rod, Cook Support WPL 4173127 Contact Us For Availability
37
Tip, Rod Support WPL 3178606 Contact Us For Availability
38
Screw, Drive (2) (Support Rod Bracket Mountin WPL 4159465 Contact Us For Availability
38
Bracket, Support Rod WPL 3178605 Contact Us For Availability
40
REGULATOR, PRESSURE WPL 4167273 Contact Us For Availability
41
Burner, Daisy (2) (Includes Illus. 2 WPL 3178701 Contact Us For Availability
42
WPL 3178700 WPL 3178700 Contact Us For Availability
42
WPL 4173231 WPL 4173231 Contact Us For Availability
× ![]()
