Model LG KG8000R WINDOW AC – Common Parts & Diagrams

Common parts from model LG KG8000R WINDOW AC

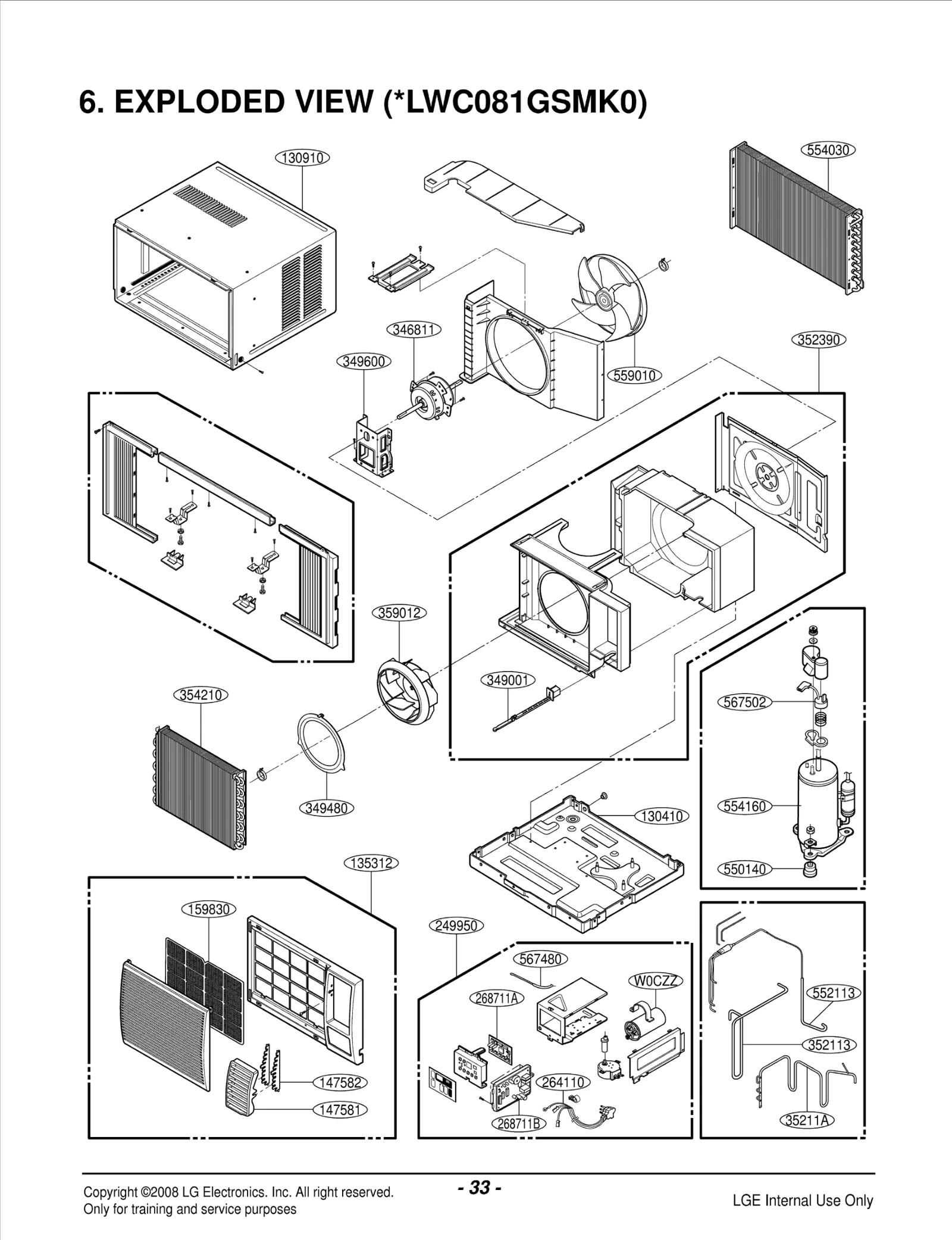

Diagram 0

Print

• This Diagram
• All Diagrams

130410

BASE ASSEMBLY,SINGLE LGE 3041A30011D Contact Us For Availability

View on Model

130910

CABINET ASSY,SINGLE LGE 3091A30005D Contact Us For Availability

View on Model

135312

GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A20034Y Contact Us For Availability

View on Model

147581

LOUVER,HORIZONTAL LGE 4758A20002A Contact Us For Availability

View on Model

147582

LOUVER,VERTICAL LGE 4758A30008A Contact Us For Availability

View on Model

159830

5231A20004S LG Air Conditioner Filter Cleaner Backorder LGE 5231A20004S View Details $8.52

View on Model

249950

CONTROL BOX ASSEMBLY,SINGLE LGE 4995A10028M Contact Us For Availability

View on Model

264110

POWER CODE ASSY WA-CHASSIS, S LGE 2H00677P Contact Us For Availability

View on Model

268711A

PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20189B Contact Us For Availability

View on Model

268711B

PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20188F Contact Us For Availability

View on Model

346811

MOTOR ASSEMBLY,SINGLE LGE 4681A20073A Contact Us For Availability

View on Model

346811

Package Assembly,C/SKD LGE 3911A30056A Contact Us For Availability

View on Model

349001

4901A30001A LG Damper Assembly Backorder LGE 4901A30001A View Details $2.17

View on Model

349480

ORIFICE LGE 4948A30007A Contact Us For Availability

View on Model

349600

4960A20014A LG Air Conditioner Motor Bracket Backorder LGE 4960A20014A View Details $15.11

View on Model

352113

TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A20708A Contact Us For Availability

View on Model

352390

AIR GUIDE ASSY LGE 5239A30002D Contact Us For Availability

View on Model

354210

Evaporator Assembly,First LGE 5421A90030A Contact Us For Availability

View on Model

354210

EVAPORATOR ASSEMBLY,FIRST LGE 5421A20061E Contact Us For Availability

View on Model

359012

5900A10008A LG Air Conditioner Turbo Fan Backorder LGE 5900A10008A View Details $11.65

View on Model

550140

5040AR4195A LG Comfort-Aire Compressor Isolat Backorder LGE 5040AR4195A View Details $3.56

View on Model

552113

TUBE ASSEMBLY,CONDENSER OUT LGE 5211A10067G Contact Us For Availability

View on Model

554030

CONDENSER ASSEMBLY,FIRST LGE 5403A20092A Contact Us For Availability

View on Model

554160

COMPRESSOR LGE 5416A20014B Contact Us For Availability

View on Model

559010

5900A20015E LG Air Conditioner Axial Fan Backorder LGE 5900A20015E View Details $37.13

View on Model

567480

THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability

View on Model

567502

O.L.P LGE 6750A30001N Contact Us For Availability

View on Model

W0CZZ

CAPACITOR LGE 6120AR2359V Contact Us For Availability

View on Model

×
