Model Accelerated Cooking Products KFC1-P1198622M Amana Menumaster KFC1 – Common Parts & Diagrams

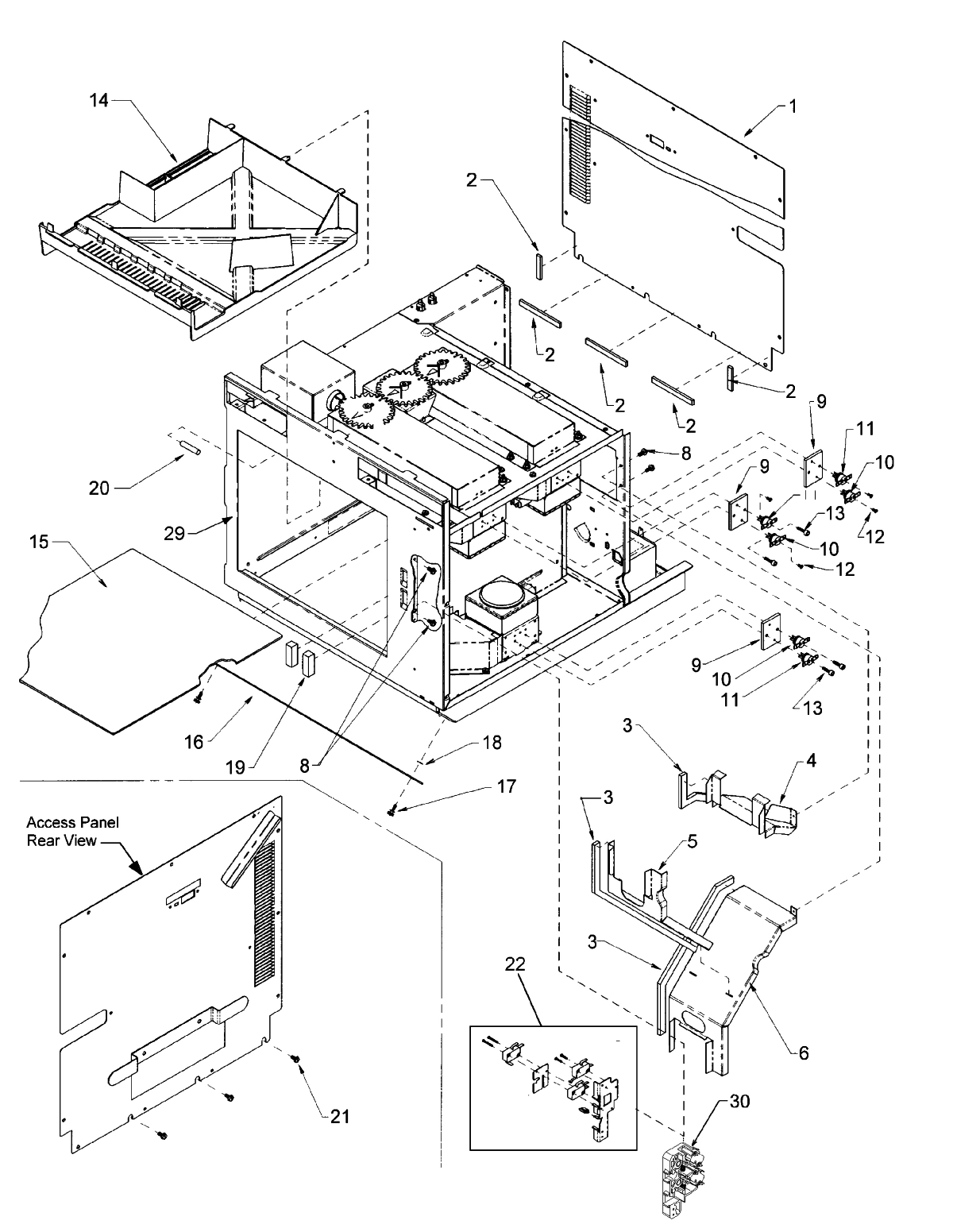

CHASSIS ASSEMBLY PARTS 1

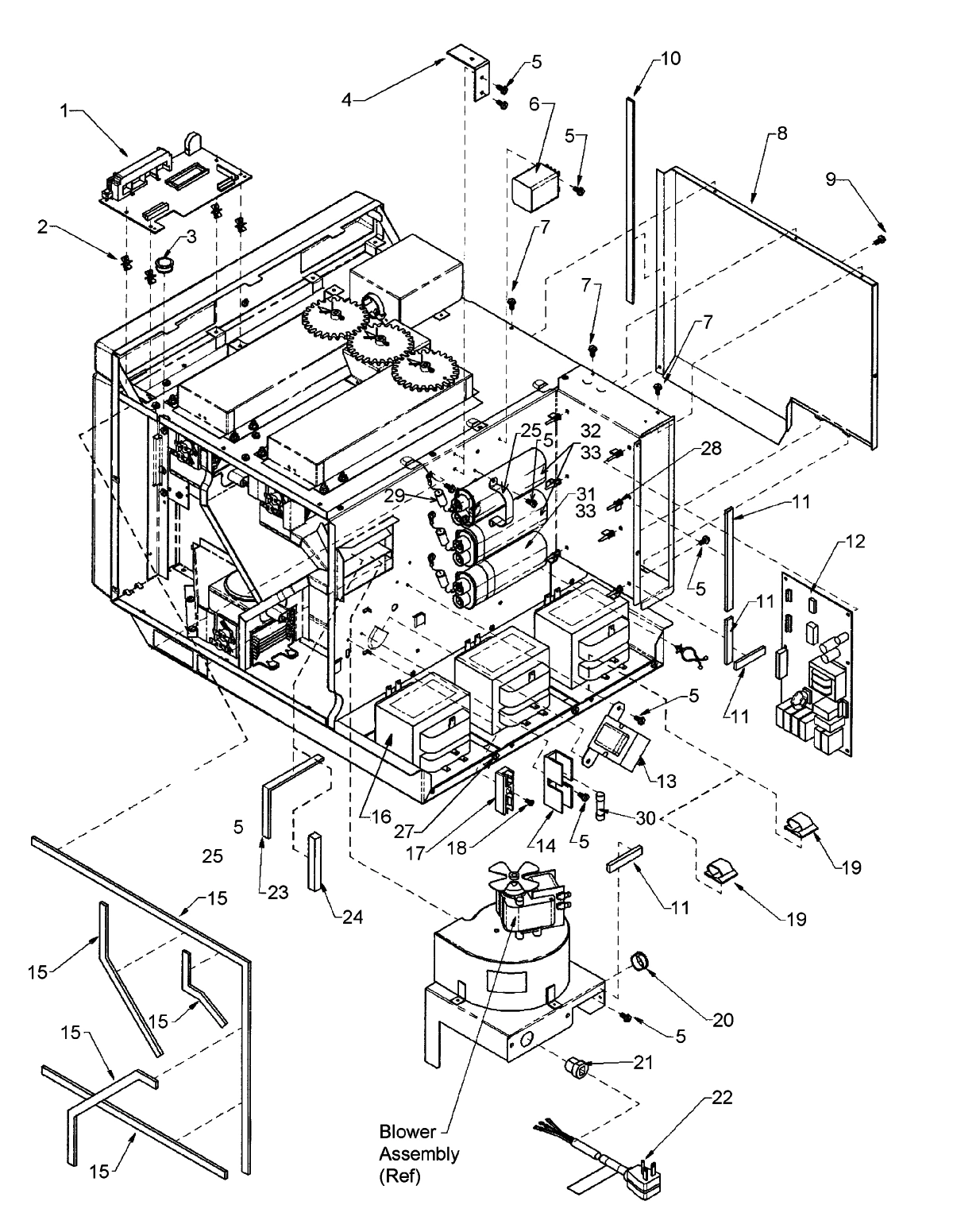

CHASSIS ASSEMBLY PARTS 2

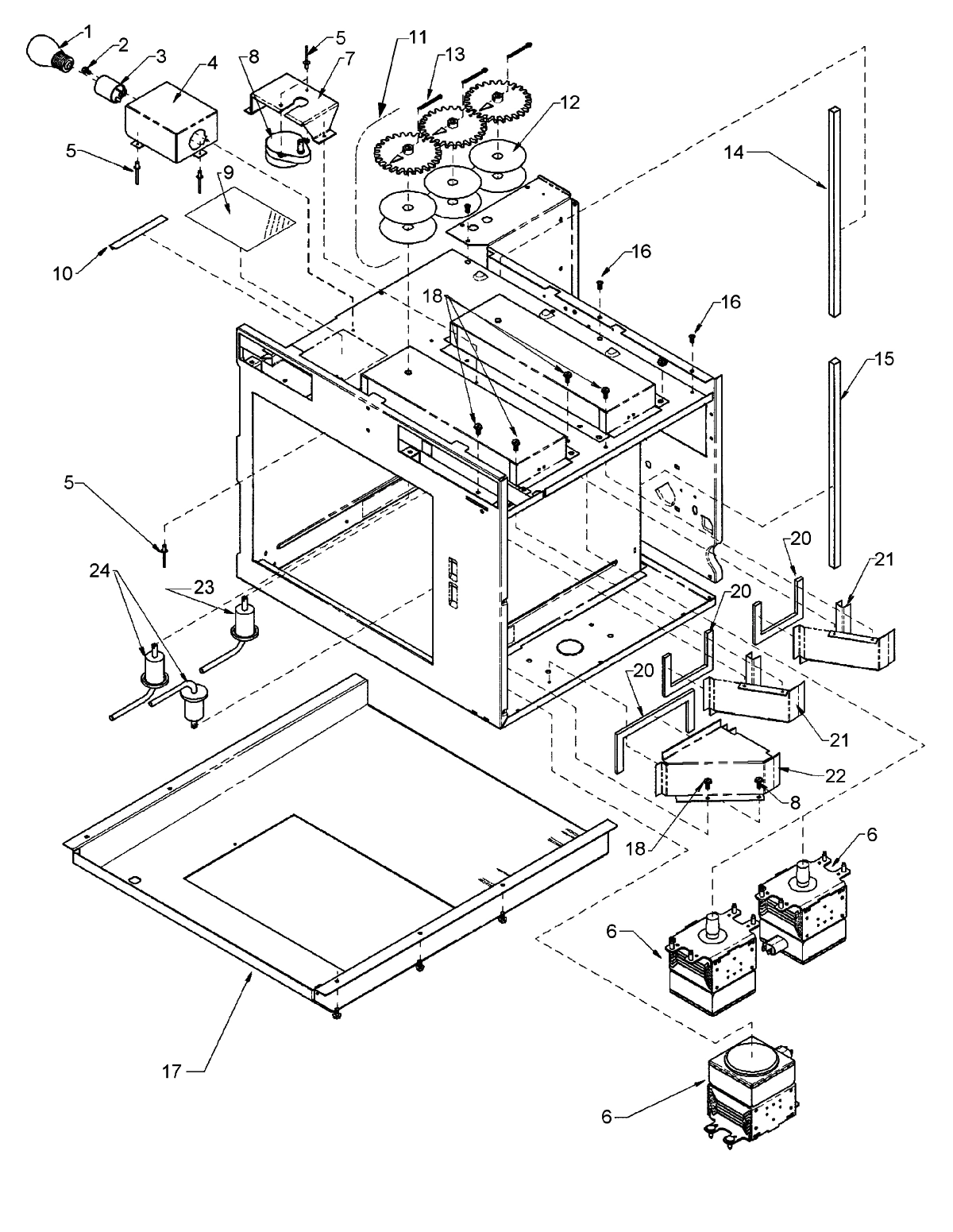

CHASSIS ASSEMBLY PARTS 3

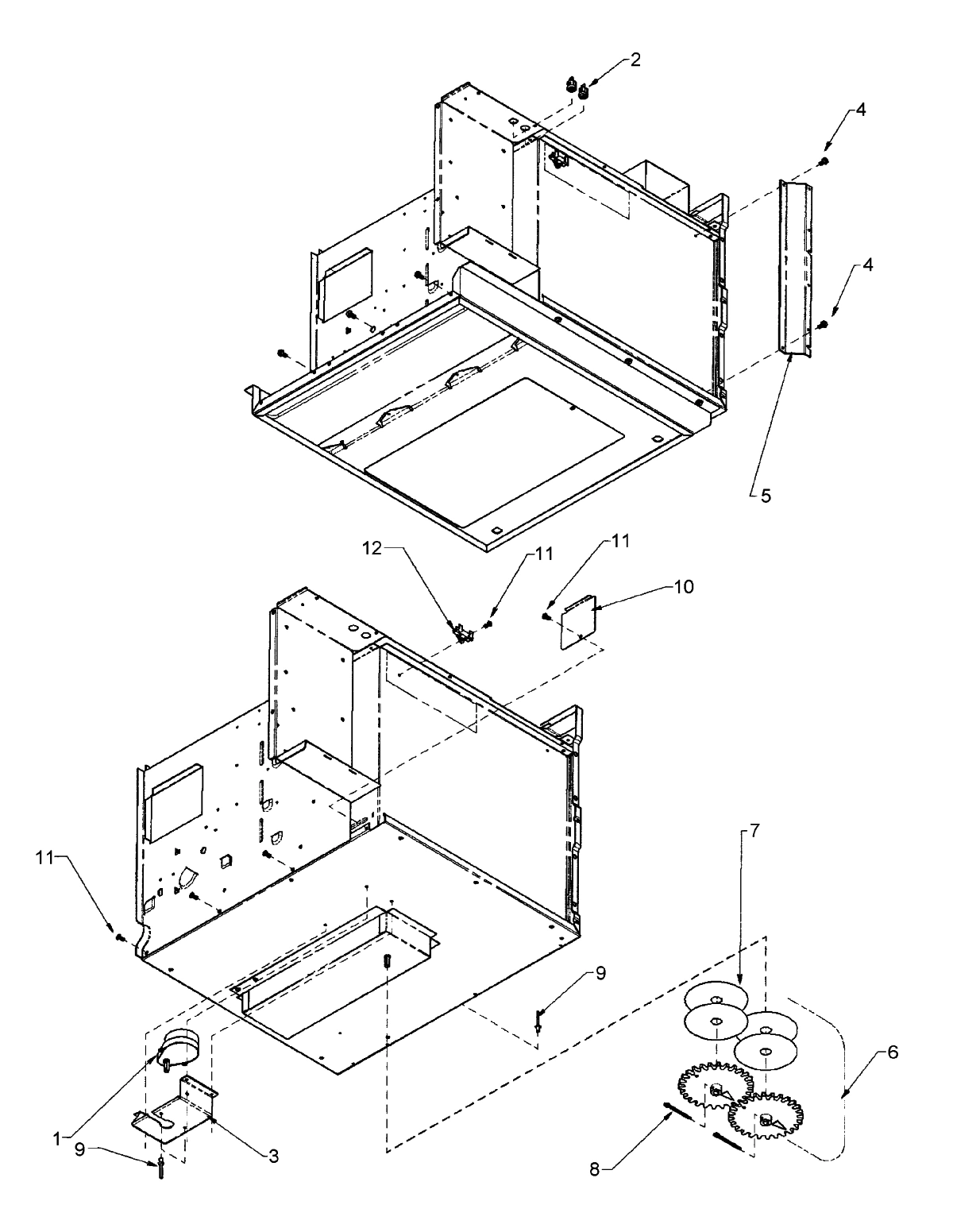

CHASSIS ASSEMBLY PARTS 4

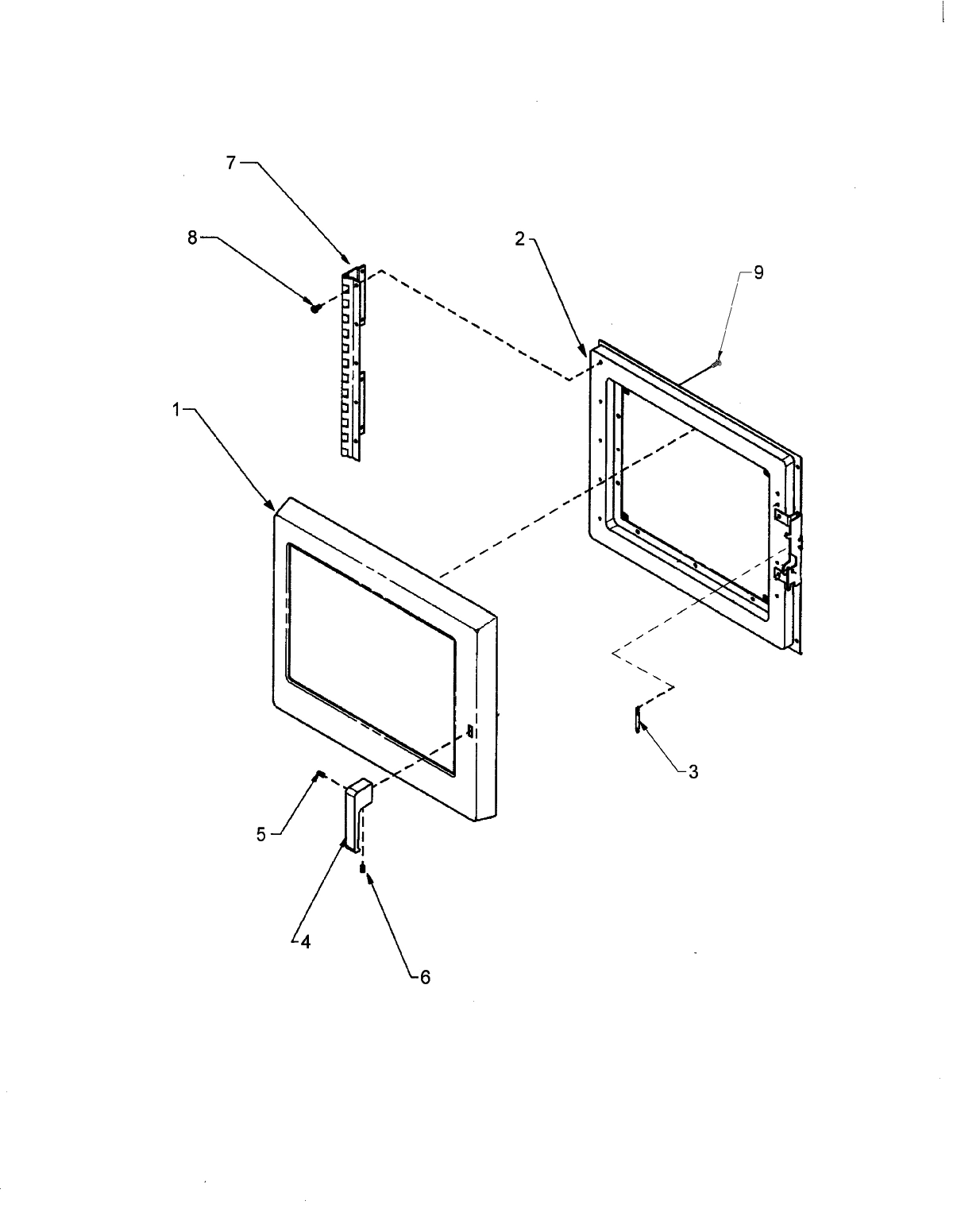

DOOR ASSEMBLY
MISCELLAEOUS INFORMATION

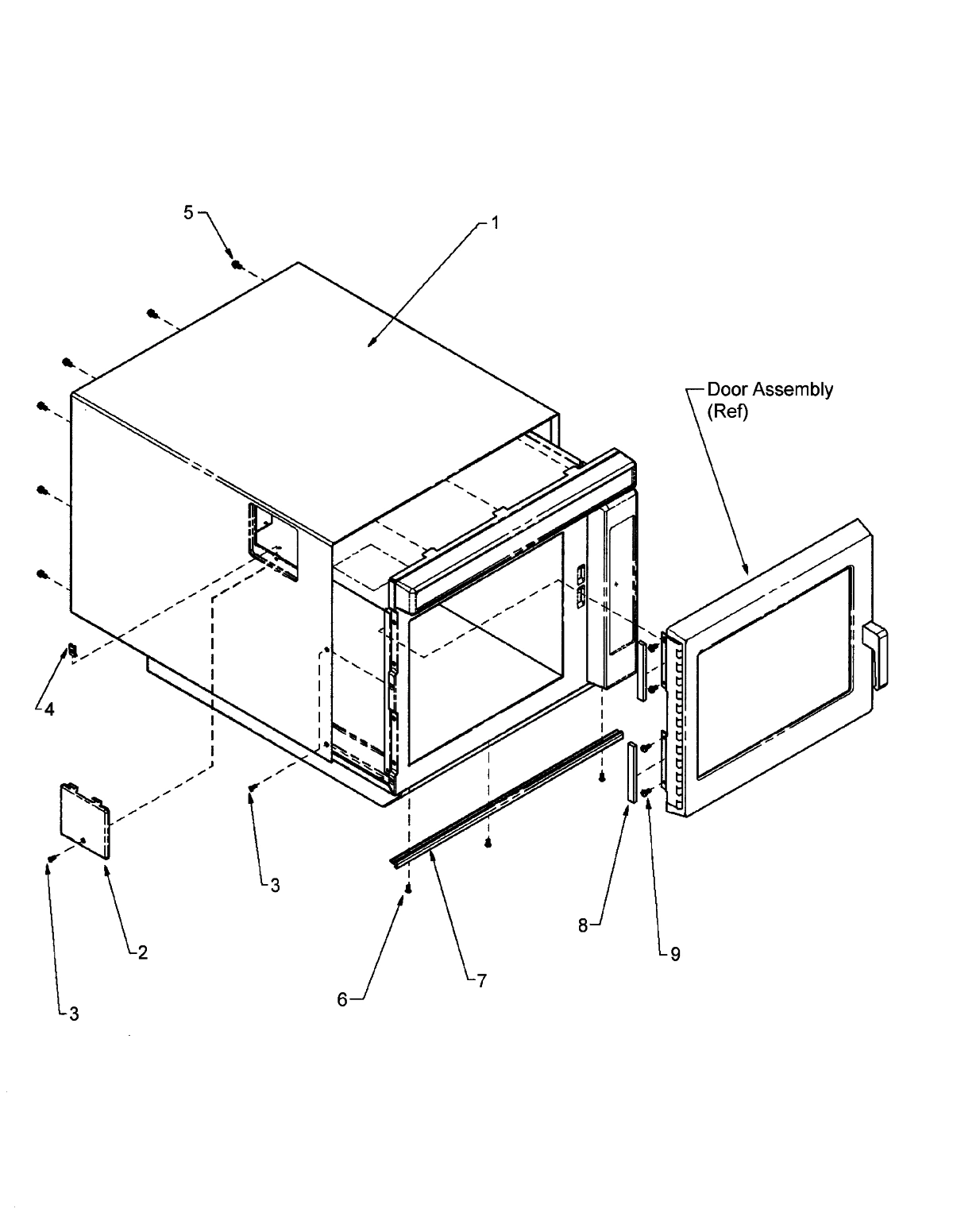

OUTERCASE ASSEMBLY

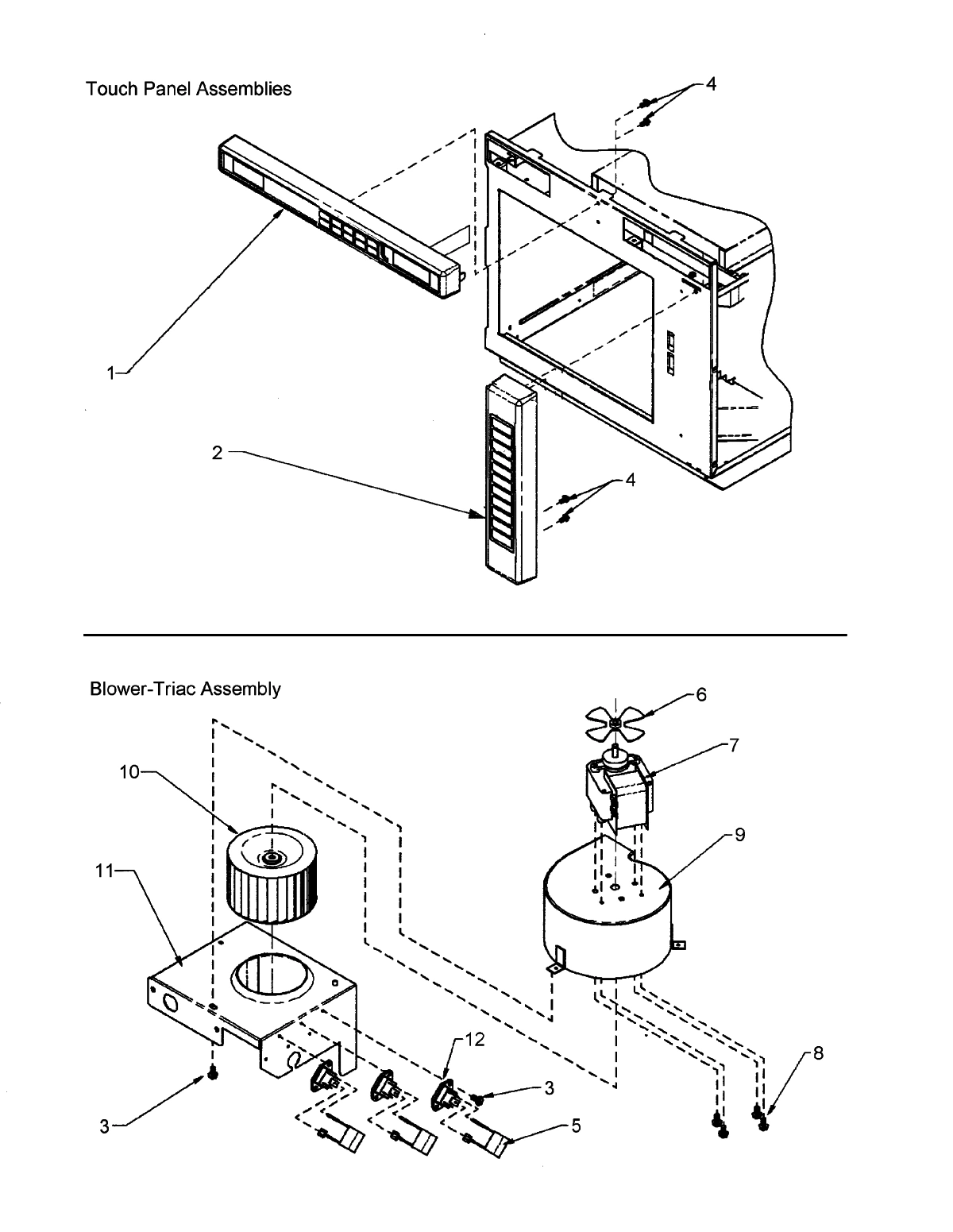

TOUCH PANEL & BLOWER-TRIAC ASSEMBLY
Common parts from model Accelerated Cooking Products KFC1-P1198622M Amana Menumaster KFC1
1
KIT, ANTENNA MOTOR ACP R0150102 Contact Us For Availability
1
OWNERS MANAUL (KFC1) ACP 12392728 Contact Us For Availability
1
TOUCH PANEL ASSY ACP R0156972 Contact Us For Availability
2
SCREW-SM/KNIFE RoHS ACP 12991101 Contact Us For Availability
2
BUSHING-TERMINAL ACP M0325401 Contact Us For Availability
2
KIT, INNER DOOR & WELD ACP R0156921 Contact Us For Availability
2
TOUCH PANEL ASSY- SIDE ACP R0156975 Contact Us For Availability
3
BRACKET, MOTOR ACP 10782202 Contact Us For Availability
3
SCREW, T F ACP 13042001 Contact Us For Availability
4
WINDOW, INNER ACP 10782501 Contact Us For Availability
5
BRACKET, HINGE SUPPORT ACP 12189001 Contact Us For Availability
6
KIT, CAVITY- 3 TUBE ACP R0000108 Contact Us For Availability
6
SCREW ACP 12990609 Contact Us For Availability
7
KIT, FUSE- 15 AMP ACP 12001916 Contact Us For Availability
7
MOTOR- BLOWER ACP 10773305 Contact Us For Availability
8
PIN, COTTER ACP M1200005 Contact Us For Availability
8
GASKET ACP A3263904 Contact Us For Availability
8
SCREW ACP M0253916 Contact Us For Availability
9
RIVET, POP ACP A4539605 Contact Us For Availability
9
WELD, SCROLL ACP 10797202 Contact Us For Availability
10
TAPE-STRAP 1.00 ACP M0275035 Contact Us For Availability
10
PLATE-PARTITION ACP 20172301 Contact Us For Availability
11
KIT, GEAR ACP R0156917 Contact Us For Availability
15
GASKET ACP 59002162 Contact Us For Availability
16
SCREW ACP M0216716 Contact Us For Availability
17
BASE PAN ASSY ACP R0156923 Contact Us For Availability
21
RELIEF-STRAIN ACP M0370011 Contact Us For Availability
22
DUCT-BTM EXHAUST ACP 14179136 Contact Us For Availability
23
ANTENNA ASSY, BLUE TIP ACP 10787602 Contact Us For Availability
24
ANTENNA ASSY, PLAIN TIP ACP 10787601 Contact Us For Availability
25
HARNESS, OVEN LAMP ACP 10901201 Contact Us For Availability
28
SUPPORT ACP 59174558 Contact Us For Availability
31
CAPACITOR-.74 ACP D8547928 Contact Us For Availability
32
CAPACITOR- .80 ACP D8547929 Contact Us For Availability
999
HARNESS, WIRE ACP 12329001 Contact Us For Availability
999
HARNESS, HV ACP 12424701 Contact Us For Availability
999
WIRE, JUMPER #6 ACP 10902941 Contact Us For Availability
999
HARNESS, TRANSFORMER ACP 12424801 Contact Us For Availability
× ![]()
