Model Electrolux KF520GDH2 RANGE – Common Parts & Diagrams

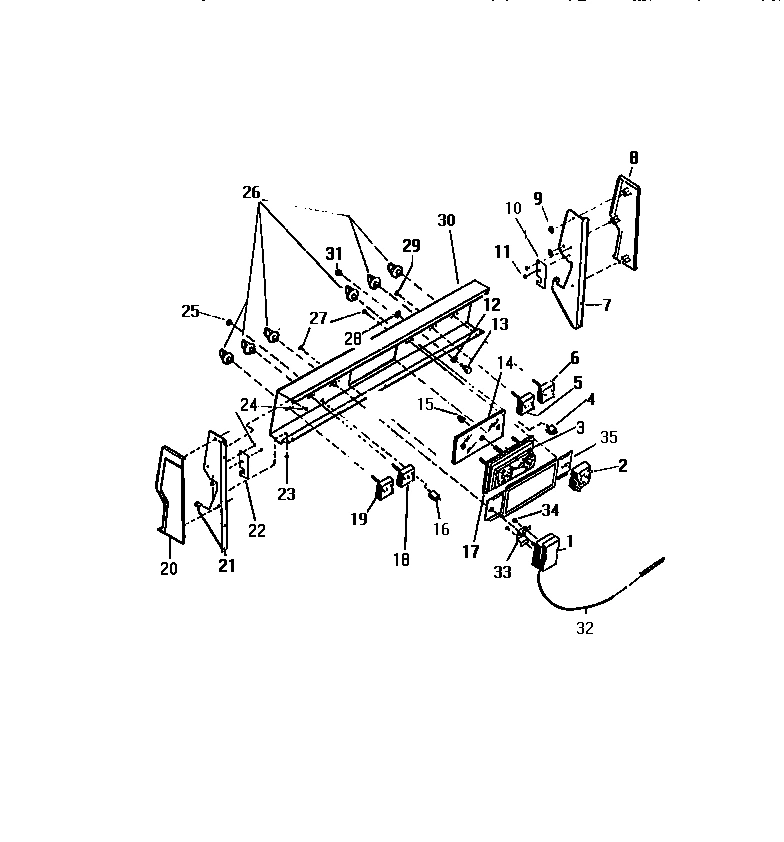

02 - BACKGUARD

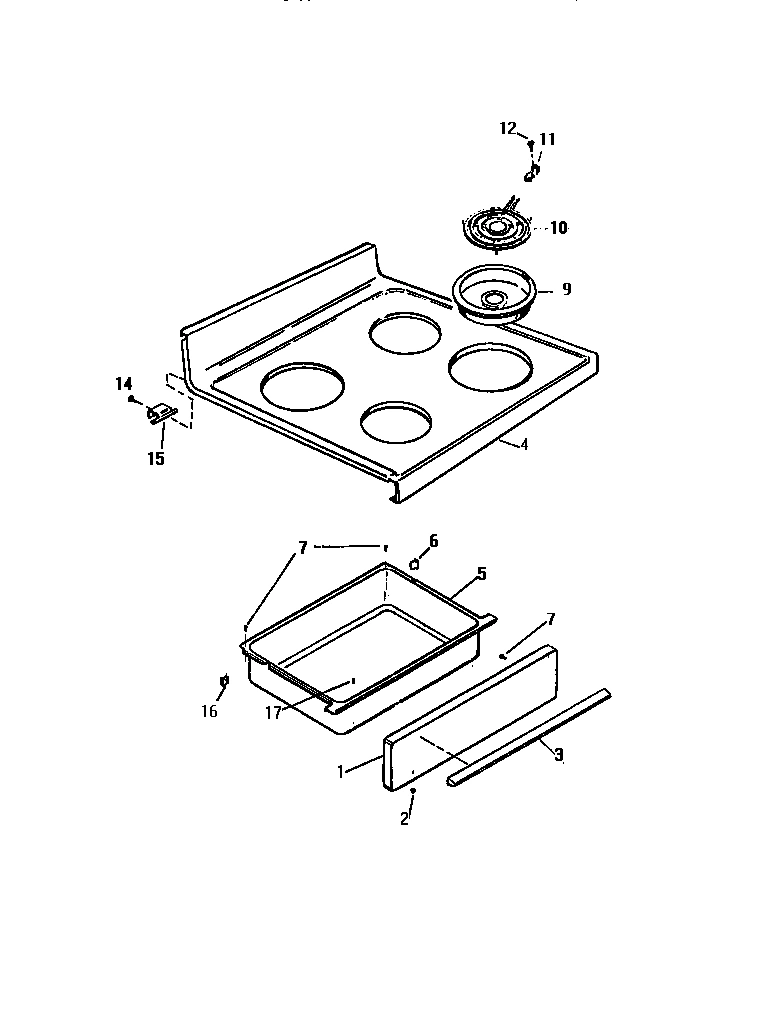

03 - TOP/DRAWER

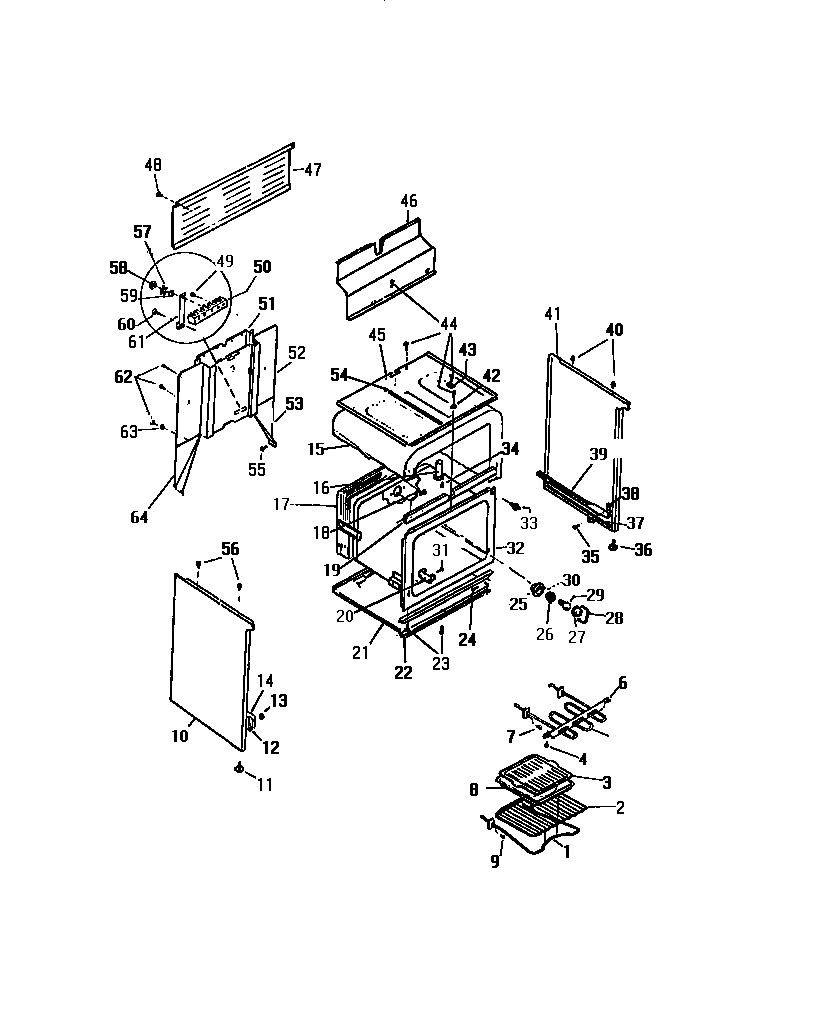

04 - BODY, SIDE PANELS

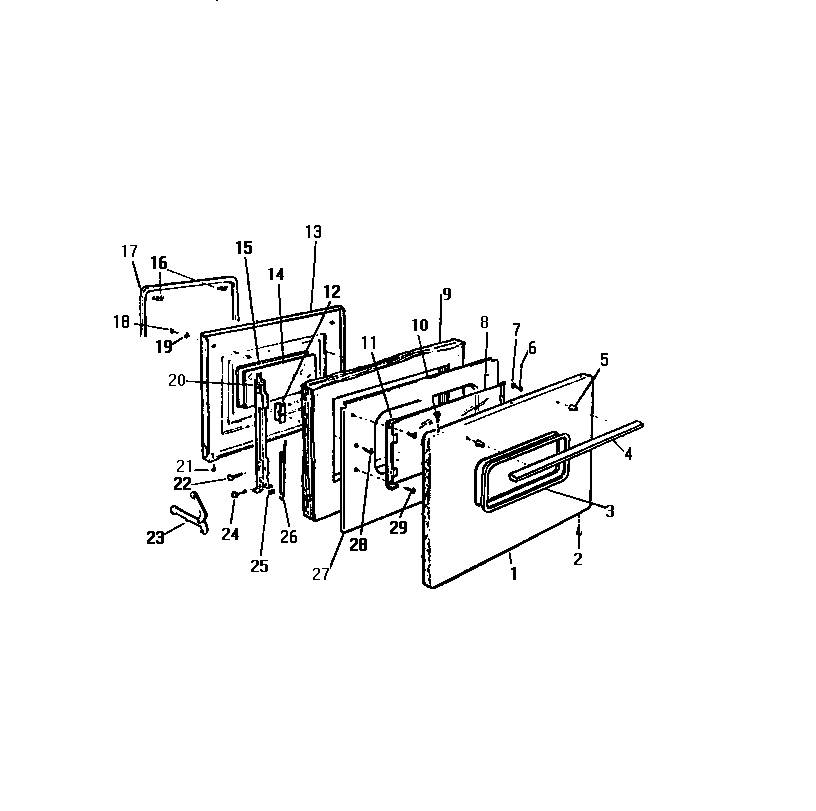

05 - DOOR
Common parts from model Electrolux KF520GDH2 RANGE
1
THERMOSTAT WCI K5275501 Contact Us For Availability
1
WCI K1325099 WCI K1325099 Contact Us For Availability
1
WCI K1325317 WCI K1325317 Contact Us For Availability
2
SWITCH, SELECTOR WCI K5146703 Contact Us For Availability
2
RACK (2) WCI K1311570 Contact Us For Availability
2
WCI K1164560 WCI K1164560 Contact Us For Availability
3
WCI K5324301 WCI K5324301 Contact Us For Availability
3
GRILL WCI K1317972 Contact Us For Availability
3
J MOULDING WCI K1313568 Contact Us For Availability
4
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
4
HANDLE WCI K5030201 Contact Us For Availability
4
WCI K5024214 WCI K5024214 Contact Us For Availability
5
DRAWER WCI K1324095 Contact Us For Availability
5
SPACER (2) WCI K1311965 Contact Us For Availability
6
HANGER WCI K1314456 Contact Us For Availability
6
WCI Q410505 WCI Q410505 Contact Us For Availability
7
WCI K5025202 WCI K5025202 Contact Us For Availability
7
SCREW (2) WCI K5104201 Contact Us For Availability
8
WCI K5030402 WCI K5030402 Contact Us For Availability
8
PAN WCI K1317973 Contact Us For Availability
8
WCI K1325512 WCI K1325512 Contact Us For Availability
9
NUT (3) WCI K5036602 Contact Us For Availability
9
INSULATION WCI K1325629 Contact Us For Availability
10
END PANEL, LH, WHEAT WCI K5024610 Contact Us For Availability
11
RETAINER (2) WCI K1325270 Contact Us For Availability
12
WCI K1188512 WCI K1188512 Contact Us For Availability
12
WCI K1325510 WCI K1325510 Contact Us For Availability
13
WCI K5051801 WCI K5051801 Contact Us For Availability
13
WCI K1325505 WCI K1325505 Contact Us For Availability
14
WCI K1308105 WCI K1308105 Contact Us For Availability
14
WCI K5269902 WCI K5269902 Contact Us For Availability
14
WCI K1325511 WCI K1325511 Contact Us For Availability
15
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
15
WCI K5024901 WCI K5024901 Contact Us For Availability
15
INSULATION, WRAP WCI K1311329 Contact Us For Availability
15
WCI K1325686 WCI K1325686 Contact Us For Availability
16
LIGHT SIGNAL (OVER 250V) WCI K1167858 Contact Us For Availability
16
GUIDE WCI K1324091 Contact Us For Availability
16
VENT TUBE WCI K5025501 Contact Us For Availability
16
CLIP, DOOR GASKET WCI K1309666 Contact Us For Availability
17
BEZEL WCI K1166856 Contact Us For Availability
17
SCREW WCI K5022201 Contact Us For Availability
17
INSULATION, BACK WCI K1325625 Contact Us For Availability
17
GASKET, ( COMPLETE W/ CLIPS ) WCI K1312480 Contact Us For Availability
19
CHANNEL, OVEN SUPPORT WCI K1325472 Contact Us For Availability
19
WASHER WCI K1313226 Contact Us For Availability
20
WCI K5030401 WCI K5030401 Contact Us For Availability
20
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
20
WCI K1311614 WCI K1311614 Contact Us For Availability
21
WCI K5025201 WCI K5025201 Contact Us For Availability
21
WCI K5276504 WCI K5276504 Contact Us For Availability
22
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
22
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
22
RIVET WCI K1100773 Contact Us For Availability
23
WCI K1164566 WCI K1164566 Contact Us For Availability
23
HINGE ARM ASSEMBLY (2) WCI K1310065 Contact Us For Availability
24
PIN WCI K5038501 Contact Us For Availability
25
WCI K1325530 WCI K1325530 Contact Us For Availability
25
ROLLER KIT COMPLETE (PKG OF 2) WCI K1167752 Contact Us For Availability
26
KNOB (6) WCI K5156302 Contact Us For Availability
26
SPRING WCI K1302505 Contact Us For Availability
27
PANEL, AIRWASH WCI K1325509 Contact Us For Availability
28
WCI K5051701 WCI K5051701 Contact Us For Availability
28
RETAINING WIRE WCI K1325529 Contact Us For Availability
28
WCI K1164550 WCI K1164550 Contact Us For Availability
29
SCREW, SWITCH MOUNTING (8) WCI K1313060 Contact Us For Availability
29
WCI Q63749 WCI Q63749 Contact Us For Availability
30
WCI K5319401 WCI K5319401 Contact Us For Availability
31
LENS WCI K1322678 Contact Us For Availability
32
WCI K1305350 WCI K1305350 Contact Us For Availability
32
WCI K1325537 WCI K1325537 Contact Us For Availability
33
BRACKET WCI K1312148 Contact Us For Availability
33
SWITCH, OVEN LIGHT WCI K5294301 Contact Us For Availability
34
SCREW WCI K5022101 Contact Us For Availability
34
SCREW WCI K1164309 Contact Us For Availability
35
WCI K5296301 WCI K5296301 Contact Us For Availability
35
SCREW WCI K1164569 Contact Us For Availability
36
LEG WCI K1322905 Contact Us For Availability
37
GUIDE WCI K1315216 Contact Us For Availability
38
SPACER, RAIL WCI K1324860 Contact Us For Availability
39
RAIL, DRAWER, LH WCI K5269901 Contact Us For Availability
41
END PANEL, RH, WHEAT WCI K5024609 Contact Us For Availability
43
RETAINER WCI K1310049 Contact Us For Availability
45
PANE, SUBTOP WCI K5025802 Contact Us For Availability
46
WCI K5029503 WCI K5029503 Contact Us For Availability
47
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
49
SCREW (2) WCI K1164479 Contact Us For Availability
50
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
51
COVER, WIRE WCI K5276202 Contact Us For Availability
52
BACK WCI K5275802 Contact Us For Availability
53
GUSSET, RH WCI K5285802 Contact Us For Availability
54
ROD WCI K1315232 Contact Us For Availability
56
BUMPER WCI K5106901 Contact Us For Availability
57
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
58
NUT (6) WCI Q401002 Contact Us For Availability
59
WASHER (6) WCI Q402503 Contact Us For Availability
61
BRACKET, GROUND WCI K1145190 Contact Us For Availability
64
GUSSET, LH WCI K5285804 Contact Us For Availability
× ![]()
