Model Electrolux KF330JDW1 RANGE – Common Parts & Diagrams

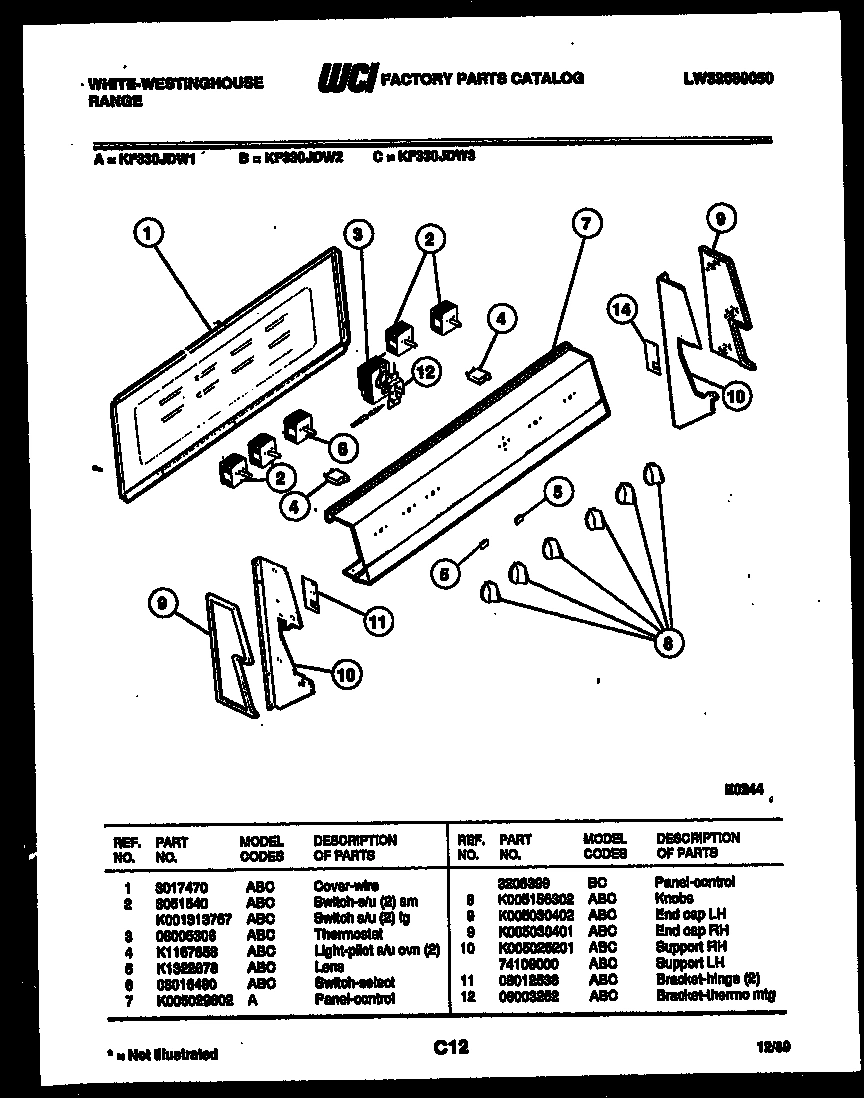

02 - CONTROL PANEL

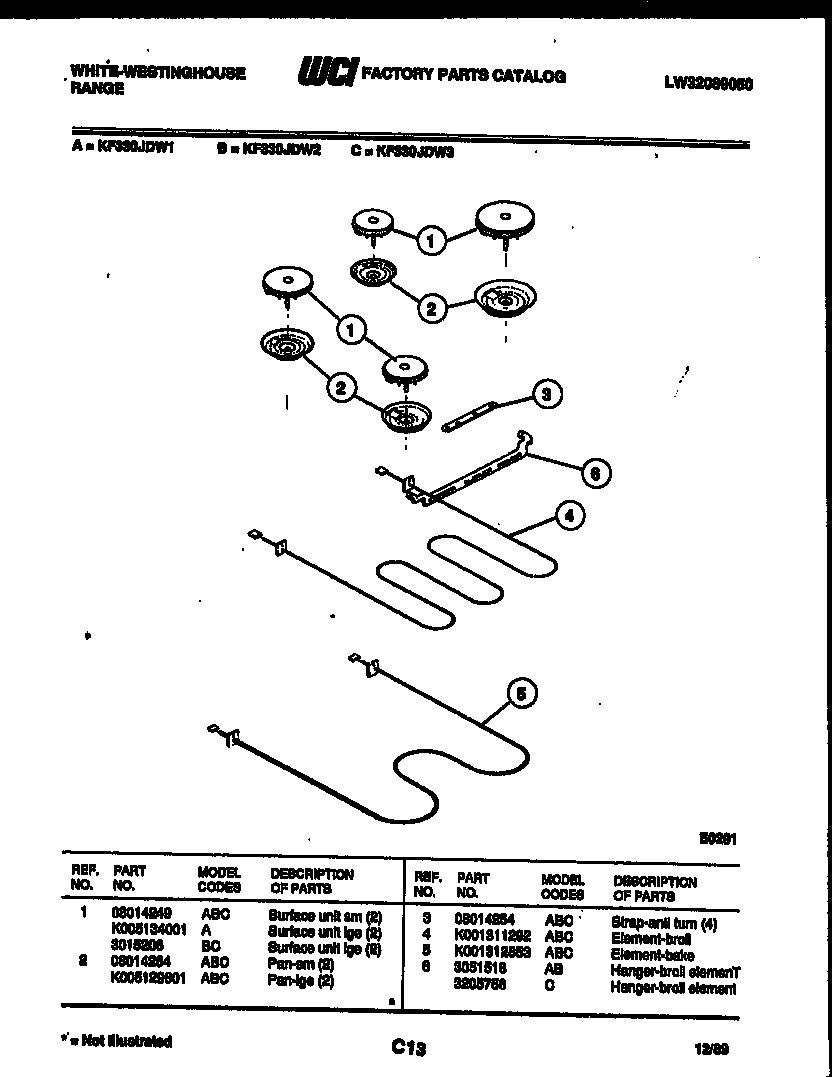

03 - BROILER PARTS

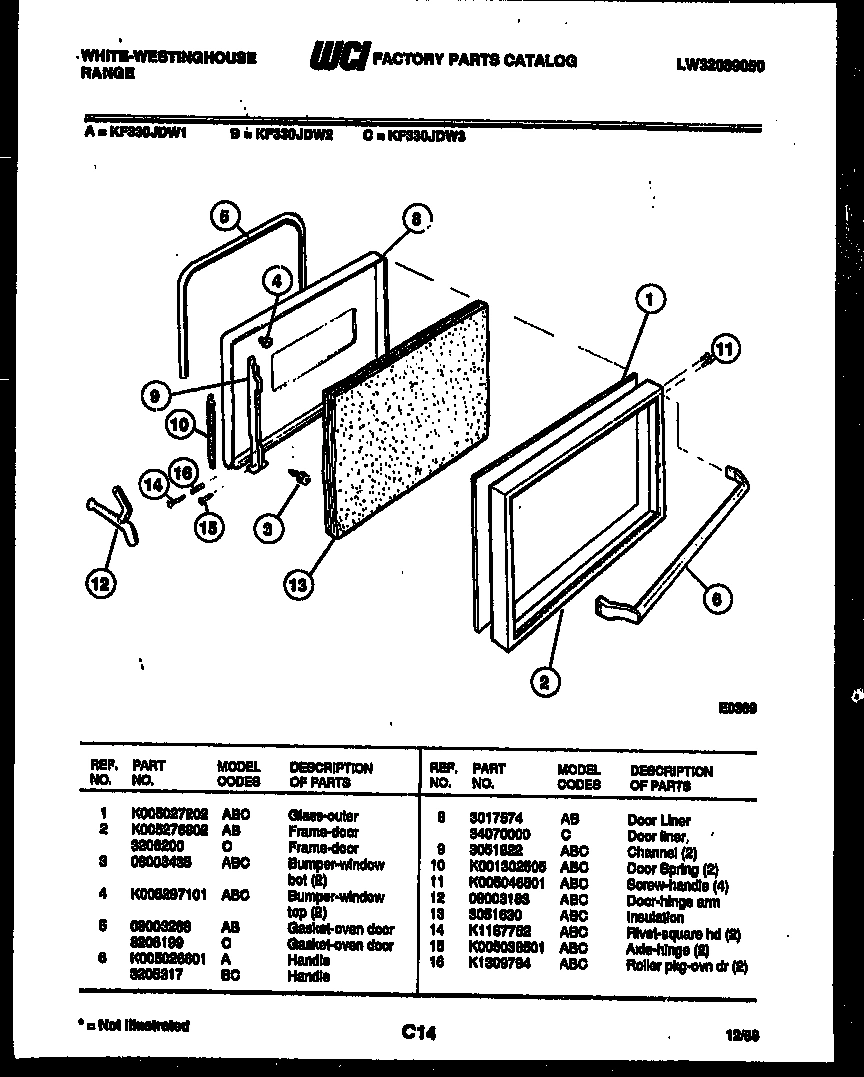

04 - DOOR PARTS

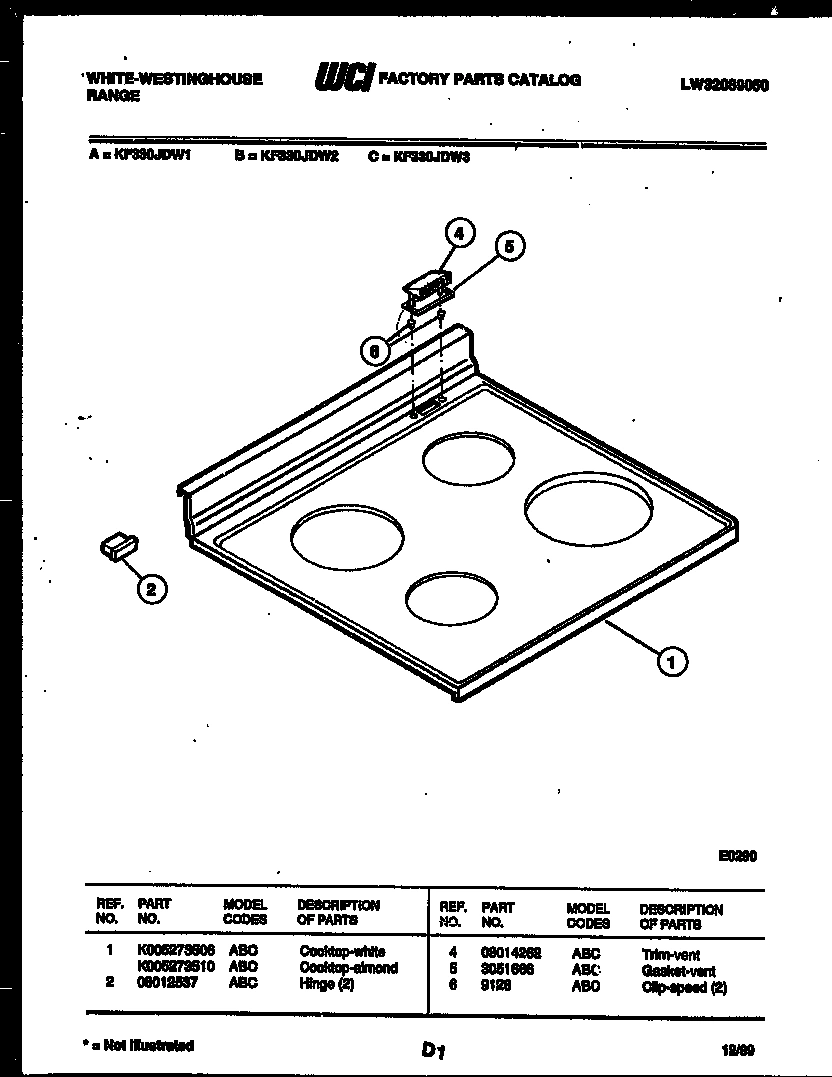

05 - COOKTOP PARTS

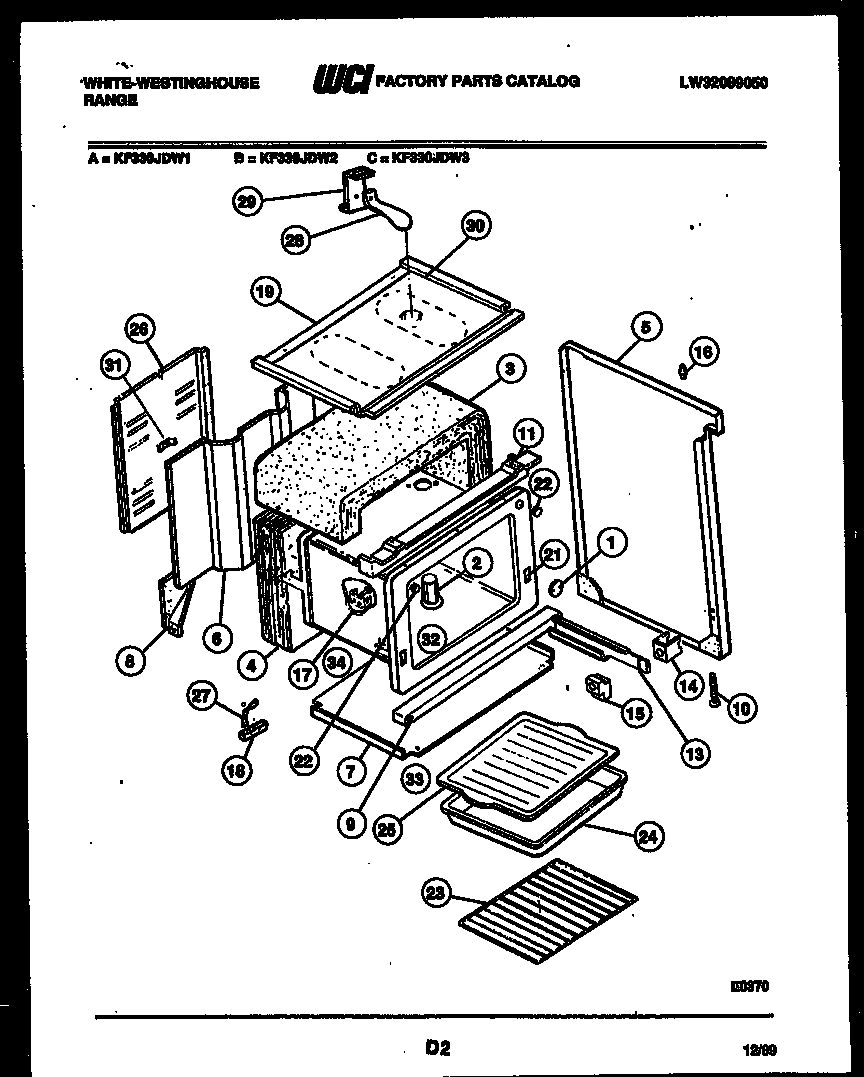

06 - BODY PARTS

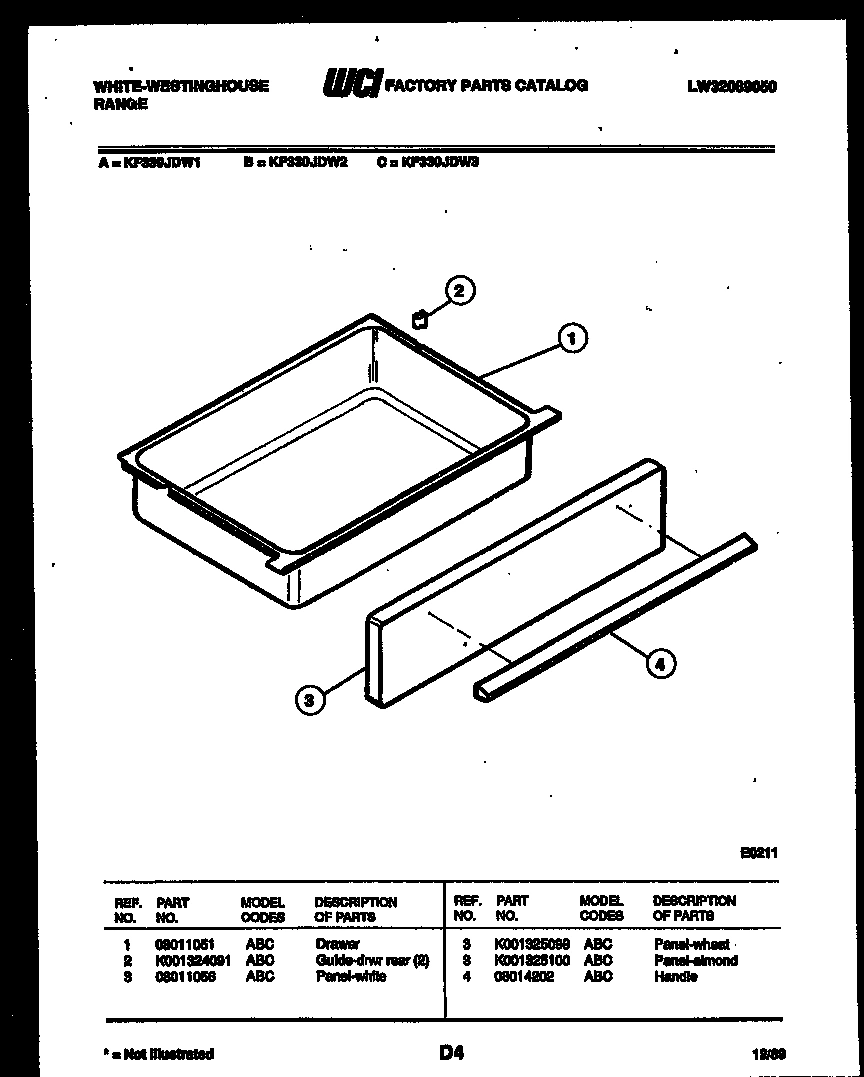

07 - DRAWER PARTS
Common parts from model Electrolux KF330JDW1 RANGE
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
WCI 08014249 WCI 08014249 Contact Us For Availability
1
WCI K005027202 WCI K005027202 Contact Us For Availability
1
WCI K005273506 WCI K005273506 Contact Us For Availability
1
COVER - OVEN LT HOLE WCI 3017576 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1A
WCI K005134001 WCI K005134001 Contact Us For Availability
2
WCI 08014264 WCI 08014264 Contact Us For Availability
2
WCI K005276802 WCI K005276802 Contact Us For Availability
2
HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI K005053701 WCI K005053701 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI K001324091 Contact Us For Availability
2A
WCI K005129601 WCI K005129601 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
WCI 08014254 WCI 08014254 Contact Us For Availability
3
WCI 08003435 WCI 08003435 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
PANEL - WHITE WCI 08011056 Contact Us For Availability
4
LIGHT-PILOT S/U OVN (2) WCI K1167858 Contact Us For Availability
4
WCI K005297101 WCI K005297101 Contact Us For Availability
4
TRIM-VENT WCI 08014262 Contact Us For Availability
4
INSULATION-OVEN BACK WCI K001325625 Contact Us For Availability
4
WCI 08014202 WCI 08014202 Contact Us For Availability
5
LENS WCI K1322678 Contact Us For Availability
5
GASKET-OVEN DOOR WCI 08003268 Contact Us For Availability
5
GASKET-VENT WCI 3051666 Contact Us For Availability
5
WCI 08012527 WCI 08012527 Contact Us For Availability
5A
PANEL-SIDE LH WHITE WCI 08012528 Contact Us For Availability
6
SWITCH - SELECT WCI 08016480 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
6
WCI K005026601 WCI K005026601 Contact Us For Availability
6
CLIP-SPEED (2) WCI 9126 Contact Us For Availability
6
WCI 3017575 WCI 3017575 Contact Us For Availability
7
WCI K005029602 WCI K005029602 Contact Us For Availability
7
WCI 3017394 WCI 3017394 Contact Us For Availability
8
KNOBS WCI K005156302 Contact Us For Availability
8
DOOR LINER WCI 3017574 Contact Us For Availability
8
WCI K005285802 WCI K005285802 Contact Us For Availability
8A
WCI K001325113 WCI K001325113 Contact Us For Availability
9
WCI K005030401 WCI K005030401 Contact Us For Availability
9
WCI K005030402 WCI K005030402 Contact Us For Availability
9
WCI 3051822 WCI 3051822 Contact Us For Availability
9
CHANNEL-OVEN SPRT. WCI 3017484 Contact Us For Availability
10
WCI K005025201 WCI K005025201 Contact Us For Availability
10
DOOR SPRING (2) WCI K001302505 Contact Us For Availability
10
SCREW-LEVELING (4) WCI K001322905 Contact Us For Availability
10A
WCI 74109000 WCI 74109000 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
WCI K005046501 WCI K005046501 Contact Us For Availability
11
CHANNEL-OVEN SPRT WCI K005009403 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 08003183 WCI 08003183 Contact Us For Availability
13
INSULATION WCI 3051630 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
WCI K005269902 WCI K005269902 Contact Us For Availability
14
RIVET-SQUARE HD (2) WCI K1167752 Contact Us For Availability
14
WCI K001324860 WCI K001324860 Contact Us For Availability
15
AXLE-HINGE (2) WCI K005038501 Contact Us For Availability
15
GUIDE-DRWR FRONT (2) WCI K001315216 Contact Us For Availability
16
ROLLER PKG-OVN DR (2) WCI K1309794 Contact Us For Availability
16
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
17
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
19
WCI K005025704 WCI K005025704 Contact Us For Availability
21
LINER-OVEN WCI K001325537 Contact Us For Availability
22
WCI 3051784 WCI 3051784 Contact Us For Availability
24
WCI K001317973 WCI K001317973 Contact Us For Availability
25
WCI K001317972 WCI K001317972 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K001145190 Contact Us For Availability
28
WCI K005130601 WCI K005130601 Contact Us For Availability
29
WCI K005130701 WCI K005130701 Contact Us For Availability
30
WCI K005303702 WCI K005303702 Contact Us For Availability
× ![]()
