Model Whirlpool KET595 ELECTRIC COOK-TOP – Common Parts & Diagrams

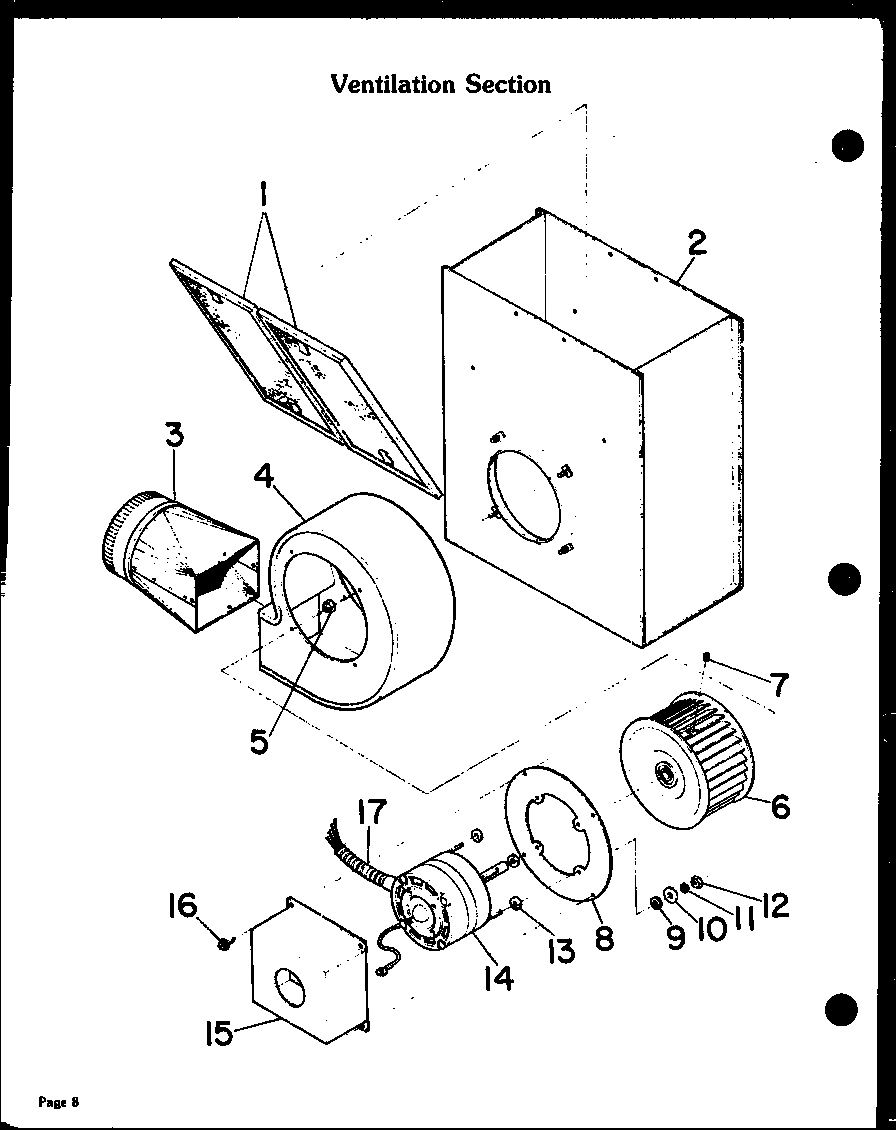

04 - VENTILATION

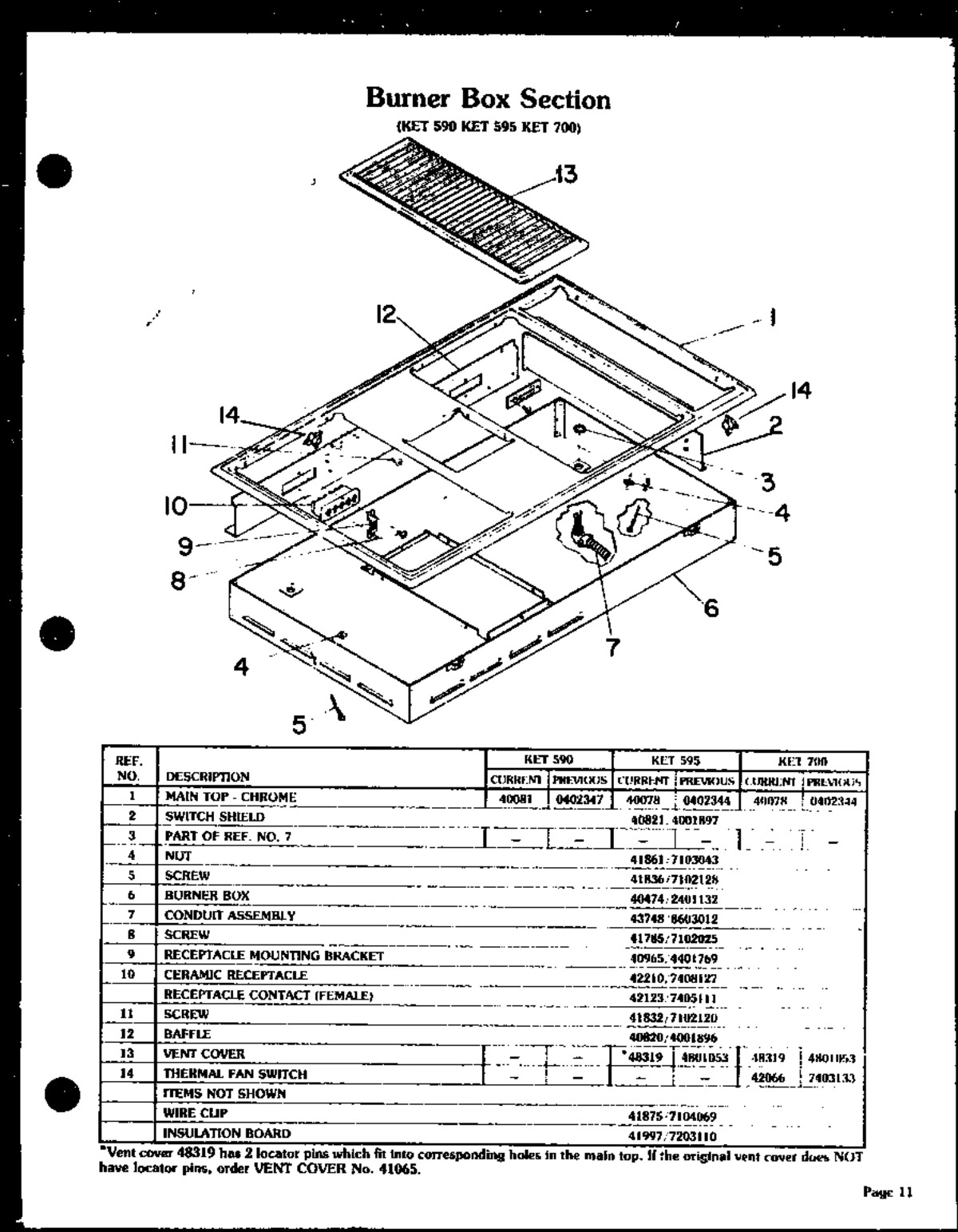

01 - BURNER BOX SECTION

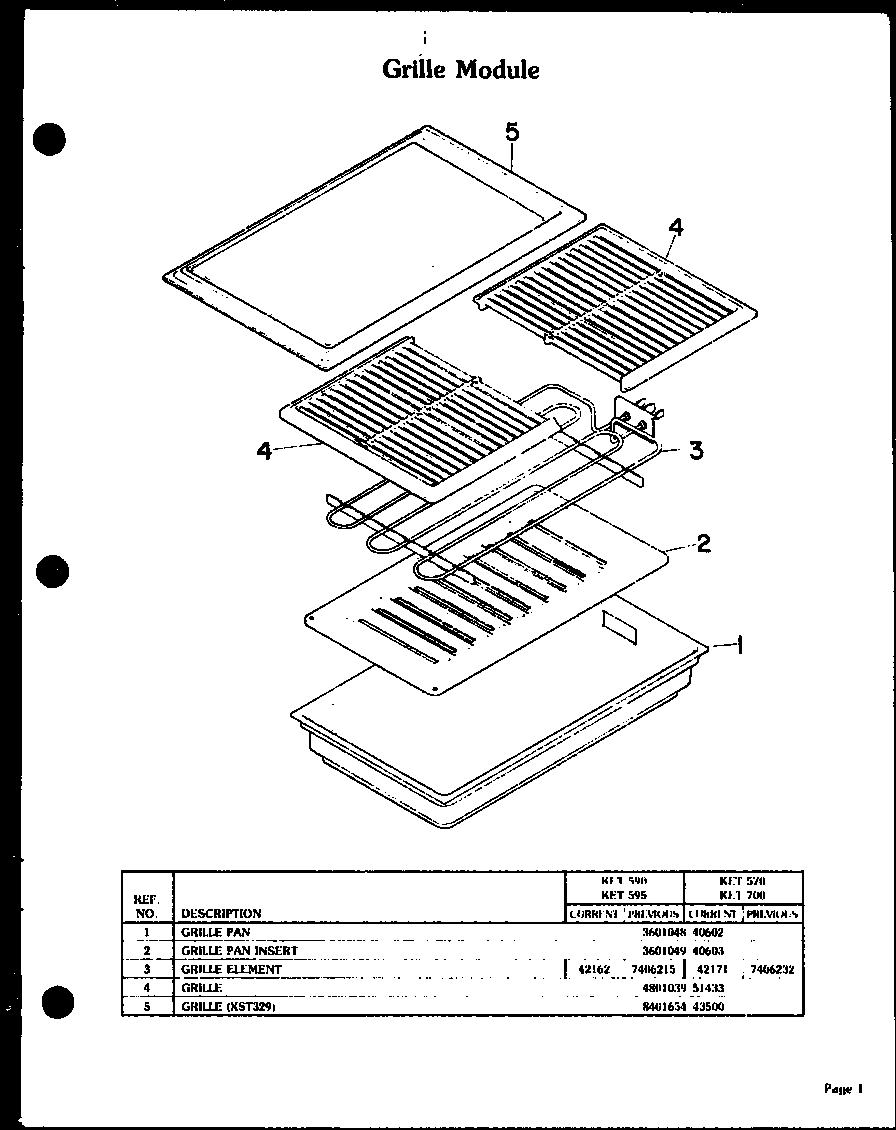

03 - Page 1

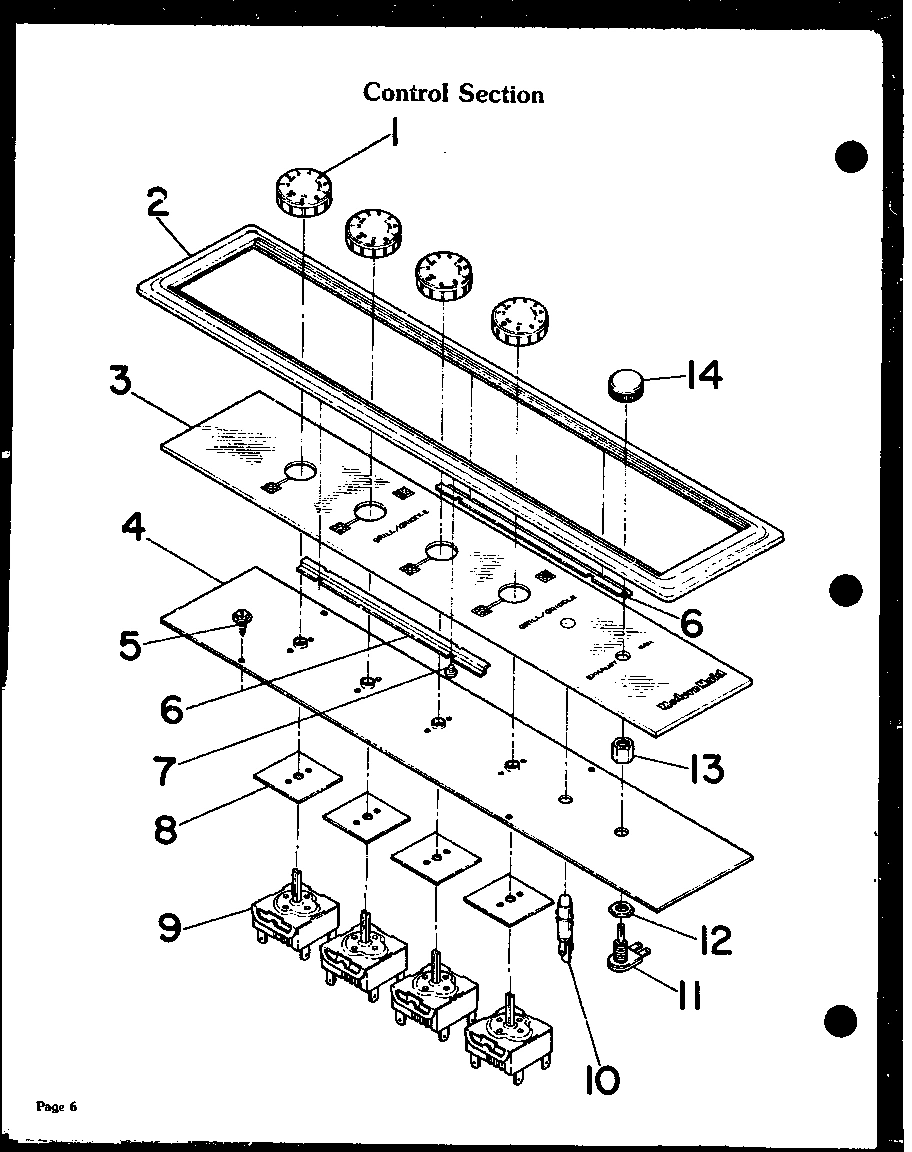

02 - CONTROL SECTION
Common parts from model Whirlpool KET595 ELECTRIC COOK-TOP
1
FILTER EXHAUST KET595 WPL Y0042024 Contact Us For Availability
1
SUB 300166, MAIN TOP, CHROME WPL 0040078 Contact Us For Availability
1
SUB 63782, PAN, GRIDDLE WPL Y0040602 Contact Us For Availability
1
KNOB 2500 MIN WPL 0042604 Contact Us For Availability
2
SUB 59560, PLENUM W/A WPL 0040822 Contact Us For Availability
2
SUB 59562, ORIFICE ASSY. WPL Y0040973 Contact Us For Availability
2
SWITCH SHIELD ET-590 595 WPL Y0040821 Contact Us For Availability
2
GRILLE PAN, INSERT WPL Y0040603 Contact Us For Availability
2
SUB 41072, CNTRL. PNL. TRIM WPL Y0041074 Contact Us For Availability
3
TRANSITION WPL 0042755 Contact Us For Availability
3
GRIDDLE ELEMENT WPL Y0042162 Contact Us For Availability
3
BUSHING WPL 42787 Contact Us For Availability
4
FAN SCROLL WPL 41093 Contact Us For Availability
4
NUT 1/4-20 SQ. ET590 595 WPL 0041861 Contact Us For Availability
4
GRILL CASTING (BRUSHED BLK) WPL 0051433 Contact Us For Availability
4
SWITCH MOUNTING BRACKET WPL 40963 Contact Us For Availability
5
LOCK-NUT NYLON KET595 WPL 0041862 Contact Us For Availability
5
SCREW WPL Y41808 Contact Us For Availability
5
SCREW 1/4-20-4`` 590 595 WPL Y0041836 Contact Us For Availability
5
GRILLE WPL 4350 Contact Us For Availability
6
FAN WHEEL KET595 WPL Y0042752 Contact Us For Availability
6
BURNER BOX W/A W/VENT KET595 WPL 0040474 Contact Us For Availability
6
GLASS RETAINER KET595-590 WPL Y0040962 Contact Us For Availability
7
5651118 C WPL Y0043748 Contact Us For Availability
7
SCREW-GLASS RETAINER WPL 41819 Contact Us For Availability
8
MOTOR MOUNTING PLATE WPL 40972 Contact Us For Availability
8
SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability
8
SWITCH GASKET XET-490 WPL Y0041991 Contact Us For Availability
9
PLUG BLOCK MTG BRKT ET590 595 WPL Y0040965 Contact Us For Availability
9
SUB 51726, INFINITE SWITCH WPL 0042062 Contact Us For Availability
10
WASHER 3/4X5/16X 080 E L HOODS WPL 0041935 Contact Us For Availability
10
ELEMENT, CONTACT-MODULE TOP WPL Y0042123 Contact Us For Availability
10
PLUG BLOCK MODULAR TOP WPL Y0042210 Contact Us For Availability
10
INDICATOR LIGHT WPL Y0042183 Contact Us For Availability
11
WASHER HANDLE MOUNTING WPL 0041937 Contact Us For Availability
11
SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability
11
SWITCH, OVEN LIGHT WPL Y0042055 Contact Us For Availability
12
HEX NUT No.10-32 NICKEL WPL 0041847 Contact Us For Availability
12
PLUG BLOCK BAFFLE ET590 595 WPL 0040820 Contact Us For Availability
13
RUBBER GROMMET WPL 0041981 Contact Us For Availability
13
SUB 48317, VENT COVER, POL WPL Y0048319 Contact Us For Availability
13
SWITCH BUSHING ,METAL WPL Y0042012 Contact Us For Availability
14
SUB 55078, KIT, MOTOR & PLATE WPL 0042228 Contact Us For Availability
14
KNOB FAN SWITCH KET595 WPL 0042624 Contact Us For Availability
15
MOTOR COVER KET595 WPL 0040835 Contact Us For Availability
17
BUSHING-RED DEVIL WPL 0042080 Contact Us For Availability
17
CONDUIT (3/8 X 18) WPL 0042115 Contact Us For Availability
NI
CONNECTOR 3/8`` 90`` WPL Y0042079 Contact Us For Availability
NI
WIRE CLIP WPL Y0041875 Contact Us For Availability
NI
INSULATION BOARD WPL Y0041997 Contact Us For Availability
NI
SCREW 6-32X3/16 SLO COOK SW WPL Y0041778 Contact Us For Availability
× ![]()
