Model Whirlpool KERS206XSS3 30`` FREESTANDING ELECTRIC RANGE – Common Parts & Diagrams
05 - DRAWER PARTS

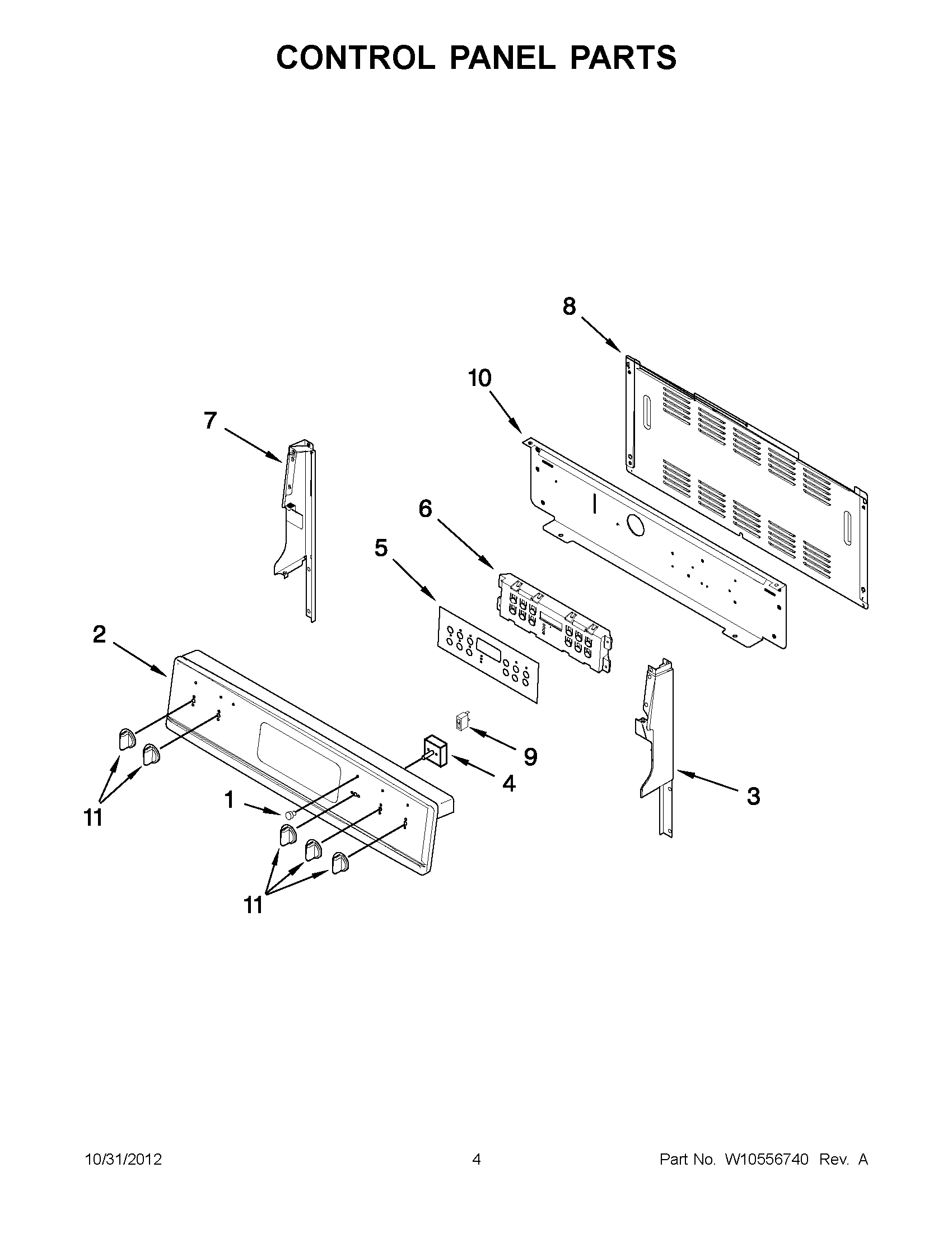

02 - CONTROL PANEL PARTS

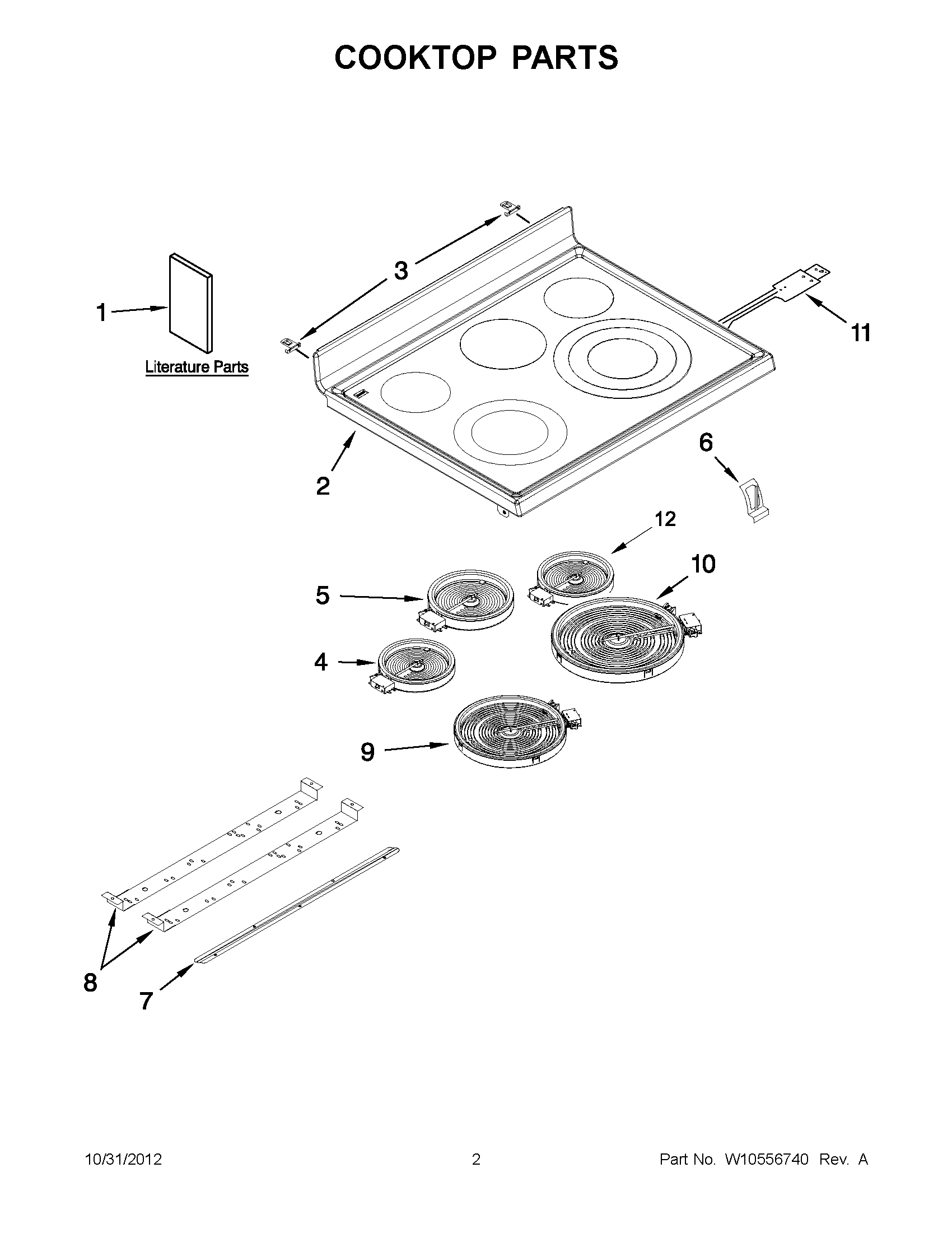

01 - COOKTOP PARTS

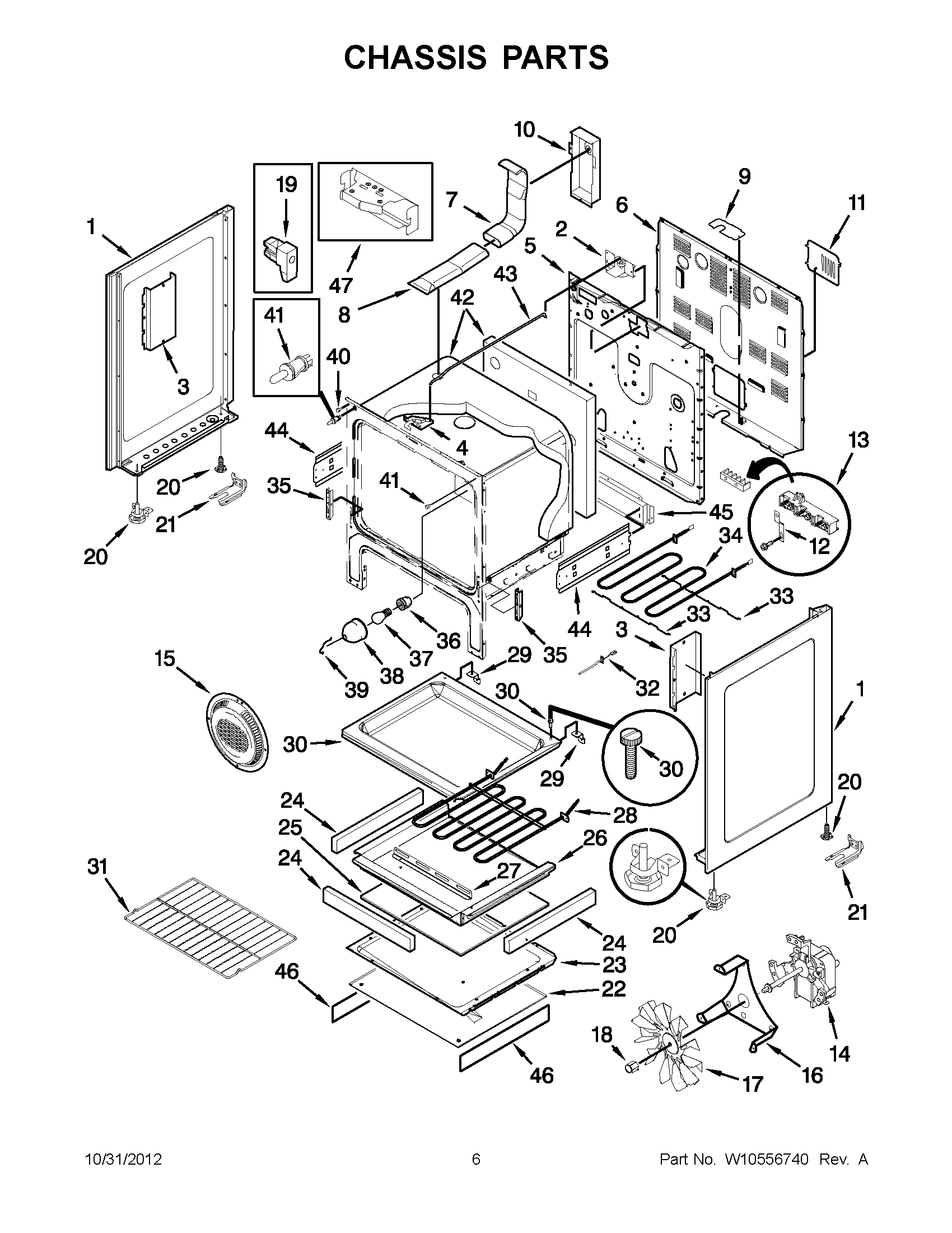

03 - CHASSIS PARTS

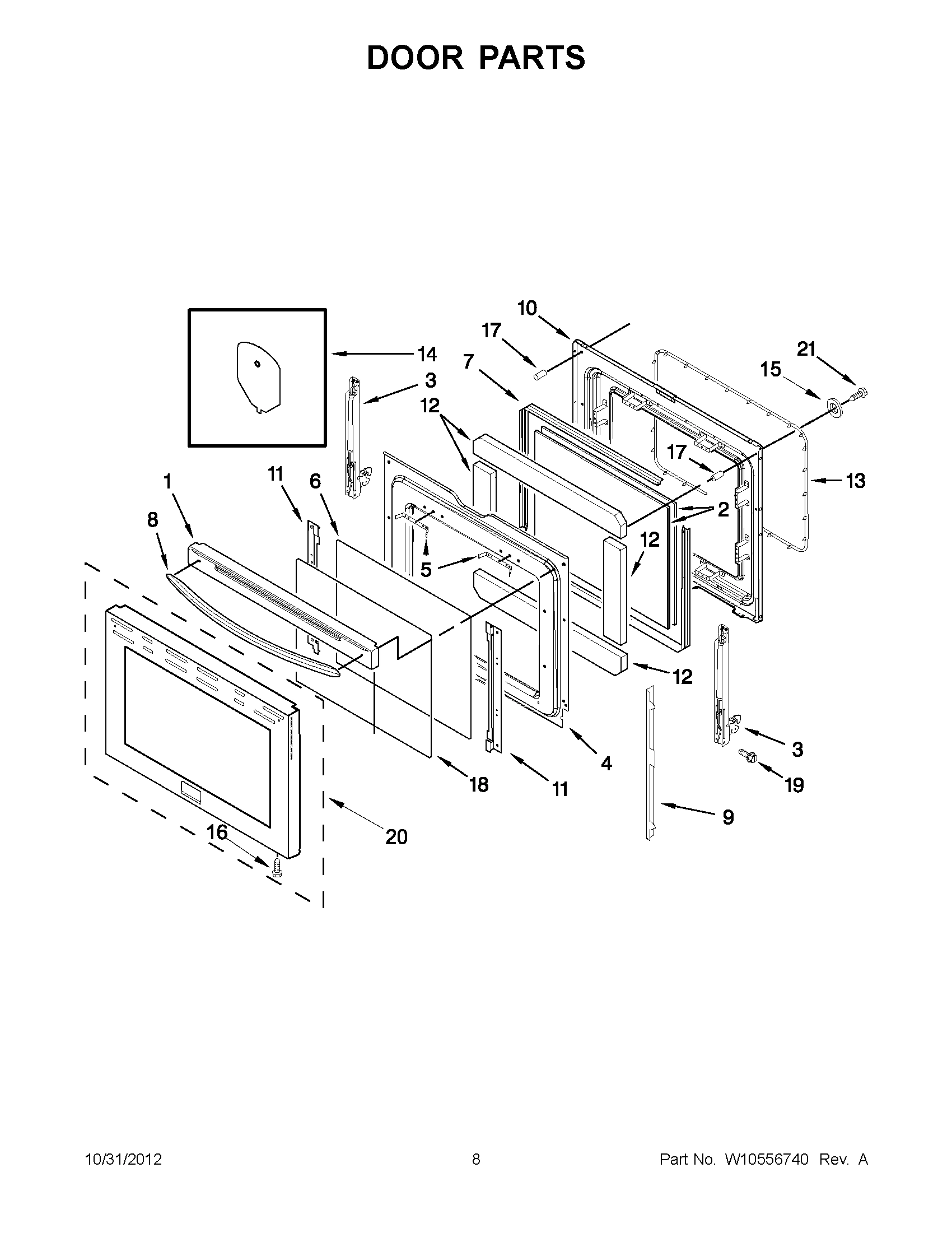

04 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Whirlpool KERS206XSS3 30`` FREESTANDING ELECTRIC RANGE
1
USE & CARE GUIDE WPL W10328277 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10344641 Contact Us For Availability
1
TECH SHEET WPL W10346735 Contact Us For Availability
1
PANEL, SIDE (BLACK-RIGHT HAND) WPL W10346237 Contact Us For Availability
1
PANEL, SIDE (BLACK-LEFT HAND) WPL W10346238 Contact Us For Availability
1
TRIM, DOOR TOP (BLACK) WPL W10348026 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10350539 Contact Us For Availability
2
GLASS, INNER (BLACK) WPL W10350569 Contact Us For Availability
3
HINGE BRACKET COOKTOP WPL W10354984 Contact Us For Availability
3
SHIELD, SIDE WPL W10347457 Contact Us For Availability
3
HINGE, DOOR WPL W10392681 Contact Us For Availability
4
SWITCH, INFINTE RADIANT DUAL ELEMENTS RIGHT F WPL W10495257 Contact Us For Availability
4
LATCH, DOOR LOCK WPL W10346955 Contact Us For Availability
4
RETAINER, DOOR INSULATION WPL W10350551 Contact Us For Availability
5
OVERLAY, CONTROL WPL W10349893 Contact Us For Availability
5
ELEMENT, WARMER 100 WATTS CENTER REAR WPL W10350493 Contact Us For Availability
5
COVER, INNER REAR WPL W10350105 Contact Us For Availability
5
BRACKET, GLASS SPACER WPL W10350617 Contact Us For Availability
6
CONTROL WPL W10349892 Contact Us For Availability
6
CLIP, ELEMENT WPL W10350545 Contact Us For Availability
6
MAIN BACK WPL W10350451 Contact Us For Availability
6
GLASS, AIRWASH (STAINLESS) WPL W10350606 Contact Us For Availability
7
BRACKET, SUPPORT COOKTOP, FRONT WPL W10350543 Contact Us For Availability
7
TUBE, VENT UPPER OVEN WPL W10350438 Contact Us For Availability
7
FRAME, GLASS INNER WPL W10350584 Contact Us For Availability
8
CHANNEL, ELEMENT SUPPORT WPL W10350542 Contact Us For Availability
8
TUBE, VENT WITH CATALYST WPL W10350337 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) WPL W10350605 Contact Us For Availability
9
BRACKET, CORD WPL W10350461 Contact Us For Availability
9
BRACKET, GLASS DOOR (STAINLESS MODEL ONLY) WPL W10350616 Contact Us For Availability
10
ELEMENT, 9/12`` DUAL RADIANT 1200/1800 WATTS WPL W10350491 Contact Us For Availability
10
SHIELD, WIRE VENT TUBE WPL W10350117 Contact Us For Availability
10
LINING, DOOR WPL W10350572 Contact Us For Availability
11
BRACKET, SUPPORT WPL W10347003 Contact Us For Availability
11
PANEL, ACCESS WPL W10350126 Contact Us For Availability
11
BRACKET, GLASS WPL W10350589 Contact Us For Availability
12
ELEMENT 6`` 1200 WATTS RIGHT REAR WPL W10350483 Contact Us For Availability
12
GROUND STRAP WPL W10350442 Contact Us For Availability
12
INSULATION, DOOR WPL W10350552 Contact Us For Availability
13
TERMINAL-BLOCK KIT WPL W10350439 Contact Us For Availability
13
SEAL, DOOR WPL W10350574 Contact Us For Availability
14
CLIP, DOOR GLASS WPL W10350585 Contact Us For Availability
15
COVER, FAN WPL W10347448 Contact Us For Availability
15
WASHER WPL W10370042 Contact Us For Availability
16
SCREW WPL W10370043 Contact Us For Availability
16
BRACKET, MOTOR MOUNT WPL W10347442 Contact Us For Availability
17
SPACER, DOOR HANDLE STAINLESS MODEL ONLY) WPL W10350610 Contact Us For Availability
18
NUT, FAN BLADE WPL W10347453 Contact Us For Availability
18
GLASS, OVEN DOOR BLACK WITH FOIL (STAINLESS M WPL W10357230 Contact Us For Availability
19
CLIP WPL W10346958 Contact Us For Availability
19
SCREW, DOOR HINGE WPL W10347322 Contact Us For Availability
20
LEG, LEVELING (FOOT-LEVEL REAR PLASTIC) WPL W10346263 Contact Us For Availability
20
LEG, LEVELING (FOOT-LEVEL FRONT METAL) WPL W10346264 Contact Us For Availability
20
PANEL, DOOR-OUTER WITH BADGE (STAINLESS MODEL WPL W10509029 Contact Us For Availability
21
SCREW, DOOR (STAINLESS) WPL W10370041 Contact Us For Availability
22
SHIELD, HEAT OVEN LOWER WPL W10350115 Contact Us For Availability
23
SHIELD, HEAT WOOL LOWER WPL W10350116 Contact Us For Availability
24
INSULATION, OVEN BOTTOM WPL W10350135 Contact Us For Availability
25
INSULATION, LOWER SHIELD WPL W10350133 Contact Us For Availability
26
TRAY, BAKE ELEMENT WPL W10350109 Contact Us For Availability
27
BRACKET, SUPPORT BAKE ELEMENT WPL W10350112 Contact Us For Availability
28
BAKE ELEMENT, 3000 WATTS WPL W10350448 Contact Us For Availability
29
BRACKET, SUPPORT OVEN BOTTOM WPL W10350111 Contact Us For Availability
30
OVEN BOTTOM WPL W10350107 Contact Us For Availability
31
RACK, OVEN WPL W10346265 Contact Us For Availability
32
SENSOR, OVEN WPL W10347247 Contact Us For Availability
33
SUPPORT, BROIL ELEMENT WPL W10350450 Contact Us For Availability
34
BROIL ELEMENT WPL W10350447 Contact Us For Availability
35
BRACKET, HINGE OVEN DOOR WPL W10347318 Contact Us For Availability
36
SOCKET, LIGHT WPL W10346268 Contact Us For Availability
38
LENS, OVEN LIGHT WPL W10346874 Contact Us For Availability
39
RETAINER, OVEN LIGHT LENS WPL W10346877 Contact Us For Availability
40
SPACER, OVEN DOOR WPL W10347277 Contact Us For Availability
41
SWITCH, OVEN LIGHT WPL W10346267 Contact Us For Availability
42
INSULATION (OVEN WRAPPER) WPL W10350131 Contact Us For Availability
42
INSULATION (OVEN BACK) WPL W10350132 Contact Us For Availability
43
ROD, AUTO LATCH WPL W10350462 Contact Us For Availability
44
SHIELD-SIDE WPL W10355047 Contact Us For Availability
45
SHIELD, REAR WPL W10355050 Contact Us For Availability
46
GLIDE, DRAWER WPL W10355274 Contact Us For Availability
47
BRACKET, MOUNTING WPL W10357267 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (MAIN) WPL W10350472 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (SURFACE) WPL W10509283 Contact Us For Availability
× ![]()
