Model Whirlpool KECC567BBS2 36" Electric Built−In Cooktop – Common Parts & Diagrams

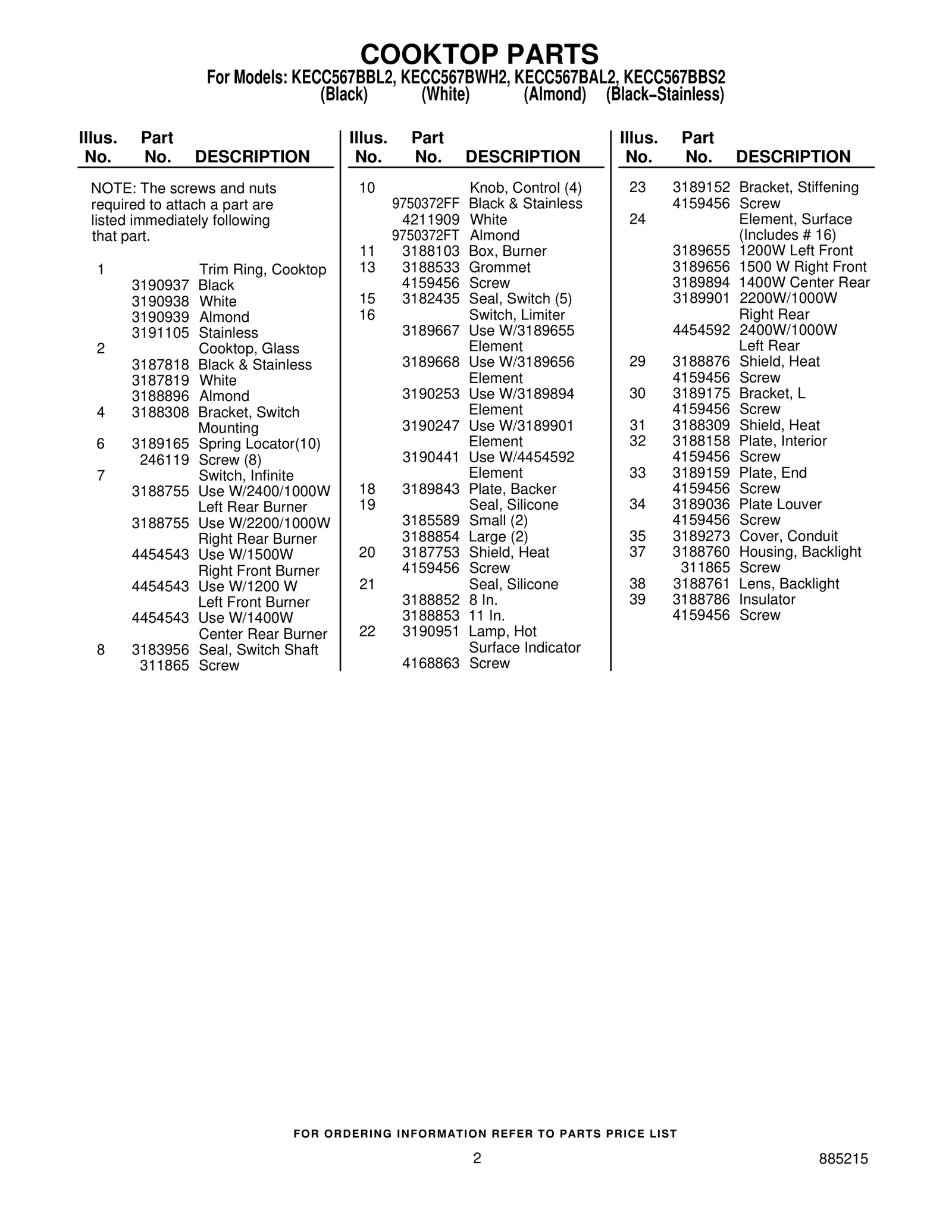

COOKTOP PARTS
COOKTOP PARTS

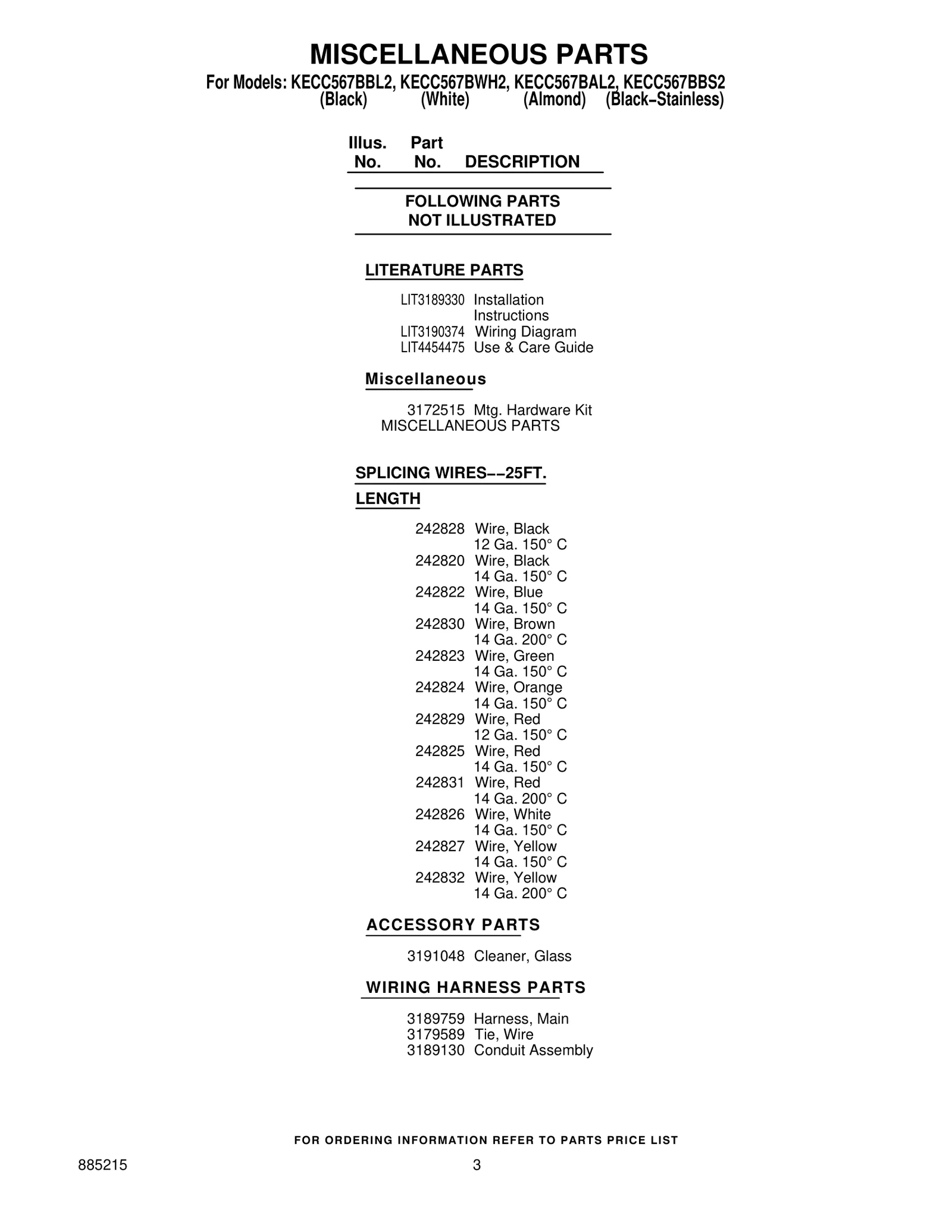

MISCELLANEOUS PARTS
Common parts from model Whirlpool KECC567BBS2 36" Electric Built−In Cooktop
1
Trim Ring, Cooktop — Almond WPL 3190939 Contact Us For Availability
1
Trim Ring, Cooktop — Stainless WPL 3191105 Contact Us For Availability
2
Cooktop, Glass — Black & Stainless WPL 3187818 Contact Us For Availability
2
Cooktop, Glass — White WPL 3187819 Contact Us For Availability
2
Cooktop, Glass — Almond WPL 3188896 Contact Us For Availability
4
Bracket, Switch Mounting WPL 3188308 Contact Us For Availability
6
Spring Locator(10) WPL 3189165 Contact Us For Availability
7
Switch, Infinite — Use W/1400W WPL 4454543 Contact Us For Availability
10
Knob, Control (4) — Almond WPL 9750372FT Contact Us For Availability
11
Box, Burner WPL 3188103 Contact Us For Availability
13
Grommet WPL 3188533 Contact Us For Availability
15
Seal, Switch (5) WPL 3182435 Contact Us For Availability
16
Switch, Limiter — Use W/3189655 WPL 3189667 Contact Us For Availability
16
Switch, Limiter — Use W/3189656 WPL 3189668 Contact Us For Availability
16
Switch, Limiter — Use W/3189894 WPL 3190253 Contact Us For Availability
16
Switch, Limiter — Use W/3189901 WPL 3190247 Contact Us For Availability
16
Switch, Limiter — Use W/4454592 WPL 3190441 Contact Us For Availability
18
Plate, Backer WPL 3189843 Contact Us For Availability
19
Small (2) WPL 3185589 Contact Us For Availability
19
Large (2) WPL 3188854 Contact Us For Availability
20
Shield, Heat WPL 3187753 Contact Us For Availability
21
Seal, Silicone — 8 In. WPL 3188852 Contact Us For Availability
21
Seal, Silicone — 11 In. WPL 3188853 Contact Us For Availability
22
Lamp, Hot Surface Indicator WPL 3190951 Contact Us For Availability
22
Screw WPL 4168863 Contact Us For Availability
23
Bracket, Stiffening WPL 3189152 Contact Us For Availability
24
Element, Surface — 1200W Left Front WPL 3189655 Contact Us For Availability
24
Element, Surface — 1500 W Right Front WPL 3189656 Contact Us For Availability
24
Element, Surface — 1400W Center Rear WPL 3189894 Contact Us For Availability
24
Element, Surface — 2200W/1000W WPL 3189901 Contact Us For Availability
29
Shield, Heat WPL 3188876 Contact Us For Availability
30
Bracket, L WPL 3189175 Contact Us For Availability
31
Shield, Heat WPL 3188309 Contact Us For Availability
32
Plate, Interior WPL 3188158 Contact Us For Availability
33
Plate, End WPL 3189159 Contact Us For Availability
34
Plate Louver WPL 3189036 Contact Us For Availability
35
Cover, Conduit WPL 3189273 Contact Us For Availability
37
Housing, Backlight WPL 3188760 Contact Us For Availability
38
Lens, Backlight WPL 3188761 Contact Us For Availability
39
Screw WPL 4159456 Contact Us For Availability
39
Insulator WPL 3188786 Contact Us For Availability
× ![]()
