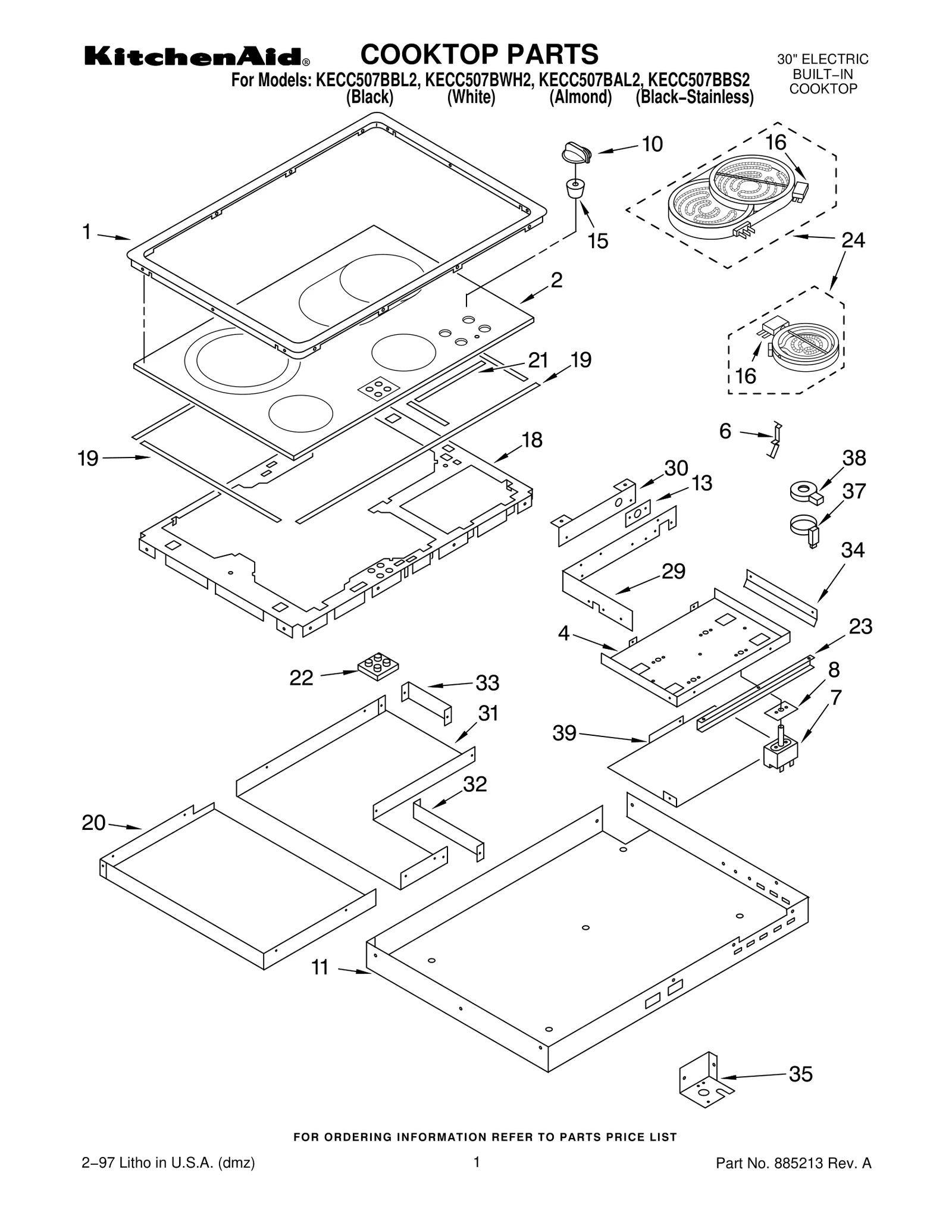

Model Whirlpool KECC507BBS2 30" Electric Built−In Cooktop – Common Parts & Diagrams

1
Trim Ring, Cooktop — Stainless
Trim Ring, Cooktop — Stainless WPL 3191104 Contact Us For Availability
View on Model
2
Cooktop, Glass — Black & Stainless
Cooktop, Glass — Black & Stainless WPL 3187814 Contact Us For Availability
View on Model
2
Cooktop, Glass — White
Cooktop, Glass — White WPL 3187815 Contact Us For Availability
View on Model
2
Cooktop, Glass — Almond
Cooktop, Glass — Almond WPL 3188895 Contact Us For Availability
View on Model
4
Bracket, Switch Mounting
Bracket, Switch Mounting WPL 3188101 Contact Us For Availability
View on Model
6
Spring Locator (8)
Spring Locator (8) WPL 3189165 Contact Us For Availability
View on Model
7
Switch, Infinite — Use W/1200 W
Switch, Infinite — Use W/1200 W WPL 4454543 Contact Us For Availability
View on Model
10
Knob, Control (4) — Almond
Knob, Control (4) — Almond WPL 9750372FT Contact Us For Availability
View on Model
11
Box, Burner
Box, Burner WPL 3188754 Contact Us For Availability
View on Model
13
Grommet
Grommet WPL 3188533 Contact Us For Availability
View on Model
15
Seal, Switch (4)
Seal, Switch (4) WPL 3182435 Contact Us For Availability
View on Model
16
Switch, Limiter — Use W/3189655
Switch, Limiter — Use W/3189655 WPL 3189667 Contact Us For Availability
View on Model
16
Switch, Limiter — Use W/3189656
Switch, Limiter — Use W/3189656 WPL 3189668 Contact Us For Availability
View on Model
16
Switch, Limiter — Use W/3189901
Switch, Limiter — Use W/3189901 WPL 3190247 Contact Us For Availability
View on Model
16
Switch, Limiter — Use W/4454592
Switch, Limiter — Use W/4454592 WPL 3190441 Contact Us For Availability
View on Model
18
Plate, Backer
Plate, Backer WPL 3191142 Contact Us For Availability
View on Model
19
Small (2)
Small (2) WPL 3185589 Contact Us For Availability
View on Model
19
Large (2)
Large (2) WPL 3185590 Contact Us For Availability
View on Model
20
Shield, Heat
Shield, Heat WPL 3187753 Contact Us For Availability
View on Model
21
Seal, Silicone
Seal, Silicone WPL 3188852 Contact Us For Availability
View on Model
22
Lamp, Hot Surface Indicator
Lamp, Hot Surface Indicator WPL 3190949 Contact Us For Availability
View on Model
22
Screw
Screw WPL 4168863 Contact Us For Availability
View on Model
23
Bracket, Stiffening
Bracket, Stiffening WPL 3189152 Contact Us For Availability
View on Model
24
Element, Surface — 1200W Left Front
Element, Surface — 1200W Left Front WPL 3189655 Contact Us For Availability
View on Model
24
Element, Surface — 1500W Right Front
Element, Surface — 1500W Right Front WPL 3189656 Contact Us For Availability
View on Model
24
Element, Surface — 2200W Right Rear
Element, Surface — 2200W Right Rear WPL 3189901 Contact Us For Availability
View on Model
29
Shield, Heat
Shield, Heat WPL 3188844 Contact Us For Availability
View on Model
30
Bracket
Bracket WPL 3189174 Contact Us For Availability
View on Model
31
Shield, Heat
Shield, Heat WPL 3188102 Contact Us For Availability
View on Model
32
Plate, Interior
Plate, Interior WPL 3188158 Contact Us For Availability
View on Model
33
Plate, End
Plate, End WPL 3189159 Contact Us For Availability
View on Model
34
Plate Louver
Plate Louver WPL 3189036 Contact Us For Availability
View on Model
35
Cover, Conduit
Cover, Conduit WPL 3189273 Contact Us For Availability
View on Model
37
Housing, Backlight
Housing, Backlight WPL 3188760 Contact Us For Availability
View on Model
38
Lens, Backlight
Lens, Backlight WPL 3188761 Contact Us For Availability
View on Model
39
Screw
Screw WPL 4159456 Contact Us For Availability
View on Model
39
Insulator,Electrical
Insulator,Electrical WPL 3188785 Contact Us For Availability
View on Model
