Model Whirlpool KEBS245SBL1 – Common Parts & Diagrams

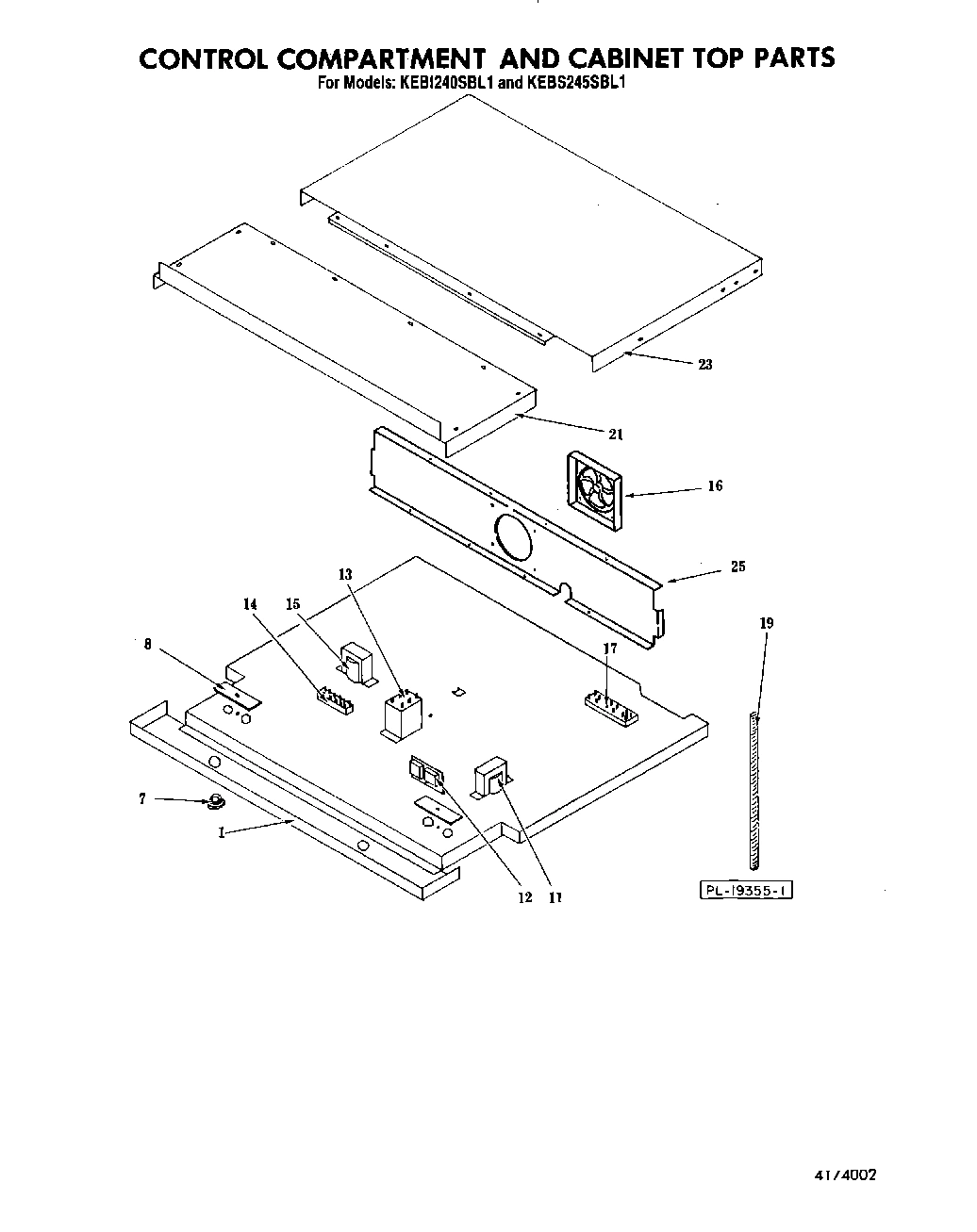

04 - CONTROL COMPARTMENT AND CABINET TOP

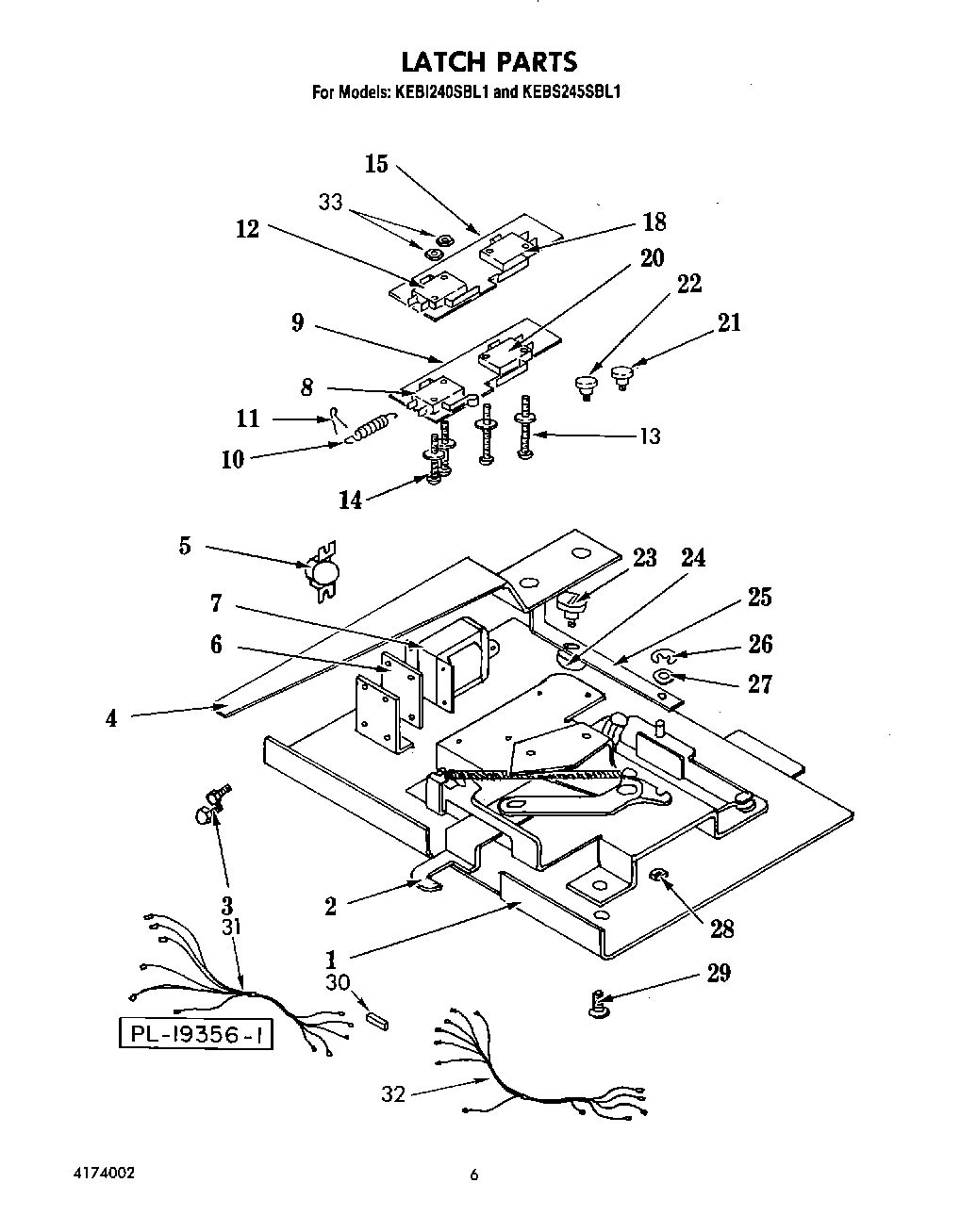

05 - LATCH PARTS

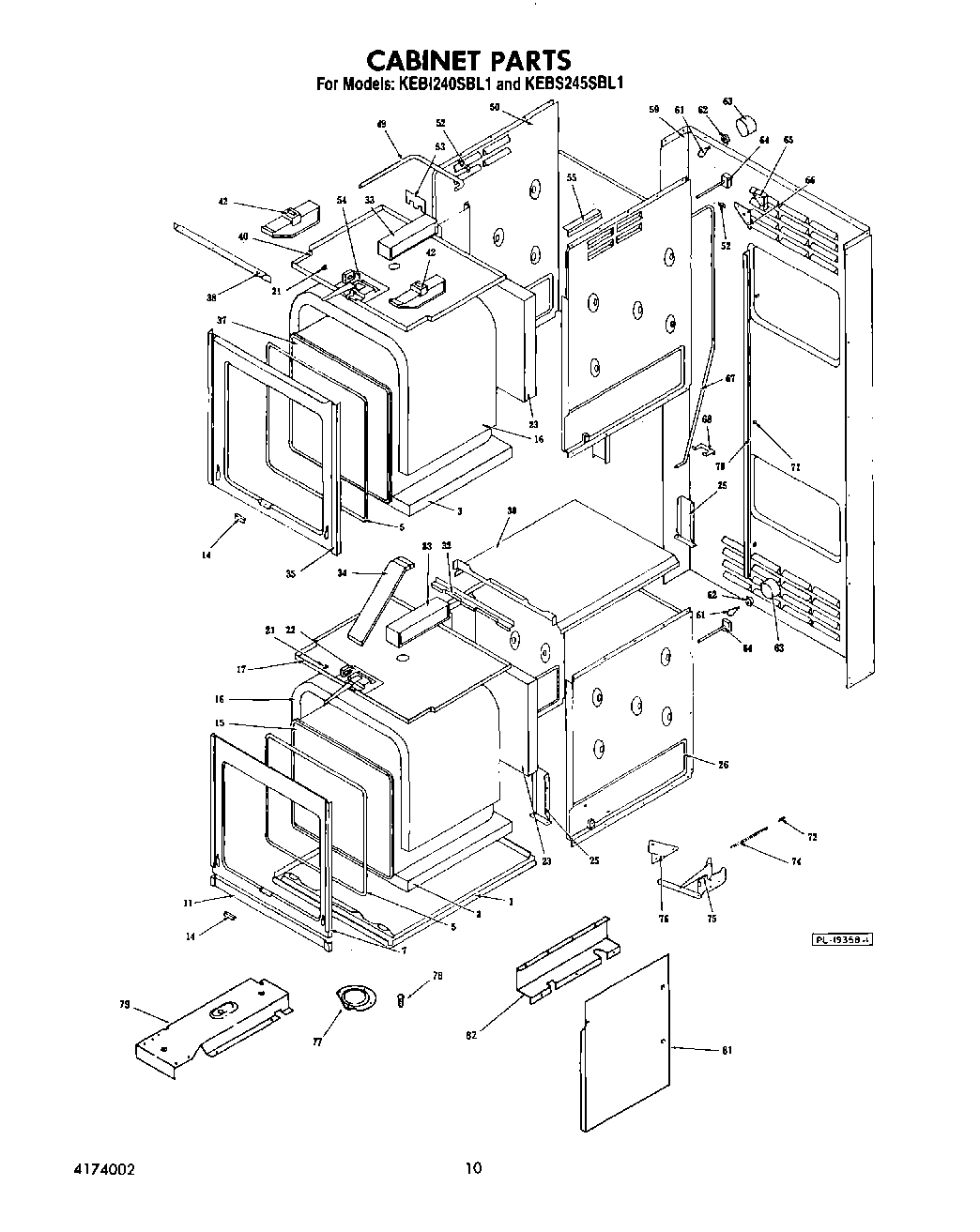

07 - CABINET

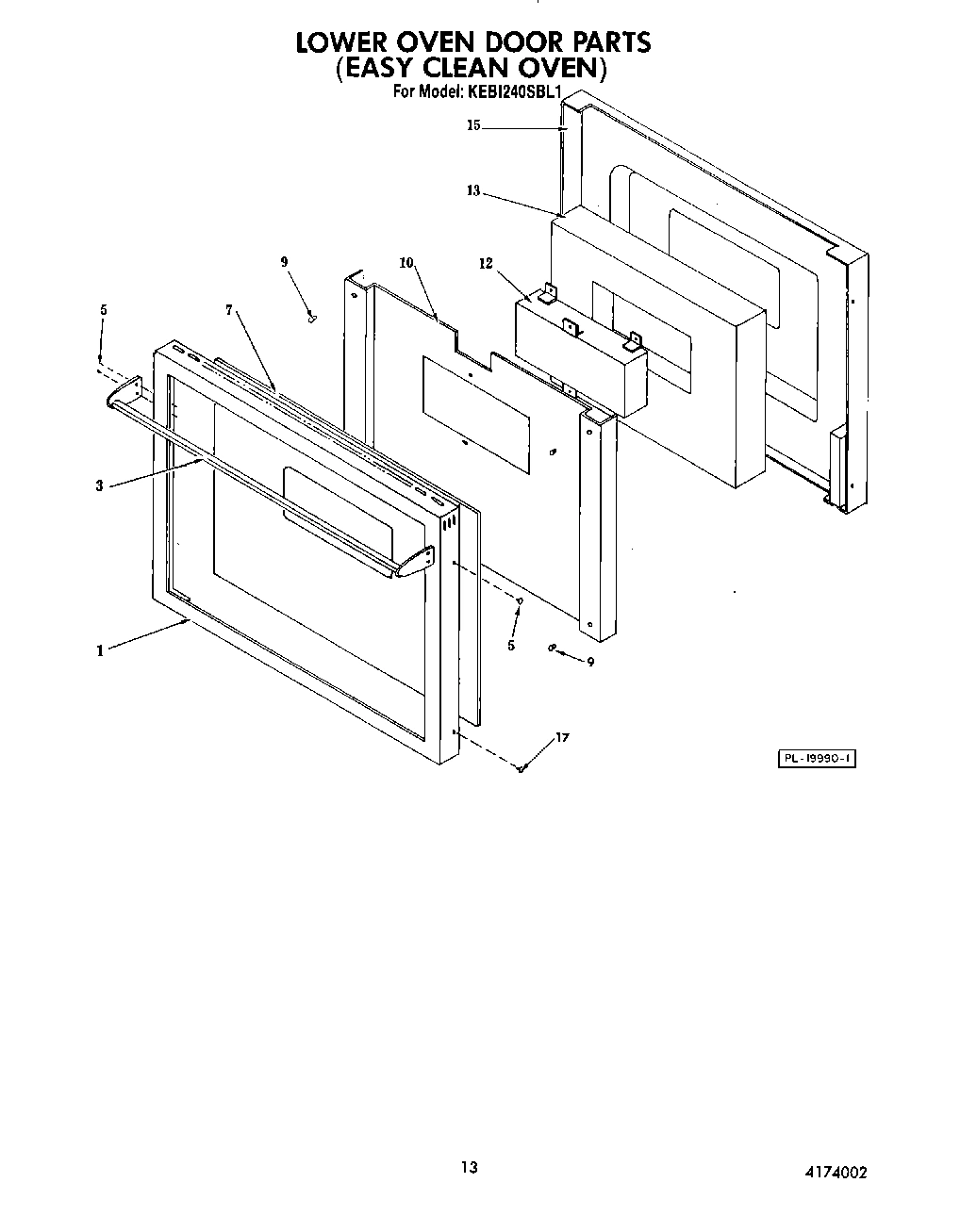

09 - LOWER OVEN DOOR

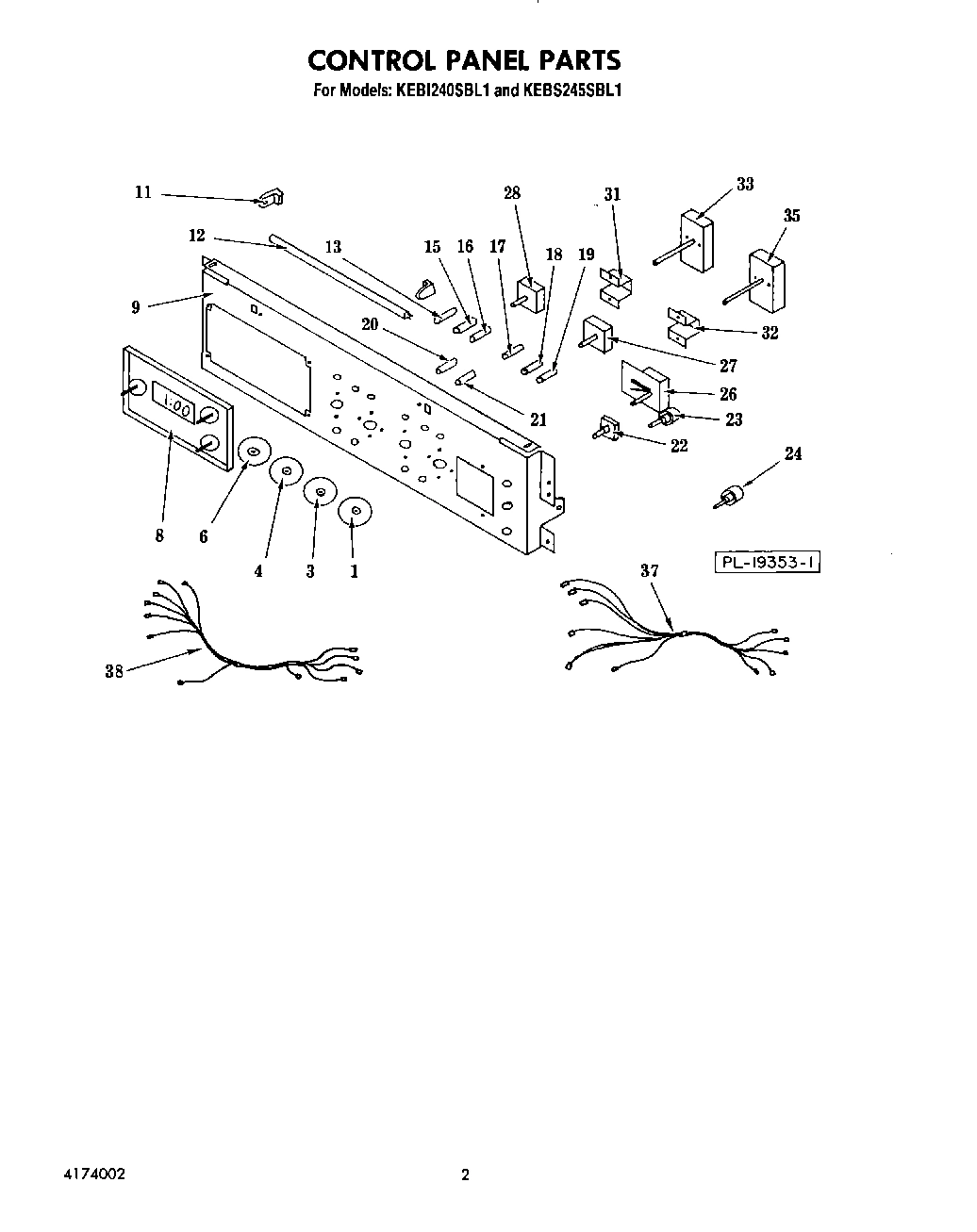

02 - CONTROL PANEL

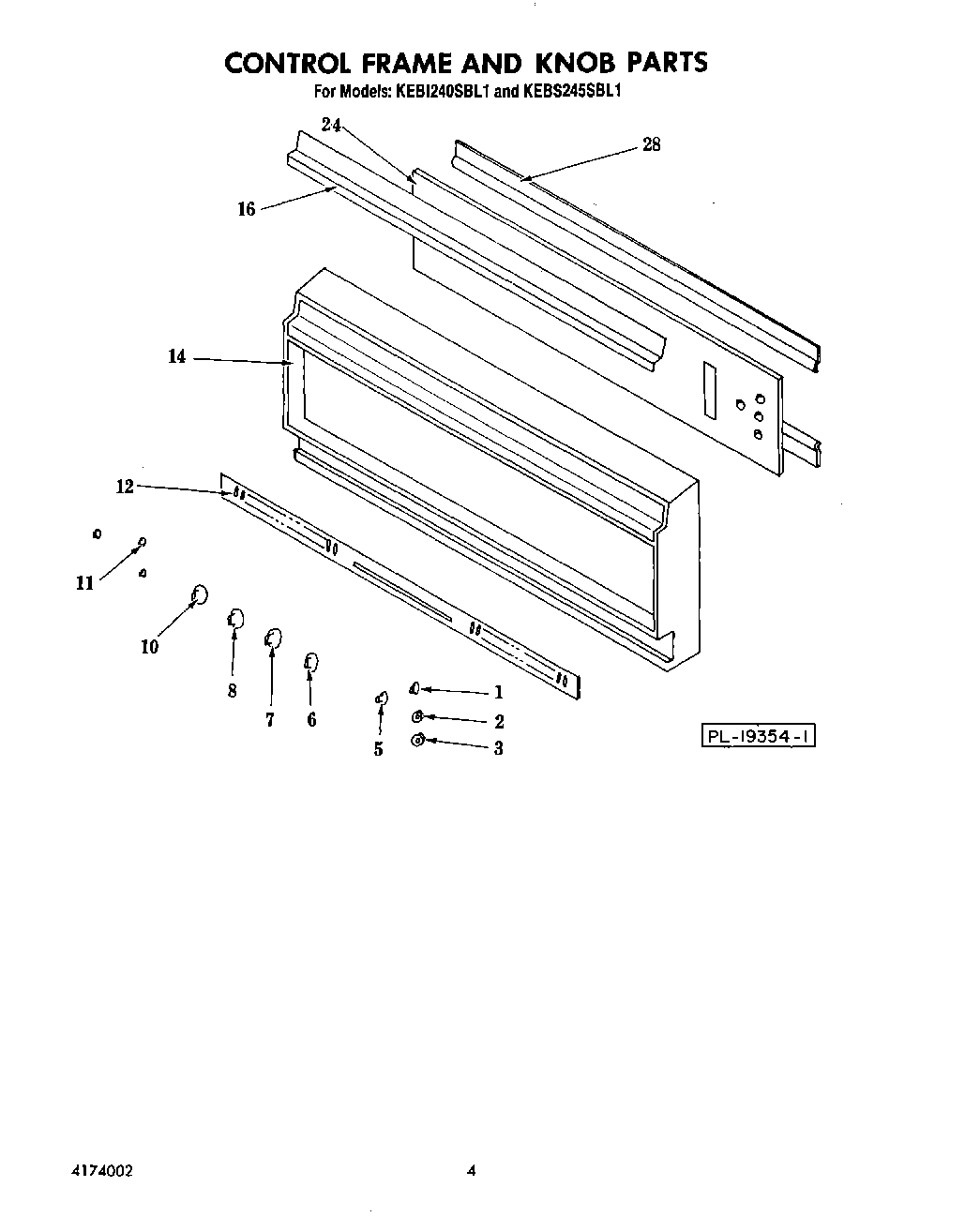

03 - CONTROL FRAME AND KNOB

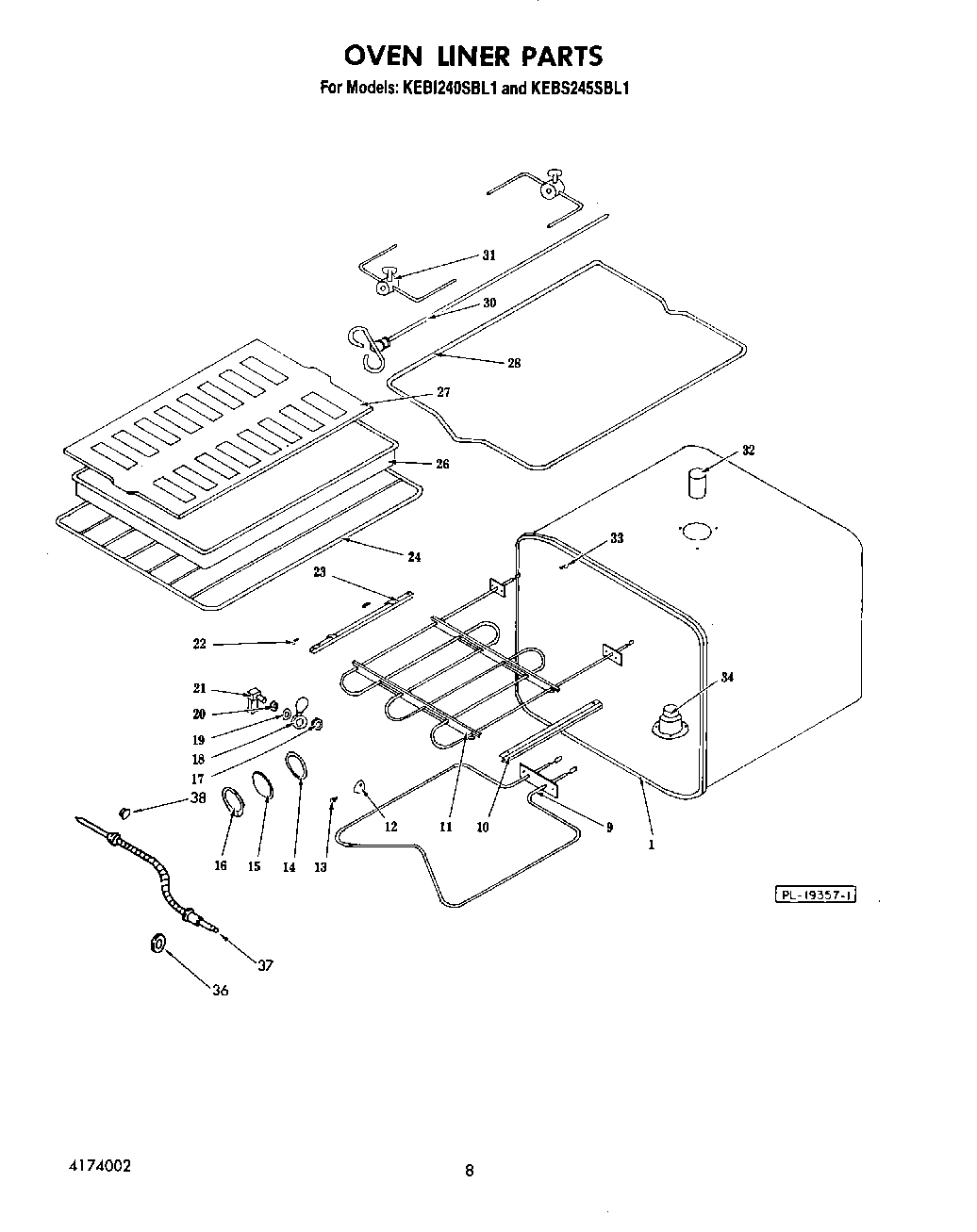

06 - OVEN LINER

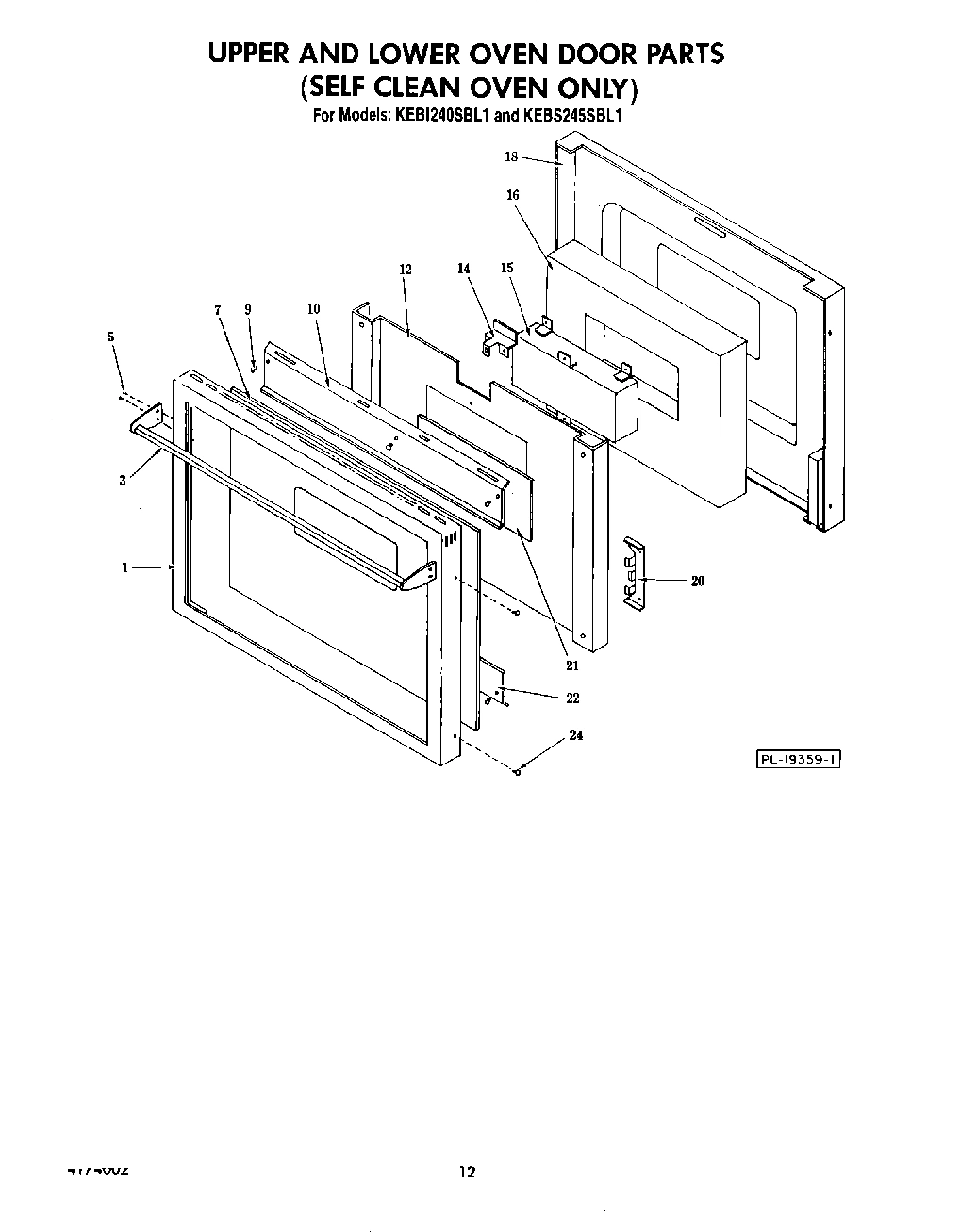

08 - UPPER AND LOWER OVEN DOOR , LIT/OPTIONAL
Common parts from model Whirlpool KEBS245SBL1
List, Repair Parts WPL LIT4174002 Contact Us For Availability
Installation Instructions WPL LIT4174007 Contact Us For Availability
Use & Care Guide Model KEBI240SBL1 WPL LIT4177630 Contact Us For Availability
Use And Care Guide Model KEBS245SBL1 WPL LIT4177639 Contact Us For Availability
Cookbook (Retained Heat) Model KEBS245SBl1 WPL LIT4177808 Contact Us For Availability
1
Latch Mounting Plate WPL 4173044 Contact Us For Availability
1
Main Bottom WPL 4163967 Contact Us For Availability
1
Door Frame WPL 4164383 Contact Us For Availability
1
Thermostat Disc Lower Oven (Model KEBI240SBL1 WPL 4163802 Contact Us For Availability
1
Liner, Oven (Upper & Lower Ovens) WPL 4163863 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
3
Screw, No.10-24 X 3/8`` Hex TCS WPL 4159186 Contact Us For Availability
3
Insulation, Bottom WPL 4169309 Contact Us For Availability
3
Door Handle WPL 4173020 Contact Us For Availability
3
Bezel, Oven Light Switch (Model KEBS245SBL1) WPL 4163831 Contact Us For Availability
3
Bezel, Oven Light Switch (Model KEBI240SBL1) WPL 4169372 Contact Us For Availability
3
Door Handle WPL 4173049 Contact Us For Availability
4
Latch Lever WPL 4163838 Contact Us For Availability
4
Model KEBS245SBL1 WPL 4163805 Contact Us For Availability
4
Thermostat Disc Upper Oven Model KEBI240SBL1 WPL 4163809 Contact Us For Availability
5
Thermal Switch WPL 4173007 Contact Us For Availability
5
Door Gasket, Upper And Lower Oven WPL 4168828 Contact Us For Availability
5
Screw, No.8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
5
Knob, Meat Probe Indicator Model KEBS245SBL1 WPL 4163840 Contact Us For Availability
6
Solenoid Spacer WPL 4168169 Contact Us For Availability
6
Selector Disc (Upper Oven) (Model KEBI240SBL1 WPL 4163799 Contact Us For Availability
6
Selector Disc (Upper Oven) (Model KEBS245SBL1 WPL 4163800 Contact Us For Availability
7
Solenoid WPL 4169323 Contact Us For Availability
7
Front Frame (Lower Oven Model KEBI240SBL1) WPL 4164202 Contact Us For Availability
7
Front Frame (Lower Oven Model KEBS245SBL1) WPL 4173059 Contact Us For Availability
7
Door Glass WPL 4164240 Contact Us For Availability
8
Hole Cover WPL 4168527 Contact Us For Availability
8
Clock WPL 4163729 Contact Us For Availability
8
Use With G.E. Thermostat Model KEBS245SBL1 WPL 4168624 Contact Us For Availability
9
Rubber Bumper WPL 4168826 Contact Us For Availability
9
Control Mounting Panel WPL 4163749 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
10
Air Baffle WPL 4163856 Contact Us For Availability
11
Ballast WPL 4168687 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Bottom Trim WPL 4168059 Contact Us For Availability
11
Lamp Socket (Model KEBS245SBL1) WPL 4164892 Contact Us For Availability
11
Knob, Clock WPL 4165050 Contact Us For Availability
11
Element, Broil WPL 4164185 Contact Us For Availability
12
Thermal Rely Model KEBS245SBL1 WPL 4168696 Contact Us For Availability
12
Latch Switch (Model KEBS245SBL1 (SPNO)) WPL 4168515 Contact Us For Availability
12
Latch Switch (Model KEBI240SBL1 (SPDT)) WPL 4168517 Contact Us For Availability
12
Insulation Retainer WPL 4169356 Contact Us For Availability
12
Lamp, 8 Watt Fluorescent (Model KEBS245SBL1) WPL 4173041 Contact Us For Availability
12
Vent Insert WPL 4168718 Contact Us For Availability
12
Rotisserie Cover Model KEBS245SBL1 WPL 4167518 Contact Us For Availability
13
Relay, Meat Probe Model KEBS245SBL1 WPL 4163731 Contact Us For Availability
13
Screw, No.4-40 X 1 1/4`` Hex WPL 4173053 Contact Us For Availability
13
Shoulder Screw Model KEBS245SBL1 WPL 4168874 Contact Us For Availability
14
Terminal Block, Distribution Model KEBS245SBL WPL 4168561 Contact Us For Availability
14
Screw, No.4-40 X 5/8 Model KEBI240SBL1 WPL 4173035 Contact Us For Availability
14
Cover, Seal End WPL 4167588 Contact Us For Availability
14
Control Frame WPL 4168631 Contact Us For Availability
14
Light Lens Gasket WPL 4166868 Contact Us For Availability
14
Bracket, Lock WPL 4163852 Contact Us For Availability
15
Transformer, Meat Probe Model KEBS245SBL1 WPL 4166561 Contact Us For Availability
15
Insulator (Model KEBS245SBL1) WPL 4168522 Contact Us For Availability
15
Insulator (Model KEBI240SBL1) WPL 4163746 Contact Us For Availability
15
Oven Liner (Lower Oven) (See Pages Further Br WPL ARI83440A7 Contact Us For Availability
15
Window Package WPL 4164235 Contact Us For Availability
15
Door Liner WPL 4164238 Contact Us For Availability
15
Light Lens WPL 4166866 Contact Us For Availability
16
Blower WPL 4173004 Contact Us For Availability
16
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
16
Insulation WPL 4163986 Contact Us For Availability
16
Top Insert (Model KEBS245SBL1) WPL 4163740 Contact Us For Availability
16
Top Insert (Model KEBI240SBL1) WPL 4163742 Contact Us For Availability
16
Light Lens Retainer WPL 4167938 Contact Us For Availability
17
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
17
Nut, Meat Probe Model KEBS245SBL1 WPL 4167277 Contact Us For Availability
18
Latch Switch (Model KEBS245SBL1) WPL 4168516 Contact Us For Availability
18
Probe Jack Cover Model KEBS245SBL1 WPL 4167266 Contact Us For Availability
18
Door Liner WPL 4164236 Contact Us For Availability
19
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
19
Indicator Light, Lock Lower Oven (Model KEBS2 WPL 4168597 Contact Us For Availability
19
Washer Model KEBS245SBL1 WPL 4159557 Contact Us For Availability
20
Latch Switch With Roller WPL 4168514 Contact Us For Availability
20
Nut, Hex Jam Model KEBS245SBL1 WPL 4159113 Contact Us For Availability
20
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
21
Cabinet Top, Front WPL 4169316 Contact Us For Availability
21
Shoulder Screw Latch Lever Upper Oven Model K WPL 4168579 Contact Us For Availability
21
Knob, Latch Lever WPL 4163821 Contact Us For Availability
21
Indicator Light, Serve Model KEBS245SBL1 WPL 4168598 Contact Us For Availability
21
Meat Probe Jack WPL 4164293 Contact Us For Availability
21
Glass Panel WPL 4164243 Contact Us For Availability
22
Shoulder Screw, Latch Lever Lower Oven Model WPL 4168578 Contact Us For Availability
22
Latch Assembly (See Latch Parts Page For Furt WPL ARI83441A1 Contact Us For Availability
22
Retained Heat Switch (Model KEBS245SBL1) WPL 4168533 Contact Us For Availability
22
Thermostat Bulb Clip WPL 4166287 Contact Us For Availability
22
Air Baffle Bottom WPL 4163858 Contact Us For Availability
23
Cabinet Top, Rear WPL 4168261 Contact Us For Availability
23
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
23
Insulation, Rear WPL 4169311 Contact Us For Availability
23
Panel Light Switch Model KEBS245SBL1 WPL 4166934 Contact Us For Availability
23
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
24
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
24
Oven Light Switch WPL 4169365 Contact Us For Availability
24
Control Panel Glass (Model KEBI240SBL1) WPL 4163886 Contact Us For Availability
24
Control Panel Glass (Model KEBS245SBL1) WPL 4163887 Contact Us For Availability
24
Rack, Oven WPL 4168400 Contact Us For Availability
25
Panel, Blower Mounting WPL 4173005 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Rear Anchor WPL 4167526 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
26
Cabinet Side ((Lower Oven) Model KEBS245SBL1) WPL 4163960 Contact Us For Availability
26
Cabinet Side ((Lower Oven) Model KEBI240SBL1) WPL 4173057 Contact Us For Availability
26
Meat Probe Indicator Model KEBS245SBL1 WPL 4163730 Contact Us For Availability
27
Washer, Flat WPL 4159603 Contact Us For Availability
28
Nut, No.10-24 Hex Kep WPL 4159109 Contact Us For Availability
28
WPL 4168451 WPL 4168451 Contact Us For Availability
28
Selector Switch ( WPL 4163727 Contact Us For Availability
28
Retainer WPL 4167590 Contact Us For Availability
28
Rotisserie Rack Model KEBS245SBL1 WPL 4168411 Contact Us For Availability
29
Screw, No.10-24 X 3/8`` PTHMS WPL 4159287 Contact Us For Availability
30
Spacer, Latch Lever (Lower Oven) Model KEBS24 WPL 4169362 Contact Us For Availability
30
Upper Oven Support WPL 4164294 Contact Us For Availability
30
Rotisserie Spear Model KEBS245SBL1 WPL 4168724 Contact Us For Availability
31
Wiring Harness, Latch Switch Model KEBS245SBL WPL 4173050 Contact Us For Availability
31
Wiring Harness, Latch Switch Model KEBS245SBL WPL 4173051 Contact Us For Availability
31
Rotisserie Skewer Model KEBS245SBL1 WPL 4166352 Contact Us For Availability
32
Wiring Harness, Latch Switch Model KEBI240SBL WPL 4173046 Contact Us For Availability
32
Front Frame Support WPL 4168275 Contact Us For Availability
32
WPL 4168150 WPL 4168150 Contact Us For Availability
32
Vent Tube Extension WPL 4168126 Contact Us For Availability
33
Nut, Lock WPL 4159117 Contact Us For Availability
33
Collector Box WPL 4168135 Contact Us For Availability
33
WPL 4164245 WPL 4164245 Contact Us For Availability
33
WPL 4164361 WPL 4164361 Contact Us For Availability
33
Capillary Cover WPL 4168203 Contact Us For Availability
34
Compartment Vent Duct Model KEBS245SBL1 WPL 4168285 Contact Us For Availability
34
Smoke Eliminator (Vent Tube Lower Oven Model WPL 4168491 Contact Us For Availability
34
Smoke Eliminator (Lower Oven Model KEBS245SBL WPL 4168492 Contact Us For Availability
35
Front Frame, Upper Oven WPL 4164205 Contact Us For Availability
35
WPL 4168299 WPL 4168299 Contact Us For Availability
35
WPL 4169359 WPL 4169359 Contact Us For Availability
36
Gasket, Meat Probe Jack Model KEBS245SBL1 WPL 4163975 Contact Us For Availability
37
Oven Liners (Upper Oven) (See Liner Parts Pag WPL ARI83442A5 Contact Us For Availability
37
WPL 4173042 WPL 4173042 Contact Us For Availability
37
Meat Probe Model KEBS245SBL1 WPL 4167267 Contact Us For Availability
38
Control Frame Support WPL 4169335 Contact Us For Availability
38
WPL 4173052 WPL 4173052 Contact Us For Availability
38
Plug Button (3/8`` Hole) WPL 4159120 Contact Us For Availability
38
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
38
Plug Button (3/4`` Hole) WPL 4159123 Contact Us For Availability
40
Compartment Top (Upper Oven) WPL 4169315 Contact Us For Availability
42
Vent Box WPL 4163941 Contact Us For Availability
49
Vent Tube (Upper Oven) WPL 4168494 Contact Us For Availability
50
Cabinet Side (Upper Oven) WPL 4173047 Contact Us For Availability
52
Conduit Clamp WPL 4167775 Contact Us For Availability
53
Vent Tube Mounting Bracket WPL 4168242 Contact Us For Availability
54
Latch Parts (See Pages Further Breakdown) WPL ARI83443A3 Contact Us For Availability
55
Cabinet Side Extension WPL 4168311 Contact Us For Availability
59
Cabinet Back WPL 4173058 Contact Us For Availability
62
Socket, Lamp WPL 4168755 Contact Us For Availability
63
Light Shield WPL 4167579 Contact Us For Availability
64
RT Thermostat WPL 4168550 Contact Us For Availability
65
Rotisserie Motor Model KEBS245SBL1 WPL 4163836 Contact Us For Availability
66
Rotisserie Motor Mounting Plate Model KEBS245 WPL 4167469 Contact Us For Availability
67
WPL 4168592 WPL 4168592 Contact Us For Availability
68
WPL 4168140 WPL 4168140 Contact Us For Availability
70
WPL 4163763 WPL 4163763 Contact Us For Availability
70
WPL 4163764 WPL 4163764 Contact Us For Availability
71
WPL 4168590 WPL 4168590 Contact Us For Availability
72
WPL 4167599 WPL 4167599 Contact Us For Availability
74
WPL 4173048 WPL 4173048 Contact Us For Availability
74
WPL 4168878 WPL 4168878 Contact Us For Availability
75
WPL 4167596 WPL 4167596 Contact Us For Availability
76
WPL 4167597 WPL 4167597 Contact Us For Availability
76
WPL 4167598 WPL 4167598 Contact Us For Availability
77
WPL 4163883 WPL 4163883 Contact Us For Availability
79
WPL 4163752 WPL 4163752 Contact Us For Availability
79
WPL 4163753 WPL 4163753 Contact Us For Availability
79
WPL 4163754 WPL 4163754 Contact Us For Availability
79
WPL 4163755 WPL 4163755 Contact Us For Availability
81
WPL 4173016 WPL 4173016 Contact Us For Availability
81
WPL 4173017 WPL 4173017 Contact Us For Availability
82
WPL 4173015 WPL 4173015 Contact Us For Availability
× ![]()
