Model Whirlpool KCIT736SSS01 Electric Cooktop – Common Parts & Diagrams

1
Tech Sheet
Tech Sheet WPL W11791648 Contact Us For Availability
View on Model
1
Control Module Assembly
Control Module Assembly WPL W11807801 Contact Us For Availability
View on Model
2

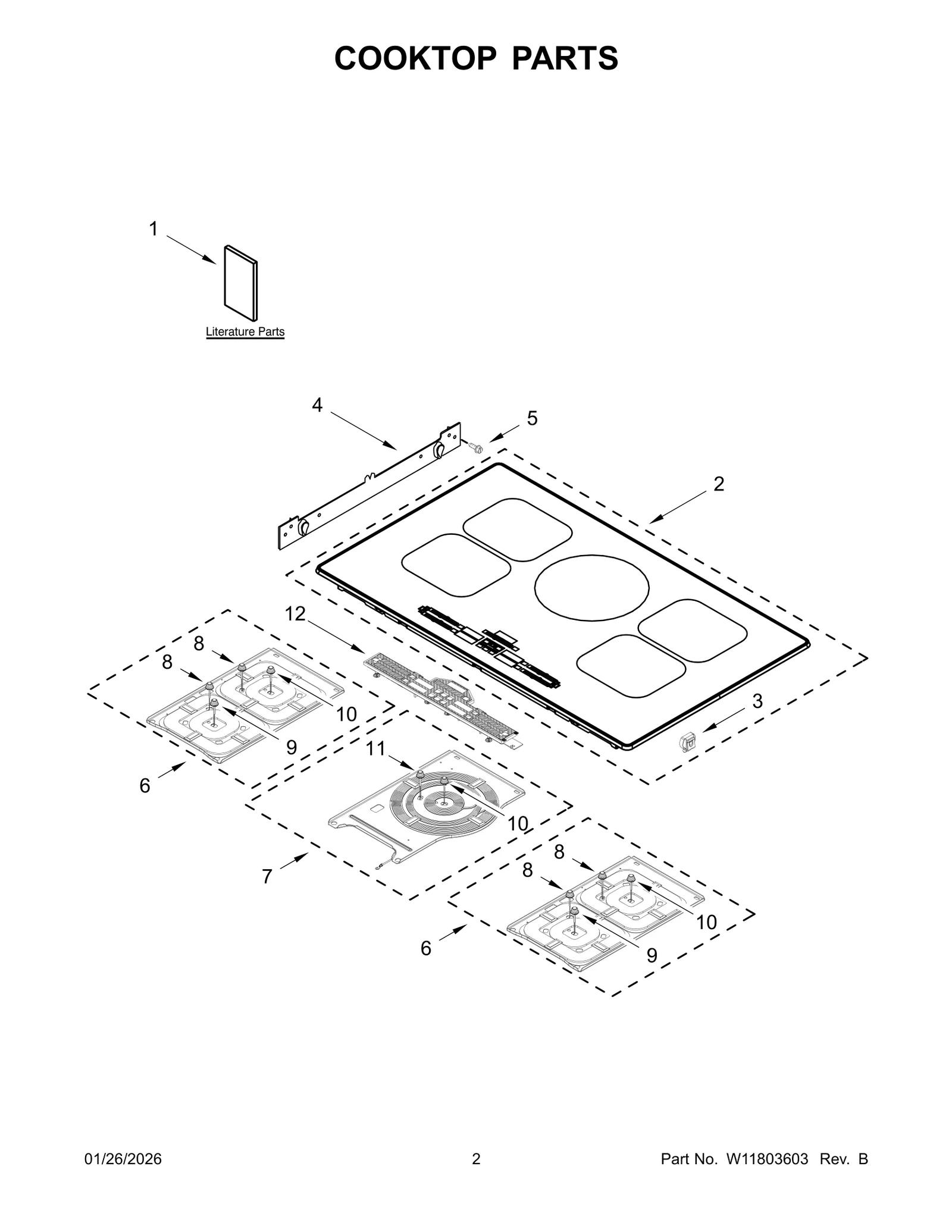

Glass Cooktop Assembly
Glass Cooktop Assembly WPL W11680216 Contact Us For Availability
View on Model
2
Blower Assembly
Blower Assembly WPL W11683445 Contact Us For Availability
View on Model
5
Control Module Assembly
Control Module Assembly WPL W11671310 Contact Us For Availability
View on Model
6
Induction Element Assembly
Induction Element Assembly WPL W11669267 Contact Us For Availability
View on Model
6
Power Board IPC (Not Serviced)
Power Board IPC (Not Serviced) WPL N/S Contact Us For Availability
View on Model
7
Induction Element Assembly
Induction Element Assembly WPL W11669278 Contact Us For Availability
View on Model
7
Communication Harness (IPC to IPC)
Communication Harness (IPC to IPC) WPL W11643438 Contact Us For Availability
View on Model
8
Sensor Assembly
Sensor Assembly WPL W11739255 Contact Us For Availability
View on Model
8
Communication Harness (HMI to IPC)
Communication Harness (HMI to IPC) WPL W11753759 Contact Us For Availability
View on Model
9
Sensor Assembly
Sensor Assembly WPL W11739256 Contact Us For Availability
View on Model
10
Sensor Assembly
Sensor Assembly WPL W11739258 Contact Us For Availability
View on Model
11
Sensor Assembly
Sensor Assembly WPL W11739257 Contact Us For Availability
View on Model
12
User Interface Assembly (HMI) NOT ILLUSTRATED
User Interface Assembly (HMI) NOT ILLUSTRATED WPL W11787310 Contact Us For Availability
View on Model
12
Cord, Power
Cord, Power WPL W11702274 Contact Us For Availability
View on Model
