Model Whirlpool KCIT730SBL01 Electric Cooktop – Common Parts & Diagrams
COVER

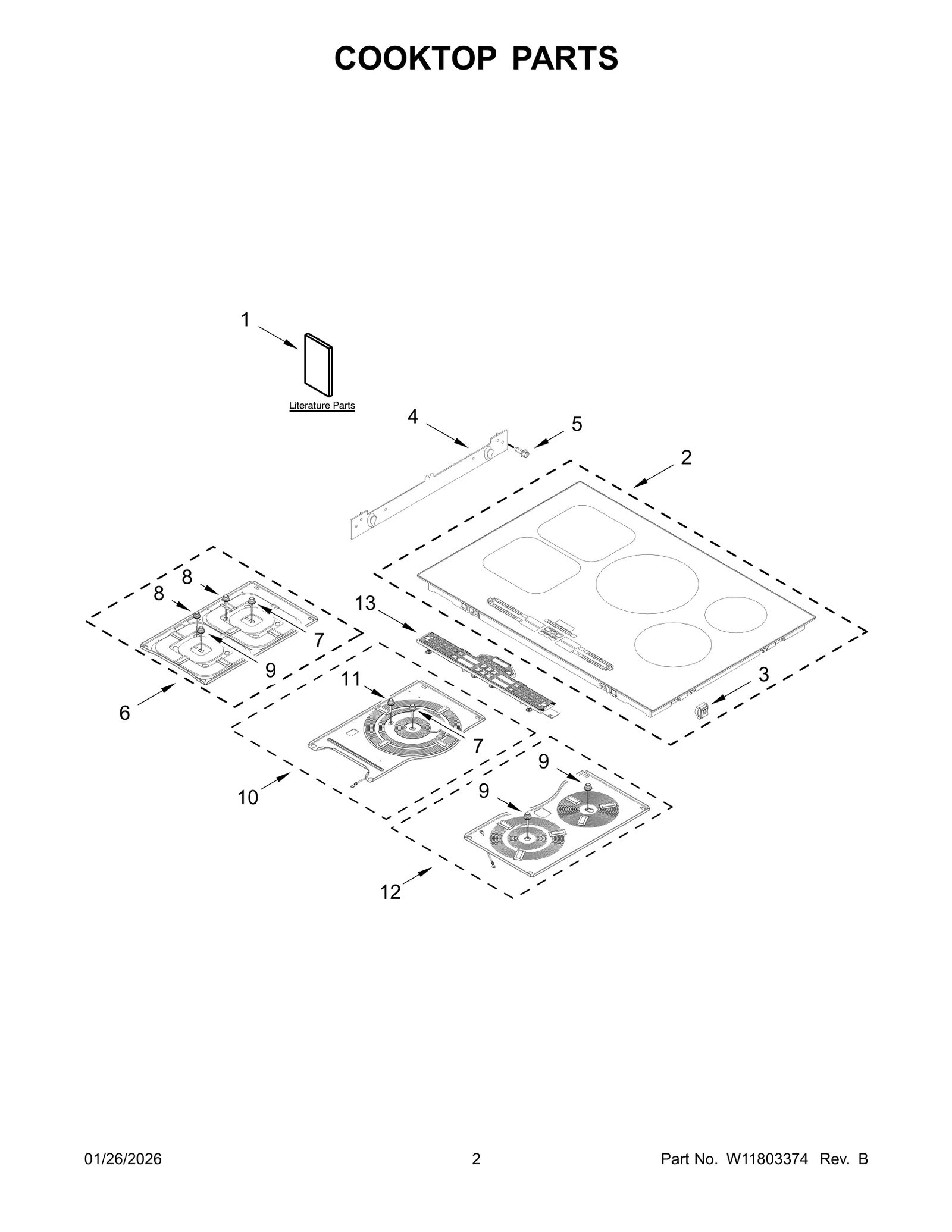

COOKTOP PARTS

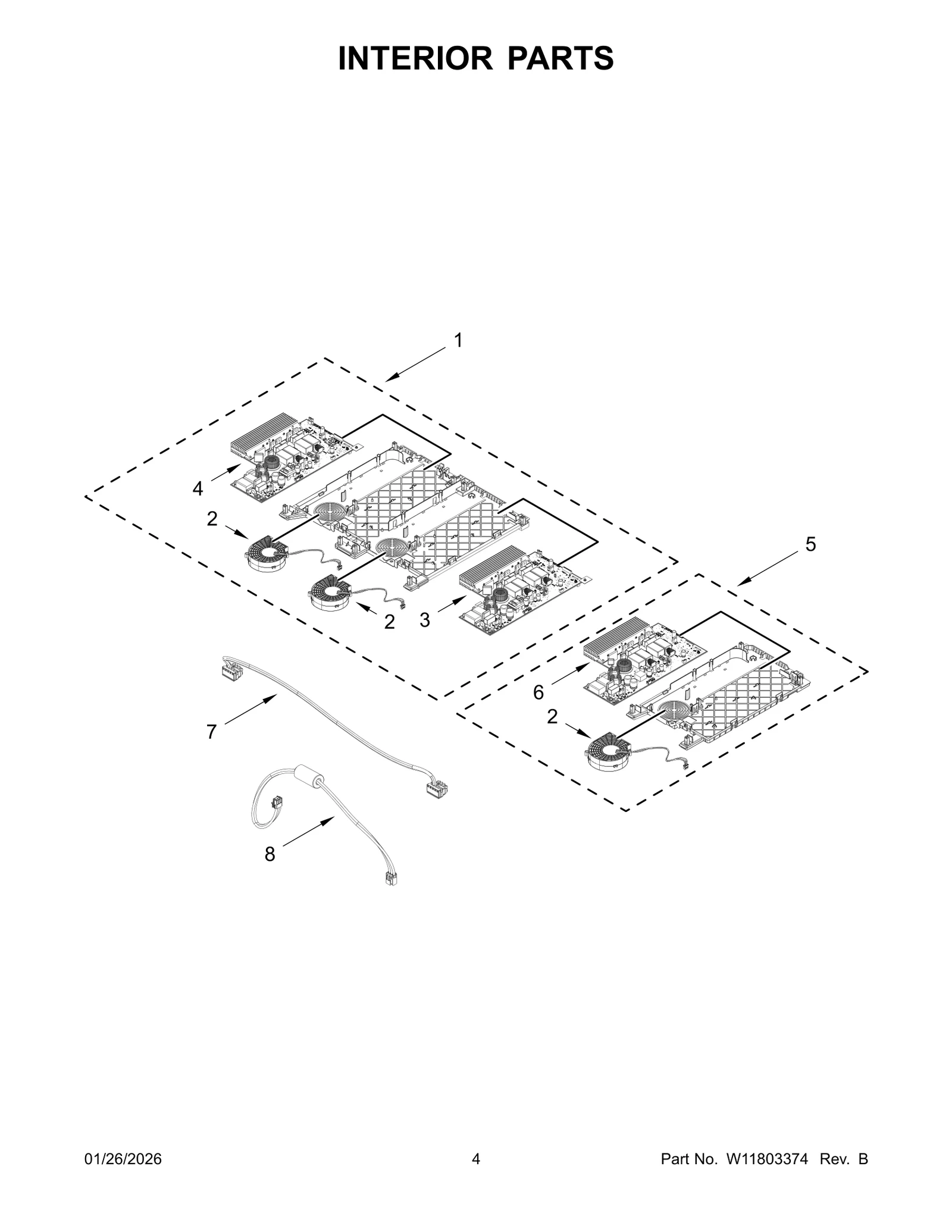

INTERIOR PARTS

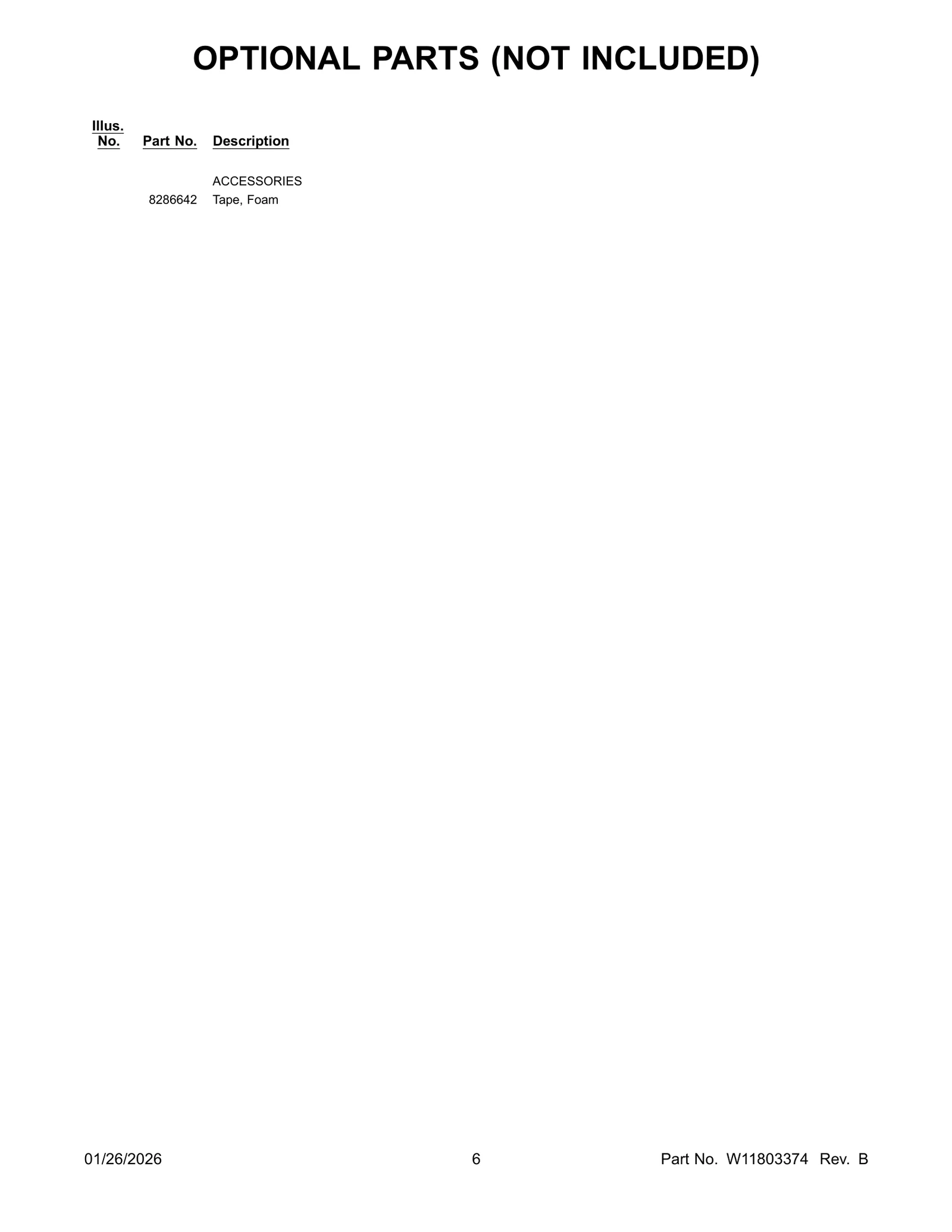

OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool KCIT730SBL01 Electric Cooktop
1
Owners Manual WPL W11721952 Contact Us For Availability
1
Tech Sheet WPL W11791642 Contact Us For Availability
1
Quick Start Guide WPL W11741510 Contact Us For Availability
1
Control Module Assembly WPL W11807805 Contact Us For Availability
2
Glass Cooktop Assembly WPL W11695972 Contact Us For Availability
2
Blower Assembly WPL W11683445 Contact Us For Availability
5
Control Module Assembly WPL W11671310 Contact Us For Availability
6
Induction Element Assembly WPL W11669265 Contact Us For Availability
6
Power Board IPC (Not Serviced) WPL N/S Contact Us For Availability
7
Sensor Assembly WPL W11739258 Contact Us For Availability
7
Communication Harness (IPC to IPC) WPL W11643438 Contact Us For Availability
8
Sensor Assembly WPL W11739255 Contact Us For Availability
8
Communication Harness (HMI to IPC) WPL W11753759 Contact Us For Availability
9
Sensor Assembly WPL W11739256 Contact Us For Availability
10
Induction Element Assembly WPL W11669279 Contact Us For Availability
11
Sensor Assembly WPL W11739257 Contact Us For Availability
12
Induction Element Assembly WPL W11669273 Contact Us For Availability
13
User Interface Assembly (HMI) NOT ILLUSTRATED WPL W11787313 Contact Us For Availability
13
Cord, Power WPL W11702274 Contact Us For Availability
× ![]()
