Model Whirlpool KCES950KSS01 COOKTOP, ELECTRIC, BUILT-IN, 30 INCH – Common Parts & Diagrams

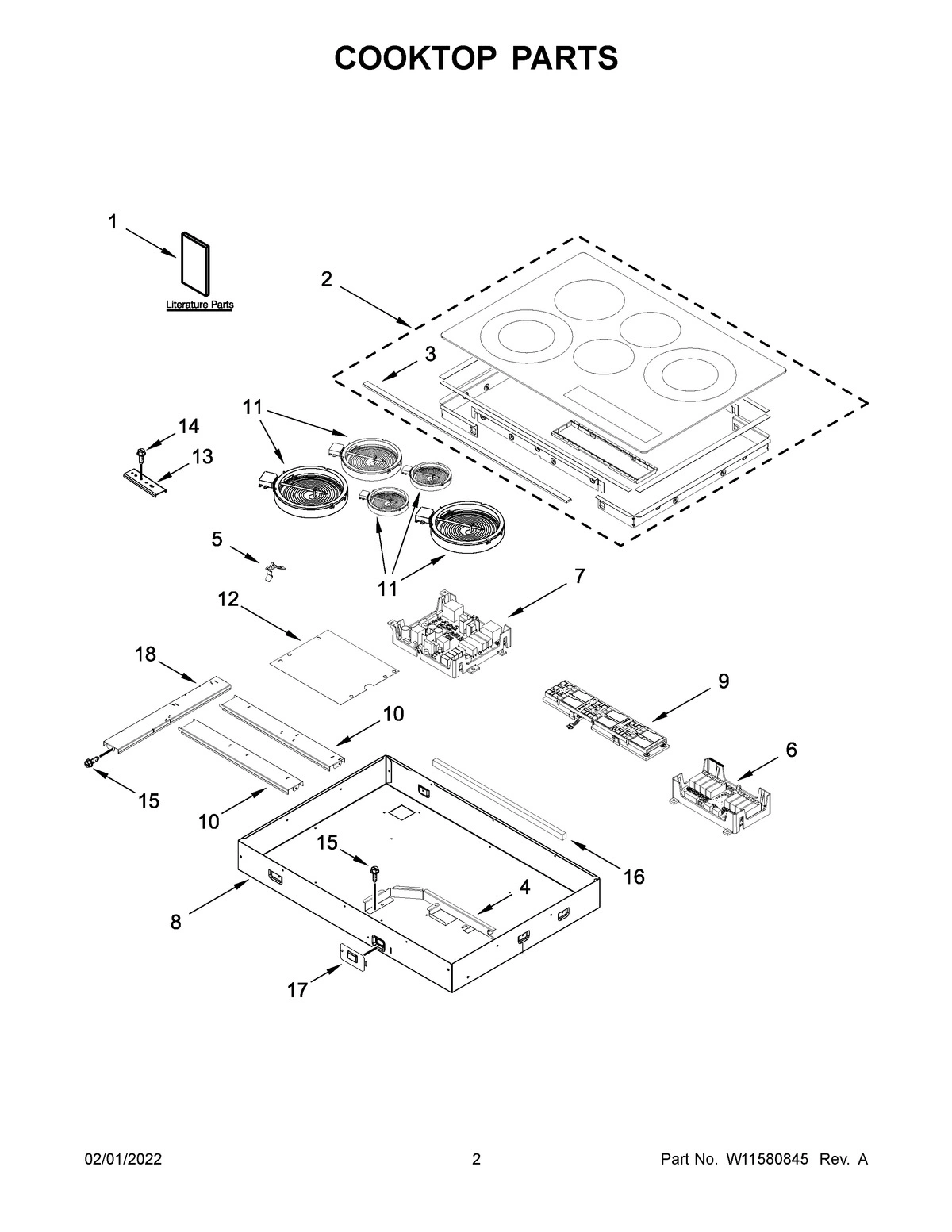

Common parts from model Whirlpool KCES950KSS01 COOKTOP, ELECTRIC, BUILT-IN, 30 INCH

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

5

WPW10225448 Whirlpool Spring Assembly In Stock WPL WPW10225448 View Details $6.66

View on Model

7

W11350287-includeCORE Whirlpool W11350287 Ref Backorder WPL W11350287-includeCORE View Details $358.50

View on Model

9

UI ASSEMBLY WPL W11420427 Contact Us For Availability

View on Model

10

RAIL, HORIZONTAL WPL W11110715 Contact Us For Availability

View on Model

11

W11259508 Whirlpool Surface Element Backorder WPL W11259508 View Details $134.96

View on Model

11A

WP8273993 Whirlpool Surface Element In Stock WPL WP8273993 View Details $169.51

View on Model

11B

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 View Details $127.16

View on Model

11C

WPW10342780 Whirlpool Surface Element In Stock WPL WPW10342780 View Details $120.48

View on Model

11D

W11517959 Whirlpool Electric Range Radiant Su In Stock WPL W11517959 View Details $87.90

View on Model

12

PAD, INSULATION WPL W11242976 Contact Us For Availability

View on Model

13

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $34.75

View on Model

14

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $4.77

View on Model

15

SCREW WPL 7101P42660 Contact Us For Availability

View on Model

16

TOP, FOAM (HEAT SHIELD) WPL W11177346 Contact Us For Availability

View on Model

18

RAIL, VERTICAL WPL W11110713 Contact Us For Availability

View on Model

NI

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 View Details $7.26

View on Model

NI

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 View Details $7.78

View on Model

NI

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B View Details $4.58

View on Model

NI

WP8286642 Whirlpool Tape Backorder WPL WP8286642 View Details $66.28

View on Model

NI

ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

View on Model

NI

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

View on Model

NI

HARNESS, MAIN WPL W11110555 Contact Us For Availability

View on Model

NI

ACCESSORIES, PROTECTANT, COOKTOP WPL 31463 Contact Us For Availability
