Model Whirlpool KBSN742SPS00 Refrigerator – Common Parts &amp; Diagrams

1

W11623097 Whirlpool Inverter Box In Stock WPL W11623097 $242.57

1

Shelf Assembly, Fixed WPL W11410512 Contact Us For Availability

1

Door, Refrigerator WPL W11576682 Contact Us For Availability

1

Door, Freezer WPL W11570422 Contact Us For Availability

1

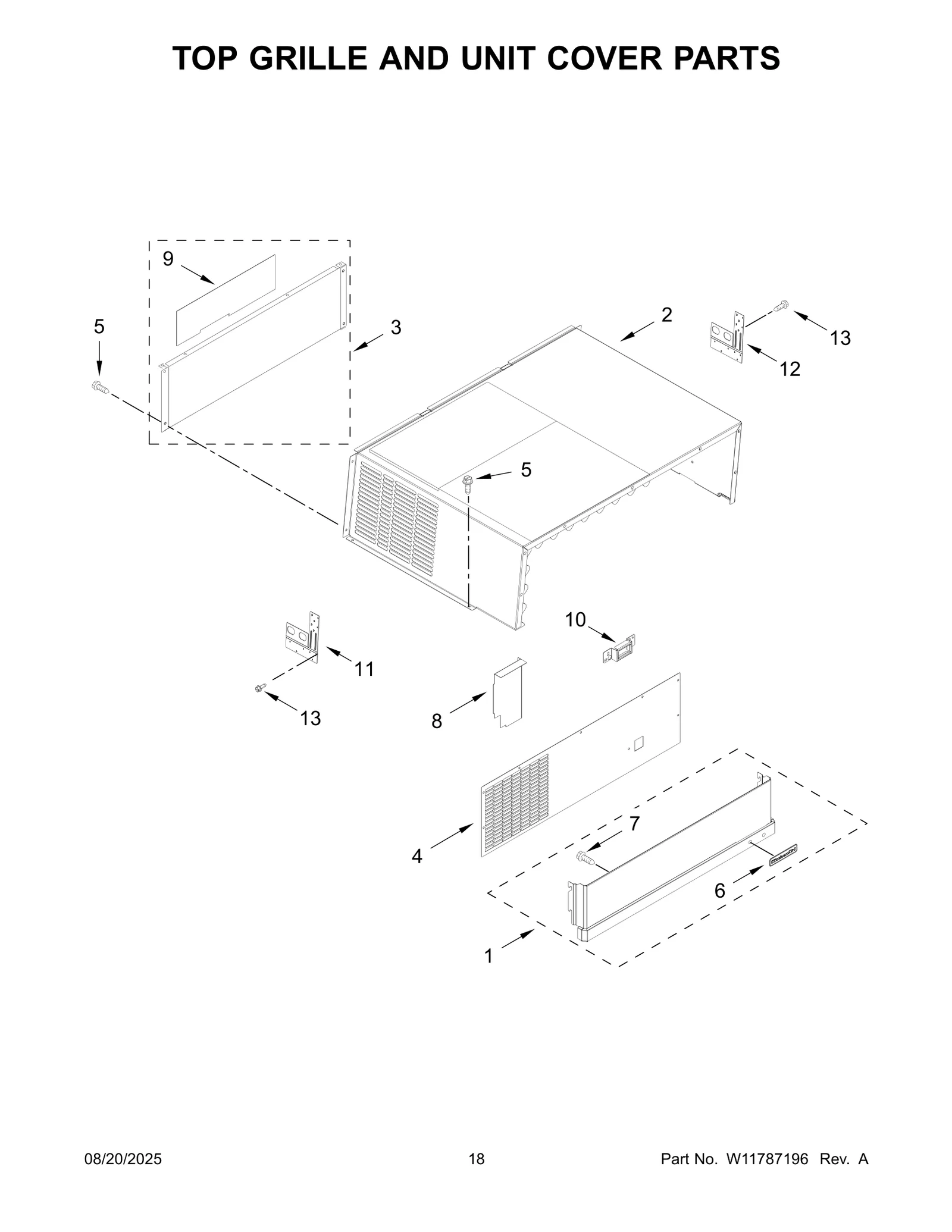

Grille Assembly, Top WPL W11756780 Contact Us For Availability

1

Bracket, Evaporator Right Top WPL W11695309 Contact Us For Availability

2

W11568087 Whirlpool Shelf Backorder WPL W11568087 $201.82

2

W11752085 Whirlpool Door Hinge In Stock WPL W11752085 $39.62

2

Shelf Assembly, Bakeware WPL W11754546 Contact Us For Availability

2

Cover, Upper Unit WPL W11708444 Contact Us For Availability

2

Screw WPL 489473 Contact Us For Availability

2

Tube, Transition WPL W11698962 Contact Us For Availability

3

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $103.52

3

W11474472 Whirlpool Screw In Stock WPL W11474472 $5.30

3

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $16.24

3

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $17.28

3

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $16.89

3

W11557671 Whirlpool Refrigerator Compressor In Stock WPL W11557671 $548.98

3

W11603232 Whirlpool Shelf Backorder WPL W11603232 $138.01

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

3

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $135.39

3

Pan Cover Assembly, Meat WPL W11441724 Contact Us For Availability

3

Panel, Unit Back WPL W11708420 Contact Us For Availability

4

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $60.24

4

W11157086 Whirlpool Dishwasher Door Handle St In Stock WPL W11157086 $24.25

4

W11435372 Whirlpool Cover-Unit Backorder WPL W11435372 $30.93

4

W11602365 Whirlpool Refrigerator Basket Backorder WPL W11602365 $93.66

4

W11629268 Whirlpool Thermistor In Stock WPL W11629268 $30.33

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $32.24

4

Pan Cover Assembly, Crisper WPL W11441726 Contact Us For Availability

5

W10587113 Whirlpool Grommet Backorder WPL W10587113 $10.00

5

W11444578 Whirlpool Tube Backorder WPL W11444578 $48.27

5

W11631251 Whirlpool Front Basket Backorder WPL W11631251 $123.42

5

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $74.95

5

Pan Assembly, Meat WPL W11448427 Contact Us For Availability

5

Screw (Black) WPL W10784922 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $169.82

6

2302878 Whirlpool Refrigerator Door Hinge Backorder WPL 2302878 $62.13

6

W11238395 Whirlpool Refrigerator Filter Cap In Stock WPL W11238395 $31.84

6

W11625082 Whirlpool Refrigerator FIP Gasket Backorder WPL W11625082 $238.39

6

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $231.00

6

Pan Assembly, Crisper WPL W11740834 Contact Us For Availability

6

Badge (Smoked Chrome) WPL W11688412 Contact Us For Availability

6

Pan Assembly, Drain WPL W11491712 Contact Us For Availability

7

2307810 Whirlpool Refrigerator Air Duct Backorder WPL 2307810 $57.60

7

W11408929 Whirlpool Bin-Cntlvr In Stock WPL W11408929 $115.07

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

7

Handle, Door WPL W11737006 Contact Us For Availability

7

Support, Condenser WPL W11695311 Contact Us For Availability

7

Cover, Wiring Bottom WPL W11695781 Contact Us For Availability

8

W10645086 Whirlpool Refrigerator Divider Backorder WPL W10645086 $67.68

8

W11633366 Whirlpool Utility Pan Backorder WPL W11633366 $43.21

8

Door, Ice WPL W11567133 Contact Us For Availability

8

Support, Condenser WPL W11695312 Contact Us For Availability

8

Cover, Wire Box WPL W11695782 Contact Us For Availability

9

W11247667 Whirlpool Refrigerator Cover Backorder WPL W11247667 $74.84

9

W11445483 Whirlpool Tube Backorder WPL W11445483 $48.27

9

W11627244 Whirlpool Refrigerator FIP Gasket Backorder WPL W11627244 $226.61

9

W11633367 Whirlpool Utility Pan Backorder WPL W11633367 $43.21

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $39.37

9

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $116.23

9

Bucket, Ice WPL W11410834 Contact Us For Availability

9

Skin, FC Door Filler (Not Serviced-Included W WPL W11737536 Contact Us For Availability

9

Insulation, Unit Back Panel WPL W11244166 Contact Us For Availability

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $13.64

W10321050 Whirlpool Refrigerator Shield Backorder WPL W10321050 $54.93

W11410122 Whirlpool Track Backorder WPL W11410122 $62.17

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $179.07

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

Spacer, Crisper Pan WPL W11410123 Contact Us For Availability

Spacer, Ice Door WPL W11445123 Contact Us For Availability

Skin, RC Door Filler (Not Serviced-Included W WPL W11737533 Contact Us For Availability

Screw (Stainless) WPL W11672062 Contact Us For Availability

Cover, Safety Switch WPL W11356980 Contact Us For Availability

W10758117 Whirlpool Spacer Backorder WPL W10758117 $33.73

W11504450 Whirlpool Refrigerator Coupler In Stock WPL W11504450 $30.49

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $21.00

W11623130 Whirlpool Housing Backorder WPL W11623130 $25.14

W11629713 Whirlpool Evaporator Backorder WPL W11629713 $235.07

Screw WPL 3400525 Contact Us For Availability

Spacer, Meat Pan WPL W11410124 Contact Us For Availability

Spacer, Meat Pan WPL W11410125 Contact Us For Availability

Bracket, Install (Left) WPL W11756499 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide In Stock WPL 2302956 $217.43

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $166.20

W10758113 Whirlpool Refrigerator Spacer Backorder WPL W10758113 $66.81

W11267071 Whirlpool Heater Backorder WPL W11267071 $142.03

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Bracket, Install (Right) WPL W11756500 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $49.71

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

W10732727 Whirlpool Refrigerator Slide Backorder WPL W10732727 $233.07

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

W10844011 Whirlpool Refrigerator Slide Backorder WPL W10844011 $233.07

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

Spacer, Door Skin WPL W10758140 Contact Us For Availability

W10756209 Whirlpool Refrigerator Spacer Backorder WPL W10756209 $58.42

W11715935 Whirlpool Dampener Backorder WPL W11715935 $8.35

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $5.30

Bracket, Control Assembly WPL W11435371 Contact Us For Availability

W10761896 Whirlpool Spacer Backorder WPL W10761896 $42.03

W11408939 Whirlpool Bin Controller In Stock WPL W11408939 $115.07

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

Pan, Cool Control Crisper WPL W11767863 Contact Us For Availability

W10432308 Whirlpool Gasket Backorder WPL W10432308 $15.86

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $6.87

Shelf Assembly, Platter WPL W11766360 Contact Us For Availability

Condenser (Also Order the Following Lokring� WPL W11601407 Contact Us For Availability

17

W10761936 Whirlpool Spacer Assembly Backorder WPL W10761936 $42.03

17

W11585870 Whirlpool Wire Harness Backorder WPL W11585870 $128.18

17

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $15.88

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $62.44

W11627456 Whirlpool Sensor Backorder WPL W11627456 $58.78

W11700297 Whirlpool Refrigerator Gap Hinge Backorder WPL W11700297 $21.99

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $4.82

2320554 Whirlpool Bracket Backorder WPL 2320554 $58.38

W11408937 Whirlpool Control Bin In Stock WPL W11408937 $115.07

Waterline, Cust Connect WPL W10577944 Contact Us For Availability

Screw WPL W10068580 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

W10782423 Whirlpool Refrigerator Ring Backorder WPL W10782423 $15.41

W10782424 Whirlpool Refrigerator Ring Backorder WPL W10782424 $15.41

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $31.85

Door Bin Assembly, Top WPL W11610620 Contact Us For Availability

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $28.35

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $16.11

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $19.38

W11769878 Whirlpool Screw Backorder WPL W11769878 $8.39

22

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.64

22

Bracket, Condenser Bottom WPL W11695784 Contact Us For Availability

23

W10808291 Whirlpool Screw Backorder WPL W10808291 $7.82

23

W11623099 Whirlpool Condenser Motor Backorder WPL W11623099 $91.02

24

W10672548 Whirlpool Refrigerator Shim Backorder WPL W10672548 $13.30

24

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

25

W10527053 Whirlpool Refrigerator Door Hinge In Stock WPL W10527053 $87.70

25

W11234470 Whirlpool Refrigerator Clamp In Stock WPL W11234470 $14.02

25

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $194.09

26

WP2302876 Whirlpool Refrigerator Hinge Bushin In Stock WPL WP2302876 $59.45

26

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

27

Tube, Heat Loop Transition WPL W11602251 Contact Us For Availability

28

WPW10188549 Whirlpool Refrigerator Front Gril Backorder WPL WPW10188549 $93.53

28

Switch, Power Disconnect WPL W11311927 Contact Us For Availability

29

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $85.64

30

Tube, Drier Transition WPL W11602250 Contact Us For Availability

31

Tube, Process WPL W11672778 Contact Us For Availability

33

Cover, Condenser Support WPL W11695783 Contact Us For Availability

34

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $63.40

34

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $64.43

35

W11752962-includeCORE Whirlpool Electronic Co Backorder WPL W11752962-includeCORE $260.12

40

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

43

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $135.30

44

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $63.63

46

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $14.81

48

W11225845 Whirlpool Refrigerator Inlet Valve In Stock WPL W11225845 $88.26

49

W10619899 Whirlpool Refrigerator Water Tube Backorder WPL W10619899 $30.19

51

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

52

W10635851 Whirlpool Refrigerator Water Tube In Stock WPL W10635851 $58.91

53

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $88.27

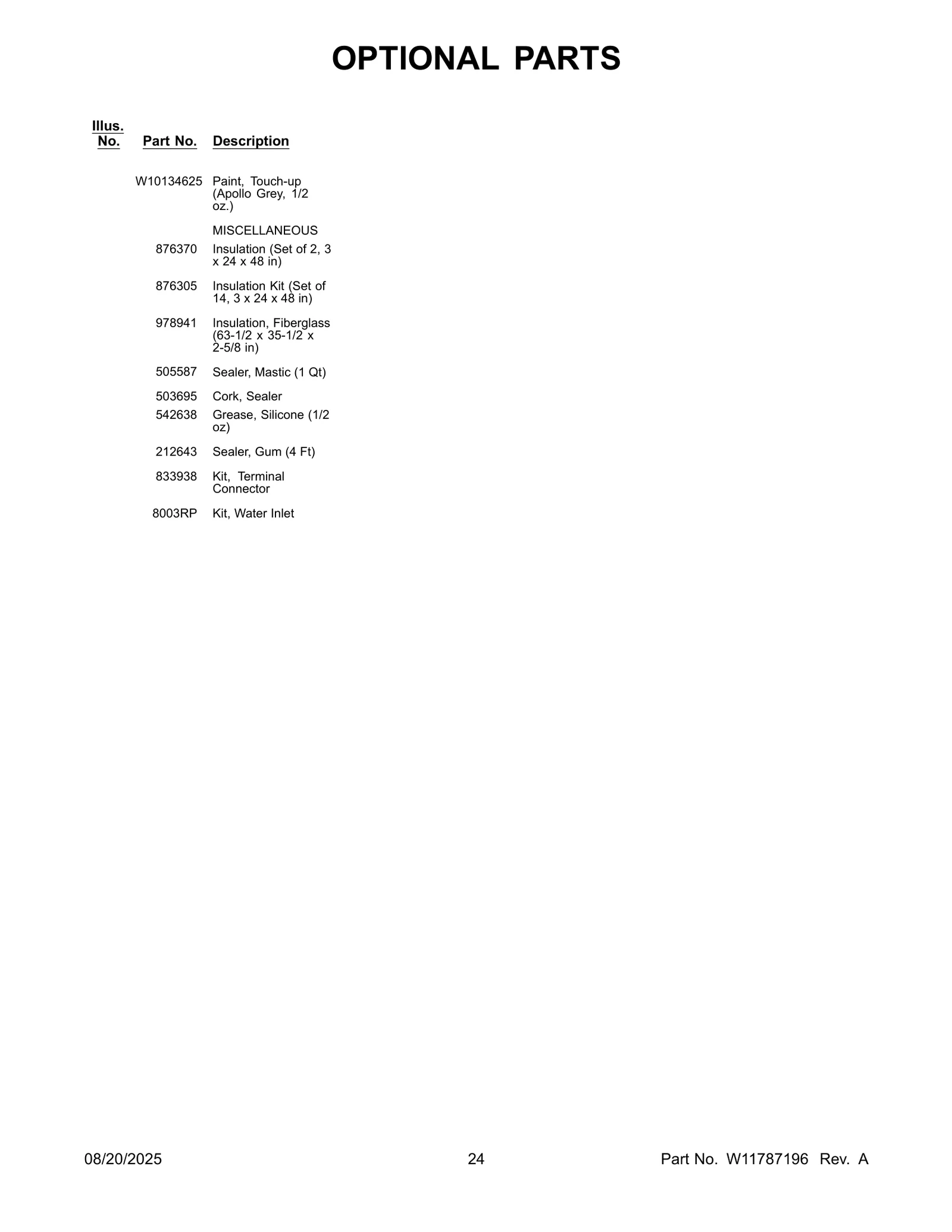

OPT-1

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $10.73

OPT-3

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

OPT-5

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

OPT-6

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

OPT-7

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

OPT-8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

OPT-9

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

OPT-10

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $33.13
