Model Whirlpool KBRP36FMS01 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts & Diagrams
08 - UPPER UNIT PARTS

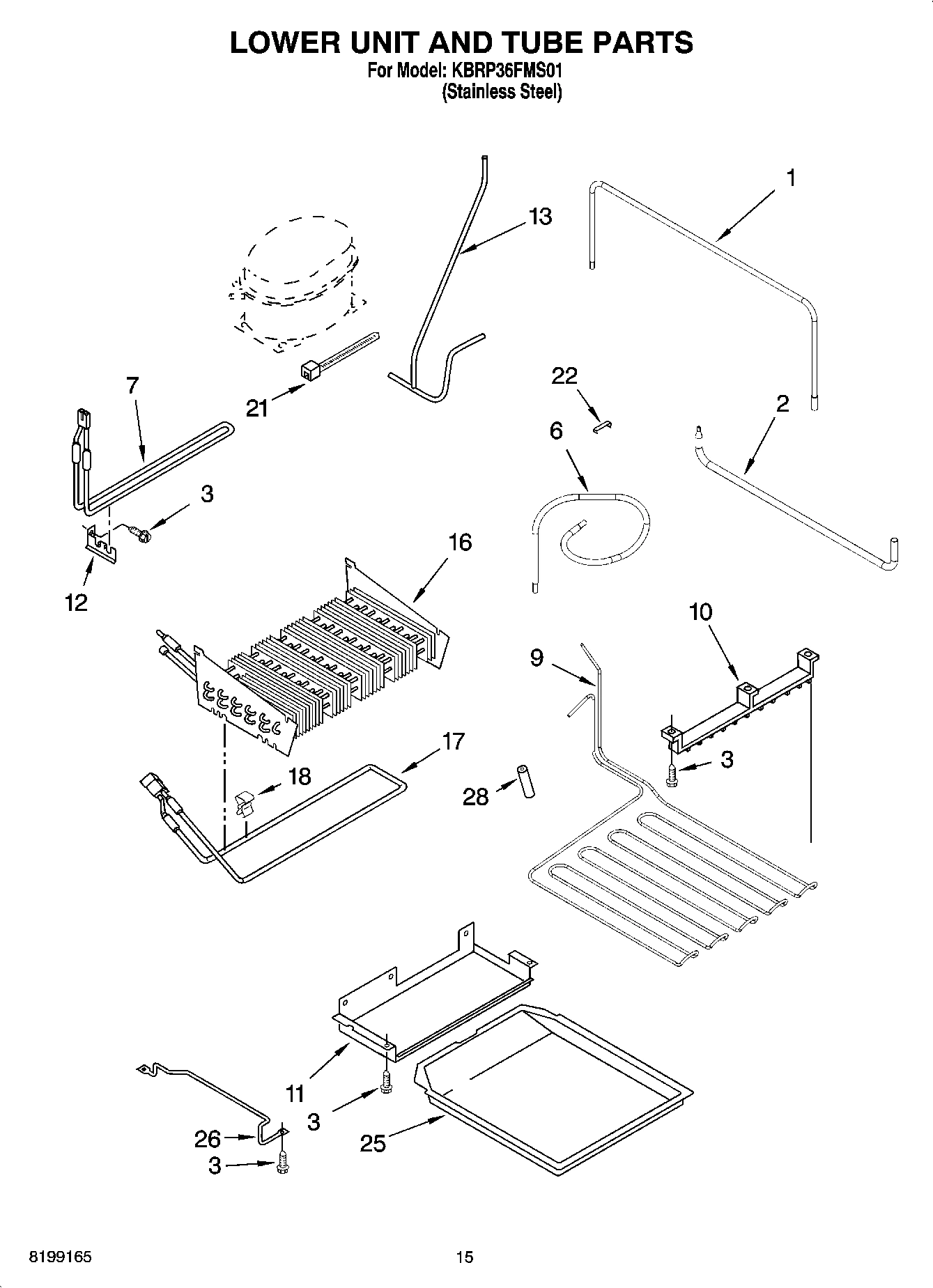

09 - LOWER UNIT AND TUBE PARTS

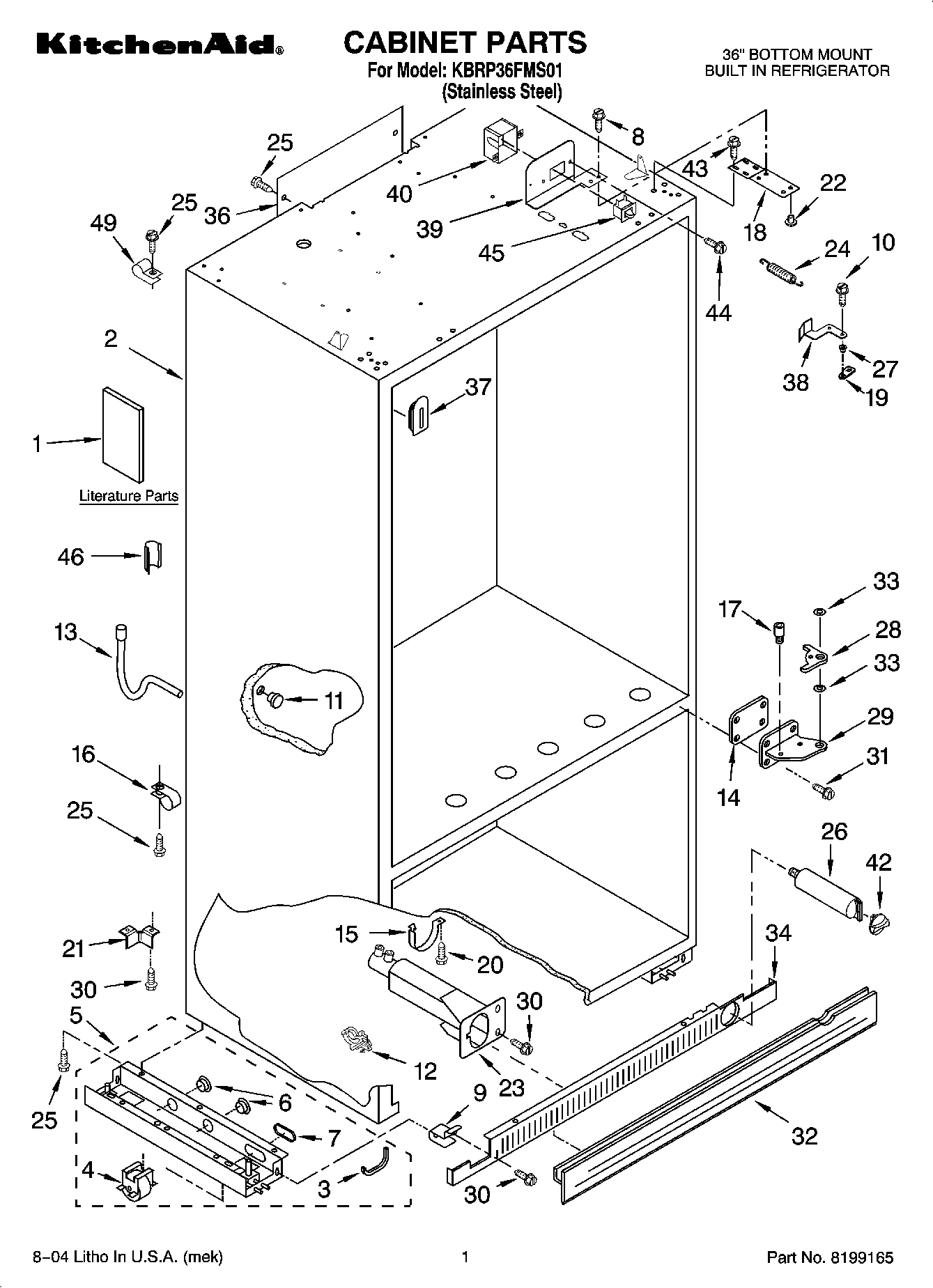

01 - CABINET PARTS

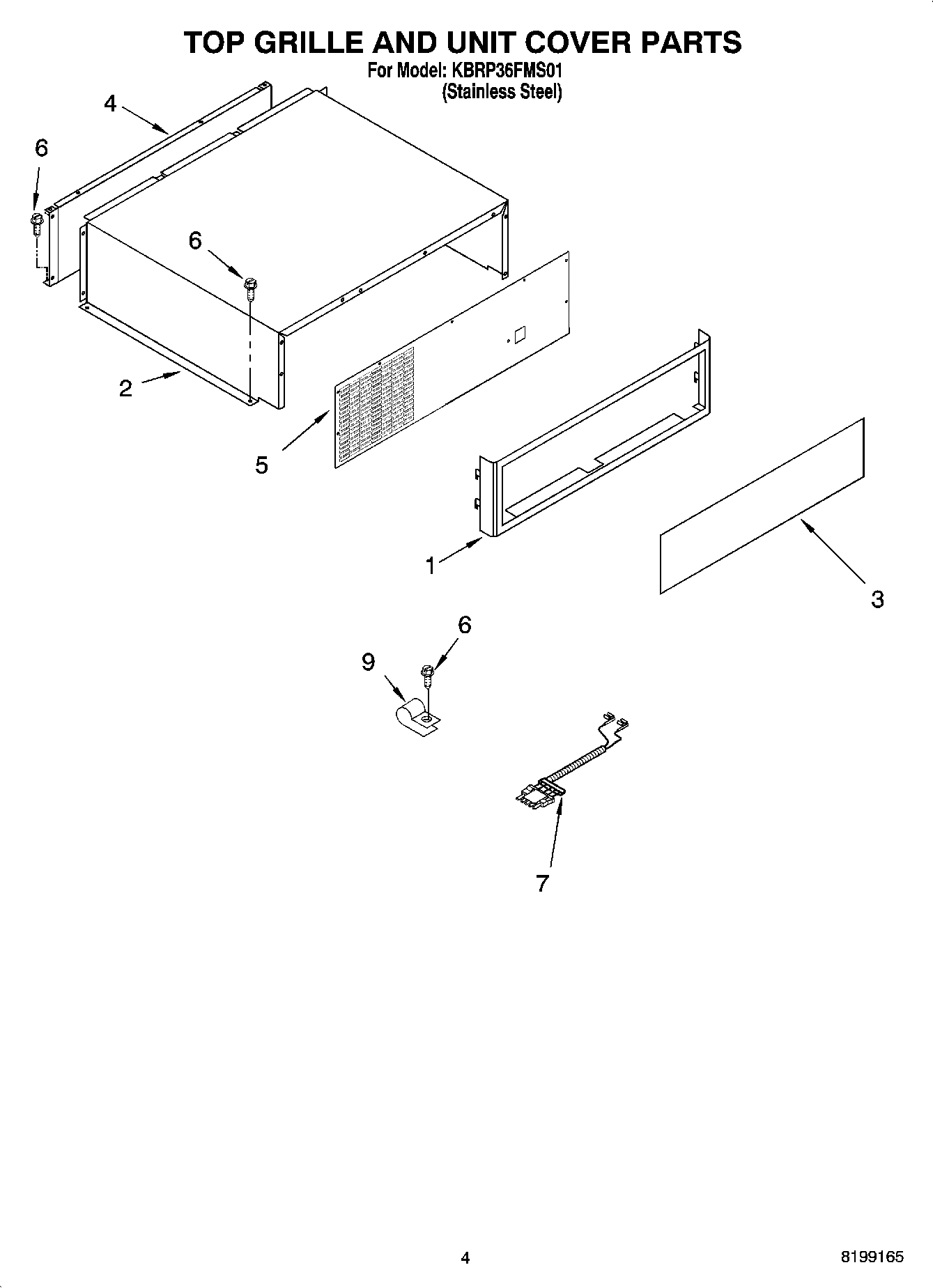

03 - TOP GRILLE AND UNIT COVER PARTS

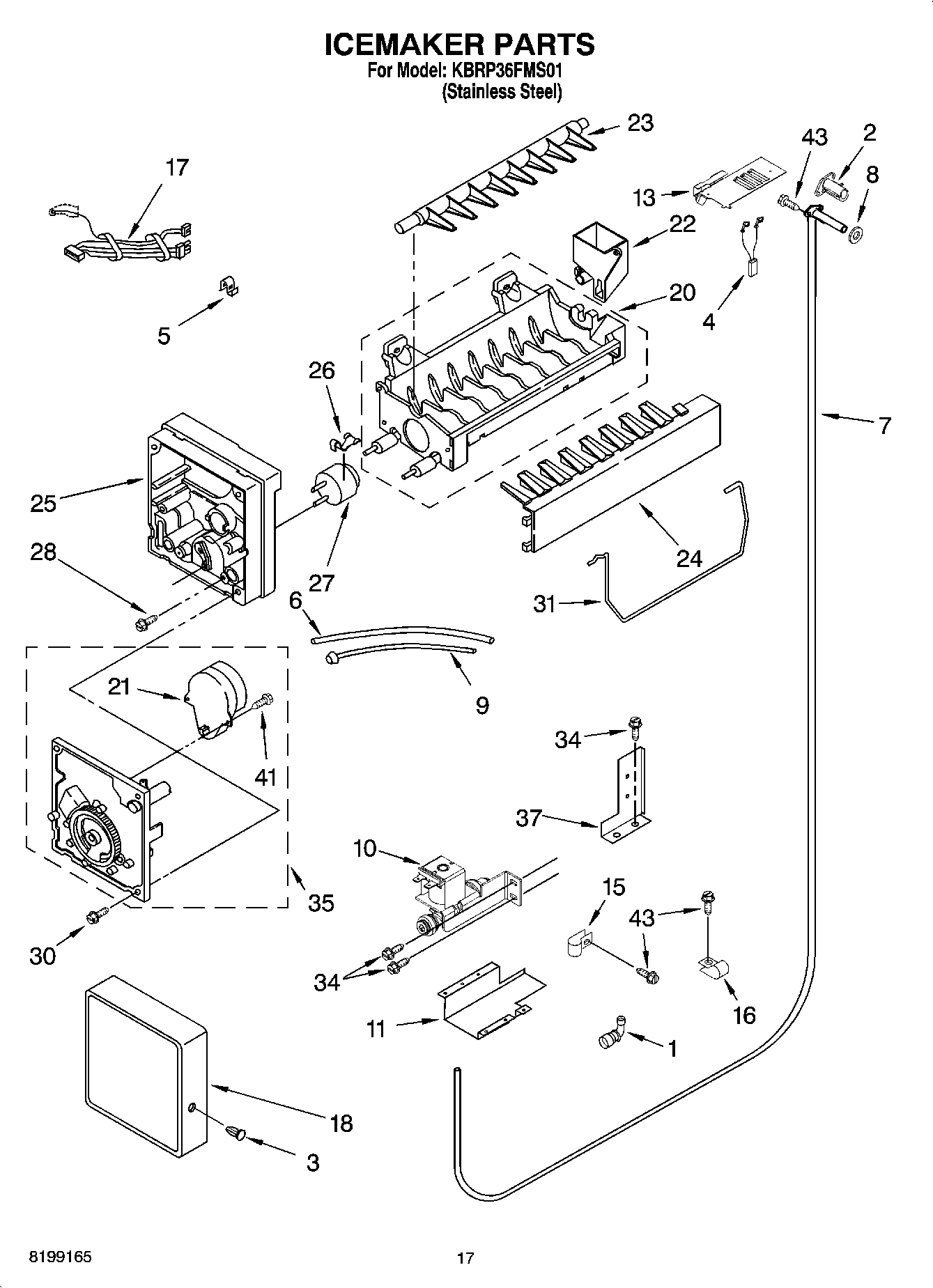

10 - ICEMAKER PARTS

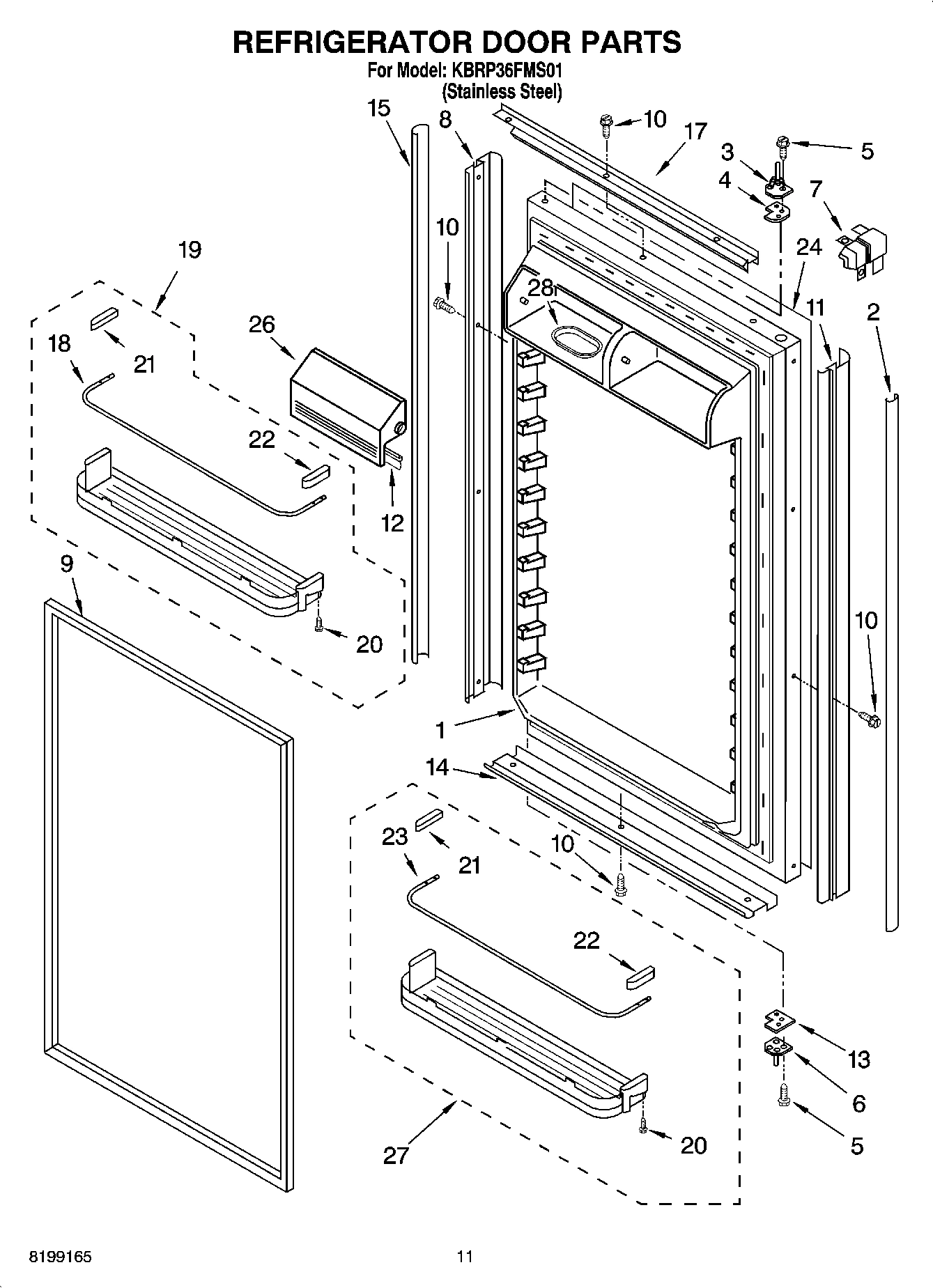

07 - REFRIGERATOR DOOR PARTS

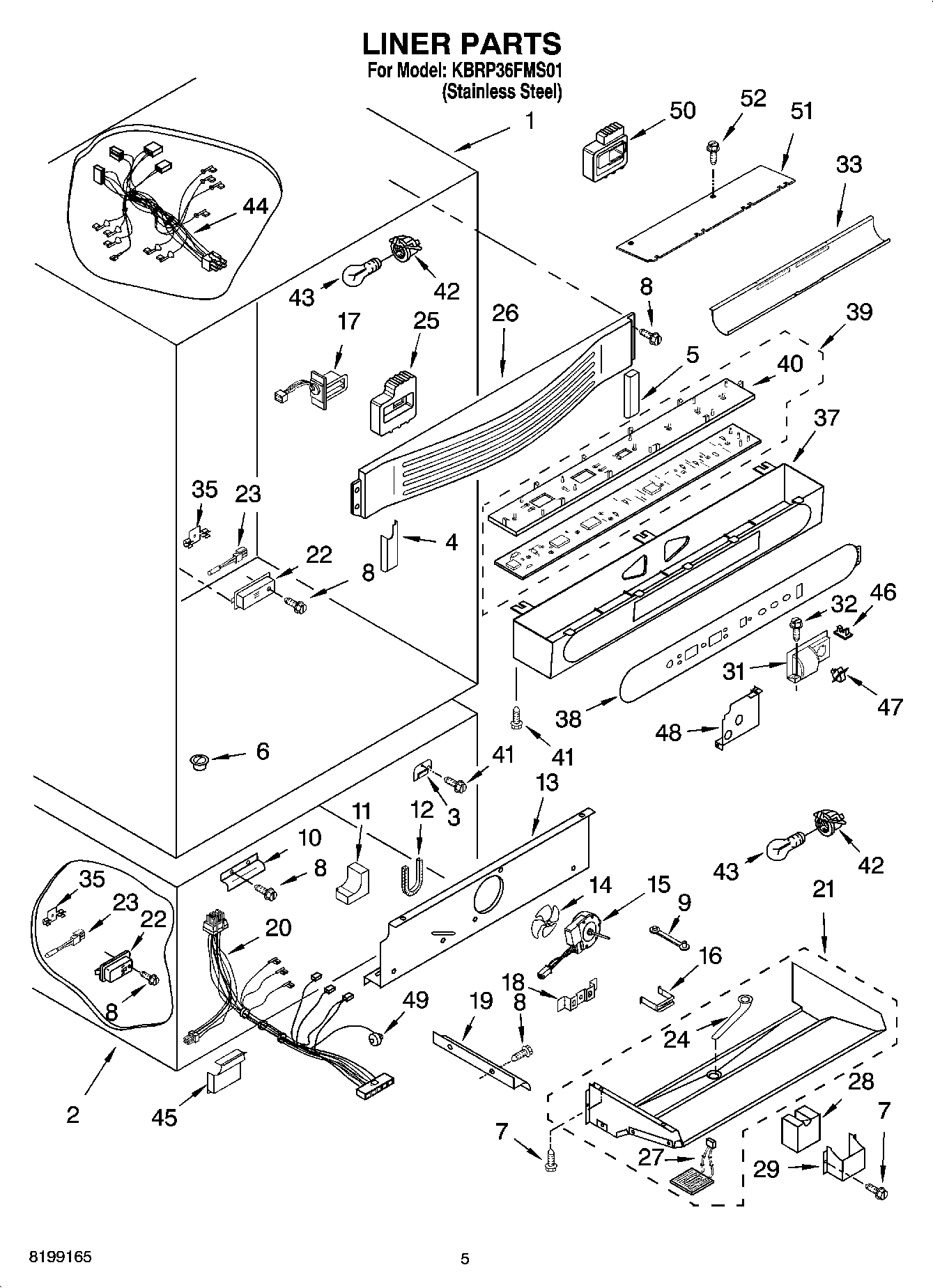

04 - LINER PARTS

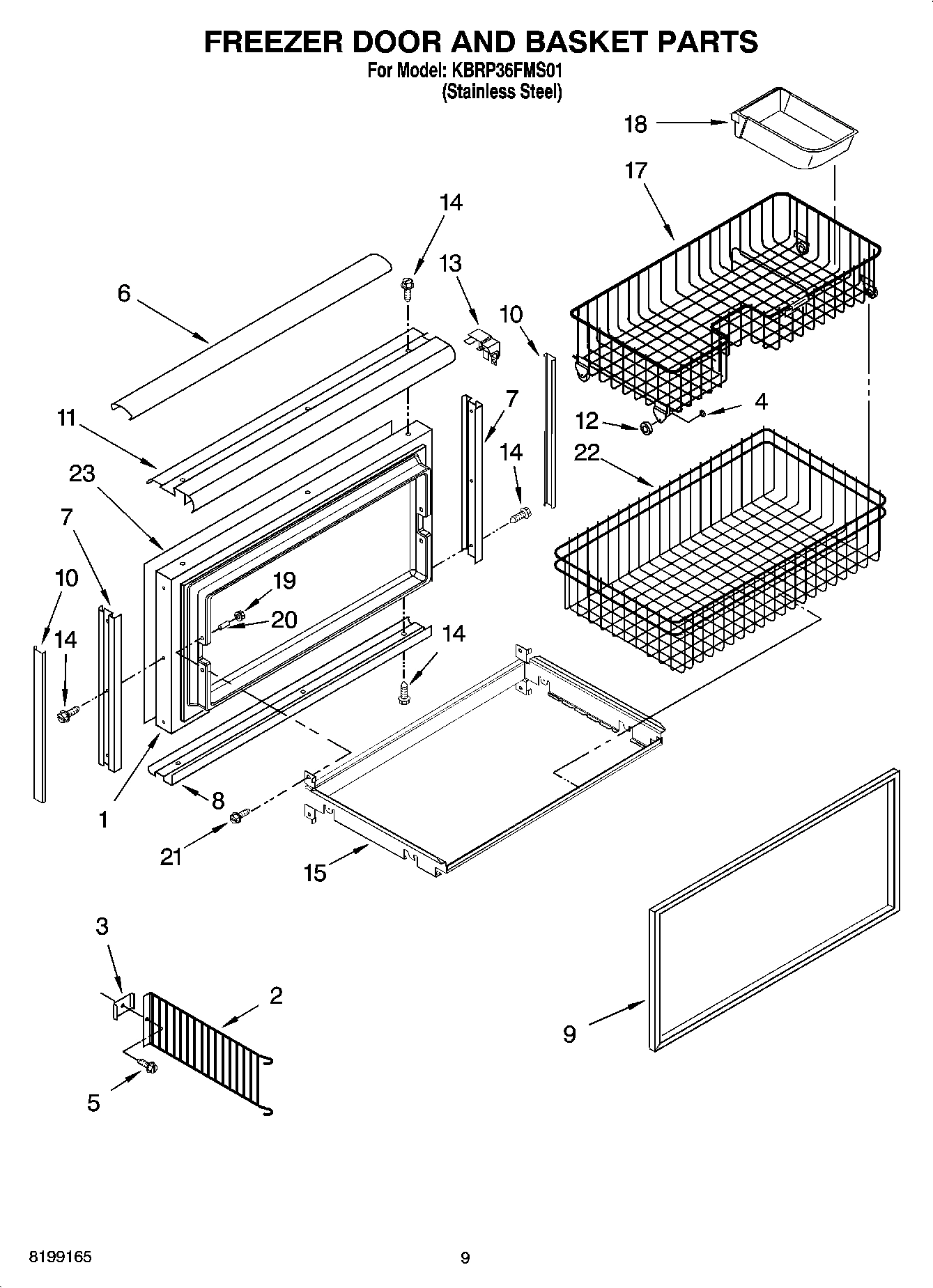

06 - FREEZER DOOR AND BASKET PARTS

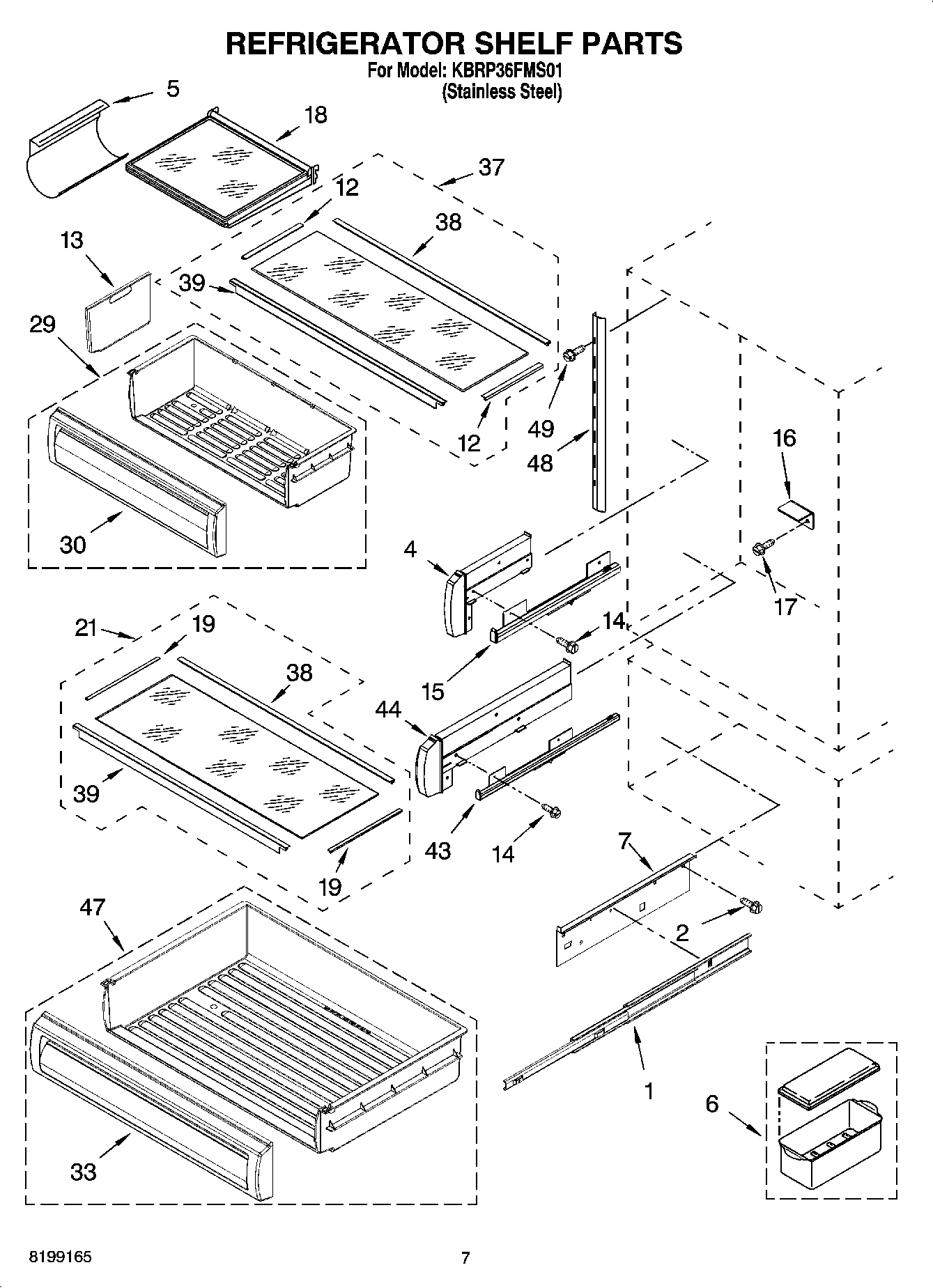

05 - REFRIGERATOR SHELF PARTS

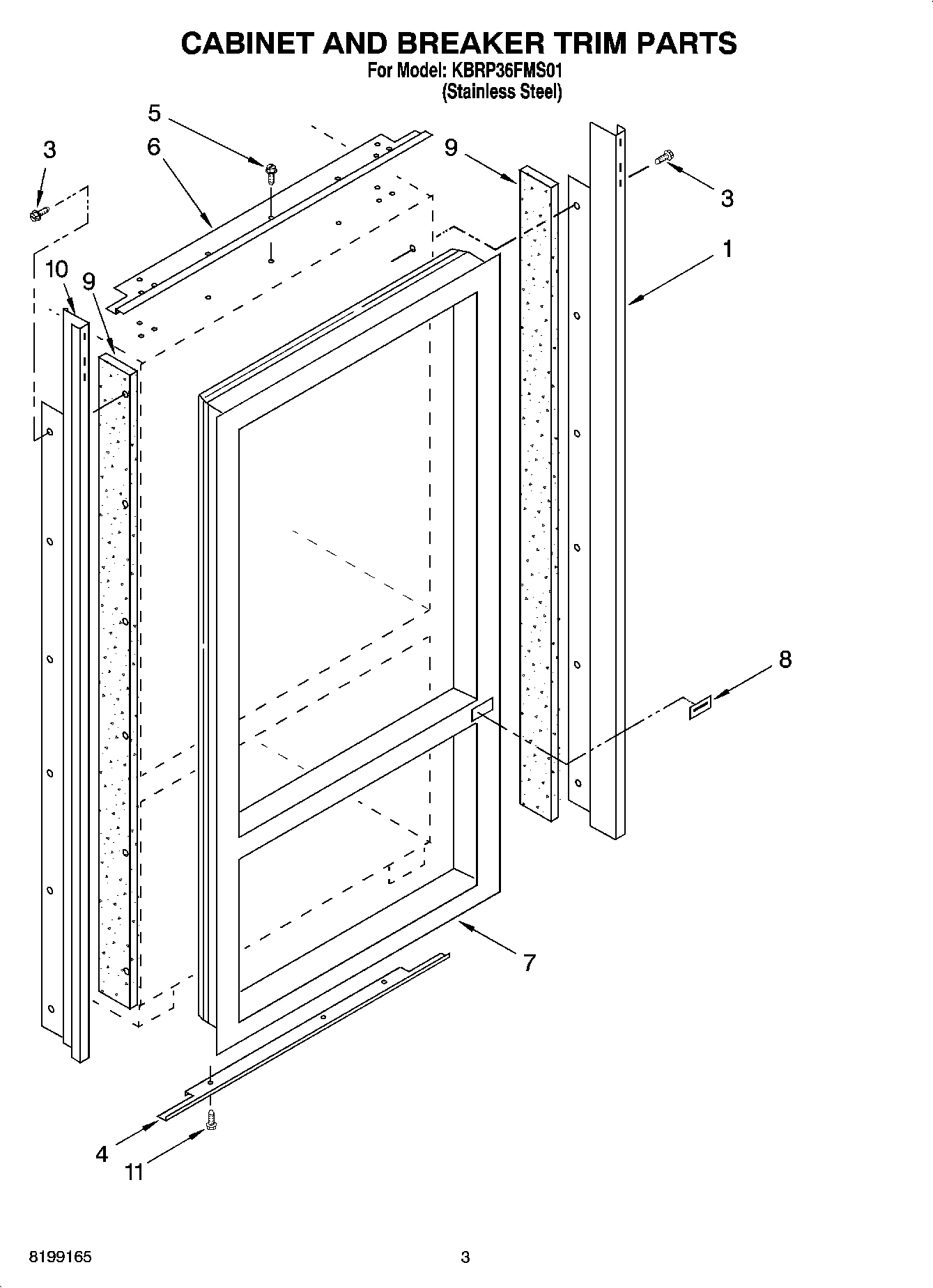

02 - CABINET AND BREAKER TRIM PARTS
Common parts from model Whirlpool KBRP36FMS01 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR
1
Slide, Freezer Basket (Left Side) WPL 2307977 Contact Us For Availability
1
Slide, Freezer Basket (Right Side) WPL 2307978 Contact Us For Availability
1
Tube, Valve WPL 2204597 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) WPL 2300083 Contact Us For Availability
1
Liner, Refrigerator (Not Servicable) WPL ARI79797A5 Contact Us For Availability
1
Freezer Door Panel (Includes Item 9) WPL 2300085 Contact Us For Availability
1
Cabinet Trim, Right Side (Stainless Steel) WPL 2257688S Contact Us For Availability
2
Tube, Transition (Drier/Restrictor) WPL 2259304 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
2
Trim Cover, Handle WPL 2006339 Contact Us For Availability
2
Liner, Freezer (Not Servicable) WPL ARI79798A7 Contact Us For Availability
2
Divider, Basket WPL 2204525 Contact Us For Availability
3
Hinge Assembly, Top WPL 2266912 Contact Us For Availability
3
Panel, Insert WPL 2300048 Contact Us For Availability
3
Cover, Heat Exchanger WPL 2215610 Contact Us For Availability
3
Clamp, Divider WPL 2207429 Contact Us For Availability
4
Spacer-Hinge, Top WPL 2256381 Contact Us For Availability
4
Jumper, Fill Tube Heater WPL 2187683 Contact Us For Availability
4
Diffuser Cap, Left Side WPL 2215827 Contact Us For Availability
4
Spacer, Crisper (Left Side) WPL 2256442 Contact Us For Availability
4
Spacer, Crisper (Right Side) WPL 2256443 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
5
Front, Unit Cover WPL 2302974 Contact Us For Availability
5
Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability
5
Screw WPL 3190699 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2302927 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
6
Egg Bin WPL 2221071 Contact Us For Availability
6
Cabinet Trim, Top WPL 2307381 Contact Us For Availability
7
Wire Assembly WPL 2187423 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability
7
Door Trim, Side WPL 2005870 Contact Us For Availability
7
Bracket, Freezer Basket (Left Side) WPL 2257326 Contact Us For Availability
7
Bracket, Freezer Basket (Right Side) WPL 2257327 Contact Us For Availability
7
Breaker Trim (Not Serviced) WPL ARI79796A6 Contact Us For Availability
8
Door Trim, Side WPL 2005850 Contact Us For Availability
8
Door Trim, Btm WPL 2006280 Contact Us For Availability
8
Cover, Hinge WPL 2005782 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability
10
Cabinet Trim, Left Side (Stainless Steel) WPL 2257689S Contact Us For Availability
11
Cover, Bottom WPL 2300104 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2005846 Contact Us For Availability
11
Foam, Fan Shroud WPL 2215844 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2005871 Contact Us For Availability
12
Gasket (2) WPL 2005982 Contact Us For Availability
12
Trim-Glass, Side WPL 2257562 Contact Us For Availability
13
SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability
13
Shroud, Evaporator Fan WPL 2215606 Contact Us For Availability
13
Divider, Crisper Pan WPL 2256474 Contact Us For Availability
14
Door Trim, Btm WPL 2005851 Contact Us For Availability
15
Trim Cover, Side WPL 2006334 Contact Us For Availability
15
Motor, Fan WPL 2259385 Contact Us For Availability
15
Bracket Assembly, Freezer Basket WPL 2257426 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Evaporator WPL 2306095 Contact Us For Availability
16
Support, Crisper Cover WPL 2302788 Contact Us For Availability
17
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Wire Harness, Icemaker WPL 2187715 Contact Us For Availability
17
Door Trim, Top WPL 2005852 Contact Us For Availability
17
Basket, Upper WPL 2257442 Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
18
Tube, Door Shelf WPL 2005482 Contact Us For Availability
18
Bracket WPL 2215503 Contact Us For Availability
18
Pan, Ice Cube WPL 2174124 Contact Us For Availability
18
Shelf (4) WPL 2258973 Contact Us For Availability
19
Cam-Closer, Door WPL 2005783 Contact Us For Availability
19
Shelf, Door (2) WPL 2005417 Contact Us For Availability
19
Wiring Channel WPL 8201595 Contact Us For Availability
19
Trim-Glass, Side WPL 2257563 Contact Us For Availability
20
Wiring Harness, Freezer (Includes Item 49) WPL 2187621 Contact Us For Availability
20
Bushing WPL 2207471 Contact Us For Availability
21
End Cap, Left WPL 2005542 Contact Us For Availability
21
Cover, Evaporator Assembly WPL 2306391 Contact Us For Availability
21
Screw WPL 3400507 Contact Us For Availability
21
Shelf, Deli Assy. WPL 2302839 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Screw WPL 487522 Contact Us For Availability
22
End Cap, Right WPL 2005541 Contact Us For Availability
22
Basket, Freezer Lower WPL 2257331 Contact Us For Availability
23
Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability
23
Panel, Insert WPL 2209370 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Panel, Insert WPL 2209369 Contact Us For Availability
24
Drain Tube, Condensate WPL 2209208 Contact Us For Availability
25
Insulation, Baffle WPL 2215530 Contact Us For Availability
26
Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability
26
Cover, Air Diffuser WPL 2215531 Contact Us For Availability
27
Door Shelf, Gallon WPL 2006154 Contact Us For Availability
27
Heater-Tube, Drain WPL 2306386 Contact Us For Availability
28
Butter Tray WPL 2165792 Contact Us For Availability
28
Insulation, Tube Drain WPL 2204538 Contact Us For Availability
29
Cover, Tube Drain WPL 2204537 Contact Us For Availability
31
Shut Off Arm WPL 2221172 Contact Us For Availability
31
Housing, Switch WPL 2215835 Contact Us For Availability
33
Shield, Light WPL 2302715 Contact Us For Availability
35
Clip, Thermistor WPL 2209204 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2306151 Contact Us For Availability
37
Control Panel WPL 2302774 Contact Us For Availability
37
Crisper Shelf Assembly WPL 2302837 Contact Us For Availability
38
Overlay, Control Panel WPL 2257521 Contact Us For Availability
38
Trim-Glass, Rear WPL 2257564 Contact Us For Availability
39
Circuit Board (User Interface) WPL 2302913 Contact Us For Availability
39
Trim, Glass Front (Not Serviceable) WPL ARI79799A1 Contact Us For Availability
40
Insert, Control Box WPL 2303938 Contact Us For Availability
43
Slide, Deli (Left Side) WPL 2257544 Contact Us For Availability
43
Slide, Deli (Right Side) WPL 2257545 Contact Us For Availability
44
Harness, Control Box WPL 2187424 Contact Us For Availability
44
Spacer, Deli (Left Side) WPL 2257531 Contact Us For Availability
44
Spacer, Deli (Right Side) WPL 2257532 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Channel, Wiring Freezer Light WPL 8201534 Contact Us For Availability
46
CLIP, WIRING WPL 1115375 Contact Us For Availability
47
Deli Pan Assembly (Includes 33) WPL 2257535 Contact Us For Availability
48
Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability
48
Ladder, Shelf (4) WPL 2005410 Contact Us For Availability
49
Defrost Bi-Metal WPL 2187378 Contact Us For Availability
50
Diffuser Assembly WPL 2215829 Contact Us For Availability
51
Support, Control Box WPL 2221121 Contact Us For Availability
100
Stainless Steel Cleaner (2 Oz.) WPL 2261590 Contact Us For Availability
100
Front Panel Kit (White) WPL 2300072 Contact Us For Availability
100
Front Panel Kit (Black) WPL 2300073 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 2300074 Contact Us For Availability
100
Following Parts Not Illustrated (Optional Par WPL ARI79802A6 Contact Us For Availability
× ![]()
