Model Whirlpool KBLV36FPM01 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts & Diagrams
04 - LINER PARTS

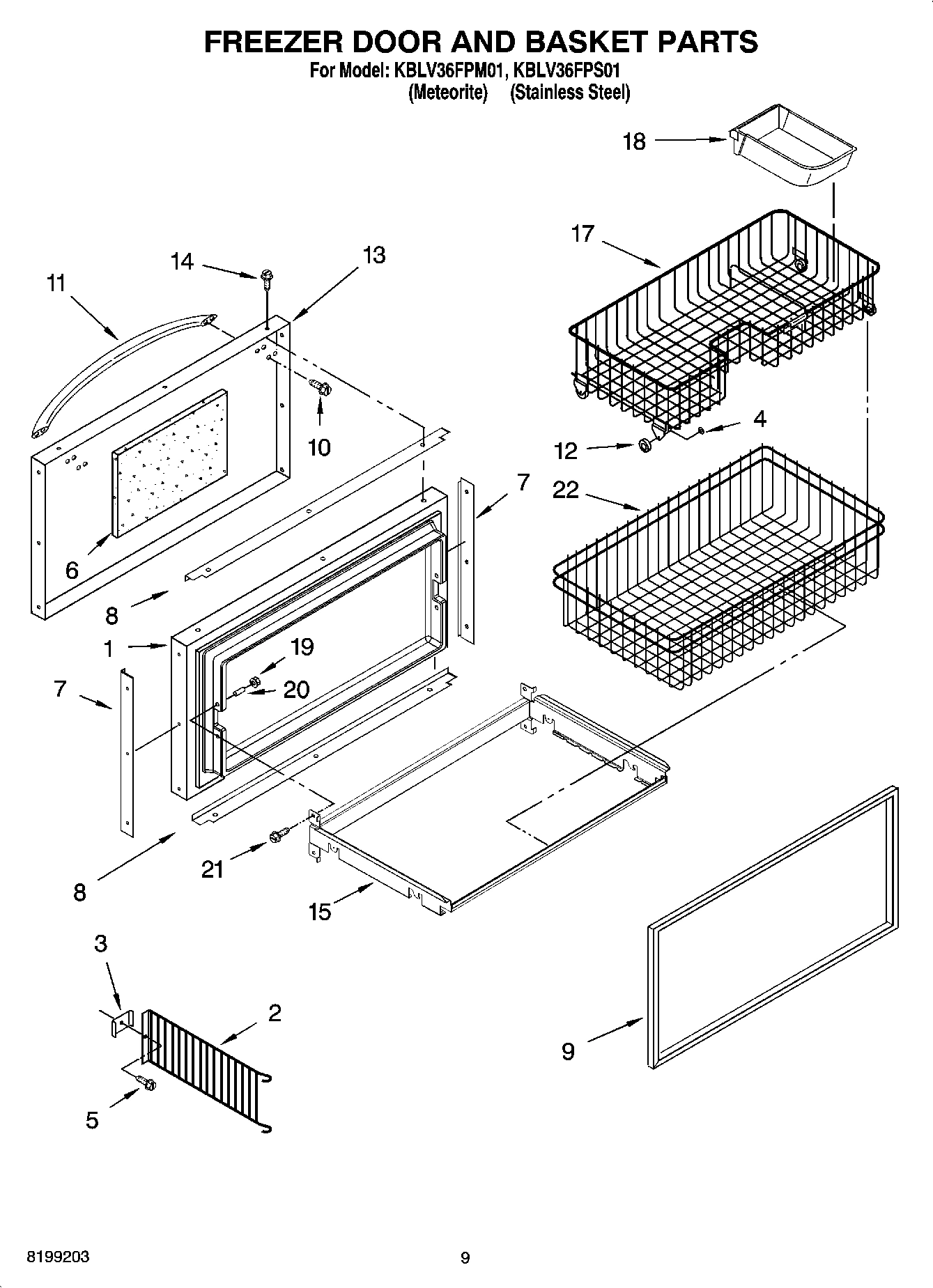

06 - FREEZER DOOR AND BASKET PARTS

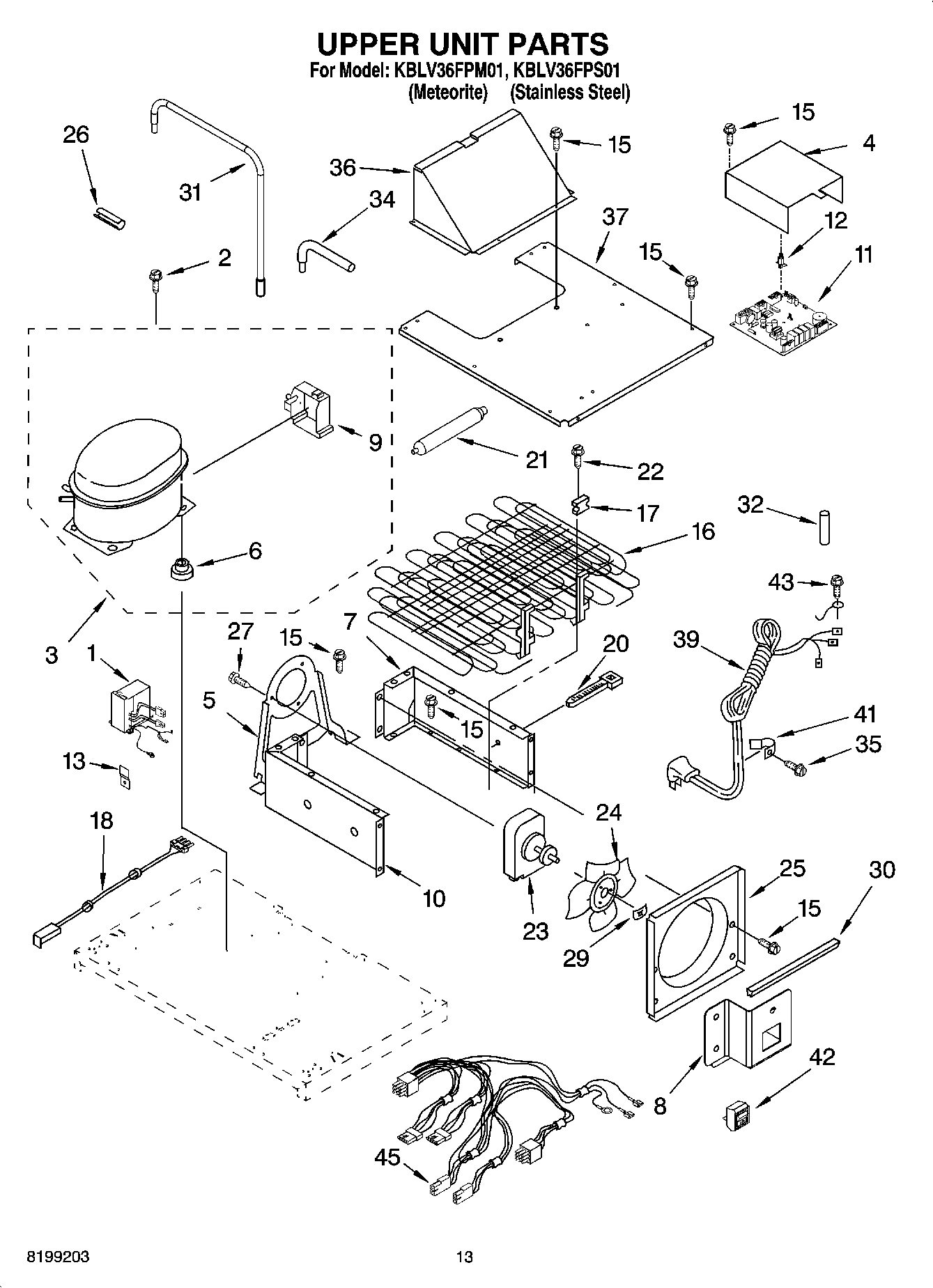

08 - UPPER UNIT PARTS

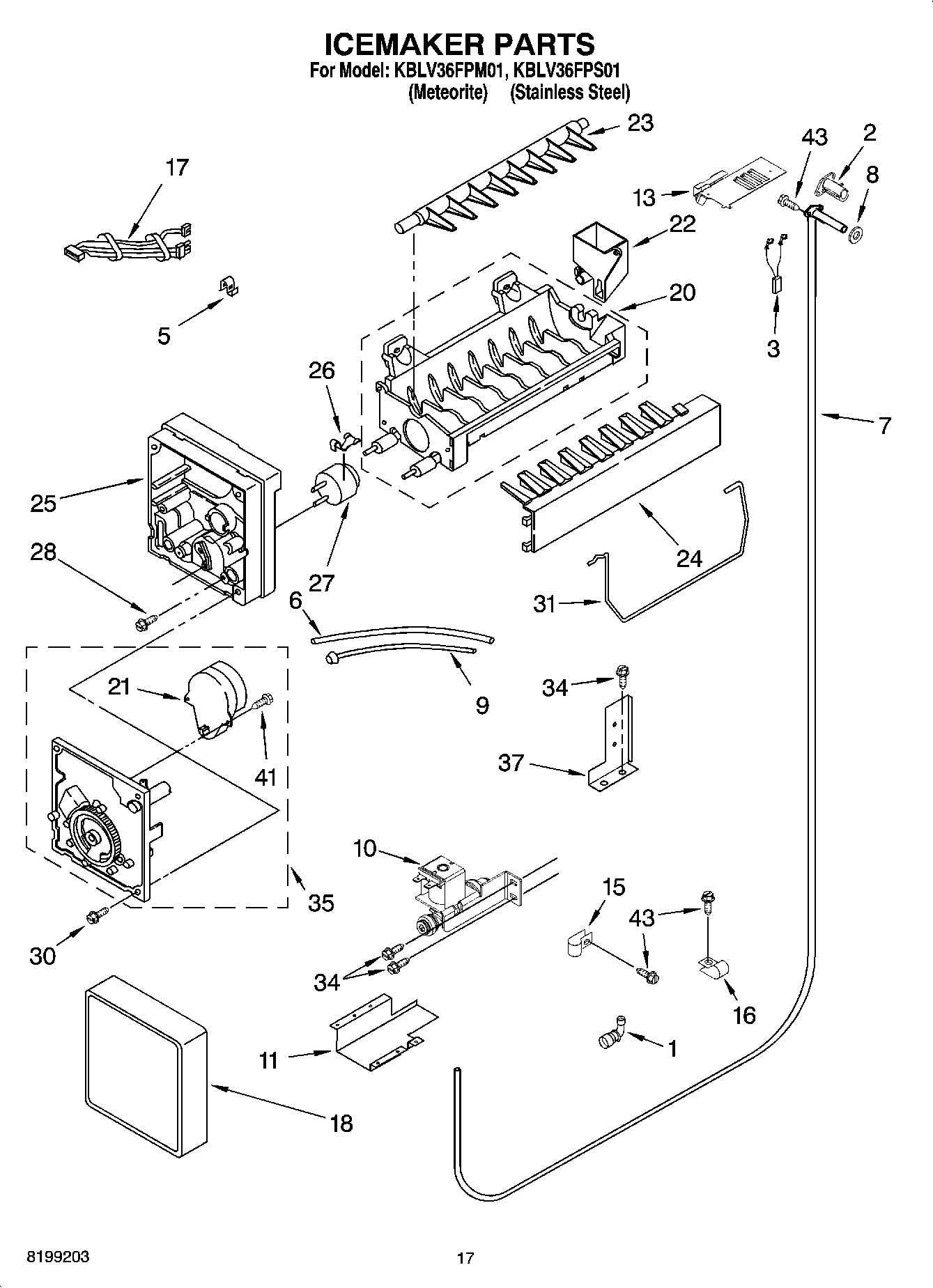

10 - ICEMAKER PARTS

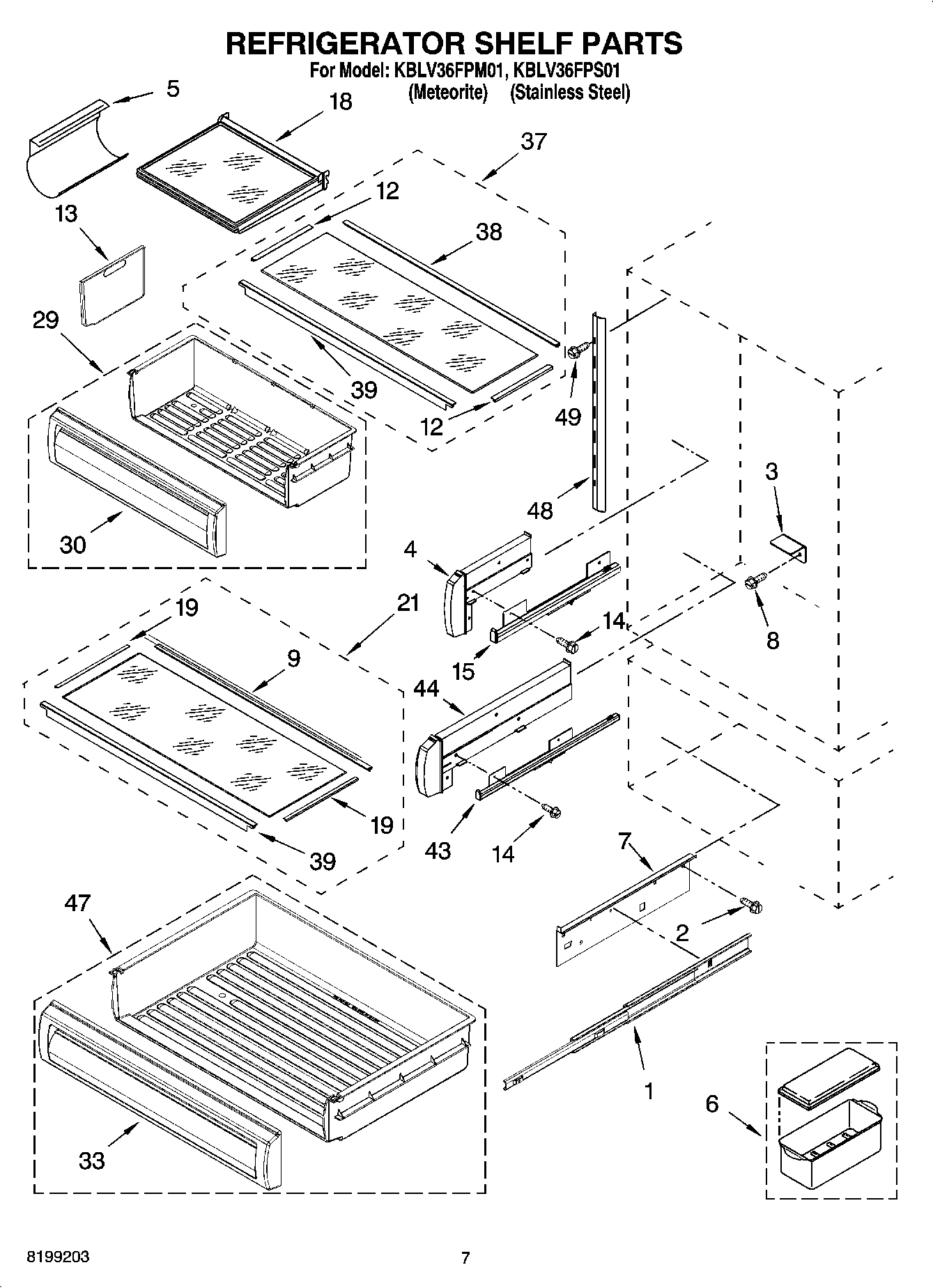

05 - REFRIGERATOR SHELF PARTS

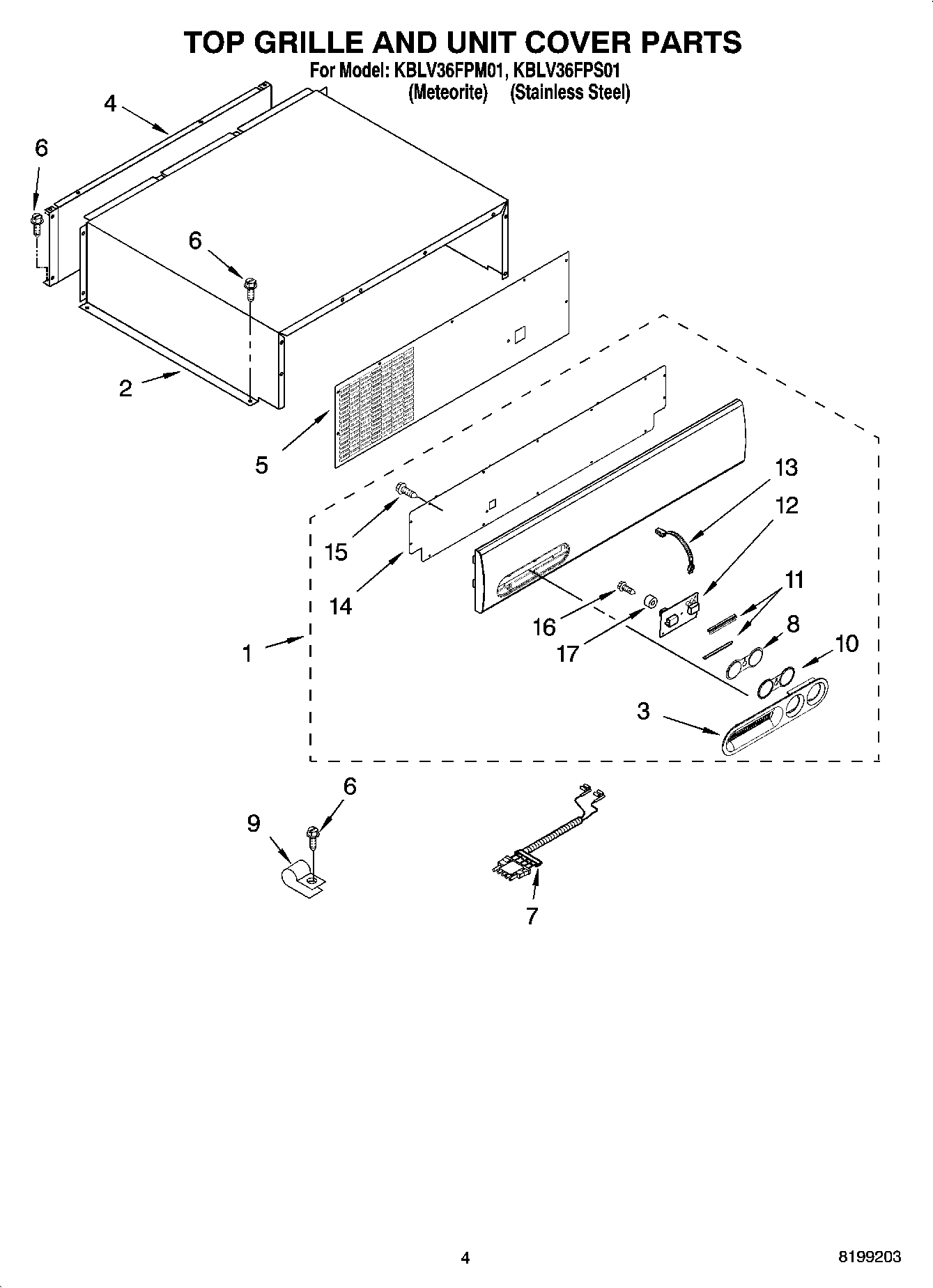

03 - TOP GRILLE AND UNIT COVER PARTS

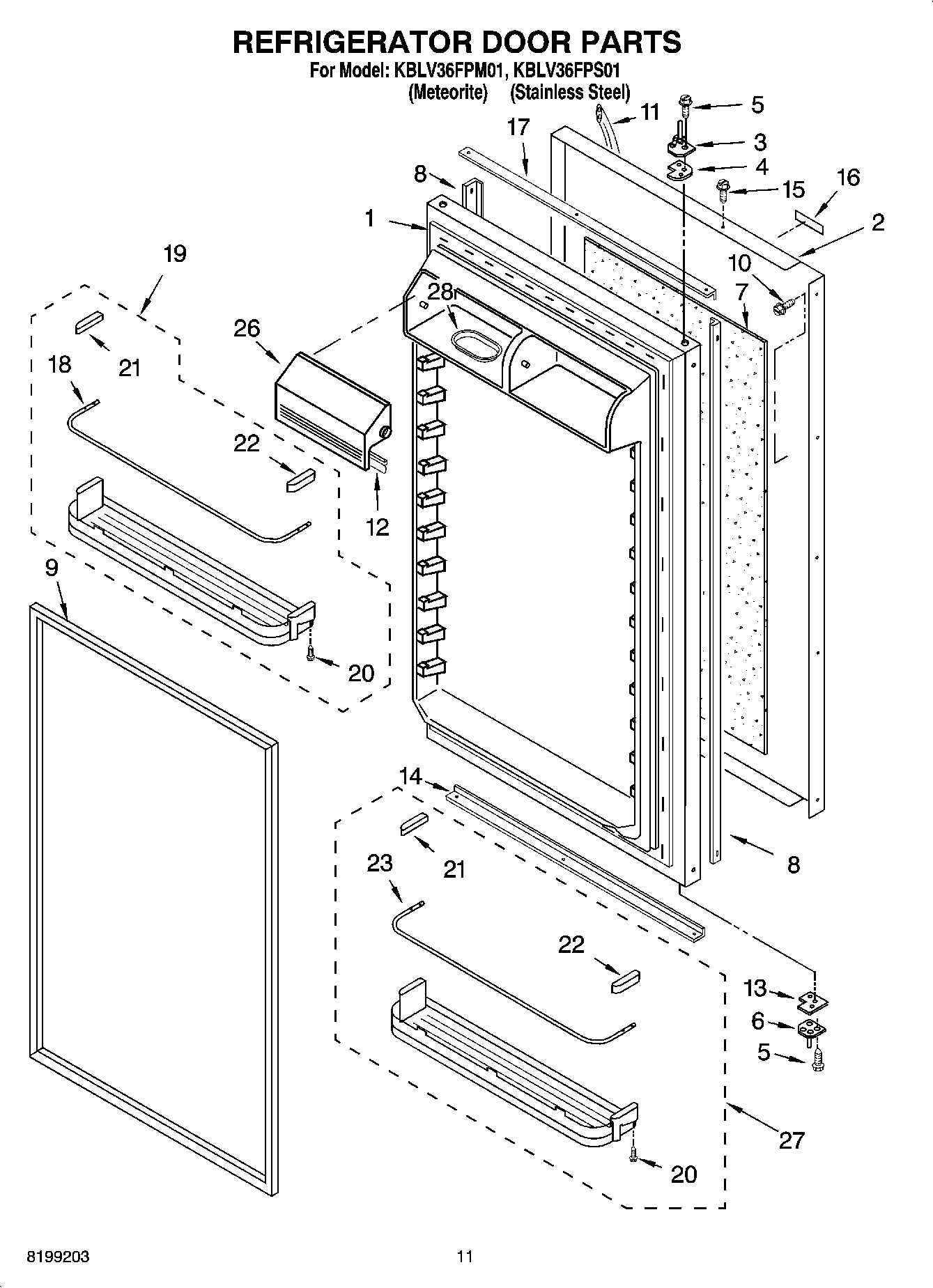

07 - REFRIGERATOR DOOR PARTS

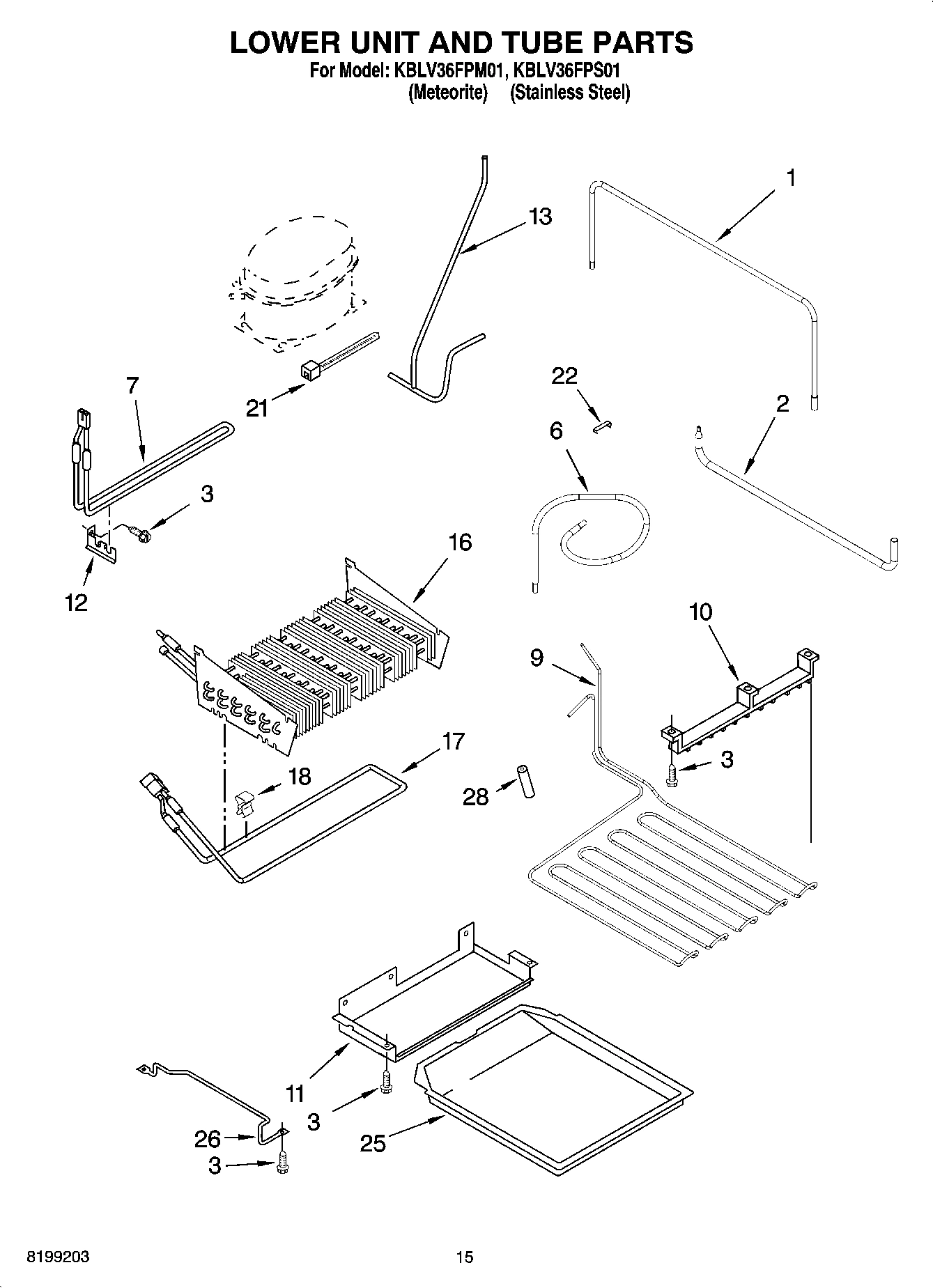

09 - LOWER UNIT AND TUBE PARTS

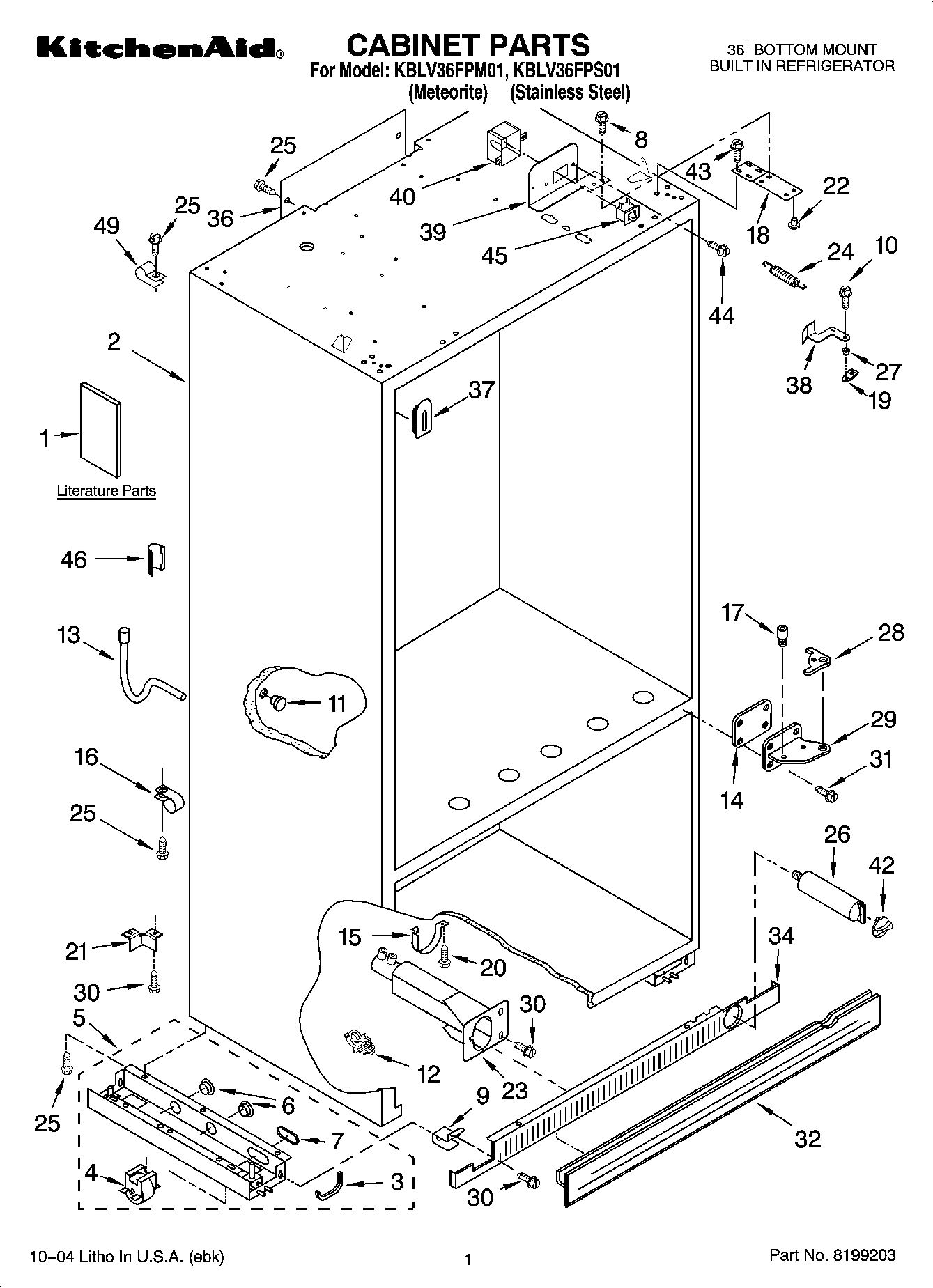

01 - CABINET PARTS

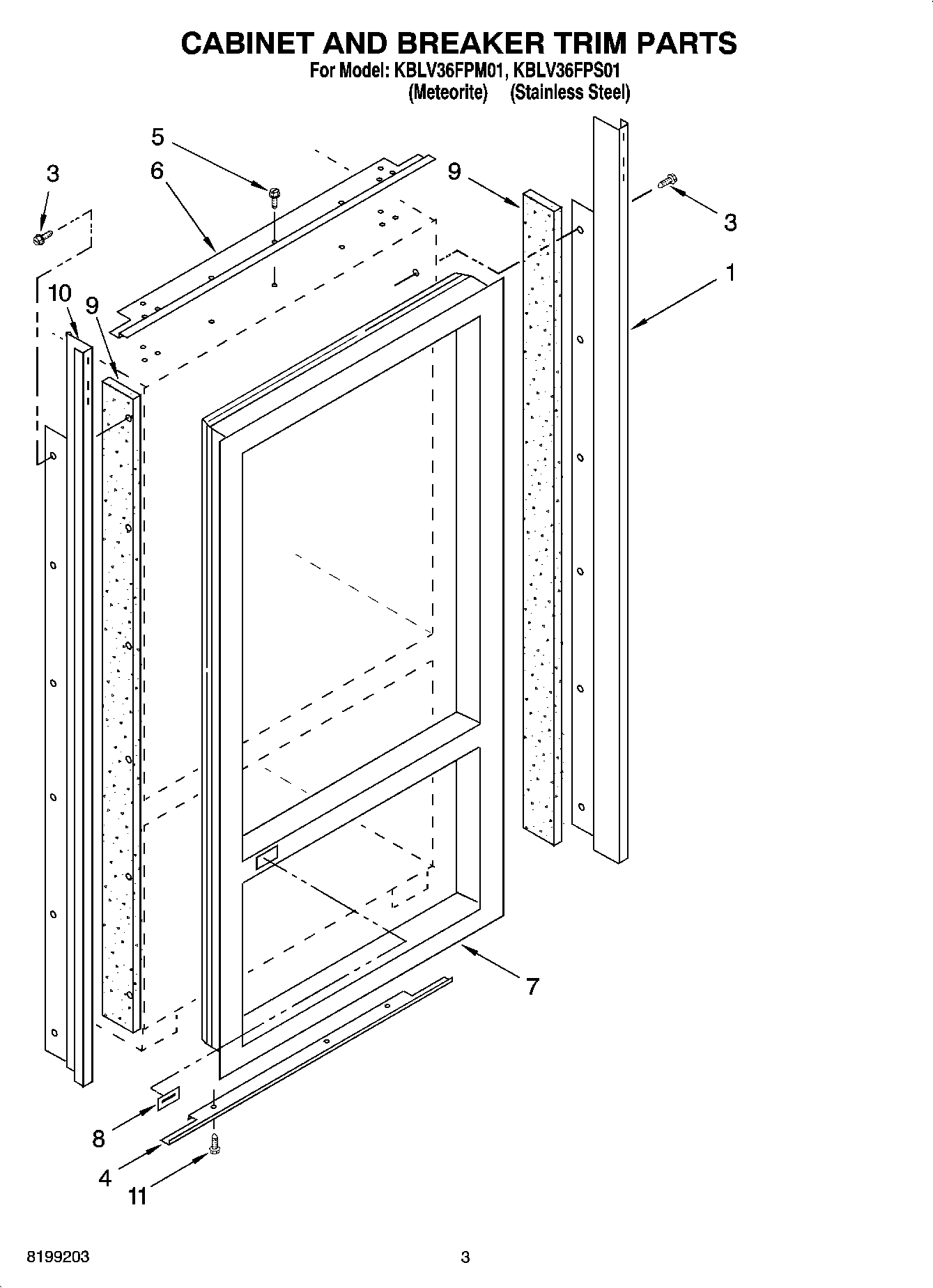

02 - CABINET AND BREAKER TRIM PARTS
Common parts from model Whirlpool KBLV36FPM01 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR
1
Slide, Freezer Basket (Left Side) WPL 2307977 Contact Us For Availability
1
Slide, Freezer Basket (Right Side) WPL 2307978 Contact Us For Availability
1
Tube, Valve WPL 2204597 Contact Us For Availability
1
Top Grille Assembly (Meteorite) WPL 2307892M Contact Us For Availability
1
Top Grille Assembly (Stainless Steel) WPL 2307892S Contact Us For Availability
1
Refrigerator Door (Includes Item 9) WPL 2300083 Contact Us For Availability
1
Tube, Transition (Condenser) WPL 2259472 Contact Us For Availability
1
Main Control Service Sheet WPL 2302865 Contact Us For Availability
1
Energy Label WPL 2307361 Contact Us For Availability
1
Installation Instructions WPL 2307890 Contact Us For Availability
1
Service & Wiring Sheet WPL 2307981 Contact Us For Availability
1
Use & Care Guide WPL 2309067 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability
1
Cabinet Trim, Right Side (Stainless Steel) WPL 2222552S Contact Us For Availability
2
Tube, Transition (Drier/Restrictor) WPL 2259304 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
2
Skin, Door (Meteorite) WPL 2307888M Contact Us For Availability
2
Skin, Door (Stainless Steel) WPL 2307888S Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI79069A8 Contact Us For Availability
3
Hinge Assembly, Top WPL 2266912 Contact Us For Availability
3
Jumper, Heater Fill Tube WPL 2187683 Contact Us For Availability
3
Support, Crisper Cover WPL 2302788 Contact Us For Availability
3
Insert, Temp-Guage (Meteorite) WPL 2252304M Contact Us For Availability
3
Insert, Temp-Guage (Stainless Steel) WPL 2252304S Contact Us For Availability
3
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
4
Spacer-Hinge, Top WPL 2256381 Contact Us For Availability
4
Spacer, Crisper (Left Side) WPL 2256442 Contact Us For Availability
4
Spacer, Crisper (Right Side) WPL 2256443 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
5
Front, Unit Cover WPL 2302974 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2302928 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
6
Egg Bin Assembly WPL 2221071 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Cabinet Trim, Top WPL 2307382 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability
7
Bracket, Freezer Basket (Left Side) WPL 2257326 Contact Us For Availability
7
Bracket, Freezer Basket (Right Side) WPL 2257327 Contact Us For Availability
7
Wire Assembly WPL 2187423 Contact Us For Availability
7
Filler, Foam WPL 2307898 Contact Us For Availability
7
Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Breaker Trim (Not Serviced) WPL ARI79070A7 Contact Us For Availability
8
Cover, Temp-Guage WPL 2252307 Contact Us For Availability
8
Spacer, Door Edge - Side (2) WPL 2300026 Contact Us For Availability
8
Cover, Hinge WPL 2005782 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Trim-Glass, Rear WPL 2257564 Contact Us For Availability
9
Heater, Drain Pan WPL 2259329 Contact Us For Availability
9
Mounting Bracket, Grill WPL 2006442 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Bezel, Temp-Guage WPL 2252308 Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
10
Cabinet Trim, Left Side (Stainless Steel) WPL 2222553S Contact Us For Availability
11
Cover, Bottom WPL 2300104 Contact Us For Availability
11
Edging Panel WPL 2300126B Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2252311 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
12
Trim-Glass, Side WPL 2257562 Contact Us For Availability
12
Board, Control WPL 2252306 Contact Us For Availability
12
Gasket (2) WPL 2005982 Contact Us For Availability
12
Support, Heater WPL 2204543 Contact Us For Availability
12
Clamp WPL 2004514 Contact Us For Availability
13
Divider, Crisper Pan WPL 2256474 Contact Us For Availability
13
Jumper Harness, Temp-Display WPL 2187682 Contact Us For Availability
13
SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability
13
Tube, Discharge WPL 2259474 Contact Us For Availability
13
Tube, Drain Condensate WPL 2204516 Contact Us For Availability
14
Rear Panel, Top Grille WPL 2307897 Contact Us For Availability
14
SPACER, DOOR EDGE (BOTTOM) WPL 2300023 Contact Us For Availability
15
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Evaporator WPL 2306095 Contact Us For Availability
16
Screw WPL 487522 Contact Us For Availability
16
Nameplate WPL 8531728 Contact Us For Availability
17
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Wire Harness, Icemaker WPL 2187715 Contact Us For Availability
17
SPACER, DOOR EDGE (TOP) WPL 2300024 Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
18
Shelf (4) WPL 2258973 Contact Us For Availability
18
Tube, Door Shelf WPL 2005482 Contact Us For Availability
18
Clamp, Heater (2) WPL 2204510 Contact Us For Availability
19
Cam-Closer, Door WPL 2005783 Contact Us For Availability
19
Trim-Glass, Side WPL 2257563 Contact Us For Availability
19
Shelf, Door (2) WPL 2005417 Contact Us For Availability
21
Deli Shelf Assembly WPL 2302839 Contact Us For Availability
21
End Cap, Left WPL 2005542 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
End Cap, Right WPL 2005541 Contact Us For Availability
23
Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
26
Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Door Shelf, Gallon WPL 2006154 Contact Us For Availability
28
Butter Tray WPL 2165792 Contact Us For Availability
30
Grommet, Edge WPL 2307907 Contact Us For Availability
31
Tube, Transition (Condenser/Drier) WPL 2259302 Contact Us For Availability
31
Shut Off Arm WPL 2221172 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
34
Grille Base, Front WPL 2215889B Contact Us For Availability
35
Clip, Thermistor WPL 2209204 Contact Us For Availability
36
Cover, Fan WPL 2209495 Contact Us For Availability
37
Cover, Condenser WPL 2259092 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2306151 Contact Us For Availability
37
Crisper Shelf Assembly WPL 2302837 Contact Us For Availability
37
Grommet, Wiring WPL 1113122 Contact Us For Availability
38
Trim-Glass, Rear WPL 2302796 Contact Us For Availability
39
Service Cord WPL 2259197 Contact Us For Availability
39
Trim-Glass, Front (Not Servicable) WPL ARI79073A4 Contact Us For Availability
43
Slide, Deli (Left Side) WPL 2302950 Contact Us For Availability
43
Slide, Deli (Right Side) WPL 2302951 Contact Us For Availability
44
Spacer, Deli (Left Side) WPL 2257531 Contact Us For Availability
44
Spacer, Deli (Right Side) WPL 2257532 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2187902 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Following Parts Not Illustrated and Optional WPL ARI79074A3 Contact Us For Availability
45
REFRIGERANT CHARGE 5.75 oz. (R-134A) WPL ARI79075A4 Contact Us For Availability
47
Deli Pan Assembly (Includes 33) WPL 2257535 Contact Us For Availability
48
Ladder, Shelf (4) WPL 2005410 Contact Us For Availability
100
Cleaner (Stainless Steel) WPL 2261590 Contact Us For Availability
100
Following Parts Not Illustrated (Optional Par WPL ARI79076A3 Contact Us For Availability
× ![]()
