Model Whirlpool KBLS36FMX02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts & Diagrams
02 - CABINET AND BREAKER TRIM PARTS
04 - LINER PARTS

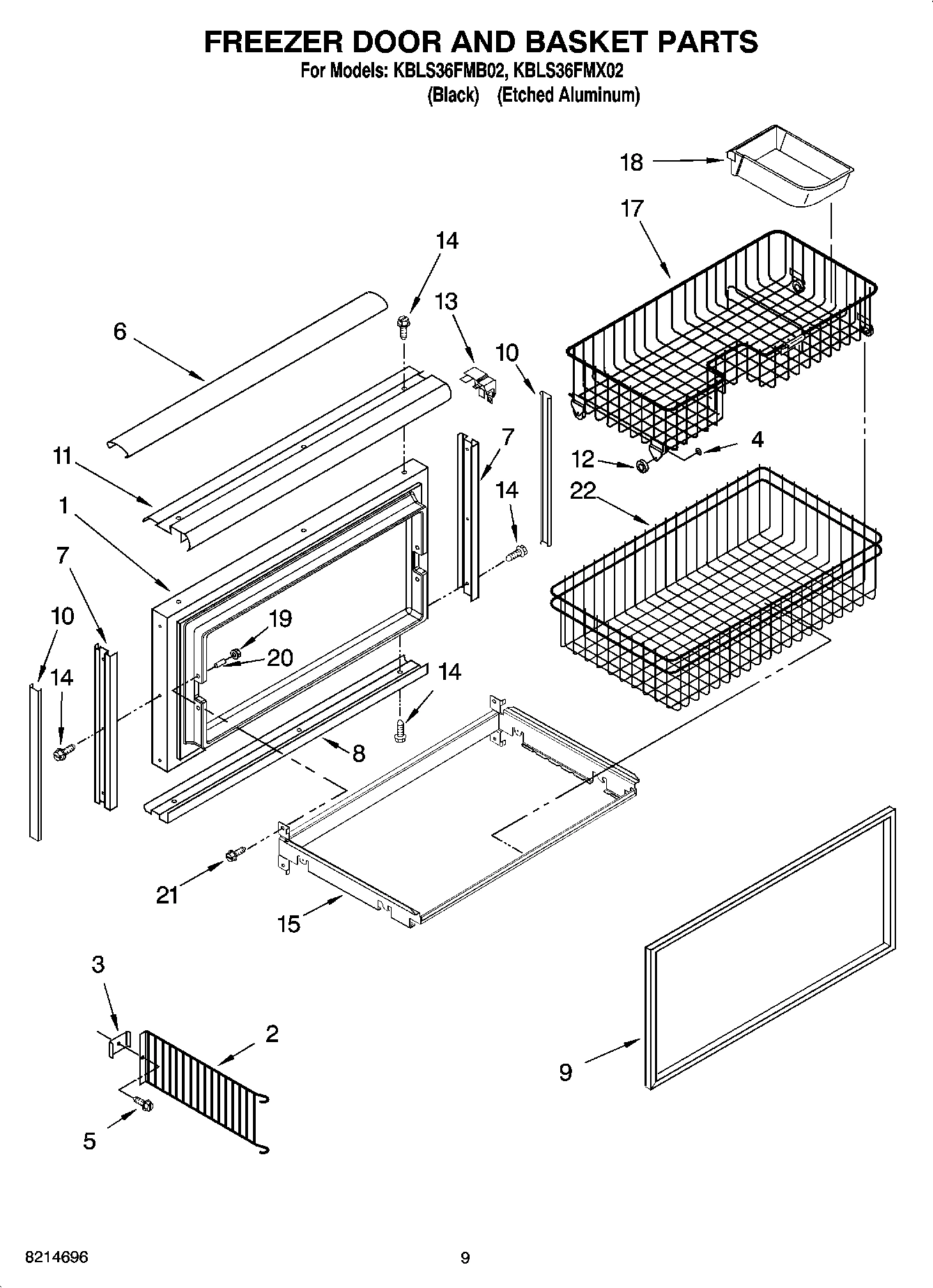

06 - FREEZER DOOR AND BASKET PARTS

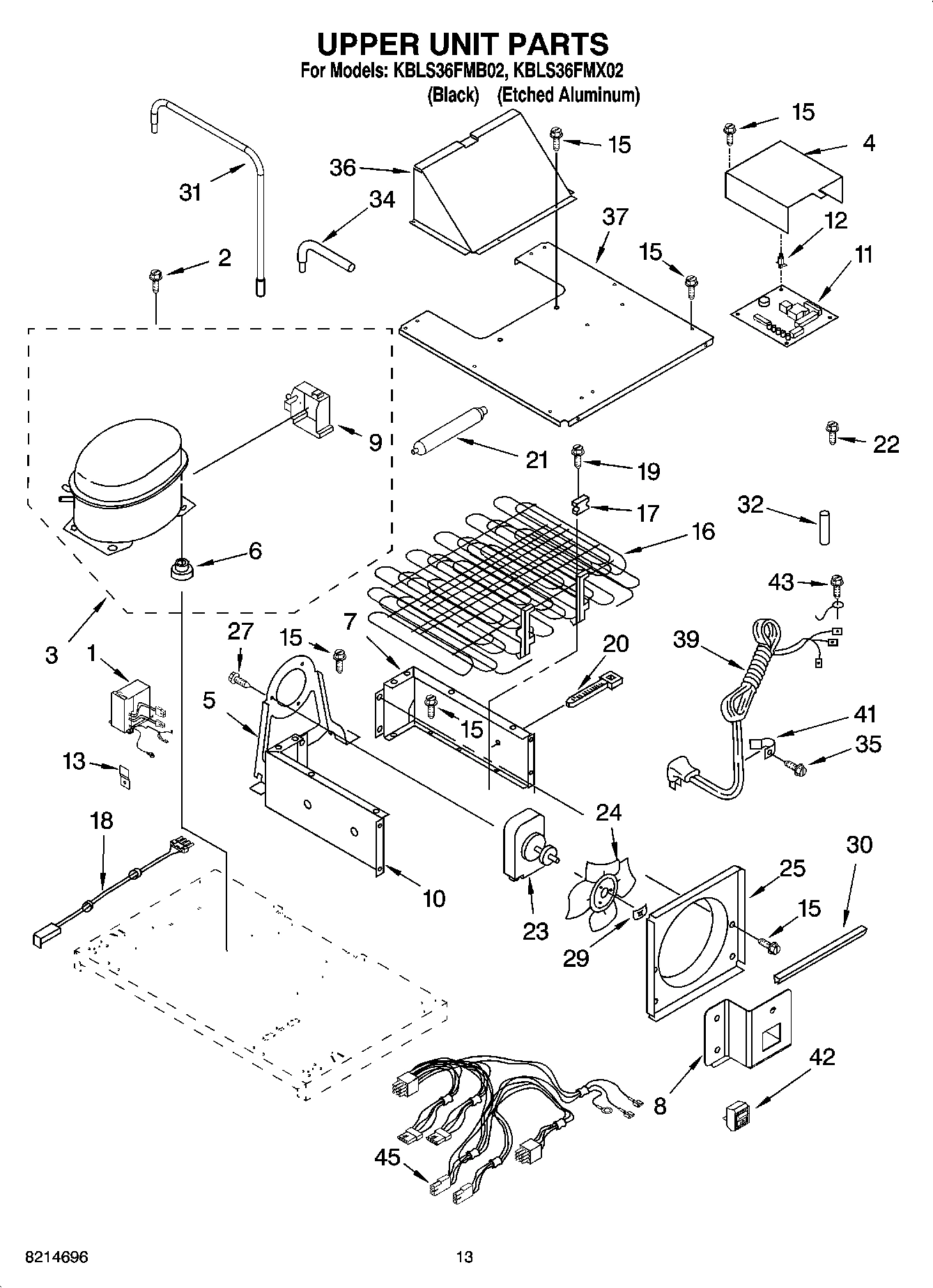

08 - UPPER UNIT PARTS

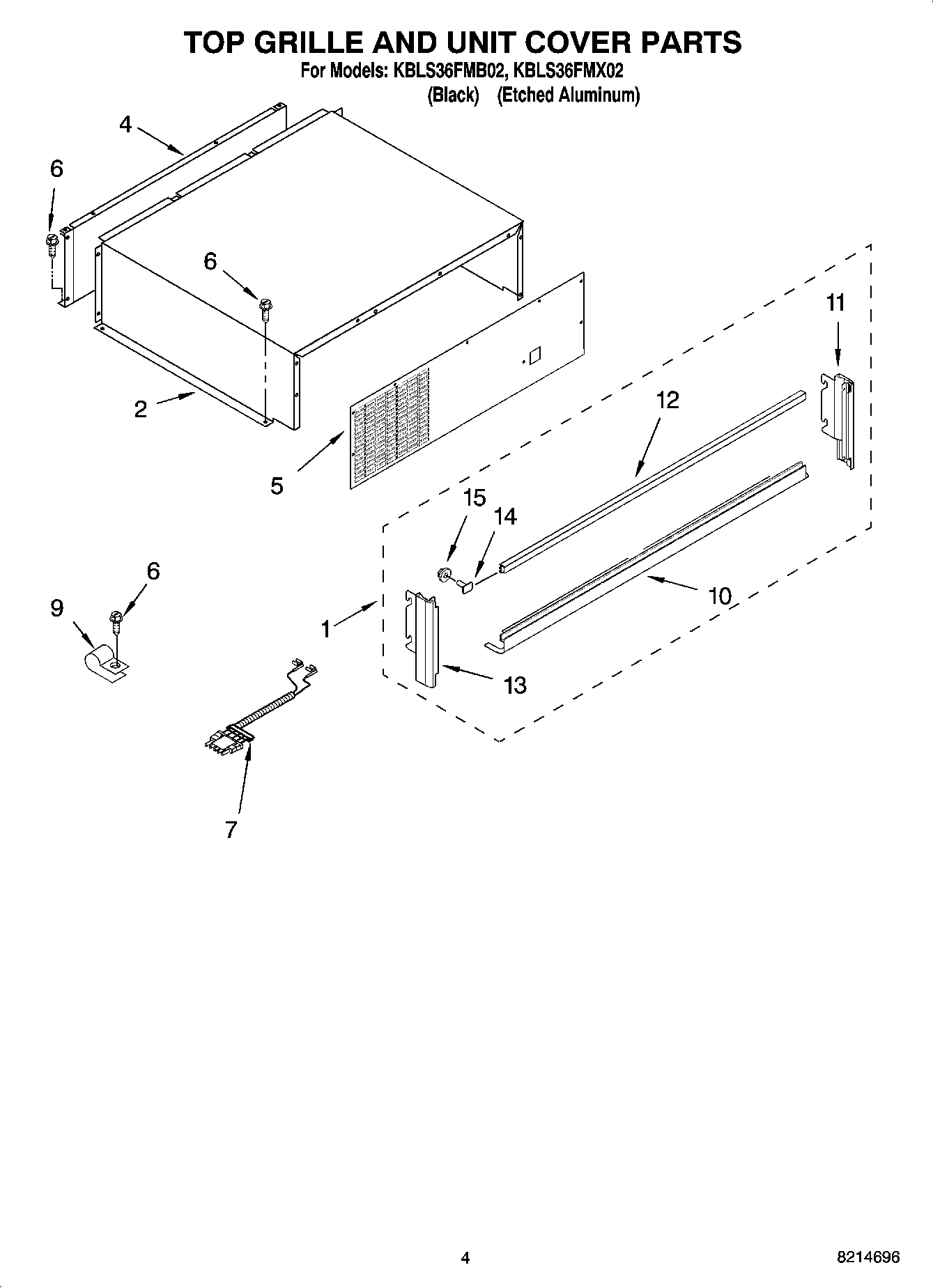

03 - TOP GRILLE AND UNIT COVER PARTS

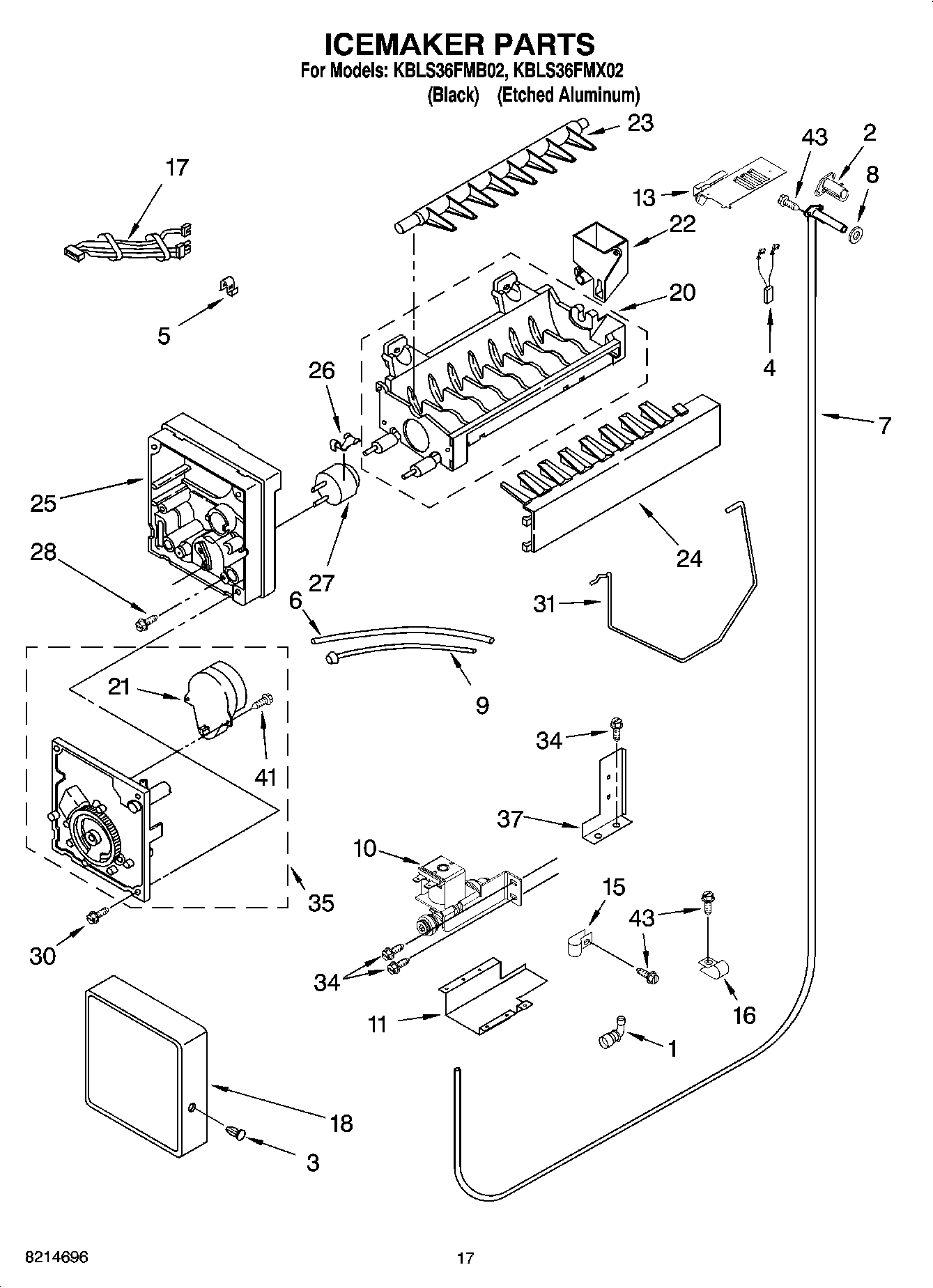

10 - ICEMAKER PARTS

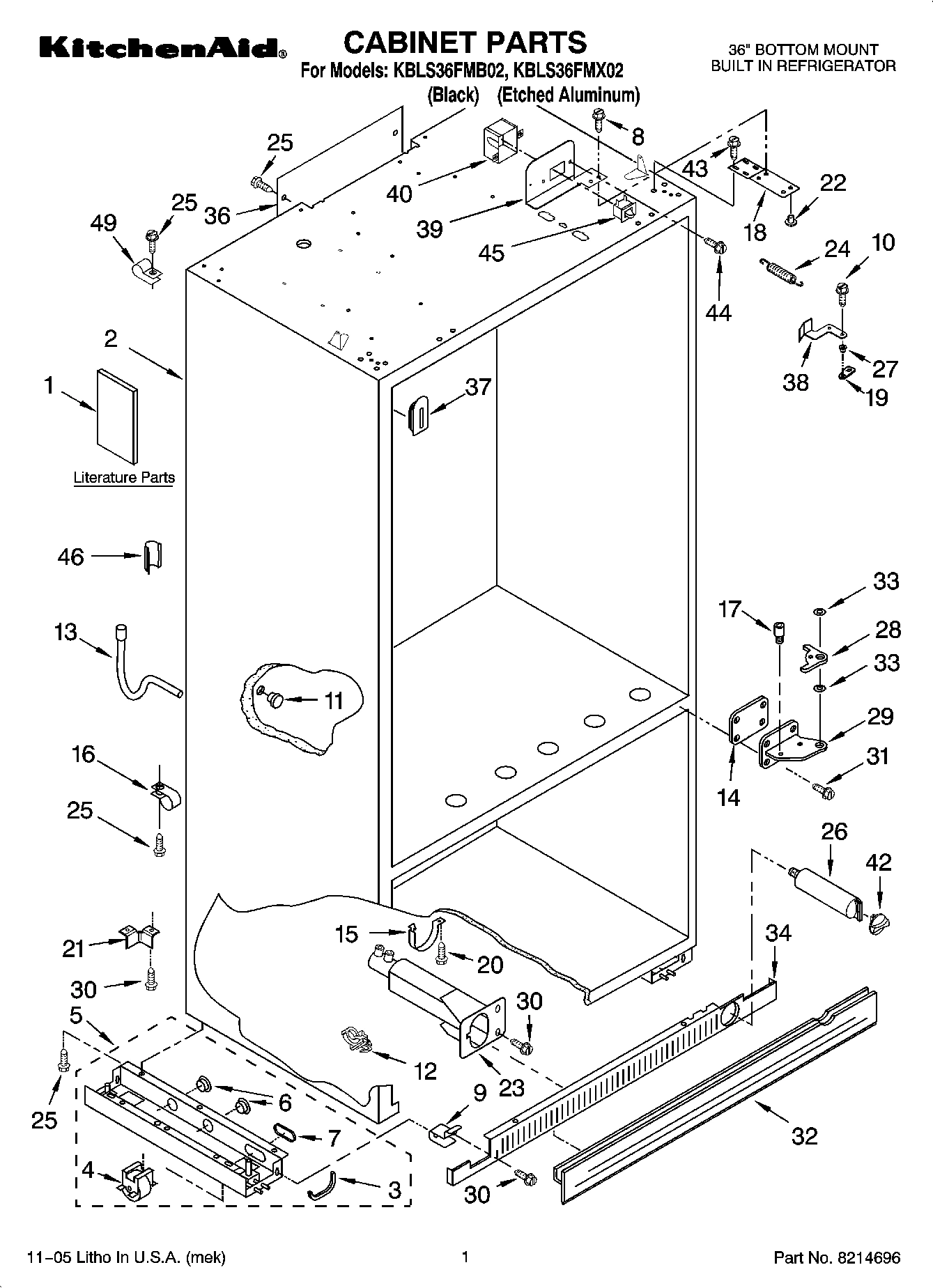

01 - CABINET PARTS

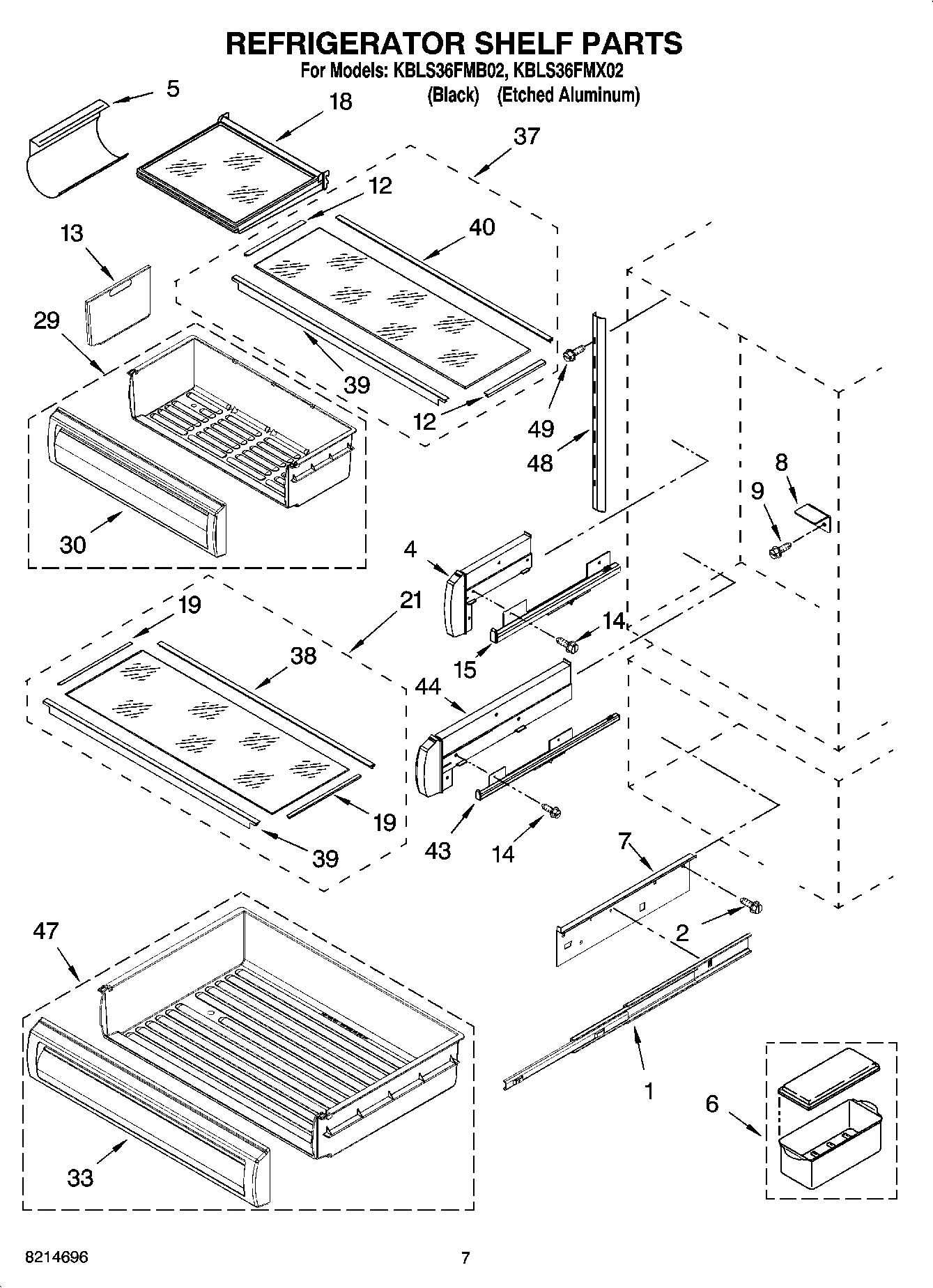

05 - REFRIGERATOR SHELF PARTS
07 - REFRIGERATOR DOOR PARTS

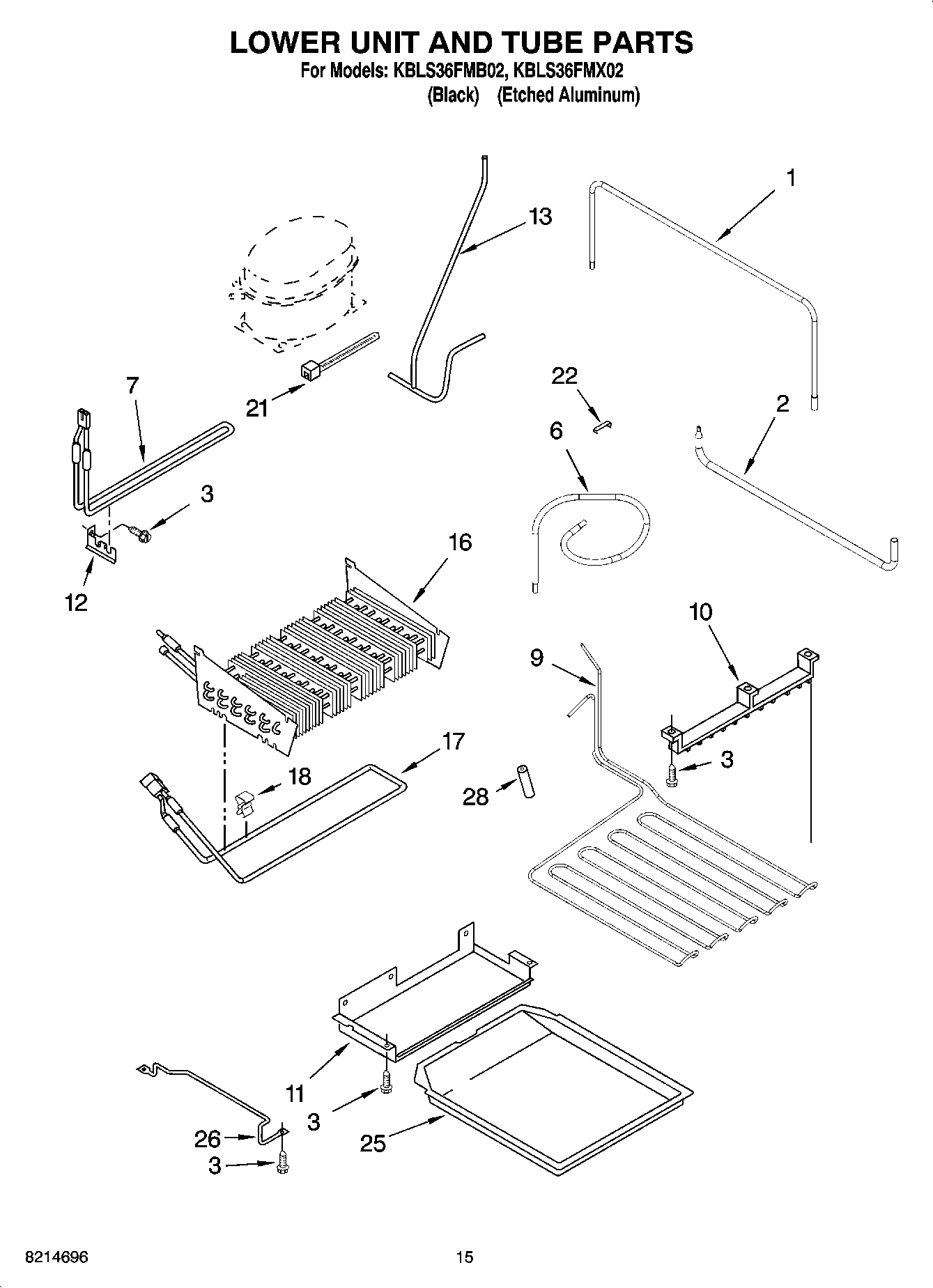

09 - LOWER UNIT AND TUBE PARTS
Common parts from model Whirlpool KBLS36FMX02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR
1
Slide, Freezer Basket (Left Side) WPL 2307977 Contact Us For Availability
1
Tube, Transition (Condenser) WPL 2313922 Contact Us For Availability
1
Slide, Freezer Basket (Right Side) WPL 2307978 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2259425B Contact Us For Availability
1
Top Grille Assembly (Etched Aluminum) WPL 2259425X Contact Us For Availability
1
Tube, Valve WPL 2204597 Contact Us For Availability
1
Main Control Service Sheet WPL 2302865 Contact Us For Availability
1
Service & Wiring Sheet WPL 2306322 Contact Us For Availability
1
Energy Label WPL 2307361 Contact Us For Availability
1
Installation Instructions WPL 2307890 Contact Us For Availability
1
Use & Care Guide WPL 2317085 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) WPL 2300083 Contact Us For Availability
2
Tube, Transition (Drier/Restrictor) WPL 2259304 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI79036A9 Contact Us For Availability
2
Trim Cover, Side (Etched Aluminum) WPL 2006332 Contact Us For Availability
2
Trim Cover, Side (Black) WPL 2006336 Contact Us For Availability
3
Hinge Assembly, Top WPL 2266912 Contact Us For Availability
3
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
4
Spacer-Hinge, Top WPL 2256381 Contact Us For Availability
4
Jumper, Fill Tube Heater WPL 2187683 Contact Us For Availability
4
Spacer, Crisper (Left Side) WPL 2256442 Contact Us For Availability
4
Spacer, Crisper (Right Side) WPL 2256443 Contact Us For Availability
5
Front, Unit Cover WPL 2302974 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2302928 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Egg Bin Assembly WPL 2221071 Contact Us For Availability
7
Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability
7
Wire Assembly WPL 2187423 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2317093 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Bracket, Freezer Basket (Left Side) WPL 2257326 Contact Us For Availability
7
Bracket, Freezer Basket (Right Side) WPL 2257327 Contact Us For Availability
7
Corner Trim (Black) WPL 2006273 Contact Us For Availability
7
Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability
8
Bracket, Switch WPL 2302969 Contact Us For Availability
8
Support, Crisper Cover WPL 2302788 Contact Us For Availability
8
Door Trim, Side (Etched Aluminum) WPL 2005859 Contact Us For Availability
8
Door Trim, Side (Black) WPL 2006277 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Mounting Bracket, Grill WPL 2006442 Contact Us For Availability
9
Heater, Drain Pan WPL 2259329 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability
10
Trim-Grille, Bottom (Black) WPL 2259438B Contact Us For Availability
10
Trim-Grille, Bottom (Etched Aluminum) WPL 2259438X Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
11
Trim-Grille, Right Side (Black) WPL 2259420B Contact Us For Availability
11
Trim-Grille, Right Side (Etched Aluminum) WPL 2259420X Contact Us For Availability
11
Cover, Bottom WPL 2300104 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Handle, Door (Etched Aluminum) WPL 2005853 Contact Us For Availability
11
Handle, Door (Black) WPL 2006300 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
12
Trim-Grille, Top (Black) WPL 2259440B Contact Us For Availability
12
Trim-Grille, Top (Etched Aluminum) WPL 2259440X Contact Us For Availability
12
Clamp WPL 2004514 Contact Us For Availability
12
Trim-Glass, Side WPL 2257562 Contact Us For Availability
12
Gasket (2) WPL 2005982 Contact Us For Availability
12
Support, Heater WPL 2204543 Contact Us For Availability
13
Trim-Grille, Left Side (Black) WPL 2259421B Contact Us For Availability
13
Trim-Grille, Left Side (Etched Aluminum) WPL 2259421X Contact Us For Availability
13
Tube, Drain Condensate WPL 2204516 Contact Us For Availability
13
Divider, Crisper Pan WPL 2256474 Contact Us For Availability
13
SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability
13
Tube, Discharge WPL 2259474 Contact Us For Availability
14
Door Trim, Bottom (Etched Aluminum) WPL 2005862 Contact Us For Availability
14
Door Trim, Bottom (Black) WPL 2006286 Contact Us For Availability
15
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Evaporator WPL 2306095 Contact Us For Availability
16
Trim Cover, Handle (Etched Aluminum) WPL 2006337 Contact Us For Availability
16
Trim Cover, Handle (Black) WPL 2006341 Contact Us For Availability
17
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Wire Harness, Icemaker WPL 2187715 Contact Us For Availability
17
Door Trim, Top (Etched Aluminum) WPL 2005865 Contact Us For Availability
17
Door Trim, Top (Black) WPL 2006290 Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
18
Shelf (4) WPL 2258973 Contact Us For Availability
18
Tube, Door Shelf WPL 2005482 Contact Us For Availability
18
Clamp, Heater (2) WPL 2204510 Contact Us For Availability
19
Cam-Closer, Door WPL 2005783 Contact Us For Availability
19
Trim-Glass, Side WPL 2257563 Contact Us For Availability
19
Shelf, Door (2) WPL 2005417 Contact Us For Availability
21
Shelf, Deli Assy. WPL 2302839 Contact Us For Availability
21
End Cap, Left WPL 2005542 Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
22
Screw WPL 487522 Contact Us For Availability
22
End Cap, Right WPL 2005541 Contact Us For Availability
23
Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
26
Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Door Shelf, Gallon WPL 2006154 Contact Us For Availability
28
Butter Tray WPL 2165792 Contact Us For Availability
30
Grommet, Edge WPL 2307907 Contact Us For Availability
31
Shut Off Arm WPL 2314015 Contact Us For Availability
31
Tube, Transition (Condenser/Drier) WPL 2259302 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
34
Grille Base, Front WPL 2215889B Contact Us For Availability
35
Clip, Thermistor WPL 2209204 Contact Us For Availability
36
Cover, Fan WPL 2209495 Contact Us For Availability
37
Cover, Condenser WPL 2259092 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2306151 Contact Us For Availability
37
Grommet, Wiring WPL 1113122 Contact Us For Availability
37
Crisper Cover Assembly WPL 2302837 Contact Us For Availability
38
Trim-Glass, Rear WPL 2257564 Contact Us For Availability
39
Service Cord WPL 2259197 Contact Us For Availability
39
Trim, Glass Front (Not Serviceable) WPL ARI79040A1 Contact Us For Availability
40
Trim-Glass, Rear WPL 2302796 Contact Us For Availability
43
Slide, Deli (Left Side) WPL 2302950 Contact Us For Availability
43
Slide, Deli (Right Side) WPL 2302951 Contact Us For Availability
44
Spacer, Deli (Left Side) WPL 2257531 Contact Us For Availability
44
Spacer, Deli (Right Side) WPL 2257532 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2187624 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Following Parts Not Illustrated and Optional WPL ARI79041A1 Contact Us For Availability
45
REFRIGERANT CHARGE 5.75 oz. (R-134A) WPL ARI79042A4 Contact Us For Availability
47
Deli Pan Assembly (Includes 33) WPL 2257535 Contact Us For Availability
48
Ladder, Shelf (4) WPL 2005410 Contact Us For Availability
100
Front Panel Kit (White) WPL 2300072 Contact Us For Availability
100
Front Panel Kit (Black) WPL 2300073 Contact Us For Availability
100
Front Panel Kit WPL 2300074 Contact Us For Availability
100
Following Parts Not Illustrated (Optional Par WPL ARI79043A7 Contact Us For Availability
× ![]()
