Model Maytag JXU9130HP1 HOOD/VENTILATION, PROFESSIONAL, 30, 36 & 48 INCH – Common Parts & Diagrams

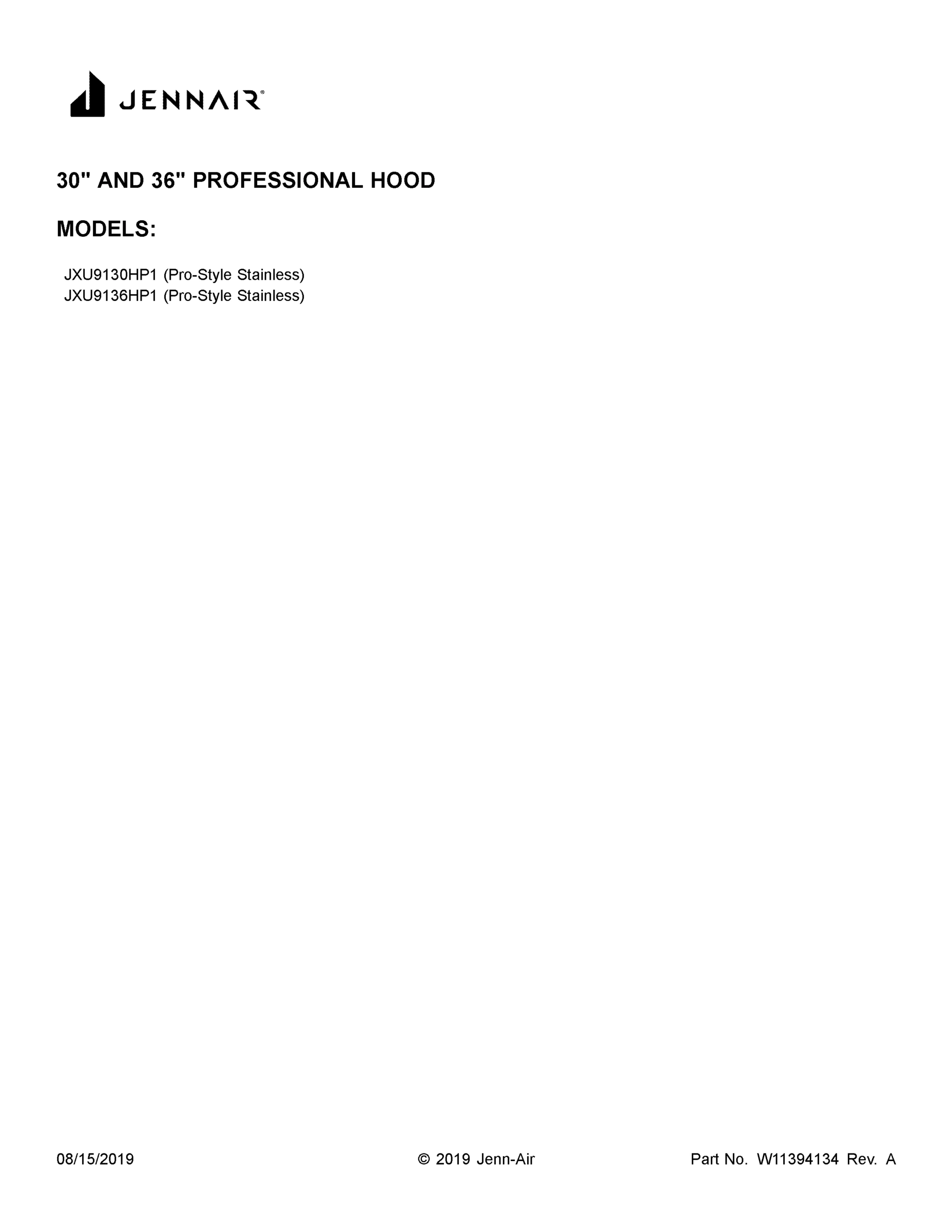

01 - COVER SHEET
02 - HOOD PARTS
Common parts from model Maytag JXU9130HP1 HOOD/VENTILATION, PROFESSIONAL, 30, 36 & 48 INCH
1
MAY W11374533 MAY W11374533 Contact Us For Availability
2
DAMPER, HOOD MAY W10291572 Contact Us For Availability
3
MAY W11388445 MAY W11388445 Contact Us For Availability
4
BEZEL, LAMP MAY W10351924 Contact Us For Availability
5
SOCKET, LIGHT MAY W10295808 Contact Us For Availability
6
GREASE FILTER (30" MODEL ONLY) MAY W10351890 Contact Us For Availability
6A
GREASE FILTER (36" MODEL ONLY) MAY W10351892 Contact Us For Availability
7
KNOB MAY W10294009 Contact Us For Availability
8
CAPACITOR (25 MF) MAY W11245979 Contact Us For Availability
9
CONTROL PANEL (30" MODEL ONLY) MAY W10295809 Contact Us For Availability
9A
CONTROL PANEL (36" MODEL ONLY) MAY W10295810 Contact Us For Availability
10
SWITCH, LIGHT MAY W10293968 Contact Us For Availability
11
SWITCH, FAN MAY W10293967 Contact Us For Availability
12
ASSEMBLY, FAN MAY W10293966 Contact Us For Availability
13
HARDWARE, INSTALLATION MAY W10293969 Contact Us For Availability
NI
ACCESSORIES, KIT, BACKSPLASH 36" WITHOUT SHEL MAY 8284756 Contact Us For Availability
NI
ACCESSORIES, KIT, BACKSPLASH 30" WITHOUT SHEL MAY 8285148 Contact Us For Availability
NI
ACCESSORIES, COVER, CHIMNEY 30" MODEL ONLY MAY W10272079 Contact Us For Availability
NI
ACCESSORIES, COVER, CHIMNEY 36" MODEL ONLY MAY W10272080 Contact Us For Availability
NI
ACCESSORIES, KIT, BACKSPLASH 30" WITH SHELVES MAY W10285447 Contact Us For Availability
NI
ACCESSORIES, KIT, BACKSPLASH 36" WITH SHELVES MAY W10285448 Contact Us For Availability
× ![]()
