Whirlpool JXT9036BDP Parts List

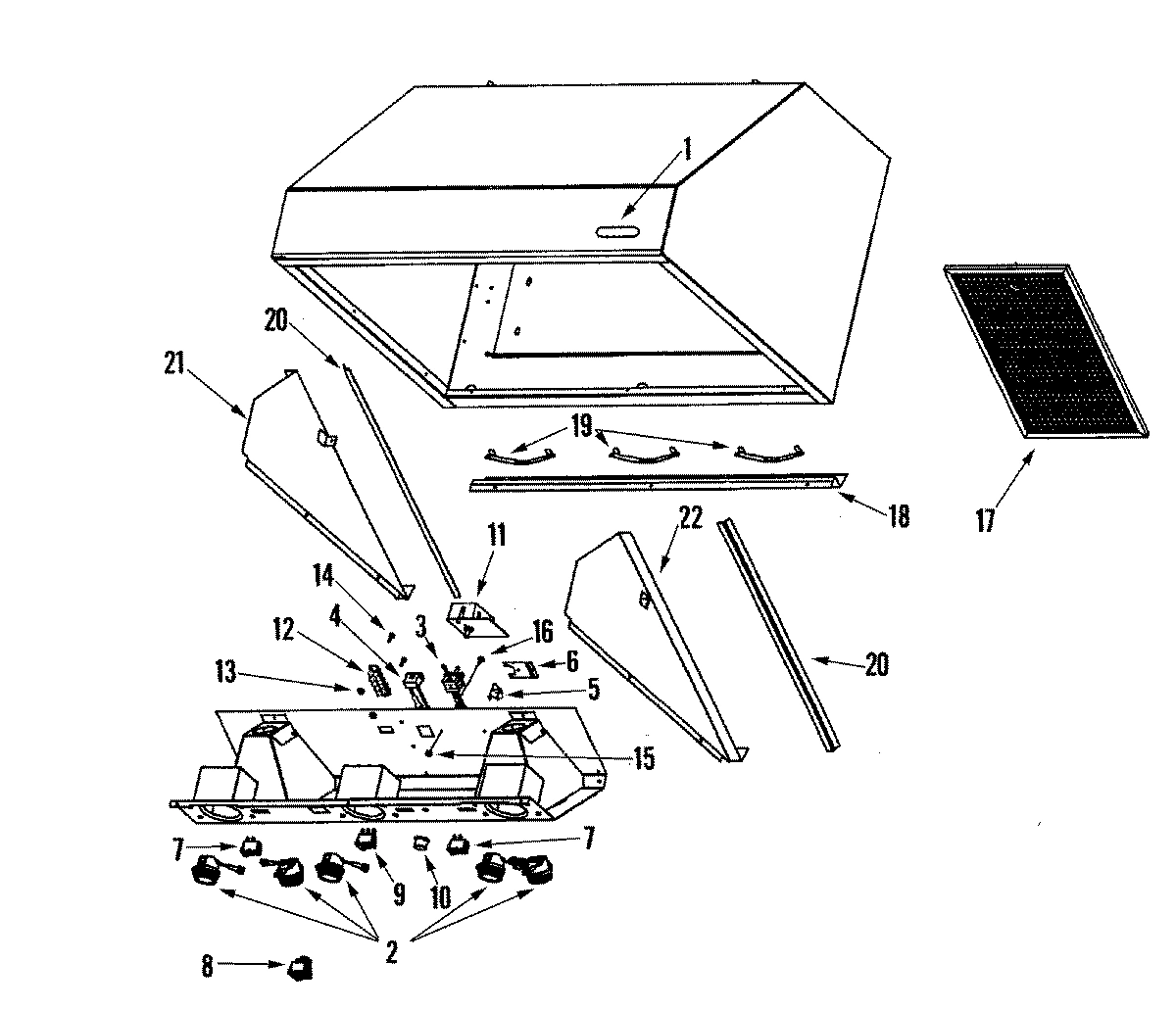

Model Whirlpool JXT9036BDP HOOD – Common Parts & Diagrams

Common parts from model Whirlpool JXT9036BDP HOOD

NAMEPLATE (STL)

NAMEPLATE (STL) WPL 47001205 Contact Us For Availability

BACKSPLASH (36`` STL)

BACKSPLASH (36`` STL) WPL JXA9002BDP Contact Us For Availability

RECEPTACLE, LIGHT (LAMP)

RECEPTACLE, LIGHT (LAMP) WPL 47001206 Contact Us For Availability

SOFFIT (36`` STL)

SOFFIT (36`` STL) WPL JXA9036BDP Contact Us For Availability

PLUG, MALE

PLUG, MALE WPL 47001207 Contact Us For Availability

RECEPTACLE, FEMALE

RECEPTACLE, FEMALE WPL 47001208 Contact Us For Availability

THERMOSTAT

THERMOSTAT WPL 47001209 Contact Us For Availability

BRACKET, THERMOSTAT

BRACKET, THERMOSTAT WPL 47001248 Contact Us For Availability

SWITCH, LIGHT (BLK)

SWITCH, LIGHT (BLK) WPL 47001213 Contact Us For Availability

SWITCH, LIGHT

SWITCH, LIGHT WPL 47001214 Contact Us For Availability

SWITCH, ILLUMINATED FAN

SWITCH, ILLUMINATED FAN WPL 47001215 Contact Us For Availability

KNOB, SPEED CONTROL

KNOB, SPEED CONTROL WPL 47001212 Contact Us For Availability

CONTROL, SPEED

CONTROL, SPEED WPL 47001211 Contact Us For Availability

BLOCK, TERMINAL

BLOCK, TERMINAL WPL 47001210 Contact Us For Availability

CORD, POWER (10``)

CORD, POWER (10``) WPL 47001216 Contact Us For Availability

WP488130 Whirlpool Air Conditioner Nut

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $4.67

SCREW (8-32 1/2``)

SCREW (8-32 1/2``) WPL 47001220 Contact Us For Availability

WP3196170 Whirlpool Screw

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $4.82

M0282005 Whirlpool Nut

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

FILTER (11 X 15) (36`` UNIT)

FILTER (11 X 15) (36`` UNIT) WPL 47001224 Contact Us For Availability

RAIL, GREASE 36``

RAIL, GREASE 36`` WPL 47001227 Contact Us For Availability

SPRING, FILTER

SPRING, FILTER WPL 47001229 Contact Us For Availability

SEAL, SIDE

SEAL, SIDE WPL 47001230 Contact Us For Availability

LINER, SIDE (LT)

LINER, SIDE (LT) WPL 47001231 Contact Us For Availability

LINER, SIDE (RT)

LINER, SIDE (RT) WPL 47001232 Contact Us For Availability

LAMP, HALOGEN

LAMP, HALOGEN WPL 47001234 Contact Us For Availability

INSTALLATION PKG.

INSTALLATION PKG. WPL 47001235 Contact Us For Availability

GUIDE, INSTALLATION

GUIDE, INSTALLATION WPL 47001233 Contact Us For Availability

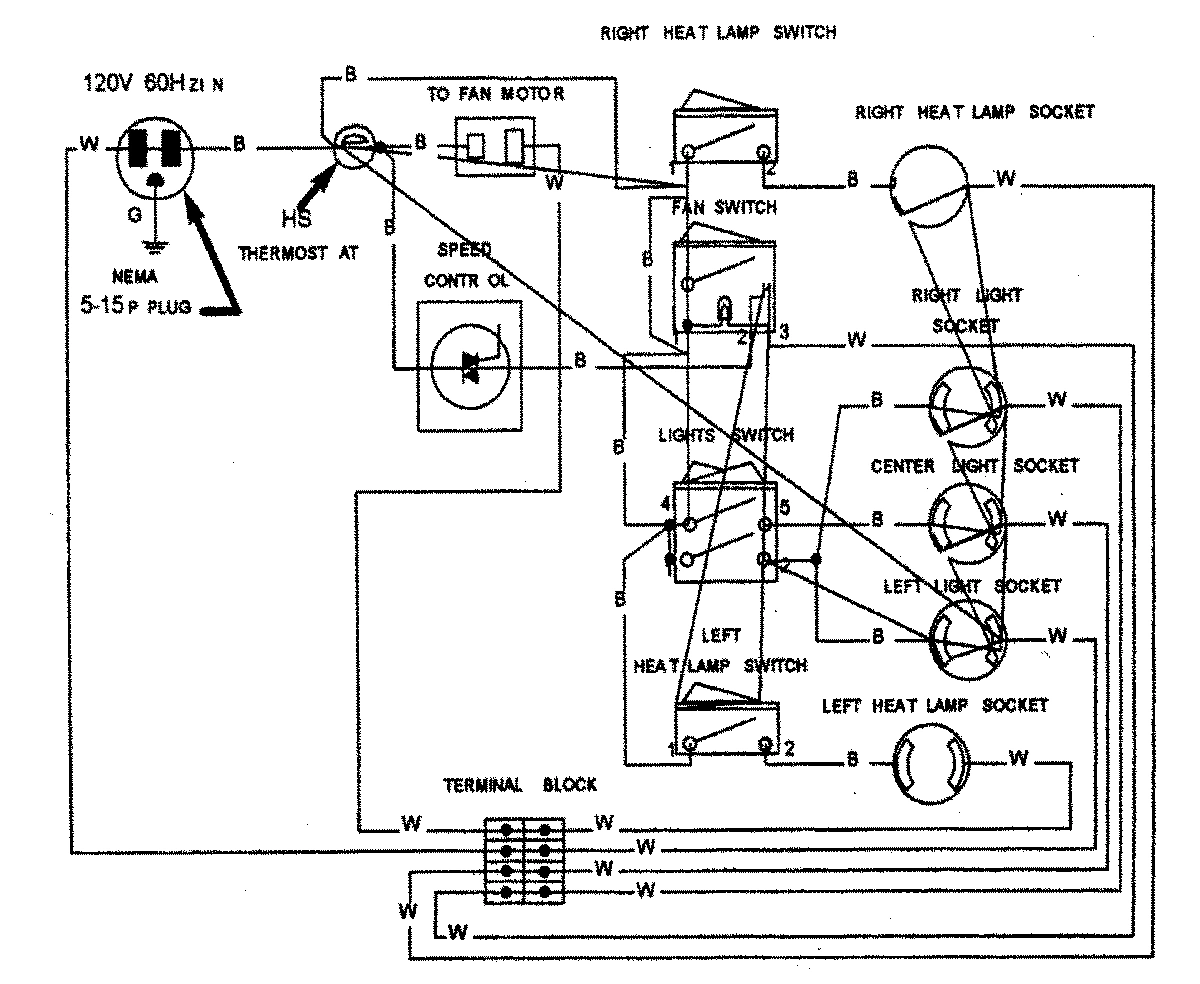

WIRING INFORMATION

WIRING INFORMATION WPL 15003168 Contact Us For Availability
