Model LG JVM1490CD – Common Parts & Diagrams

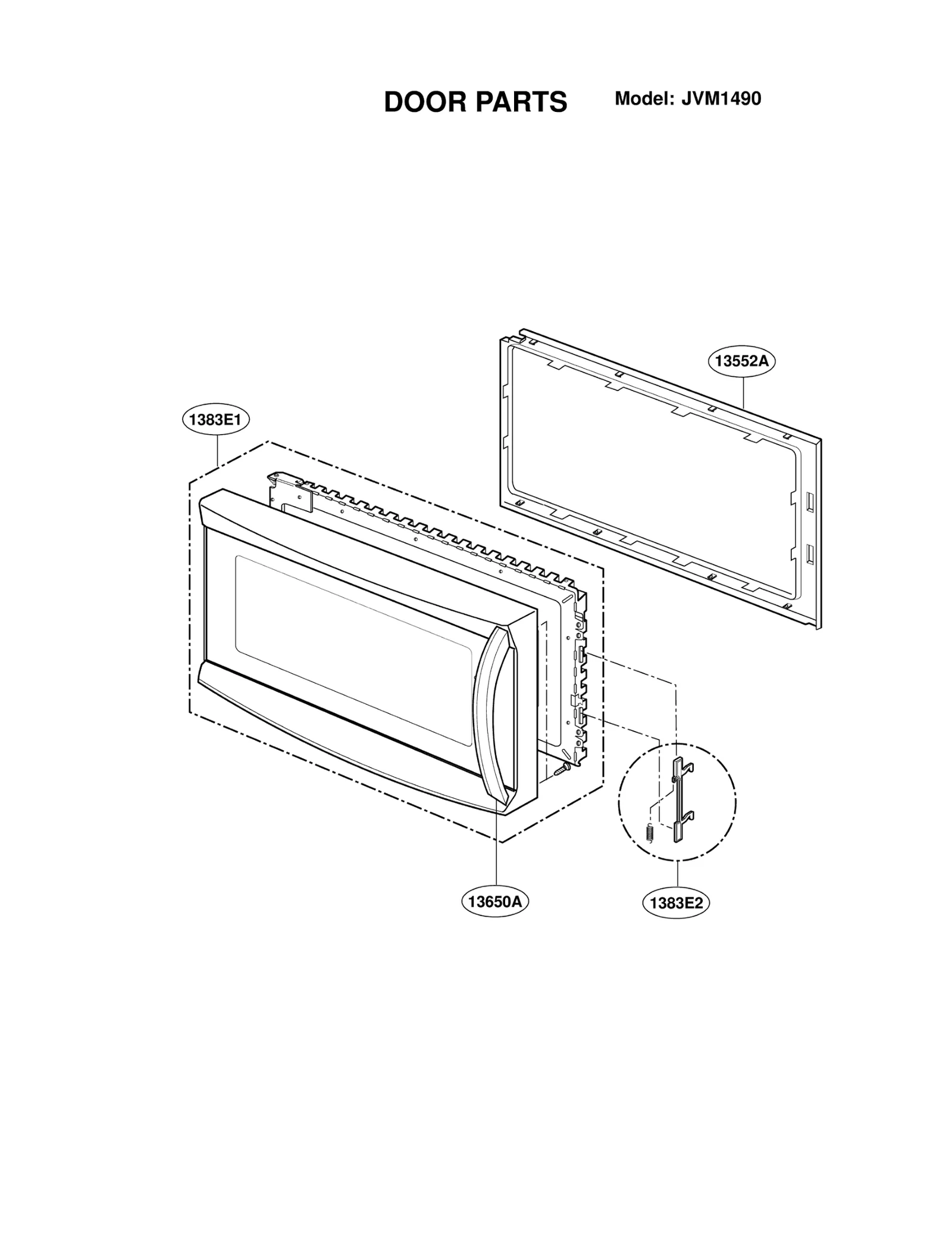

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG JVM1490CD
*01
MANUAL,OWNERS LGE 3828W5A1857 Contact Us For Availability
*03
COOK BOOK LGE 3878W5A0035 Contact Us For Availability
*04
MANUAL,INSTALLATION LGE 3828W5U0128 Contact Us For Availability
*06
TEMPLATE LGE 4922W5A022A Contact Us For Availability
*06
TEMPLATE LGE 4922W5A024A Contact Us For Availability
*10
BOX,YELLOW LGE 3890W3Y198A Contact Us For Availability
50CZZM
Capacitor,Film,Box LGE 3B72440F Contact Us For Availability
4383E1
SERVICE PARTS LGE 383EW1A005A Contact Us For Availability
5383E1
DAMPER INLET ASSY LGE 383EW1A025A Contact Us For Availability
5383E3
AIR TUNNEL OUTLET ASSY LGE 383EW1A027A Contact Us For Availability
5383E4
CONVECTION MOTOR ASSY LGE 383EW1A035A Contact Us For Availability
5383E5
LAMP REFLECTOR ASSY LGE 383EW1A028B Contact Us For Availability
5383E6
CONVECTION FAN ASSY LGE 383EW1A032B Contact Us For Availability
5383E7
DAMPER OUTLET ASSY LGE 383EW1A029A Contact Us For Availability
5383E8
LEAD WIRE TOTAL ASSY LGE 383EW1A034A Contact Us For Availability
6383E1
SERVICE PARTS LGE 383EW2A002A Contact Us For Availability
6383E2
SERVICE PARTS LGE 383EW1A038A Contact Us For Availability
13720D
PANEL,DOOR LGE 3720W0D177D Contact Us For Availability
33052M
CANOPY,[MICA] LGE 3052W3M025A Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W0U043D Contact Us For Availability
33390G
GLASS TRAY LGE 1B71961A Contact Us For Availability
33531A
GRILLE ASSY LGE 3531W1A010D Contact Us For Availability
33550A
COVER ALL MV-1320,COVER,POWER LGE 3550W3A084A Contact Us For Availability
33809A
BACK COVER ASSY LGE 3809W0A002A Contact Us For Availability
34371A
SHAFT ASSY LGE 4371W1A001A Contact Us For Availability
34810G
BRACKET,[MWO] LGE 4810W3G142A Contact Us For Availability
34930A
HOLDER,[SHELF & ROTI BAR HOLDE LGE 4930W1A008A Contact Us For Availability
34931A
HOLDER ASSY LGE 4931W3A004B Contact Us For Availability
34960A
MOUNT LGE 4960W2A004A Contact Us For Availability
35889A
ROTATING RING ASSY LGE 5889W1A001D Contact Us For Availability
53300A
PLATE,[BOTTOM PLATE] LGE 3300W1A001B Contact Us For Availability
53551A
COVER ASSY,[HEATER COVER] LGE 3551W1A025A Contact Us For Availability
53740A
PROTECTOR (MECH) LGE 3740W3A004A Contact Us For Availability
54810Q
BRACKET,[MOUNT] LGE 4810W2Q001A Contact Us For Availability
54811A
BRACKET ASSY LGE 4811W3A016A Contact Us For Availability
54890A
GLASS LGE 4890W3A010A Contact Us For Availability
54930B
HOLDER ALL 20A,300V MAX,LITTEL LGE 4930W3B025A Contact Us For Availability
54974A
GUIDE,[SUCTION GUIDE] LGE 4974W0A001A Contact Us For Availability
55300S
HEATER,[SHEATH] LGE 5300W1S006C Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A014M Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 2B73670L Contact Us For Availability
63301A
PLATE ASSY LGE 3301W1A028A Contact Us For Availability
535041
CHAMBER LGE 3504W0A001A Contact Us For Availability
535042
CHAMBER LGE 3504W1A001A Contact Us For Availability
569301
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
569303
THERMOSTAT 160 V PW MA-1554M LGE 6930WRT003A Contact Us For Availability
× ![]()
