Model Maytag JUWFL242HL01 REFRIGERATOR, BEVERAGE CENTER, UNDER COUNTER, 24 I – Common Parts & Diagrams

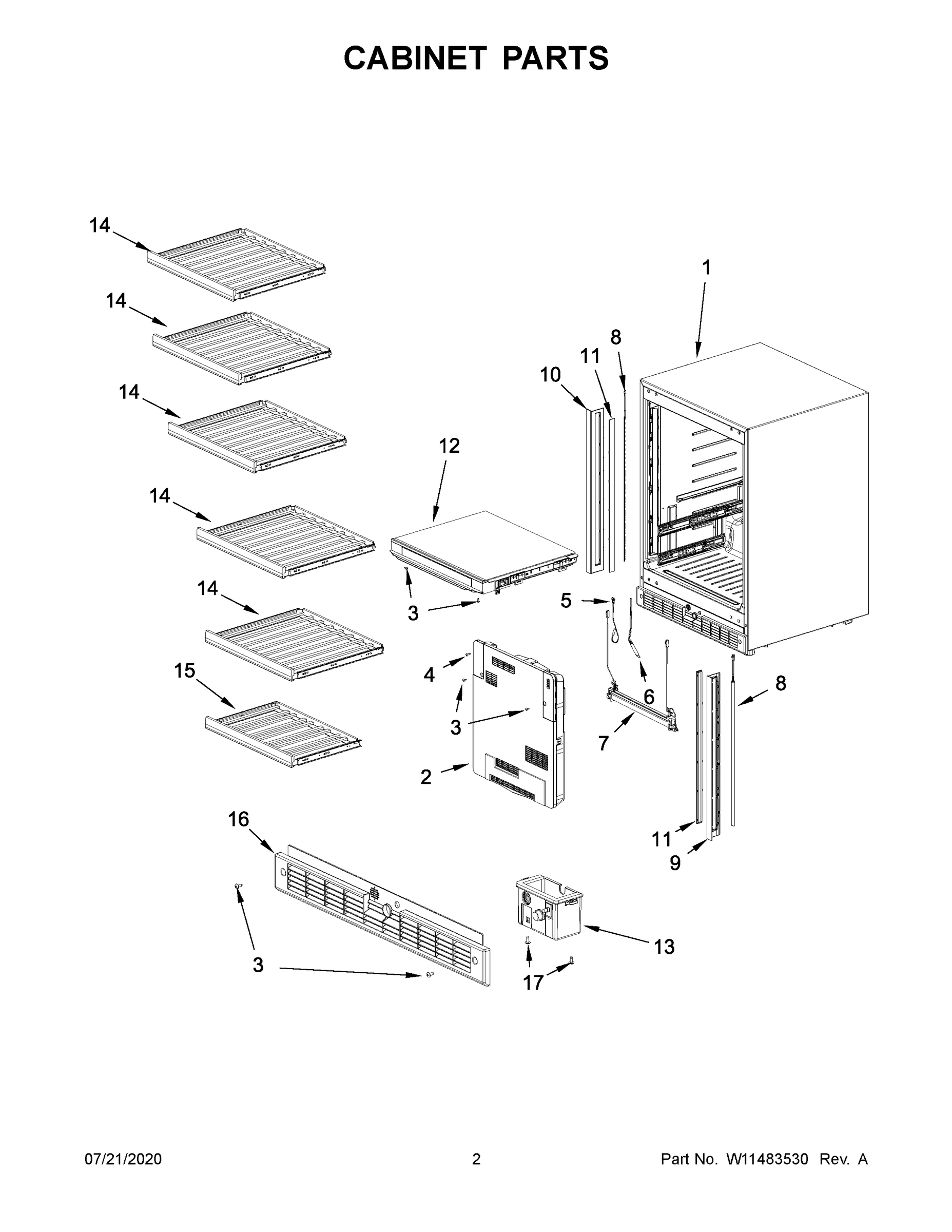

1
DOOR ASSEMBLY (LEFT HINGE)
DOOR ASSEMBLY (LEFT HINGE) MAY W11360701 Contact Us For Availability
View on Model

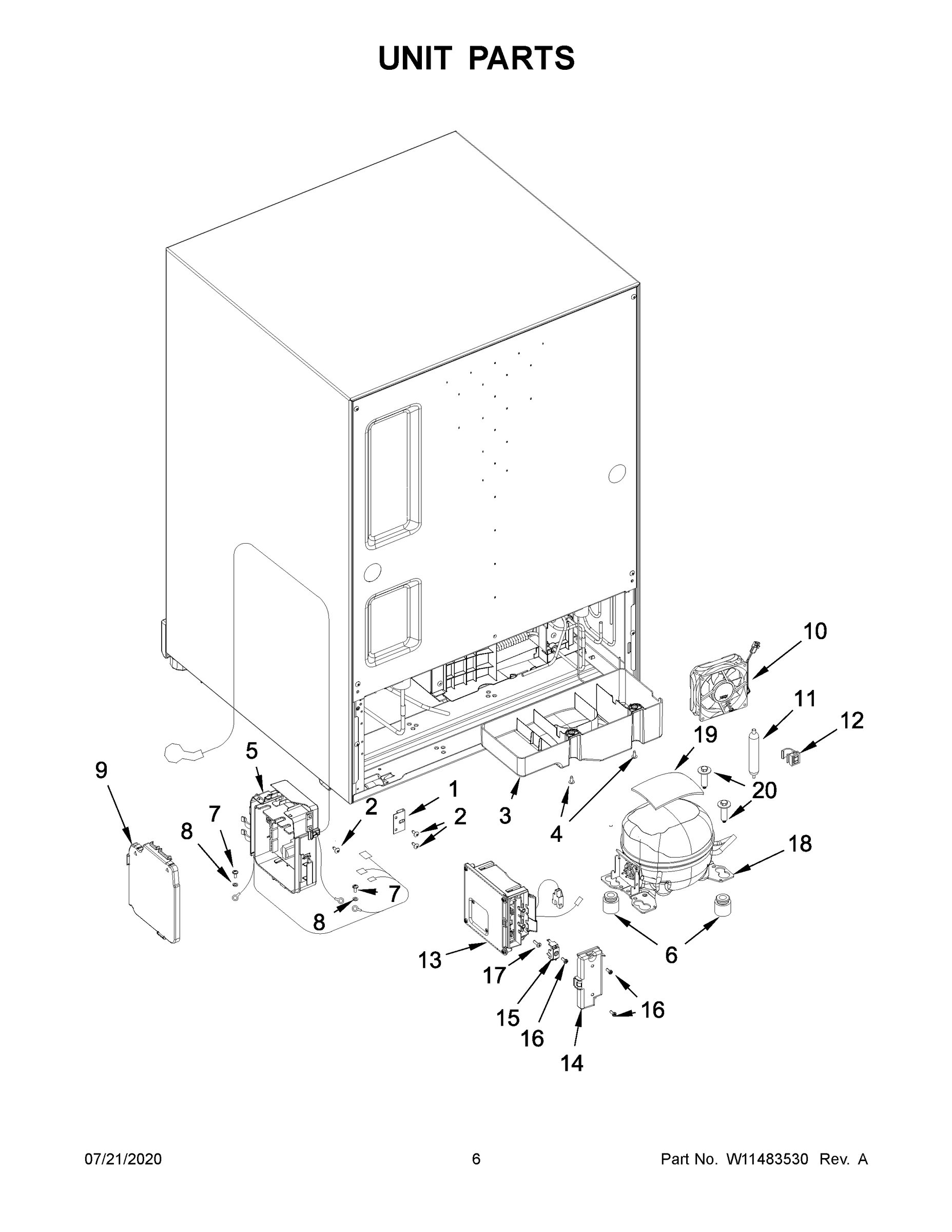

1
CLAMP, CORD
CLAMP, CORD MAY W10270517 Contact Us For Availability
View on Model

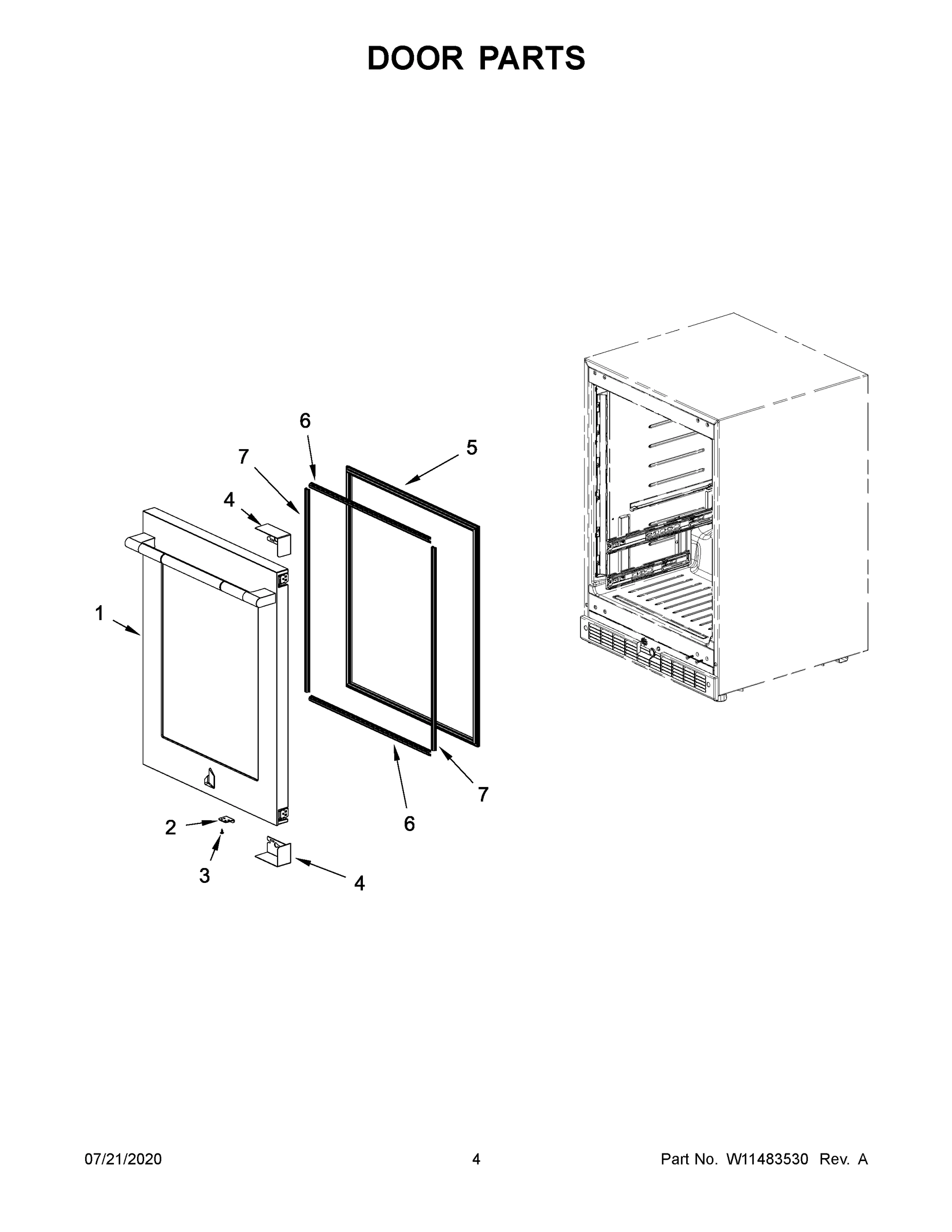

1A
DOOR ASSEMBLY (RIGHT HINGE)
DOOR ASSEMBLY (RIGHT HINGE) MAY W11360697 Contact Us For Availability
View on Model
2
ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTO
ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTO MAY W11376127 Contact Us For Availability
View on Model
2
SCREW
SCREW MAY W11371097 Contact Us For Availability
View on Model
2
PLATE, PUSH
PLATE, PUSH MAY W11360659 Contact Us For Availability
View on Model
3
SCREW
SCREW MAY W11371095 Contact Us For Availability
View on Model
3
WATER PAN, EVAPORATOR
WATER PAN, EVAPORATOR MAY W11360241 Contact Us For Availability
View on Model
4
SCREW
SCREW MAY W11375760 Contact Us For Availability
View on Model
4
COVER, DOOR HINGE (RIGHT HINGE (TOP)/ LEFT HI
COVER, DOOR HINGE (RIGHT HINGE (TOP)/ LEFT HI MAY W11360661 Contact Us For Availability
View on Model
4
SCREW
SCREW MAY W11375763 Contact Us For Availability
View on Model
4A
COVER, DOOR HINGE (RIGHT HINGE (BOTTOM)/ LEFT
COVER, DOOR HINGE (RIGHT HINGE (BOTTOM)/ LEFT MAY W11360664 Contact Us For Availability
View on Model
5
SENSOR, DEFROST
SENSOR, DEFROST MAY W11263884 Contact Us For Availability
View on Model
5
GASKET. DOOR
GASKET. DOOR MAY W11360668 Contact Us For Availability
View on Model
5
ASSEMBLY, PCB BOX (INCLUDES POWER CORD)
ASSEMBLY, PCB BOX (INCLUDES POWER CORD) MAY W11376137 Contact Us For Availability
View on Model
6
FUSE, TEMPERATURE
FUSE, TEMPERATURE MAY W11359415 Contact Us For Availability
View on Model
6
GASKET, SASH (TOP/BOTTOM)
GASKET, SASH (TOP/BOTTOM) MAY W11360665 Contact Us For Availability
View on Model
6
MOUNT, COMPRESSOR
MOUNT, COMPRESSOR MAY W11360596 Contact Us For Availability
View on Model
7
DEFROST HOLDER AND HEATER
DEFROST HOLDER AND HEATER MAY W11359416 Contact Us For Availability
View on Model
7
GASKET, SASH (SIDE)
GASKET, SASH (SIDE) MAY W11360666 Contact Us For Availability
View on Model
7
SCREW
SCREW MAY 4344826 Contact Us For Availability
View on Model
8
ASSEMBLY, LED
ASSEMBLY, LED MAY W11359423 Contact Us For Availability
View on Model
8
WASHER
WASHER MAY W11265570 Contact Us For Availability
View on Model
9
COVER, LED (RIGHT)
COVER, LED (RIGHT) MAY W11359424 Contact Us For Availability
View on Model
9
COVER BOX, PCB
COVER BOX, PCB MAY W11265578 Contact Us For Availability
View on Model
10
COVER, LED (LEFT)
COVER, LED (LEFT) MAY W11359425 Contact Us For Availability
View on Model
10
ASSEMBLY, FAN MOTOR
ASSEMBLY, FAN MOTOR MAY W11360536 Contact Us For Availability
View on Model
11
COVER, LED
COVER, LED MAY W11359428 Contact Us For Availability
View on Model
11
DRIER
DRIER MAY W10163273 Contact Us For Availability
View on Model
12
ASSEMBLY, SEPARATOR
ASSEMBLY, SEPARATOR MAY W11376132 Contact Us For Availability
View on Model
12
CLAMP
CLAMP MAY W11265569 Contact Us For Availability
View on Model
13
ASSEMBLY, SWITCH BOX
ASSEMBLY, SWITCH BOX MAY W11359433 Contact Us For Availability
View on Model
13
BOX, IB
BOX, IB MAY W11360589 Contact Us For Availability
View on Model
14
UPPER, WINE RACK
UPPER, WINE RACK MAY W11359429 Contact Us For Availability
View on Model
14
COVER, SIDE
COVER, SIDE MAY W11360590 Contact Us For Availability
View on Model
15
LOWER, WINE RACK
LOWER, WINE RACK MAY W11359430 Contact Us For Availability
View on Model
15
STOPPER
STOPPER MAY W11360592 Contact Us For Availability
View on Model
16
KICK, PLATE
KICK, PLATE MAY W11360218 Contact Us For Availability
View on Model
16
SCREW
SCREW MAY W11375768 Contact Us For Availability
View on Model
17
SCREW
SCREW MAY W11375770 Contact Us For Availability
View on Model
18
COMPRESSOR
COMPRESSOR MAY W11360594 Contact Us For Availability
View on Model
19
COMPRESSOR, RUBBER
COMPRESSOR, RUBBER MAY W11360595 Contact Us For Availability
View on Model
20
BOLT
BOLT MAY W11375771 Contact Us For Availability
View on Model
NI
REFRIGERANT CHARGE R600A (1.834 OZ.)
REFRIGERANT CHARGE R600A (1.834 OZ.) MAY N/P Contact Us For Availability
View on Model
