Model Maytag JUDFP242HX00 REFRIGERATOR, DRAWER, DOUBLE – Common Parts & Diagrams
01 - COVER SHEET

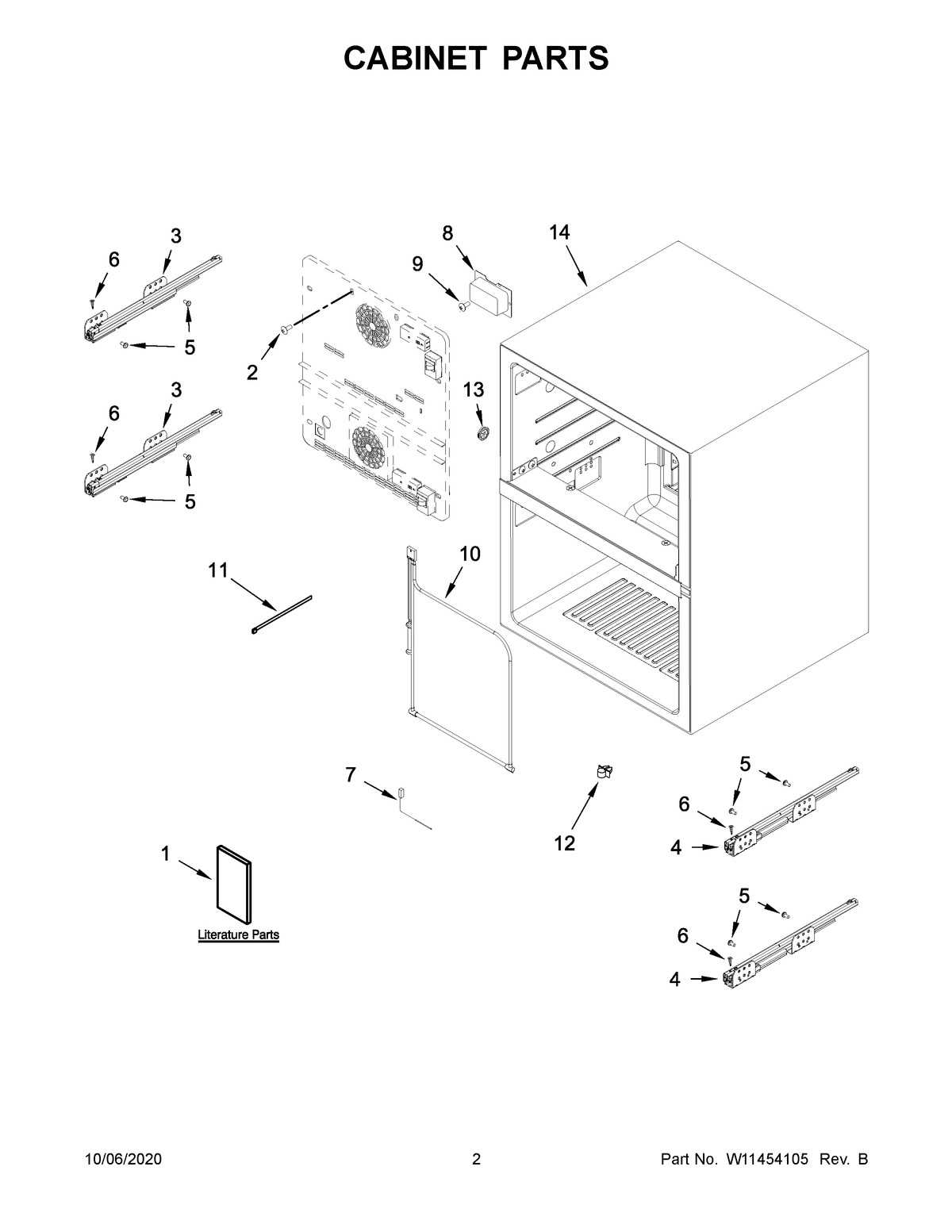

02 - CABINET PARTS

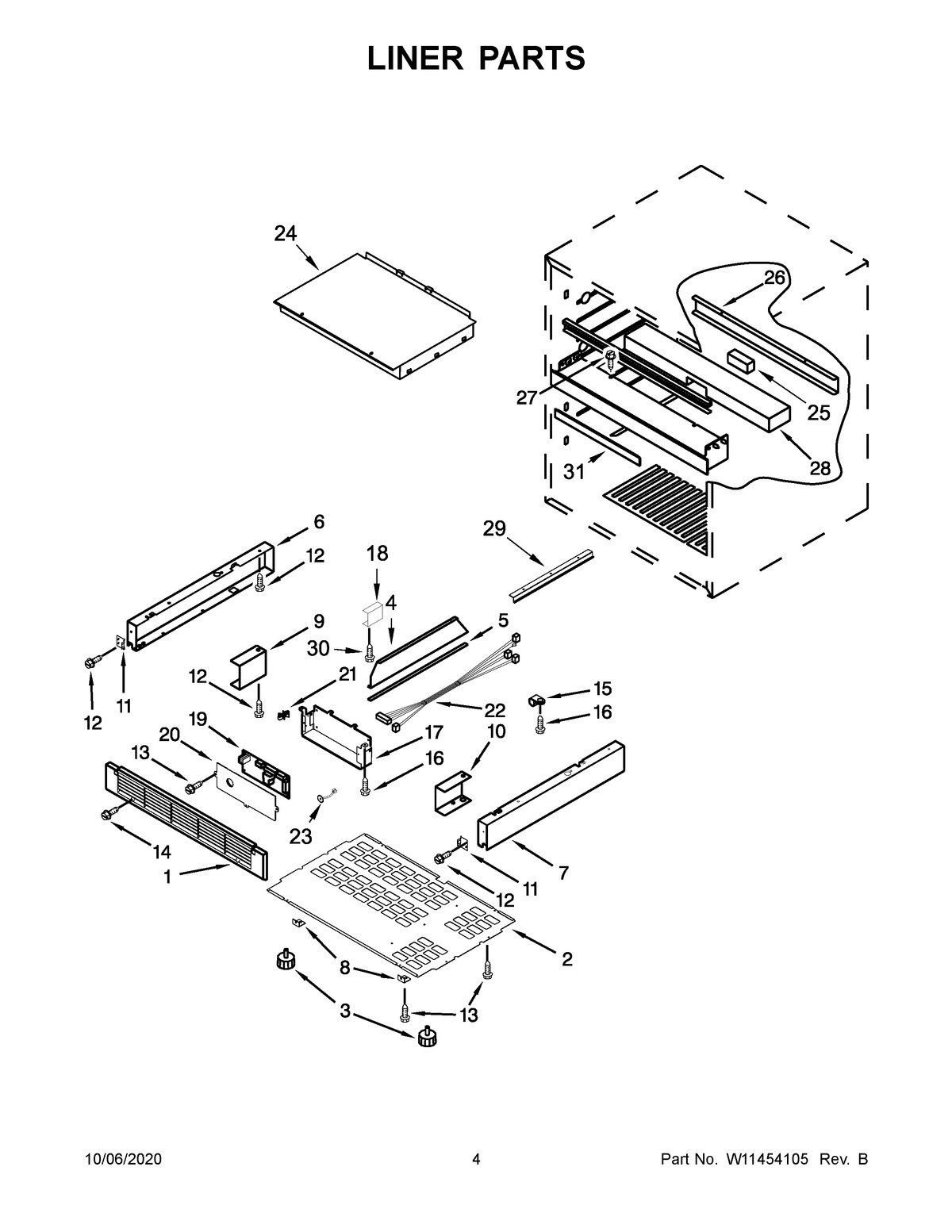

03 - LINER PARTS

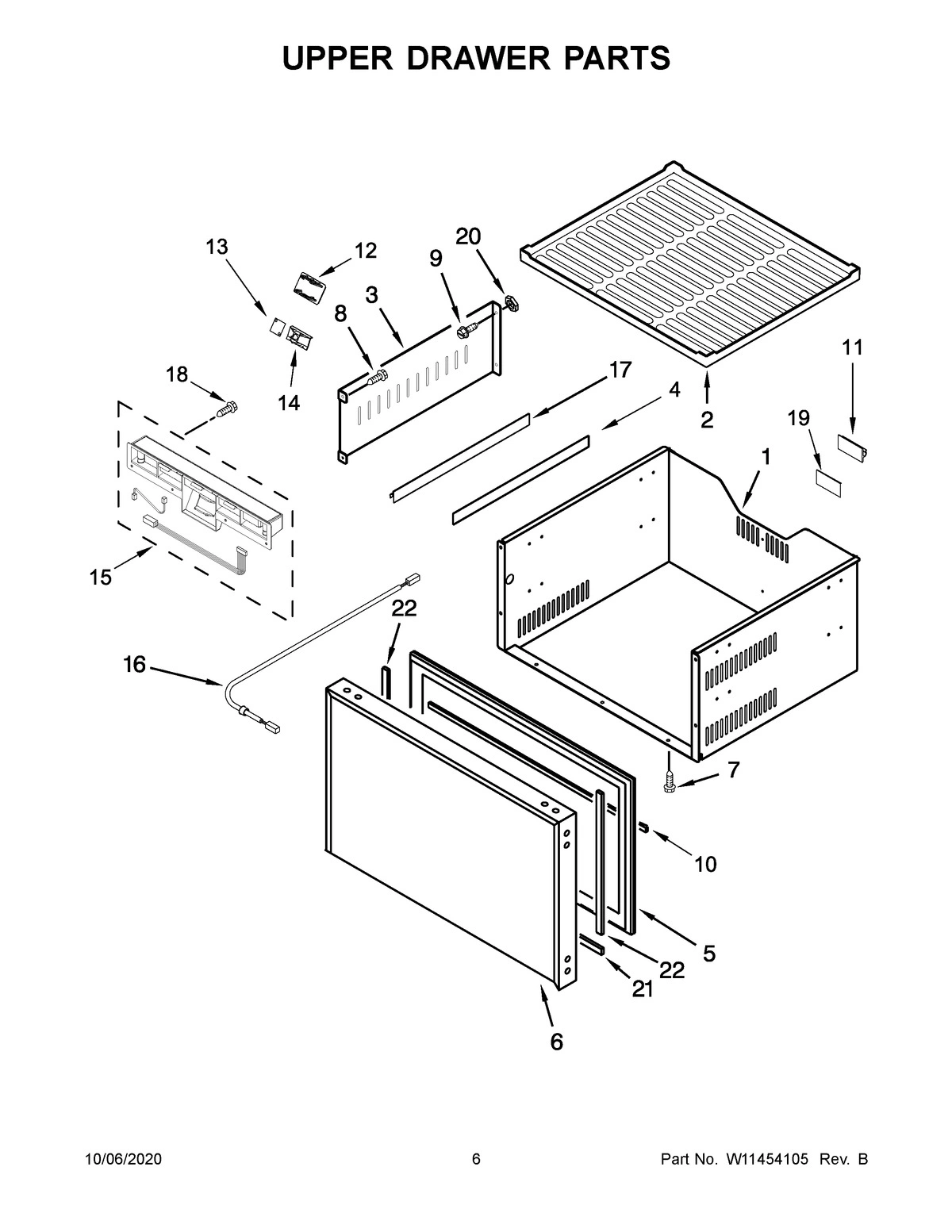

04 - UPPER DRAWER PARTS

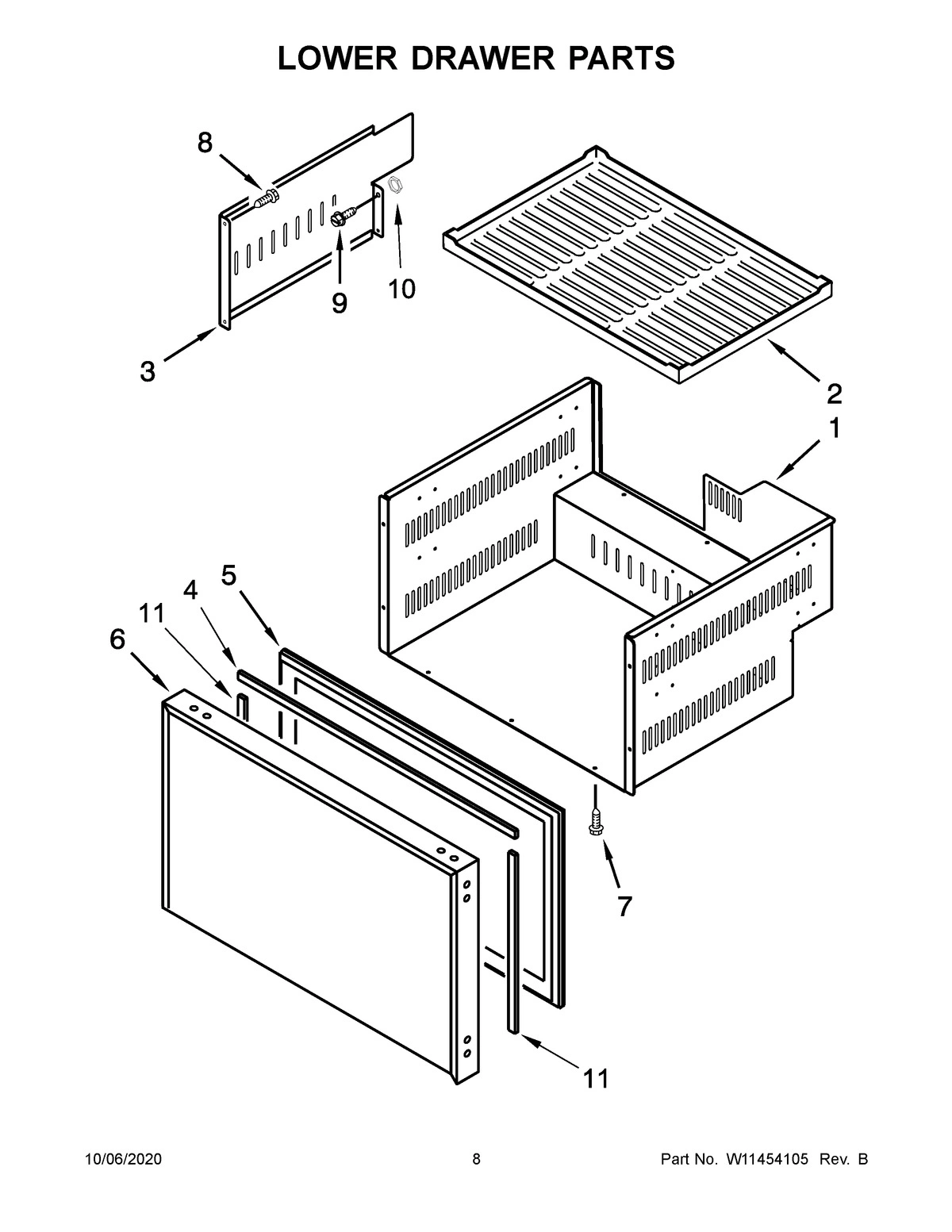

05 - LOWER DRAWER PARTS

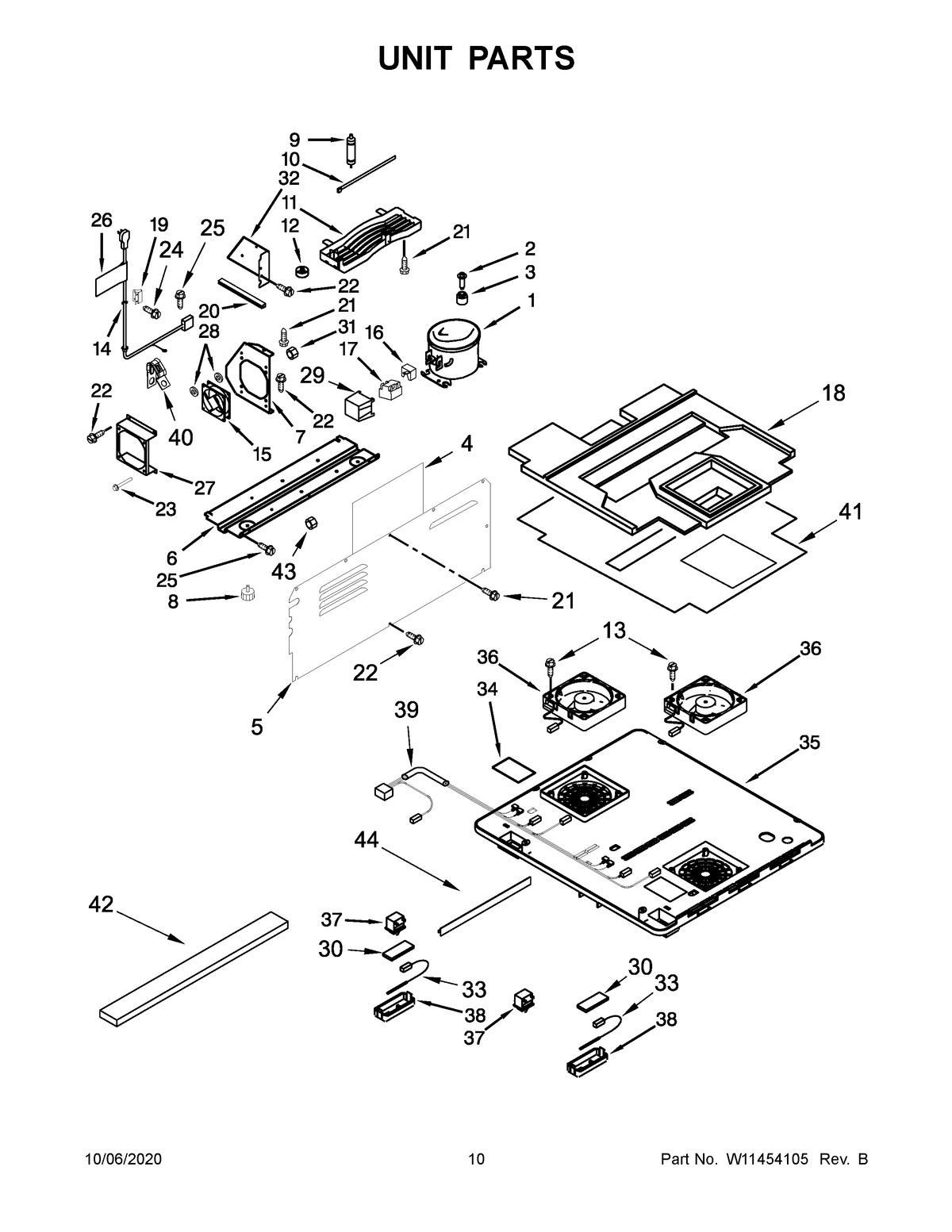

06 - UNIT PARTS
Common parts from model Maytag JUDFP242HX00 REFRIGERATOR, DRAWER, DOUBLE
1
ENERGY GUIDE MAY W10778958 Contact Us For Availability
1
KICK PLATE MAY W10204635 Contact Us For Availability
1
DRAWER BOX ASSEMBLY, UPPER MAY W11422819 Contact Us For Availability
1
DRAWER BOX ASSEMBLY, UPPER MAY W11422821 Contact Us For Availability
1
COMPRESSOR MAY W11422743 Contact Us For Availability
1A
SERVICE & WIRING SHEET MAY W10796444 Contact Us For Availability
1B
USE & CARE GUIDE MAY W10741583 Contact Us For Availability
2
SCREW MAY W10774183 Contact Us For Availability
2
COVER, BOTTOM MAY W10772863 Contact Us For Availability
2
MAT, UPPER DRAWER MAY W10622004 Contact Us For Availability
2
MAT, LOWER DRAWER MAY W10622026 Contact Us For Availability
2
BOLT, COMPRESSOR MAY 4344780 Contact Us For Availability
3
RAIL ASSEMBLY, LEFT HAND MAY W10621521 Contact Us For Availability
3
DRAWER PARTITION MAY W11422834 Contact Us For Availability
3
BOTTOM DRAWER PARTITION MAY W11422833 Contact Us For Availability
3
GROMMET, COMPRESSOR MAY 4344779 Contact Us For Availability
4
RAIL ASSEMBLY, RIGHT HAND MAY W10621523 Contact Us For Availability
4
AUXILIARY PLATE MAY W10778959 Contact Us For Availability
4
WIRE SUPPORT TAPE MAY W11442514 Contact Us For Availability
4
DOOR GASKET, LONG MAY W10204889 Contact Us For Availability
4
INSULATION, REAR COVER MAY W10778963 Contact Us For Availability
5
SCREW MAY W10621524 Contact Us For Availability
5
SEAL, BRACE MAY 4344823 Contact Us For Availability
5
GASKET MAY W10622006 Contact Us For Availability
5
COVER, REAR MAY W10796445 Contact Us For Availability
6
FRAME (LEFT HAND) MAY W10800049 Contact Us For Availability
6
TOP FOAMED DOOR ASSEMBLY MAY W11422740 Contact Us For Availability
6
BOTTOM FOAMED DOOR ASSEMBLY MAY W11422817 Contact Us For Availability
6
CABINET BASE PLATE MAY W11422734 Contact Us For Availability
7
DEFROST SENSOR MAY W10772858 Contact Us For Availability
7
FRAME (RIGHT HAND) MAY W10800050 Contact Us For Availability
7
SCREW MAY W10319183 Contact Us For Availability
7
AIR BAFFLE MAY W10204674 Contact Us For Availability
8
SCREW MAY W10204809 Contact Us For Availability
8
COVER MAY W10788689 Contact Us For Availability
8
LEG, LEVELING MAY 4344763 Contact Us For Availability
8
BRACKET, GRILLE MAY W10239388 Contact Us For Availability
9
SUPPORT (LEFT HAND) MAY 4344820 Contact Us For Availability
9
SCREW MAY W10204810 Contact Us For Availability
9
DRIER MAY W10163273 Contact Us For Availability
10
THERMAL FUSE ASSEMBLY MAY W10204621 Contact Us For Availability
10
TIE, CABLE MAY 4344829 Contact Us For Availability
10
SUPPORT (RIGHT HAND) MAY 4344821 Contact Us For Availability
10
COLD AIR SEAL MAY W10772909 Contact Us For Availability
10
NUT MAY W10204920 Contact Us For Availability
11
KICK PLATE MOUNT MAY W10204640 Contact Us For Availability
11
SUPPORT, WIRE MAY W10772901 Contact Us For Availability
11
DOOR GASKET, SHORT MAY W10204897 Contact Us For Availability
11
PAN, DRAIN MAY W10316689 Contact Us For Availability
12
CLIP, BUSHING MAY W10238022 Contact Us For Availability
12
LAMP COVER MAY W10204929 Contact Us For Availability
12
TRAP, DRAIN MAY W10163276 Contact Us For Availability
13
SCREW MAY 4344826 Contact Us For Availability
13
LINER BUSHING MAY W10621514 Contact Us For Availability
13
LED LAMP MAY W10204930 Contact Us For Availability
13
SCREW MAY W10205061 Contact Us For Availability
14
SCREW MAY W10319184 Contact Us For Availability
14
LAMP HOLDER MAY W10204931 Contact Us For Availability
14
CORD, POWER MAY W10204676 Contact Us For Availability
15
CABLE CLAMP MAY W10270482 Contact Us For Availability
15
CONTROL ASSEMBLY MAY W11422846 Contact Us For Availability
15
CONDENSER DC MOTOR MAY W10772882 Contact Us For Availability
16
HARNESS, DISPLAY TO INDICATOR MAY W10789534 Contact Us For Availability
16
OVERLOAD RELAY MAY W11422769 Contact Us For Availability
17
MAIN PCB BOX MAY W10772866 Contact Us For Availability
17
SUPPORT, LEAD WIRE MAY W10622013 Contact Us For Availability
17
PTC THERMISTOR MAY W11422771 Contact Us For Availability
18
BRACKET, PCB MAY W10788699 Contact Us For Availability
18
SCREW MAY W10204808 Contact Us For Availability
18
INSULATION, FAN COVER MAY W10772919 Contact Us For Availability
19
MAIN PCB MAY W11422836 Contact Us For Availability
19
WIRE SUPPORT TAPE MAY W10721447 Contact Us For Availability
19
CLAMP, CORD MAY W10270517 Contact Us For Availability
20
COVER, SPEAKER SENSOR MAY W10788698 Contact Us For Availability
20
TRIM, EDGE MAY 4344907 Contact Us For Availability
21
SCREW MAY 4344825 Contact Us For Availability
21
PCB STANDOFF MAY W10204659 Contact Us For Availability
22
HARNESS EXTENSION MAY W10772870 Contact Us For Availability
22
SCREW MAY 4344832 Contact Us For Availability
23
SPEAKER MAY W10788693 Contact Us For Availability
23
SCREW MAY W11422695 Contact Us For Availability
24
MULLION BODY ASSEMBLY MAY W10622002 Contact Us For Availability
24
SCREW MAY W10204865 Contact Us For Availability
25
SCREW MAY 4344797 Contact Us For Availability
25
MULLION INSULATION MAY W10205072 Contact Us For Availability
26
MULLION CASE COVER MAY W11422824 Contact Us For Availability
26
WARNING LABEL MAY W11444462 Contact Us For Availability
27
FAN COVER, CONDENSER MAY W10772889 Contact Us For Availability
28
MULLION INSULATION MAY W10621528 Contact Us For Availability
28
FAN BUSHING MAY W10204688 Contact Us For Availability
29
BLOCK AIR CIRCULATION MAY W10780353 Contact Us For Availability
29
COVER, RELAY MAY W11422786 Contact Us For Availability
30
SCREW MAY W11422709 Contact Us For Availability
30
SENSOR CASE SEAL MAY W10204948 Contact Us For Availability
31
MULLION CASE INSULATION FRONT MAY W11422742 Contact Us For Availability
31
NUT MAY W10772890 Contact Us For Availability
32
BRACKET, DEFROST TIMER MAY W10239387 Contact Us For Availability
33
TEMPERATURE SENSOR MAY W10772916 Contact Us For Availability
34
TERMINAL PROTECTOR MAY W10205062 Contact Us For Availability
35
COVER, FAN MAY W10796448 Contact Us For Availability
36
MOTOR & FAN MAY W10204942 Contact Us For Availability
37
DOOR SWITCH MAY W10721454 Contact Us For Availability
38
SENSOR CASE MAY W10775535 Contact Us For Availability
39
HARNESS, FAN COVER MAY W10772918 Contact Us For Availability
40
CLAMP, CORD MAY W10281591 Contact Us For Availability
41
PLATE COVER MAY W10772920 Contact Us For Availability
42
SEAL MAY W10788704 Contact Us For Availability
43
SPRING WASHER MAY W11422694 Contact Us For Availability
44
SEAL MAY W11422827 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
OVERLAY INSTALLATION KIT MAY W10788702 Contact Us For Availability
NI
ALUMINUM TAPE MAY W10266810 Contact Us For Availability
× ![]()
