Model Whirlpool JUB248RBCX03 BEVERAGE CENTER – Common Parts & Diagrams

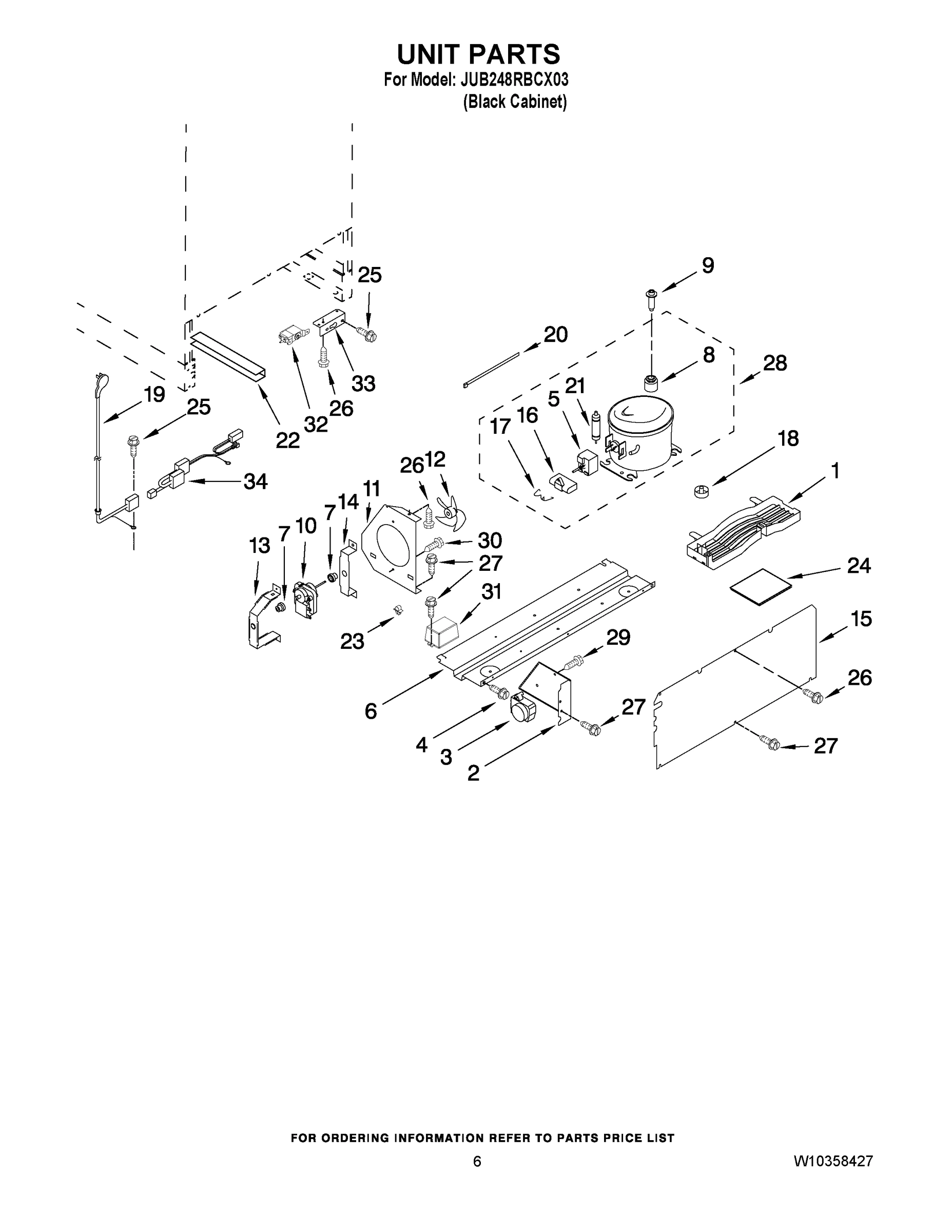

04 - UNIT PARTS

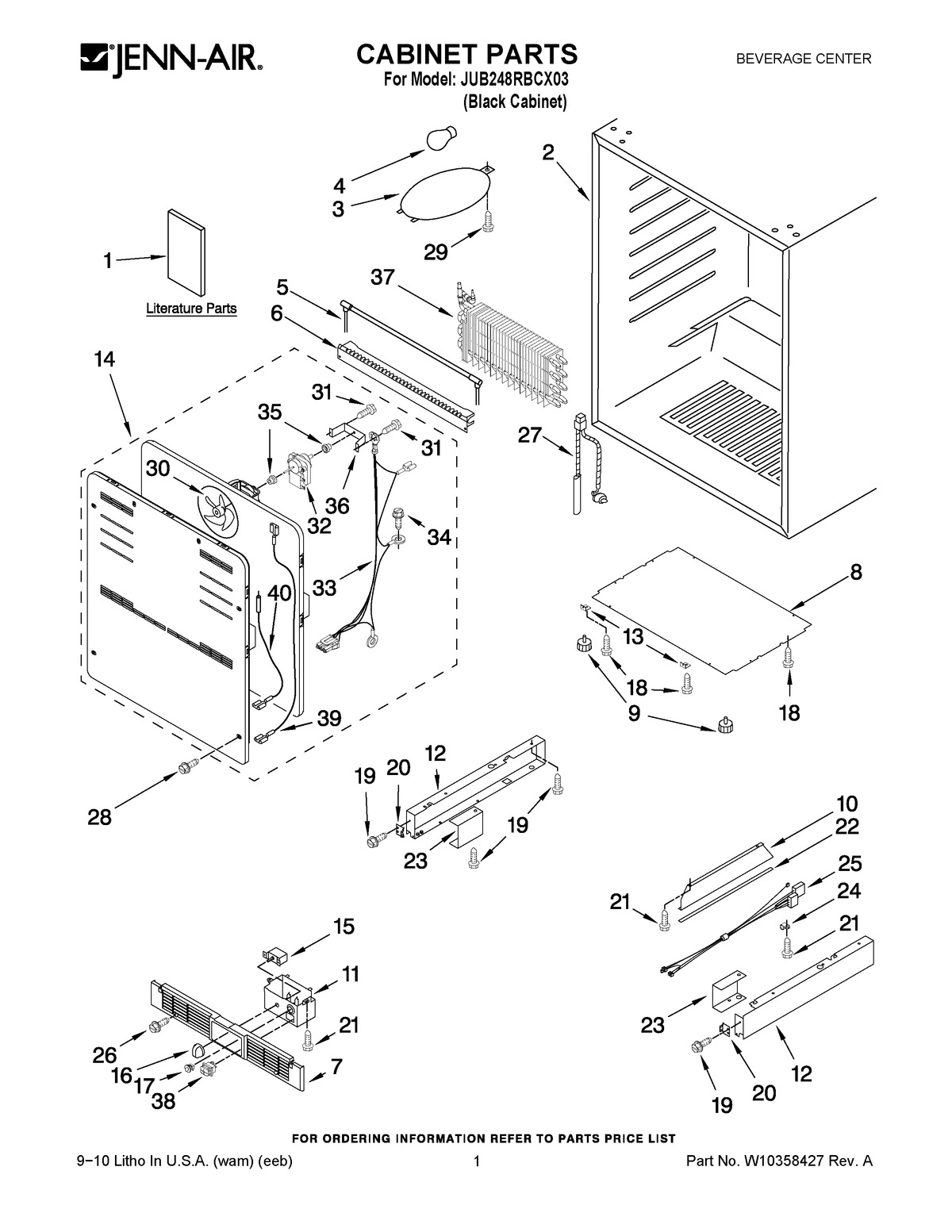

01 - CABINET PARTS

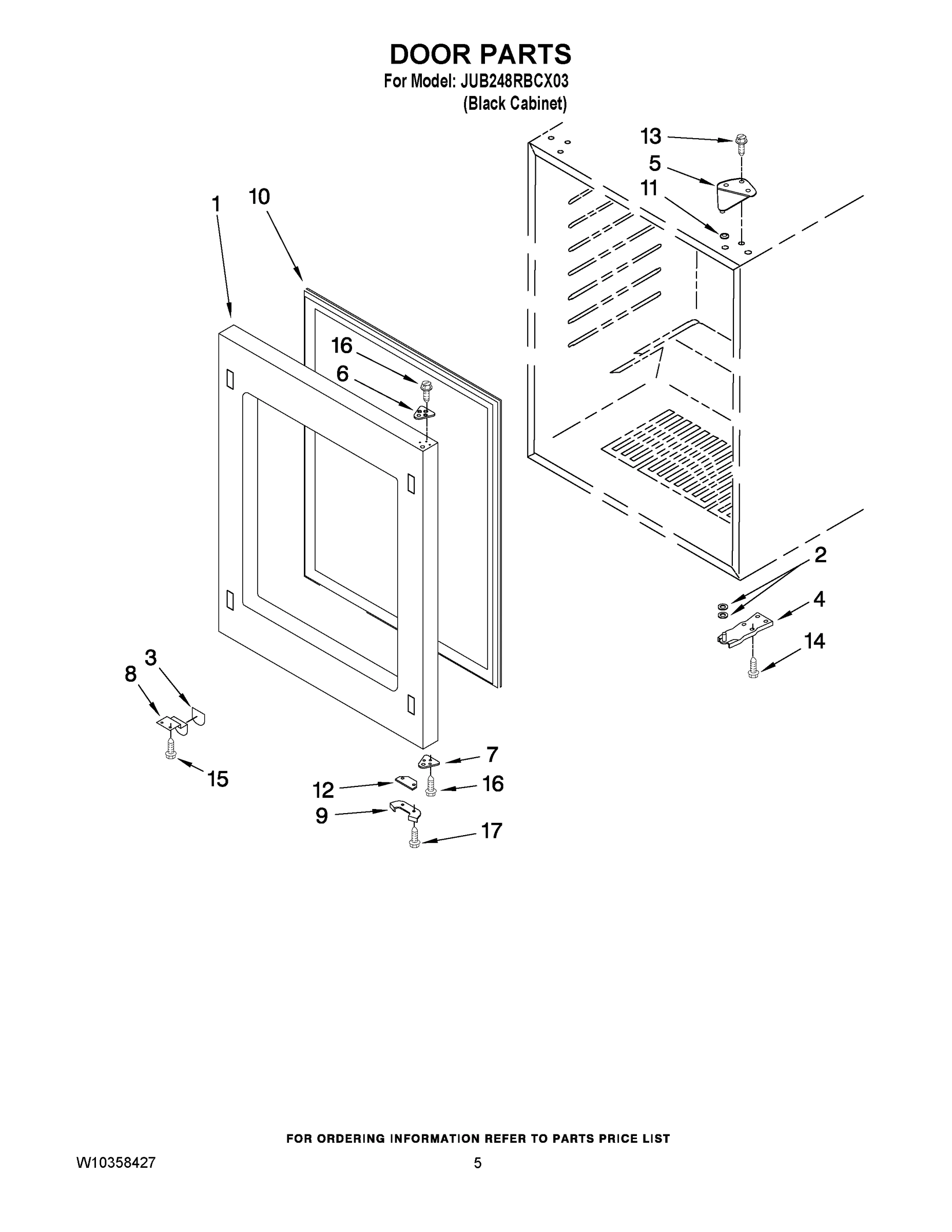

03 - DOOR PARTS

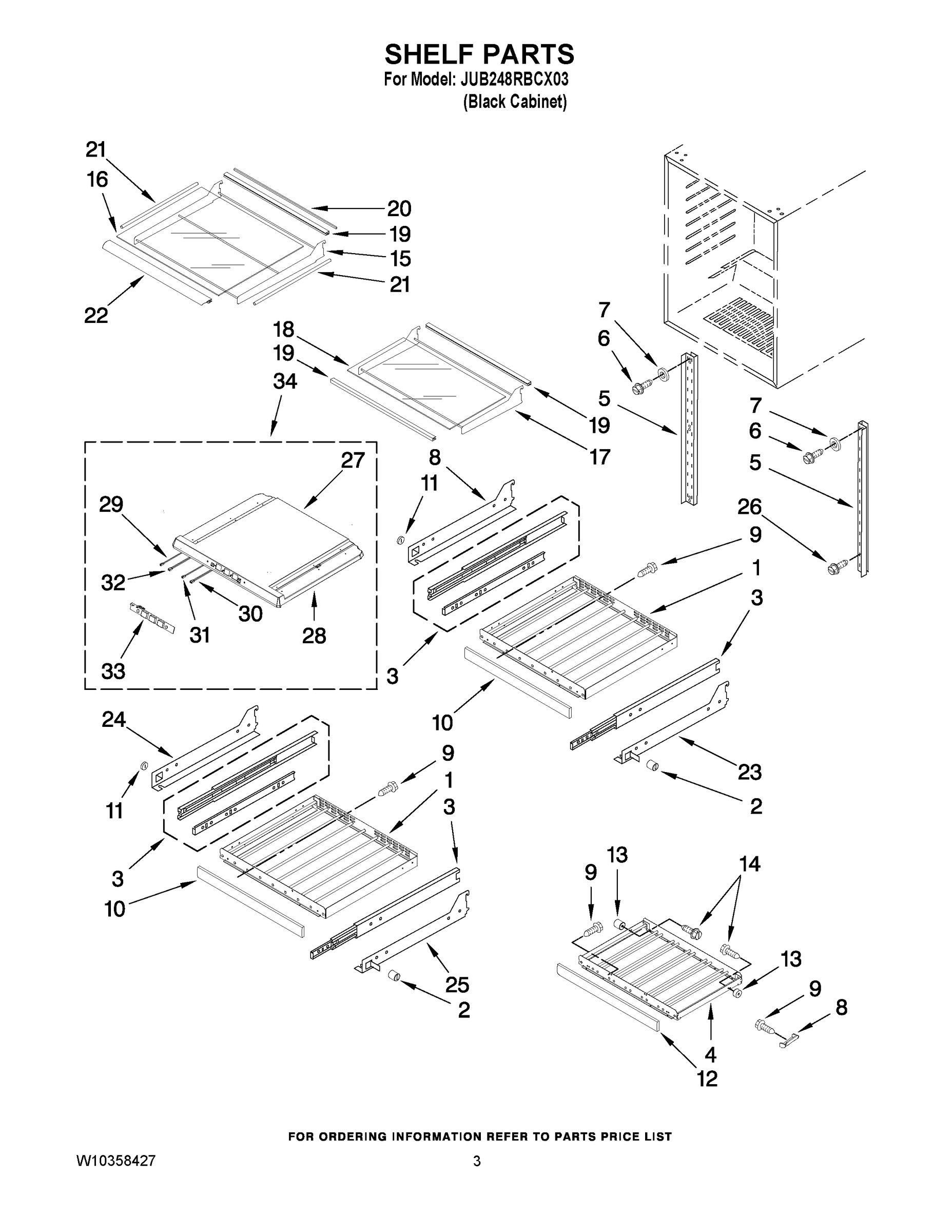

02 - SHELF PARTS
Common parts from model Whirlpool JUB248RBCX03 BEVERAGE CENTER
1
Drain Pan WPL W10163193 Contact Us For Availability
1
DOOR ASSEMBLY (INCLUDES GASKET) WPL W10163280 Contact Us For Availability
1
WINE RACK TOP & MIDDLE WPL W10238032 Contact Us For Availability
2
RUBBER SUPPORT WPL 4344867 Contact Us For Availability
3
RAIL ASSEMBLY WPL W10238029 Contact Us For Availability
3
GASKET-PUSH PLATE WPL W10163191 Contact Us For Availability
4
WINE RACK, LOWER WPL W10187313 Contact Us For Availability
5
Heater, Defrost WPL 4344746 Contact Us For Availability
5
LADDER, SHELF (RIGHT SIDE) WPL W10299079 Contact Us For Availability
5
LADDER, SHELF (LEFT SIDE) WPL W10299080 Contact Us For Availability
6
SCREW WPL 4344794 Contact Us For Availability
7
WASHER WPL 4344795 Contact Us For Availability
8
Actuator, Switch WPL 4344757 Contact Us For Availability
8
SHELF SUPPORT WPL W10239365 Contact Us For Availability
9
SCREW WPL 4344851 Contact Us For Availability
10
BRACE, SUPPORT WPL W10204638 Contact Us For Availability
10
TRIM, TOP AND MIDDLE RACKS WPL W10239372 Contact Us For Availability
11
Control Box WPL 4344898 Contact Us For Availability
11
RUBBER SUPPORT WPL 4344866 Contact Us For Availability
12
Frame, Side (Left Side) WPL 4344769 Contact Us For Availability
12
TRIM, LOWER RACK WPL W10239373 Contact Us For Availability
13
Support, Bumper (Left) WPL 4344885 Contact Us For Availability
14
EVAPORATOR FAN ASSEMBLY WPL W10299077 Contact Us For Availability
14
SCREW, LOWER HINGE (QUANTITY 3) WPL W10243104 Contact Us For Availability
14
Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability
14
Screw (Right) WPL 4344914 Contact Us For Availability
14
Screw (Left) WPL 4344915 Contact Us For Availability
15
SHELF, LARGE WPL W10238033 Contact Us For Availability
16
SCREW WPL 4344800 Contact Us For Availability
16
Glass, Shelf WPL 4344871 Contact Us For Availability
17
Shelf, Small WPL 4344868 Contact Us For Availability
18
GLASS, SHELF WPL 4344869 Contact Us For Availability
19
Trim, Shelf WPL 4344872 Contact Us For Availability
20
Clip, Grille WPL 4344819 Contact Us For Availability
20
Seal, Rear WPL 4344873 Contact Us For Availability
21
SCREW WPL 4344825 Contact Us For Availability
21
Seal, Side (2) WPL 4344874 Contact Us For Availability
22
Seal, Front WPL 4344875 Contact Us For Availability
23
SHELF SUPPORT WPL W10239366 Contact Us For Availability
24
SHELF SUPPORT WPL W10239369 Contact Us For Availability
25
HARNESS, WIRE WPL W10238069 Contact Us For Availability
25
SHELF SUPPORT WPL W10239370 Contact Us For Availability
26
SCREW W/WASHER WPL W10162986 Contact Us For Availability
27
TOP COVER WPL W10238187 Contact Us For Availability
28
BOTTOM COVER WPL W10238184 Contact Us For Availability
29
SCREW WPL 4344791 Contact Us For Availability
31
SCREW WPL 4344878 Contact Us For Availability
32
EVAPORATOR FAN MOTOR WPL W10299082 Contact Us For Availability
32
EXTENSION CABLE WPL W10238028 Contact Us For Availability
33
Harness, Wire WPL 4344877 Contact Us For Availability
34
Screw, Ground WPL W11380570 No Longer Available
34
HARNESS, WIRE WPL W10358906 Contact Us For Availability
34
TEMPERATURE SEPARATOR ASSY WPL W10280396 Contact Us For Availability
35
Grommet, Fan Motor WPL 4344778 Contact Us For Availability
37
EVAPORATOR (NOT SERVICED) WPL NP Contact Us For Availability
39
TRANSFORMER CABLE WPL W10238071 Contact Us For Availability
NI
Installation Kit, Door Panel WPL 4344818 Contact Us For Availability
NI
LED SPACER WPL W10238031 Contact Us For Availability
NI
SUPPORT WPL W10238189 Contact Us For Availability
NI
SEAL WPL W10239384 Contact Us For Availability
NI
SUPPORT SPACER WPL W10239385 Contact Us For Availability
NI
OVERLAY, DISPLAY WPL W10311722 Contact Us For Availability
× ![]()
