Model Huebsch JT0350SRG Dryer – Common Parts & Diagrams
Electronic Coin Drop Components
Coin Drop Assemblies

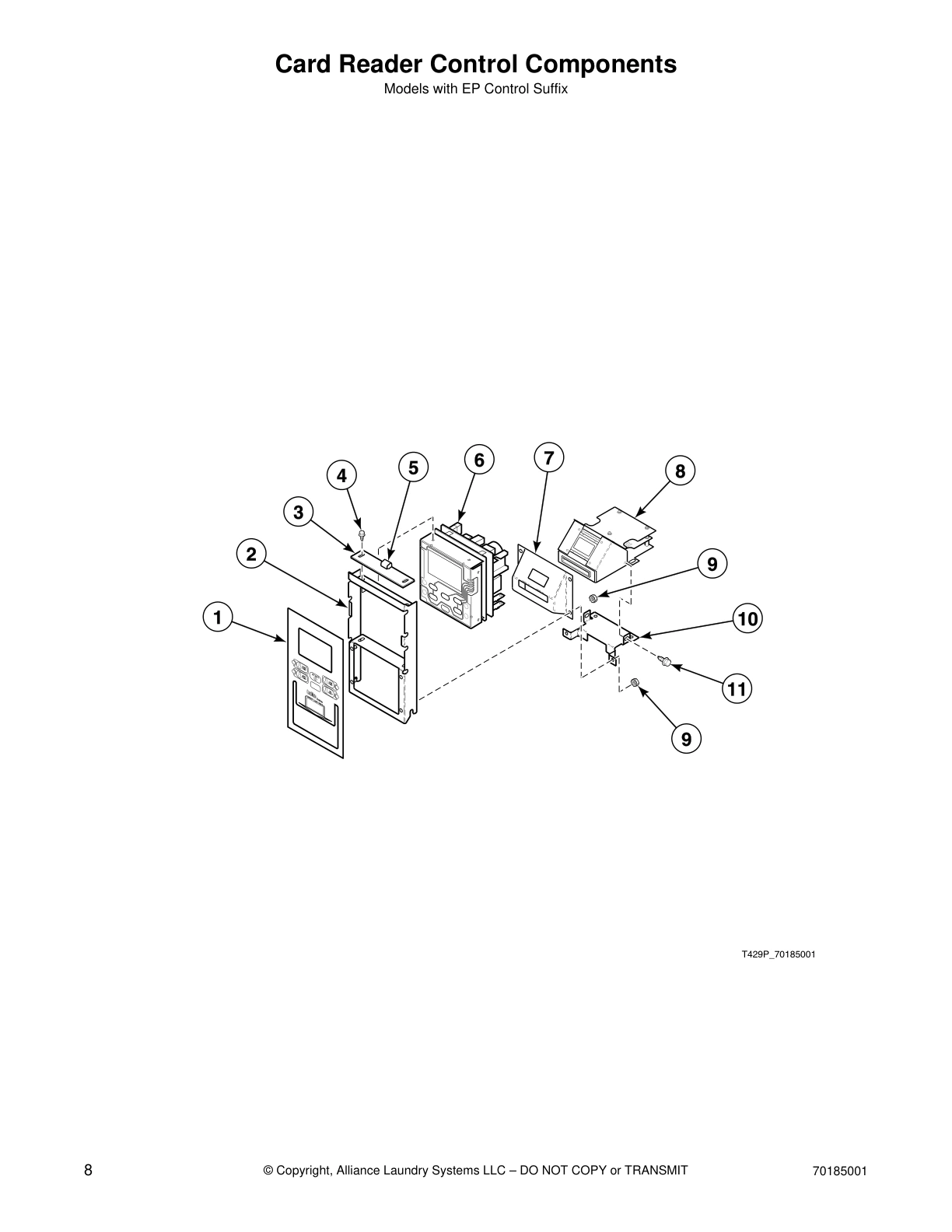

Card Reader Control Components

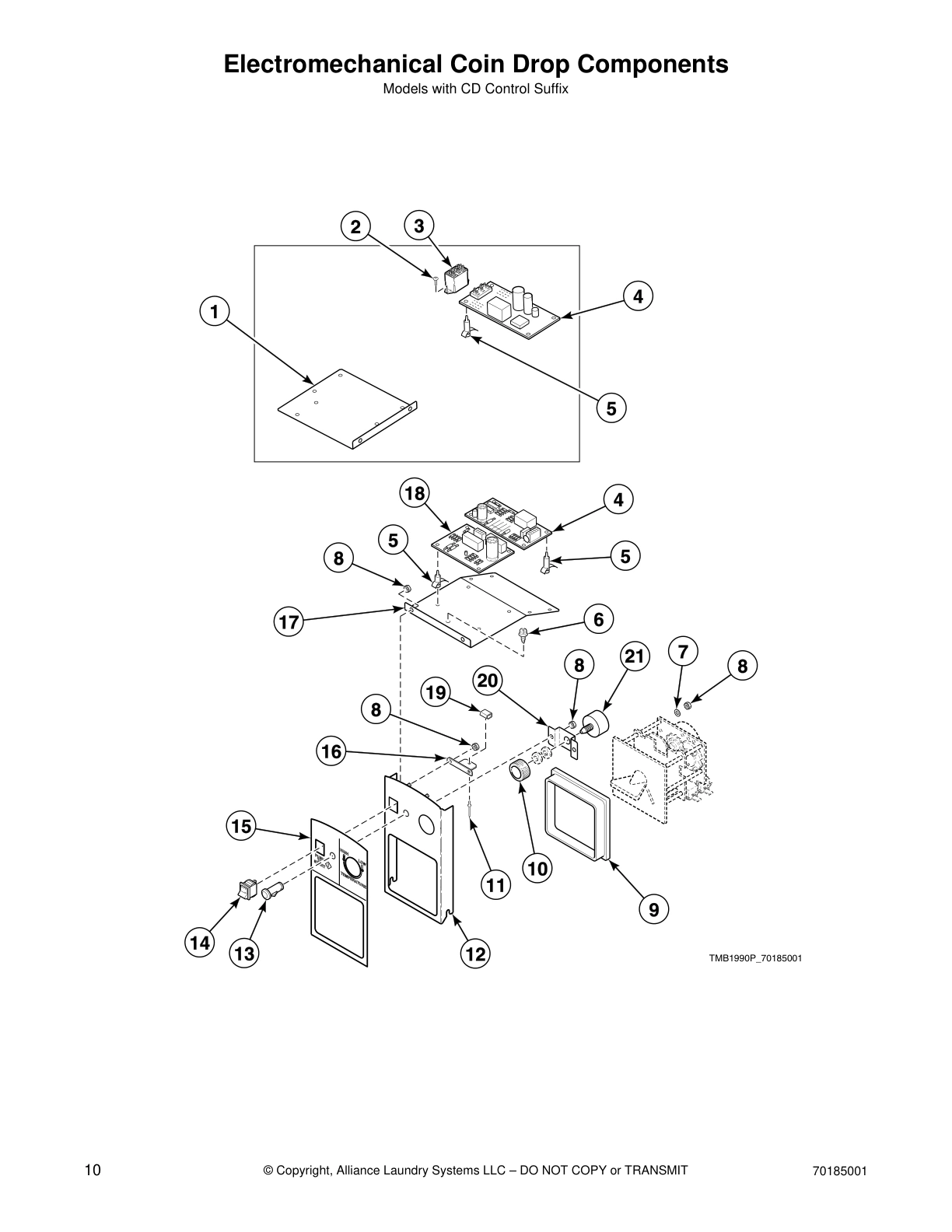

Electromechanical Coin Drop Components

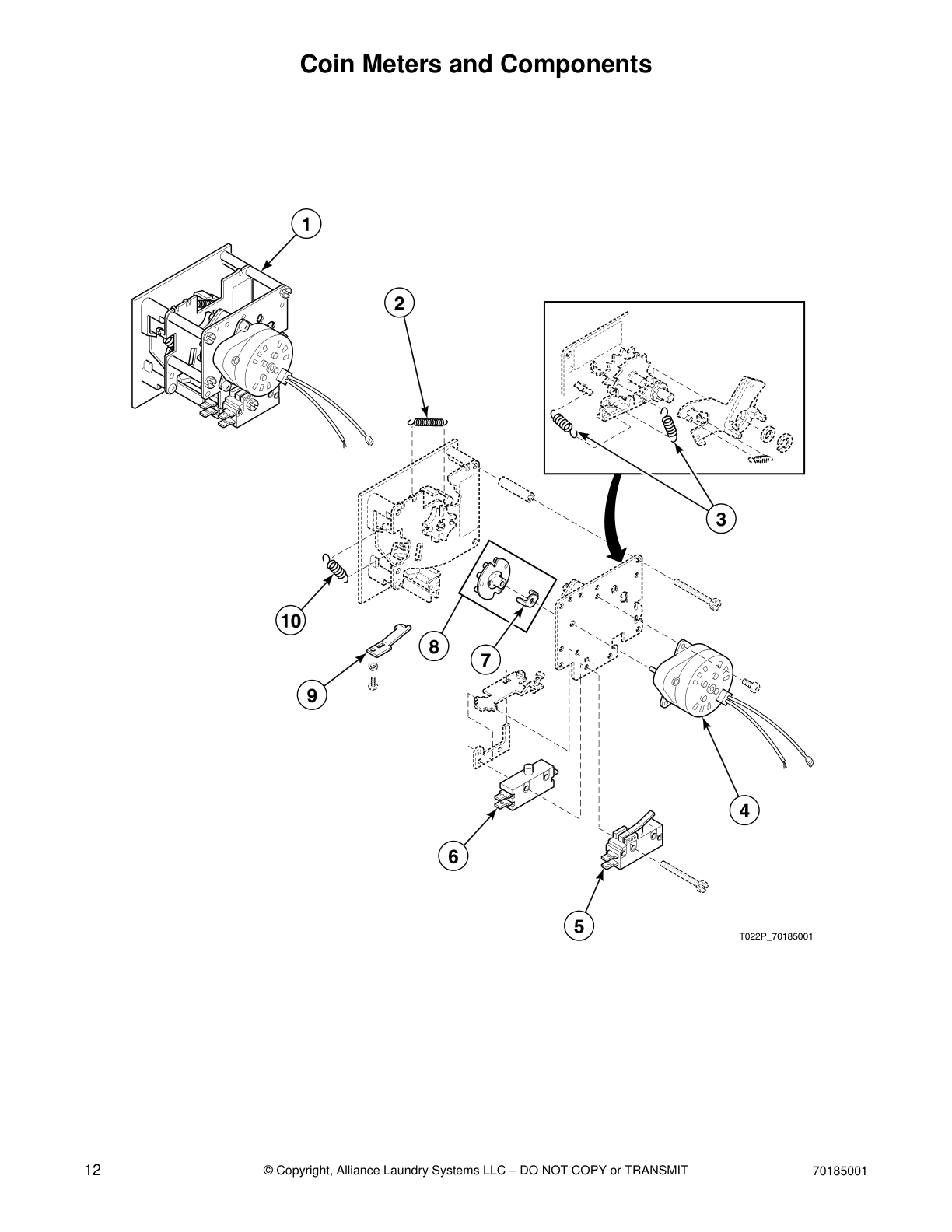

Coin Meters and Components

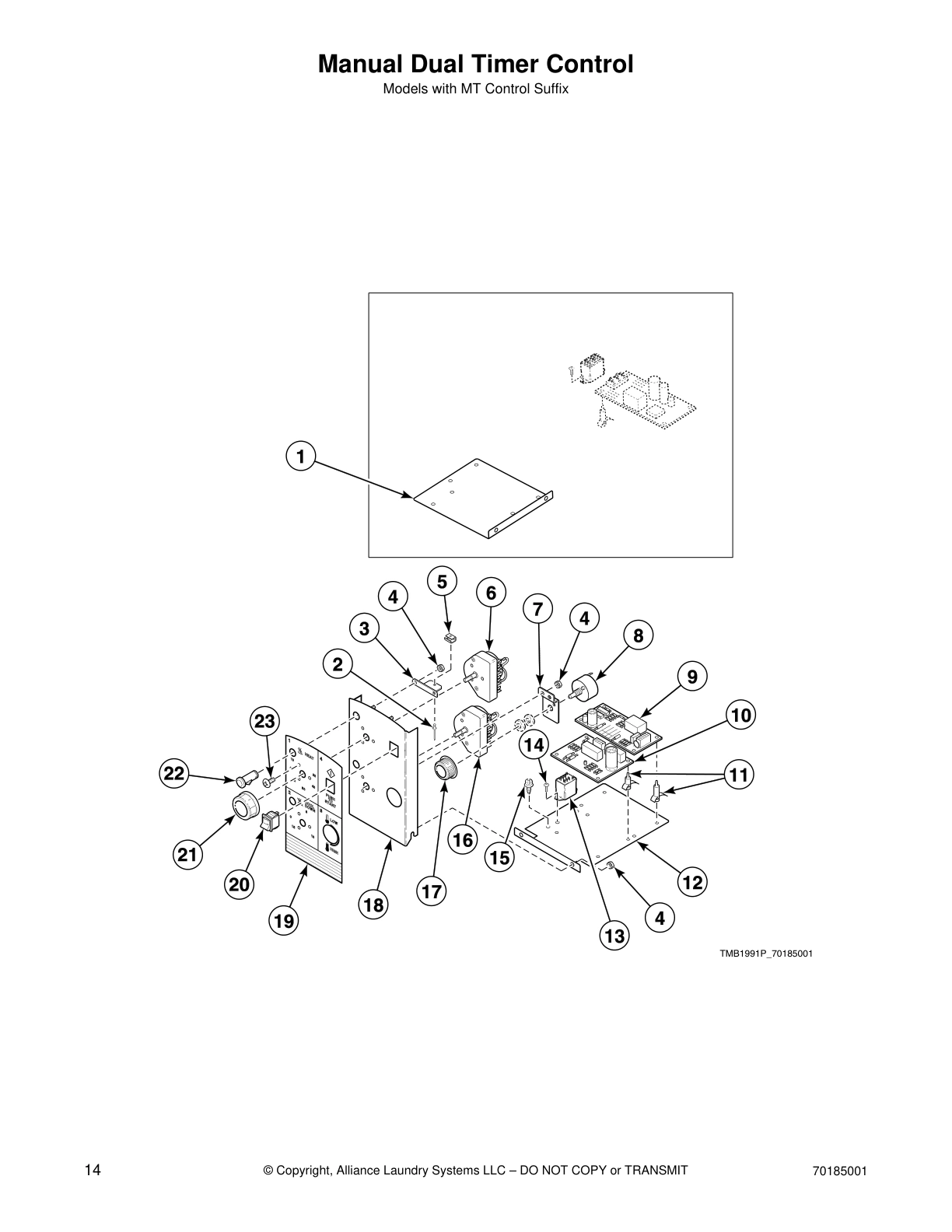

Manual Dual Timer Control

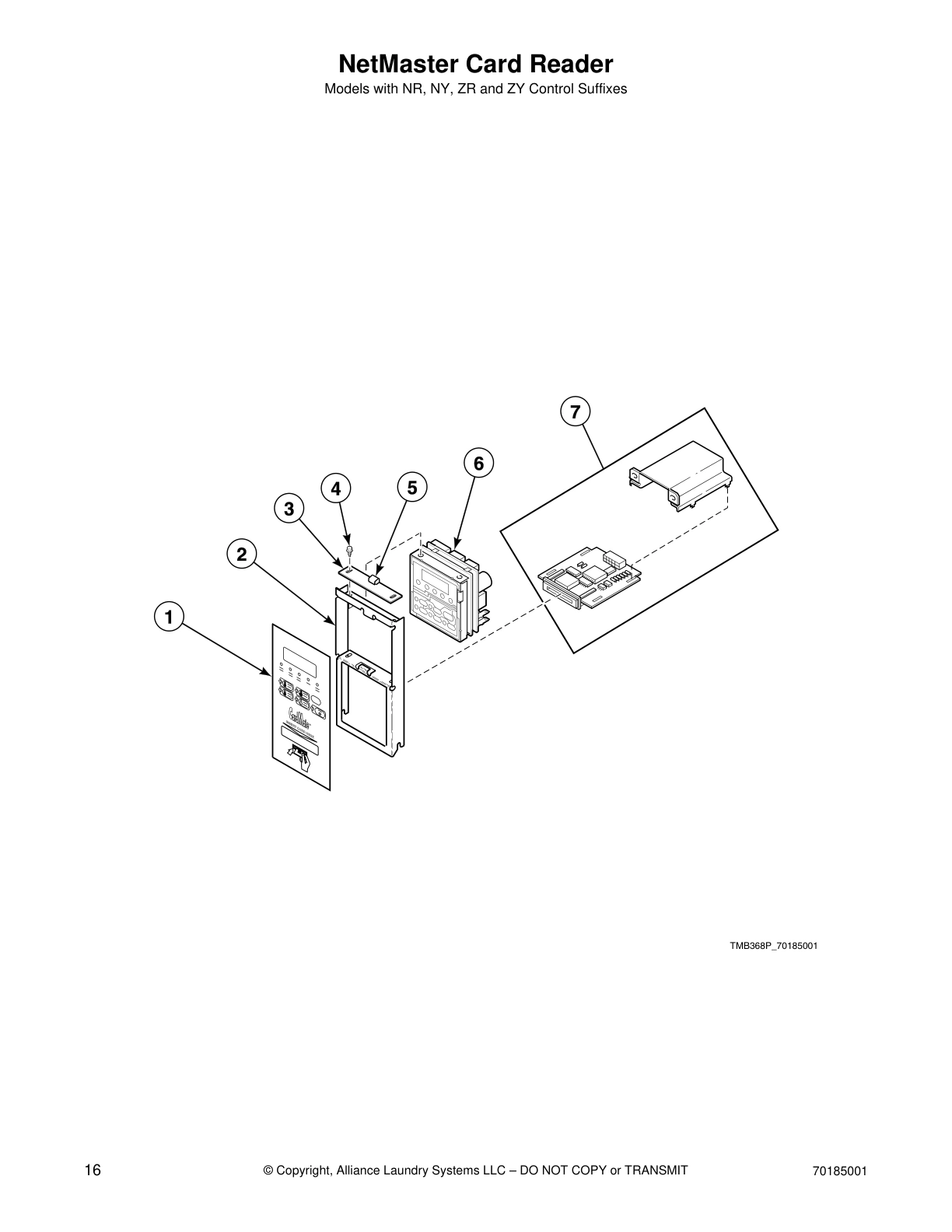

NetMaster Card Reader

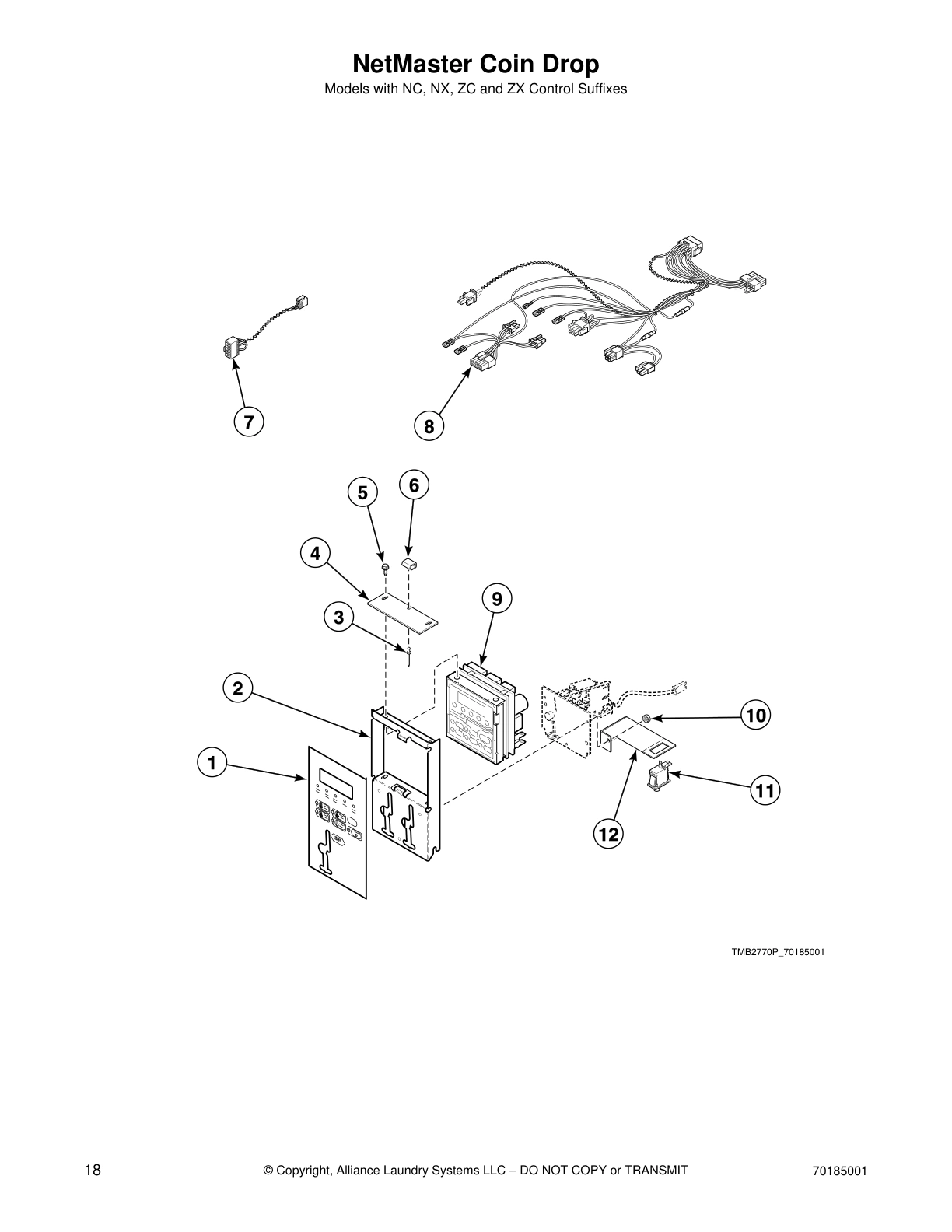

NetMaster Coin Drop

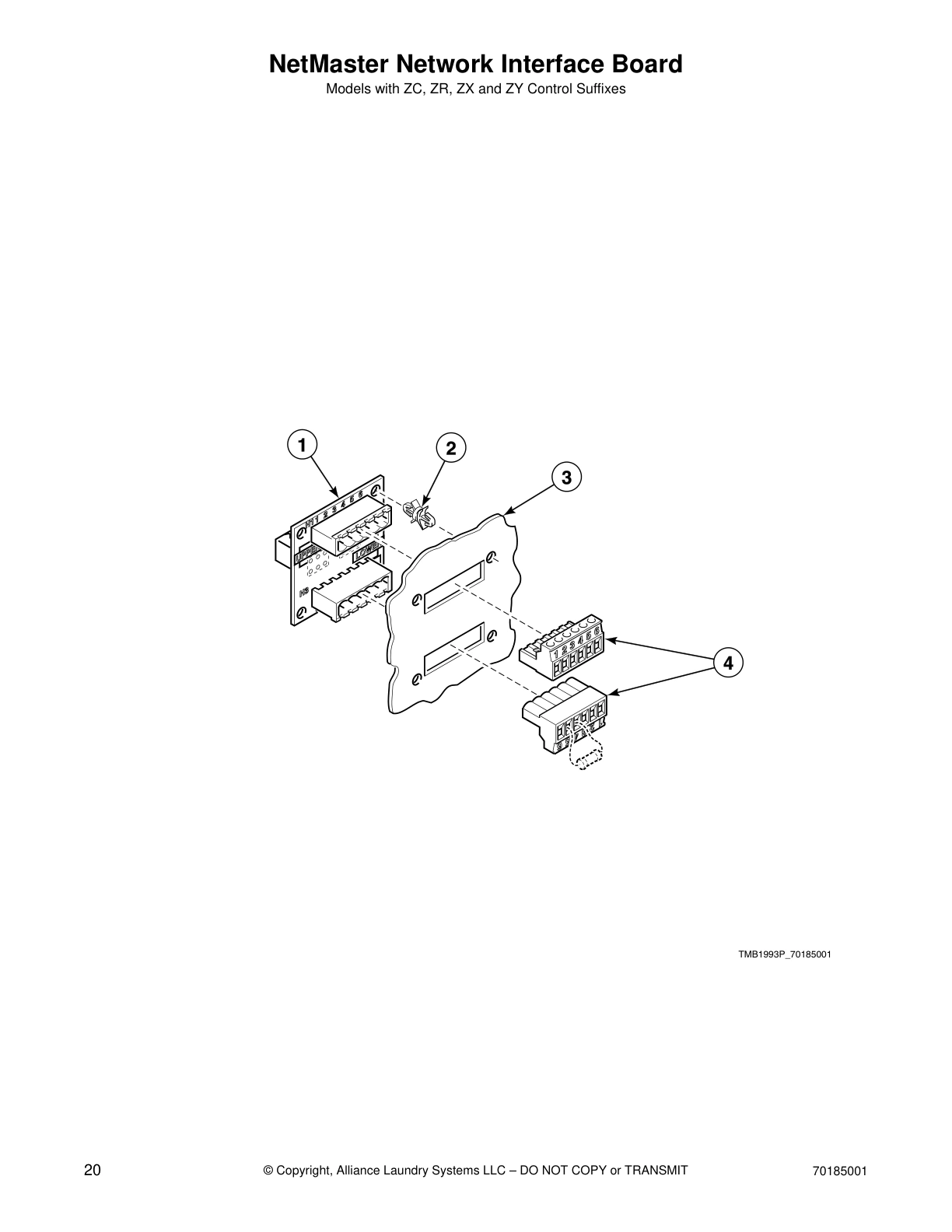

NetMaster Network Interface Board

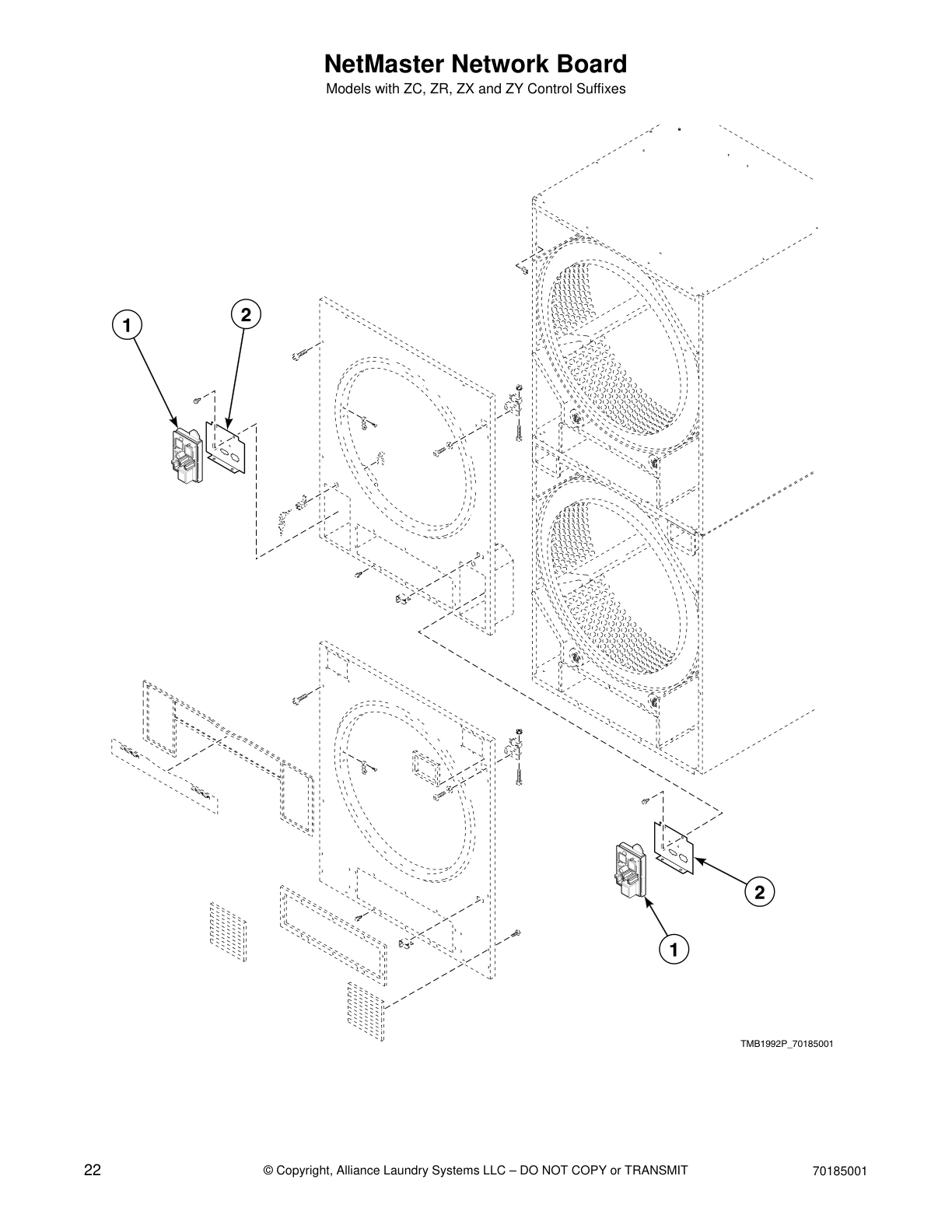

NetMaster Network Board

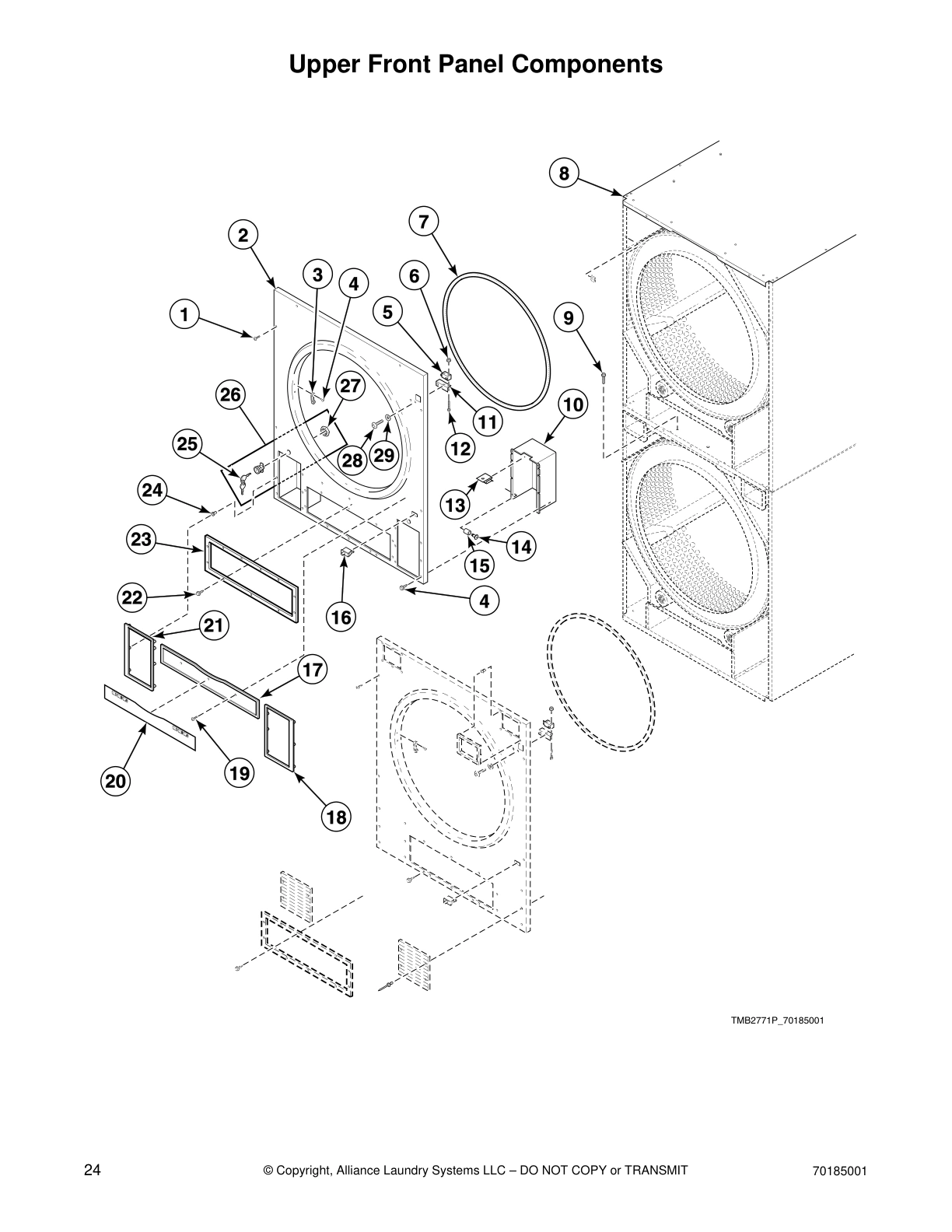

Upper Front Panel Components

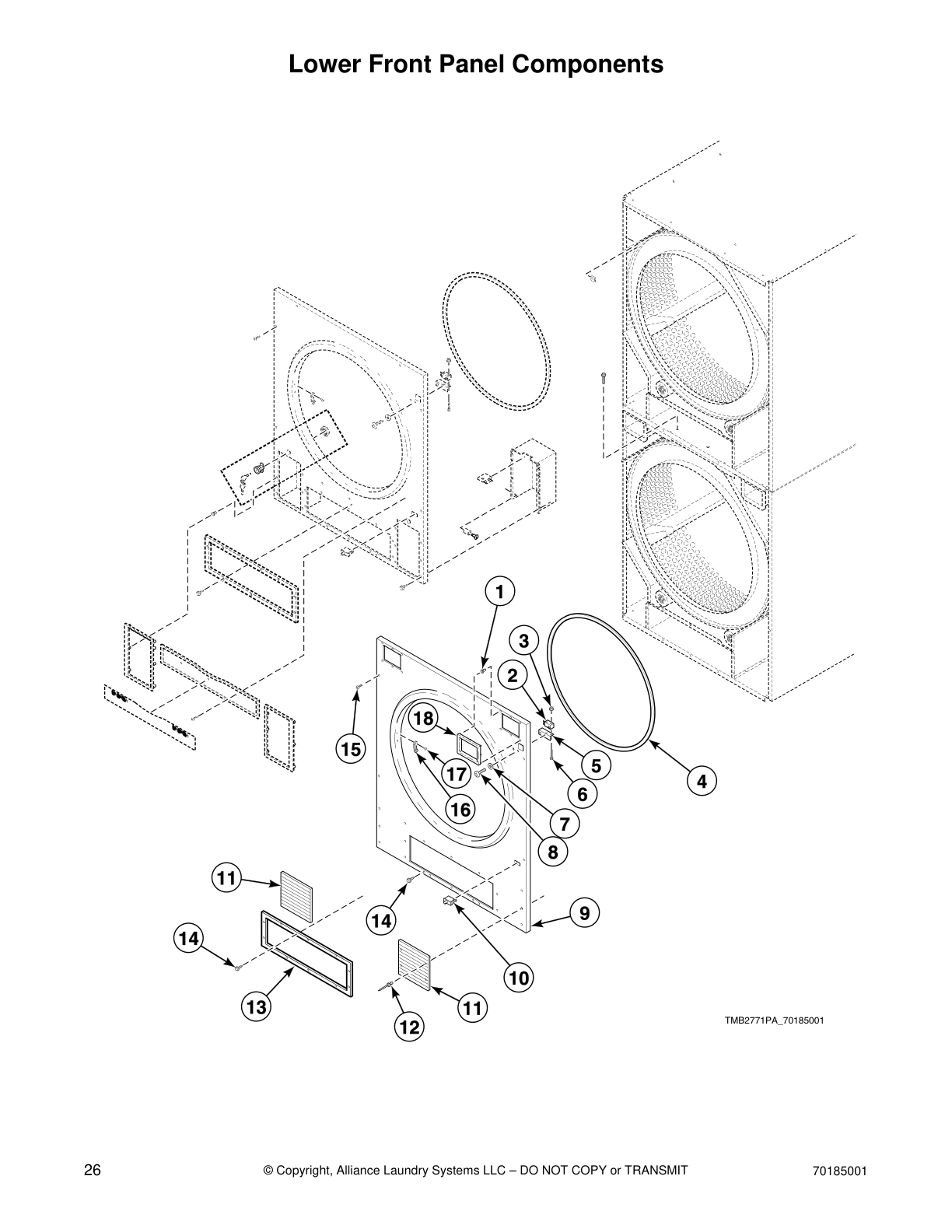

Lower Front Panel Components

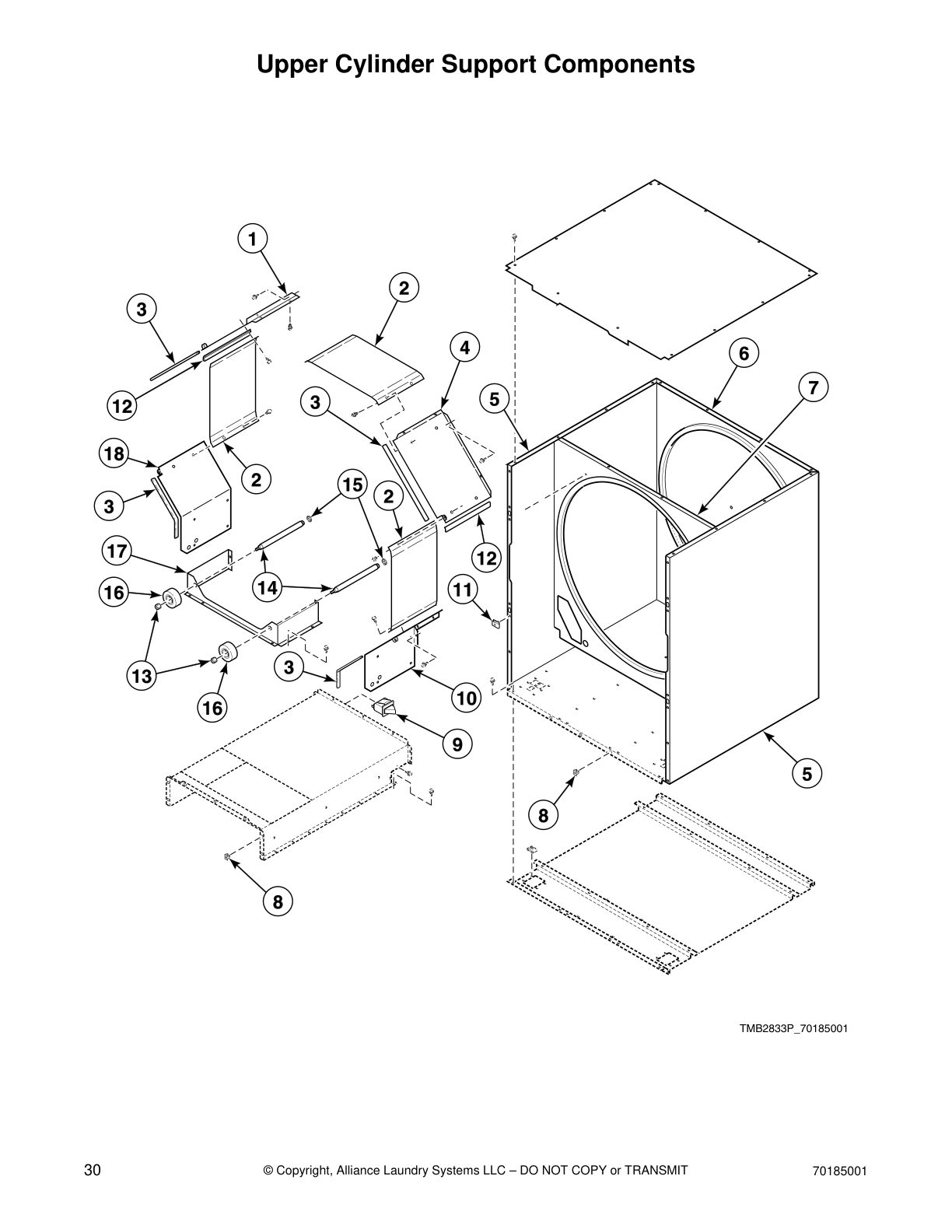

Upper Cylinder Support Components

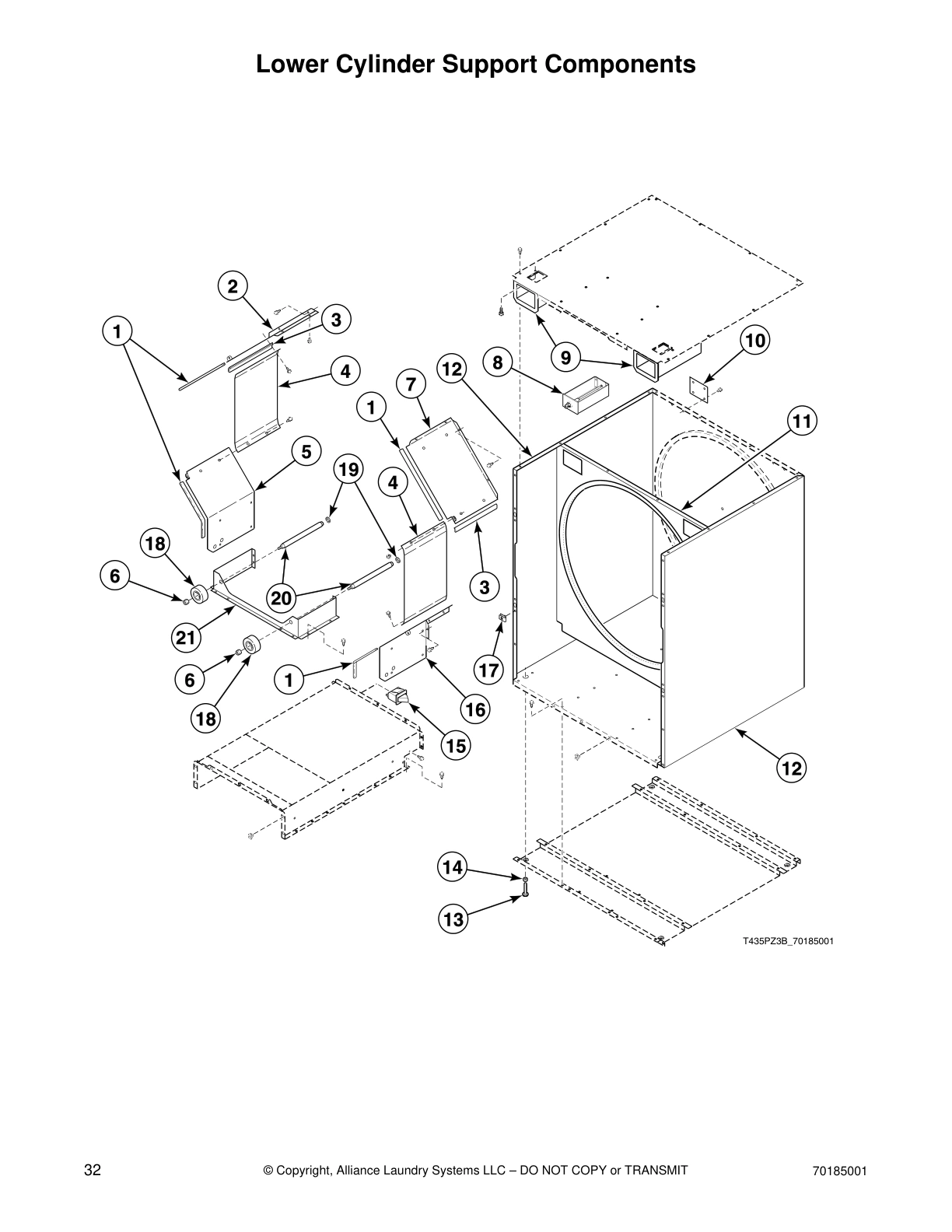

Lower Cylinder Support Components

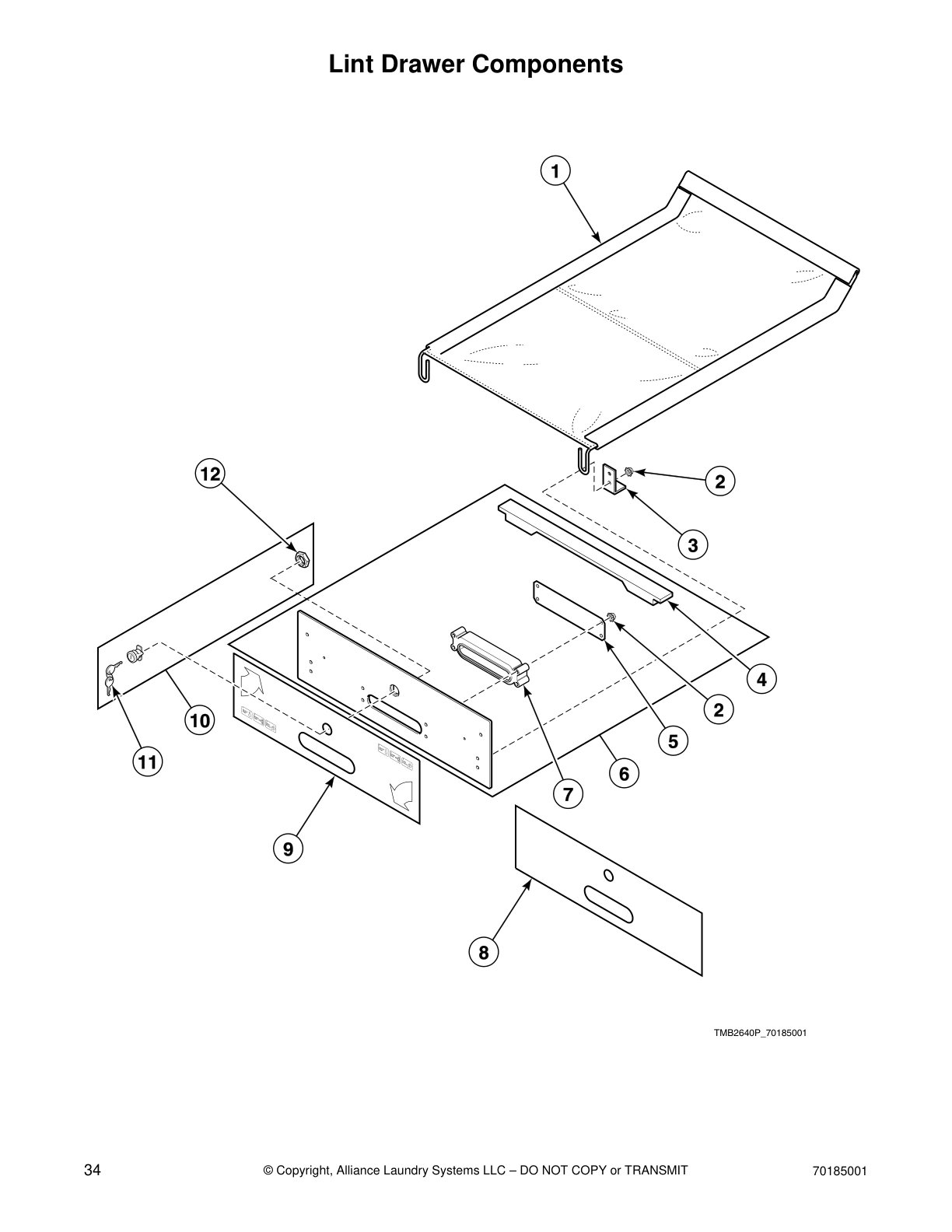

Lint Drawer Components

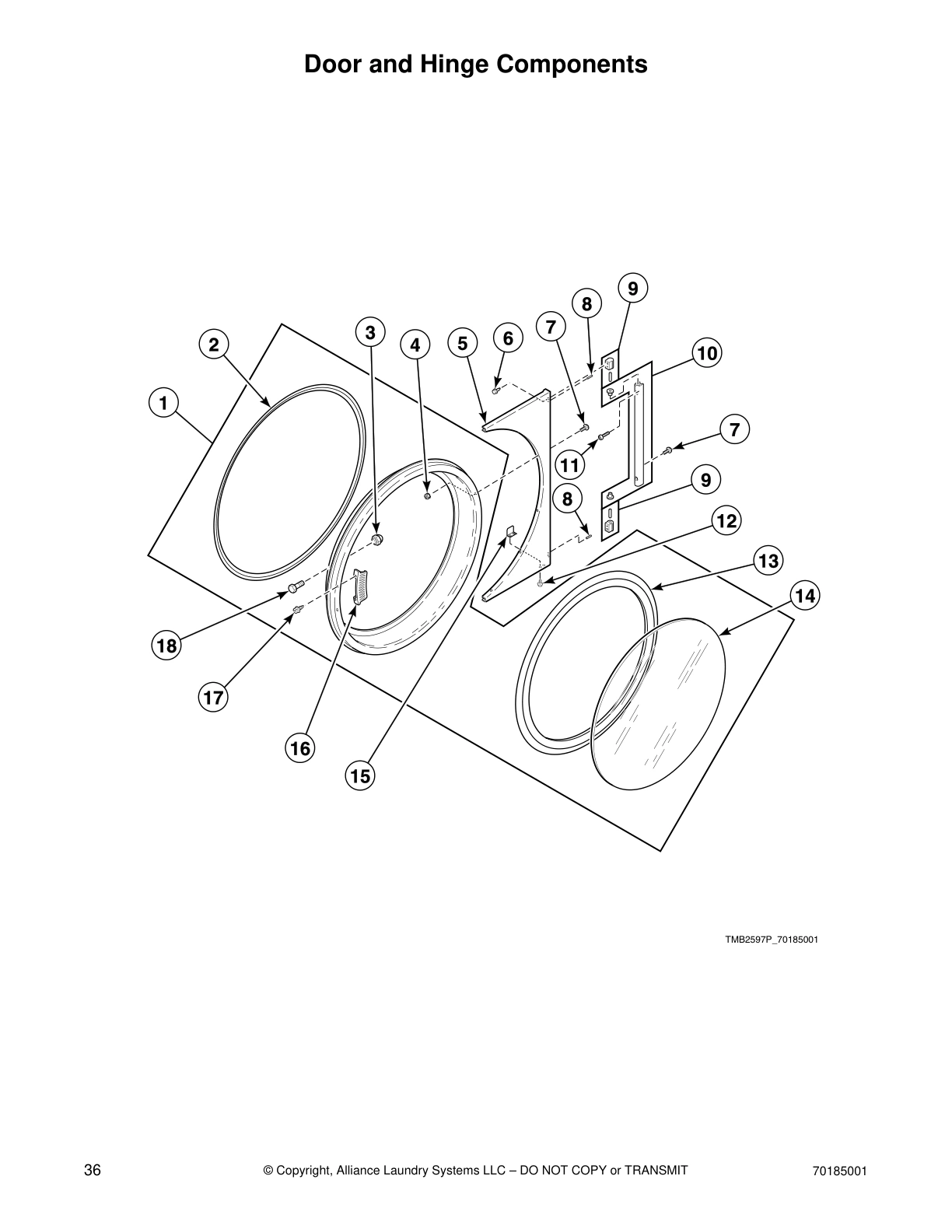

Door and Hinge Components

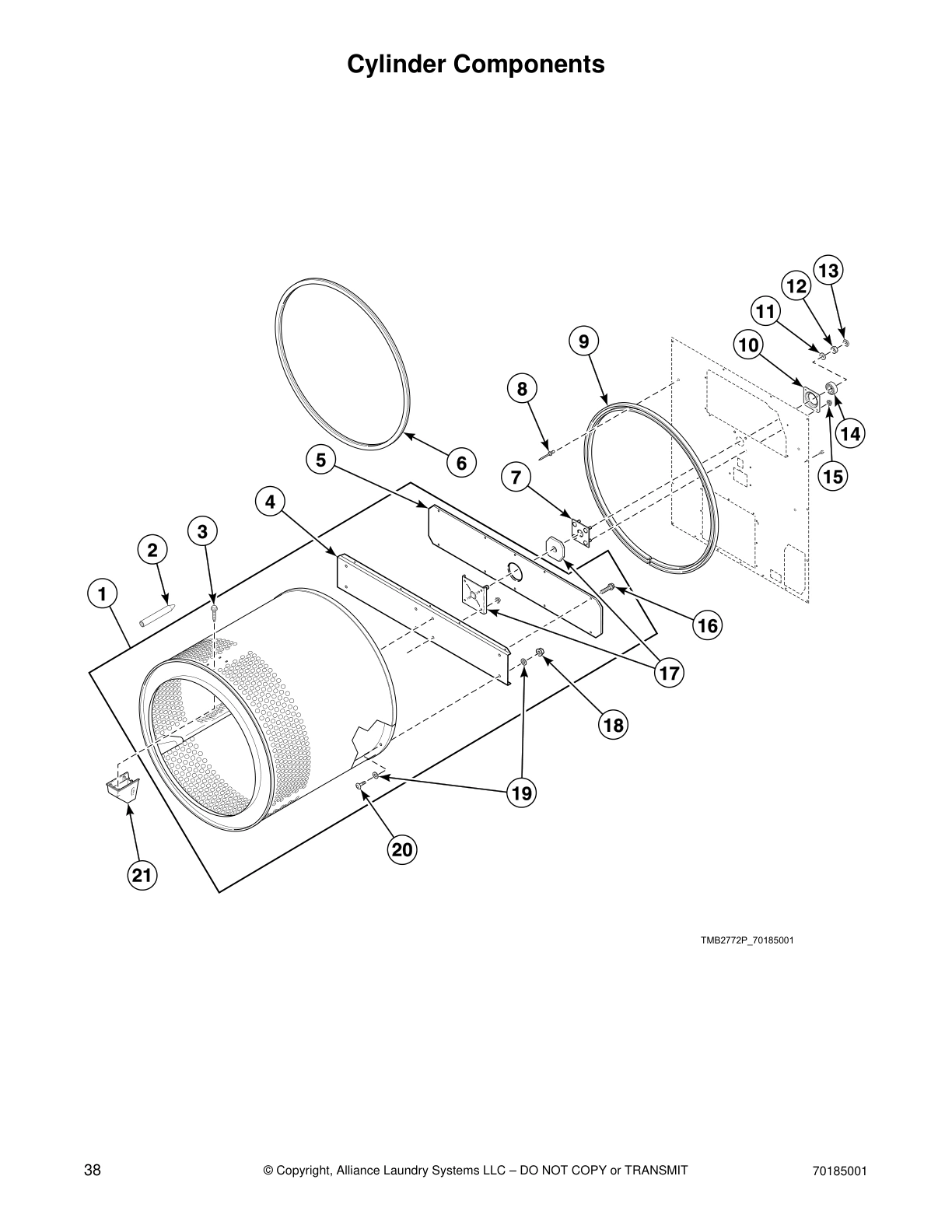

Cylinder Components

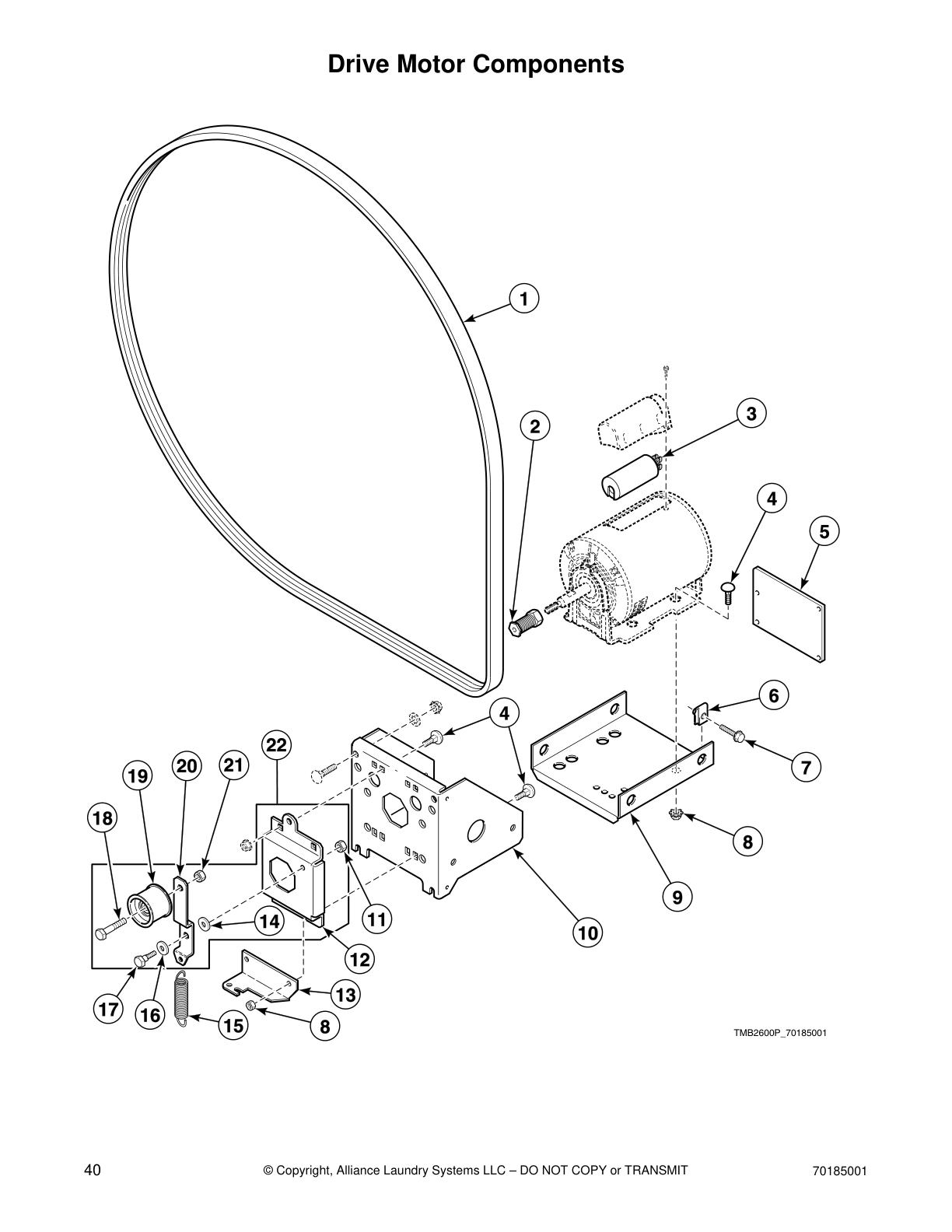

Drive Motor Components

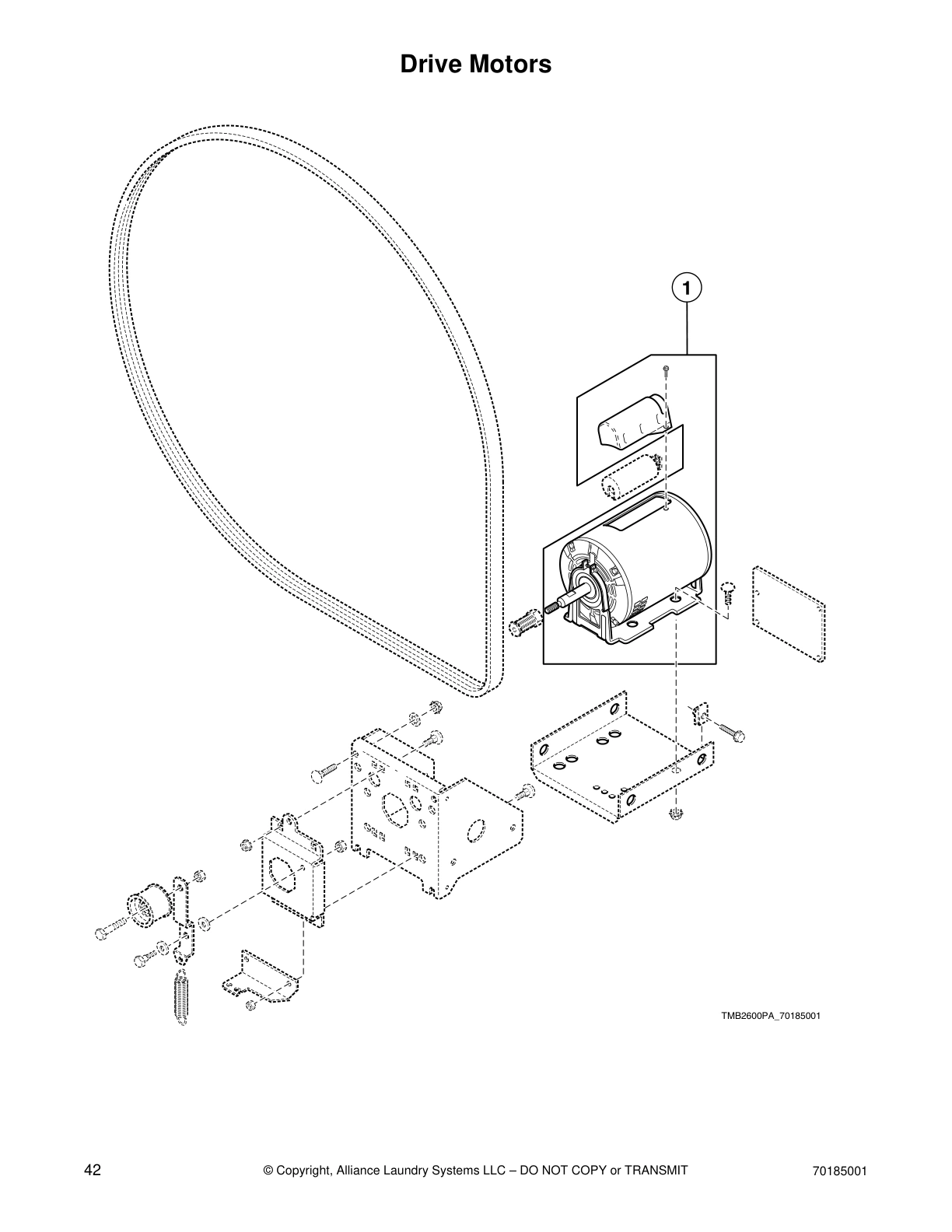

Drive Motors

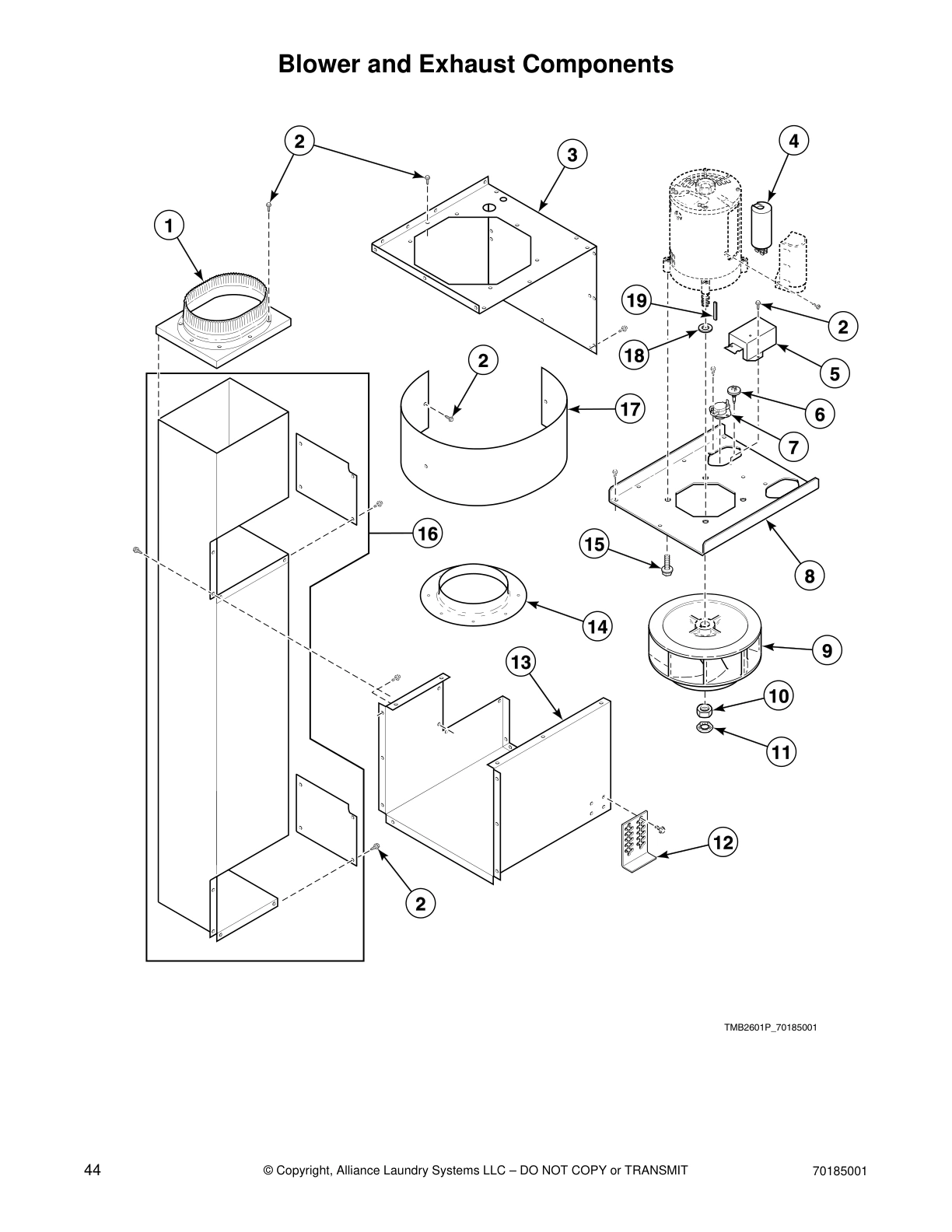

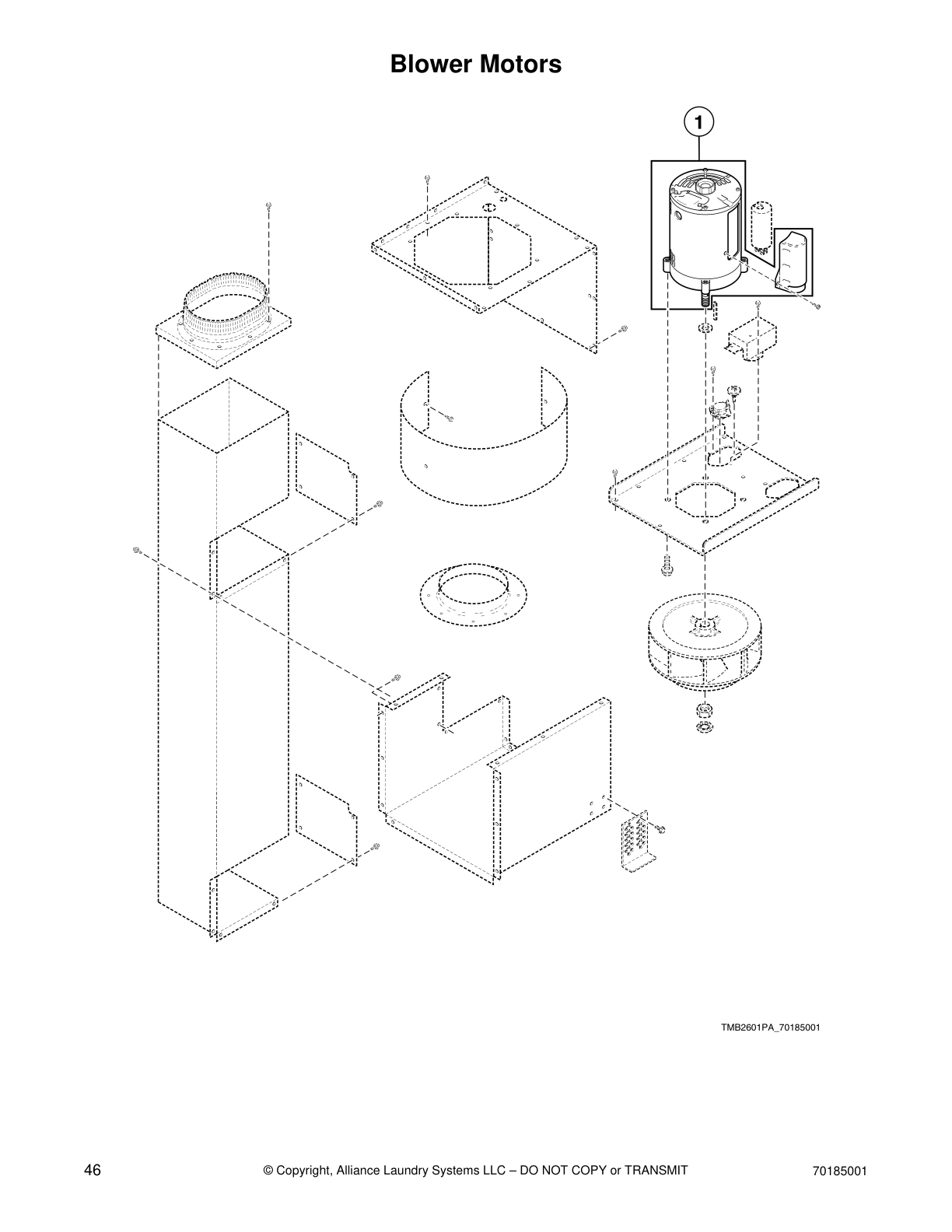

Blower and Exhaust Components
Blower Motors

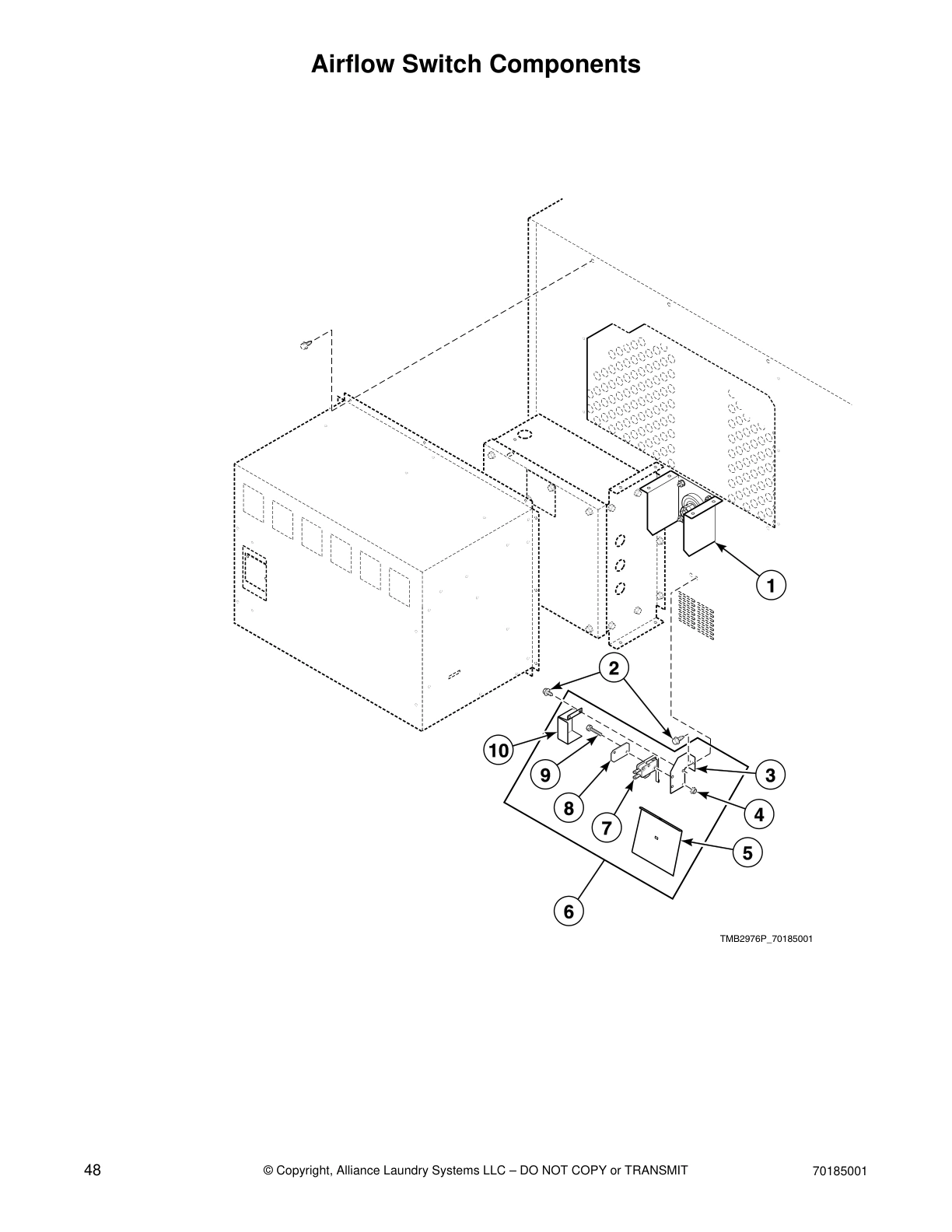

Airflow Switch Components

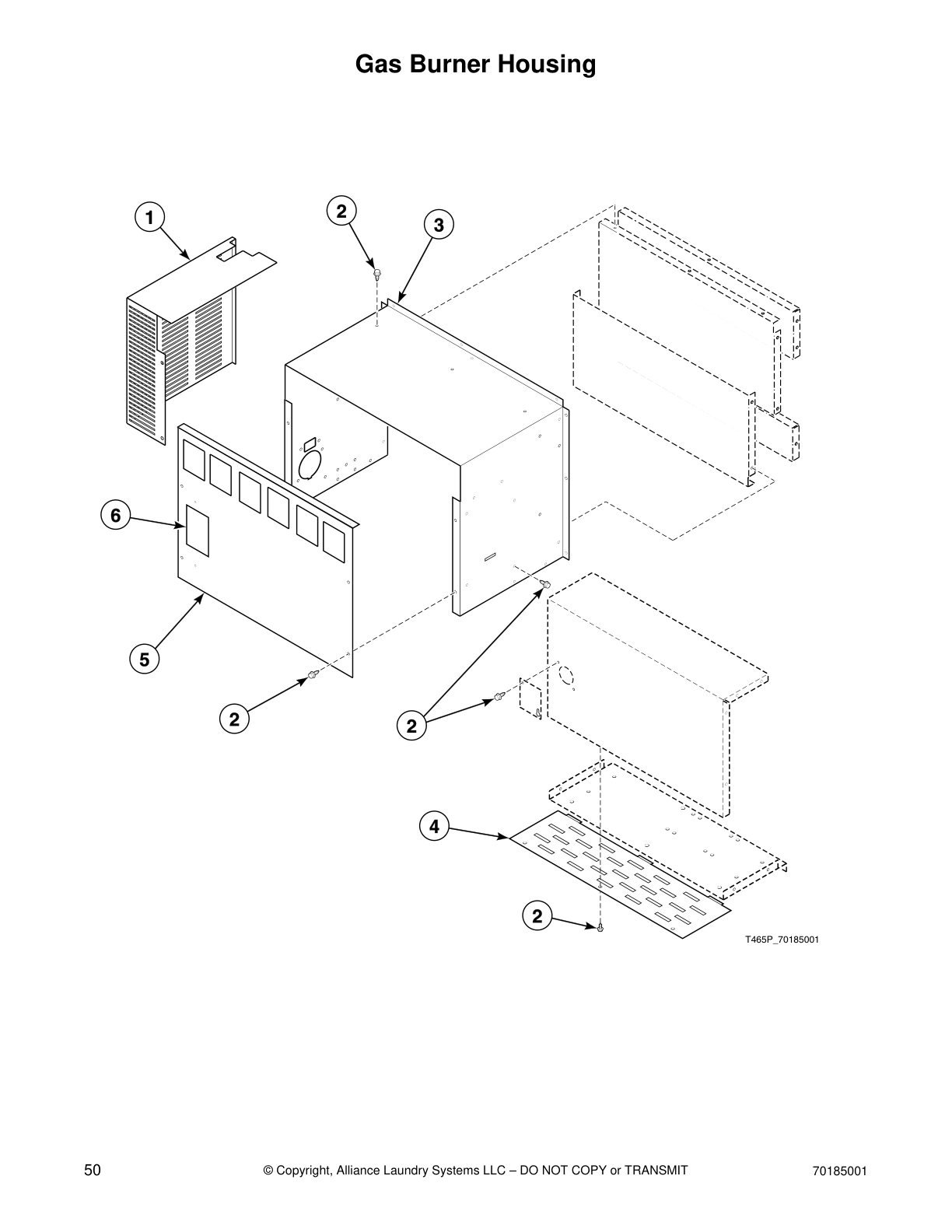

Gas Burner Housing

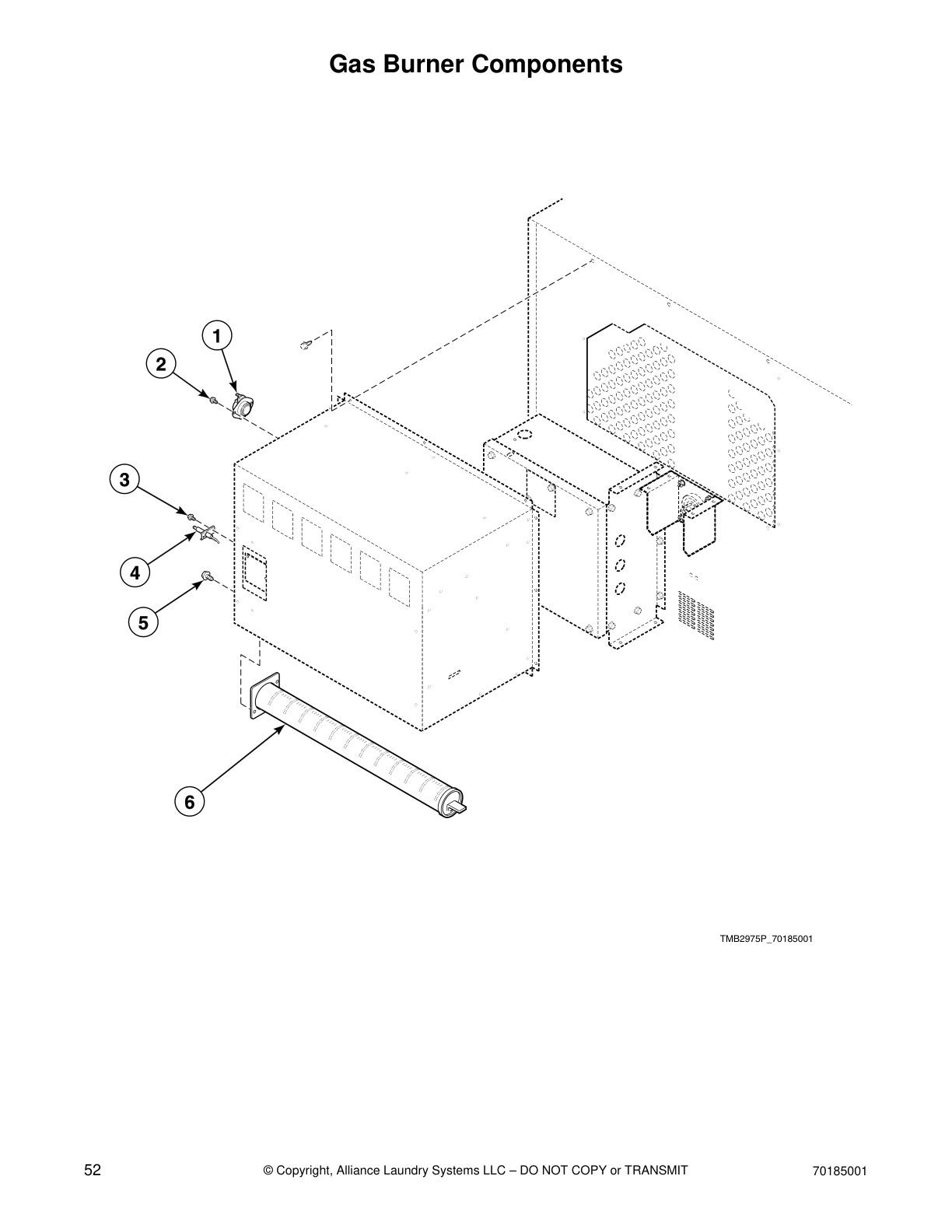

Gas Burner Components

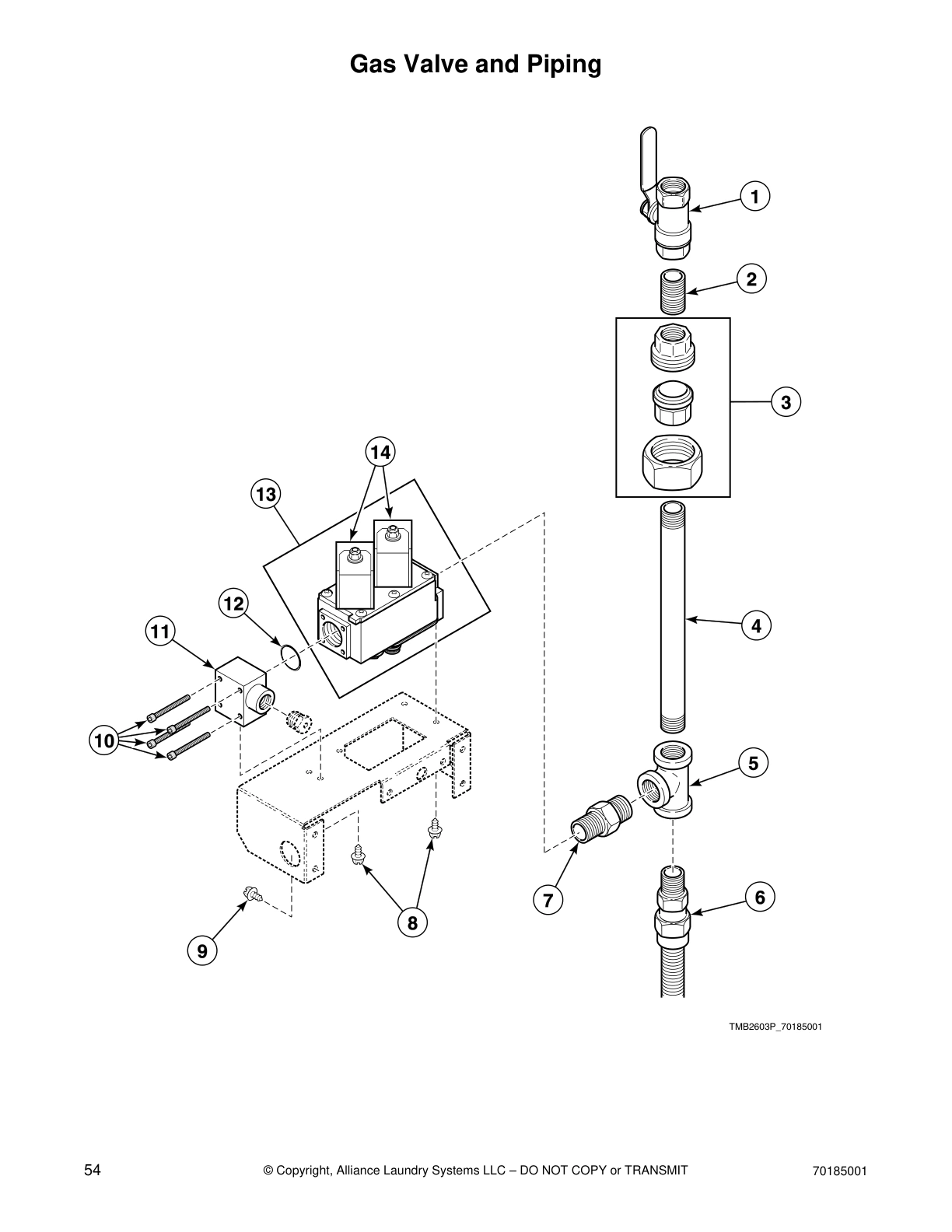

Gas Valve and Piping

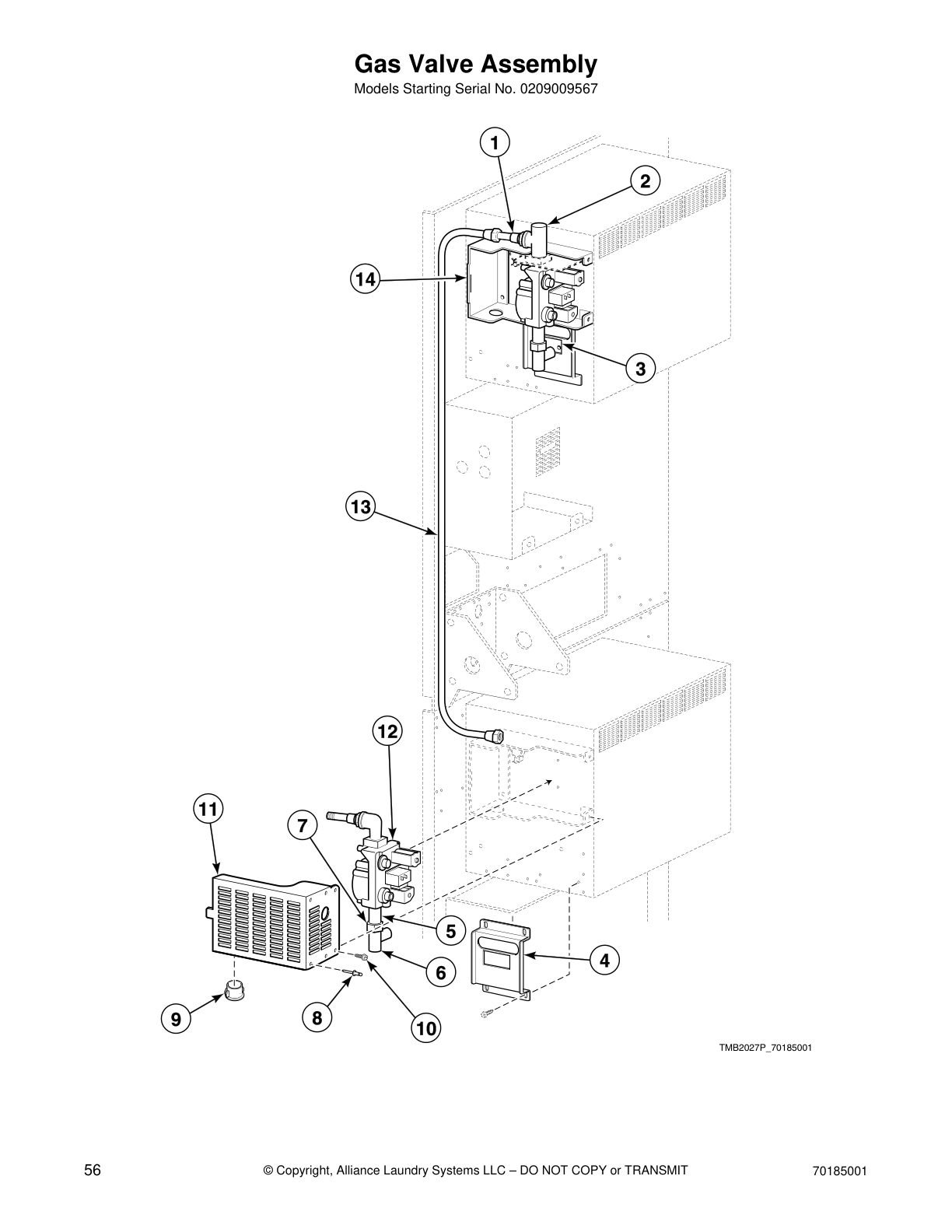

Gas Valve Assembly

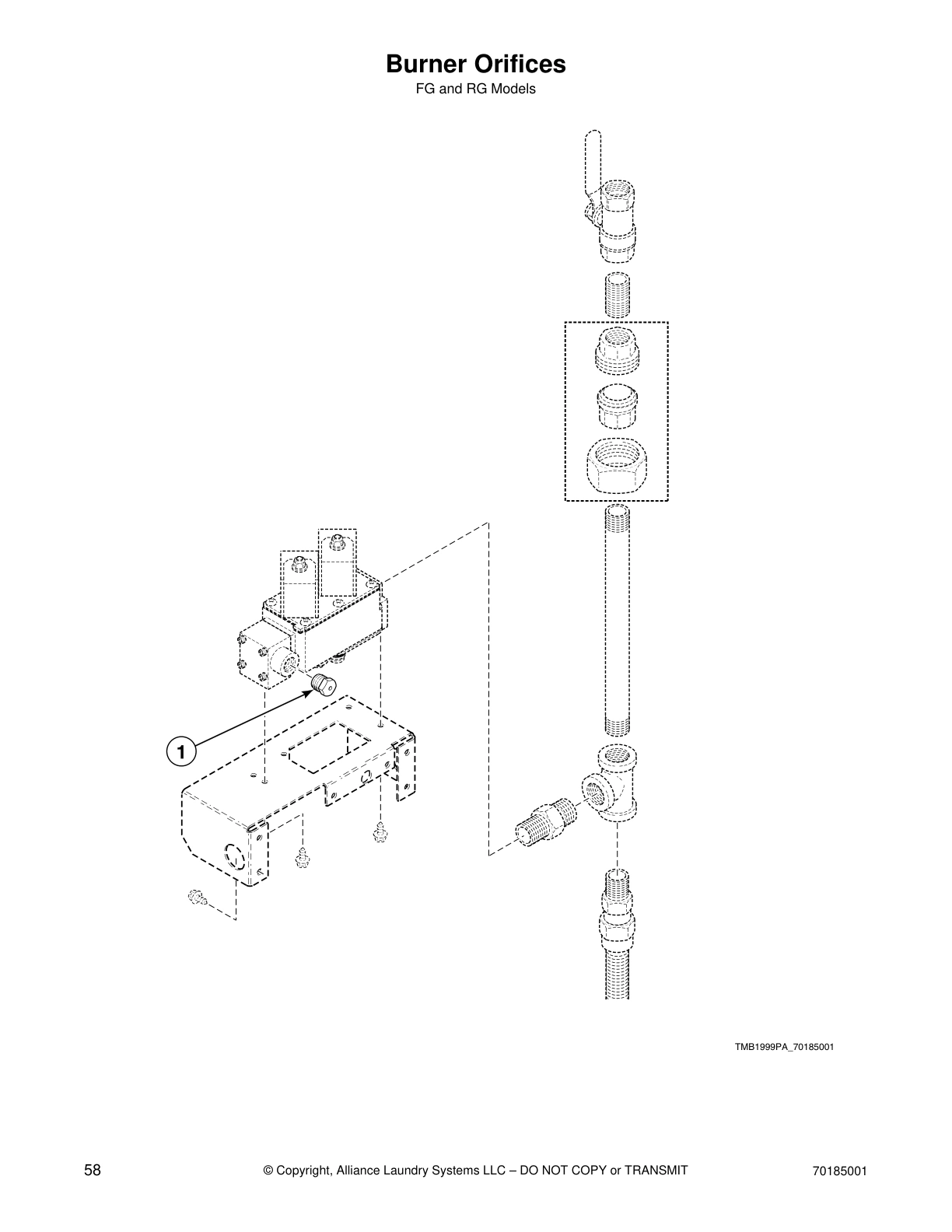

Burner Orifices

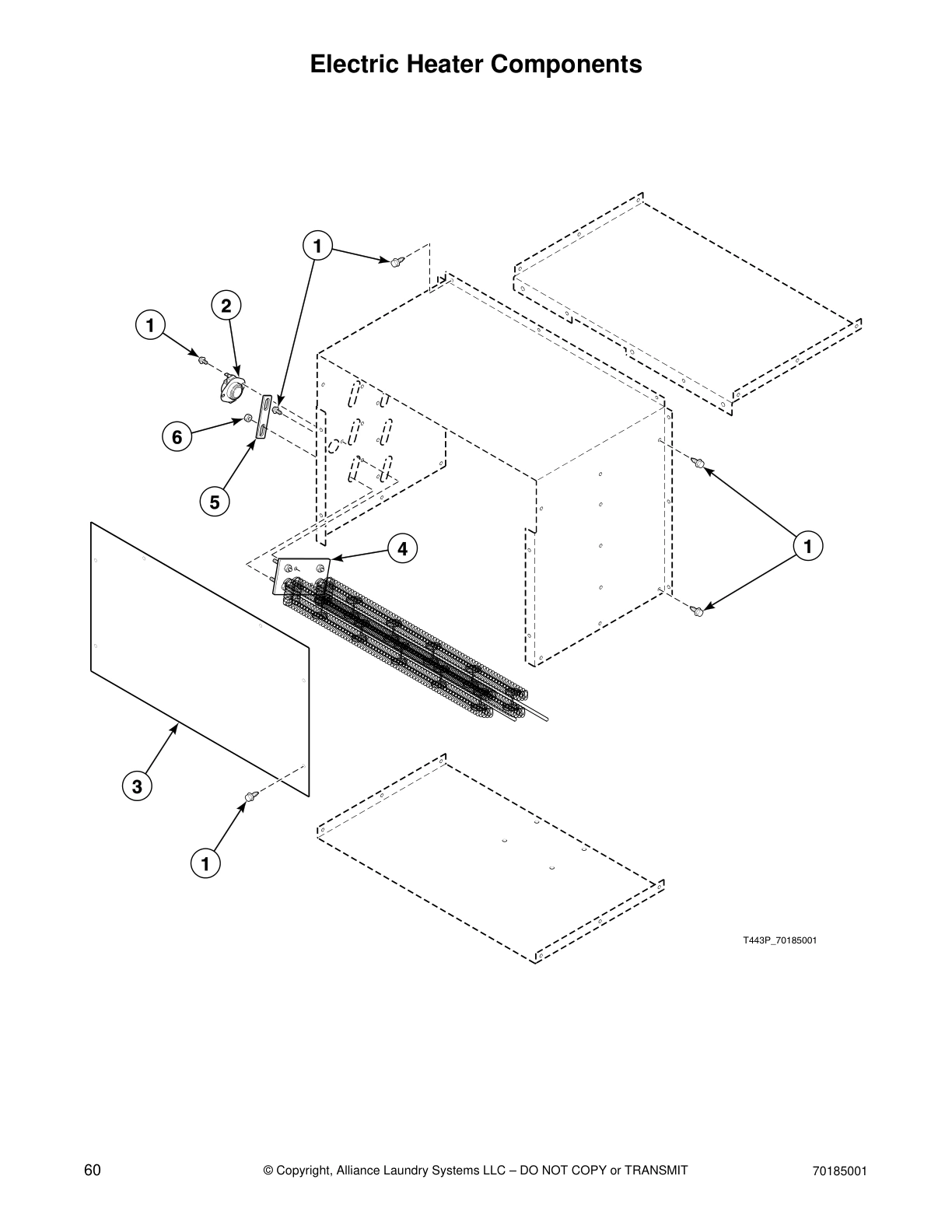

Electric Heater Components

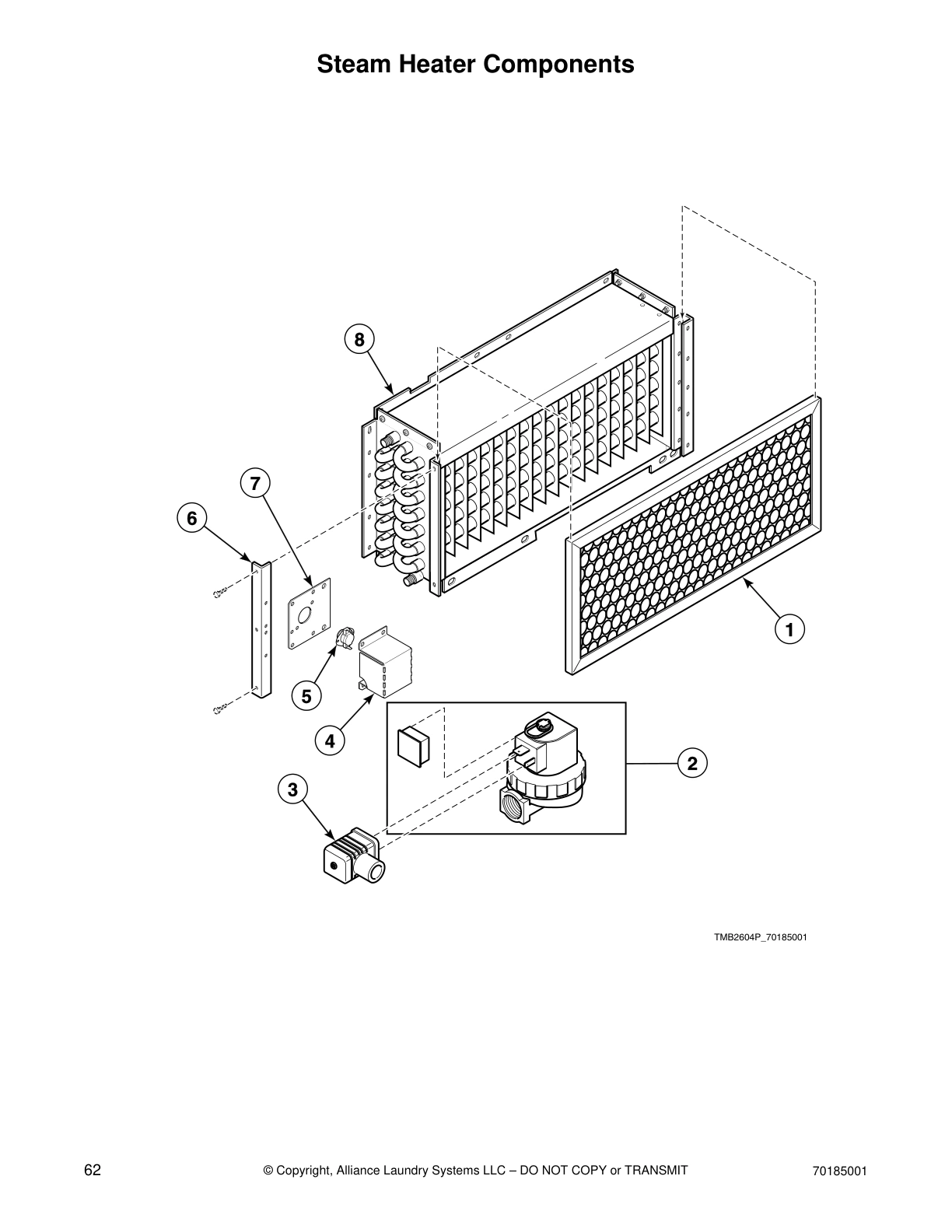

Steam Heater Components

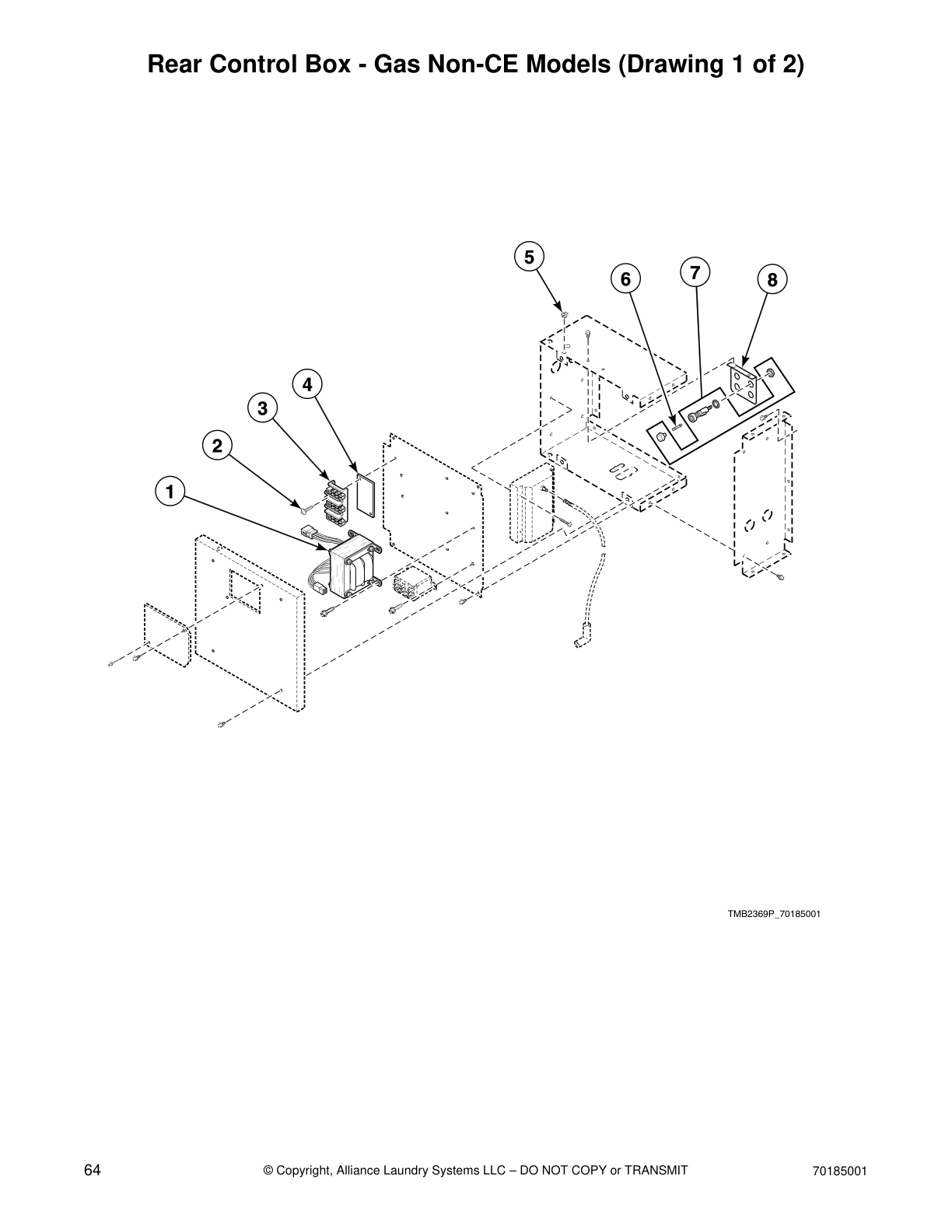

Rear Control Box - Gas Non-CE Models (Drawing 1 of 2)

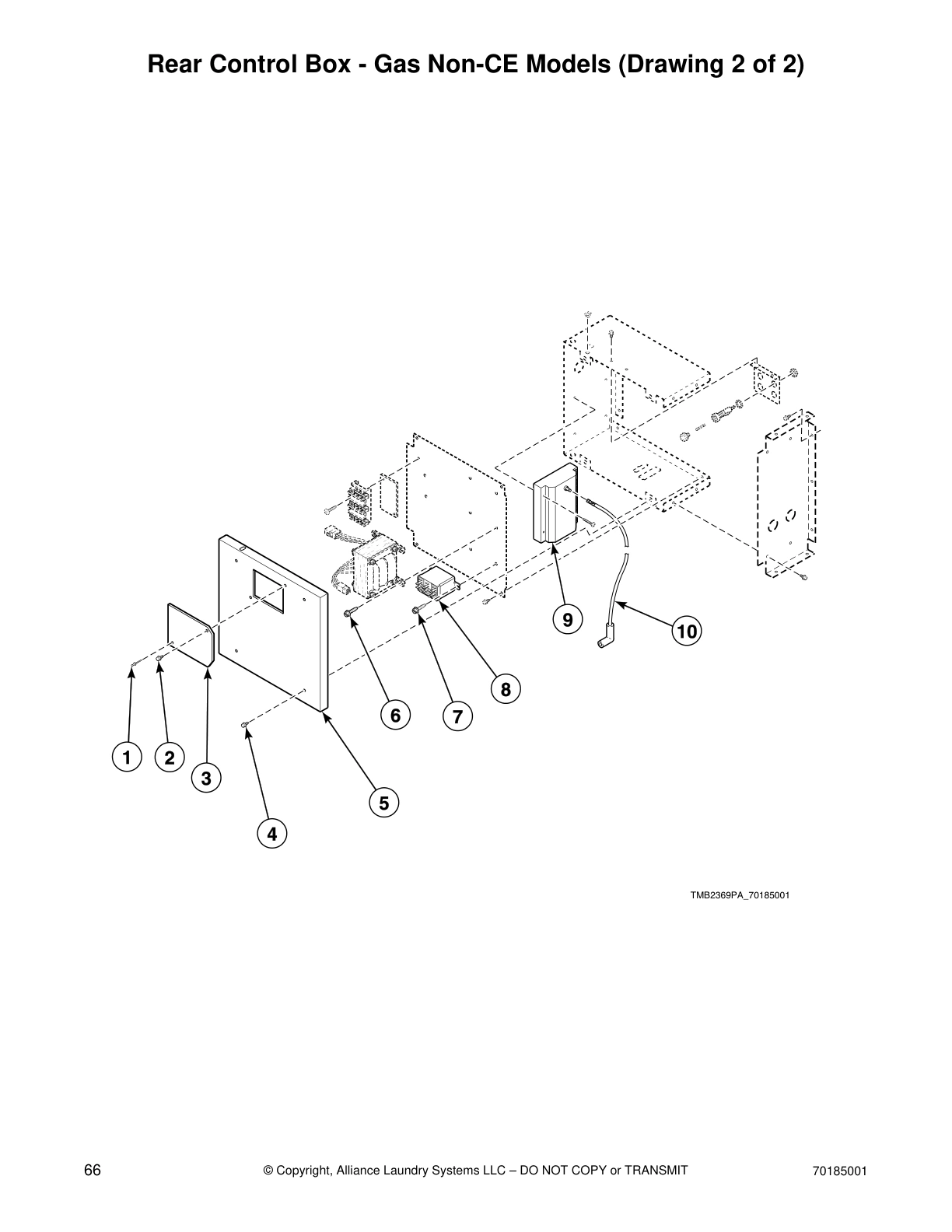

Rear Control Box - Gas Non-CE Models (Drawing 2 of 2)

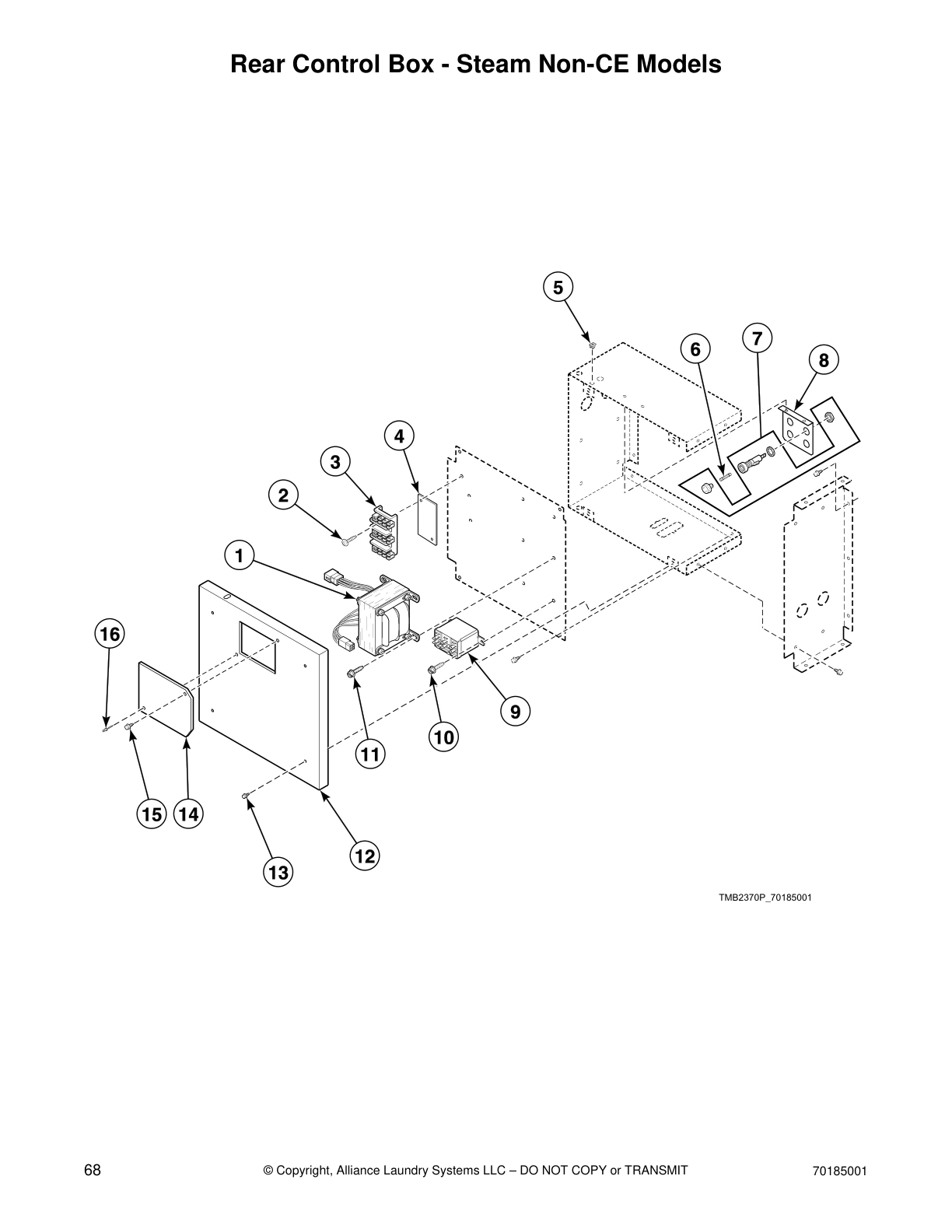

Rear Control Box - Steam Non-CE Models

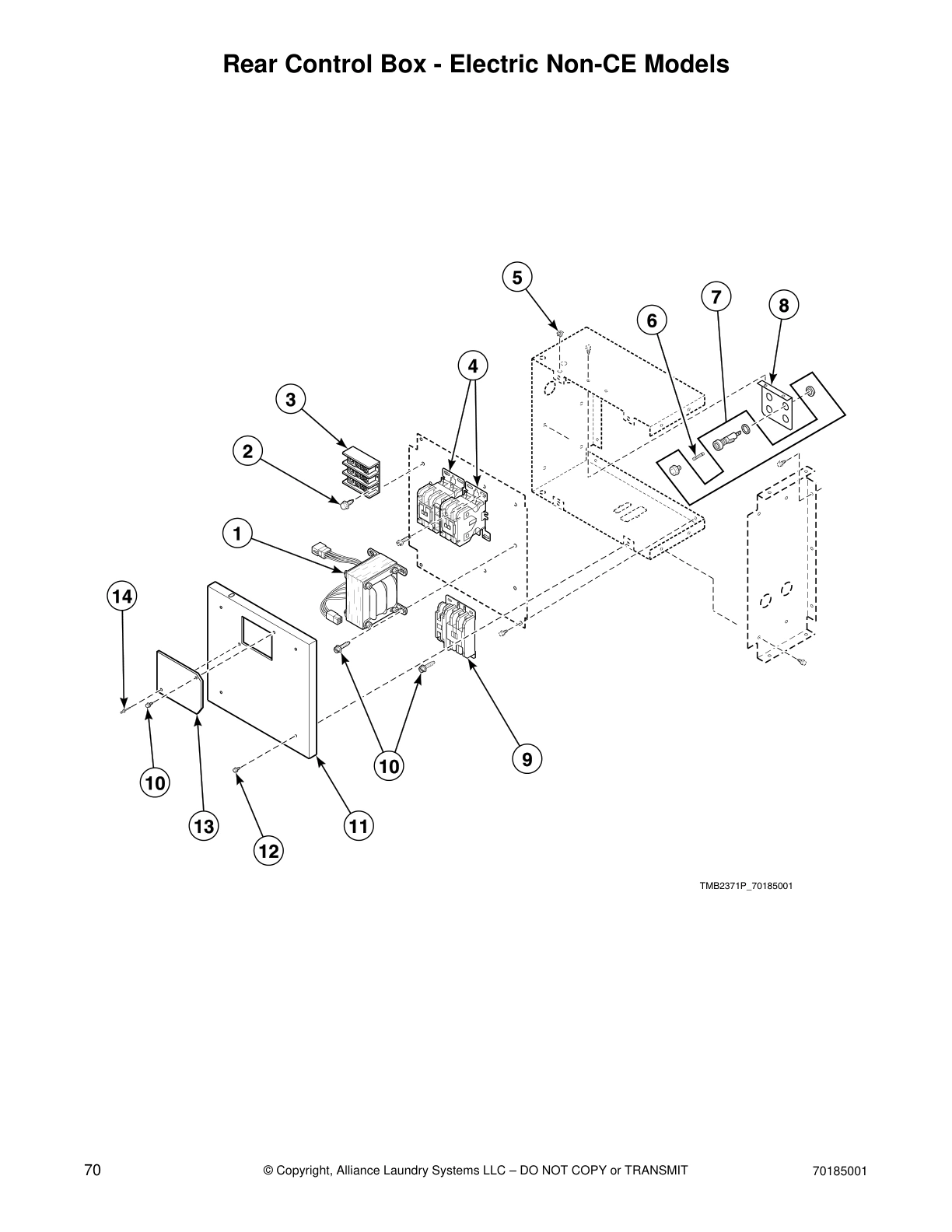

Rear Control Box - Electric Non-CE Models

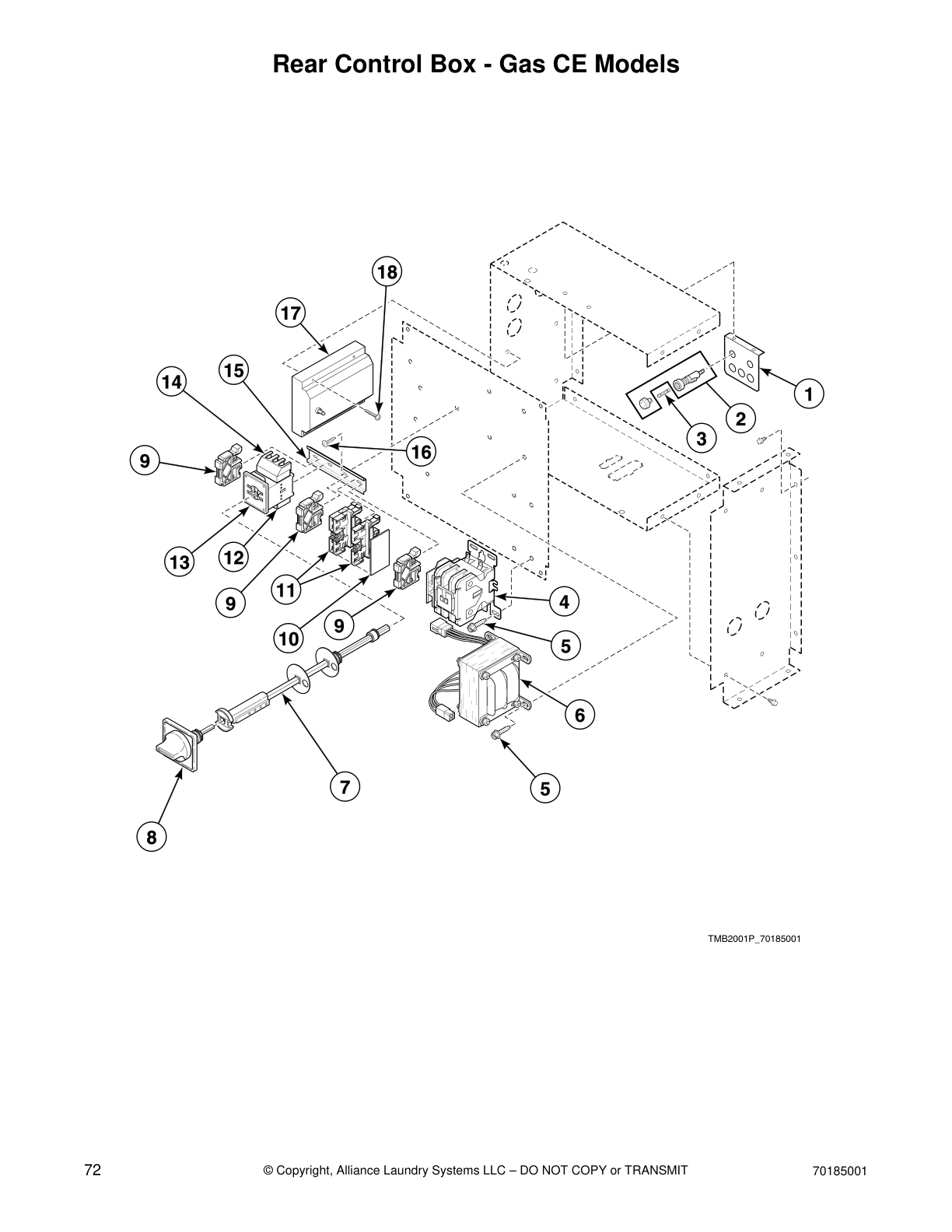

Rear Control Box - Gas CE Models

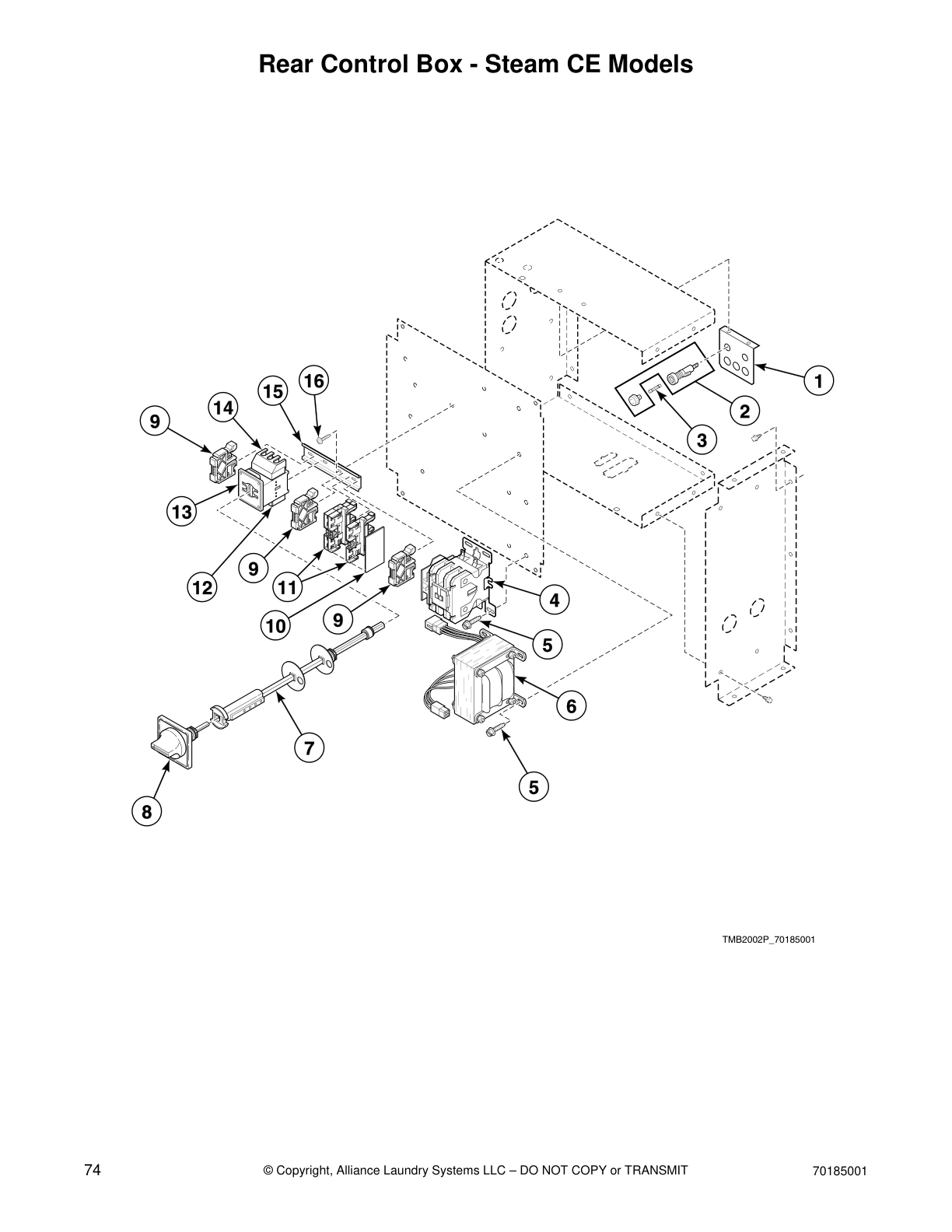

Rear Control Box - Steam CE Models
Rear Control Box - Electric CE Models

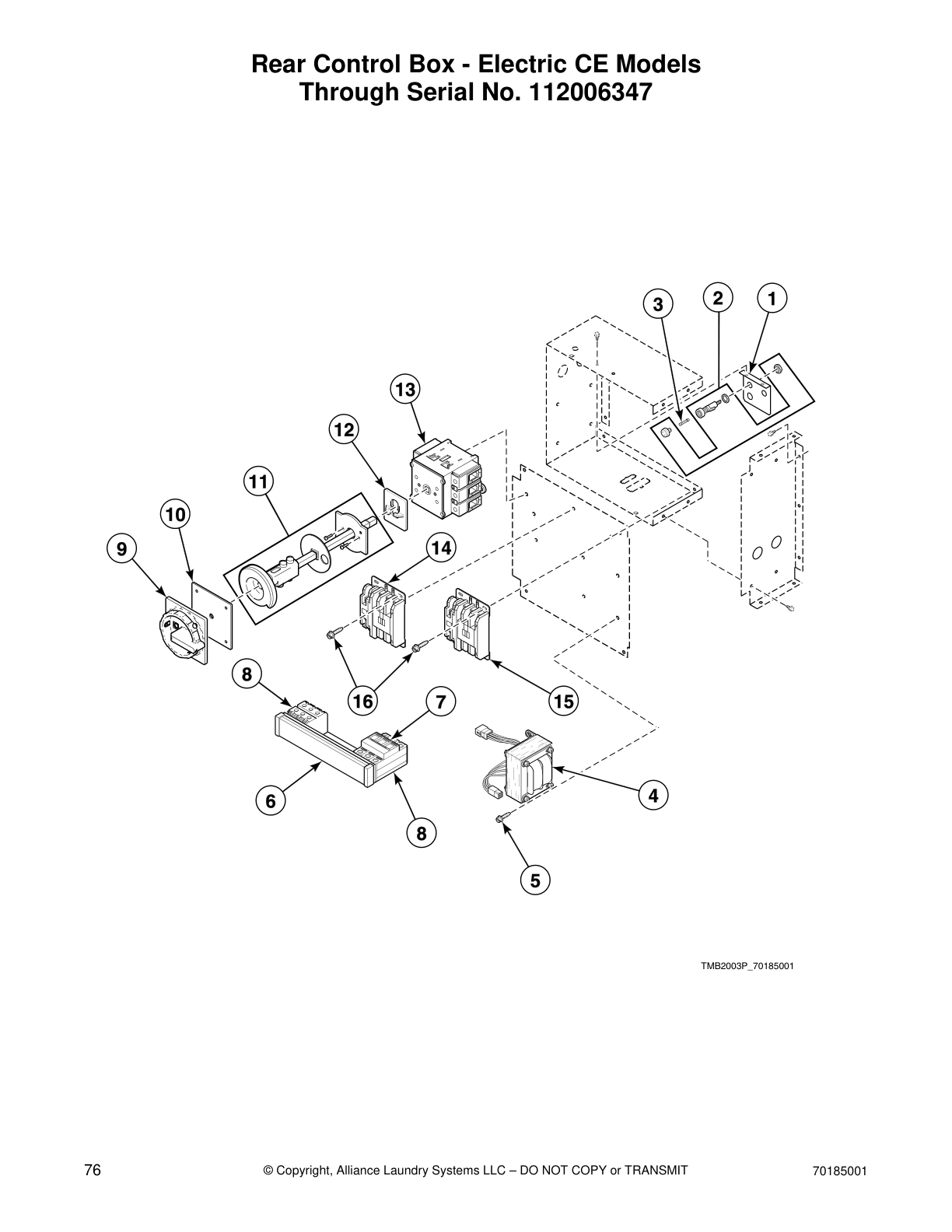

Through Serial No. 112006347
Rear Control Box - Electric CE Models

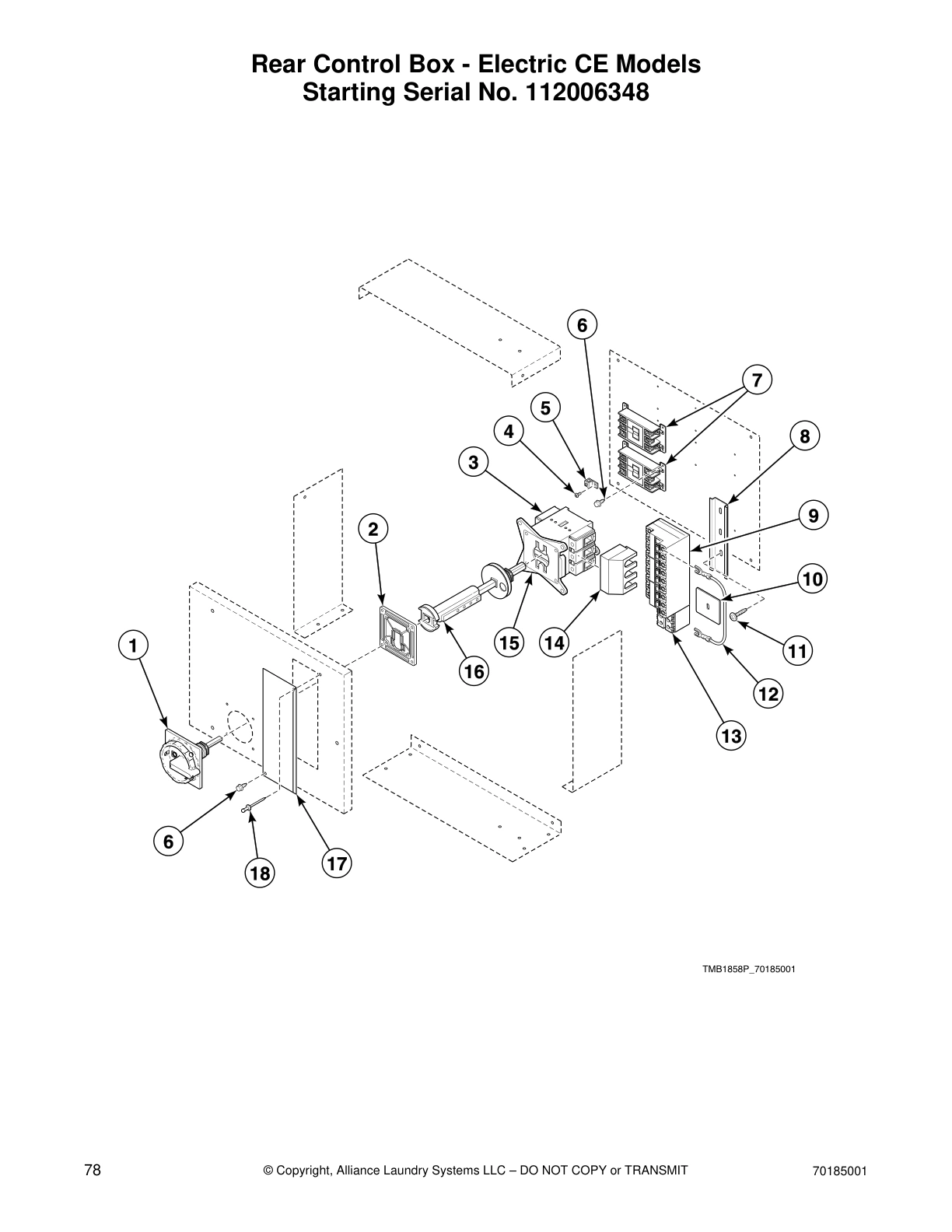

Starting Serial No. 112006348
Common parts from model Huebsch JT0350SRG Dryer
SPQ M403017 SPQ M403017 Contact Us For Availability
SPQ M401002 SPQ M401002 Contact Us For Availability
Jumper Bypass Assembly SPQ 91024P Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ M413504 SPQ M413504 Contact Us For Availability
SPQ 70083201 SPQ 70083201 Contact Us For Availability
SPQ M413508 SPQ M413508 Contact Us For Availability
SPQ 70084001 SPQ 70084001 Contact Us For Availability
1
Limit Thermostat SPQ M409219 Contact Us For Availability
1
Transformer SPQ M414312P Contact Us For Availability
1
Partition Baffle SPQ 70022101 Contact Us For Availability
1
Baffle Gasket SPQ 70015701 Contact Us For Availability
1
Door Assembly SPQ 44058001P Contact Us For Availability
1
Drive Motor SPQ 70338101P Contact Us For Availability
1
Blower Motor SPQ 70342601P Contact Us For Availability
1
Valve Bracket and Cover Kit SPQ M4747P3 Contact Us For Availability
1
Gas Shut-Off Valve SPQ M412562P Contact Us For Availability
2
Key SPQ 70155602 Contact Us For Availability
2
Nut SPQ M400661 Contact Us For Availability
2
Motor Pulley SPQ 70284203 Contact Us For Availability
2
Screw SPQ M402797 Contact Us For Availability
2
Fuse Holder SPQ M413544P Contact Us For Availability
2
Expansion Clip SPQ 51778 Contact Us For Availability
3
Door Hinge SPQ 70296801 Contact Us For Availability
3
SPQ 70072901 SPQ 70072901 Contact Us For Availability
3
Fuse SPQ M411072 Contact Us For Availability
3
Thermal Shield SPQ 70015702 Contact Us For Availability
3
Airflow Switch Bracket SPQ 70266301 Contact Us For Availability
3
Union SPQ H86000031 Contact Us For Availability
4
Coin Vault Assembly SPQ 70036601 Contact Us For Availability
4
Expansion Clip SPQ 70022001 Contact Us For Availability
4
Cam and Hinge Kit SPQ M414215 Contact Us For Availability
4
Cylinder Bearing Stud Plate Assembly SPQ 70257101 Contact Us For Availability
4
Burner Grill SPQ 70188801 Contact Us For Availability
4
Gas Burner SPQ 70032801P Contact Us For Availability
4
Transformer SPQ M414229P Contact Us For Availability
4
Jumper Configuration Assembly SPQ M402917 Contact Us For Availability
5
Airflow Switch Vane SPQ 70266201 Contact Us For Availability
5
Rear Cylinder Seal Support SPQ 70257201 Contact Us For Availability
5
N.G. Valve Conversion Kit SPQ 05161 Contact Us For Availability
5
Limit Thermostat SPQ M409443 Contact Us For Availability
6
Drywall Screw Magnet Kit SPQ 70013701P Contact Us For Availability
6
Expansion Clip SPQ 430642 Contact Us For Availability
6
SPQ 70115902 SPQ 70115902 Contact Us For Availability
6
Igniter Cover SPQ 70159601 Contact Us For Availability
6
SPQ 70229801P SPQ 70229801P Contact Us For Availability
7
SPQ 70173401P SPQ 70173401P Contact Us For Availability
7
Jumper Calibration Assembly SPQ 70211703P Contact Us For Availability
7
SPQ 70062401 SPQ 70062401 Contact Us For Availability
7
Nut SPQ M411307 Contact Us For Availability
7
Fuse Receptacle SPQ M414232 Contact Us For Availability
7
Fan Contactor SPQ M413862 Contact Us For Availability
8
SPQ 70210901P SPQ 70210901P Contact Us For Availability
8
Control Panel Harness Assembly SPQ 70206301P Contact Us For Availability
8
Screw SPQ 23222 Contact Us For Availability
9
SPQ 70506402 SPQ 70506402 Contact Us For Availability
9
Coin Vault Switch Harness Assembly SPQ 70180101 Contact Us For Availability
9
Fan Contactor SPQ M413118 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
10
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Pushbutton Switch SPQ 70413301 Contact Us For Availability
10
Nut SPQ M400022 Contact Us For Availability
10
Airflow Switch Cover SPQ 70281801 Contact Us For Availability
11
Washer SPQ M400991 Contact Us For Availability
11
Screw SPQ 70033502 Contact Us For Availability
11
Key SPQ 44089301P Contact Us For Availability
11
Center Cylinder Seal Assembly SPQ 70066003 Contact Us For Availability
11
Spud Adapter SPQ 70223501 Contact Us For Availability
12
Pop Rivet SPQ 70126401 Contact Us For Availability
12
O-Ring SPQ 431482 Contact Us For Availability
13
Support Bearing SPQ M400034 Contact Us For Availability
13
L.P. Valve SPQ 70457302P Contact Us For Availability
13
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
13
Terminal Block SPQ M414230P Contact Us For Availability
14
Screw SPQ 70448701 Contact Us For Availability
14
Start Switch SPQ 70108501 Contact Us For Availability
14
Gas Valve Coil SPQ 70260101 Contact Us For Availability
14
Door Glass SPQ 70133601P Contact Us For Availability
15
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
15
Key SPQ 70126101 Contact Us For Availability
15
Fan Contactor SPQ M413614P Contact Us For Availability
16
Coin Vault Trim SPQ M401223 Contact Us For Availability
17
Cylinder Guide Tool SPQ M4960P3 Contact Us For Availability
17
Nut SPQ M400003 Contact Us For Availability
17
Door Ring Gasket SPQ M409385 Contact Us For Availability
18
Screw SPQ 430648 Contact Us For Availability
18
Fuse Holder SPQ M405824 Contact Us For Availability
19
Thermistor SPQ 70144101 Contact Us For Availability
19
Idler Wheel Assembly SPQ 70050401P Contact Us For Availability
20
Roller Shaft SPQ 70017701 Contact Us For Availability
21
Rear Cylinder Channel Plate SPQ 70070101 Contact Us For Availability
21
Bolt SPQ 70284201 Contact Us For Availability
25
Door Latch SPQ 70155601 Contact Us For Availability
NI
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
NI
SPQ 70006201 SPQ 70006201 Contact Us For Availability
NI
Main Harness Assembly SPQ 70204801 Contact Us For Availability
NI
Communication Harness Assembly SPQ 70211101 Contact Us For Availability
NI
SPQ 70235201 SPQ 70235201 Contact Us For Availability
NI
Clip SPQ 70296401 Contact Us For Availability
NI
SPQ 70226701 SPQ 70226701 Contact Us For Availability
NI
SPQ 70133501P SPQ 70133501P Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ M412985 SPQ M412985 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
Drive Motor Kit SPQ 70338001P Contact Us For Availability
NI
Blower Motor Kit SPQ 70337701P Contact Us For Availability
NI
Elbow SPQ M4733P3 Contact Us For Availability
NI
N.G. Valve Conversion Kit SPQ M4734P3 Contact Us For Availability
NI
SPQ 70079601 SPQ 70079601 Contact Us For Availability
NI
SPQ M411376 SPQ M411376 Contact Us For Availability
NI
SPQ M411373 SPQ M411373 Contact Us For Availability
NI
SPQ M402995 SPQ M402995 Contact Us For Availability
NI
SPQ M413509 SPQ M413509 Contact Us For Availability
NI
Jumper Harness Assembly SPQ M414228P Contact Us For Availability
NI
Jumper Harness Assembly SPQ M414240 Contact Us For Availability
NI
High Limit Harness SPQ M413510 Contact Us For Availability
NI
SPQ 70067001P SPQ 70067001P Contact Us For Availability
× ![]()
