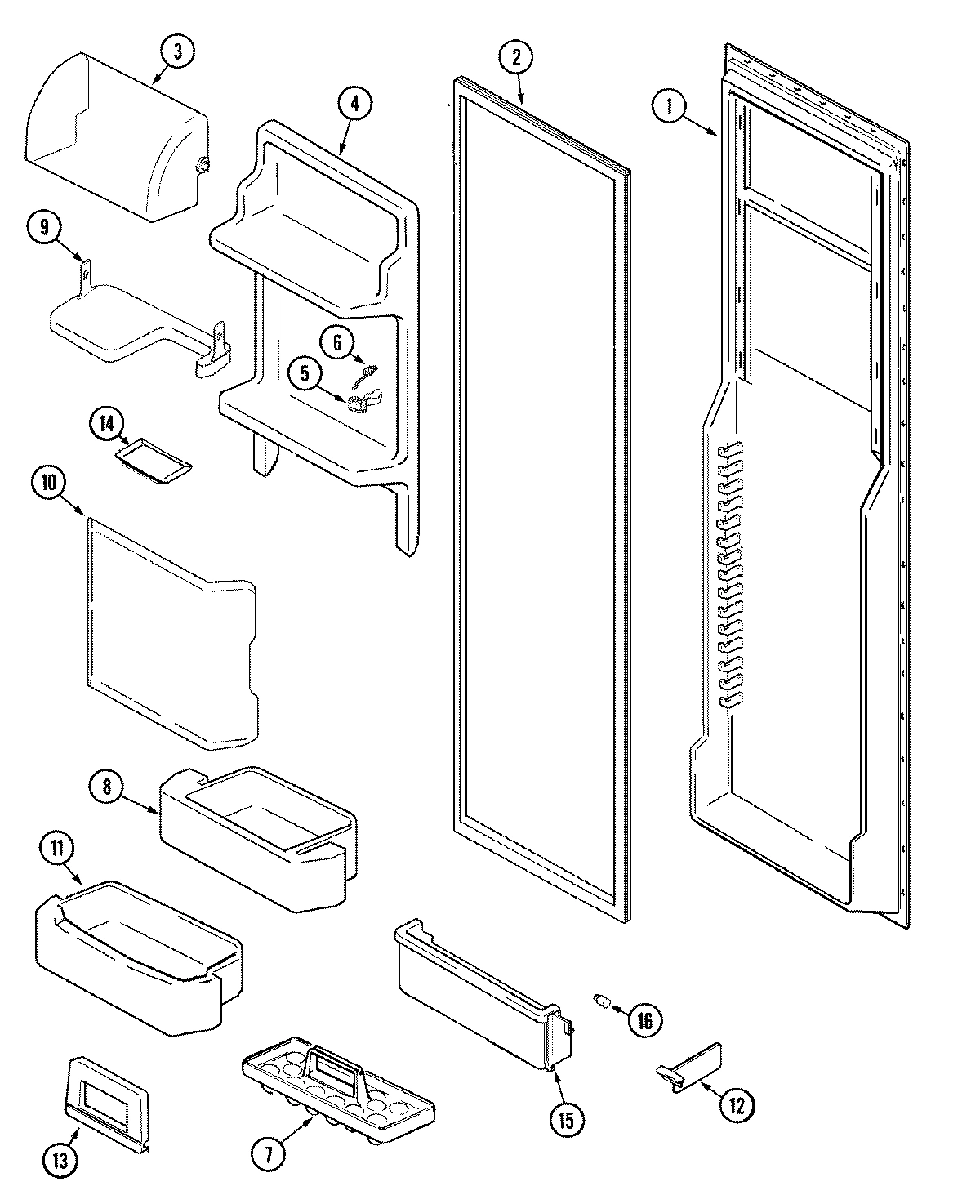

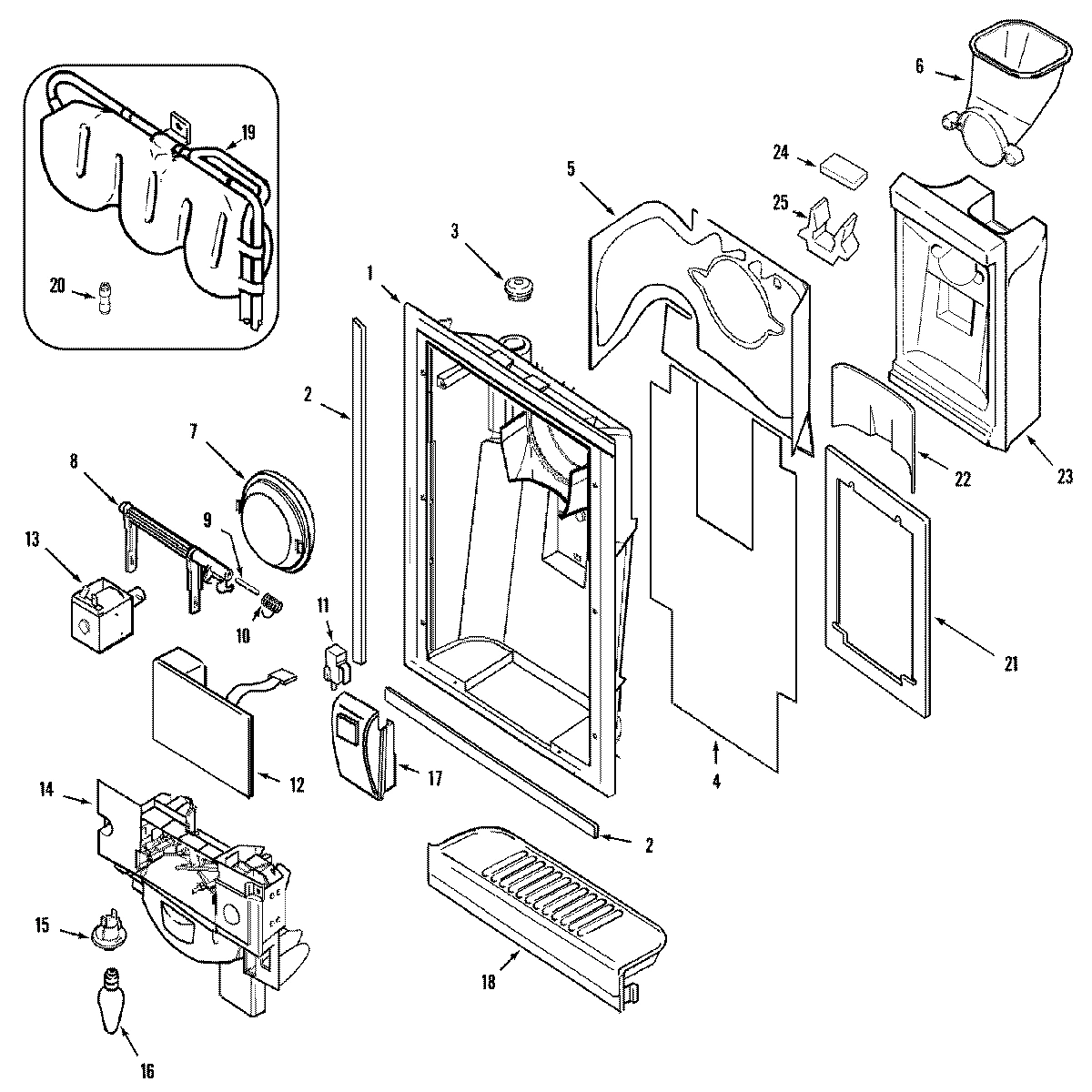

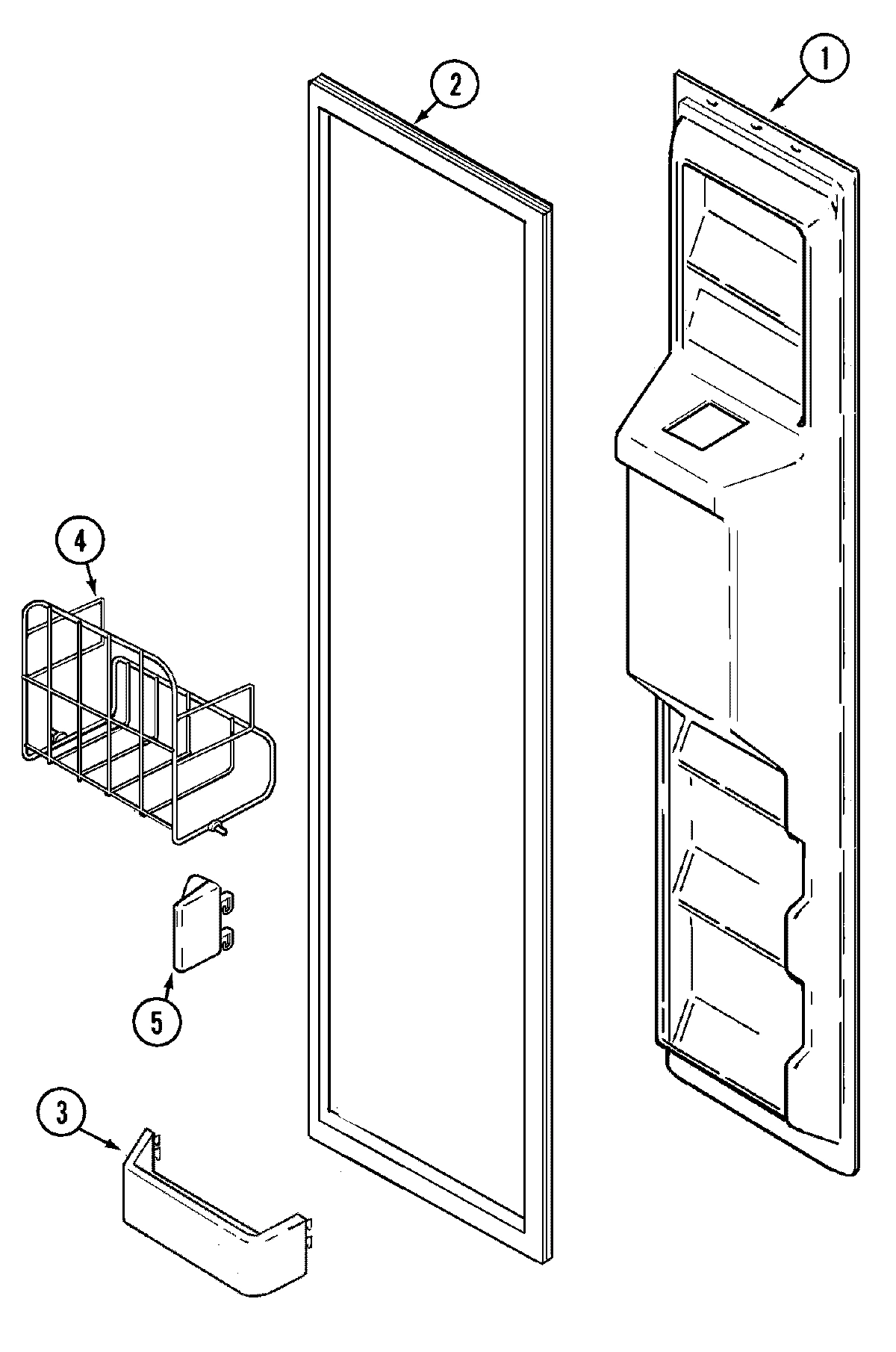

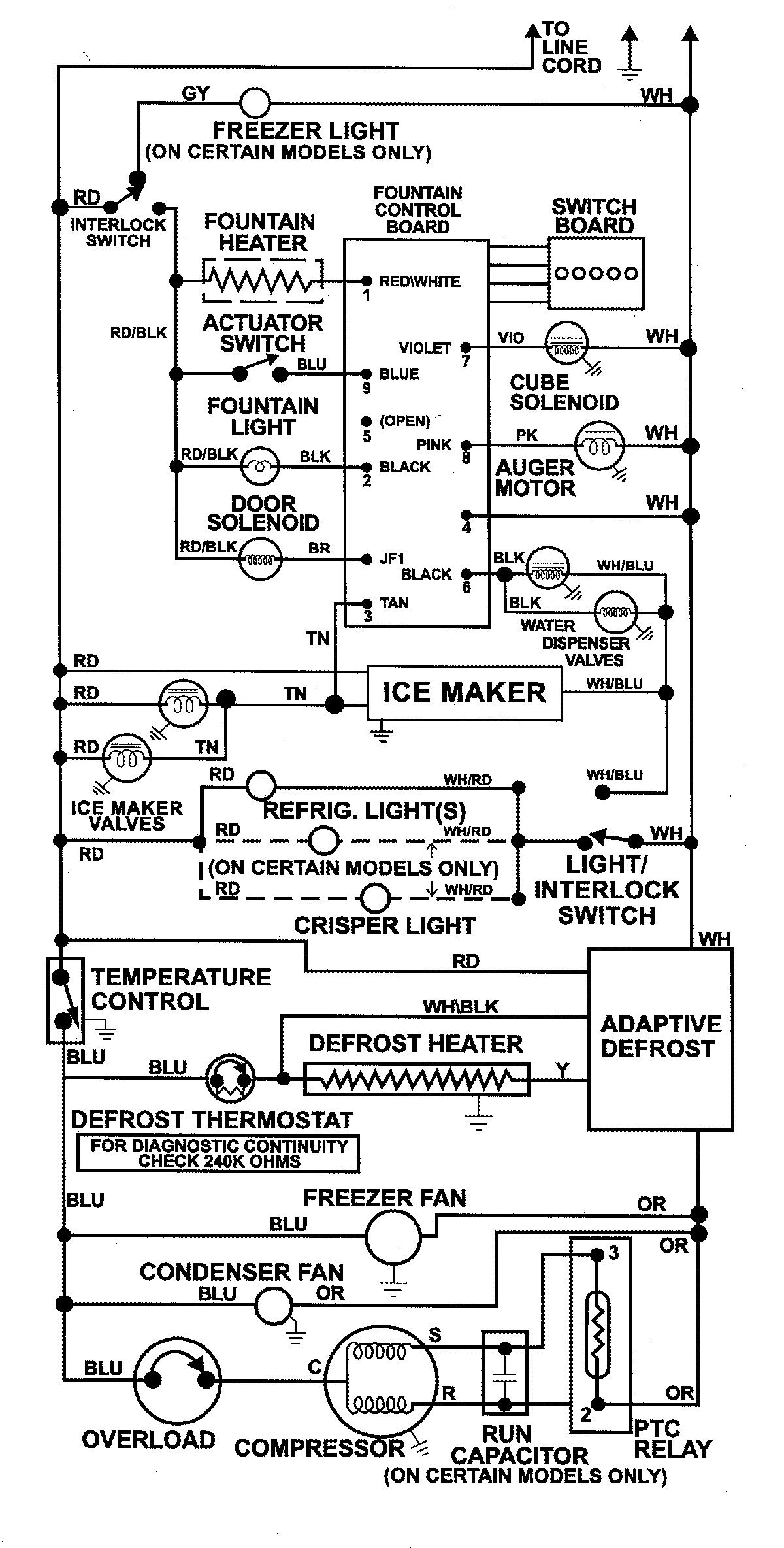

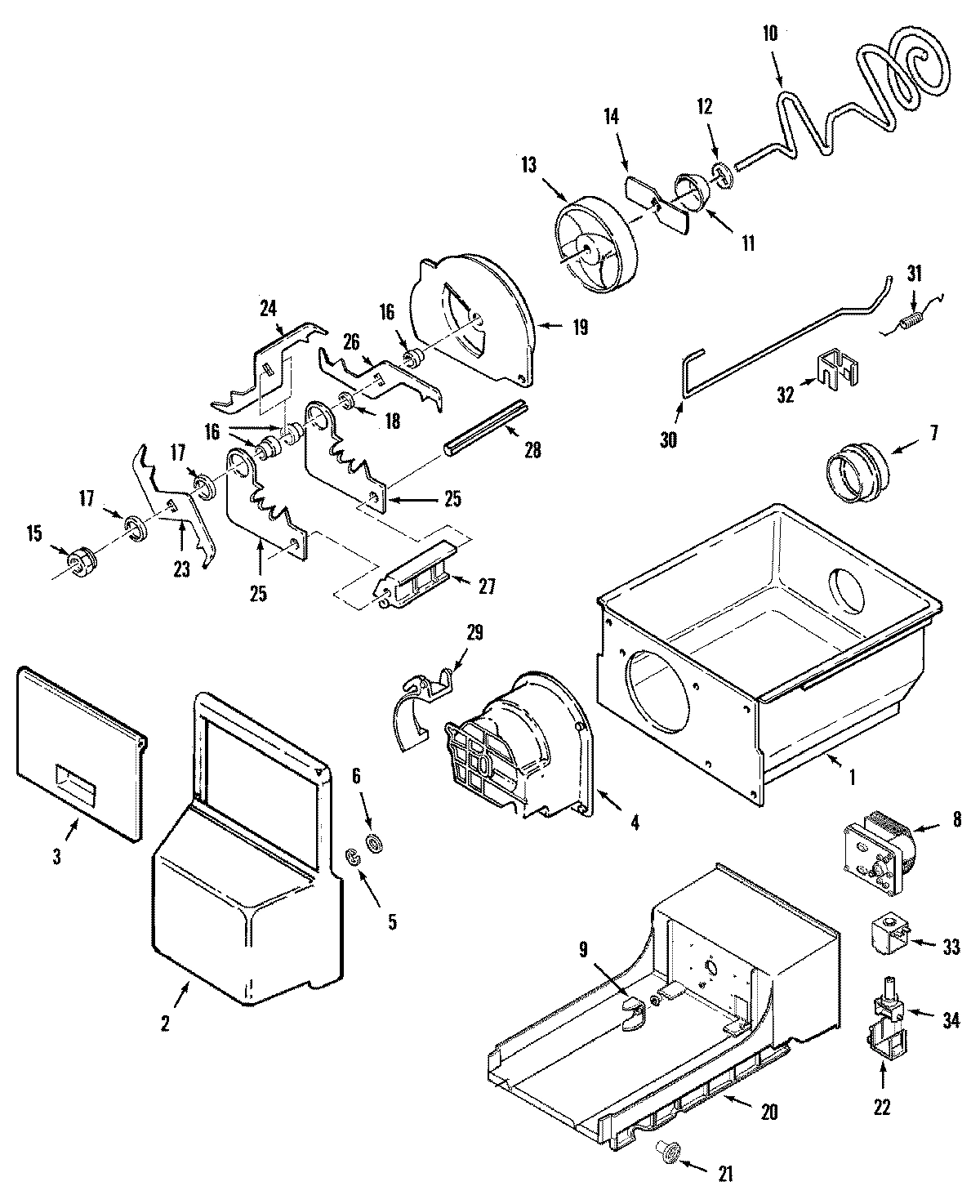

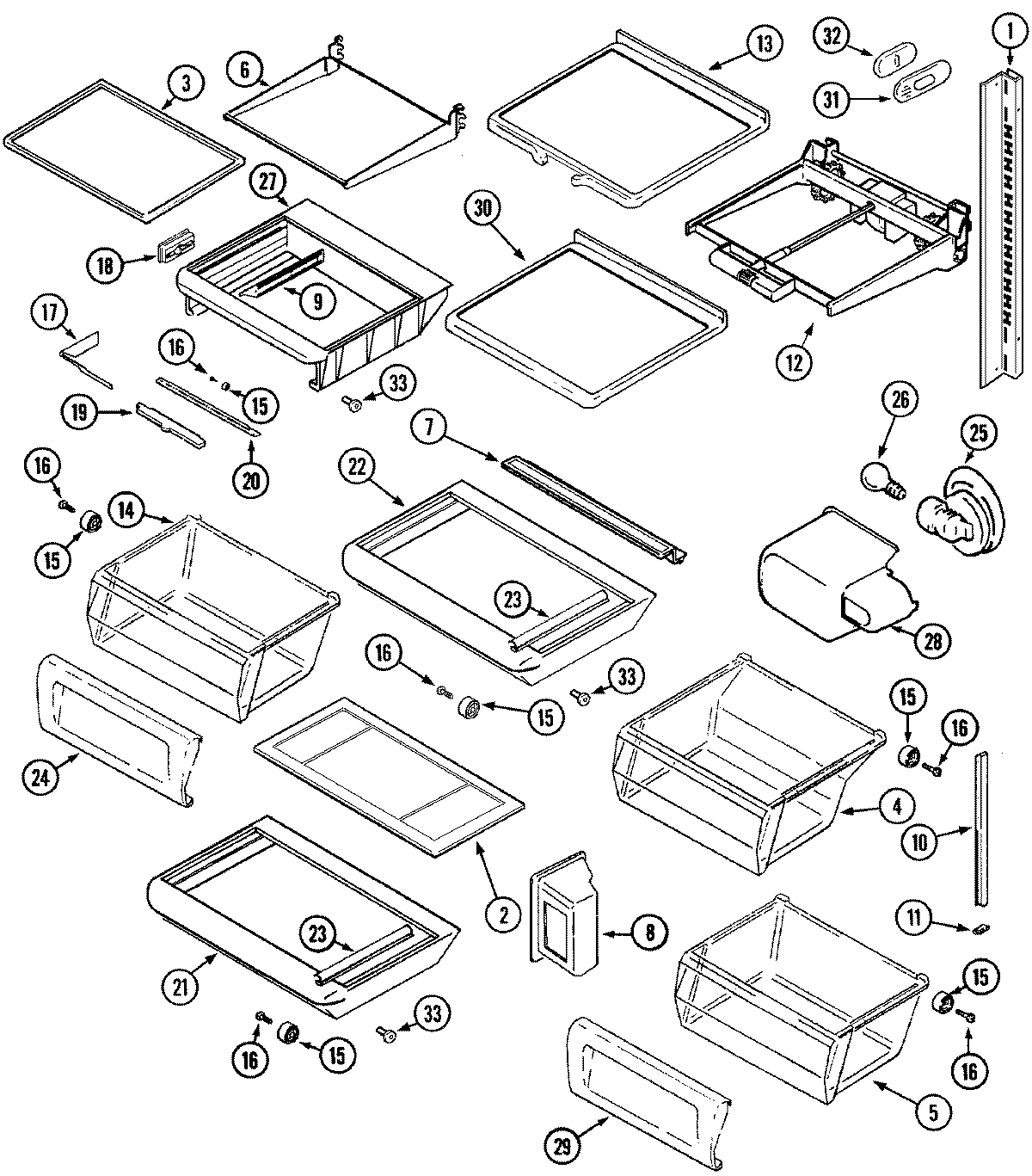

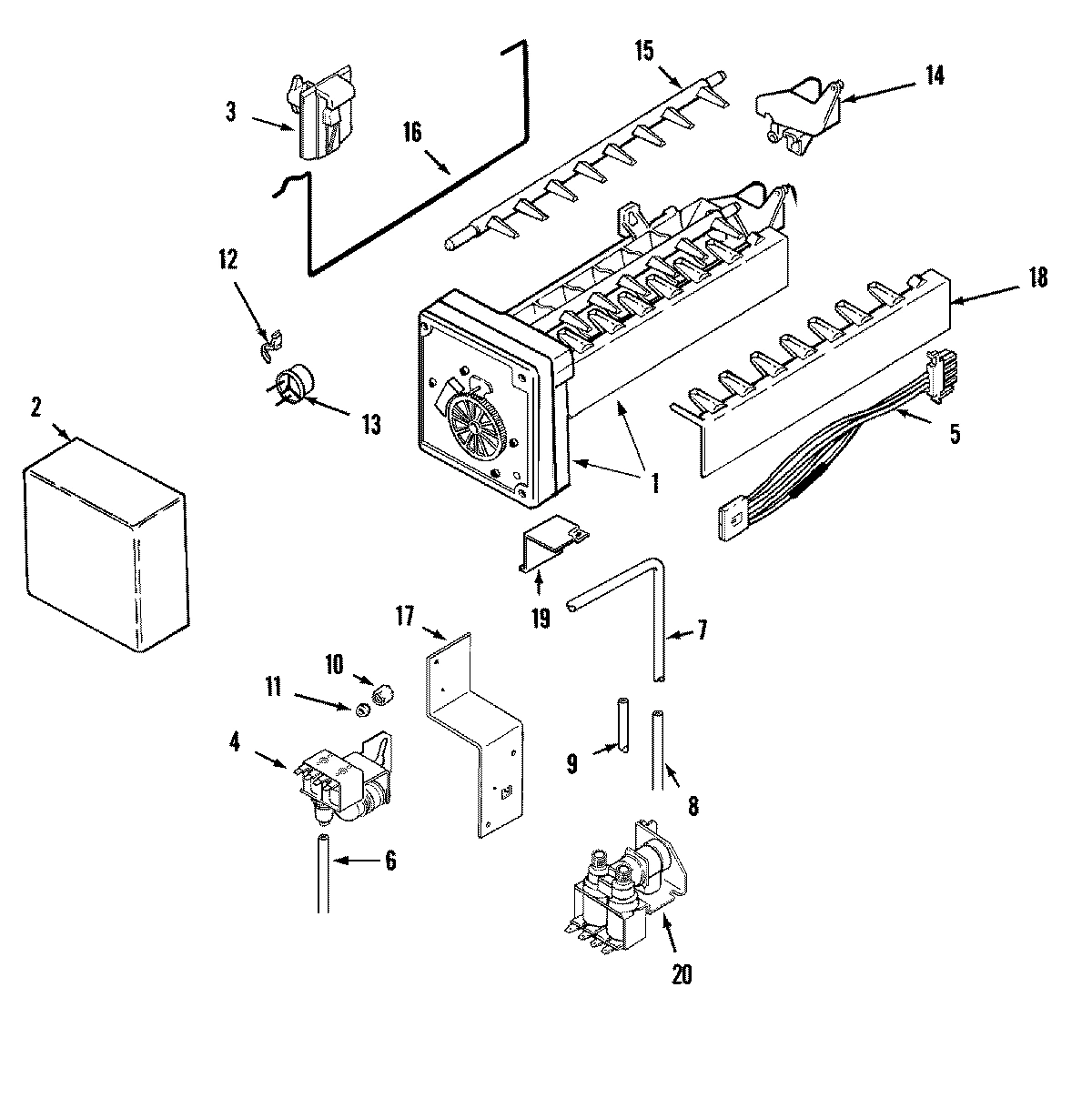

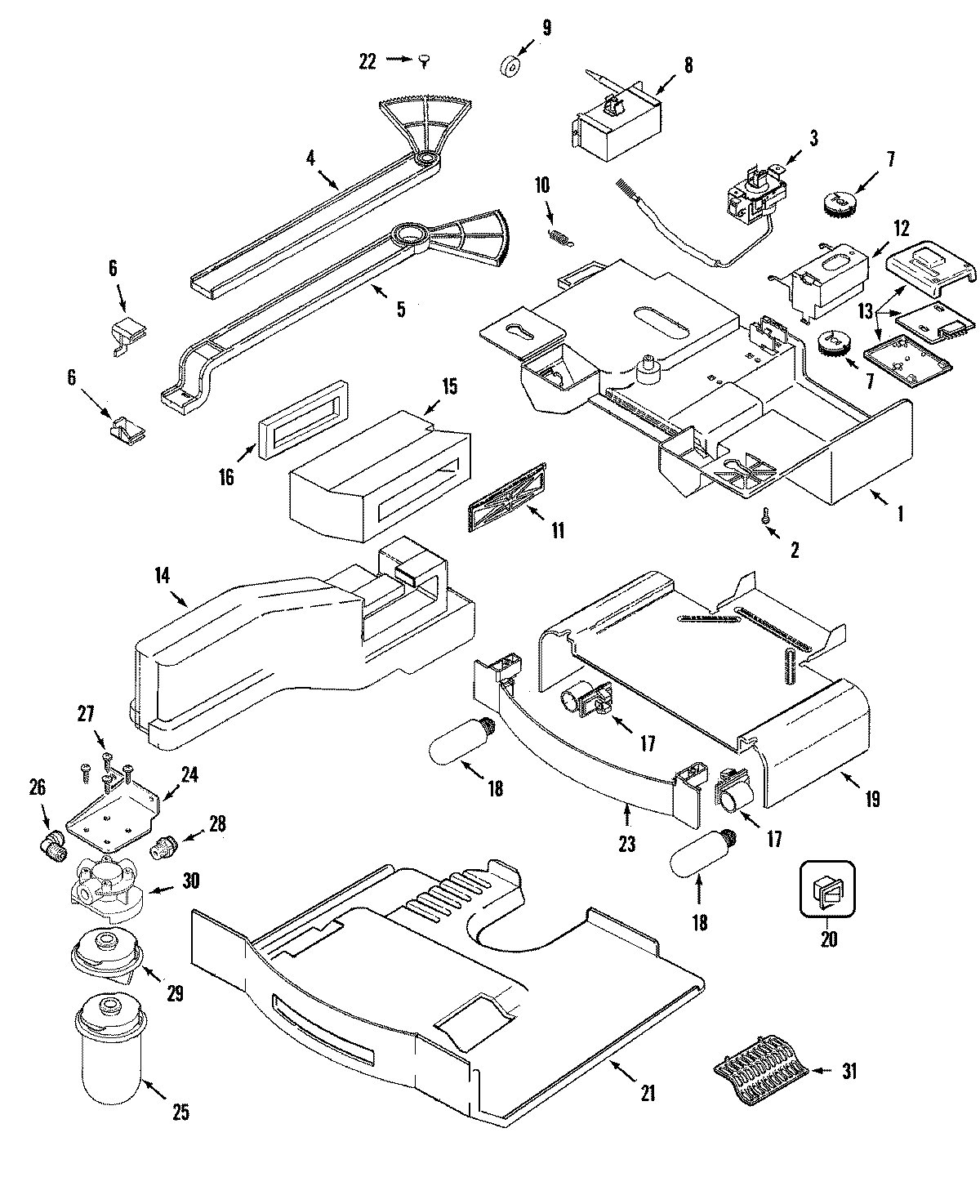

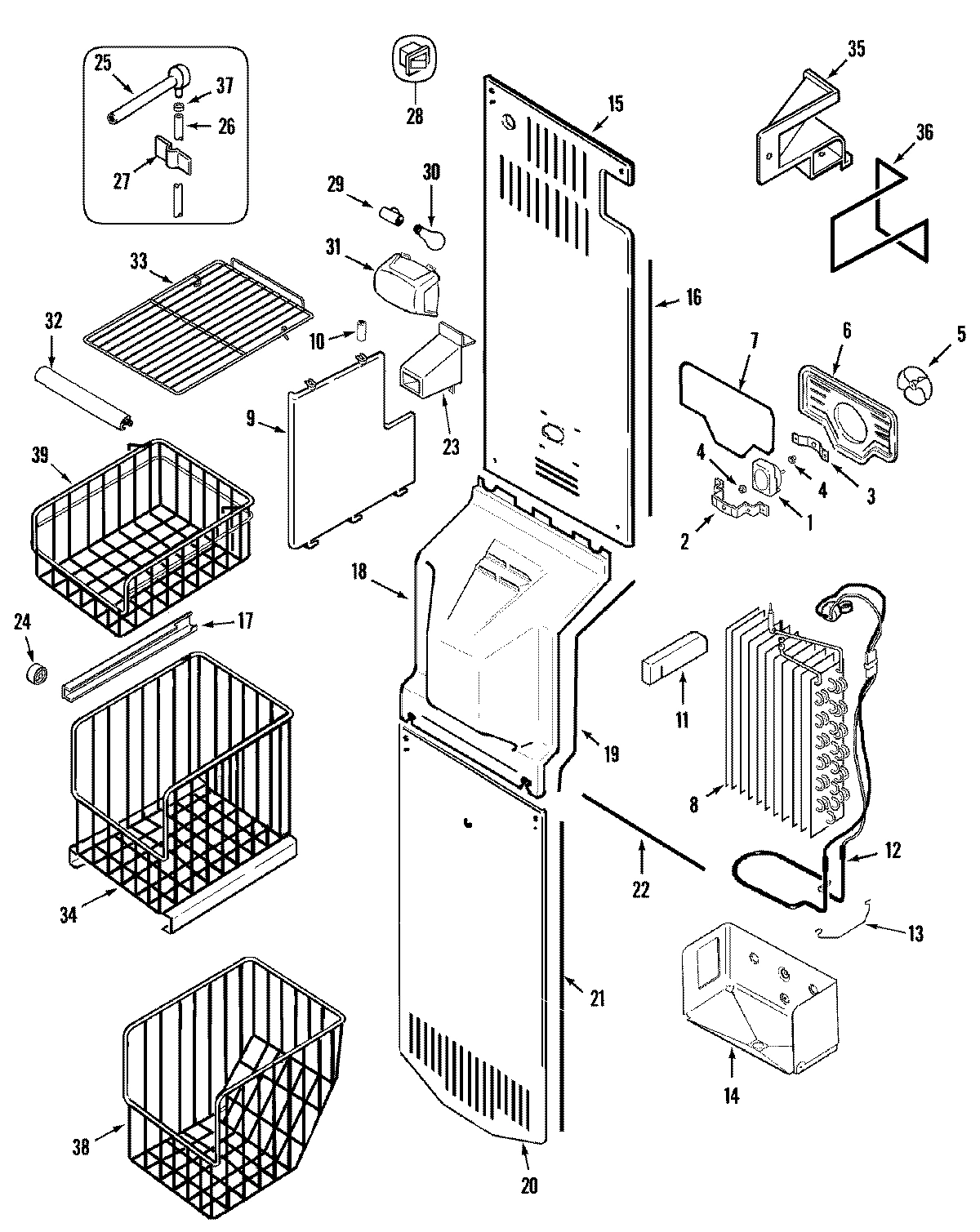

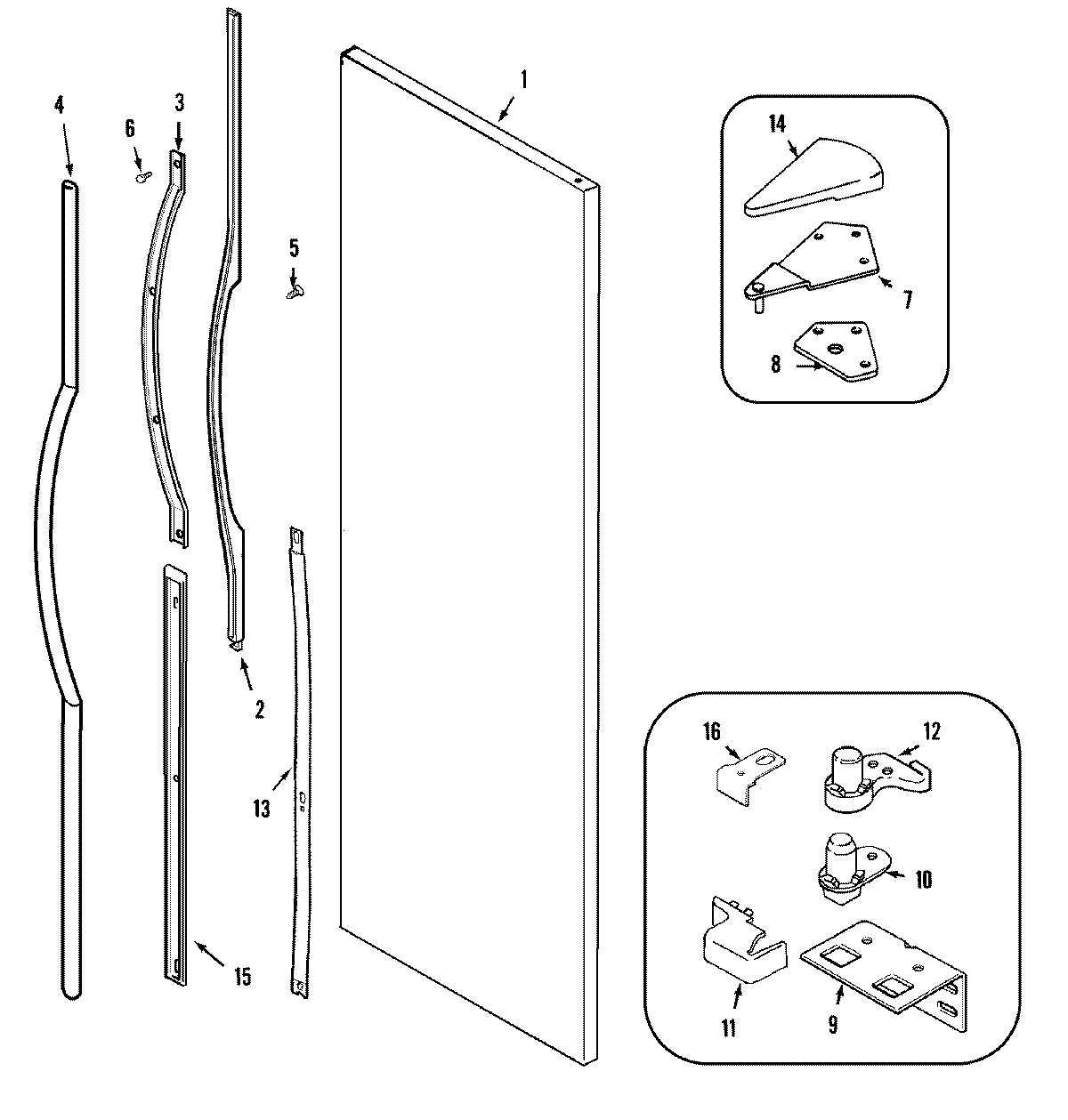

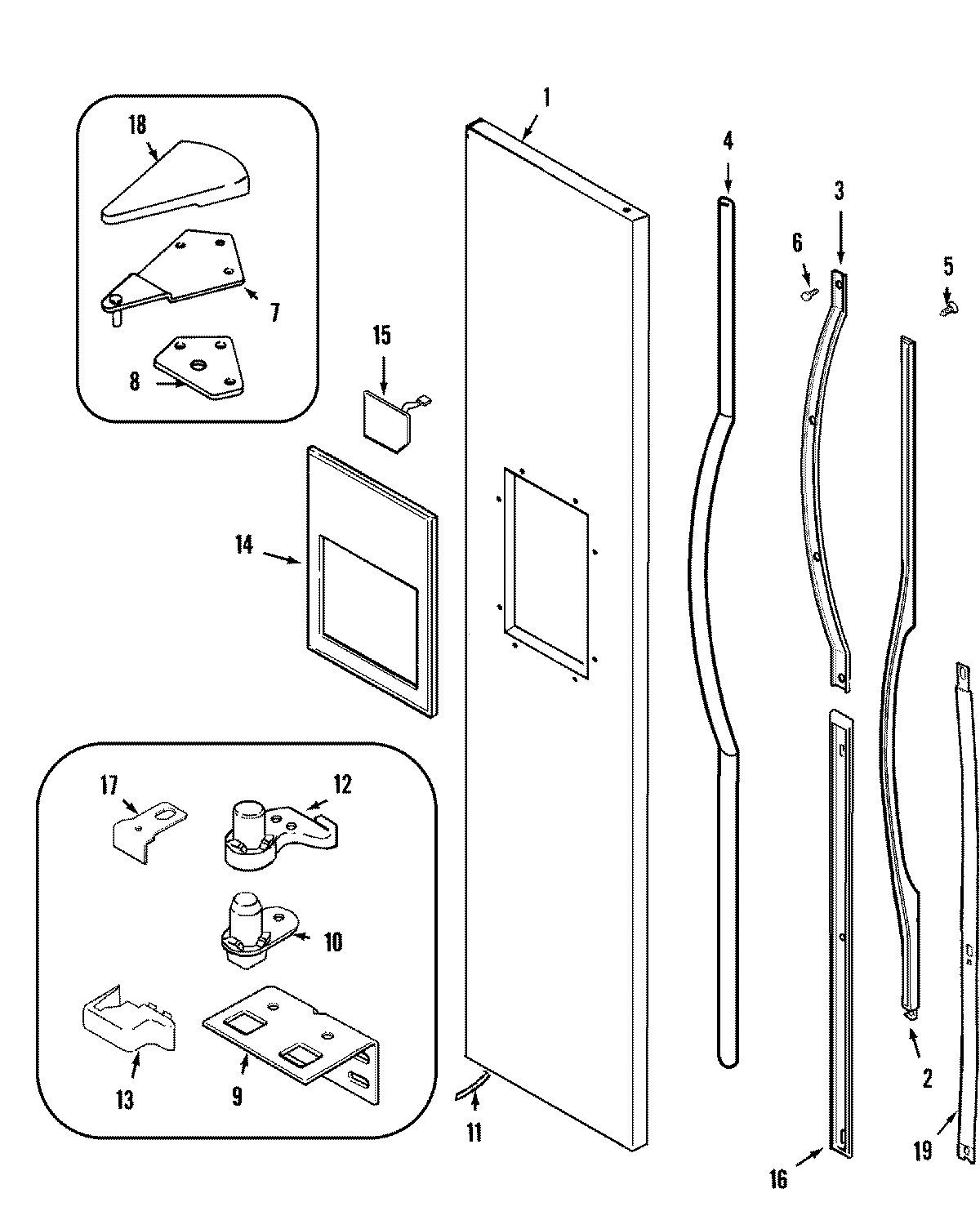

Model Whirlpool JSD2789HEB REFRIGERATOR – Common Parts &amp; Diagrams

1

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

1

PANEL, FRZ. DOOR (BLK) WPL 61005772 Contact Us For Availability

1

BIN, ICE WPL 61004802 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDES) WPL 61003979 Contact Us For Availability

1

INSERT, LINER SUPPORT(TOP/BTM) WPL 61003980 Contact Us For Availability

1

SCREW WPL 61005749 Contact Us For Availability

1

LINER, F.F. DOOR WPL 61005942 Contact Us For Availability

1

PANEL, F.F. DOOR (BLK) WPL 61005800 Contact Us For Availability

1

SCREW WPL 61003307 Contact Us For Availability

1

HOUSING, FOUNTAIN (BLK) WPL 61004681 Contact Us For Availability

1

LINER, FRZ. DOOR WPL 61003854 Contact Us For Availability

1

INSERT, LINER SUPPORT(TOP/BTM) WPL 61003917 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDE) WPL 61004741 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61006273 Contact Us For Availability

1

SCREW WPL 61005618 Contact Us For Availability

1

RAIL, SHELF SUPPORT WPL 61005630 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003228 Contact Us For Availability

1

HOUSING ASSY., AUTO DAMPER WPL 61005971 Contact Us For Availability

2

WP61005944 Whirlpool Refrigerator Seal - Free Backorder WPL WP61005944 $229.50

2

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

2

HANDLE, F.F. DOOR (BLK) WPL 61004958 Contact Us For Availability

2

FRONT, ICE BIN WPL 61004803 Contact Us For Availability

2

COVER, ICE MAKER WPL 61005374 Contact Us For Availability

2

TAPE (1FT.) WPL 61003286 Contact Us For Availability

2

SEAL, FRZ. DOOR (BLK) WPL 61005947 Contact Us For Availability

2

MANUAL, USE & CARE WPL Y111522001 Contact Us For Availability

2

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

2

COVER, CRISPER SHELF (LWR) WPL 61004985 Contact Us For Availability

2

COVER, CRISPER SHELF (UPR) WPL 61005076 Contact Us For Availability

3

61005438 Whirlpool Refrigerator Temperature C Backorder WPL 61005438 $143.05

3

SCREW WPL 4000161 Contact Us For Availability

3

FRAME, HANDLE WPL 61004385 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability

3

DOOR, DAIRY WPL 61004124 Contact Us For Availability

3

GROMMET, WATER TUBE WPL 61003300 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61004077 Contact Us For Availability

3

MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability

3

RETAINER, EVAPORATOR FAN WPL 61005340 Contact Us For Availability

3

GLASS, MEAT SHELF WPL 61004073 Contact Us For Availability

4

WP61005627 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005627 $183.30

4

BUSHING, EVAPORATOR FAN WPL 61005341 Contact Us For Availability

4

INSERT, HANDLE (BLK) WPL 61004084 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61004804 Contact Us For Availability

4

SEAL WPL 61004869 Contact Us For Availability

4

FRAME ASSY., CHILL COMPT. WPL 61004718 Contact Us For Availability

4

FOIL, FTN. BACK WPL 61003304 Contact Us For Availability

4

BASKET, TILTDOWN WPL 61003988 Contact Us For Availability

4

PAN ASSY., CRISPER (UPR) WPL 61005713 Contact Us For Availability

4

ROD, DAMPER CONTROL WPL 61003287 Contact Us For Availability

5

SCREW, HANDLE TO FRAME WPL 61003351 Contact Us For Availability

5

RING, SNAP WPL 697041 Contact Us For Availability

5

WIRE HARNESS, ICE MAKER WPL 61005278 Contact Us For Availability

5

SCREW WPL 61002584 Contact Us For Availability

5

CAM, LATCH WPL 61004685 Contact Us For Availability

5

HEATER, FOUNTAIN WPL 61005001 Contact Us For Availability

5

STOP, BASKET (LT) WPL 61003753 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61003754 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61004522 Contact Us For Availability

5

PAN ASSY., CRISPER (LWR) WPL 61005622 Contact Us For Availability

5

ROD, TEMP. CONTROL WPL 61003293 Contact Us For Availability

6

WASHER, RETAINER WPL 697031 Contact Us For Availability

6

CLIP, WATER LINE (ADHESIVE) WPL 61005058 Contact Us For Availability

6

GROMMET ASSY., WATER LINE WPL 61005984 Contact Us For Availability

6

SPRING, LATCH WPL 61003974 Contact Us For Availability

6

CHUTE, ICE WPL 61004677 Contact Us For Availability

6

SHROUD, FAN WPL 61003898 Contact Us For Availability

6

FRAME, SLIDE OUT SHELF WPL 61005897 Contact Us For Availability

6

END CAP, CONTROL ROD WPL 61004591 Contact Us For Availability

7

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

7

WP61005883 Whirlpool Ice Dispenser Door Flap In Stock WPL WP61005883 $22.72

7

HINGE, UPPER WPL 61006257 Contact Us For Availability

7

GROMMET ASSY., WATER LINE WPL 61005683 Contact Us For Availability

7

TRAY, EGG WPL 600661 Contact Us For Availability

7

SEAL, CRISPER SHELF (REAR) WPL 61005827 Contact Us For Availability

7

GEAR, CONTROL SLIDE WPL 61003305 Contact Us For Availability

8

12001773 Whirlpool Refrigerator Primary Auger Backorder WPL 12001773 $232.42

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61005281 Contact Us For Availability

8

SEE NOTE MUST ORDER TANK ASSY. PART NO. 6 WPL Y00000000 Contact Us For Availability

8

DRAWER, CHILL COMPT. WPL 61004125 Contact Us For Availability

8

STRIKE, ICE DOOR WPL 61005886 Contact Us For Availability

8

EVAP/HEAT EXCH,ASSY27,29,CDSXS WPL 12001641 Contact Us For Availability

8

SCREW WPL 61003359 Contact Us For Availability

8

DAMPER, AUTO WPL 61005044 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

9

HINGE, LOWER (ZINC) WPL 61006113 Contact Us For Availability

9

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

9

SHELF, CHILL COMPT. WPL 61003977 Contact Us For Availability

9

GUARD, CHIP (BLK) WPL 67001881 Contact Us For Availability

9

SCREW WPL 67001970 Contact Us For Availability

9

DIVIDER, DISPENSER ENCLOSURE WPL 61003900 Contact Us For Availability

9

COVER, MEAT CONTROL TAPE WPL 61003723 Contact Us For Availability

9

WASHER, DAMPER ROD WPL 61003358 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

SPRING, FTN. RETURN WPL 61004388 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

AUGER WPL 61003326 Contact Us For Availability

DOOR ASSY., CHILL COMPARTMENT WPL 61005313 Contact Us For Availability

SPACER, DIVIDER WPL 688231 Contact Us For Availability

SCREW WPL 4000191 Contact Us For Availability

BASE, FILLER STRIP (RT) WPL 61004109 Contact Us For Availability

BASE, FILLER STRIP (LT) WPL 61004110 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

TUBING, FOUNTAIN WPL 61004569 Contact Us For Availability

CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

SHELF, PICK-OFF WPL 61005183 Contact Us For Availability

COVER, LOWER HINGE (BLK) WPL 61003537 Contact Us For Availability

SCREW WPL 41504135 Contact Us For Availability

SWITCH, LIMIT WPL 61005520 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

STRIP, FILLER (SIDES) WPL 61003888 Contact Us For Availability

DOOR, DAMPER WPL 61003235 Contact Us For Availability

WP61006199 Whirlpool Refrigerator Heater In Stock WPL WP61006199 $63.54

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

CLOSER, DOOR (W/CUP) WPL 61005726 Contact Us For Availability

WASHER, CONE STOP WPL 696981 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

CLOSER, DOOR (W/CUP) WPL 61005724 Contact Us For Availability

BARRIER WPL 61005372 Contact Us For Availability

GLIDE, SHELF WPL 61004480 Contact Us For Availability

FRAME ASSY., ELEVATOR SHELF WPL 61005439 Contact Us For Availability

SUPPORT, TEMP. CONTROL WPL 61003315 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $6.88

DRIER WPL 139001 Contact Us For Availability

COVER, LOWER HINGE (BLK) WPL 61003529 Contact Us For Availability

RETAINER, HANDLE WPL 61004781 Contact Us For Availability

IMPELLER WPL 700361 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

SOLENOID (115V) WPL 61005884 Contact Us For Availability

SHELF, ELEVATOR WPL 61004389 Contact Us For Availability

DEFROST KIT,ENHANCED ADAPTIVE WPL 12002104 Contact Us For Availability

SCREW WPL 61005951 Contact Us For Availability

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

BRACKET, FOUNTAIN (BLK) WPL 61003803 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 61006190 Contact Us For Availability

ESCUTCHEON (BLK) WPL 61005056 Contact Us For Availability

PLATE, DRIVE WPL 697551 Contact Us For Availability

INLET, WATER WPL 951001 Contact Us For Availability

TRAY, BUTTER WPL 299362 Contact Us For Availability

COVER, UPPER HINGE (BLK) WPL 61004679 Contact Us For Availability

HOUSING, EVAPORATOR WPL 61003830 Contact Us For Availability

PAN ASSY., MEAT WPL 61005715 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003229 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61005972 Contact Us For Availability

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

WP61005277 Whirlpool Refrigerator Electronic Backorder WPL WP61005277 $107.25

SCREW WPL 61003422 Contact Us For Availability

TRIM, HANDLE EXT. (LWR-BLK) WPL 61004957 Contact Us For Availability

NUT, AUGER WPL 697091 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

BUCKET, TIP-OUT WPL 61004094 Contact Us For Availability

RECEPTACLE, BULB WPL 701191 Contact Us For Availability

COVER, COIL (UPR) WPL 61005864 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

SEAL, TUNNEL (DOUBLE-SIDED) WPL 61005075 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61006038 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP61002308 Whirlpool Refrigerator Screw Backorder WPL WP61002308 $5.02

PAN, DRAIN WPL 61004095 Contact Us For Availability

STOP, DOOR WPL 61003273 Contact Us For Availability

BEARING, SPACER WPL 696971 Contact Us For Availability

ARM, SENSOR WPL 61005657 Contact Us For Availability

STOP, BUCKET WPL 61005929 Contact Us For Availability

BULB, LIGHT WPL 631791 Contact Us For Availability

SEAL, TUNNEL WPL 61003819 Contact Us For Availability

PAD, ACTUATOR (BLK) WPL 61003804 No Longer Available

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

ADAPTER, FAN MOTOR WPL 61005325 Contact Us For Availability

SCREW WPL 61005934 Contact Us For Availability

SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability

BRACKET, WATER VALVE WPL 61003732 Contact Us For Availability

SCREW WPL 41400435 Contact Us For Availability

RAIL, TWIN BASKET (RT) WPL 61003956 Contact Us For Availability

RAIL, TWIN BASKET (LT) WPL 61003957 Contact Us For Availability

TAPE, MEAT CONTROL WPL 61003943 Contact Us For Availability

RECEPTACLE, BULB WPL 61005973 Contact Us For Availability

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

COVER, UPPER HINGE (BLK) WPL 61004678 Contact Us For Availability

SPACER, BLADE WPL 696962 Contact Us For Availability

STRIPPER, ICE WPL 951021 Contact Us For Availability

GRILL (BLK) WPL 61003782 Contact Us For Availability

COVER, EVAPORATOR FAN WPL 61003835 Contact Us For Availability

DUCT, AIR (MEAT) WPL 61006055 Contact Us For Availability

FOIL (RT) WPL 61005974 Contact Us For Availability

FOIL (LT) WPL 61005975 Contact Us For Availability

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

PLATE, IMPELLER WPL 697011 Contact Us For Availability

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 61003674 Contact Us For Availability

SHIELD, HEAT WPL 61005976 Contact Us For Availability

61005625 Whirlpool Refrigerator Ice Enclosure Backorder WPL 61005625 $149.99

61005626 Whirlpool Water Inlet Valve In Stock WPL 61005626 $82.80

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

SWITCH, LIGHT WPL 61006166 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61004584 Contact Us For Availability

SCREW WPL 41501335 Contact Us For Availability

COVER, COIL (LWR) WPL 61003836 Contact Us For Availability

SCREW WPL 61004424 Contact Us For Availability

COVER, MEAT PAN SLIDE WPL 61003784 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61004674 Contact Us For Availability

SCREW WPL 4000221 Contact Us For Availability

SUPPORT, ENCLOSURE WPL 61005080 Contact Us For Availability

FRAME, CRISPER SHELF (LWR) WPL 61006063 Contact Us For Availability

SHIELD, LIGHT WPL 61004521 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

PAN, COMPRESSOR MTG. WPL 61005269 Contact Us For Availability

SCREW WPL 40002612 Contact Us For Availability

GUIDE, YOKE WPL 697151 Contact Us For Availability

INSULATION WPL 61003340 Contact Us For Availability

SEAL, LOWER COVER WPL 61003837 Contact Us For Availability

FRAME, CRISPER SHELF (UPR) WPL 61006062 Contact Us For Availability

RETAINER, CONTROL ROD WPL 61003316 Contact Us For Availability

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

KICKPLATE (BLK) WPL 61004055 Contact Us For Availability

BLADE, CRUSHER WPL 697023 Contact Us For Availability

INSULATION, FTN. (STYROFOAM) WPL 61004724 Contact Us For Availability

TUNNEL, AIR WPL 61005812 Contact Us For Availability

SEAL, CRISPER SIDE (UPR) WPL 61003714 Contact Us For Availability

SEAL, CRISPER SIDE WPL 61003938 Contact Us For Availability

PANEL, CONTROL WPL 61003872 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

BLADE, CRUSHER WPL 697022 Contact Us For Availability

INSULATION WPL 61003308 Contact Us For Availability

ROLLER, TWIN BASKET WPL 61003958 Contact Us For Availability

WASHER WPL 61003959 Contact Us For Availability

SCREW WPL 61003960 Contact Us For Availability

FRONT ASSY., MEAT PAN WPL 61004086 Contact Us For Availability

BRACKET, WATER FILTER WPL 61003698 Contact Us For Availability

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

BLADE, CRUSHER WPL 697061 Contact Us For Availability

INSULATION WPL 61003343 Contact Us For Availability

GROMMET, FILL TUBE WPL 61005743 Contact Us For Availability

RECEPTACLE, BULB WPL 61003379 Contact Us For Availability

FILTER, WATER WPL UKF7002AXX Contact Us For Availability

675791 Whirlpool Dishwasher ARM Assembly Backorder WPL 675791 $80.75

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

BLADE, CRUSHER WPL 697021 Contact Us For Availability

WIRE HARNESS, FTN. WPL 61005275 Contact Us For Availability

FITTING, WATER FILTER WPL 67001351 Contact Us For Availability

LEG, LEVELING WPL 61002014 Contact Us For Availability

LOCK, FIXED BLADE WPL 697081 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

FRAME, MEAT SHELF WPL 61006064 Contact Us For Availability

SCREW WPL 61003796 Contact Us For Availability

YODER LOOP HTR(115V)27,29,23CD WPL 12001548 Contact Us For Availability

PIN, BLADE LOCK WPL 697051 Contact Us For Availability

SWITCH, LIGHT WPL 61006167 Contact Us For Availability

SHIELD, LIGHT WPL 61003439 Contact Us For Availability

FITTING, WATER FILTER WPL 61003790 Contact Us For Availability

DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability

RECEPTACLE, BULB WPL 61005748 Contact Us For Availability

SEAL, CRISPER SHELF (FRT.) WPL 61005046 Contact Us For Availability

FRONT ASSY., CRISPER PAN WPL 61005047 Contact Us For Availability

PLUG, FILTER BYPASS WPL 61003791 Contact Us For Availability

ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability

BULB, LIGHT WPL 319561 Contact Us For Availability

SHELF, SLIDE OUT (SPILLPROOF) WPL 61004228 Contact Us For Availability

HEAD, WATER FILTER WPL 61003789 Contact Us For Availability

SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

HOUSING, CONTROL SLIDE WPL 61003946 Contact Us For Availability

GRILL, LIGHT WPL 61004590 Contact Us For Availability

BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability

TRIM, SHELF (FRT) WPL 61003950 Contact Us For Availability

RETAINER, DUCT WPL 61003725 Contact Us For Availability

SLIDE, CONTROL (CHILL COMPT.) WPL 61003945 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61006124 Contact Us For Availability

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $8.89

WP61005337 Whirlpool Refrigerator Support Backorder WPL WP61005337 $6.47

SCREW WPL 4000171 Contact Us For Availability

SOLENOID WPL 61005253 Contact Us For Availability

SHELF, FRZ. WPL 61003951 Contact Us For Availability

SCREW WPL 61005338 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

34

YOKE ASSY. WPL 61005844 Contact Us For Availability

34

BASKET, TWIN (UPR) WPL 61003952 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

37

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

38

BASKET, TWIN (LWR) WPL 61003953 Contact Us For Availability

39

BASKET, FRZ. (HALF) WPL 61003954 Contact Us For Availability

40

WIRE HARNESS, FRZ. WPL 61003731 Contact Us For Availability

40

WIRE HARNESS, FAN & HEATER WPL 61005351 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002760 Contact Us For Availability
