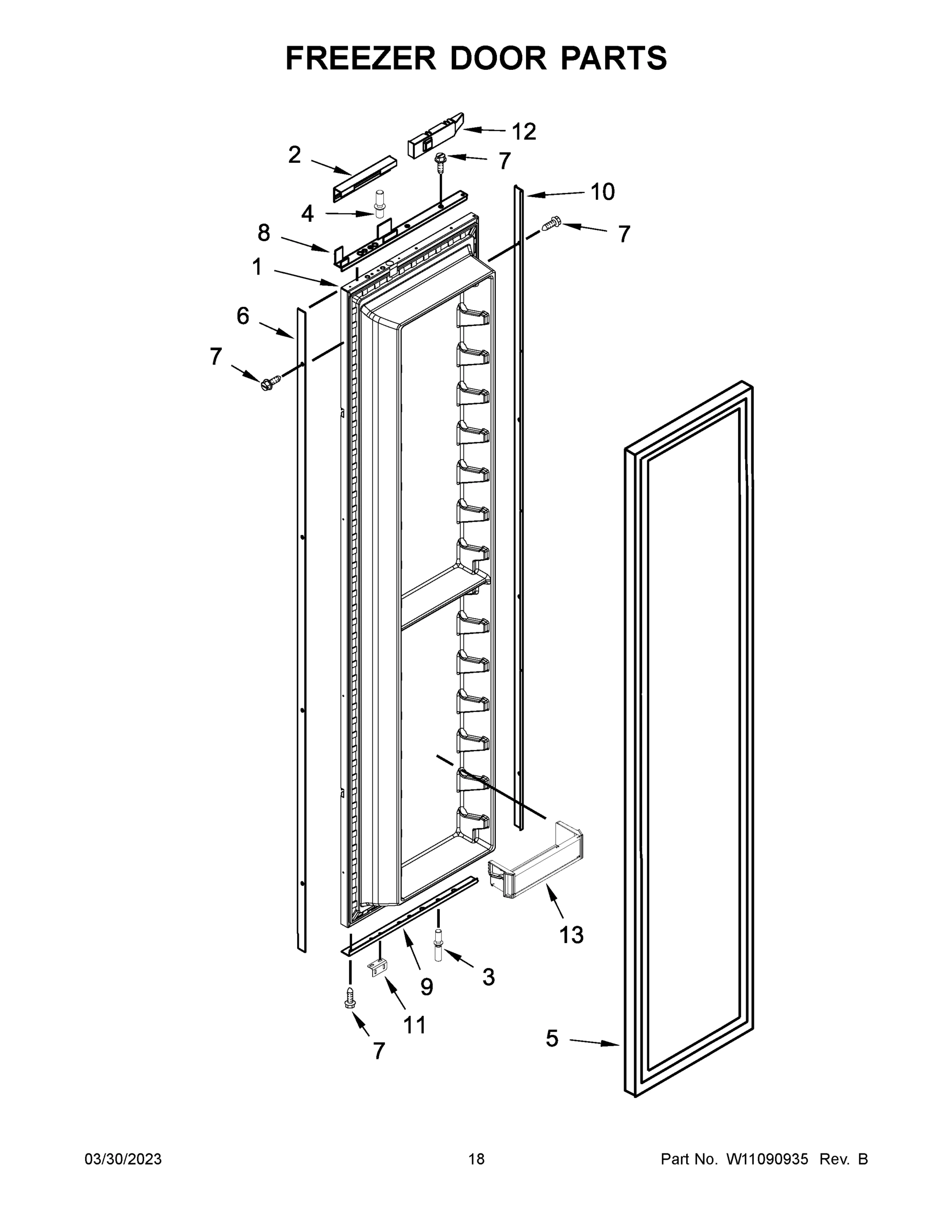

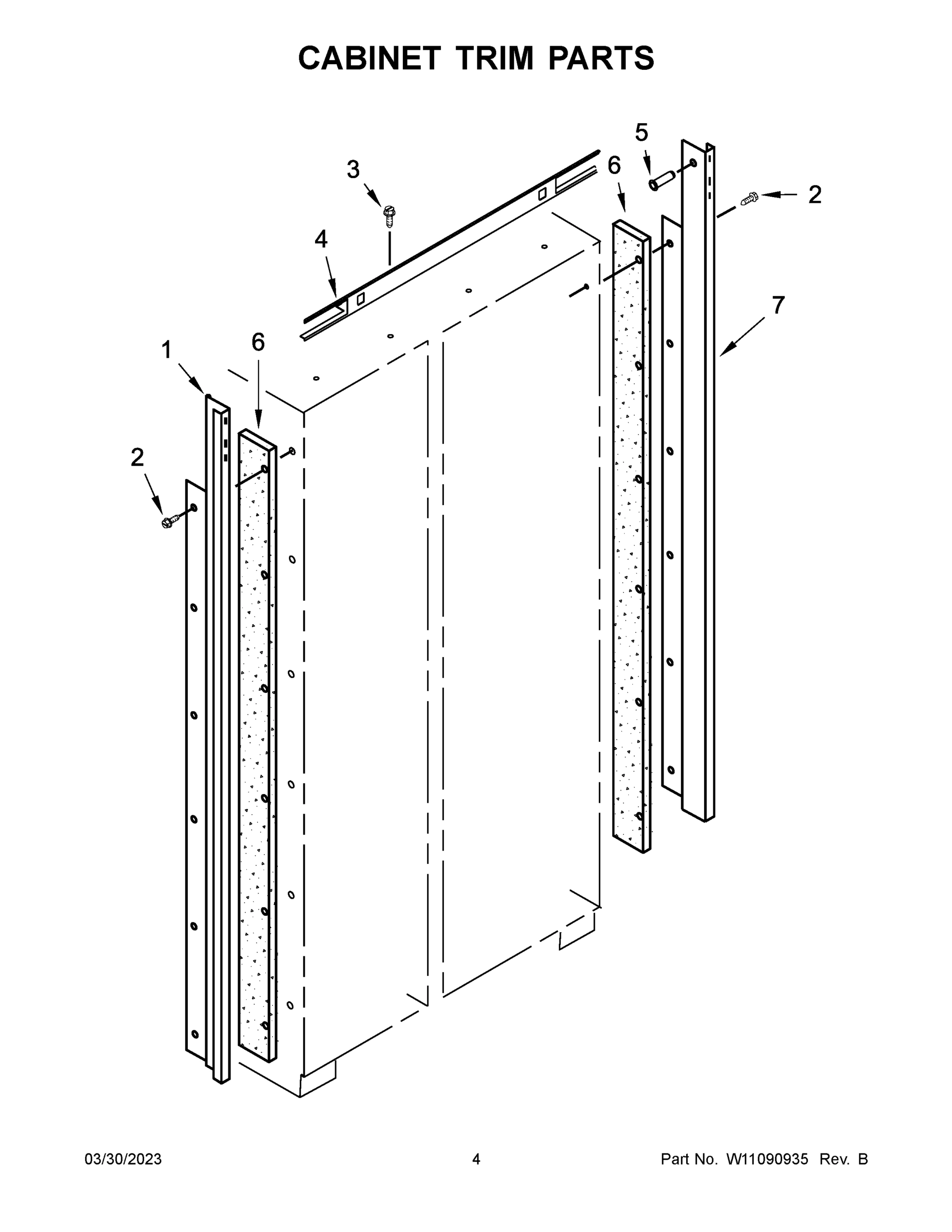

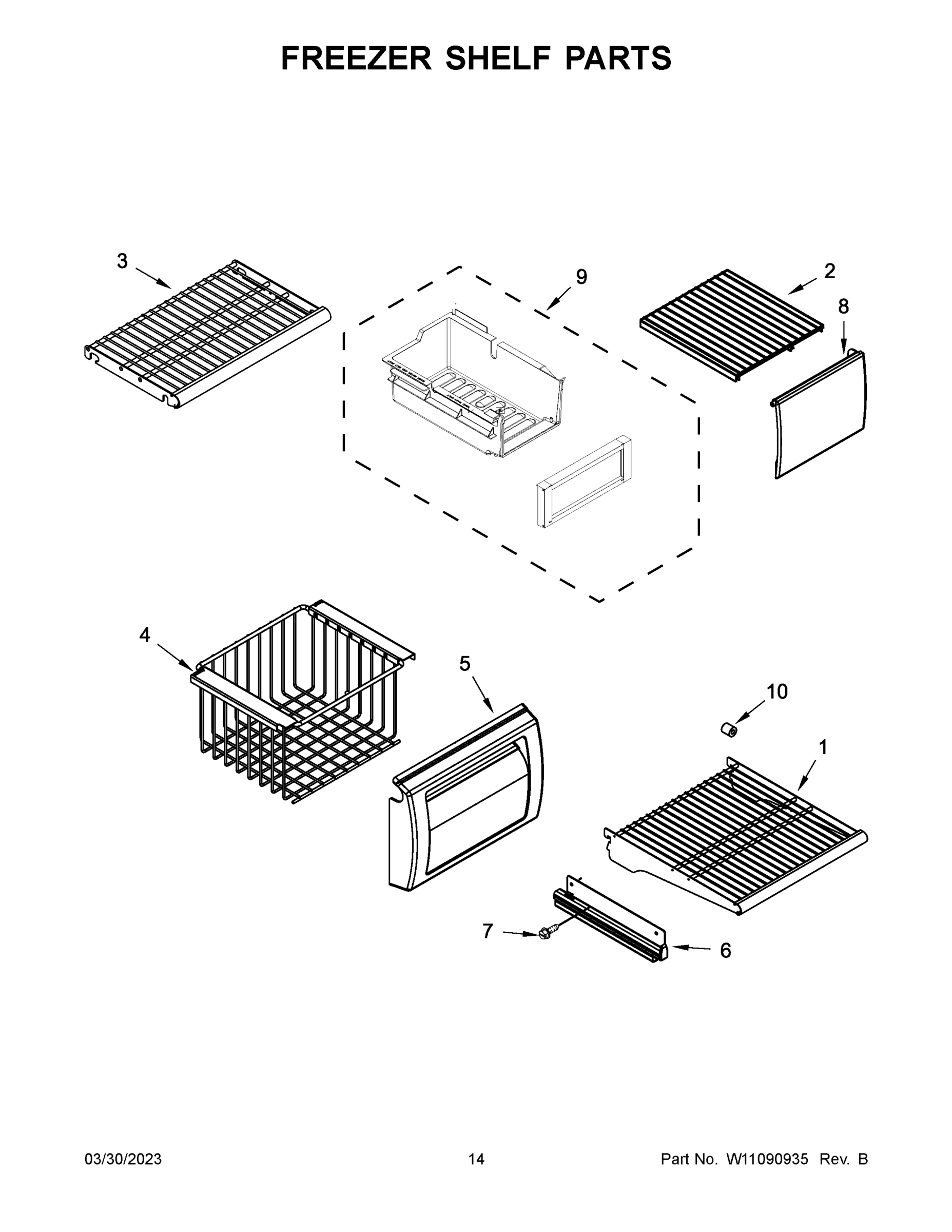

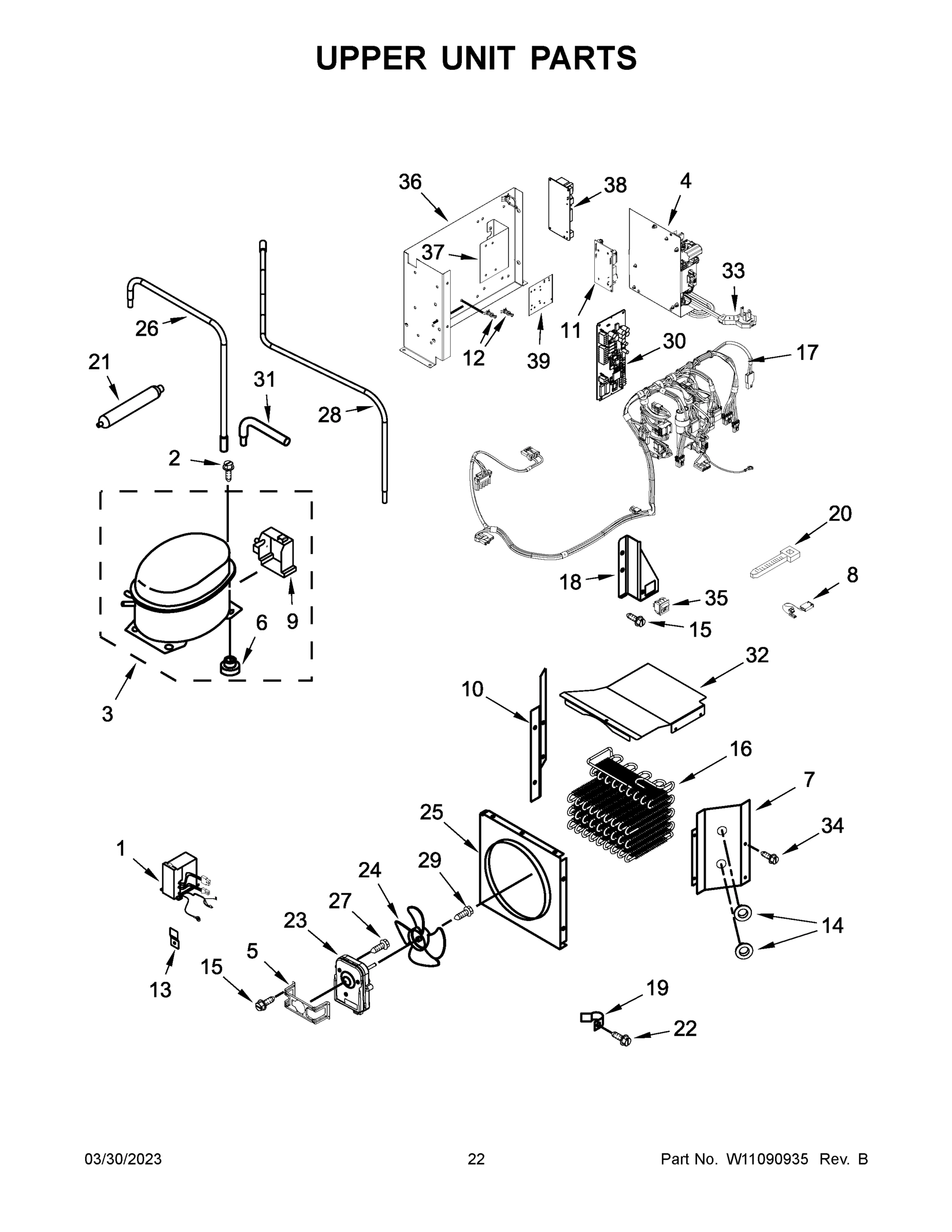

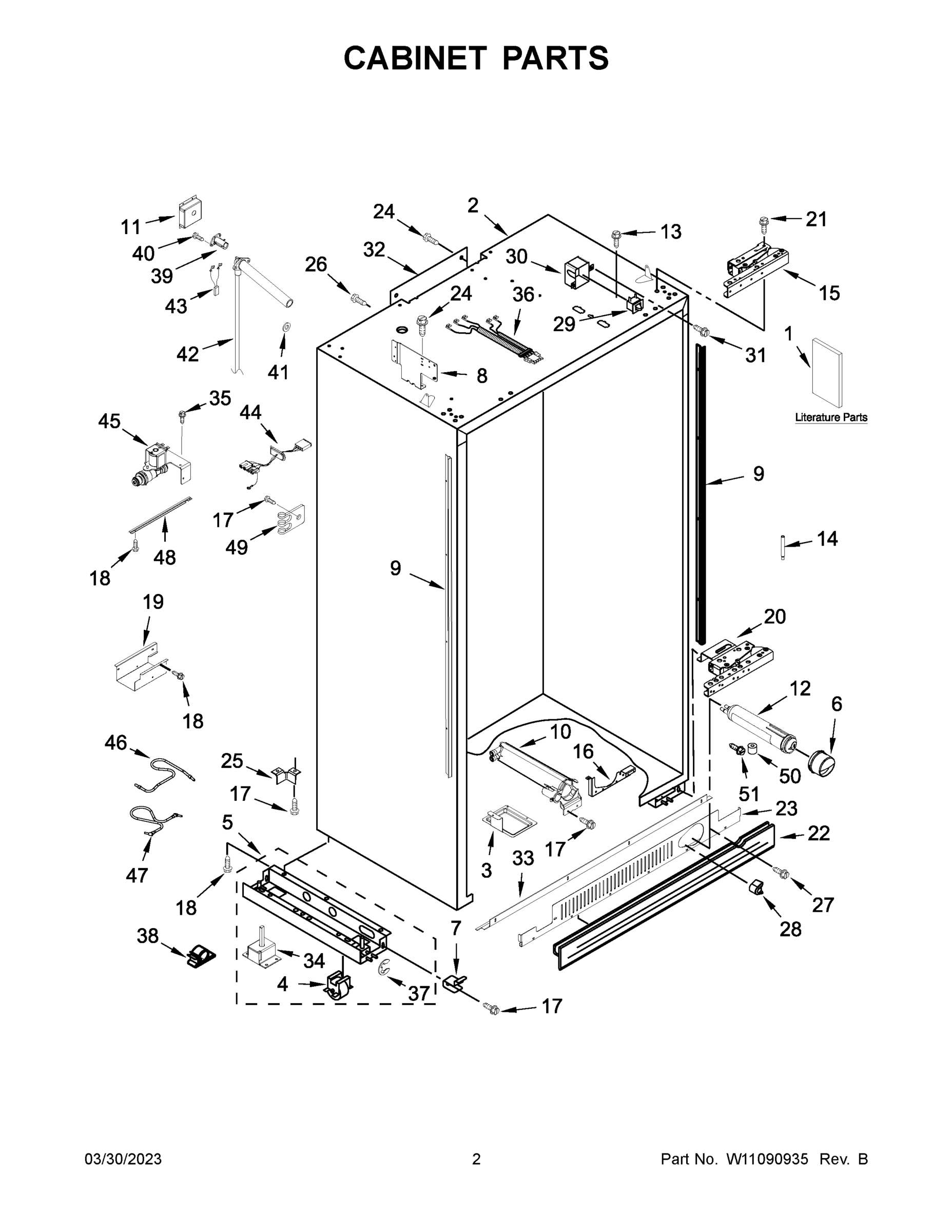

Model Whirlpool JS42NXFXDE01 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

W11573593 Whirlpool Refrigerator Inverter Box In Stock WPL W11573593 $147.83

1

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

1

W11735285 Whirlpool Unit Cover Backorder WPL W11735285 $126.50

1

DOR-FIP (DROP SHIP) Backorder WPL W11827069 $658.09

1

SHELF, WIRE WPL W10759084 Contact Us For Availability

2

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.85

2

W10775727 Whirlpool Refrigerator Cover Trim Backorder WPL W10775727 $94.98

2

W10777656 Whirlpool Shelf Backorder WPL W10777656 $117.39

2

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

2

BRACKET, HEATER WPL W10157752 Contact Us For Availability

3

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $224.88

3

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $103.52

3

W10648568 Whirlpool Refrigerator Tube Backorder WPL W10648568 $20.14

3

W10775725 Whirlpool Refrigerator Cover Trim Backorder WPL W10775725 $103.20

3

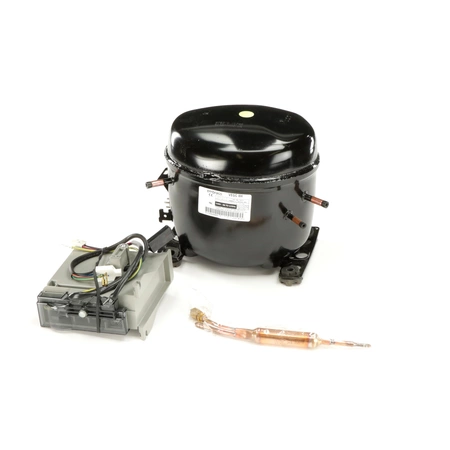

W11103181 Whirlpool Refrigerator Compressor Backorder WPL W11103181 $423.57

3

W11337869 Whirlpool Hinge Pin Backorder WPL W11337869 $42.42

3

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $13.91

3

SHELF, FIXED WPL W10759069 Contact Us For Availability

4

W10234194 Whirlpool Refrigerator Hinge Pin Backorder WPL W10234194 $10.30

4

W10388653 Whirlpool Refrigerator Tube Backorder WPL W10388653 $24.52

4

W10694109 Whirlpool Refrigerator Cover Unit Backorder WPL W10694109 $130.90

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $32.24

4

WPW10200659-includeCORE Whirlpool WPW10200659 Backorder WPL WPW10200659-includeCORE $317.00

4

ASSEMBLY, DIFFUSER WPL W10775715 Contact Us For Availability

4

BASKET, FREEZER WPL W10767693 Contact Us For Availability

5

W10414681 Whirlpool Bracket Backorder WPL W10414681 $54.79

5

W10800817 Whirlpool Refrigerator FIP Gasket Backorder WPL W10800817 $217.13

5

W11623101 Whirlpool Heater-Pan Backorder WPL W11623101 $235.26

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

5

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $4.82

5

ASSEMBLY, BASKET FRONT WPL W10789202 Contact Us For Availability

6

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

6

W10529453 Whirlpool Refrigerator Cantilever B Backorder WPL W10529453 $149.53

6

W10749306 Whirlpool Refrigerator Door Trim As In Stock WPL W10749306 $144.93

6

W11238395 Whirlpool Refrigerator Filter Cap Backorder WPL W11238395 $34.61

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $231.00

6

SEAL, SIDE TRIM WPL 2005925 Contact Us For Availability

6

COVER, WIRE BOX WPL W10321048 Contact Us For Availability

6A

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $169.82

7

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $65.93

7

W10844011 Whirlpool Refrigerator Slide Backorder WPL W10844011 $233.07

7

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $5.30

7

W11350966 Whirlpool Control Bin Backorder WPL W11350966 $241.77

7

WPW10309012 Whirlpool Wire Cover Backorder WPL WPW10309012 $54.89

7

WPW10525179 Whirlpool Plate Backorder WPL WPW10525179 $75.24

7A

W10732727 Whirlpool Refrigerator Slide Backorder WPL W10732727 $233.07

8

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $85.64

8

W10749289 Whirlpool Door Trim Backorder WPL W10749289 $144.93

8

W10786629 Whirlpool Front Compressor Backorder WPL W10786629 $75.98

8

W10800809 Whirlpool Refrigerator FIP Gasket Backorder WPL W10800809 $217.13

8

W11042558 Whirlpool Refrigerator Bracket Backorder WPL W11042558 $61.72

8

TUBE, DISCHARGE WPL W10499596 Contact Us For Availability

8A

W11042559 Whirlpool Refrigerator Bracket Backorder WPL W11042559 $61.72

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $65.65

9

W10787830 Whirlpool Refrigerator Container Backorder WPL W10787830 $182.52

9

W11690161 Whirlpool Support Backorder WPL W11690161 $32.95

9

WPW10427992 Whirlpool Refrigerator Evaporator Backorder WPL WPW10427992 $242.33

9

TRIM, BOTTOM DOOR (CHARCOAL) WPL W10749616 Contact Us For Availability

W10749614 Whirlpool Door Trim Backorder WPL W10749614 $153.24

W10769876 Whirlpool Refrigerator Spacer Backorder WPL W10769876 $160.47

W10785704 Whirlpool Spacer Backorder WPL W10785704 $8.56

W11812025 Whirlpool Heater Backorder WPL W11812025 $52.03

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $126.34

WPW10160570 Whirlpool Refrigerator Bimetallic In Stock WPL WPW10160570 $67.13

WPW10525177 Whirlpool Plate Backorder WPL WPW10525177 $75.24

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $7.19

W10606841 Whirlpool Refrigerator Bracket Backorder WPL W10606841 $24.31

W10830288-includeCORE Whirlpool W10830288 Ref Backorder WPL W10830288-includeCORE $258.43

W10844010 Whirlpool Refrigerator Slide Backorder WPL W10844010 $233.07

11A

W10732303 Whirlpool Refrigerator Slide Backorder WPL W10732303 $233.07

W10139908 Whirlpool Seal Backorder WPL W10139908 $8.23

W10606813 Whirlpool Refrigerator Cover Backorder WPL W10606813 $21.95

W10755238 Whirlpool Door Trim Backorder WPL W10755238 $151.16

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.67

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $198.86

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $49.71

W10432308 Whirlpool Gasket Backorder WPL W10432308 $15.86

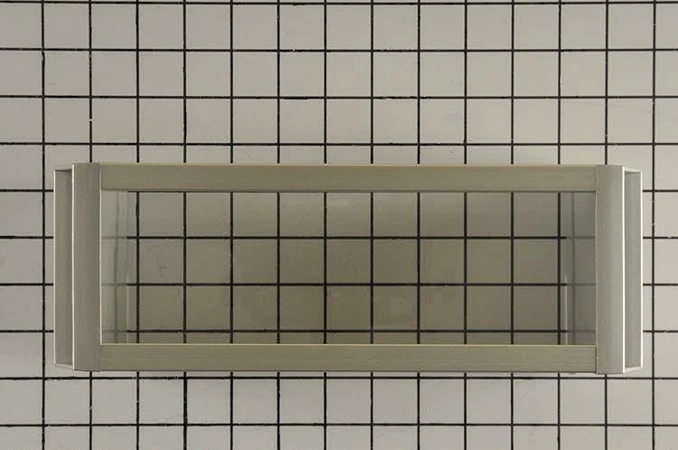

W10594374 Whirlpool Refrigerator Cantilever B Backorder WPL W10594374 $121.45

W10755284 Whirlpool Refrigerator Door Trim Backorder WPL W10755284 $144.93

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $5.30

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

W10234202 Whirlpool Refrigerator Hinge Pin Backorder WPL W10234202 $60.39

W10587113 Whirlpool Grommet Backorder WPL W10587113 $10.00

W10755288 Whirlpool Door Trim Backorder WPL W10755288 $95.36

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $62.44

W10691145 Whirlpool Refrigerator Door Hinge Backorder WPL W10691145 $291.08

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $5.02

MAT, DOOR BIN (SHALLOW) WPL W10746023 Contact Us For Availability

15A

W11700299 Whirlpool Door Hinge Backorder WPL W11700299 $287.90

15A

MAT, DOOR BIN (GALLON) WPL W10746027 Contact Us For Availability

16

2320554 Whirlpool Bracket Backorder WPL 2320554 $58.38

16

W10591457 Whirlpool Refrigerator Condenser Backorder WPL W10591457 $164.17

16

W11755873 Whirlpool Bracket Backorder WPL W11755873 $50.40

17

W10160981 Whirlpool Bracket Backorder WPL W10160981 $10.08

17

ASSEMBLY, UNIT WIRE WPL W10785721 Contact Us For Availability

18

W10321055 Whirlpool Refrigerator Bracket Backorder WPL W10321055 $18.65

18

W10826105 Whirlpool Refrigerator Pro Service Backorder WPL W10826105 $105.81

18

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $6.02

19

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

19

W10701859 Whirlpool Refrigerator Wine Rack Backorder WPL W10701859 $13.15

19

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.67

20

W10321050 Whirlpool Refrigerator Shield Backorder WPL W10321050 $54.93

20

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

21

W11671461 Whirlpool Evaporator Motor In Stock WPL W11671461 $126.78

21

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

21

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

22

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

22

WPW10188549 Whirlpool Refrigerator Front Gril Backorder WPL WPW10188549 $93.53

22

GROMMET, MOTOR WPL W10321090 Contact Us For Availability

23

W10580754 Whirlpool Refrigerator Evaporator B Backorder WPL W10580754 $31.76

23

W11127829 Whirlpool Refrigerator Condenser Mo In Stock WPL W11127829 $112.76

23

W11739147 Whirlpool Front Grille Backorder WPL W11739147 $131.45

24

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $48.87

24

WPW10686115 Whirlpool Refrigerator Gasket Backorder WPL WPW10686115 $58.65

25

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $63.40

25

W10415670 Whirlpool Orifice Backorder WPL W10415670 $33.06

26

W10624944 Whirlpool Refrigerator Tube In Stock WPL W10624944 $20.76

26

W11676572 Whirlpool Refrigerator Wire Harness Backorder WPL W11676572 $91.22

26

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

27

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $6.83

28

W10648264 Whirlpool Refrigerator Tube Backorder WPL W10648264 $53.48

28

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $34.20

29

W11700339 Whirlpool Ice Maker Backorder WPL W11700339 $237.08

29

SWITCH, LIGHT WPL W10606838 Contact Us For Availability

29

SCREW WPL W10141645 Contact Us For Availability

30

ARM-SHUT In Stock WPL W11807379 $43.00

30

WPW10184634-includeCORE Whirlpool WPW10184634 Backorder WPL WPW10184634-includeCORE $328.60

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

32

W10508673 Whirlpool Refrigerator Wire Harness In Stock WPL W10508673 $86.94

32

W10525175 Whirlpool Refrigerator Cover Backorder WPL W10525175 $49.70

33

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $64.43

34

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $135.30

35

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $53.31

36

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $60.24

37

W10761479 Whirlpool Refrigerator Plate Backorder WPL W10761479 $52.93

38

WPW10624574-includeCORE Whirlpool WPW10624574 Backorder WPL WPW10624574-includeCORE $246.92

39

W10770059 Whirlpool Refrigerator Plate Backorder WPL W10770059 $95.45

39

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $90.46

41

WP1106508 Whirlpool Refrigerator Gasket In Stock WPL WP1106508 $6.17

43

W10482373 Whirlpool Refrigerator Jumper Wire In Stock WPL W10482373 $86.94

45

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $114.94

46

W11565275 Whirlpool Refrigerator Water Tube Backorder WPL W11565275 $42.66

47

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $19.00

50

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $14.81

51

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $5.02

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

VALVE, ACCESS WPL 978028 Contact Us For Availability

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
