Model Whirlpool JRTD229W REFRIGERATOR – Common Parts & Diagrams

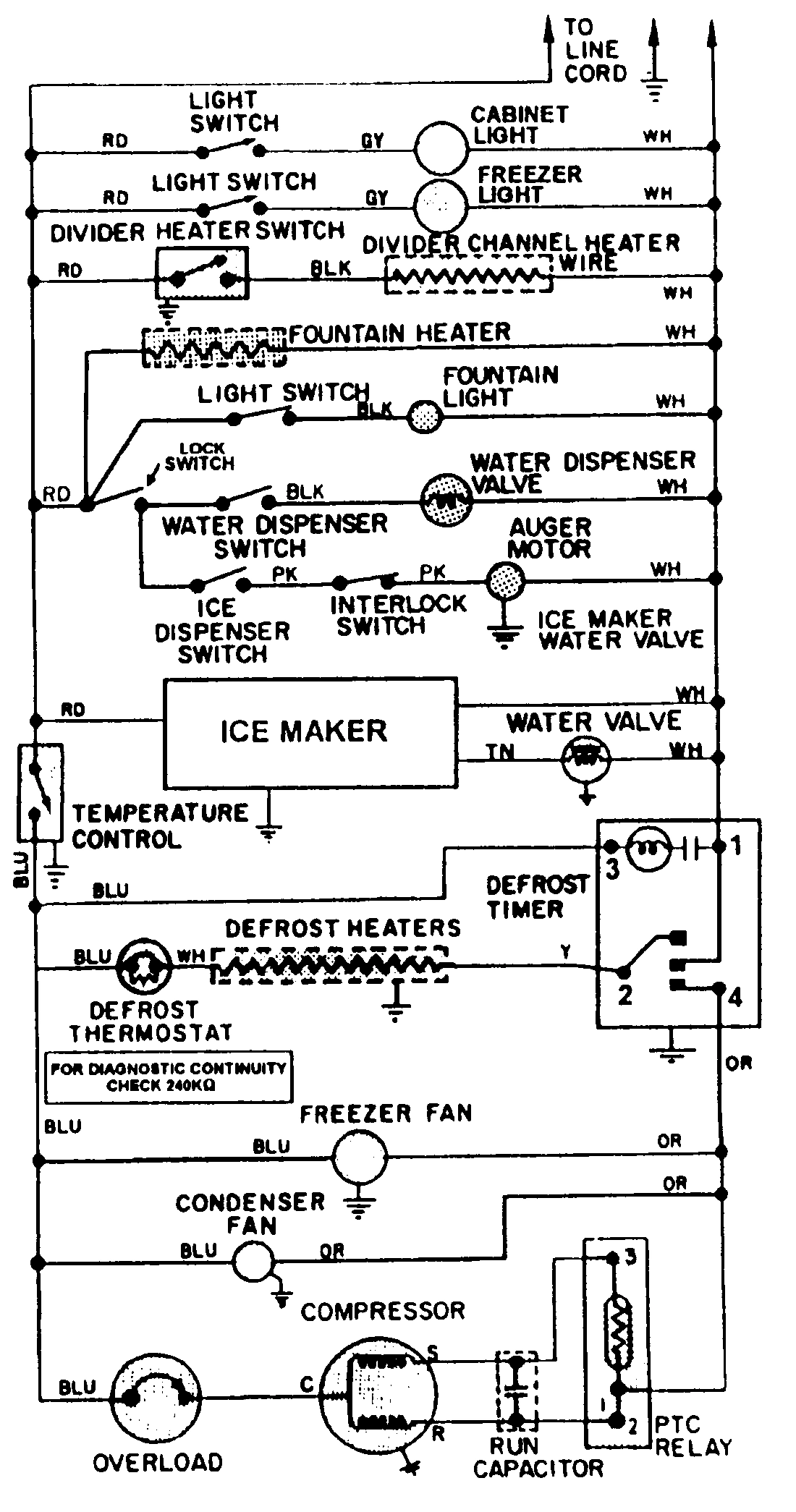

12 - WIRING INFORMATION

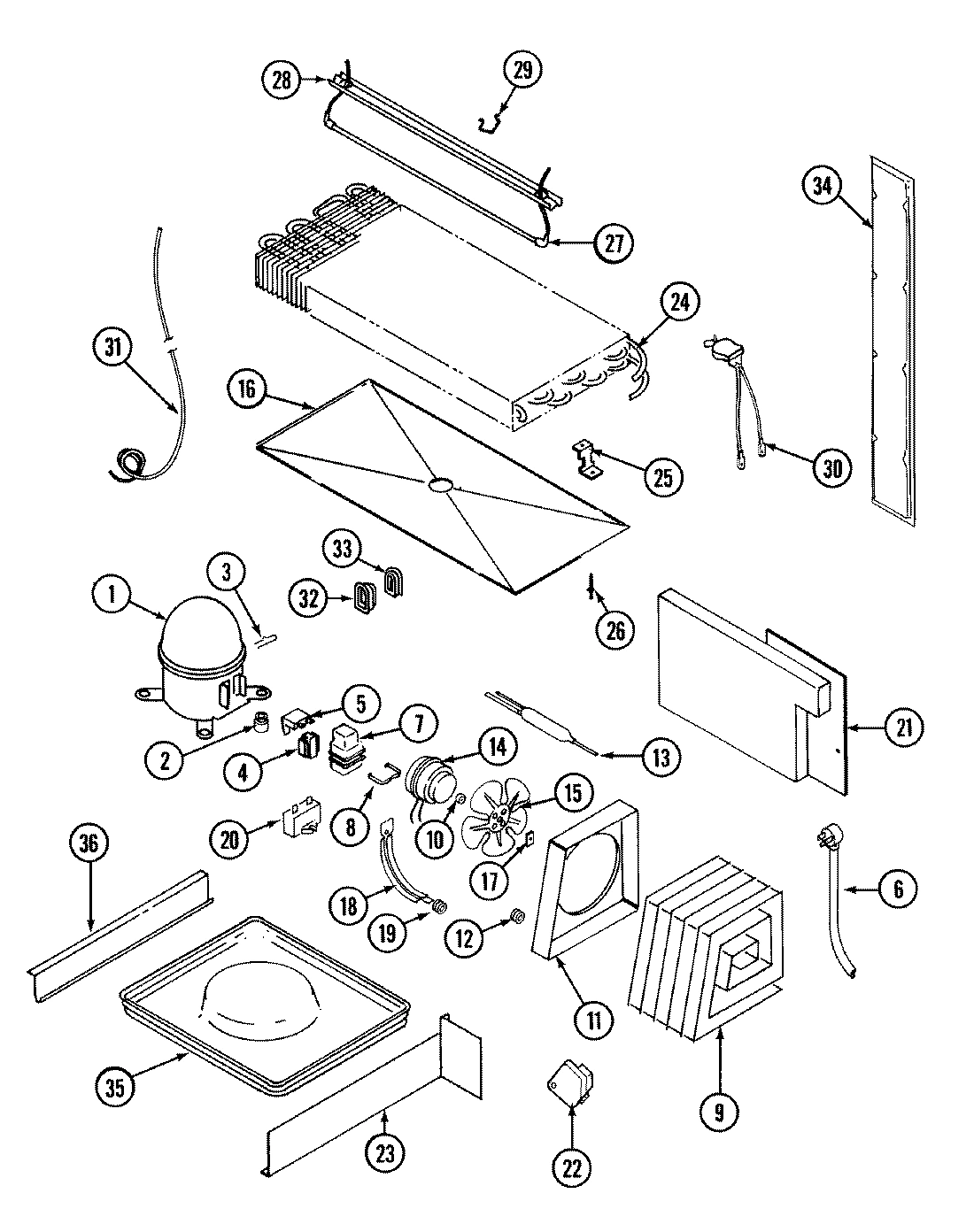

11 - UNIT COMPARTMENT & SYSTEM

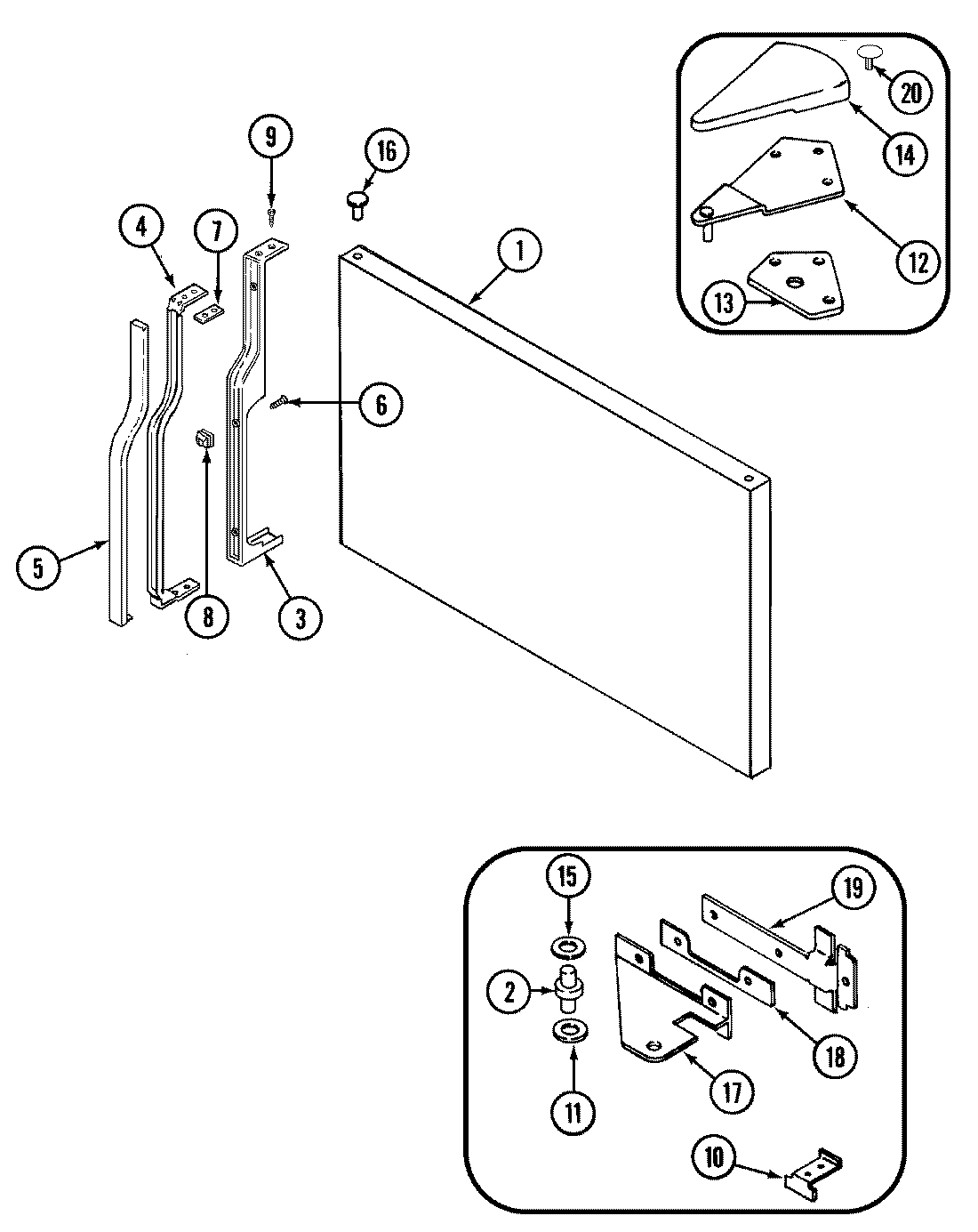

03 - FREEZER OUTER DOOR

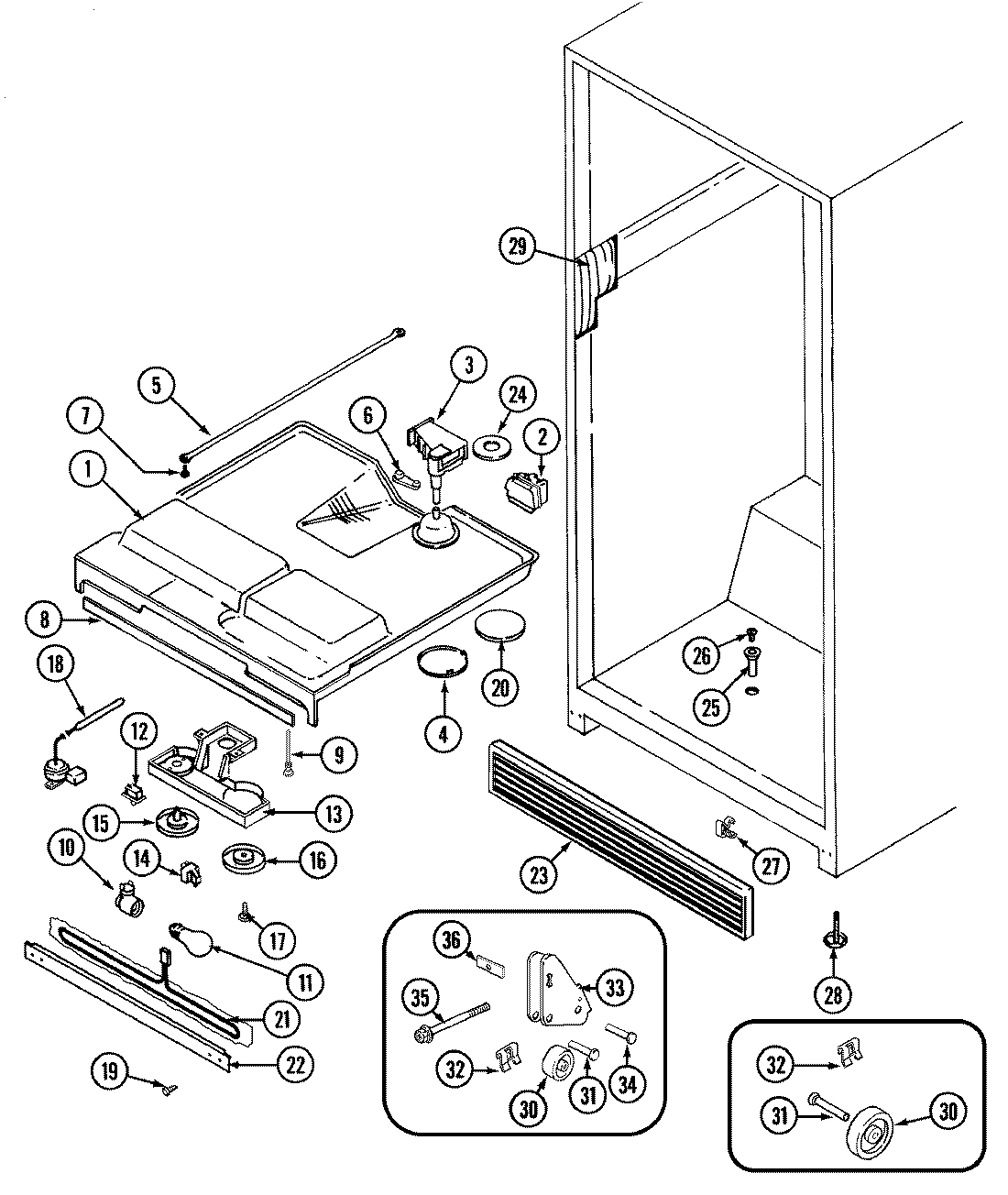

04 - FRESH FOOD COMPARTMENT

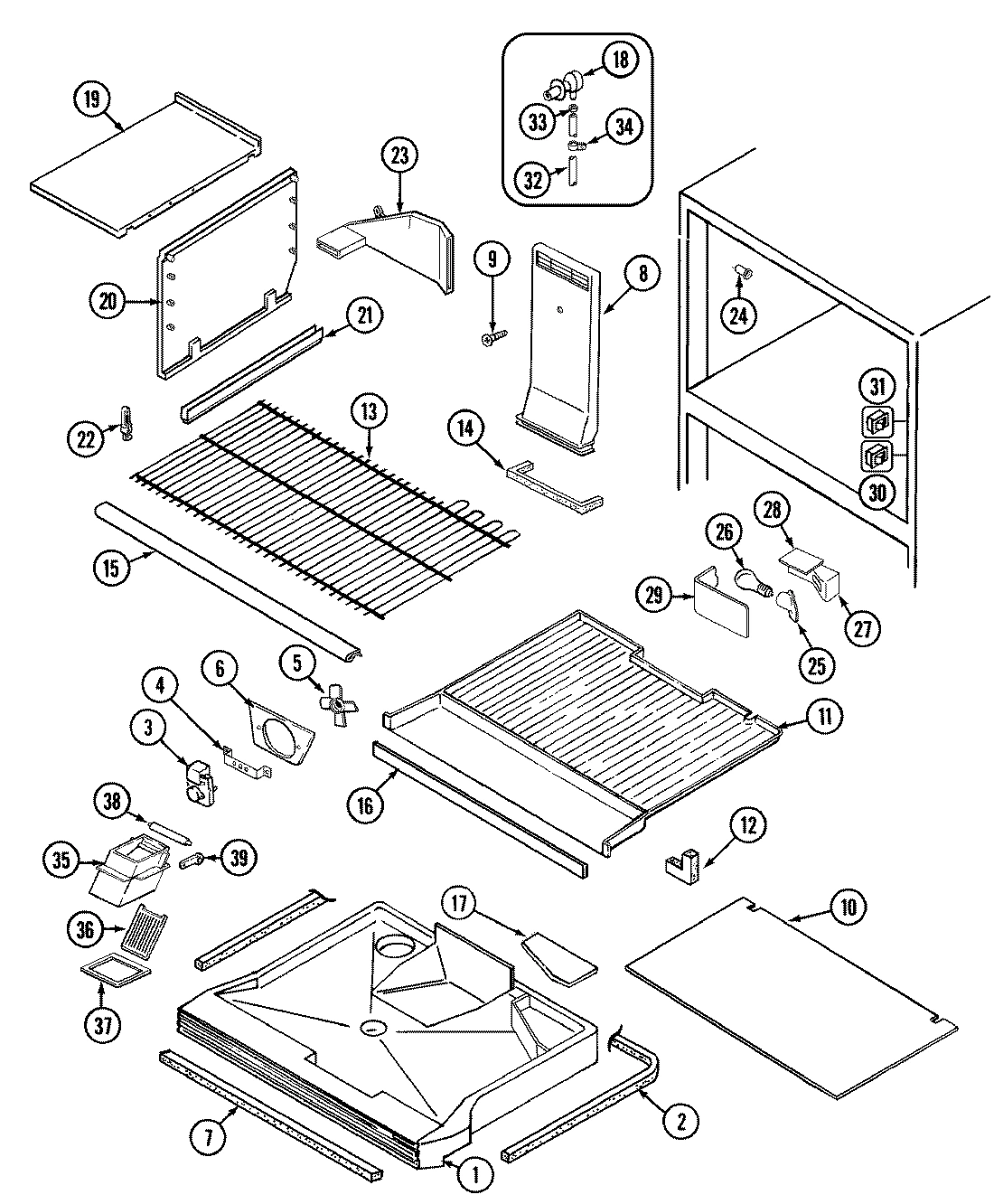

01 - FREEZER COMPARTMENT

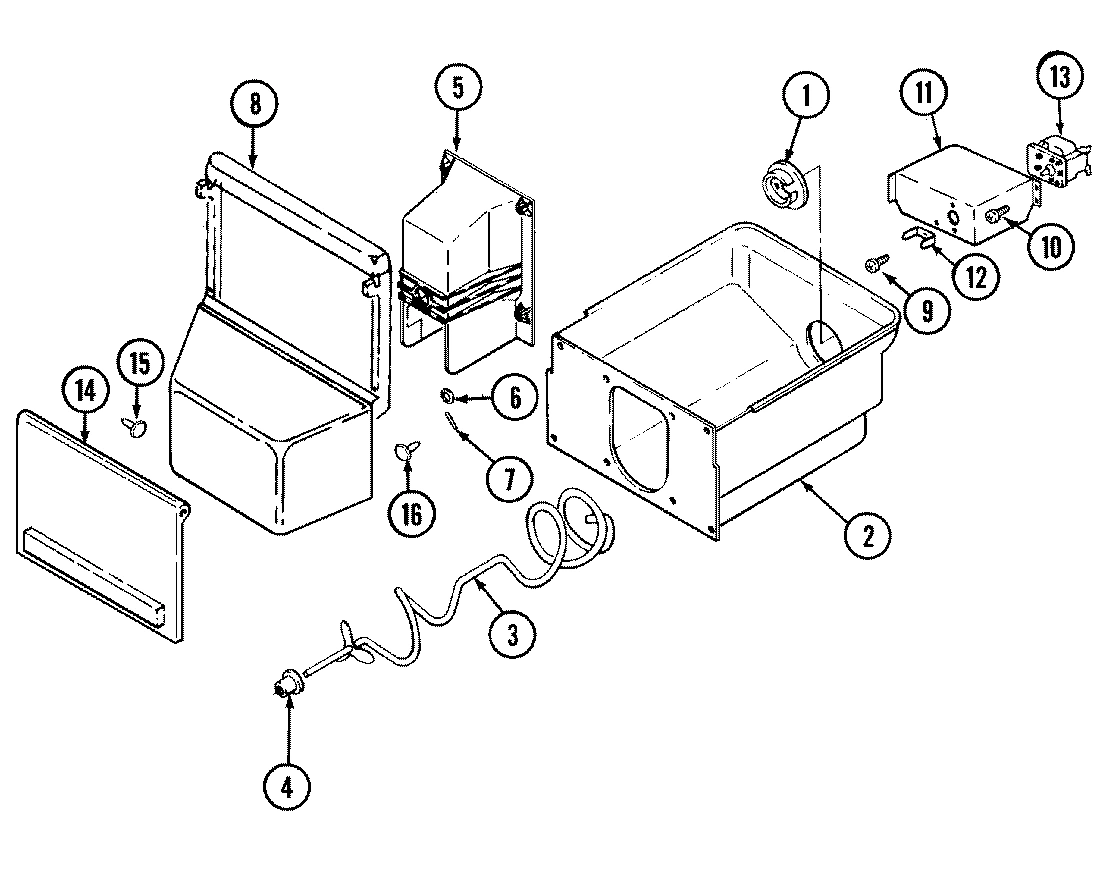

08 - ICE BIN

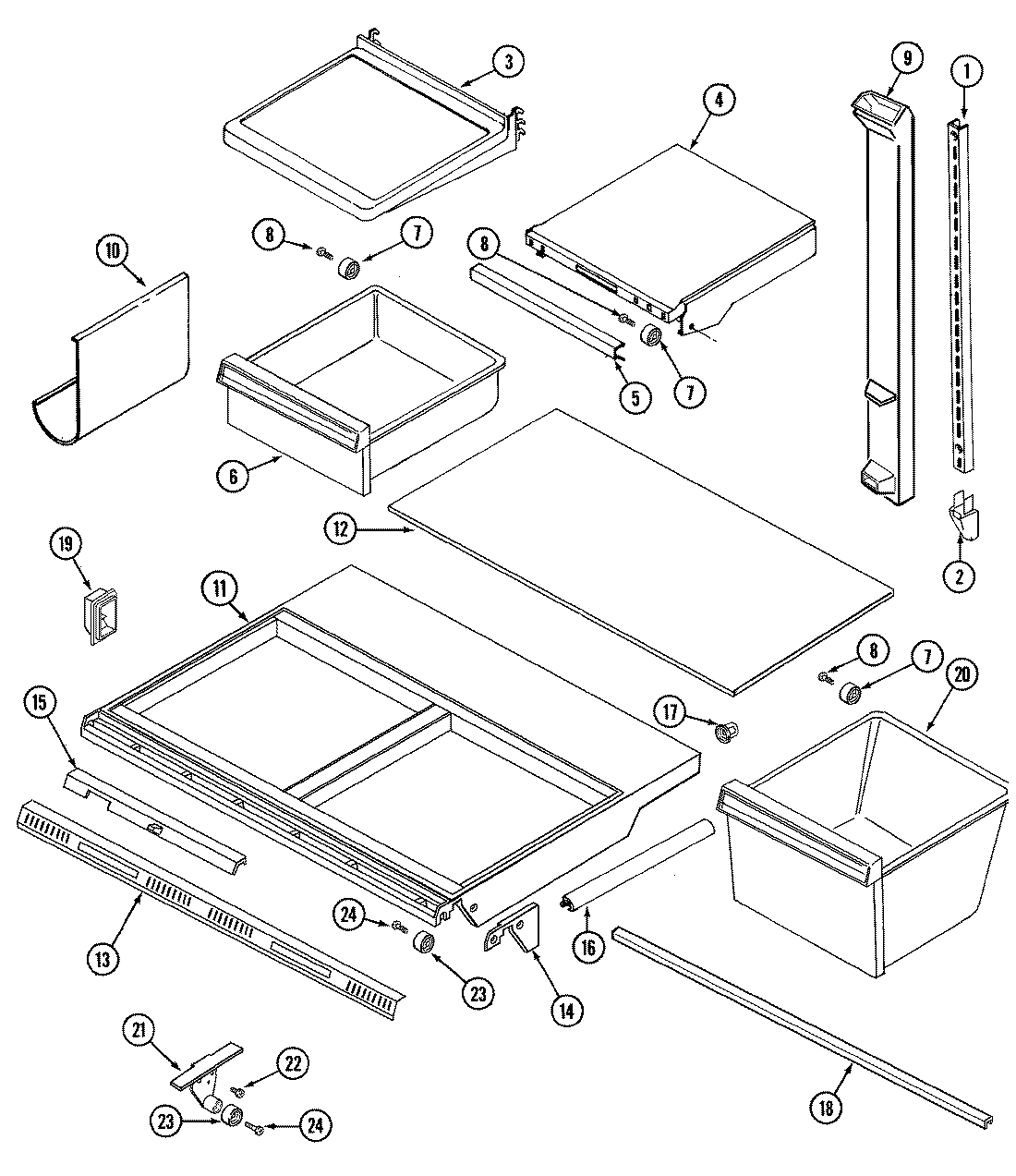

10 - SHELVES & ACCESSORIES

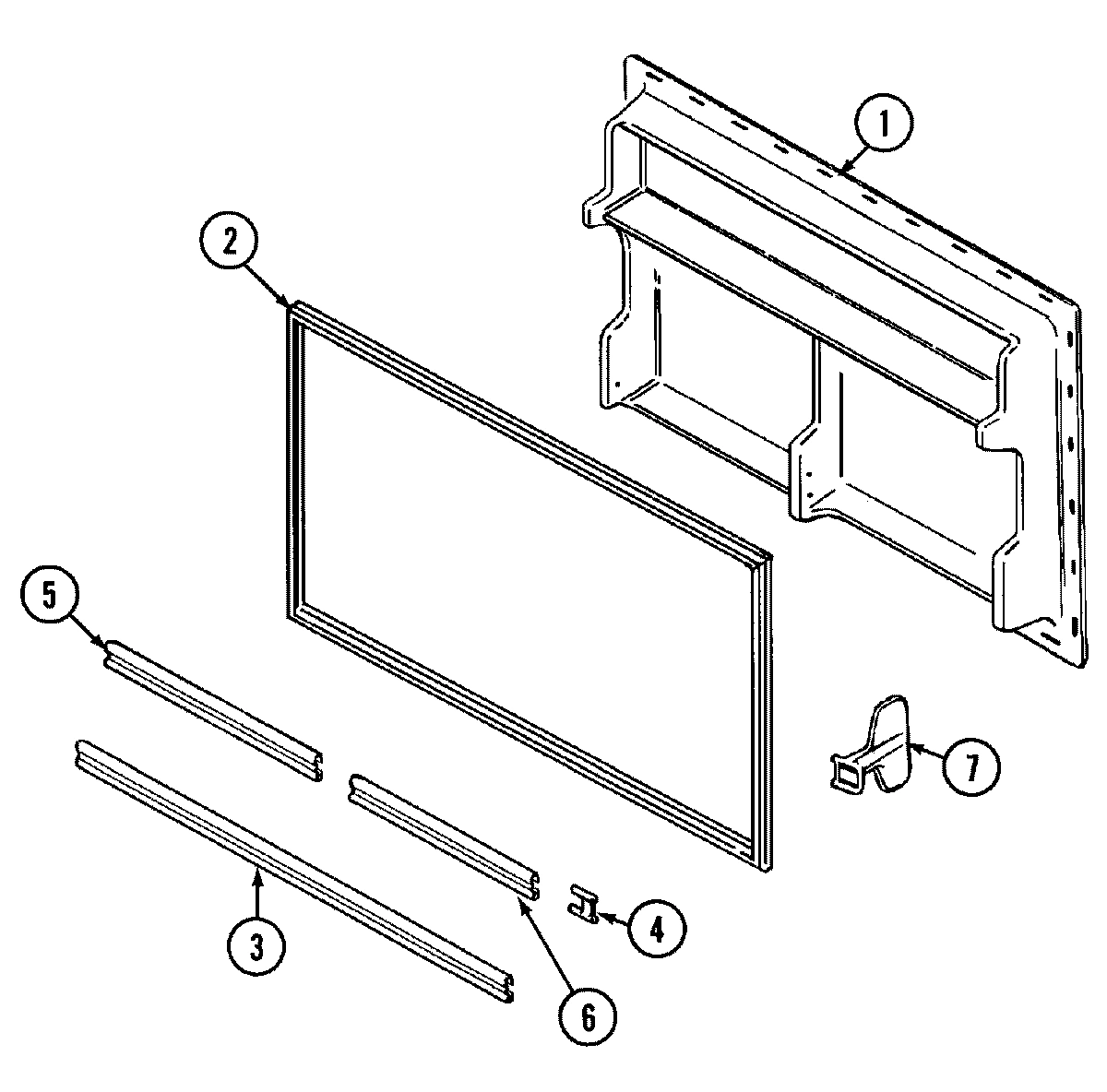

02 - FREEZER INNER DOOR

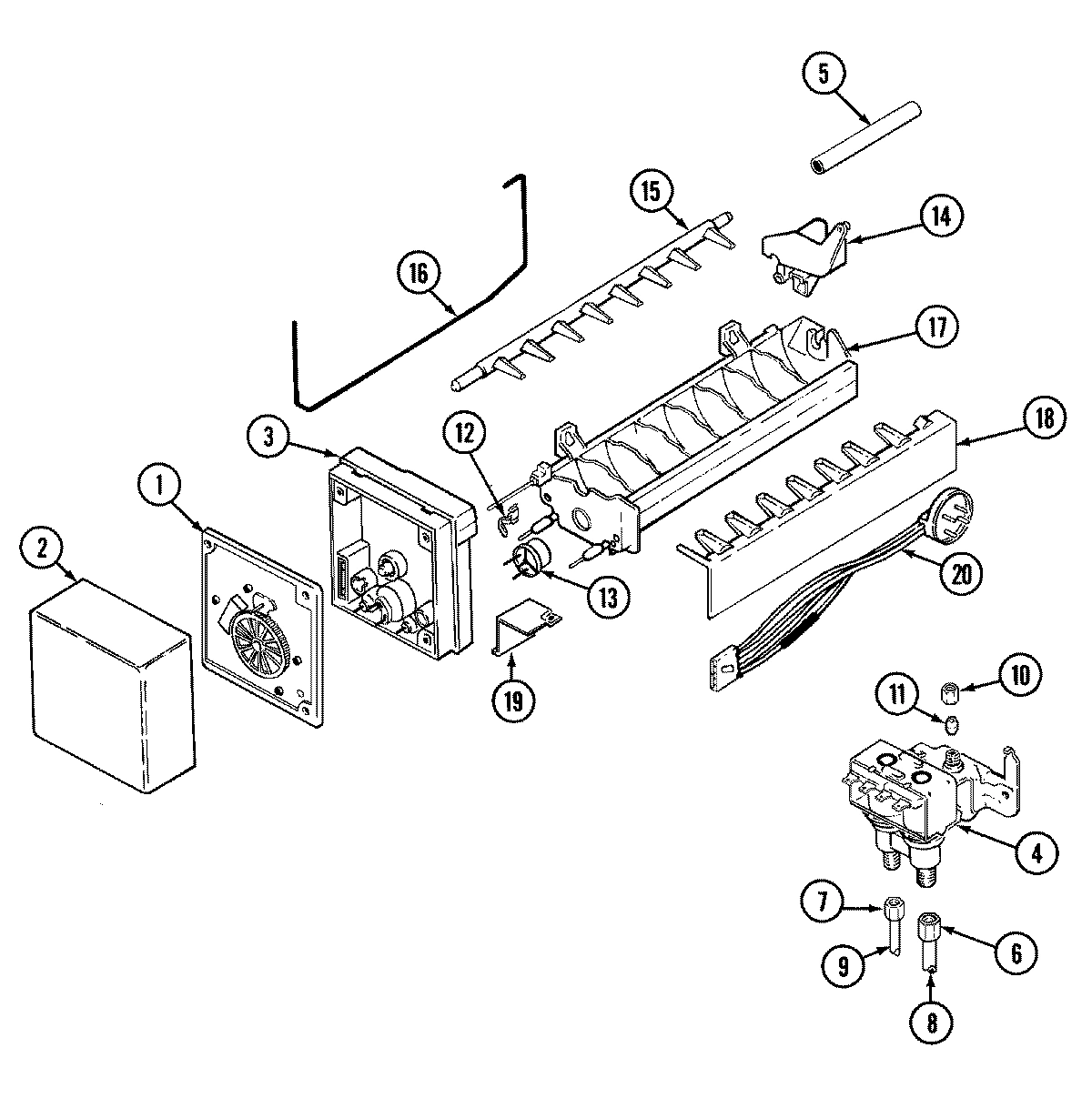

09 - ICE MAKER

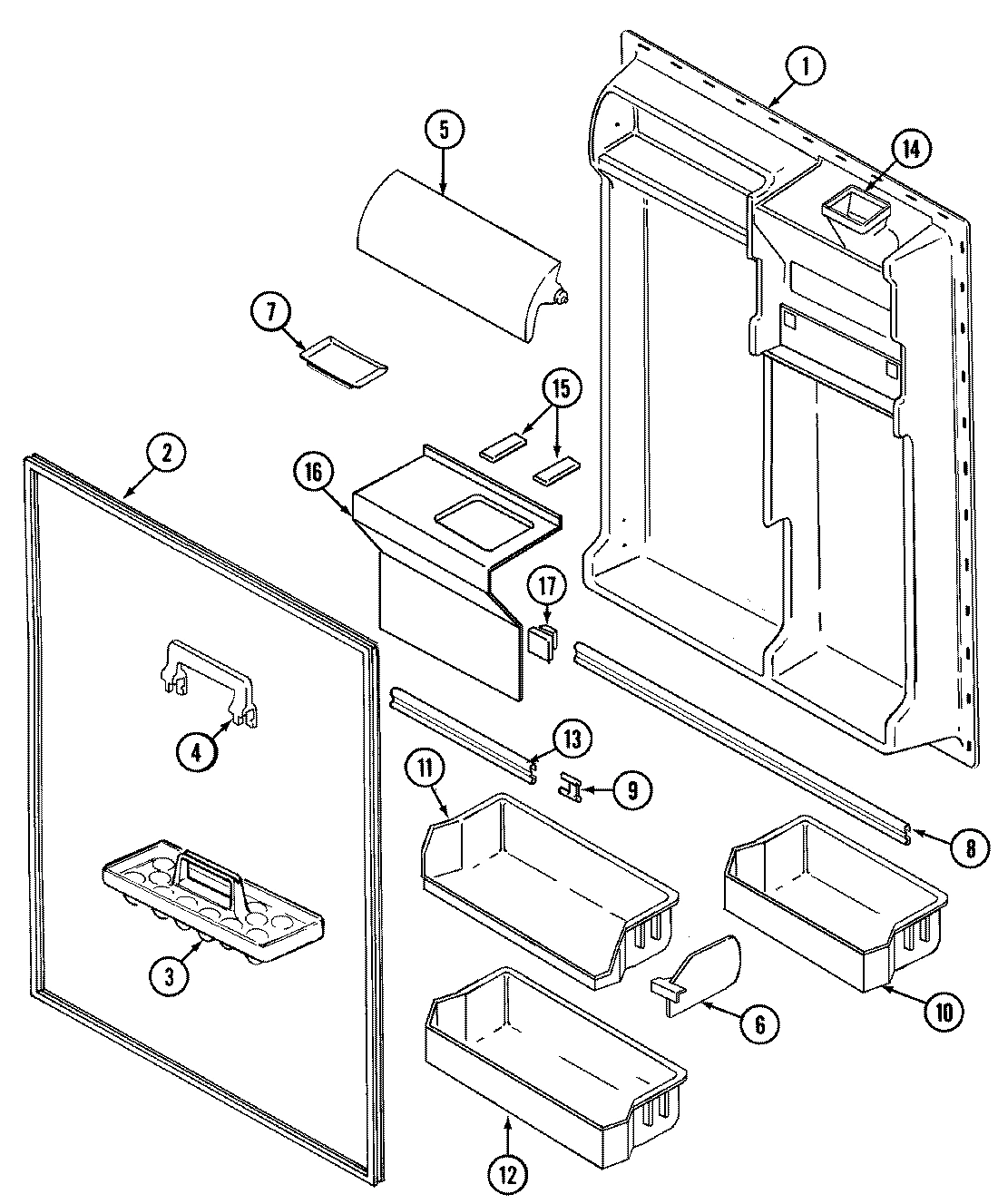

05 - FRESH FOOD INNER DOOR

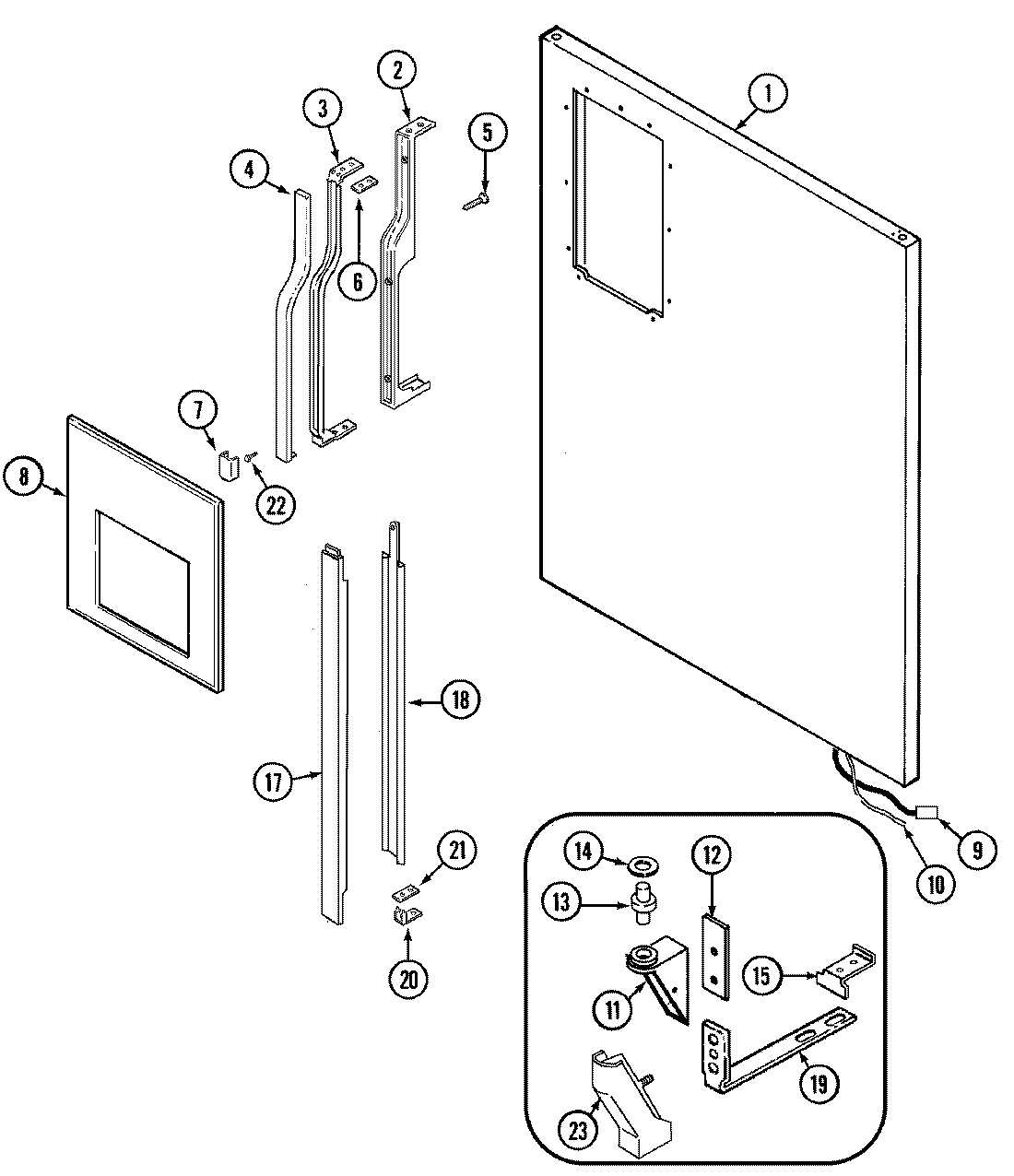

06 - FRESH FOOD OUTER DOOR

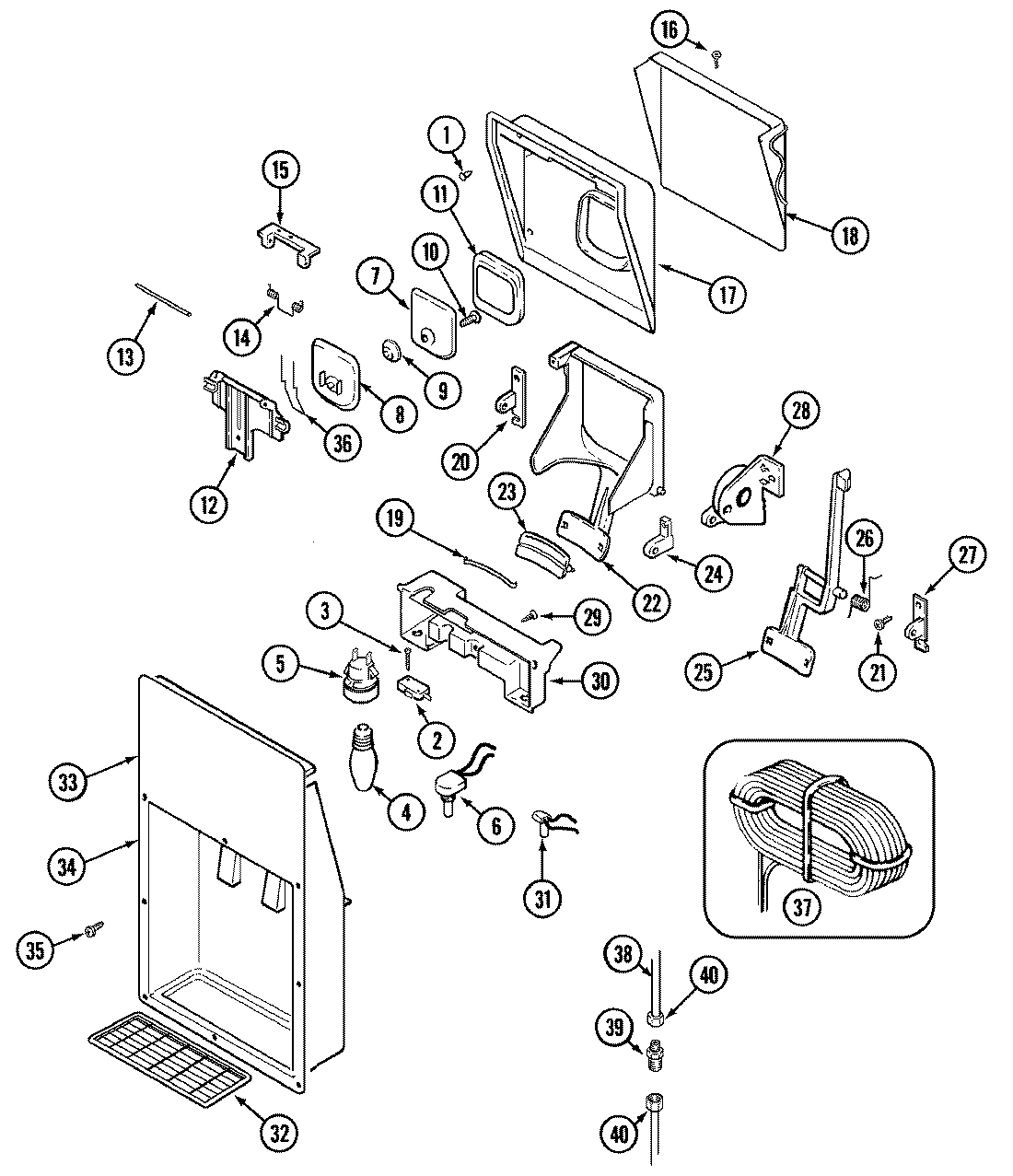

07 - ICE & WATER DISPENSER
Common parts from model Whirlpool JRTD229W REFRIGERATOR
1
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 72342104WW Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 694111 Contact Us For Availability
1
SCREW WPL 4000211 Contact Us For Availability
1
RING, DRIVE WPL 700272 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 694721 Contact Us For Availability
1
ICEMAKER WPL 951091 Contact Us For Availability
1
LINER, F.F. DOOR WPL 694581 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 724491WW Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
PIN, CENTER HINGE WPL 695172 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694144 Contact Us For Availability
2
BIN WPL 678311 Contact Us For Availability
2
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
2
GASKET, DOOR WPL 700257 Contact Us For Availability
2
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
2
GASKET, F.F. DOOR WPL 700258 Contact Us For Availability
2
HANDLE, F.F. DOOR WPL 700512 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
PLUG BUTTON, HANDLE HOLE (WHT) WPL 694802 Contact Us For Availability
3
HANDLE, FRZ. DOOR (CHR) WPL 700501 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698118 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
SHELF, SPLIT WPL 61001243 Contact Us For Availability
3
SHELF, MEAT WPL 61001244 Contact Us For Availability
3
TRIM, SHELF WPL 70111105 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
3
TRAY, EGG WPL 600661 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
FRAME, HANDLE WPL 700524 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
SCREW WPL 40001536 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
SUPPORT, MEAT PAN----NA WPL 6764914 Contact Us For Availability
4
SCREW WPL 4010181 Contact Us For Availability
4
VALVE, WATER (120V) WPL 61001021 Contact Us For Availability
4
RETAINER, BOTTLE WPL 701121 Contact Us For Availability
4
INSERT, HANDLE (WHT) WPL 7005318 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
OVERLOAD WPL 691057 Contact Us For Availability
5
INSERT, HANDLE (WHT) WPL 7005310 Contact Us For Availability
5
SCREW WPL 4150331 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
ICE DAM WPL 678321 Contact Us For Availability
5
TRIM, MEAT PAN SUPPORT WPL 702811 Contact Us For Availability
5
TRIM, SHELF WPL 7011191 Contact Us For Availability
5
CLAMP, FILL TUBE WPL 61001169 Contact Us For Availability
5
TUBE, WATER ENTRY WPL 676662 Contact Us For Availability
5
CLIP, FILL TUBE WPL 678771 Contact Us For Availability
5
DOOR, DAIRY WPL 699183 Contact Us For Availability
5
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
6
CORD, POWER WPL 528903 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
6
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
6
WASHER, THRUST WPL 678342 Contact Us For Availability
6
PAN, MEAT WPL 6992821 Contact Us For Availability
6
TRIM, SHELF WPL 7011187 Contact Us For Availability
6
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
6
ORGANIZER WPL 697592 Contact Us For Availability
6
NUT, WIRE WPL 271165 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
6
SWITCH, LOCKOUT (W/NUT) WPL 698321 Contact Us For Availability
6
SWITCH, LIGHT WPL 698325 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SEAL, MULLION TRAY WPL 695623 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
ORGANIZER, SHELF WPL 701141 Contact Us For Availability
7
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
7
TRAY, BUTTER WPL 299362 Contact Us For Availability
7
END CAP, HANDLE (WHT) WPL 700572 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TUNNEL, AIR WPL 702083 Contact Us For Availability
8
DOOR, ICE BIN WPL 698755 Contact Us For Availability
8
SCREW WPL 652756 Contact Us For Availability
8
TRIM, SHELF WPL 70111108 Contact Us For Availability
8
ESCUTCHEON (WHT) WPL 6859454 Contact Us For Availability
8
TAPE, ESCUTCHEON WPL 951211 Contact Us For Availability
8
SCREW WPL 40502335 Contact Us For Availability
8
DOOR, ICE WPL 689572 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
9
SCREW WPL 406026103 Contact Us For Availability
9
TUNNEL, AIR WPL 695752 Contact Us For Availability
9
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
9
WIRE HARNESS, DOOR TO MAIN WPL 698621 Contact Us For Availability
9
WIRE HARNESS, DOOR WPL 698657 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SCREW WPL 6527548 Contact Us For Availability
10
COVER, EVAPORATOR WPL 6640312 Contact Us For Availability
10
SCREW WPL 40002636 Contact Us For Availability
10
HOLDER, WINE BOTTLE WPL 61001622 Contact Us For Availability
10
SHELF, PICK-OFF WPL 6987215 Contact Us For Availability
10
SCREW WPL 40511635 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001205 Contact Us For Availability
11
WASHER WPL 542331 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693992 Contact Us For Availability
11
BOX, AUGER MOTOR WPL 673471 Contact Us For Availability
11
SHELF, CRISPER WPL 700432 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
SHELF, PICK-OFF WPL 6987217 Contact Us For Availability
11
HINGE, LOWER WPL 61001629 Contact Us For Availability
11
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
11
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
HINGE, UPPER WPL 5370924 Contact Us For Availability
12
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
12
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
12
GLASS, CRISPER SHELF WPL 674897 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
12
SHELF, PICK-OFF WPL 6987216 Contact Us For Availability
12
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
12
STRIKE, ICE DOOR WPL 685632 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, CONTROL WPL 61001213 Contact Us For Availability
13
SHELF WPL 676966 Contact Us For Availability
13
MOTOR, AUGER WPL 651861 Contact Us For Availability
13
WIRE HARNESS WPL 677011 Contact Us For Availability
13
TRIM, CRISPER SHELF WPL 703368 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
TRIM, SHELF WPL 7011183 Contact Us For Availability
13
PIN, HINGE WPL 700601 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
COVER, UPPER HINGE (WHT) WPL 701214 Contact Us For Availability
14
SEAL, AIR TUNNEL WPL 6632537 Contact Us For Availability
14
DOOR, ICE ACCESS WPL 61001799 Contact Us For Availability
14
SCREW WPL 6527528 Contact Us For Availability
14
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
14
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
CHUTE, ICE WPL 695411 Contact Us For Availability
14
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
STOP, DOOR WPL 692562 Contact Us For Availability
15
WASHER WPL 674836 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 61001114 Contact Us For Availability
15
TRIM, SHELF WPL 7013522 Contact Us For Availability
15
PIN, ICE DOOR WPL 679061 Contact Us For Availability
15
SLIDE, CONTROL WPL 674912 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
SEAL WPL 5207726 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 61001668 Contact Us For Availability
16
GROMMET WPL 697431 Contact Us For Availability
16
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
16
MAGNET WPL 694133 Contact Us For Availability
16
SEAL, CRISPER SHELF (SIDE) WPL 697794 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
INSULATION WPL 695341 Contact Us For Availability
16
INSULATION, FOUNTAIN PERIMETER WPL 695351 Contact Us For Availability
16
PANEL, ACCESS WPL 696262 Contact Us For Availability
17
SCREW WPL 6527562 Contact Us For Availability
17
HINGE WPL 695143 Contact Us For Availability
17
SCREW, FREEZER KNOB WPL 6527583 Contact Us For Availability
17
COVER, PLENUM WPL 61664806 Contact Us For Availability
17
GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
LATCH WPL 651843 Contact Us For Availability
17
INSERT, HANDLE EXT. WPL 700546 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
RAIL, SUPPORT WPL 687564 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
TRIM, HANDLE EXT. WPL 700552 Contact Us For Availability
18
FOIL WPL 5380837 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689373 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 6527561 Contact Us For Availability
19
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
19
SHELF, FRZ. (PLASTIC) WPL 671424 Contact Us For Availability
19
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
SCREW, BRACKET WPL 951081 Contact Us For Availability
19
SCREW WPL 4140121 Contact Us For Availability
19
SCREW WPL 6527569 Contact Us For Availability
19
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
19
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
SCREW WPL 6527557 Contact Us For Availability
20
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614414 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
DIVIDER, SHELF WPL 674193 Contact Us For Availability
20
PAN, CRISPER WPL 6992822 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
20
END CAP WPL 700561 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
21
SHIM, HANDLE WPL 679341 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696173 Contact Us For Availability
21
SUPPORT, DIVIDER WPL 676481 Contact Us For Availability
21
BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability
21
TROUGH, WATER INLET WPL 61001305 Contact Us For Availability
22
SCREW WPL 4050071 Contact Us For Availability
22
TIMER, DEFROST WPL 682332 Contact Us For Availability
22
WIRE HARNESS, MULLION WPL 61001553 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694203WW Contact Us For Availability
22
SCREW WPL 4060081 Contact Us For Availability
22
GUIDE, DIVIDER WPL 676573 Contact Us For Availability
22
RIVET WPL 263976 Contact Us For Availability
22
PADDLE, ICE (WHT) WPL 691122 Contact Us For Availability
23
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
23
KICKPLATE (WHT) WPL 689809 Contact Us For Availability
23
DUCT, AIR WPL 670613 Contact Us For Availability
23
ROLLER WPL 674232 Contact Us For Availability
23
COVER, LOWER HINGE (WHT) WPL 61001611 Contact Us For Availability
23
SCREW WPL 6527556 Contact Us For Availability
23
PAD, PADDLE (WHT) WPL 691742 Contact Us For Availability
24
EVAPORATOR WPL 698228 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
CUP, SHELF WPL 603131 Contact Us For Availability
24
CUP, SHELF WPL 674661 Contact Us For Availability
24
SCREW WPL 6527534 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
25
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
25
PADDLE, WATER (WHT) WPL 685582 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
BULB, LIGHT WPL 319561 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
27
HEATER, DEFROST WPL 6010636 Contact Us For Availability
27
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
27
SCREW WPL 40001735 Contact Us For Availability
27
BASE, LIGHT WPL 672412 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
28
DEFLECTOR, LIGHT WPL 673611 Contact Us For Availability
28
MOTOR, INTERIA----NA WPL 692751 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
29
SHIELD, LIGHT WPL 672401 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
30
SWITCH, LIGHT WPL 669871 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
BRACKET, SWITCH WPL 61001685 Contact Us For Availability
30
NUT WPL 701761 Contact Us For Availability
31
COVER, HEAT EXCHANGER WPL 61001042 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501326 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
31
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
31
PLUNGER WPL 685682 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
32
GRILL WPL 686311 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
BRACKET, WHEEL WPL 675301 Contact Us For Availability
33
FRONT, FOUNTAIN WPL 689551 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 61001565 Contact Us For Availability
34
SCREW WPL 6527550 Contact Us For Availability
34
PIN, WHEEL WPL 649651 Contact Us For Availability
34
CLAMP, TUBING WPL 535168 Contact Us For Availability
35
PAN, DRAIN WPL 682361 Contact Us For Availability
35
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
35
SCREW WPL 6527564 Contact Us For Availability
35
TUNNEL, ICE WPL 696251 Contact Us For Availability
35
SCREW WPL 41501335 Contact Us For Availability
36
SCREW WPL 4000171 Contact Us For Availability
36
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
36
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
36
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
36
DOOR, ICE TUNNEL WPL 676473 Contact Us For Availability
36
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
37
MANUAL, USE & CARE WPL 61001687 Contact Us For Availability
37
WHEEL ASSY WPL 723192 Contact Us For Availability
37
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
37
SEAL WPL 6632535 Contact Us For Availability
37
SCREW WPL 4000221 Contact Us For Availability
37
COIL, WATER WPL 676151 Contact Us For Availability
38
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
38
WEIGHT, ICE DOOR WPL 701841 Contact Us For Availability
38
TUBING, VALVE TO TANK (5/16``) WPL 6718713 Contact Us For Availability
38
TUBING, FOUNTAIN TO COIL WPL 6718727 Contact Us For Availability
39
ARM, ICE DOOR WPL 701831 Contact Us For Availability
39
UNION, REDUCING (5/16``-3/8``) WPL 61001266 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001881 Contact Us For Availability
× ![]()
Login and Registration Form
