Model Whirlpool JRTD224 REFRIGERATOR – Common Parts & Diagrams
01 - DOORS

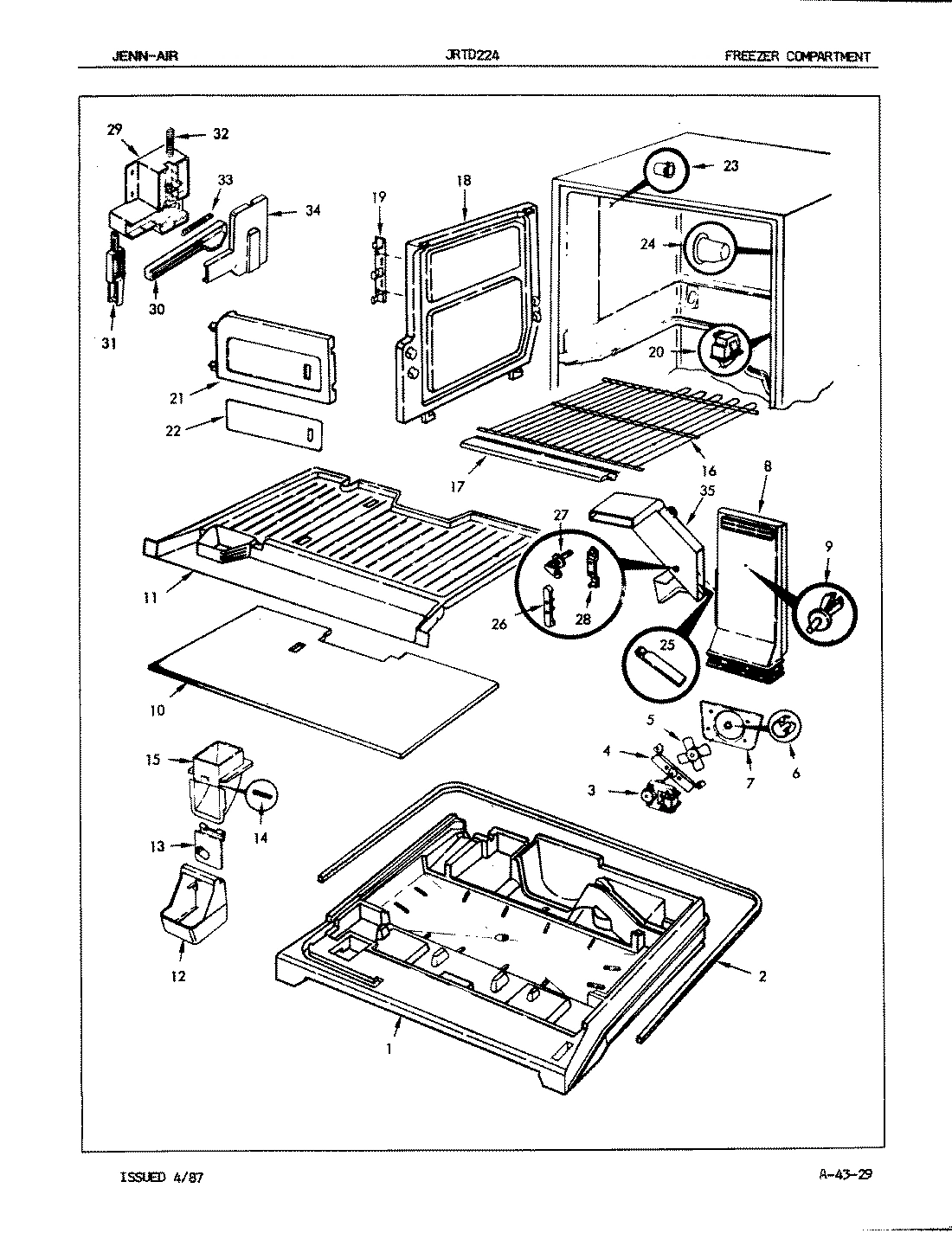

02 - FREEZER COMPARTMENT

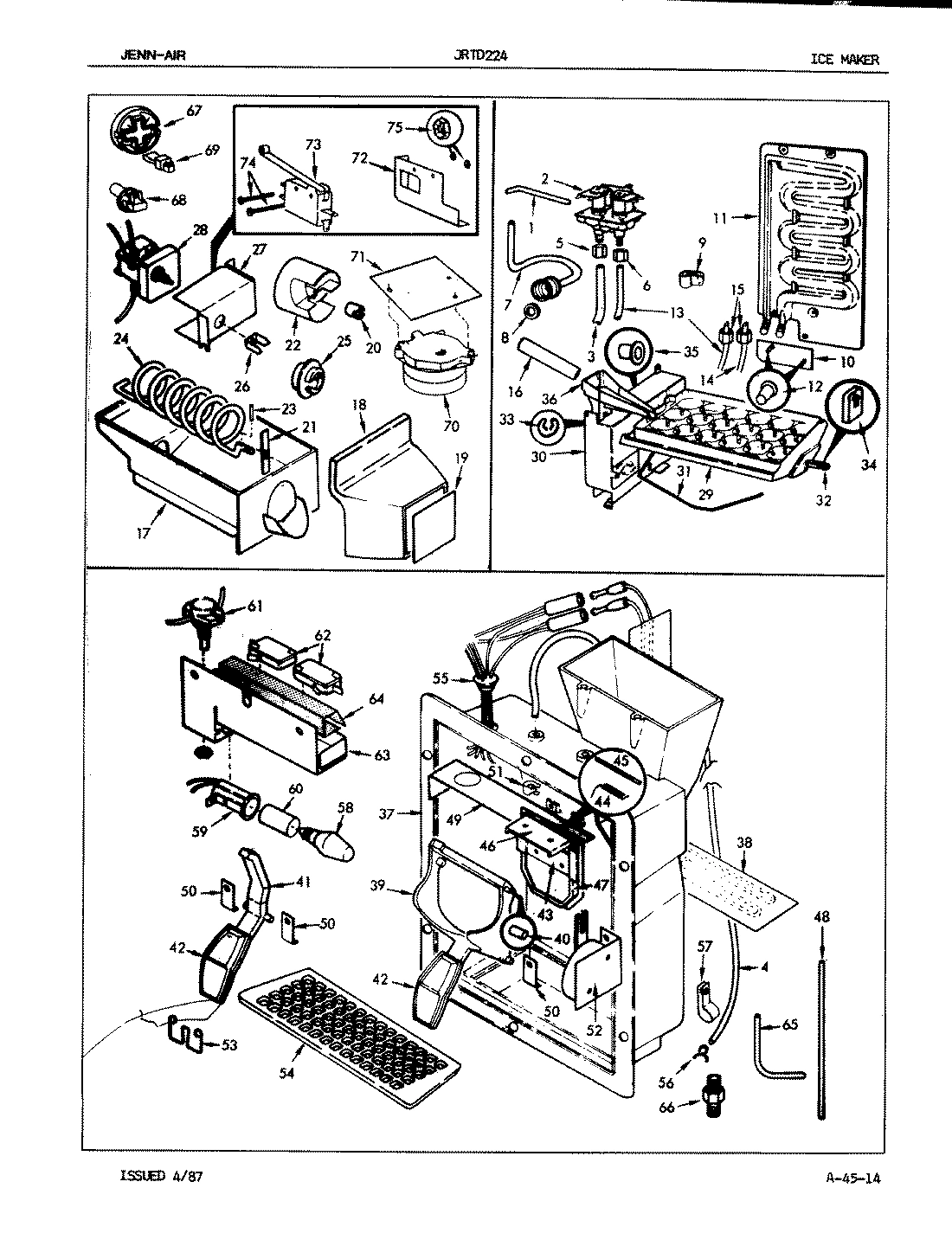

04 - ICE MAKER

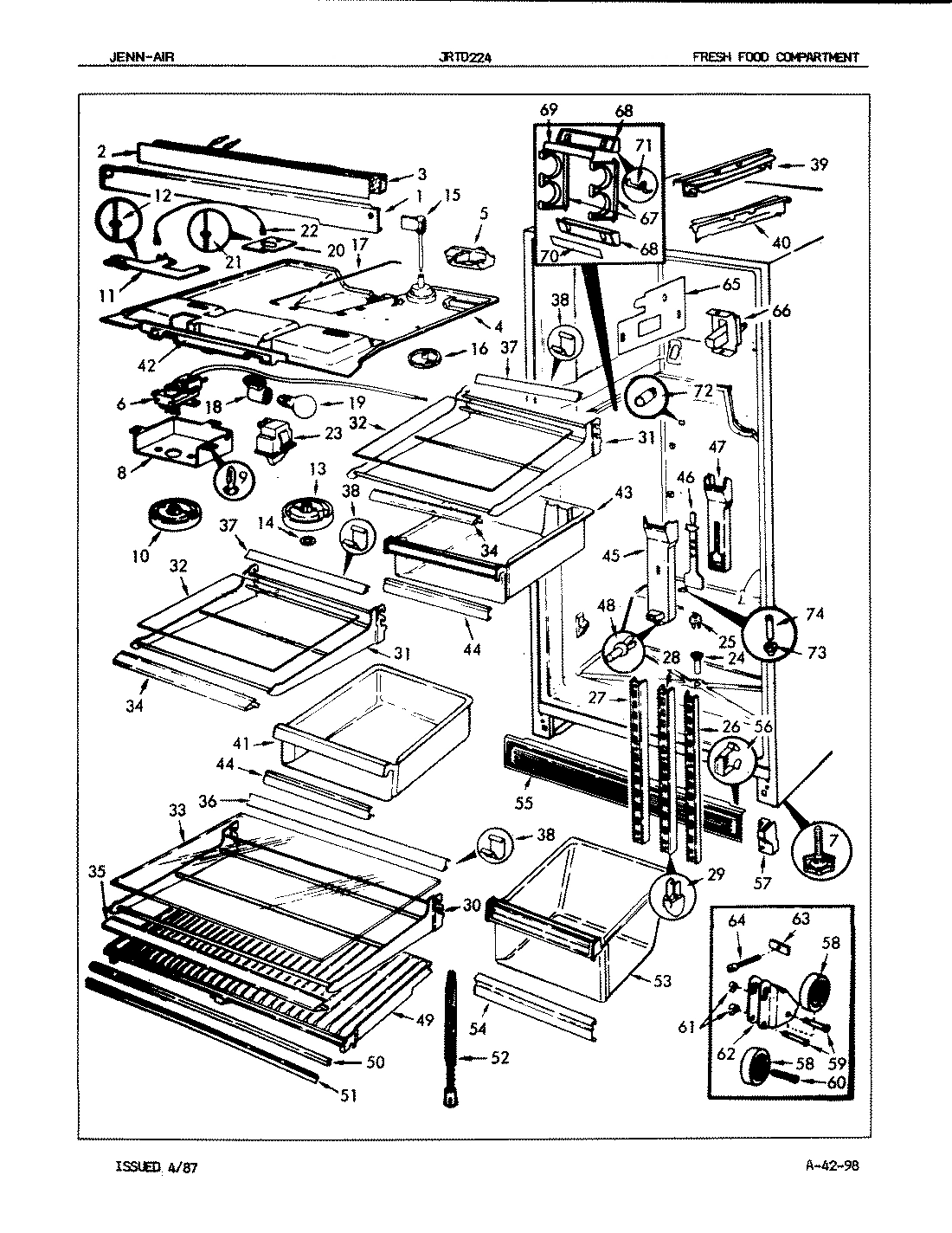

03 - FRESH FOOD COMPARTMENT

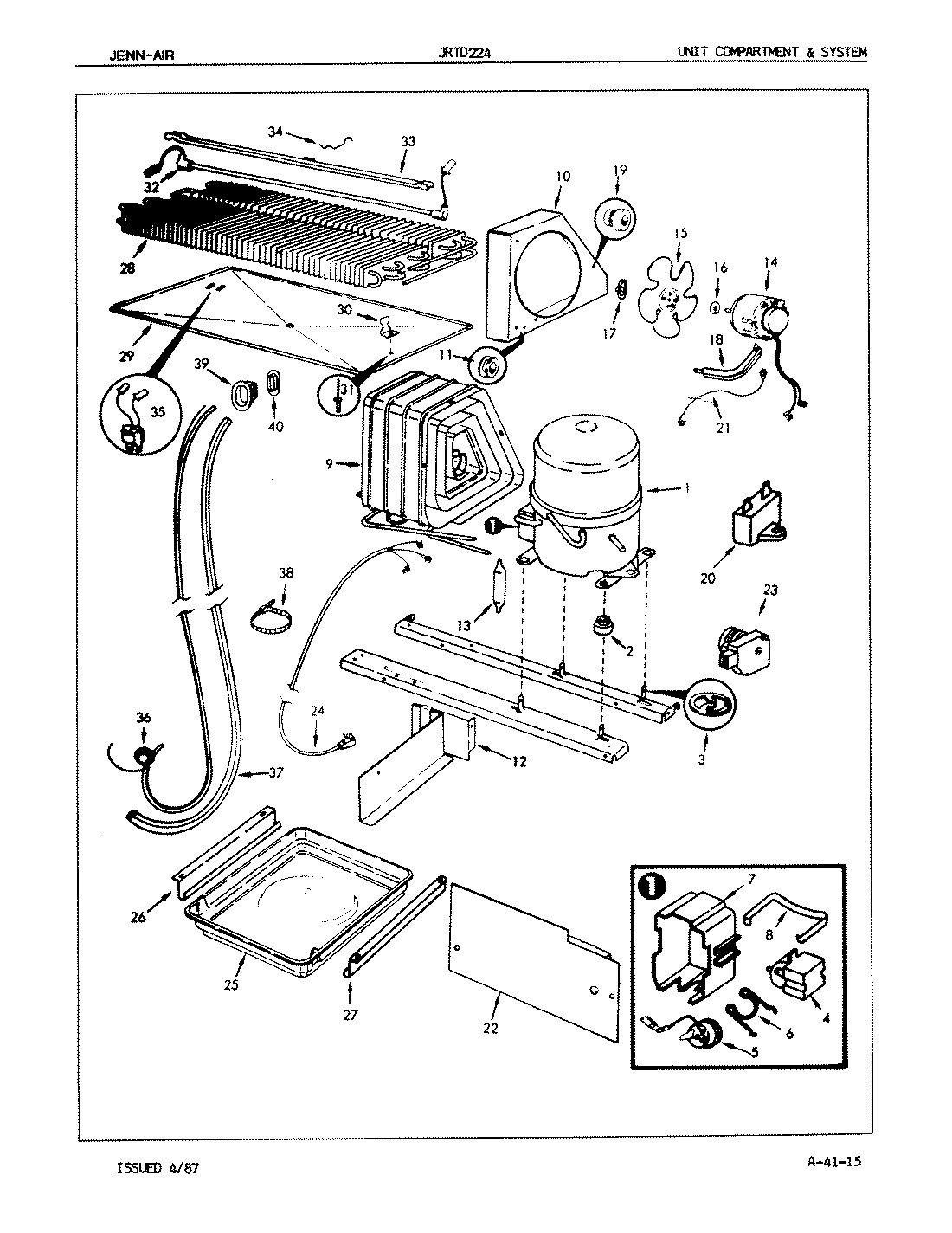

05 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool JRTD224 REFRIGERATOR
1
PANEL, FRZ. DOOR (WHT) WPL 666661WW Contact Us For Availability
1
TRAY, DIVIDER WPL 605765 Contact Us For Availability
1
TUBE WPL 667582 Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 657973WW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
2
PLUG BUTTON WPL 495036900 Contact Us For Availability
2
OUTER PANEL F.F. (WHITE) WPL 666701WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL WPL 663258 Contact Us For Availability
2
SCREW WPL 4010181 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
2
HEATER WIRE WPL 601059 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
DOOR HANDLE, FREEZER DOOR WPL 667061 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
TUBING WPL 556038 Contact Us For Availability
3
INSULATION WPL 601403 Contact Us For Availability
3
WIRE HARNESS WPL 652741 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
DOOR HANDLE WPL 667041 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TUBING WPL 556023 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008550 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
COVER WPL 6663715 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329411 Contact Us For Availability
6
SCREW WPL 652754 Contact Us For Availability
6
ORGANIZER WPL 666452 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
7
LEG, LEVELING WPL 60128 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
TUNNEL, AIR WPL 660444 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
DOOR STOP WPL 600301 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
CLAMP WPL 535162 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
DOOR STOP WPL 600302 Contact Us For Availability
10
SCREW WPL 9986108 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664035 Contact Us For Availability
10
COVER WPL 654971 Contact Us For Availability
10
KNOB, TEMPERATURE CONTROL WPL 600619 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BEZEL, NAMEPLATE WPL 666411 Contact Us For Availability
11
BOTTOM, FRZ. WPL 6047415 Contact Us For Availability
11
SCREW WPL 4000271 Contact Us For Availability
11
TANK, WATER WPL 654571 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
INSERT WPL 666461 Contact Us For Availability
12
FRONT WPL 605031 Contact Us For Availability
12
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
12
BAFFLE WPL 664933 Contact Us For Availability
13
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
13
SCREW WPL 652753 Contact Us For Availability
13
TUBING 34`` WPL 5560224 Contact Us For Availability
13
KNOB, FRZR CONTROL AIR BAFFLE WPL 6006110 Contact Us For Availability
14
LINER, DOOR WPL 659375 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
HINGE PIN WPL 605051 Contact Us For Availability
14
TUBING WPL 5560229 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
LINER, DOOR WPL 659385 Contact Us For Availability
15
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
15
ICE CHUTE WPL 605041 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
15
DAMPER WPL 600711 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
GASKET, DOOR WPL 661997 Contact Us For Availability
16
SHELF WPL 605141 Contact Us For Availability
16
TUBE, FILL WPL 584613 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
GASKET, DOOR WPL 661998 Contact Us For Availability
17
TRIM, SHELF WPL 6041444 Contact Us For Availability
17
BIN, ICE WPL 664471 Contact Us For Availability
17
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
SHELF TRIM WPL 666377 Contact Us For Availability
18
SCREW WPL 4000351 Contact Us For Availability
18
WASHER WPL 420051900 Contact Us For Availability
18
WASHER WPL 420052900 Contact Us For Availability
18
DIVIDER WPL 656222 Contact Us For Availability
18
SCREW WPL 405022103 Contact Us For Availability
18
ICE DISP FRONT WPL 662051 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151248 Contact Us For Availability
19
LATCH WPL 661461 Contact Us For Availability
19
INSERT WPL 6570712 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
TRIM WPL 6008041 Contact Us For Availability
20
SWITCH WPL 557322 Contact Us For Availability
20
NUT, AUGER WPL 660981 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151249 Contact Us For Availability
21
IM ENCL FRONT WPL 656271 Contact Us For Availability
21
HUB, REINFORCING WPL 630841 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 2967522 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 65151247 Contact Us For Availability
22
INSERT WPL 6562812 Contact Us For Availability
22
IMPELLER, AUGER WPL 664481 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
CUP, SHELF WPL 603131 Contact Us For Availability
23
PIN, AUGER WPL 630711 Contact Us For Availability
23
LEAD WPL 5465330 Contact Us For Availability
23
SWITCH WPL 557323 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
24
RETAINER WPL 652461 Contact Us For Availability
24
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
24
AUGER WPL 664351 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
DOOR, DAIRY WPL 666378 Contact Us For Availability
25
DAMPER WPL 606681 Contact Us For Availability
25
RING, DRIVE WPL 630171 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
INSERT WPL 6057343 Contact Us For Availability
26
LINK RETAINER WPL 606761 Contact Us For Availability
26
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
26
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
BUMPER, DOOR WPL 282726 Contact Us For Availability
27
HINGE WPL 606691 Contact Us For Availability
27
SCREW WPL 4000161 Contact Us For Availability
27
MOTOR BRACKET WPL 605592 Contact Us For Availability
27
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
TRAY, BUTTER WPL 299362 Contact Us For Availability
28
LINK WPL 606771 Contact Us For Availability
28
MOTOR, AUGER WPL 651861 Contact Us For Availability
28
SCREW WPL 40003728 Contact Us For Availability
28
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
29
TRAY, EGG WPL 600669 Contact Us For Availability
29
HOUSING WPL 606702 Contact Us For Availability
29
TRAY, ICE WPL 596881 Contact Us For Availability
29
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
30
DOOR SHELF WPL 6003740 Contact Us For Availability
30
ACTUATOR WPL 606712 Contact Us For Availability
30
SCREW WPL 4000211 Contact Us For Availability
30
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
30
FRAME, SHELF WPL 6057021 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
INSERT WPL 6057255 Contact Us For Availability
31
ACTUATOR WPL 606721 Contact Us For Availability
31
SENSOR ARM WPL 604671 Contact Us For Availability
31
FRAME, SHELF WPL 6057020 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
DOOR SHELF WPL 6003739 Contact Us For Availability
32
SPRING WPL 661711 Contact Us For Availability
32
SHAFT, DRIVE WPL 653191 Contact Us For Availability
32
GLASS SHELF (1/2 SHELF) WPL 6559838 Contact Us For Availability
32
HEATER, DEFROST WPL 6010636 Contact Us For Availability
33
INSERT WPL 6057256 Contact Us For Availability
33
SPRING WPL 606731 Contact Us For Availability
33
RING, RETAINER WPL 587061 Contact Us For Availability
33
GLASS SHELF (FULL SHELF) WPL 6559830 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
34
DOOR SHELF WPL 6003735 Contact Us For Availability
34
COVER WPL 606751 Contact Us For Availability
34
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
34
TRIM, FRONT-1/2 SHELF WPL 6041464 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
INSERT WPL 6057257 Contact Us For Availability
35
SCREW WPL 400018103 Contact Us For Availability
35
IM DUCT WPL 657594 Contact Us For Availability
35
SPACER WPL 653171 Contact Us For Availability
35
TRIM, FRONT-FULL WPL 6041443 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
36
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
36
SCREW WPL 405009103 Contact Us For Availability
36
SPOUT, FILL WPL 537481 Contact Us For Availability
36
TRIM, REAR-FULL WPL 6527627 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
37
SCREW WPL 4050221 Contact Us For Availability
37
DISPENSER, WATER WPL 630005 Contact Us For Availability
37
INSULATION KIT WPL RA950591 Contact Us For Availability
37
TRIM, REAR WPL 652767 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
38
HEATER WPL 605081 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
39
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
39
ACTUATOR ARM (ICE) WPL 666201 Contact Us For Availability
39
SLIDE RAIL,MEAT & DELI PAN WPL 668132 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
WASHER WPL 521851 Contact Us For Availability
40
SCREW WPL 998687 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
40
RAIL, MEAT PAN (RT) WPL 668142 Contact Us For Availability
40
COVER WPL 600673 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 667931 Contact Us For Availability
41
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
41
COVER WPL 666161 Contact Us For Availability
41
ACTUATOR ARM (WATER) WPL 666181 Contact Us For Availability
41
PAN, DELI WPL 6663713 Contact Us For Availability
42
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
42
INSERT,ESCUTCHEON WPL 6057145 Contact Us For Availability
43
TAPPING PLATE WPL 606221 Contact Us For Availability
43
SCREW, CENTER HINGE MTG WPL 9987107 Contact Us For Availability
43
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
43
PAN, MEAT WPL 6663710 Contact Us For Availability
44
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
44
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
44
HANDLE WPL 6013278 Contact Us For Availability
45
WASHER WPL 521852 Contact Us For Availability
45
PIN, ICE DOOR WPL 630531 Contact Us For Availability
45
TUNNEL WPL 6009418 Contact Us For Availability
46
SCREW WPL 4030625 Contact Us For Availability
46
HINGE WPL 656422 Contact Us For Availability
46
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
46
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
47
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
47
INSULATION WPL 630891 Contact Us For Availability
47
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
47
INSULATION WPL 600922 Contact Us For Availability
48
HINGE PIN, LOWER HINGE WPL 654182 Contact Us For Availability
48
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
49
HINGE BUSHING WPL 660371 Contact Us For Availability
49
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
49
SHELF, CRISPER WPL 667371 Contact Us For Availability
50
SPACER WPL 542333 Contact Us For Availability
50
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
50
CLIP WPL 630352 Contact Us For Availability
50
TRIM, CRISPER SHELF WPL 6045415 Contact Us For Availability
51
PAN, CRISPER WPL 601456 Contact Us For Availability
52
TRIM PERIMETER, FRZR (SIDE) WPL 666921 Contact Us For Availability
52
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
52
MOTOR, INERTIA WPL 652121 Contact Us For Availability
52
CLIP WPL 655171 Contact Us For Availability
52
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
53
TRIM WPL 666982 Contact Us For Availability
53
SPRING WPL 633061 Contact Us For Availability
53
PAN, CRISPER WPL 60457477 Contact Us For Availability
54
TRIM WPL 666951 Contact Us For Availability
54
CLAMP, SPRING WPL 603332 Contact Us For Availability
54
WIRE HARNESS WPL 605231 Contact Us For Availability
54
WIRE HARNESS WPL 606231 Contact Us For Availability
54
SPACER WPL 620284 Contact Us For Availability
54
GRILL WPL 630251 Contact Us For Availability
54
WIRE HARNESS WPL 652923 Contact Us For Availability
54
HANDLE,CRISPER PAN WPL 6013284 Contact Us For Availability
55
TRIM PERIMETER, REFRIG. (SIDE) WPL 666901 Contact Us For Availability
55
SCREW WPL 4000221 Contact Us For Availability
55
WIRE HARNESS WPL 606241 Contact Us For Availability
55
INSTALATION KIT WPL 634592 Contact Us For Availability
55
KICKPLATE WPL 6013816 Contact Us For Availability
56
TRIM WPL 666981 Contact Us For Availability
56
CLAMP, SPRING WPL 603331 Contact Us For Availability
56
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
57
CLIP WPL 562092 Contact Us For Availability
57
ORGANIZER, SHELF WPL 665224 Contact Us For Availability
57
CLAMP WPL 535169 Contact Us For Availability
57
SCREW, END CAP, KICKPLATE MTG WPL 4020391 Contact Us For Availability
57
END CAP WPL 603811 Contact Us For Availability
58
SCREW WPL 4020381 Contact Us For Availability
58
COLLAR WPL 667756 Contact Us For Availability
58
BULB, LIGHT WPL 631791 Contact Us For Availability
58
WHE WPL 298342 Contact Us For Availability
59
ESCUTCHEON WPL 6048237 Contact Us For Availability
59
SOCKET, LIGH WPL 630391 Contact Us For Availability
59
WPL 298352 WPL 298352 Contact Us For Availability
60
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
60
WPL 4010111 WPL 4010111 Contact Us For Availability
60
WPL 630561 WPL 630561 Contact Us For Availability
60
WPL 649651 WPL 649651 Contact Us For Availability
61
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
61
WPL 630401 WPL 630401 Contact Us For Availability
61
WPL 602161 WPL 602161 Contact Us For Availability
62
WPL 4050711 WPL 4050711 Contact Us For Availability
62
WPL 554402 WPL 554402 Contact Us For Availability
62
WPL 591001 WPL 591001 Contact Us For Availability
63
WPL 630132 WPL 630132 Contact Us For Availability
63
WPL 591011 WPL 591011 Contact Us For Availability
64
WPL 4060871 WPL 4060871 Contact Us For Availability
65
WPL 630382 WPL 630382 Contact Us For Availability
65
WPL 643291 WPL 643291 Contact Us For Availability
65
WPL 605831 WPL 605831 Contact Us For Availability
66
WPL 592051 WPL 592051 Contact Us For Availability
66
WPL 4020131 WPL 4020131 Contact Us For Availability
66
WPL 5465332 WPL 5465332 Contact Us For Availability
66
WPL 5465333 WPL 5465333 Contact Us For Availability
66
WPL 605851 WPL 605851 Contact Us For Availability
67
WPL 651761 WPL 651761 Contact Us For Availability
67
WPL 565194 WPL 565194 Contact Us For Availability
68
WPL 651771 WPL 651771 Contact Us For Availability
68
WPL 656891 WPL 656891 Contact Us For Availability
69
WPL 651851 WPL 651851 Contact Us For Availability
69
WPL 6575321 WPL 6575321 Contact Us For Availability
70
WPL 4050721 WPL 4050721 Contact Us For Availability
70
WPL 651321 WPL 651321 Contact Us For Availability
70
WPL 6575319 WPL 6575319 Contact Us For Availability
71
WPL 657981 WPL 657981 Contact Us For Availability
71
WPL 4000291 WPL 4000291 Contact Us For Availability
71
WPL 580571 WPL 580571 Contact Us For Availability
72
WPL 652862 WPL 652862 Contact Us For Availability
72
WPL 1953036 WPL 1953036 Contact Us For Availability
73
WPL 652851 WPL 652851 Contact Us For Availability
73
WPL 555121 WPL 555121 Contact Us For Availability
74
WPL 4060431 WPL 4060431 Contact Us For Availability
74
WPL 555131 WPL 555131 Contact Us For Availability
75
WPL 4300021 WPL 4300021 Contact Us For Availability
× ![]()
Login and Registration Form
