Model Whirlpool JRT219A REFRIGERATOR – Common Parts & Diagrams

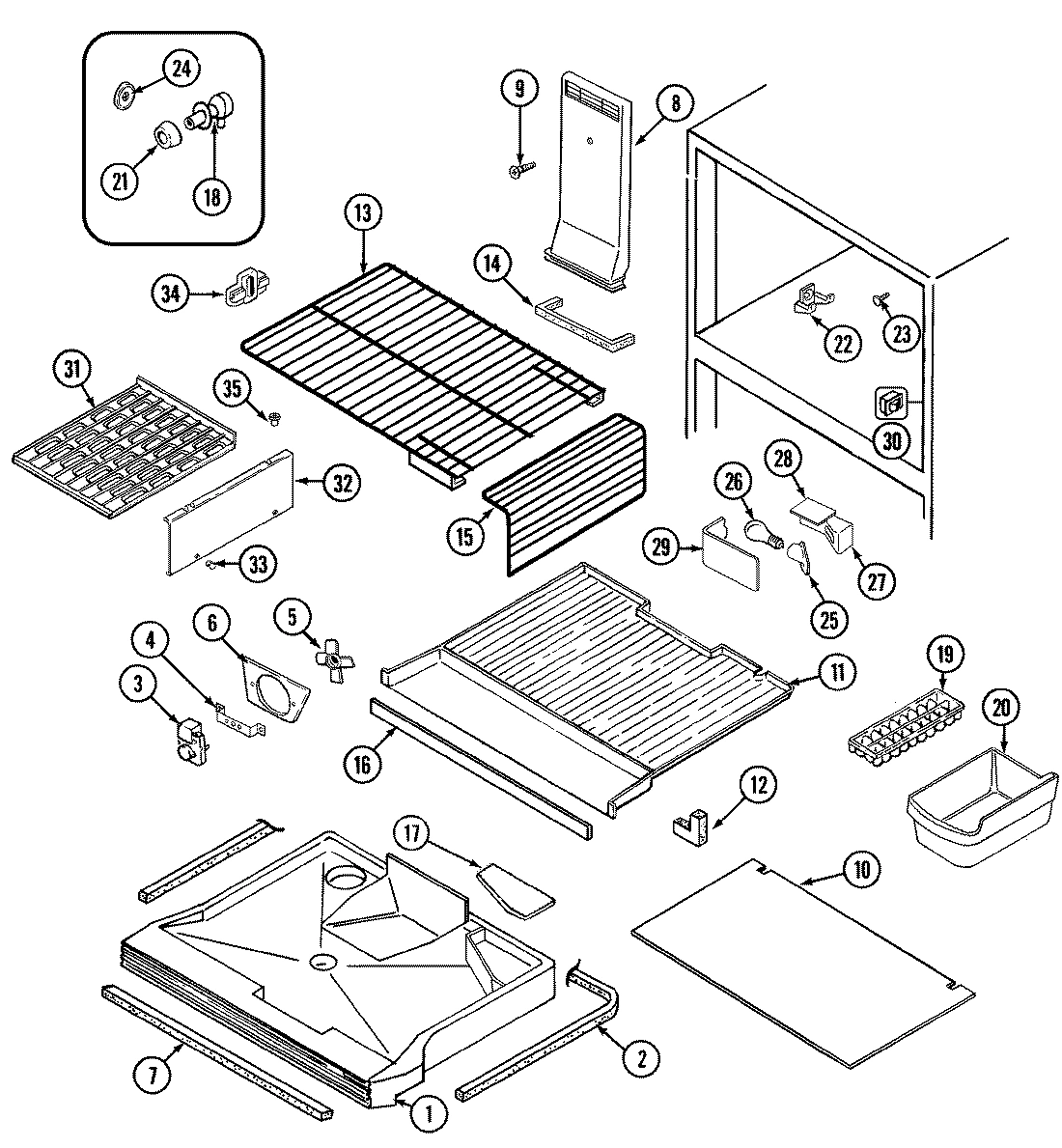

01 - FREEZER COMPARTMENT

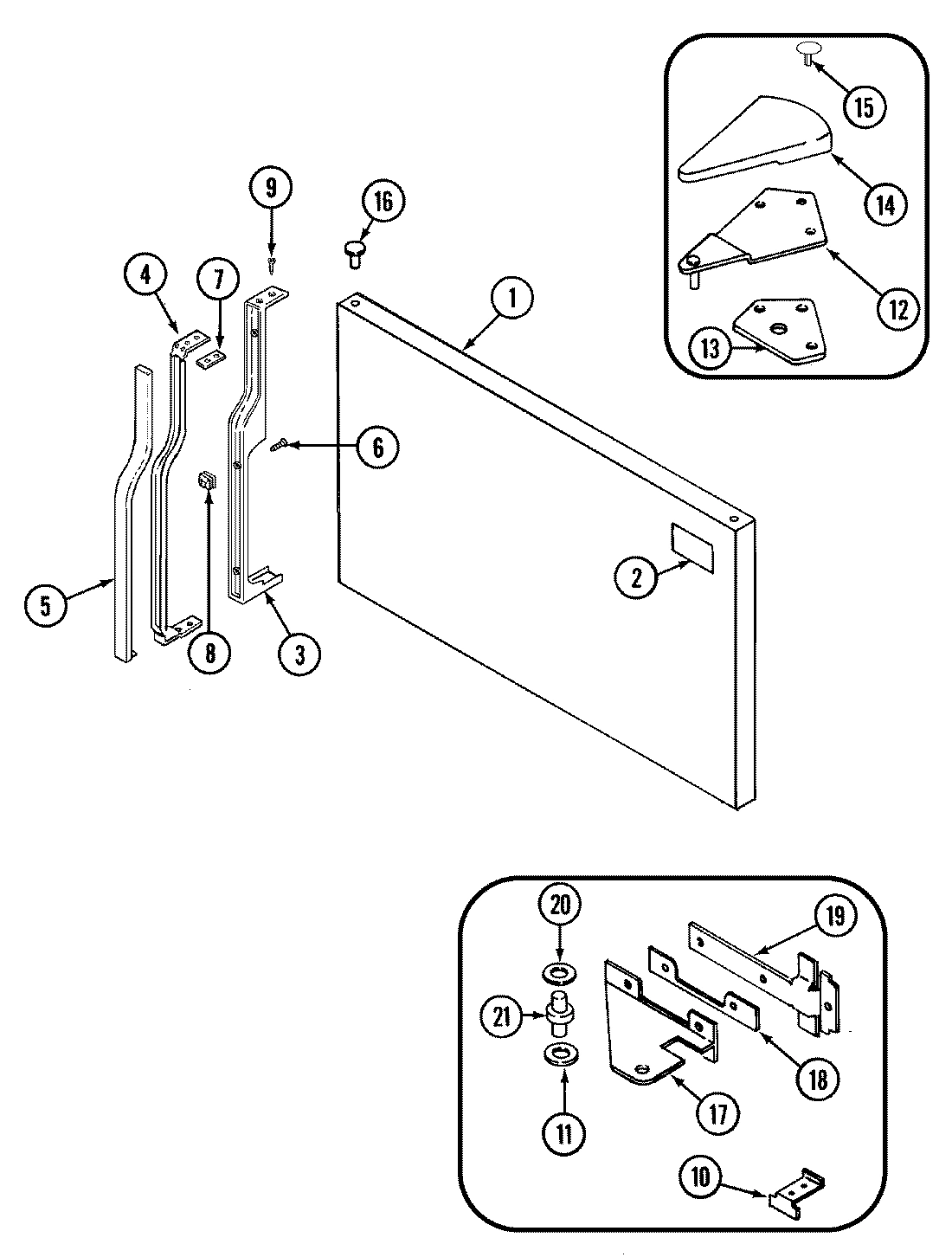

03 - FREEZER OUTER DOOR

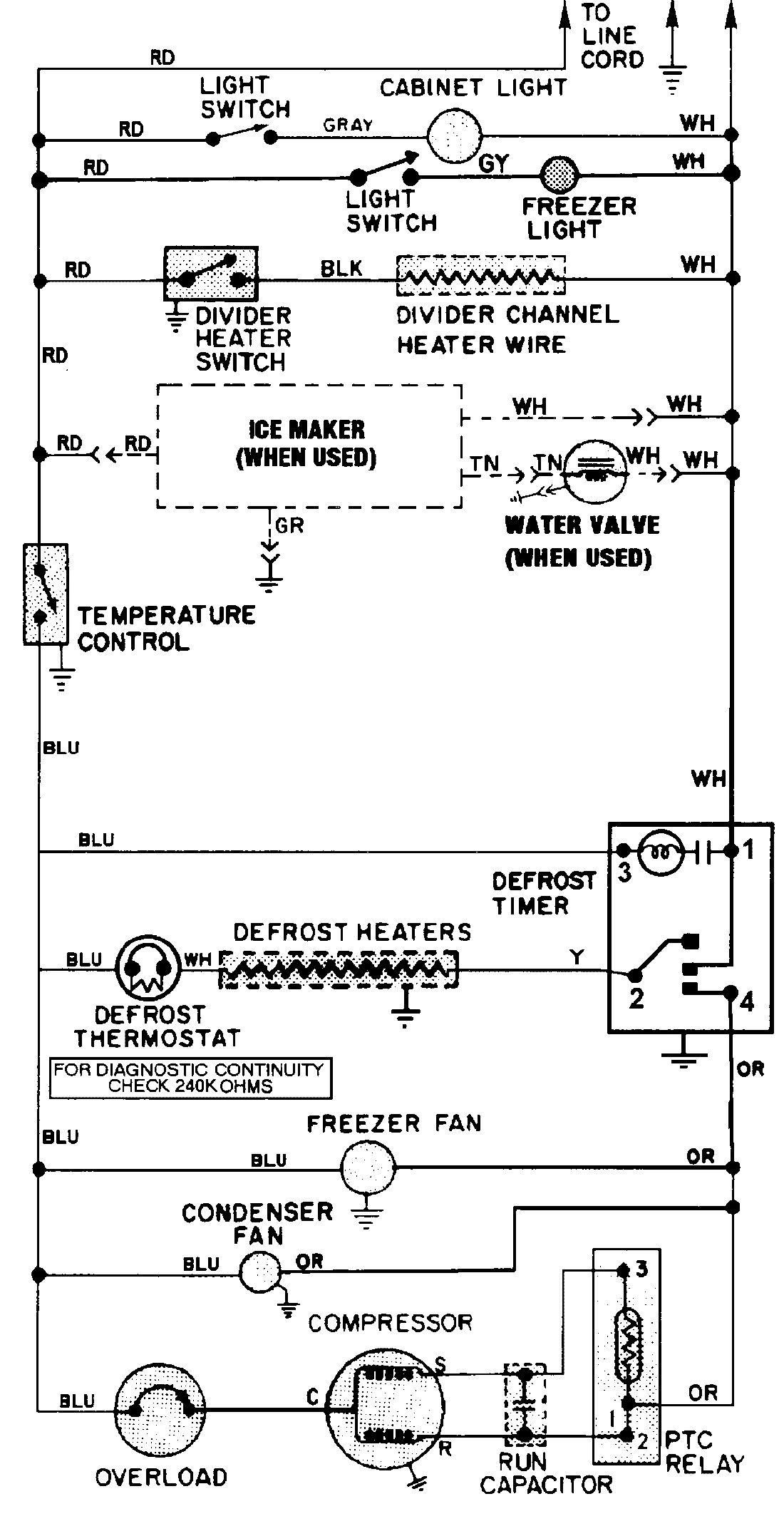

10 - WIRING INFORMATION

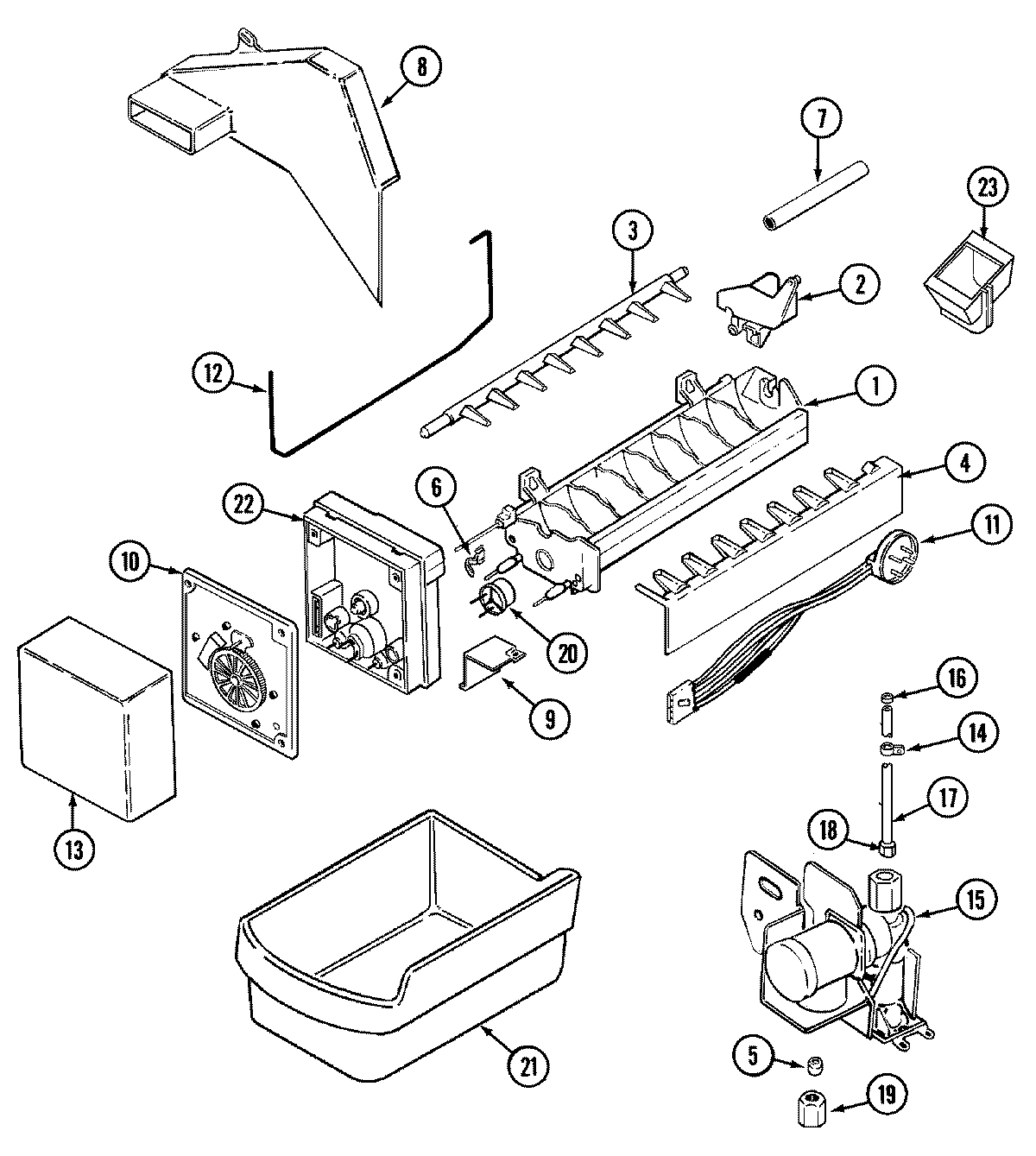

07 - OPTIONAL ICE MAKER KIT (ICE)

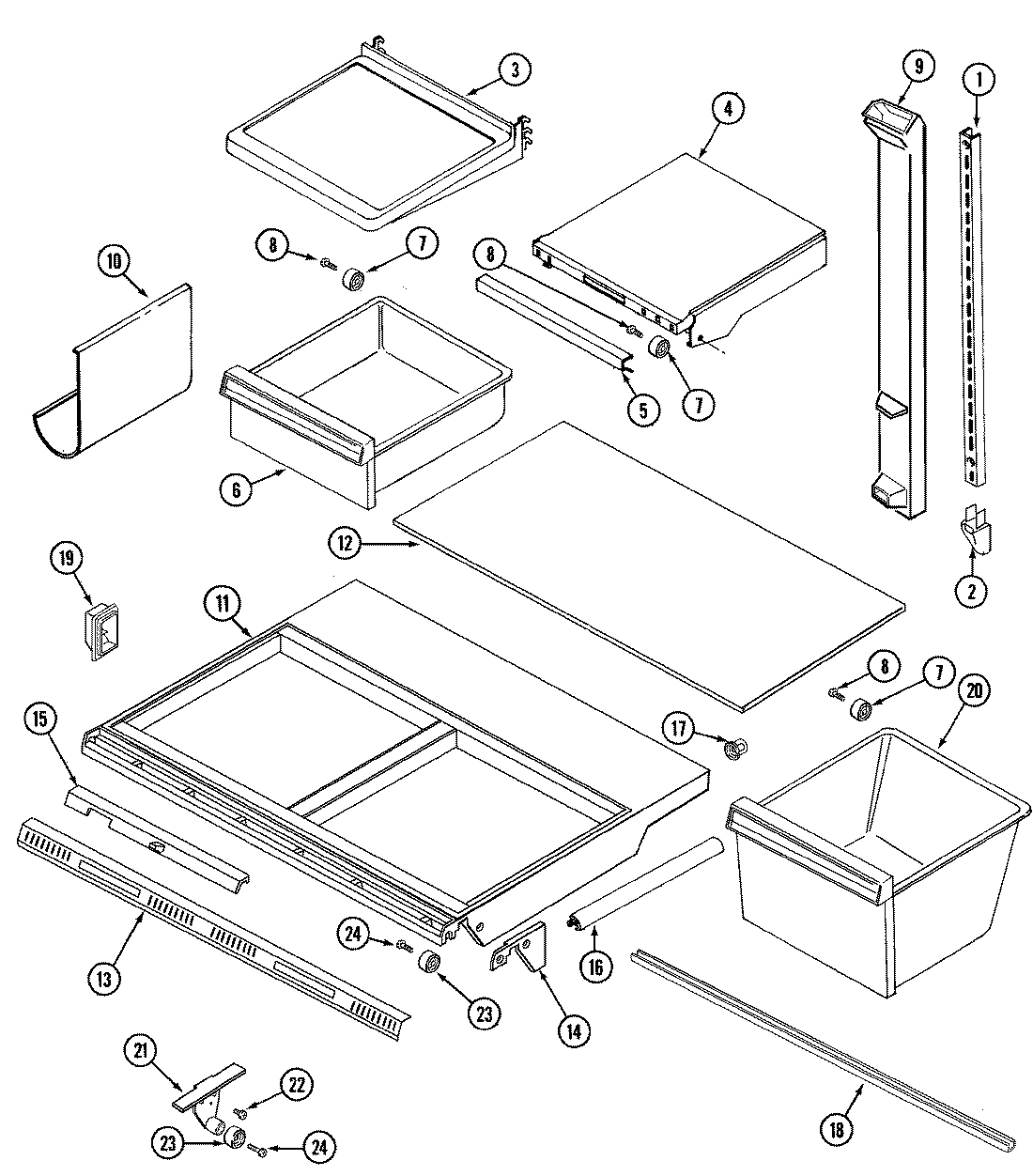

08 - SHELVES & ACCESSORIES

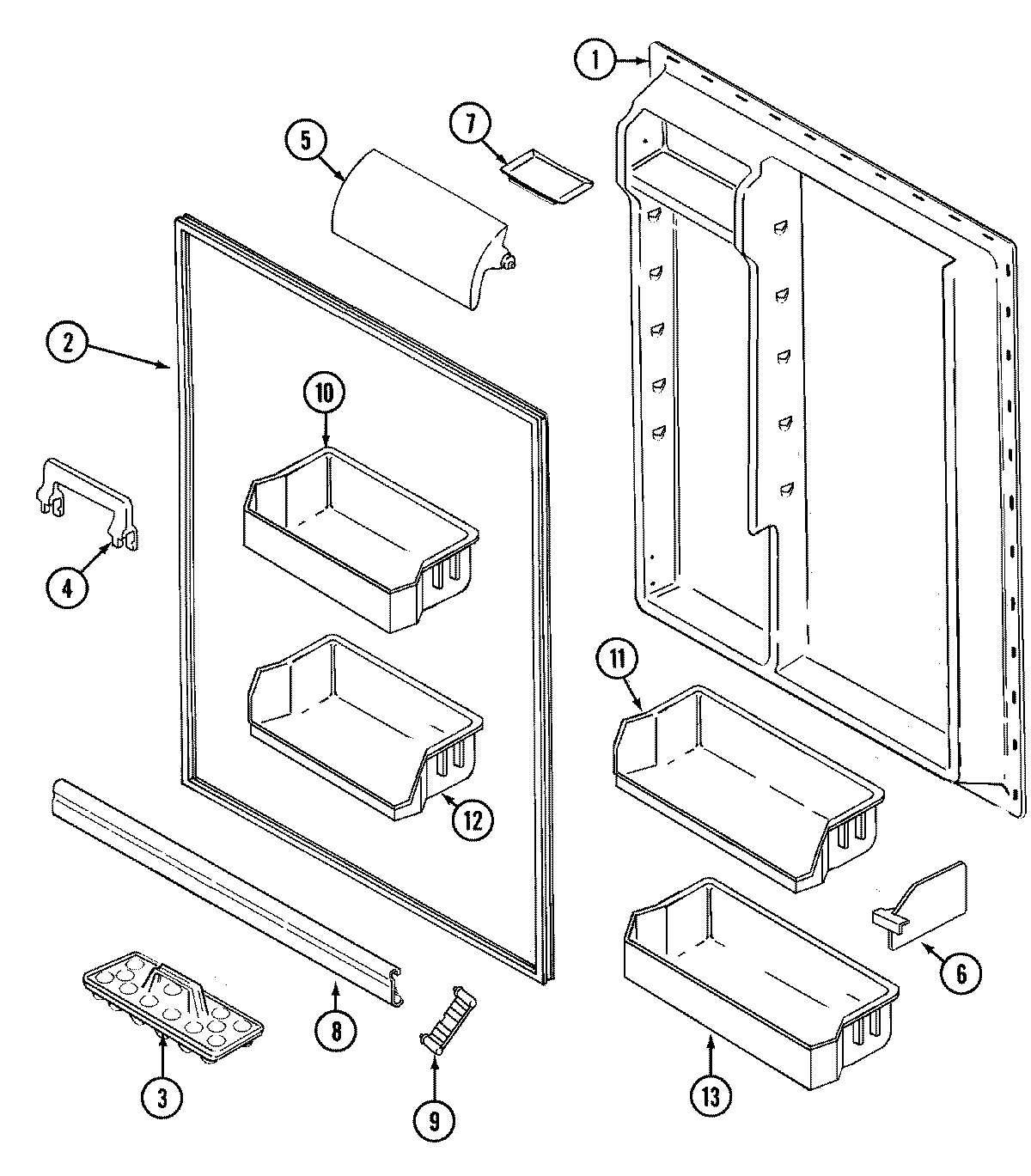

05 - FRESH FOOD INNER DOOR

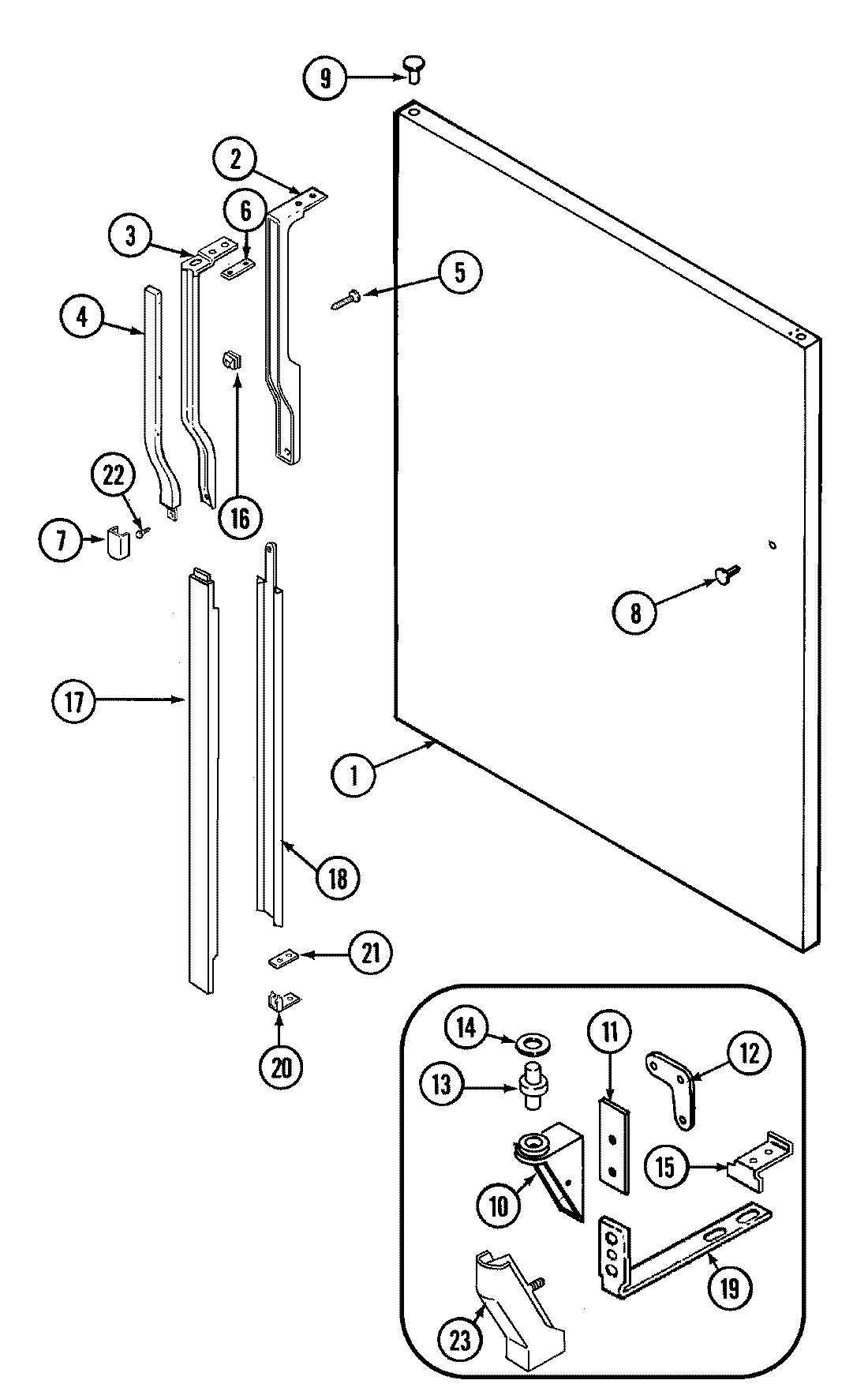

06 - FRESH FOOD OUTER DOOR

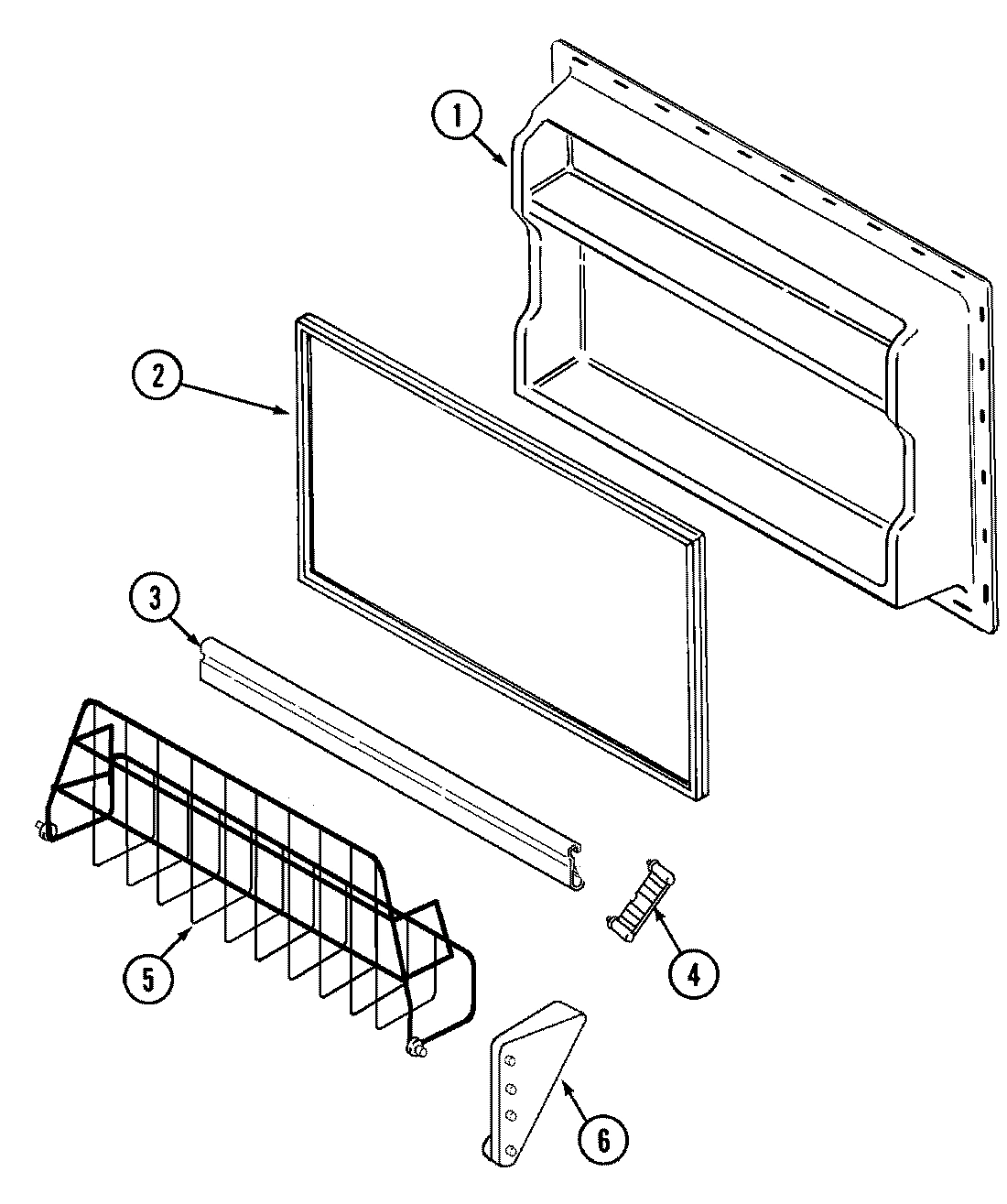

02 - FREEZER INNER DOOR

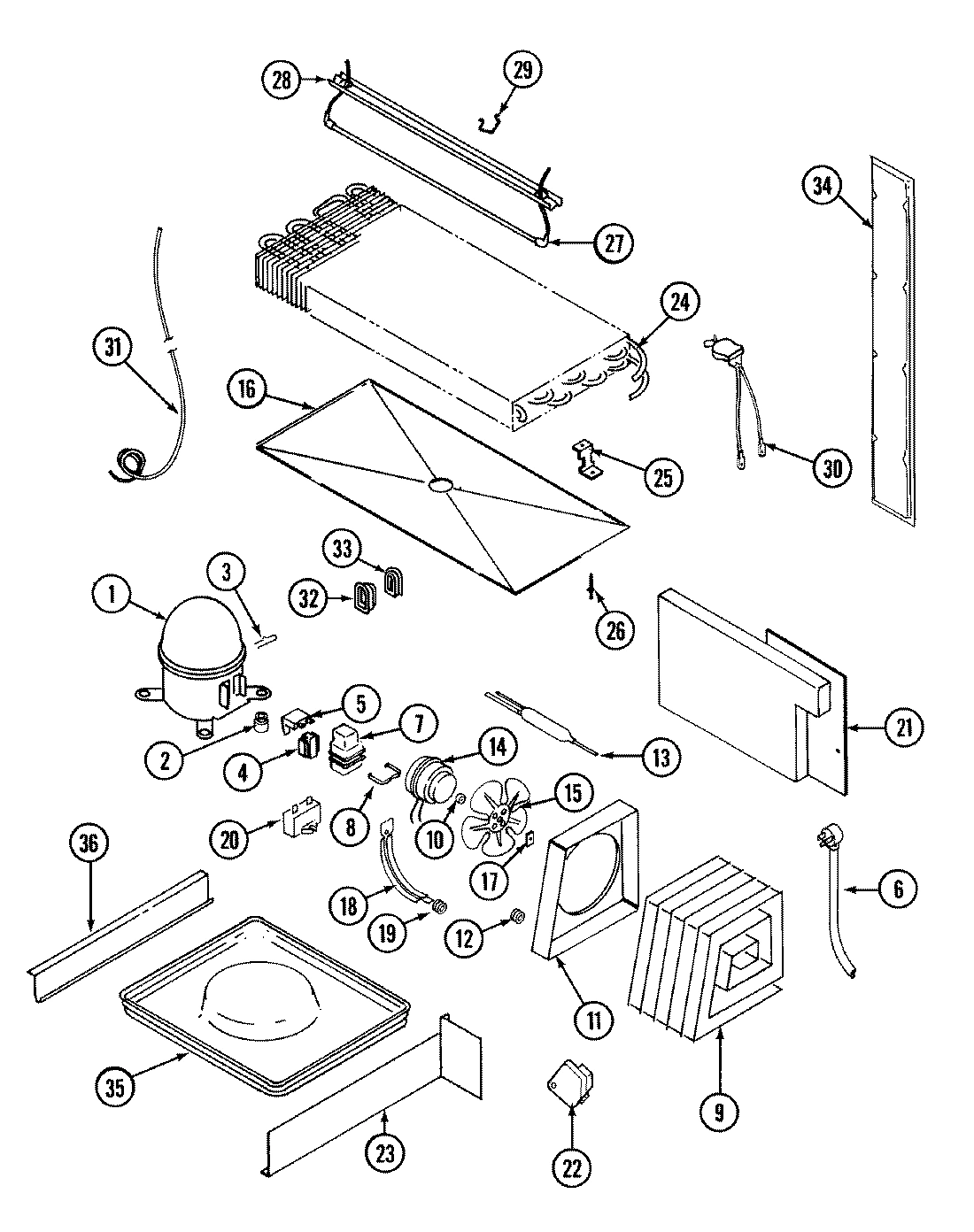

09 - UNIT COMPARTMENT & SYSTEM

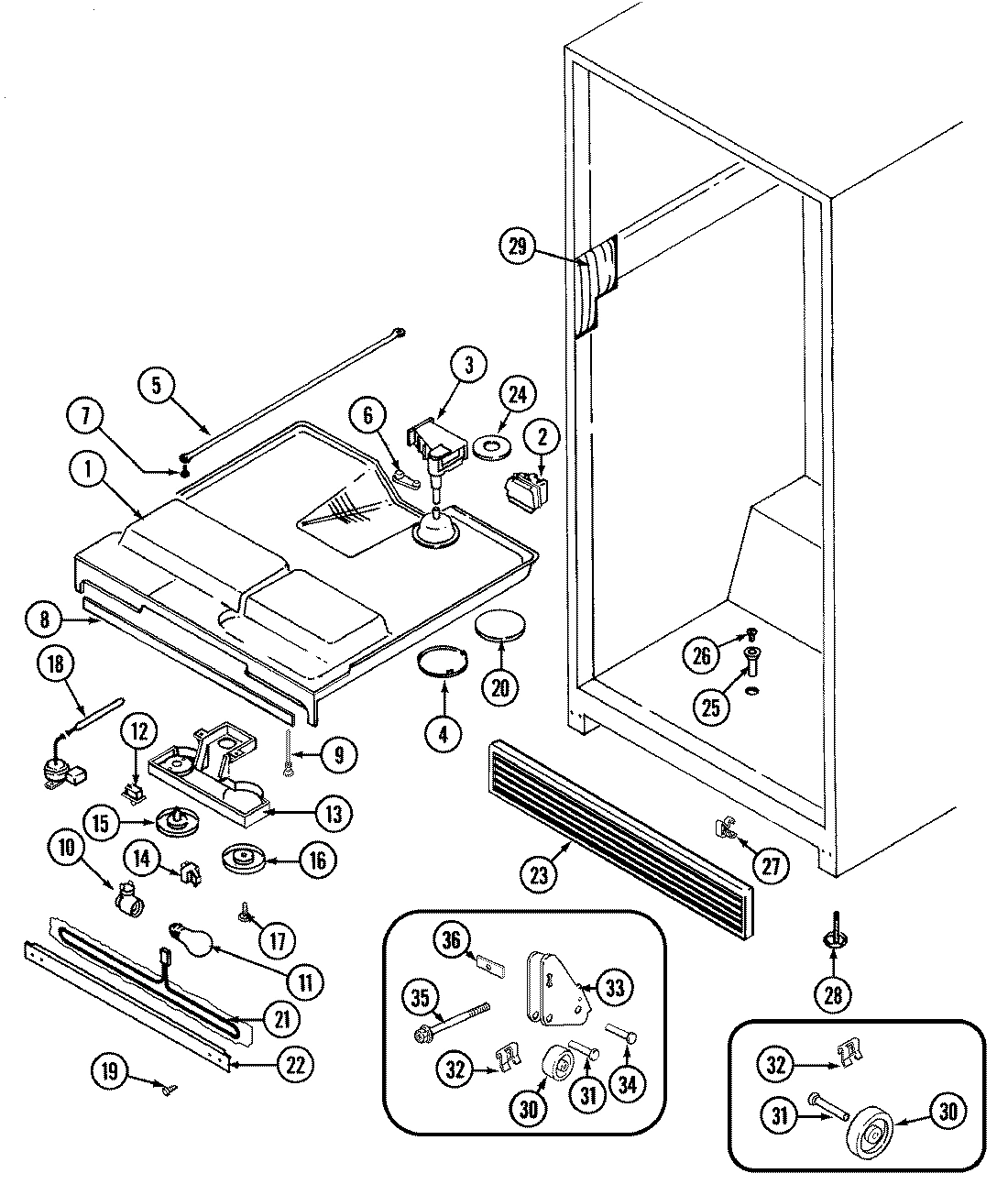

04 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool JRT219A REFRIGERATOR
1
PANEL, FRZ. DOOR (ALM) WPL 72342100AM Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
LINER WPL 694561 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723421AM Contact Us For Availability
1
LINER, FRZ. DOOR WPL 694707 Contact Us For Availability
1
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 694101 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694143 Contact Us For Availability
2
NAMEPLATE WPL 6806110 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
2
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
2
HANDLE, F.F. DOOR WPL 700512 Contact Us For Availability
2
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
HANDLE, FRZ. DOOR (CHR) WPL 700501 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SHELF, SPLIT WPL 61001288 Contact Us For Availability
3
SHELF, MEAT WPL 61001289 Contact Us For Availability
3
TRAY, EGG WPL 600661 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
3
TRIM, SHELF WPL 70111102 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698116 Contact Us For Availability
4
SCREW WPL 40001536 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
FRAME, HANDLE WPL 700524 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
SUPPORT, MEAT PAN----NA WPL 6764914 Contact Us For Availability
4
RETAINER, BOTTLE WPL 701121 Contact Us For Availability
4
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
4
INSERT, HANDLE (ALM)----NA WPL 7005317 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
INSERT, HANDLE (ALM) WPL 700539 Contact Us For Availability
5
SCREW WPL 4150331 Contact Us For Availability
5
SLEEVE, BRASS WPL 694311 Contact Us For Availability
5
TRIM, MEAT PAN SUPPORT WPL 702811 Contact Us For Availability
5
DOOR, DAIRY WPL 699188 Contact Us For Availability
5
BASKET, TILT OUT WPL 703201 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability
6
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
PAN, MEAT WPL 6992821 Contact Us For Availability
6
ORGANIZER WPL 697592 Contact Us For Availability
6
STOP, BASKET (RT) WPL 703211 Contact Us For Availability
6
STOP, BASKET (LT) WPL 703212 Contact Us For Availability
6
CORD, POWER WPL 528903 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
7
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
CLIP, FILL TUBE WPL 678771 Contact Us For Availability
7
TRAY, BUTTER WPL 299362 Contact Us For Availability
7
END CAP, HANDLE (ALM) WPL 61001128 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
8
TUNNEL, AIR WPL 702083 Contact Us For Availability
8
MAGNET WPL 694132 Contact Us For Availability
8
PLUG BUTTON (ALM) WPL 694804 Contact Us For Availability
8
DUCT, AIR WPL 701981 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
DUCT, AIR WPL 701983 Contact Us For Availability
8
SCREW WPL 652756 Contact Us For Availability
8
TRIM, SHELF WPL 70111104 Contact Us For Availability
8
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
TUNNEL, AIR WPL 695752 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
HOLDER, WINE BOTTLE WPL 61001622 Contact Us For Availability
10
SHELF, PICK-OFF WPL 6987215 Contact Us For Availability
10
HINGE, LOWER WPL 61001587 Contact Us For Availability
10
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693981 Contact Us For Availability
11
WASHER WPL 542331 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
11
SHELF, CRISPER WPL 700431 Contact Us For Availability
11
SHELF, PICK-OFF WPL 6987227 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001205 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
12
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
12
HINGE, UPPER WPL 5370924 Contact Us For Availability
12
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
GLASS, CRIPSER SHELF WPL 6748916 Contact Us For Availability
12
SHELF, PICK-OFF WPL 6987228 Contact Us For Availability
12
SCREW WPL 6527559 Contact Us For Availability
12
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
13
SHELF, FRZ. WPL 703222 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
COVER, ICE MAKER WPL 683282 Contact Us For Availability
13
TRIM, CRISPER SHELF WPL 703369 Contact Us For Availability
13
SHELF, PICK-OFF----NA WPL 6987229 Contact Us For Availability
13
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, CONTROL WPL 61001213 Contact Us For Availability
14
SEAL, AIR TUNNEL WPL 6632537 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
COVER, UPPER HINGE (ALM) WPL 701213 Contact Us For Availability
14
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
SCREW WPL 6527528 Contact Us For Availability
14
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
14
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
14
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
15
LEG, SHELF WPL 703232 Contact Us For Availability
15
SCREW WPL 6527548 Contact Us For Availability
15
STOP, DOOR WPL 692562 Contact Us For Availability
15
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
15
SCREW WPL 4010171 Contact Us For Availability
15
SLIDE, CONTROL WPL 674912 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 61001114 Contact Us For Availability
16
GROMMET WPL 697431 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
SEAL, CRISPER SHELF (SIDE) WPL 697794 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 61001667 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
COVER, PLENUM WPL 61664805 Contact Us For Availability
17
SCREW WPL 6527562 Contact Us For Availability
17
HINGE WPL 695143 Contact Us For Availability
17
GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability
17
INSERT, EXT. (ALM) WPL 700545 Contact Us For Availability
17
SCREW, FREEZER KNOB WPL 6527583 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
18
TRIM, HANDLE EXT. WPL 700552 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
19
SCREW WPL 6527561 Contact Us For Availability
19
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
19
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
19
SCREW WPL 4140121 Contact Us For Availability
19
SCREW WPL 6527569 Contact Us For Availability
19
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
20
SCREW WPL 6527557 Contact Us For Availability
20
WASHER WPL 674836 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
PAN, CRISPER WPL 6992828 Contact Us For Availability
20
END CAP WPL 700561 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
21
PAN, ICE WPL 683461 Contact Us For Availability
21
CAP, GROMMET WPL 683871 Contact Us For Availability
21
SHIM, HANDLE WPL 679341 Contact Us For Availability
21
PIN, CENTER HINGE WPL 695172 Contact Us For Availability
21
BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability
21
SCREW WPL 652755 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
RIVET WPL 263976 Contact Us For Availability
22
SCREW WPL 6527580 Contact Us For Availability
22
SCREW WPL 4050071 Contact Us For Availability
22
TIMER, DEFROST WPL 682332 Contact Us For Availability
22
WIRE HARNESS, MULLION WPL 61001206 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
23
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
23
TROUGH, WATER INLET WPL 61001305 Contact Us For Availability
23
ROLLER WPL 674232 Contact Us For Availability
23
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
23
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (ALM) WPL 701284 Contact Us For Availability
24
CAP, CONNECTOR WPL 681871 Contact Us For Availability
24
SCREW WPL 6527534 Contact Us For Availability
24
EVAPORATOR WPL 698227 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
26
BULB, LIGHT WPL 319561 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
SCREW WPL 40001735 Contact Us For Availability
27
BASE, LIGHT WPL 672412 Contact Us For Availability
27
HEATER, DEFROST WPL 6010635 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
DEFLECTOR, LIGHT WPL 673611 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
SHIELD, LIGHT WPL 672401 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
SHELF, ICE TRAY WPL 671144 Contact Us For Availability
31
COVER, HEAT EXCHANGER WPL 61001042 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
DIVIDER, ICE SHELF WPL 671482 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
33
FASTENER, DIVIDER WPL 671501 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
BRACKET, WHEEL WPL 675301 Contact Us For Availability
34
SUPPORT, ICE SHELF WPL 700411 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 61001564 Contact Us For Availability
34
SCREW WPL 6527550 Contact Us For Availability
34
PIN, WHEEL WPL 649651 Contact Us For Availability
35
SCREW WPL 4000191 Contact Us For Availability
35
SUPPORT, DIVIDER WPL 671491 Contact Us For Availability
35
PAN, DRAIN WPL 682361 Contact Us For Availability
35
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
35
SCREW WPL 6527564 Contact Us For Availability
36
SCREW WPL 4000171 Contact Us For Availability
36
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
36
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
36
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
37
MANUAL, USE & CARE WPL 61001687 Contact Us For Availability
37
WHEEL ASSY WPL 723192 Contact Us For Availability
38
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001832 Contact Us For Availability
× ![]()
Login and Registration Form
