Model Whirlpool JRT172L REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR

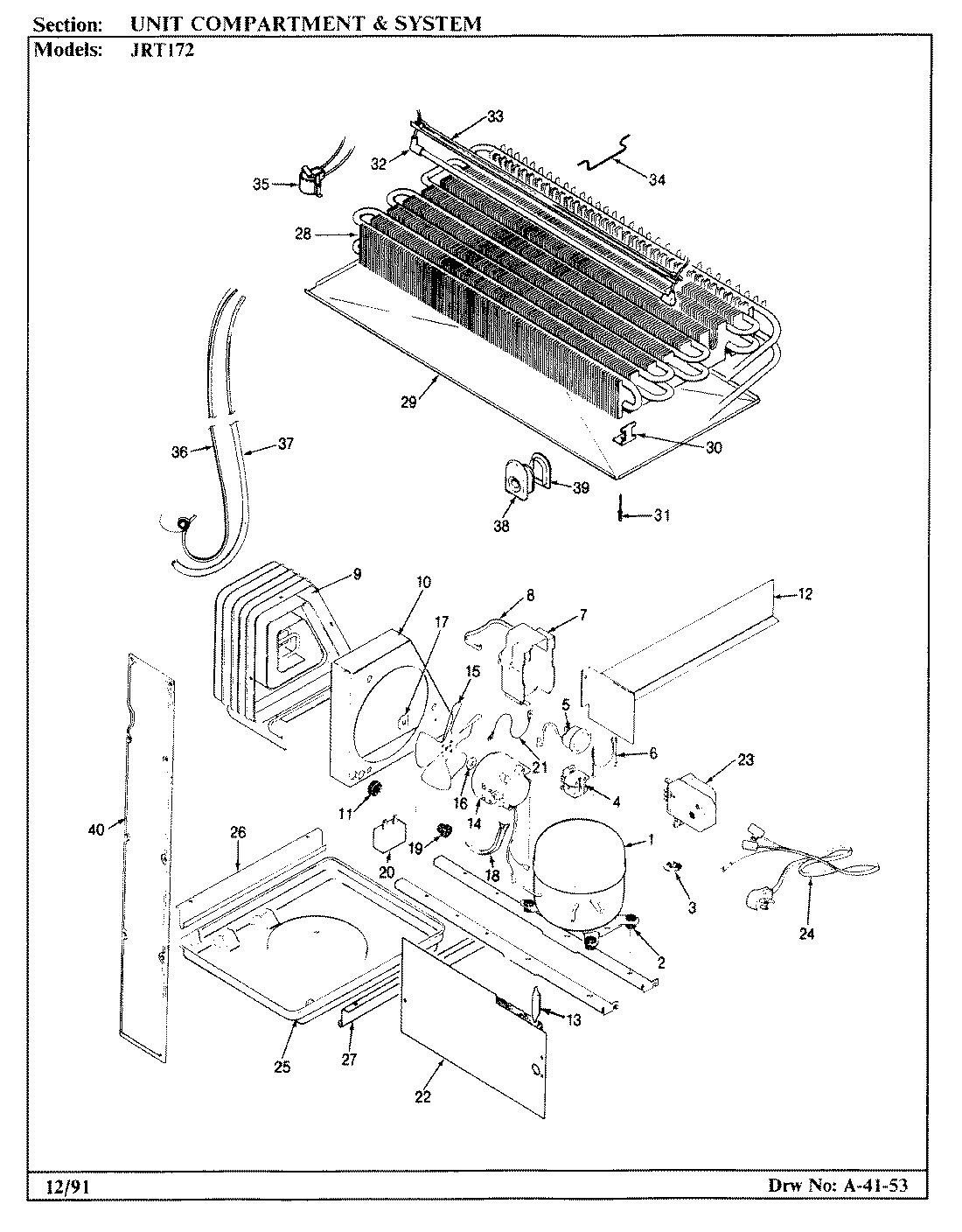

07 - UNIT COMPARTMENT & SYSTEM

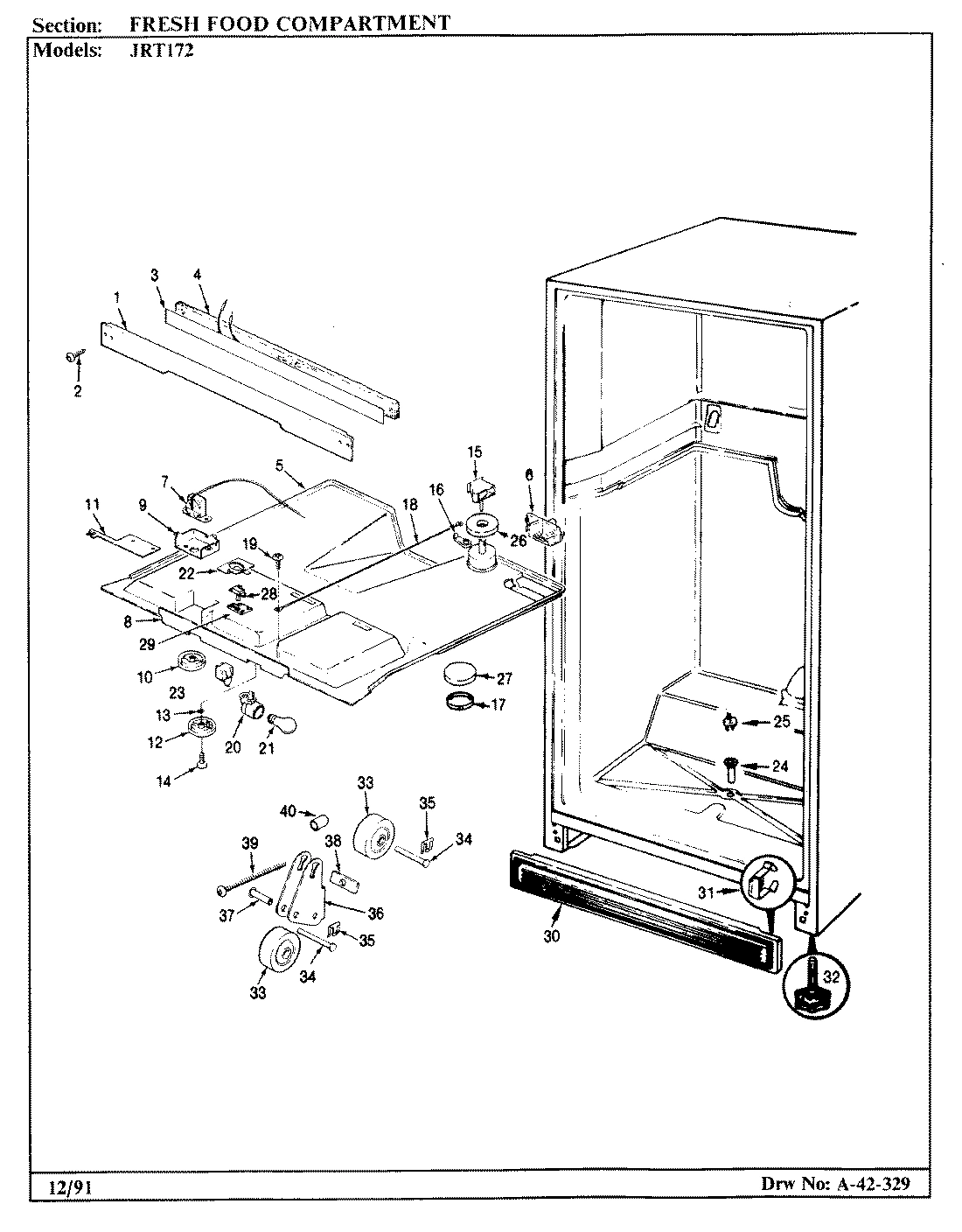

03 - FRESH FOOD COMPARTMENT

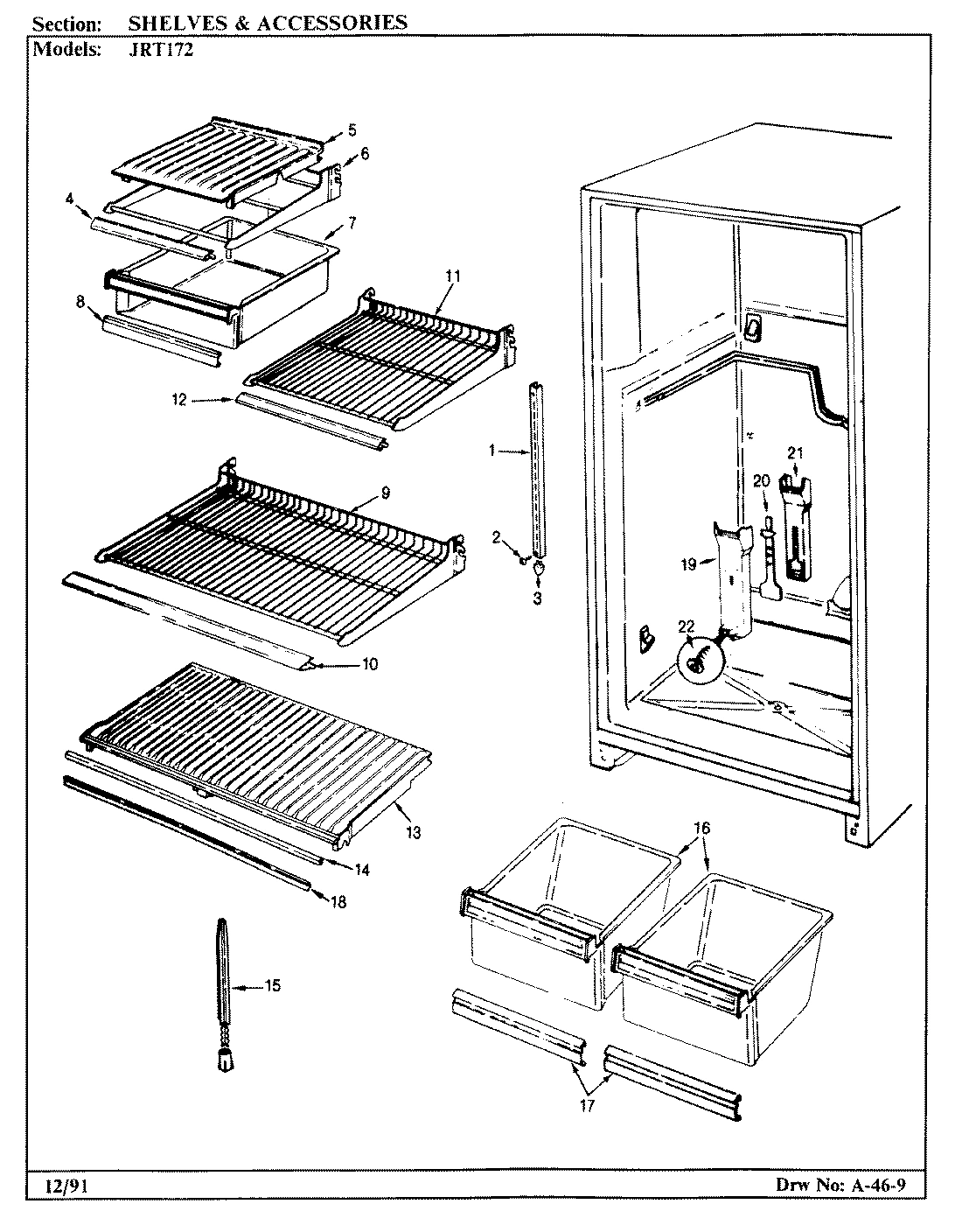

06 - SHELVES & ACCESSORIES

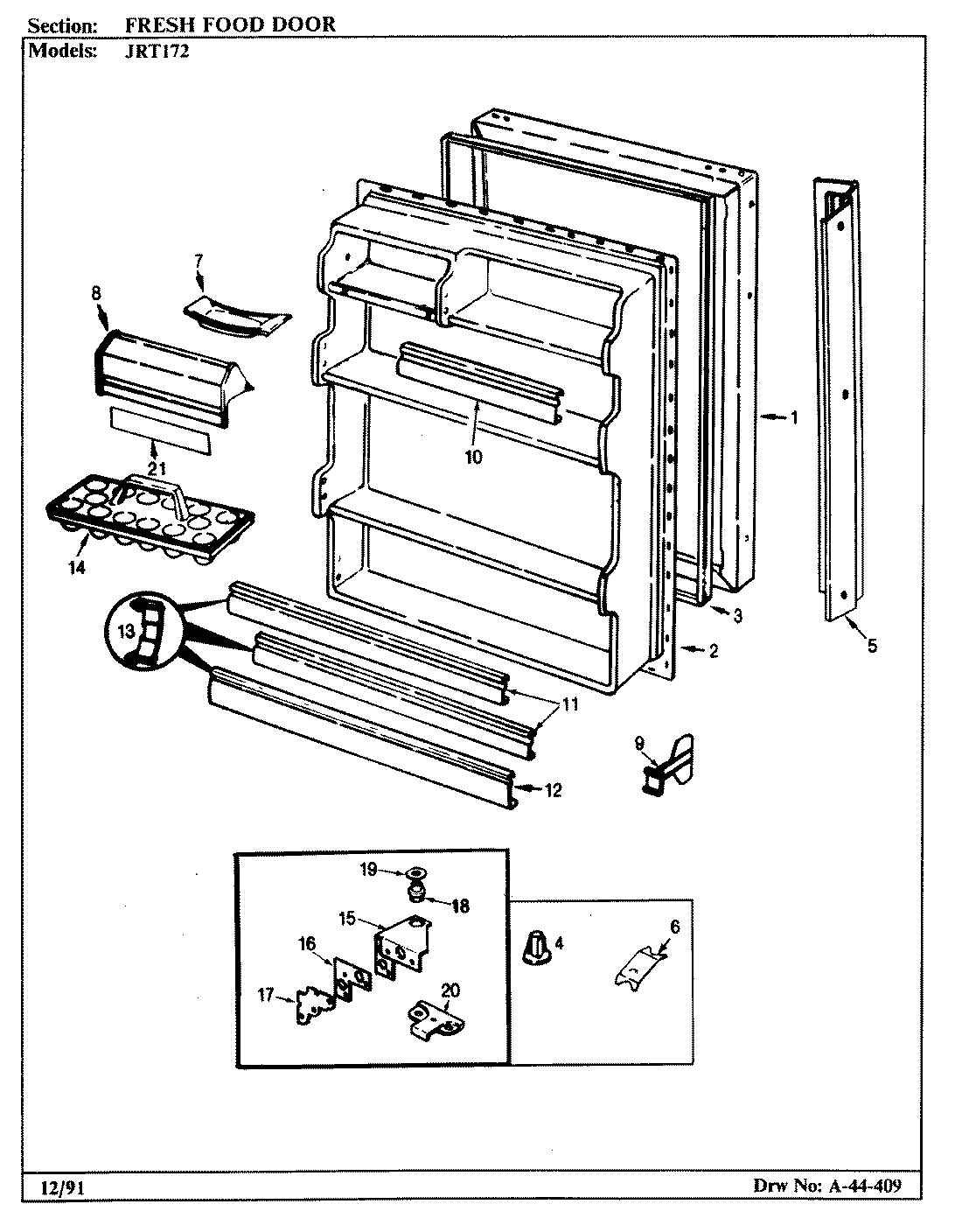

04 - FRESH FOOD DOOR

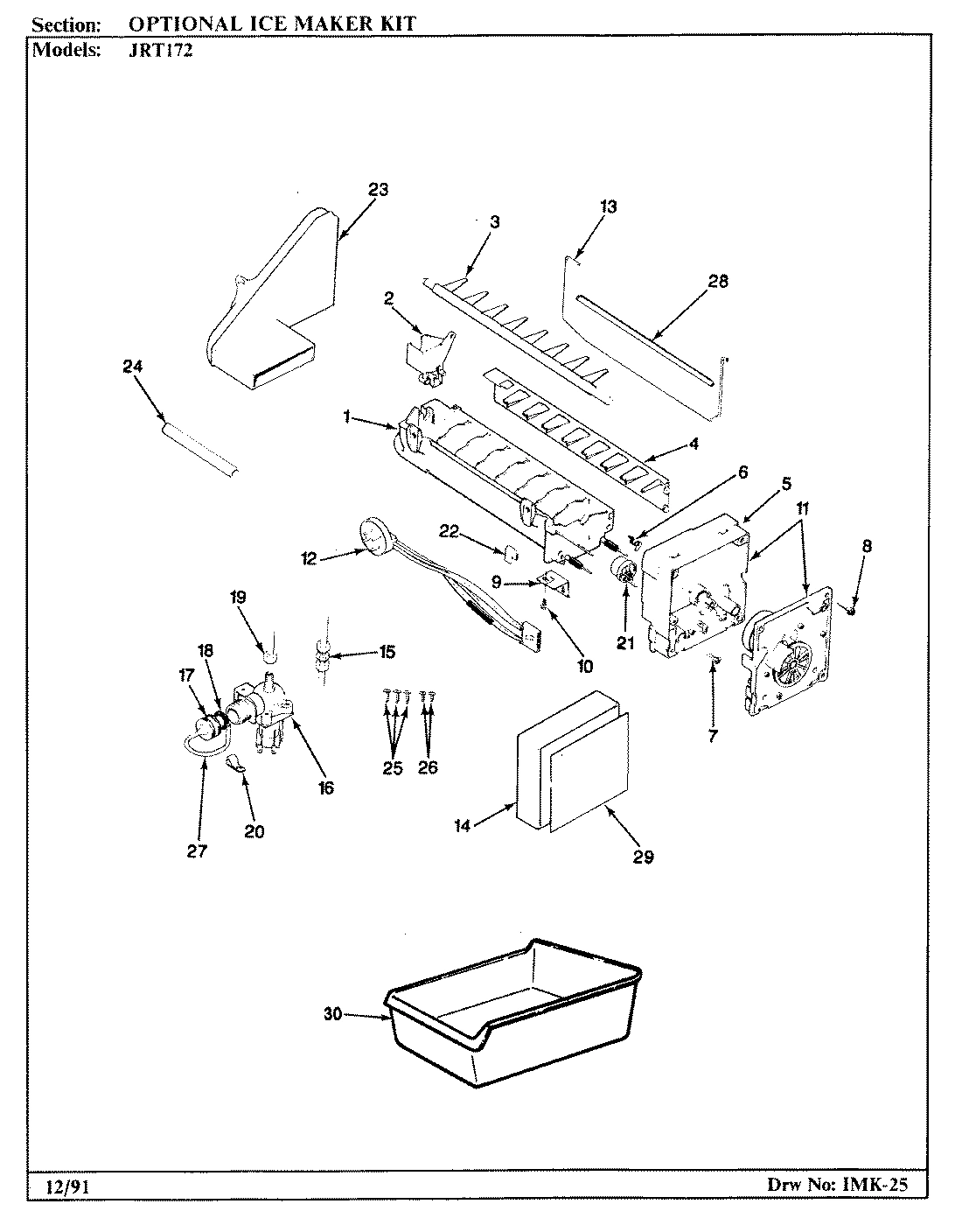

05 - OPTIONAL ICE MAKER KIT
01 - FREEZER COMPARTMENT
Common parts from model Whirlpool JRT172L REFRIGERATOR
1
PANEL, FRZ. DOOR (ALM) WPL 720445AM Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 720445WW Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684341AM Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 684341WW Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 684715AM Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 684715WW Contact Us For Availability
1
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
MULLION DIVIDER TRAY WPL 675182 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, DOOR WPL 6592913 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 6527535 Contact Us For Availability
2
SCREW WPL 6527554 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
LINER, F.F. DOOR WPL 659345 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688661 Contact Us For Availability
3
GASKET, DOOR WPL 661993 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
HEATER WIRE WPL 688301 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
GASKET, DOOR WPL 661994 Contact Us For Availability
3
SCREW, FAN MOTOR MOUNTING WPL 4040621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
4
PLUG, ALMOND WPL 675573 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
INSULATION WPL 601401 Contact Us For Availability
4
WIRE HARNESS WPL 689031 Contact Us For Availability
4
TRIM WPL 6041462 Contact Us For Availability
4
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
4
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
4
GEAR SHAFT WPL 651021 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
SCREW, HANDLE WPL 6527537 Contact Us For Availability
5
HANDLE, FRZ WPL 686602 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
5
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
5
COVER, MEAT PAN WPL 600757 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
6
ACHOR, SCREW WPL 667991 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
DEFLECTOR WPL 601202 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
6
EJECTOR, ICE WPL 951011 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
7
PAN WPL 6663731 Contact Us For Availability
7
TRAY, BUTTER WPL 299362 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
SEAL, SECONDARY WPL 689301 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
INSERT, CONTROL ESCUTCHEON WPL 6057170 Contact Us For Availability
8
HANDLE, MEAT PAN WPL 6013296 Contact Us For Availability
8
DOOR, DAIRY WPL 6040644 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685922 Contact Us For Availability
9
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
ORGANIZER, SHELF WPL 6409710 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686008 Contact Us For Availability
10
TRIM WPL 6041461 Contact Us For Availability
10
TRIM, DOOR SHELF WPL 651513 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
11
TRIM, DOOR SHELF WPL 651512 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
SEAL WPL 689461 Contact Us For Availability
12
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
12
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
KNOB, CONTROL WPL 686007 Contact Us For Availability
12
TRIM WPL 6041439 Contact Us For Availability
12
TRIM, DOOR SHELF WPL 651514 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
13
BEZEL WPL 680601 Contact Us For Availability
13
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
13
SHELF, CRISPER WPL 668341 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
14
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability
14
SCREW WPL 405016103 Contact Us For Availability
14
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
14
TRAY, EGG WPL 606218 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DAMPER WPL 675586 Contact Us For Availability
15
HINGE, LOWER WPL 677146 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
16
TRIM, DOOR SHELF WPL 651515 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
PAN, CRISPER WPL 68221417 Contact Us For Availability
16
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
TRIM, ICE PAN WPL 6013295 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
17
TRIM, CRISPER PAN WPL 6013294 Contact Us For Availability
17
SCREW WPL 4031001 Contact Us For Availability
17
TAPPING PLATE WPL 657903 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
PLUG BUTTON WPL 669202 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
18
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
18
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
18
SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability
18
HINGE PIN WPL 687881 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
CAP, CONNECTOR WPL 681871 Contact Us For Availability
19
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
19
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
TUNNEL, AIR (MEAT) WPL 6009422 Contact Us For Availability
19
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
20
HINGE, UPPER WPL 5370920 Contact Us For Availability
20
SCREW WPL 6527552 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
20
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
COVER, PLENUM WPL 664804 Contact Us For Availability
21
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
21
TRIM, DAIRY DOOR WPL 6812820 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
TRIM WPL 6041428 Contact Us For Availability
22
WASHER WPL 542331 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
RIVET WPL 263972 Contact Us For Availability
22
GROUND WIRE WPL 2967522 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
23
SCREW WPL 6527524 Contact Us For Availability
23
HINGE, CENTER WPL 688112 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 661281 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
SCREW WPL 400018103 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
23
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
23
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
24
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
24
CLAMP, SPRING WPL 603334 Contact Us For Availability
25
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
26
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CLAMP, TUBING WPL 535168 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
SCREW WPL 652751 Contact Us For Availability
27
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
28
WASHER WPL 542332 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
SCREW WPL 4020131 Contact Us For Availability
29
BRACKET, SWITCH WPL 605831 Contact Us For Availability
29
INSERT,ICE MAKER COVER WPL 674282 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
KICKPLATE WPL 6023737 Contact Us For Availability
30
PAN, ICE WPL 683271 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SCREW WPL 4000171 Contact Us For Availability
31
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
LEG, LEVELING WPL 686641 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
WHEEL WPL 298342 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
PIN, WHEEL WPL 298352 Contact Us For Availability
35
CLIP WPL 602161 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
BRACKET, WHEEL WPL 675301 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
PIN, WHEEL WPL 649651 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
MANUAL, USE & CARE WPL STU152UA Contact Us For Availability
40
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
× ![]()
Login and Registration Form
