Model Whirlpool JRT171R REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER COMPARTMENT

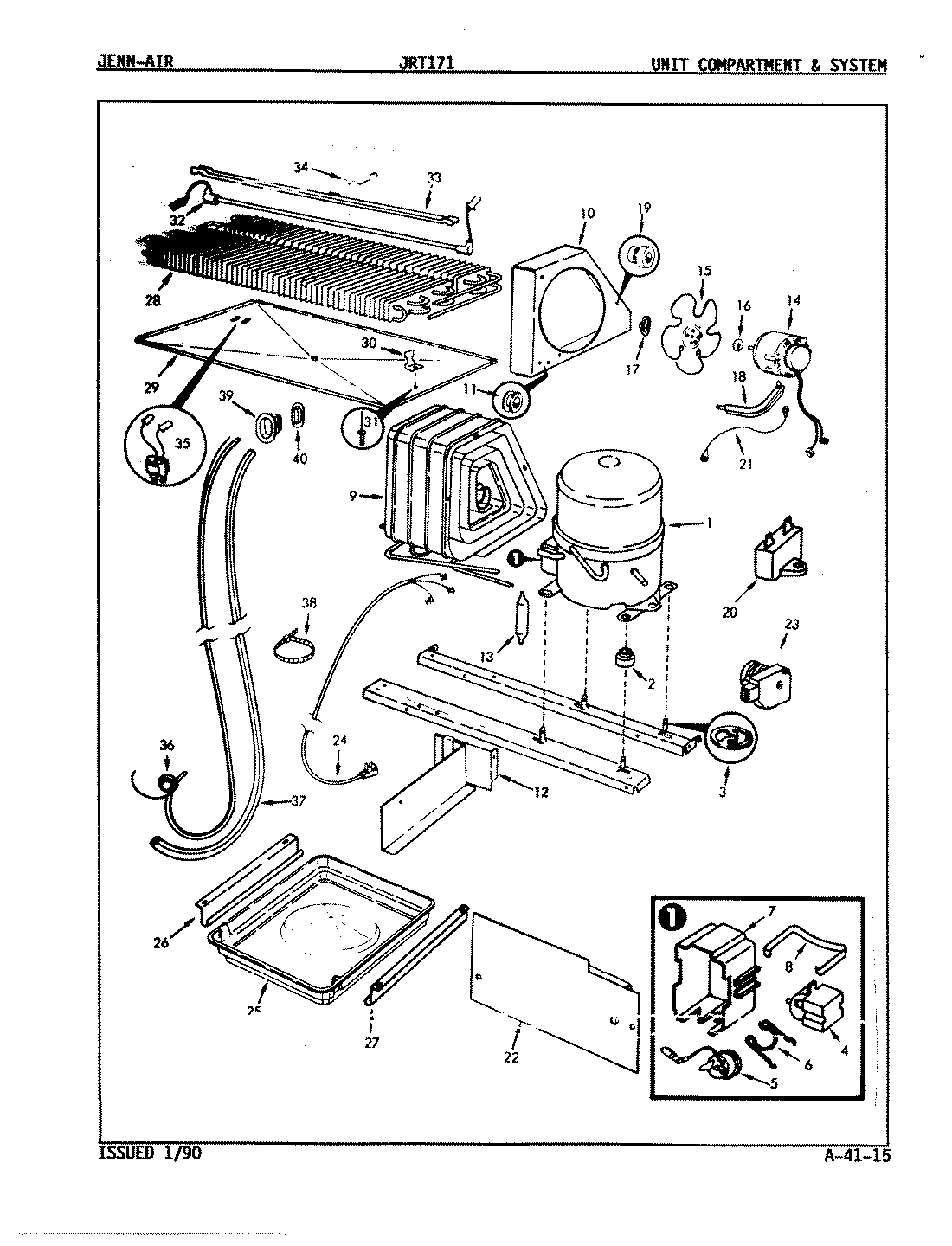

04 - UNIT COMPARTMENT & SYSTEM
01 - DOORS

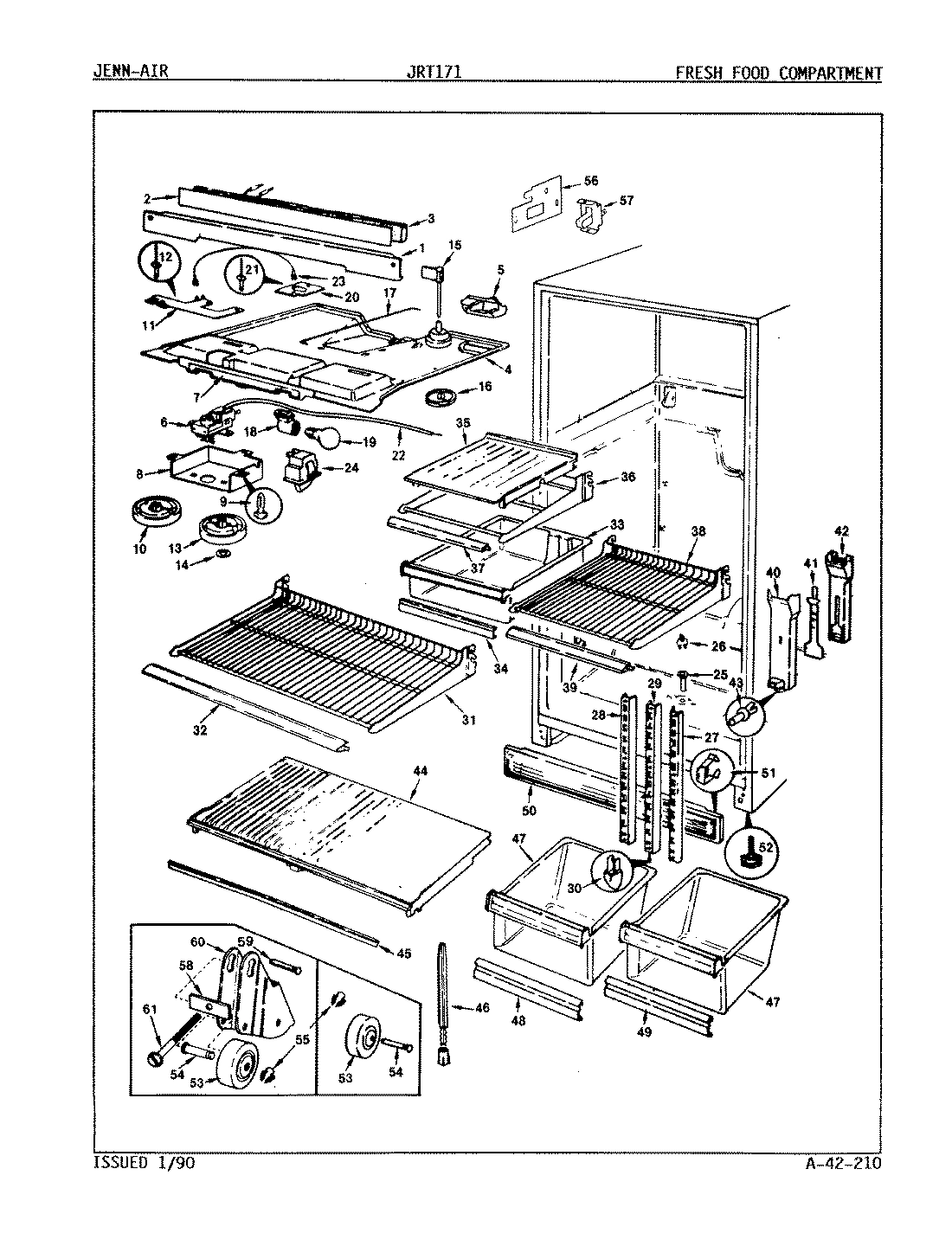

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool JRT171R REFRIGERATOR
1
COMPRESSOR WPL RA1009 Contact Us For Availability
1
OUTER PANEL (ALMOND) WPL 666641AM Contact Us For Availability
1
OUTER PANEL (WHITE) WPL 666641WW Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 657971AM Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 657971WW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
OUTER PANEL (ALMOND) WPL 666681AM Contact Us For Availability
2
OUTER PANEL (WHITE) WPL 666681WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WIRE WPL 601057 Contact Us For Availability
3
SCREW, FAN MOTOR MOUNTING WPL 4040621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
HANDLE, FRZ. DOOR WPL 682151 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
HANDLE, F.F. DOOR WPL 681991 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008551 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329415 Contact Us For Availability
5
TRAY, EGG WPL 606218 Contact Us For Availability
5
SCREW WPL 652754 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
BEZEL WPL 680601 Contact Us For Availability
7
INSERT, CONTROL ESCUTCHEON WPL 6057170 Contact Us For Availability
8
TUNNEL, AIR WPL 660442 Contact Us For Availability
8
PLUG BUTTON WPL 669202 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
PLUG BUTTON (WHITE) WPL 557822 Contact Us For Availability
8
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
9
LINER, FRZ. DOOR WPL 659295 Contact Us For Availability
10
BAFFLE-DRM WPL 685207 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SCREW WPL 652755 Contact Us For Availability
10
LINER, F.F. DOOR WPL 659345 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
GASKET, DOOR WPL 661993 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
SHELF WPL 6043819 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
GASKET, DOOR WPL 661994 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
BURNER-GAS WPL 685208 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
TRIM, SHELF WPL 684105 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM, SHELF WPL 684103 Contact Us For Availability
15
DAMPER WPL 666091 Contact Us For Availability
16
TRIM, ICE PAN WPL 6013295 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
TRIM, SHELF WPL 684102 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
TRIM, SHELF WPL 684104 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
18
CAP, CONNECTOR WPL 681871 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
DOOR, DAIRY WPL 6040644 Contact Us For Availability
20
COVER, PLENUM WPL 664801 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
20
TRIM, DAIRY DOOR WPL 6812820 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
21
TRIM WPL 6041428 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRAY, BUTTER WPL 299362 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
22
COVER, UPPER HINGE (CHROME) WPL 668751 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
23
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 661281 Contact Us For Availability
23
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
23
GROUND WIRE WPL 2967522 Contact Us For Availability
24
CLAMP, SPRING WPL 603334 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
24
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
24
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
24
SWITCH, LIGHT WPL 557321 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
25
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
26
CLAMP, TUBING WPL 535168 Contact Us For Availability
26
SCREW WPL 652751 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
WASHER WPL 521851 Contact Us For Availability
26
SCREW WPL 998687 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
27
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
28
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
TAPPING PLATE WPL 606221 Contact Us For Availability
29
SCREW WPL 9986107 Contact Us For Availability
29
SCREW WPL 40003728 Contact Us For Availability
29
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
30
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
PLUG BUTTON WPL 561861 Contact Us For Availability
31
SHELF WPL 6041714 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
SCREW WPL 4030625 Contact Us For Availability
32
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
32
TRIM WPL 6041461 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
33
PAN WPL 6663731 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
34
HANDLE, MEAT PAN WPL 6013296 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
35
COVER, MEAT PAN WPL 600757 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
WASHER WPL 542332 Contact Us For Availability
36
CANTILEVER SHELF (MEAT) WPL 604169 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
DOOR STOP, FRZR DOOR WPL 600306 Contact Us For Availability
37
TRIM WPL 6041462 Contact Us For Availability
38
TIE WIRE AND TUBE WPL 662232 Contact Us For Availability
38
PLUG WPL 495039900 Contact Us For Availability
38
DOOR STOP, F.F. DOOR WPL 600305 Contact Us For Availability
38
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
38
SCREW WPL 9986108 Contact Us For Availability
38
CANTILEVER SHELF (SPLIT) WPL 6041713 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
BUMPER, DOOR WPL 282726 Contact Us For Availability
39
TRIM WPL 6041439 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
PAINT KIT WPL RA438721 Contact Us For Availability
40
RETAINER, NAMEPLATE BEZEL WPL 683811 Contact Us For Availability
40
TUNNEL, AIR (MEAT) WPL 6009422 Contact Us For Availability
41
ORGANIZER, SHELF WPL 6409710 Contact Us For Availability
41
SCREW WPL 6527515 Contact Us For Availability
41
SCREW (No.12 X 5/8``) WPL 6527526 Contact Us For Availability
41
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
42
TRIM, SIDE(REFRIGERATOR) WPL 681951 Contact Us For Availability
42
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
43
TRIM, SIDE (FRZ) WPL 682081 Contact Us For Availability
44
SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability
44
SHELF, CRISPER WPL 668341 Contact Us For Availability
45
TRIM TOP (REFRIGERATOR) WPL 686721 Contact Us For Availability
45
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
46
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
47
TRI WPL 686741 Contact Us For Availability
47
PAN, CRISPER WPL 68221417 Contact Us For Availability
49
TRIM, CRISPER PAN WPL 6013294 Contact Us For Availability
50
KICKPLATE WPL 6023737 Contact Us For Availability
51
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
52
LEG, LEVELING WPL 60128 Contact Us For Availability
53
WHEEL WPL 298342 Contact Us For Availability
54
PIN, WHEEL WPL 298352 Contact Us For Availability
55
GROUND WIRE WPL 2967532 Contact Us For Availability
55
CLIP WPL 602161 Contact Us For Availability
56
BRACKET, SWITCH WPL 605831 Contact Us For Availability
57
SCREW WPL 4020131 Contact Us For Availability
57
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
58
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
59
PIN, WHEEL WPL 649651 Contact Us For Availability
60
BRAC WPL 675301 Contact Us For Availability
61
WPL 4000291 WPL 4000291 Contact Us For Availability
61
WPL 4060831 WPL 4060831 Contact Us For Availability
× ![]()
Login and Registration Form
