Model Whirlpool JRSI205 REFRIGERATOR – Common Parts & Diagrams

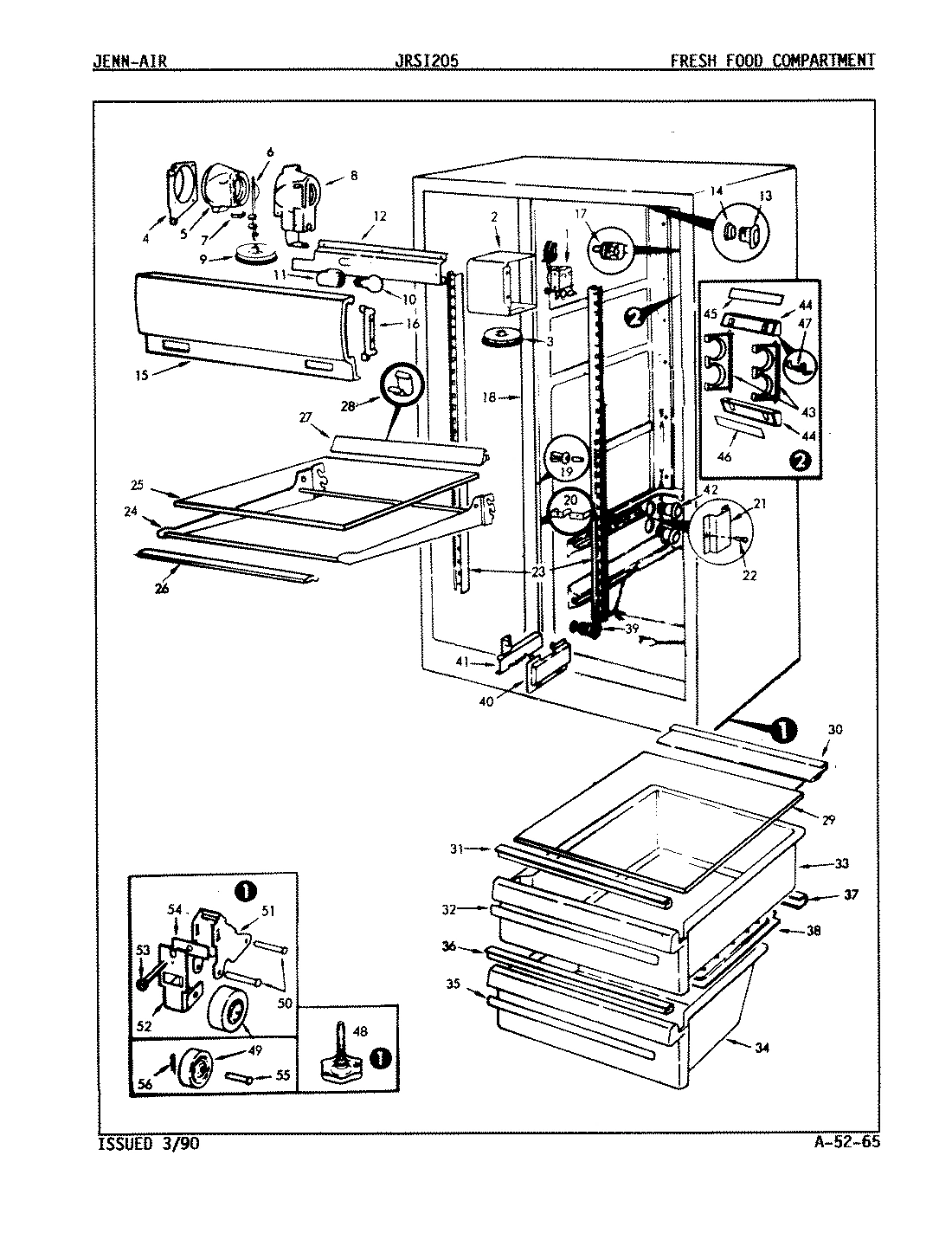

03 - FRESH FOOD COMPARTMENT

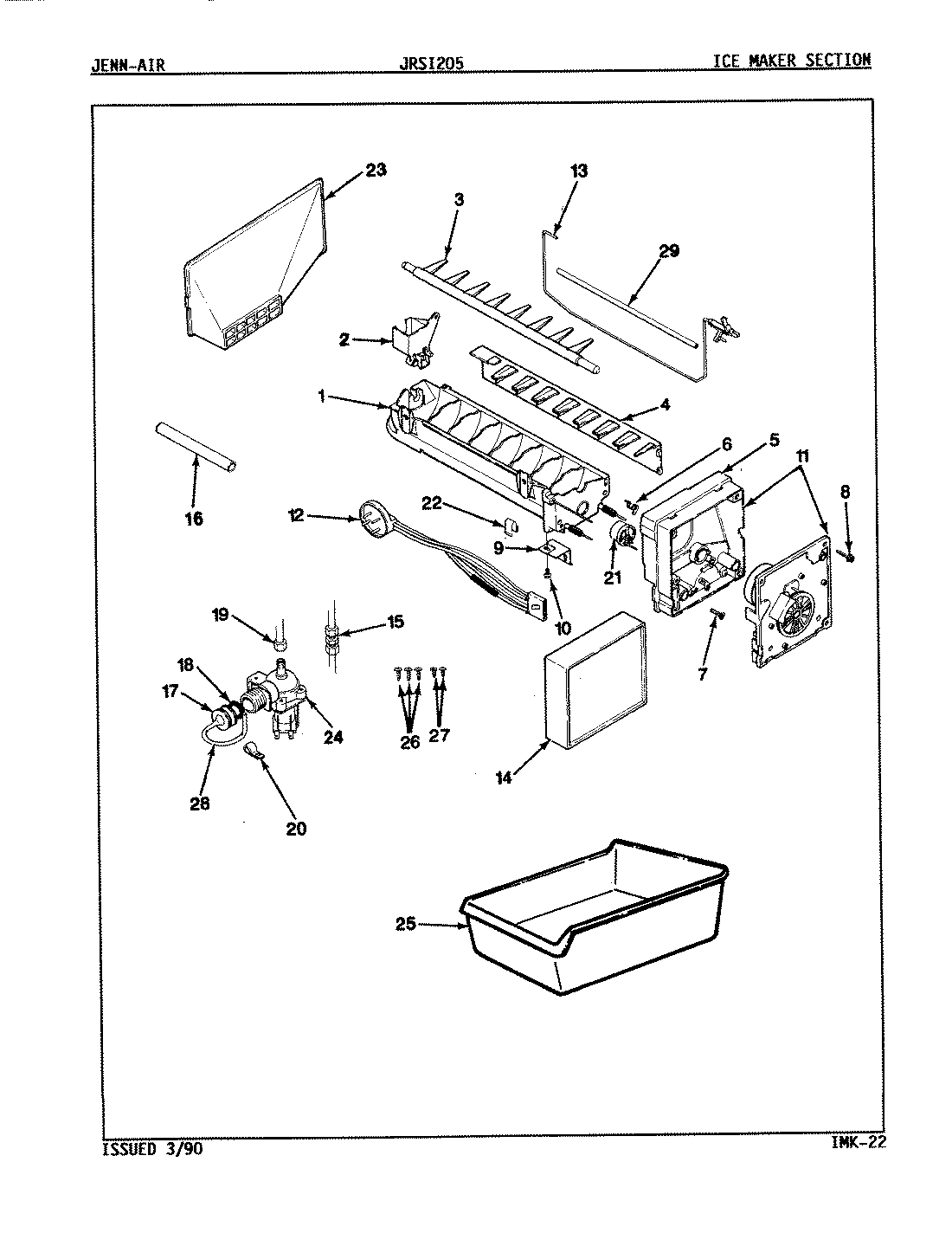

05 - ICE MAKER SECTION

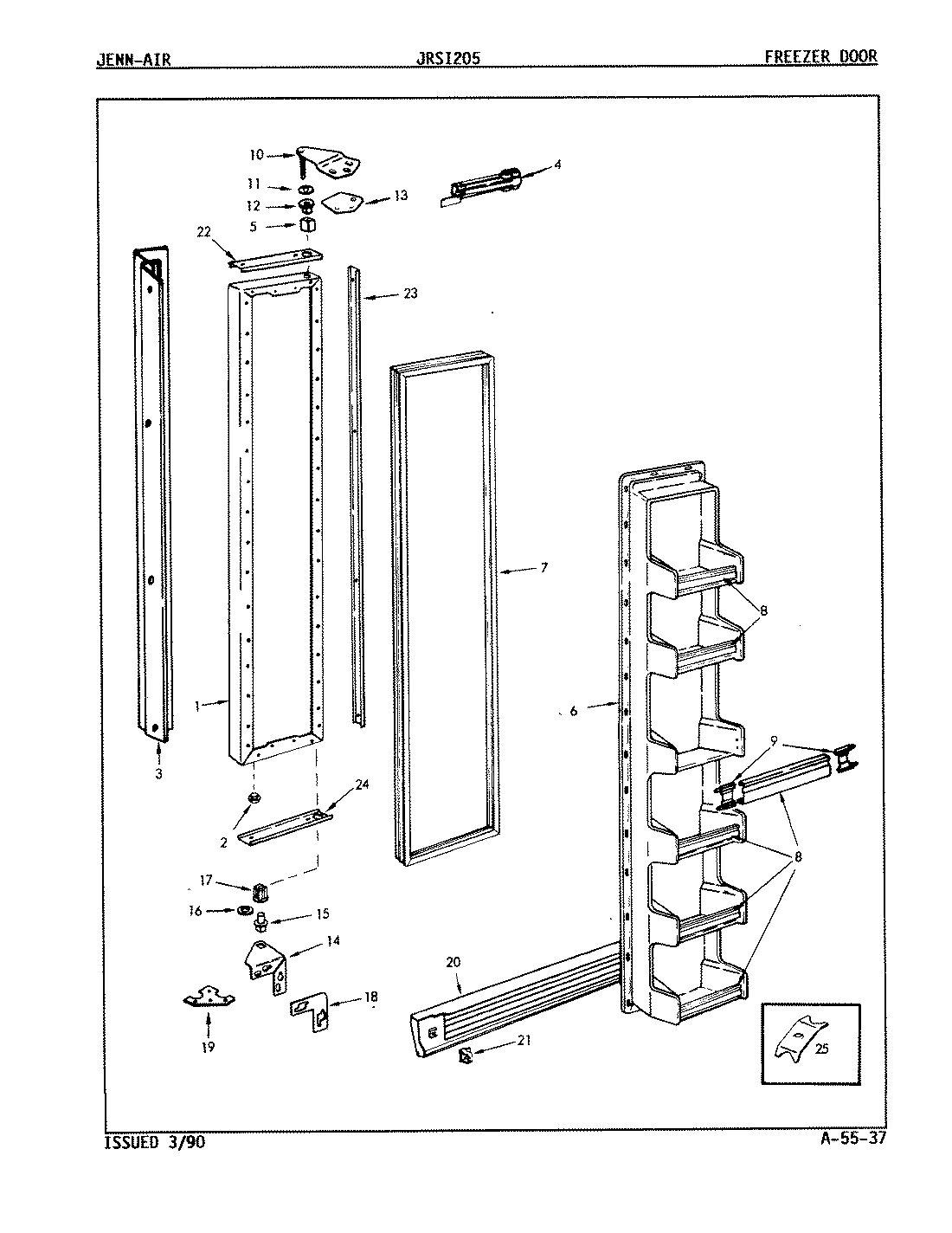

02 - FREEZER DOOR

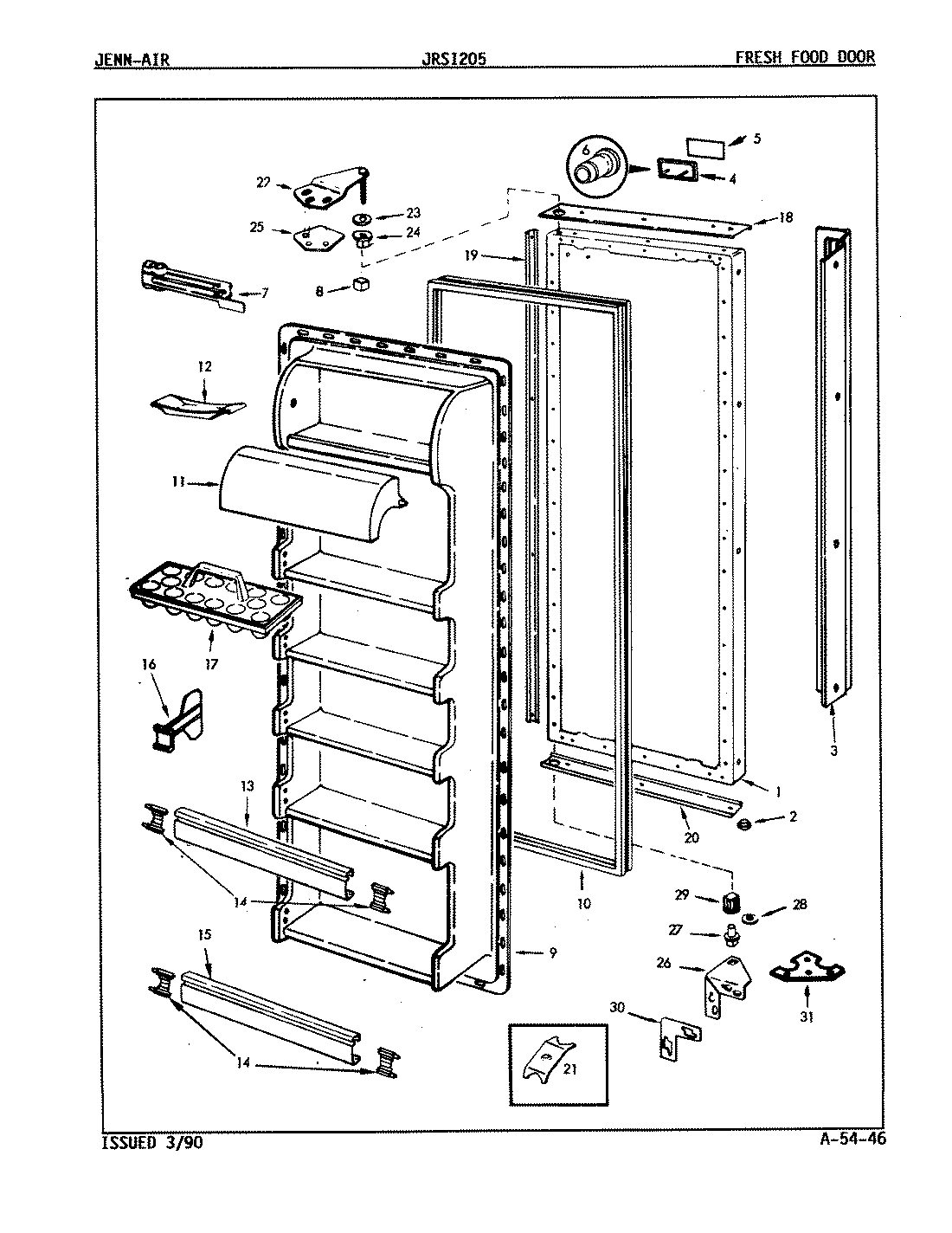

04 - FRESH FOOD DOOR

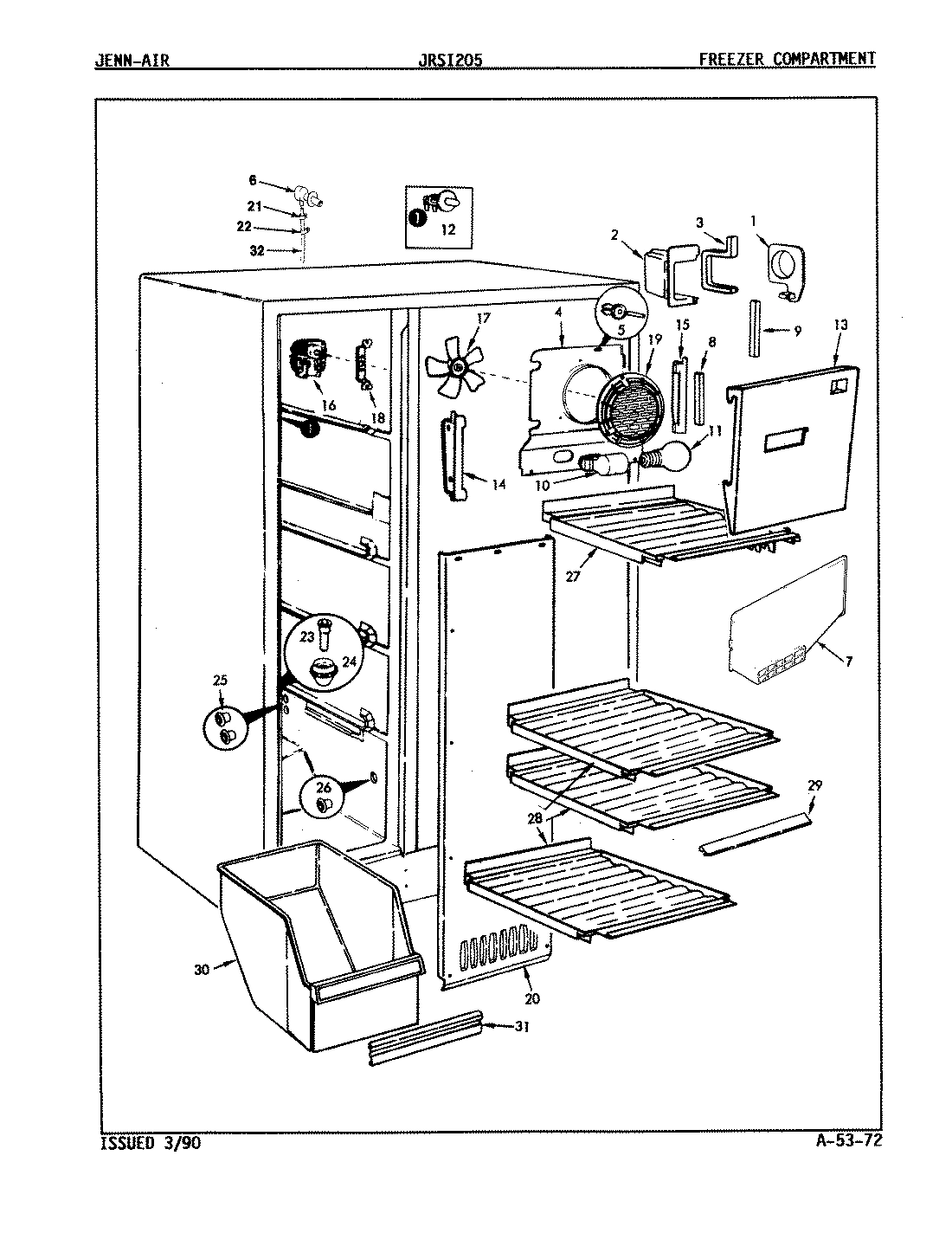

01 - FREEZER COMPARTMENT

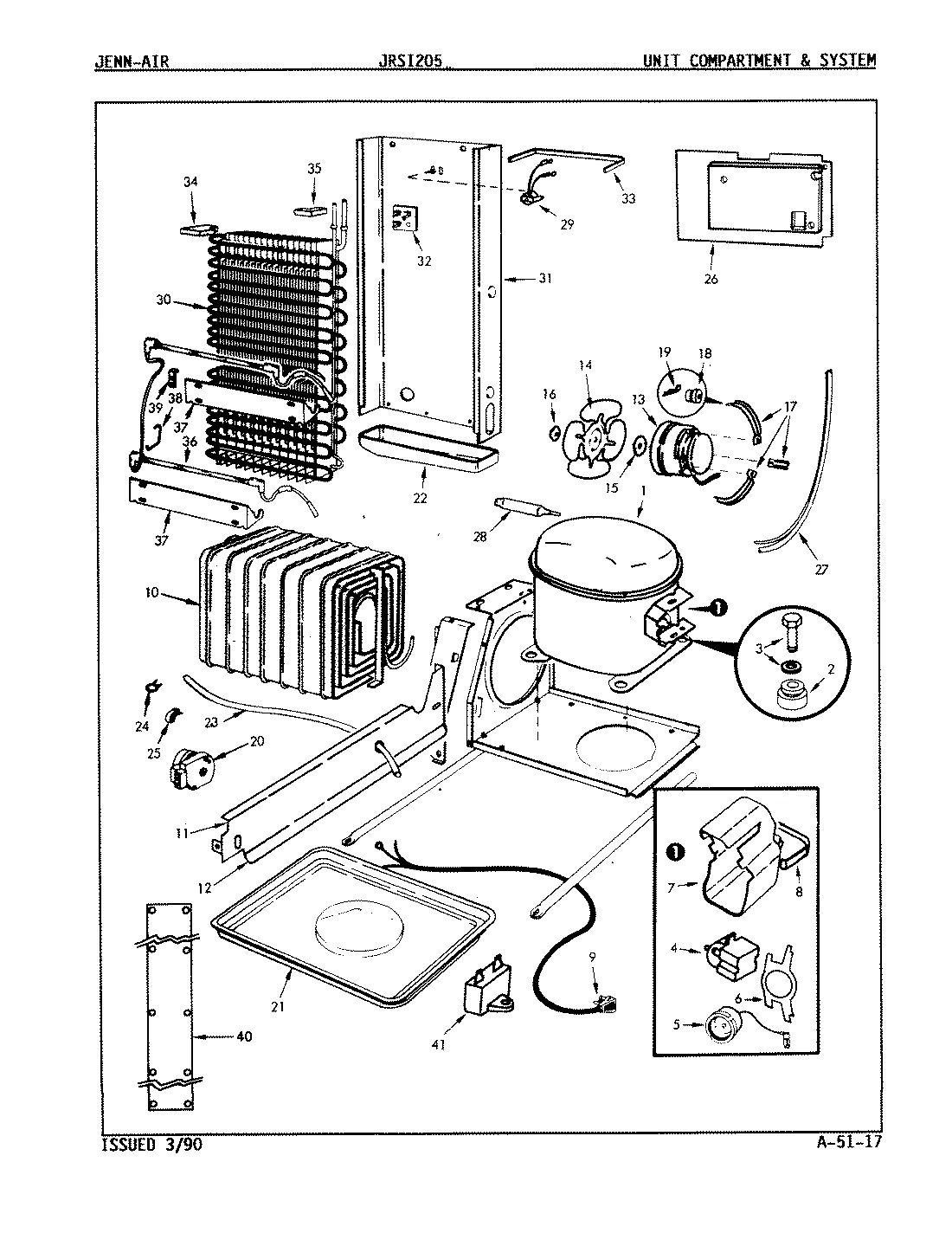

06 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool JRSI205 REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 5288141 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
OUTER PANEL-ALMOND WPL 666871AM Contact Us For Availability
1
OUTER PANEL-WHITE WPL 666871WW Contact Us For Availability
1
OUTER PANEL, (WHITE) WPL 666881WW Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
2
PLUG WPL 495039900 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW WPL 652754 Contact Us For Availability
3
HANDLE, FRZ. DOOR WPL 682061 Contact Us For Availability
3
HANDLE, F.F. DOOR WPL 682062 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
BEZEL, NAMEPLATE WPL 666411 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER WPL 682472 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
TUBE, FILL WPL 683061 Contact Us For Availability
6
INNER PANEL WPL 59433215 Contact Us For Availability
6
RETAINER, NAMEPLATE BEZEL WPL 683811 Contact Us For Availability
6
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
6
GROMMET WPL 683961 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
AIR DUCT WPL 682551 Contact Us For Availability
7
INSULATION, CLOSER WPL 526131 Contact Us For Availability
7
BRACKET, CLOSER WPL 526141 Contact Us For Availability
7
GASKET, DOOR WPL 5371223 Contact Us For Availability
7
CLOSER, DOOR WPL 544851 Contact Us For Availability
7
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
SEAL SLEEVE WPL 559901 Contact Us For Availability
8
TRIM, SHELF WPL 684106 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 298938 Contact Us For Availability
9
SCREW WPL 4000011 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
9
LINER, DOOR WPL 659449 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
10
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
10
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
GASKET WPL 669296 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
DOOR, DAIRY WPL 66184357 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
12
HOUSING WPL 597401 Contact Us For Availability
12
SWITCH WPL 564322 Contact Us For Availability
12
SPACER WPL 655121 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
TRAY, BUTTER WPL 299362 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
TRIM, DOOR SHELF WPL 5925884 Contact Us For Availability
13
SHIELD, LIGHT WPL 682461 Contact Us For Availability
13
CORD WPL 296752 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675603 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
14
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557821 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
TRIM, SHELF WPL 684107 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
EXTENSION, FILL TUBE WPL 683041 Contact Us For Availability
16
ORGANIZER, SHELF WPL 6409710 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
16
CLIP, MOUNTING FAN BLADE WPL 550421 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
TRAY, EGG WPL 6006613 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
18
MULLION BAR (ALMOND) WPL 670001AM Contact Us For Availability
18
MULLION BAR (WHITE) WPL 670001WW Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
P. TRIM, TOP WPL 682191 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
STUD, (WHITE) WPL 5992013 Contact Us For Availability
19
STUD, (ALM) WPL 599209 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
TRIM, PERIMETER TRIM (SIDE) WPL 682052 Contact Us For Availability
19
GRID, FAN WPL 682531 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
CLIP, MULLION WPL 670601 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
KICKPLATE WPL 5843745 Contact Us For Availability
20
P. TRIM, BTM WPL 682201 Contact Us For Availability
20
COVER, COIL WPL 652243 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
21
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
21
SCREW WPL 6527515 Contact Us For Availability
21
CLIP WPL 667231 Contact Us For Availability
21
CLAMP, SPRING WPL 603334 Contact Us For Availability
21
PAN, DRAIN WPL 298394 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
HINGE, UPPER WPL 5370922 Contact Us For Availability
22
COVER, UPPER HINGE (CHROME) WPL 668751 Contact Us For Availability
22
SCREW WPL 998687 Contact Us For Availability
22
TRIM, PERIMETER TOP FZ WPL 682011 Contact Us For Availability
22
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
SUPPORT, SHELF (UPPER) WPL 601221 Contact Us For Availability
23
RAIL, SUPPORT (LOWER) WPL 601271 Contact Us For Availability
23
WASHER WPL 521851 Contact Us For Availability
23
TRIM, PERIMETER (SIDE) WPL 682051 Contact Us For Availability
23
DRAIN TUBE WPL 265279 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
FRAME, SHELF WPL 656184 Contact Us For Availability
24
VALVE, WATER WPL 601843 Contact Us For Availability
24
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
24
TRIM, PERIMETER BOTTOM FRZR WPL 682021 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
GLASS WPL 6840511 Contact Us For Availability
25
PAN, ICE WPL 683461 Contact Us For Availability
25
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
25
ACHOR, SCREW WPL 667991 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
TRIM WPL 666491 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
26
SCREW WPL 403062801 Contact Us For Availability
26
HINGE, LOWER WPL 6063012 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
27
TRIM WPL 6527610 Contact Us For Availability
27
SCREW WPL 4010171 Contact Us For Availability
27
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
SHELF, FRZ. No.1 WPL 656519 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950901 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
28
INLET TUBE ASSY WPL 602193 Contact Us For Availability
28
WASHER WPL 542331 Contact Us For Availability
28
SHELF, FRZ. No.2,3,4 WPL 656511 Contact Us For Availability
29
SHELF, CRISPER (GLASS) WPL 656871 Contact Us For Availability
29
INSERT,ICE MAKER COVER WPL 674282 Contact Us For Availability
29
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
29
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
29
TRIM,FRZR SHELVES(FRONT&BACK) WPL 666481 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
30
SEAL, CRISPER PAN (REAR) WPL 681571 Contact Us For Availability
30
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
30
FREEZER DRAWER WPL 06100011 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
31
SEAL, CRISPER PAN (FRONT) WPL 656501 Contact Us For Availability
31
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
31
INSERT, PAN WPL 06100012 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
32
TUBE WPL 675796 No Longer Available
32
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
PAN, CRISPER WPL 6663728 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
34
PAN, MEAT WPL 6663729 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
INSERT, MEAT PAN WPL 6812466 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
37
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
COVER, MEAT PAN WPL 656083 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS WPL 682511 Contact Us For Availability
39
WIRE HARNESS WPL 683722 Contact Us For Availability
40
CONTROL HOUSING WPL 657372 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
41
PAINT KIT WPL RA438721 Contact Us For Availability
42
AIR TUNNEL WPL 537261 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
INSERT WPL 688214 Contact Us For Availability
46
INSERT WPL 688217 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
54
WPL 591011 WPL 591011 Contact Us For Availability
55
WPL 625801 WPL 625801 Contact Us For Availability
56
WPL 564381 WPL 564381 Contact Us For Availability
56
WPL 625811 WPL 625811 Contact Us For Availability
× ![]()
Login and Registration Form
