Model Whirlpool JRSD245L REFRIGERATOR – Common Parts & Diagrams

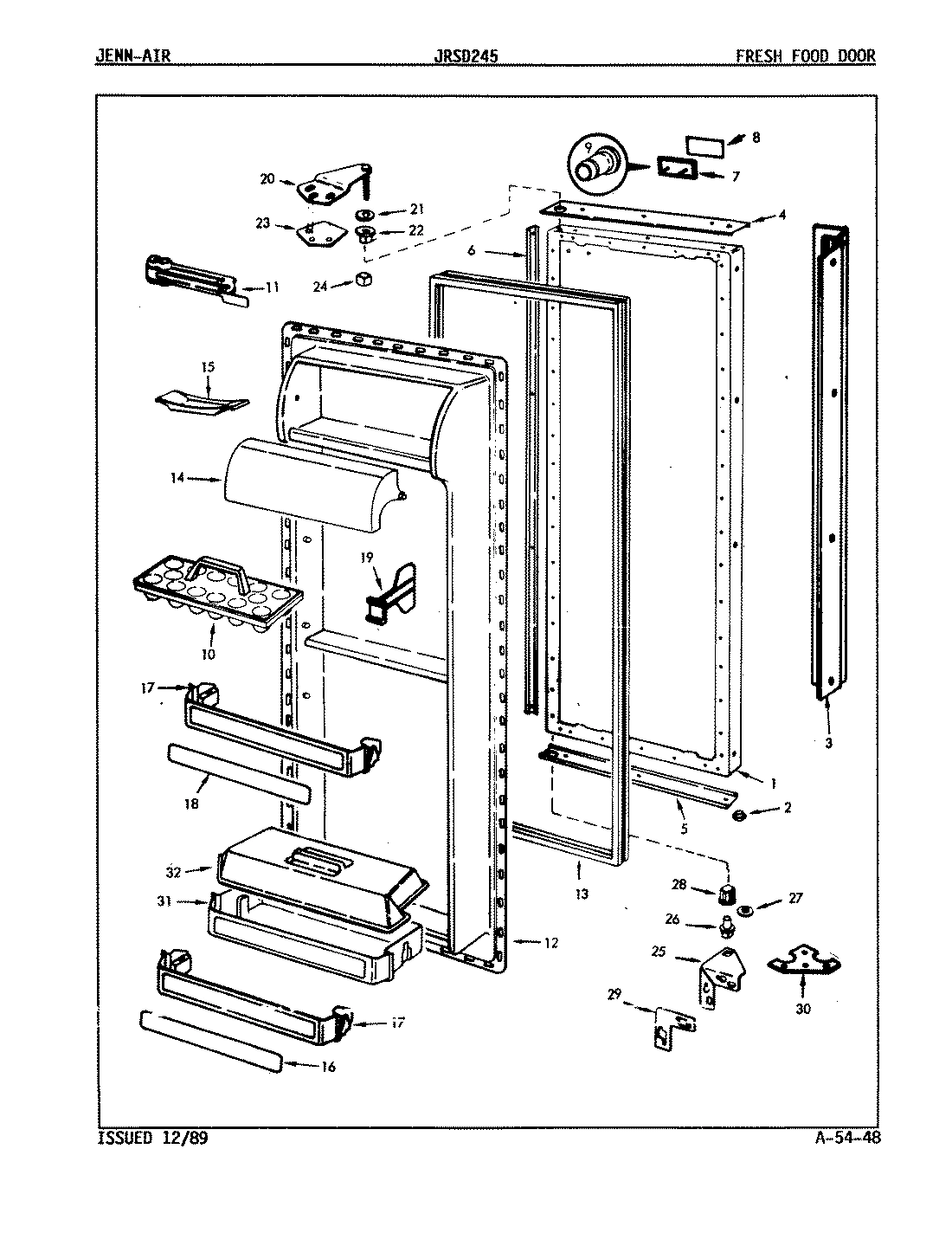

01 - FRESH FOOD DOOR
Common parts from model Whirlpool JRSD245L REFRIGERATOR
1
INSULATION KIT WPL RA950601 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
3
SCREW WPL 652754 Contact Us For Availability
3
HANDLE, F.F. DOOR WPL 682062 Contact Us For Availability
4
TRIM, PERIMETER TRIM (TOP) WPL 682031 Contact Us For Availability
5
TRIM, PERIMETER TRIM (BOTTOM) WPL 682041 Contact Us For Availability
6
ACHOR, SCREW WPL 667991 Contact Us For Availability
6
SCREW WPL 6527515 Contact Us For Availability
6
TRIM, PERIMETER TRIM (SIDE) WPL 682052 Contact Us For Availability
7
BEZEL WPL 680601 Contact Us For Availability
8
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
9
RETAINER, NAMEPLATE BEZEL WPL 683811 Contact Us For Availability
10
TRAY, EGG WPL 6006613 Contact Us For Availability
11
SCREW WPL 4000171 Contact Us For Availability
11
INSULATION, CLOSER WPL 526131 Contact Us For Availability
11
BRACKET, CLOSER WPL 526141 Contact Us For Availability
11
CLOSER, DOOR WPL 544851 Contact Us For Availability
12
LINER, F.F. DOOR WPL 656416 Contact Us For Availability
12
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
13
GASKET WPL 537122 Contact Us For Availability
14
DOOR, DAIRY WPL 66184361 Contact Us For Availability
15
TRAY, BUTTER WPL 299362 Contact Us For Availability
17
SHELF FRONT WPL 657816 Contact Us For Availability
18
INSERT, SHELF DOOR WPL 6812143 Contact Us For Availability
19
SHELF, PICK-OFF WPL 666455 Contact Us For Availability
20
HINGE, UPPER WPL 5370922 Contact Us For Availability
20
COVER, UPPER HINGE (CHROME) WPL 668751 Contact Us For Availability
20
SCREW WPL 998687 Contact Us For Availability
21
WASHER WPL 521851 Contact Us For Availability
22
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
23
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
24
SEAL SLEEVE WPL 559901 Contact Us For Availability
25
SCREW WPL 403062801 Contact Us For Availability
25
HINGE, LOWER WPL 6063012 Contact Us For Availability
26
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
WASHER WPL 542331 Contact Us For Availability
28
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
29
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
30
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
31
SHELF, PICK-OFF WPL 657826 Contact Us For Availability
32
COVER, PICK-OFF WPL 6663740 Contact Us For Availability
× ![]()
