Model Whirlpool JRS223B REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

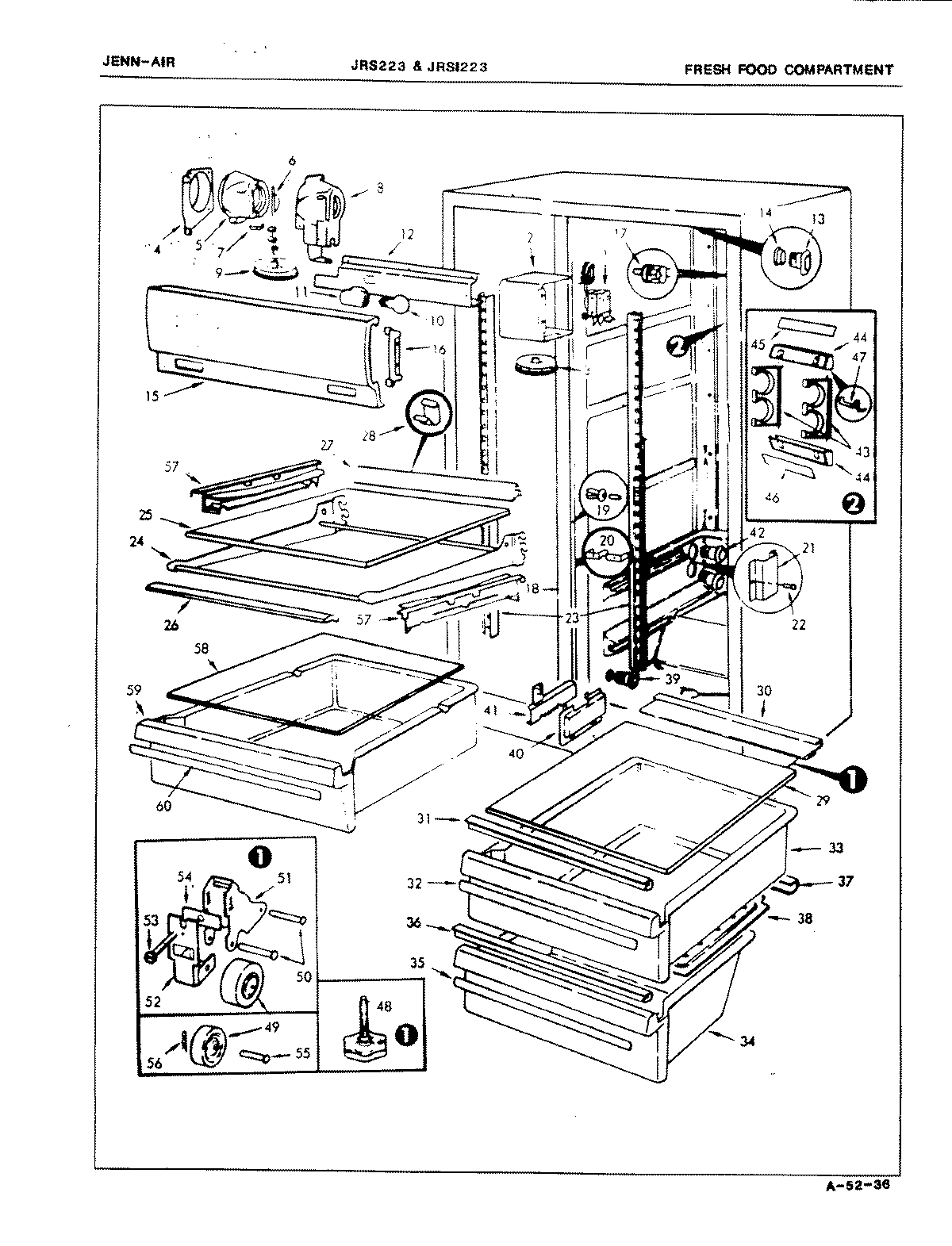

02 - FRESH FOOD COMPARTMENT

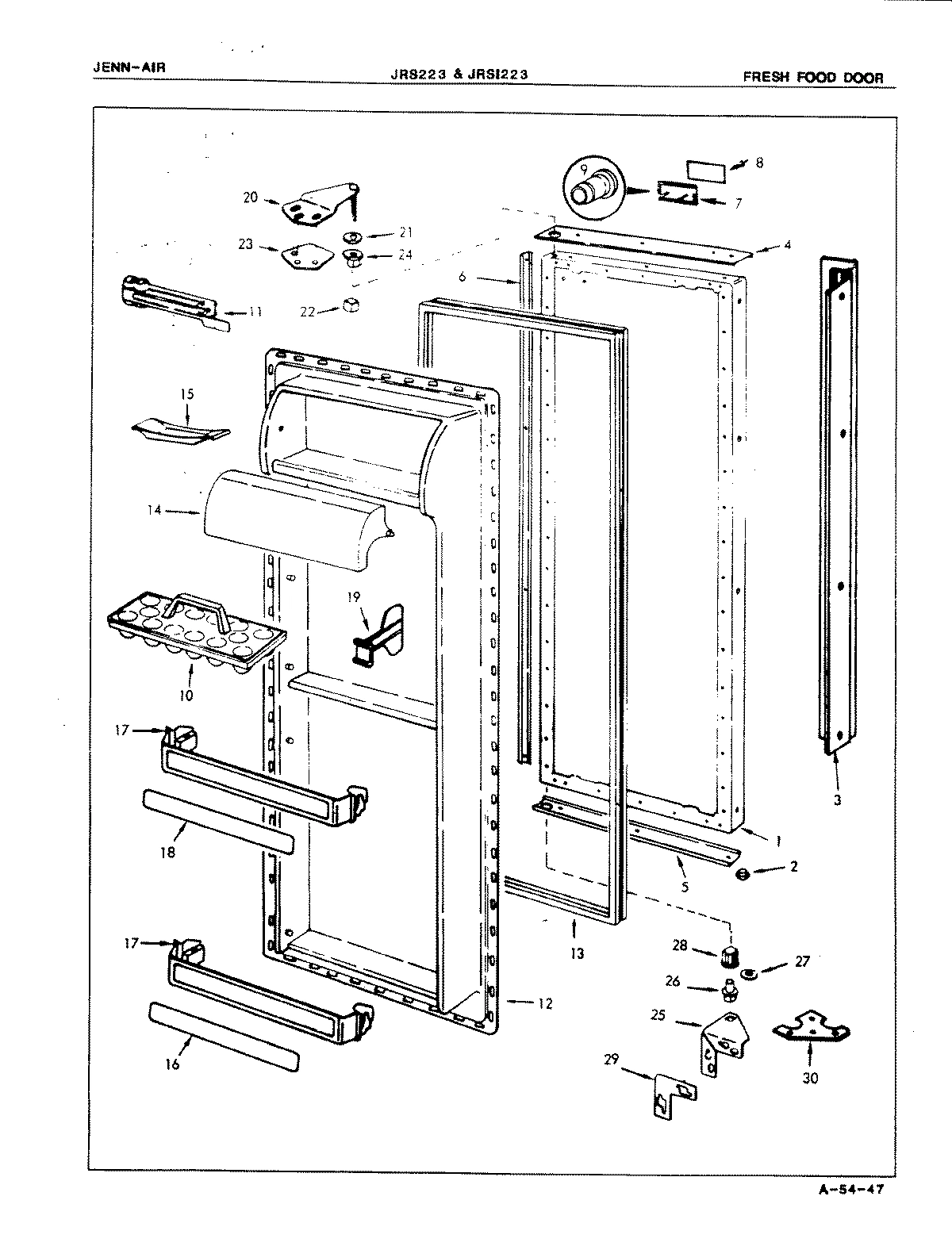

03 - FRESH FOOD DOOR
Common parts from model Whirlpool JRS223B REFRIGERATOR
1
ORIFICE WPL 544231 Contact Us For Availability
1
INSULATOR,TEMPERATURE CONTROL WPL 528981 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 666891WW Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW WPL 652754 Contact Us For Availability
3
DOOR TRIM WPL 667202 Contact Us For Availability
3
CLIP WPL 667231 Contact Us For Availability
4
COVER, COIL WPL 6269031 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
PERIMETER TRIM WPL 667151 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
PERIMETER TRIM WPL 667171 Contact Us For Availability
6
SCREW WPL 40001512 Contact Us For Availability
6
INSERT WPL 657061 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
6
PERIMETER TRIM WPL 667192 Contact Us For Availability
7
AIR DUCT ASM WPL 656931 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
BEZEL, NAMEPLATE WPL 666411 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
INSERT WPL 666461 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 298938 Contact Us For Availability
9
SCREW WPL 4000011 Contact Us For Availability
9
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
10
TRAY, EGG WPL 600669 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
INSULATION, CLOSER WPL 526131 Contact Us For Availability
11
BRACKET, CLOSER WPL 526141 Contact Us For Availability
11
CLOSER, DOOR WPL 544851 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
12
LINER, DOOR WPL 656406 Contact Us For Availability
12
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
13
SHIELD, LIGHT WPL 656543 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
GASKET WPL 5371216 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
DOOR, DAIRY WPL 66184234 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557815 Contact Us For Availability
15
TRAY, BUTTER WPL 299362 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
INSERT WPL 6557135 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
SPACER WPL 655121 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
CHANNEL,MULLION DIVID.(WHITE) WPL 590261WW Contact Us For Availability
18
INSERT WPL 6557138 Contact Us For Availability
19
FAN GRID WPL 626891 Contact Us For Availability
19
STUD, (WHITE) WPL 5992013 Contact Us For Availability
19
ORGANIZER WPL 666452 Contact Us For Availability
20
COVER, COIL WPL 652244 Contact Us For Availability
20
CLIP WPL 530604 Contact Us For Availability
20
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
20
COVER, UPPER HINGE (CHROME) WPL 668751 Contact Us For Availability
20
SCREW WPL 998687 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
WASHER WPL 521851 Contact Us For Availability
22
NUT WPL 538211 Contact Us For Availability
22
PLATE WPL 620591 Contact Us For Availability
22
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
23
DRAIN TUBE WPL 265279 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
FRAME, SHELF WPL 656183 Contact Us For Availability
24
SEAL SLEEVE WPL 559901 Contact Us For Availability
25
GLASS SHELF WPL 6559832 Contact Us For Availability
25
SCREW WPL 4030625 Contact Us For Availability
25
HINGE, LOWER WPL 6063012 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
26
TRIM, SHELVES (FRONT) WPL 666492 Contact Us For Availability
26
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
SHELF, FRZ. WPL 6572212 Contact Us For Availability
27
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
27
WASHER WPL 542331 Contact Us For Availability
28
SHELF, FRZ. WPL 6572211 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
28
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
29
TRIM,FRZR SHELVES(FRONT&BACK) WPL 666481 Contact Us For Availability
29
GLASS SHELF WPL 6559834 Contact Us For Availability
29
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
30
DRAWER, FRZ. WPL 6663724 Contact Us For Availability
30
CRISPER SEAL WPL 660922 Contact Us For Availability
30
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
31
HANDLE TRIM, FREEZER DRAWER WPL 2652781 Contact Us For Availability
31
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
32
ICE CUBE TRAY WPL 601121 Contact Us For Availability
33
PAN WPL 665921 Contact Us For Availability
33
PAN, CRISPER WPL 6663717 Contact Us For Availability
34
INSERT WPL 6061412 Contact Us For Availability
34
WIRE HARNESS WPL 661621 Contact Us For Availability
34
PAN, MEAT WPL 6663721 Contact Us For Availability
36
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
37
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
38
COVER, MEAT PAN WPL 656082 Contact Us For Availability
39
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
40
CONTROL HOUSING WPL 657372 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
42
AIR TUNNEL WPL 537261 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
INSERT, WINE RACK (PLAIN) WPL 6575319 Contact Us For Availability
46
INSERT WPL 6575321 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
SCREW WPL 4000171 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
56
CLIP, WPL 574181 Contact Us For Availability
56
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
56
WPL 625811 WPL 625811 Contact Us For Availability
56
WPL 662011 WPL 662011 Contact Us For Availability
57
WPL 656044 WPL 656044 Contact Us For Availability
58
WPL 6559835 WPL 6559835 Contact Us For Availability
60
WPL 6558380 WPL 6558380 Contact Us For Availability
× ![]()
