Model Whirlpool JRS203 REFRIGERATOR – Common Parts & Diagrams

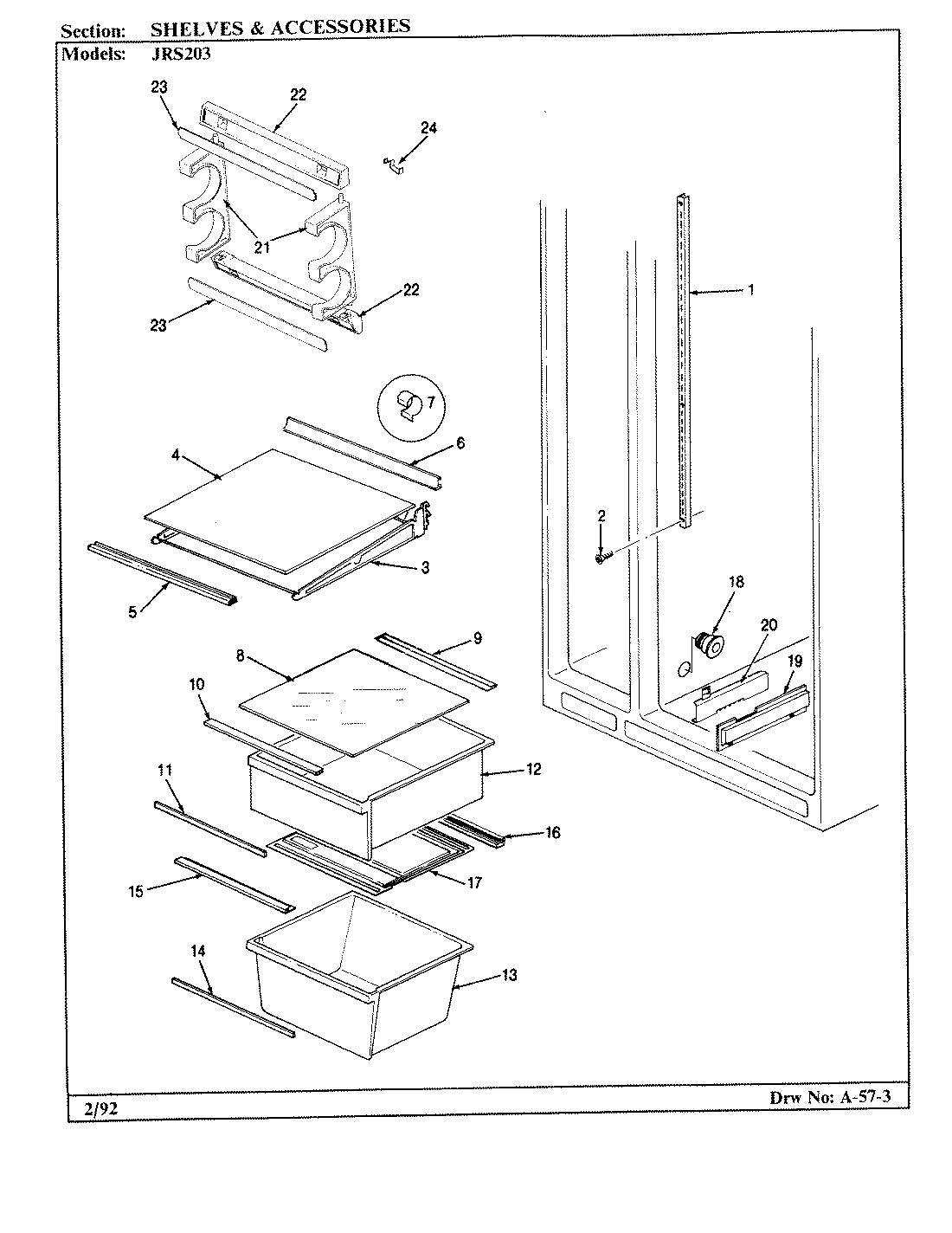

06 - SHELVES & ACCESSORIES

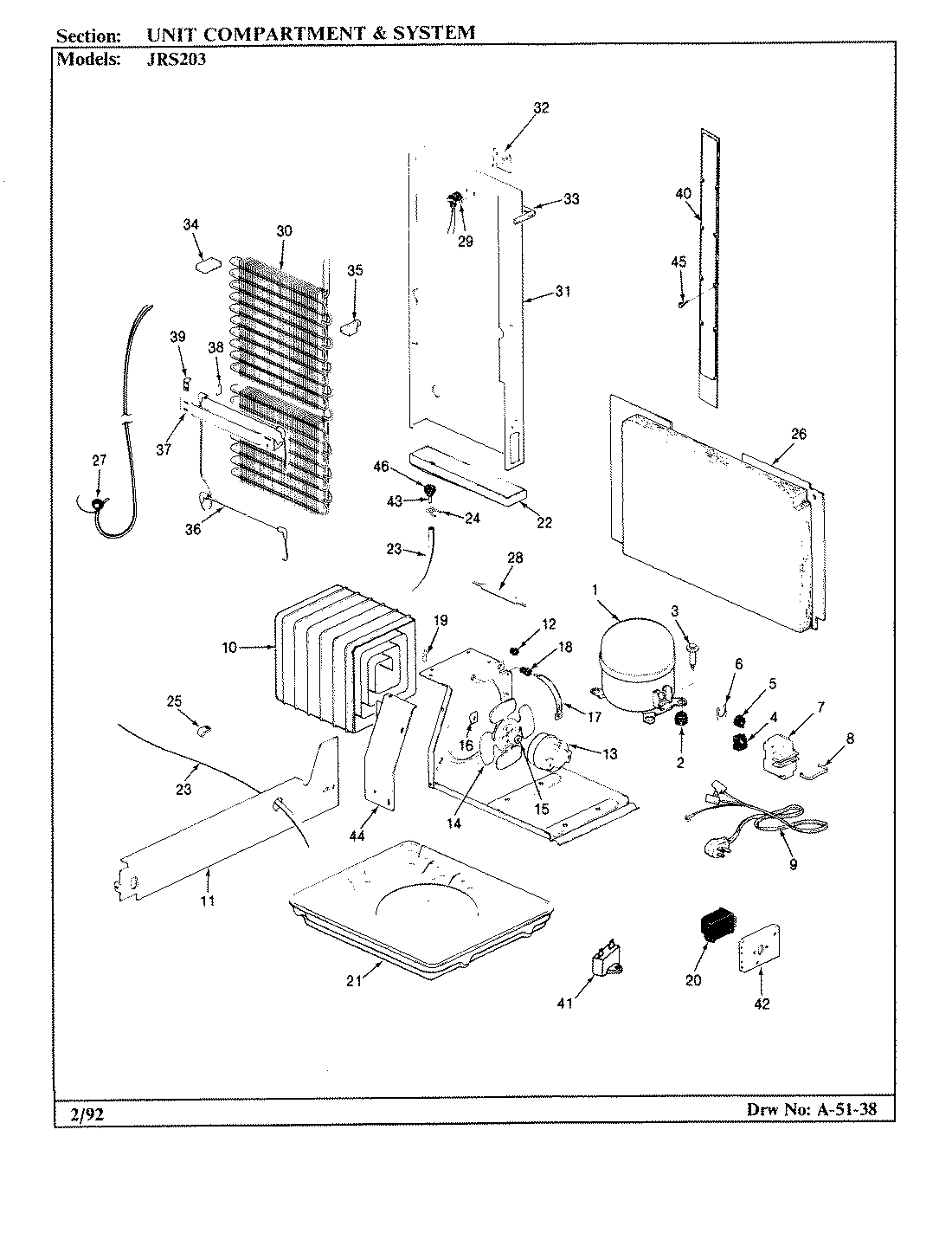

07 - UNIT COMPARTMENT & SYSTEM

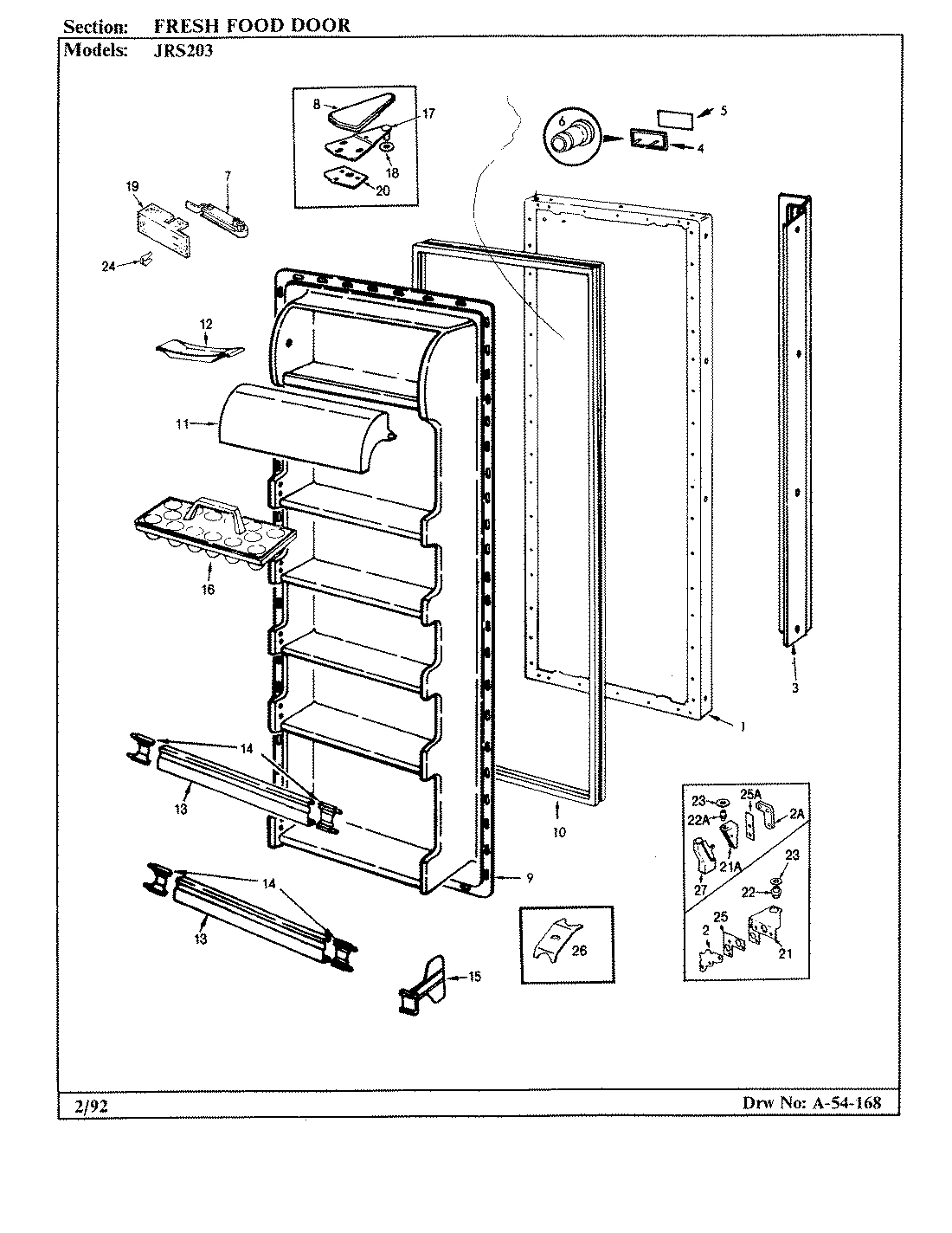

05 - FRESH FOOD DOOR

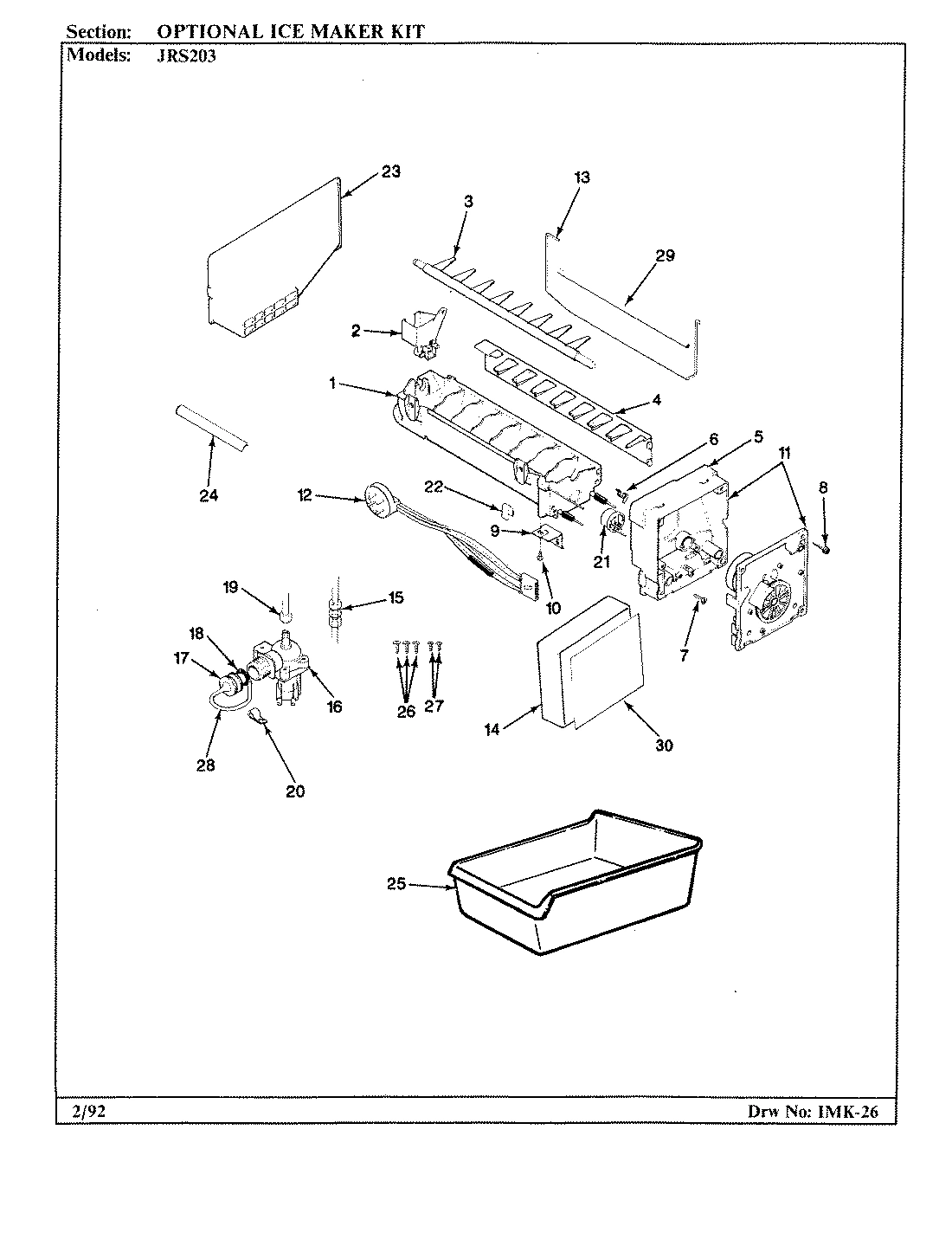

01 - 0PTIONAL ICE MKR KIT (IMS105 B/M BY08A)

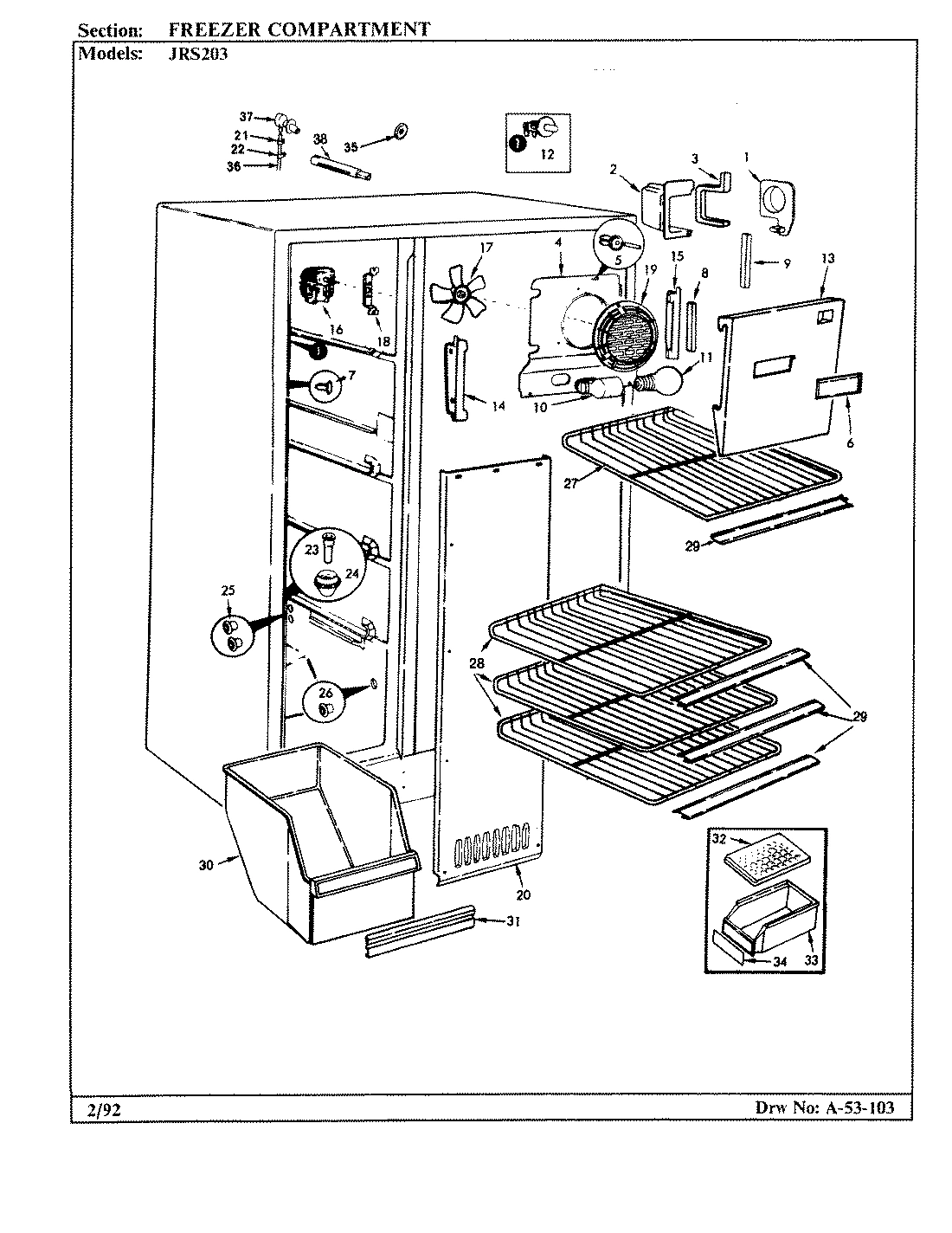

02 - FREEZER COMPARTMENT

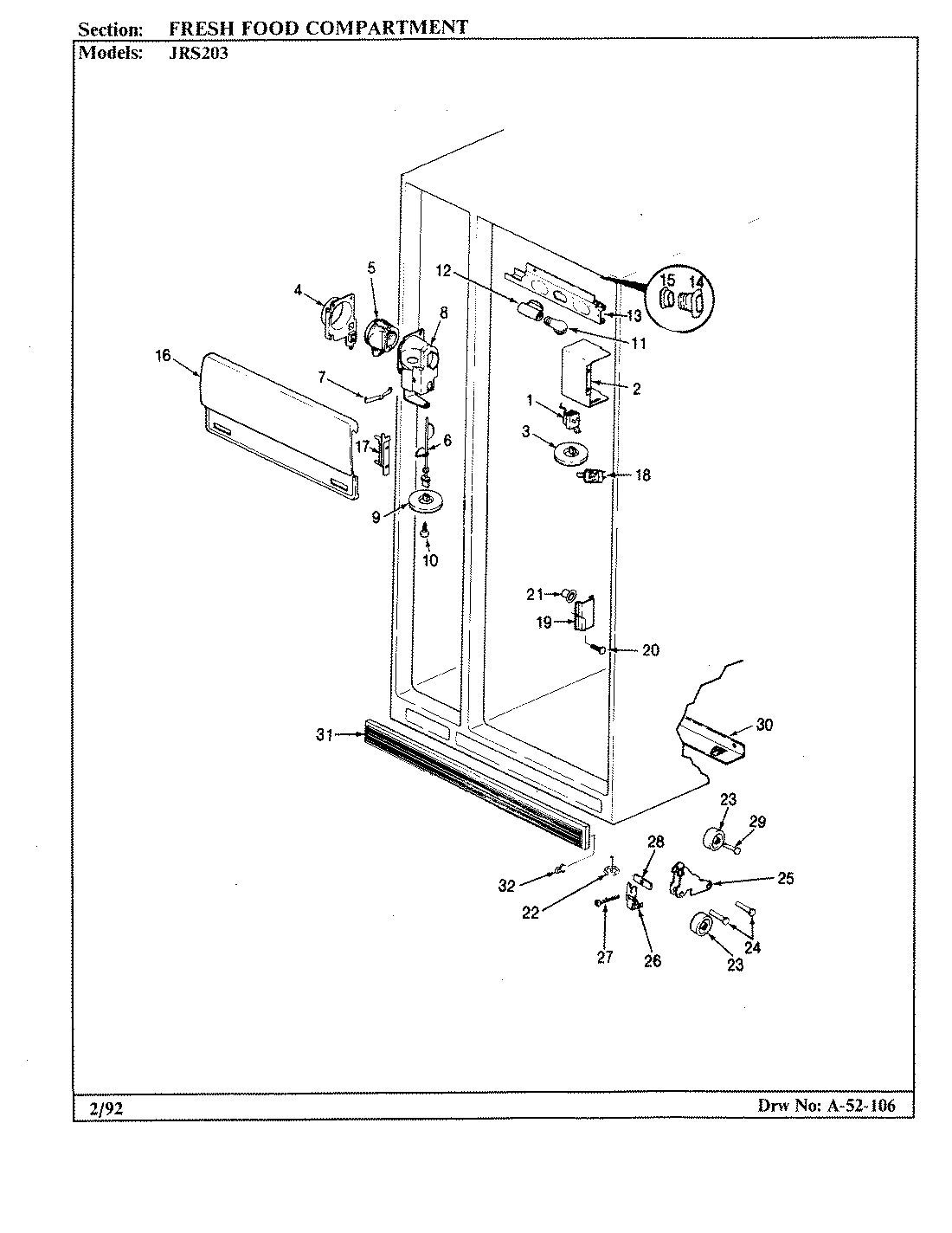

04 - FRESH FOOD COMPARTMENT

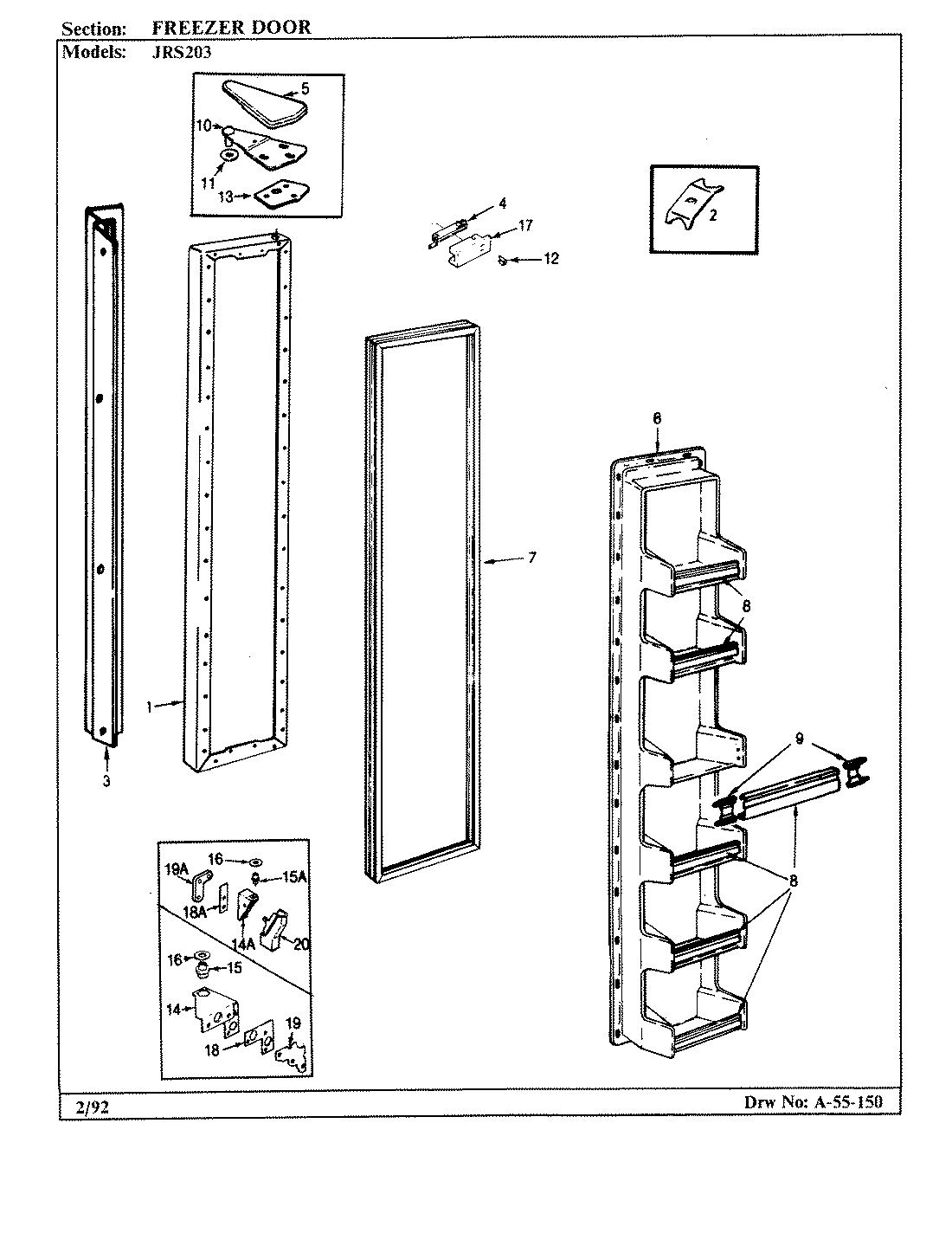

03 - FREEZER DOOR
Common parts from model Whirlpool JRS203 REFRIGERATOR
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 720472AM Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 720472WW Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288139 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 720463AM Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 720463WW Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
CLIP WPL 667231 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
3
FRAME, SHELF WPL 672731 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
SCREW, HANDLE WPL 6527537 Contact Us For Availability
3
DOOR HANDLE WPL 686612 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
DOOR HANDLE WPL 686611 Contact Us For Availability
4
GLASS, SHELF WPL 6840523 Contact Us For Availability
4
SCREW WPL 4000171 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
BEZEL, NAMEPLATE WPL 666411 Contact Us For Availability
4
CLOSER, DOOR WPL 544851 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER WPL 682472 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
GASKET, SHELF FRONT WPL 672654 Contact Us For Availability
5
TRIM, SHELF WPL 687313 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
5
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
5
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
GASKET, SHELF REAR WPL 672664 Contact Us For Availability
6
TRIM, SHELF WPL 687323 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
6
SCREW WPL 652755 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
INSERT WPL 683252 Contact Us For Availability
6
BAFFLE WPL 686101 Contact Us For Availability
6
INNER PANEL WPL 59433215 Contact Us For Availability
7
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
PLUG BUTTON WPL 675571 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
GASKET WPL 6692928 Contact Us For Availability
8
SHELF, CRISPER (GLASS) WPL 656871 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
SEAL, FOAM TRAY WPL 6632514 Contact Us For Availability
8
SCREW WPL 4000531 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
TRIM, SHELF WPL 6841025 Contact Us For Availability
9
SEAL WPL 660921 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
LINER, DOOR WPL 659449 Contact Us For Availability
9
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
10
TRIM WPL 666501 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
DOOR, DAIRY WPL 66184457 Contact Us For Availability
10
GASKET WPL 669296 Contact Us For Availability
10
HINGE, UPPER WPL 5370922 Contact Us For Availability
10
SCREW WPL 998687 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
WASHER WPL 521851 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
12
PAN, CRISPER WPL 6663728 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
TRAY, BUTTER WPL 299362 Contact Us For Availability
12
BRACKET, CLOSER WPL 526141 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
12
SWITCH WPL 564322 Contact Us For Availability
13
PAN, MEAT WPL 6663729 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684813 Contact Us For Availability
13
TRIM, SHELF WPL 6841026 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SHIELD, LIGHT WPL 686112 Contact Us For Availability
13
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
14
INSERT, MEAT PAN WPL 6812466 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
TUNNEL WPL 574101 Contact Us For Availability
14
SCREW WPL 403100801 Contact Us For Availability
14
HINGE, LOWER WPL 677148 Contact Us For Availability
15
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
ORGANIZER, SHELF WPL 6409710 Contact Us For Availability
15
HINGE PIN WPL 687881 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
RETAINER WPL 574111 Contact Us For Availability
16
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
TRAY, EGG WPL 6006613 Contact Us For Availability
16
WASHER WPL 542331 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
16
SHIELD, LIGHT WPL 6557821 Contact Us For Availability
17
COVER, MEAT PAN WPL 656083 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
INSULATION, CLOSER WPL 526131 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
SUPPORT WPL 536862 Contact Us For Availability
18
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
LIGHT SWITCH WPL 689161 Contact Us For Availability
19
CLIP WPL 566864 Contact Us For Availability
19
CONTROL HOUSING WPL 657372 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
TAPPING PLATE WPL 659642 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
GRID, FAN WPL 682531 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
20
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
COVER, COIL (LOWER) WPL 673357 Contact Us For Availability
20
GASKET WPL 686121 Contact Us For Availability
21
RACK, WINE WPL 565194 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
SCREW WPL 4031001 Contact Us For Availability
21
HINGE, LOWER WPL 6771410 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
CLAMP, SPRING WPL 603334 Contact Us For Availability
21
AIR TUNNEL WPL 537261 Contact Us For Availability
22
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
22
RIVET WPL 440015300 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
CLIP WPL 655171 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
23
INSERT WPL 688214 Contact Us For Availability
23
INSERT WPL 688217 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
DRAIN TUBE WPL 265279 Contact Us For Availability
23
AIR DUCT WPL 682551 Contact Us For Availability
23
WHEEL WPL 298342 Contact Us For Availability
24
SPRING, WINE RACK WPL 580571 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
TUBE, FILL WPL 676663 Contact Us For Availability
24
TUBE, FILL WPL 683061 Contact Us For Availability
24
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
PAN, ICE WPL 683461 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
26
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
27
SCREW WPL 4010171 Contact Us For Availability
27
SHELF, FRZ WPL 6660313 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
28
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
28
INLET TUBE ASSY WPL 602193 Contact Us For Availability
28
SHELF, FRZ WPL 6660323 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
29
TRIM WPL 52014139 Contact Us For Availability
29
TRIM, FRZ. SHELF FRONT WPL 671761 Contact Us For Availability
29
PIN, WHEEL WPL 649651 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
INSERT,ICE MAKER COVER WPL 674282 Contact Us For Availability
30
DRAWER WPL 6663730 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
SUPPORT RAIL WPL 672551 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
31
INSERT, PAN WPL 6812464 Contact Us For Availability
31
KICKPLATE WPL 5843745 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
ICE CUBE TRAY WPL 601121 Contact Us For Availability
32
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
32
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
PAN WPL 665921 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
INSERT WPL 6813416 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
CAP, CONNECTOR WPL 681871 Contact Us For Availability
36
TUBE WPL 675796 No Longer Available
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
GROMMET WPL 683961 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
38
CAP, FILL TUBE WPL 683261 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 688381 Contact Us For Availability
39
WIRE HARNESS, COMPRESSOR WPL 688411 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
44
SHROUD PANEL WPL 298741 Contact Us For Availability
46
MANUAL, USE & CARE WPL SSU203UA Contact Us For Availability
× ![]()
Login and Registration Form
