Model Whirlpool JRS202 REFRIGERATOR – Common Parts & Diagrams

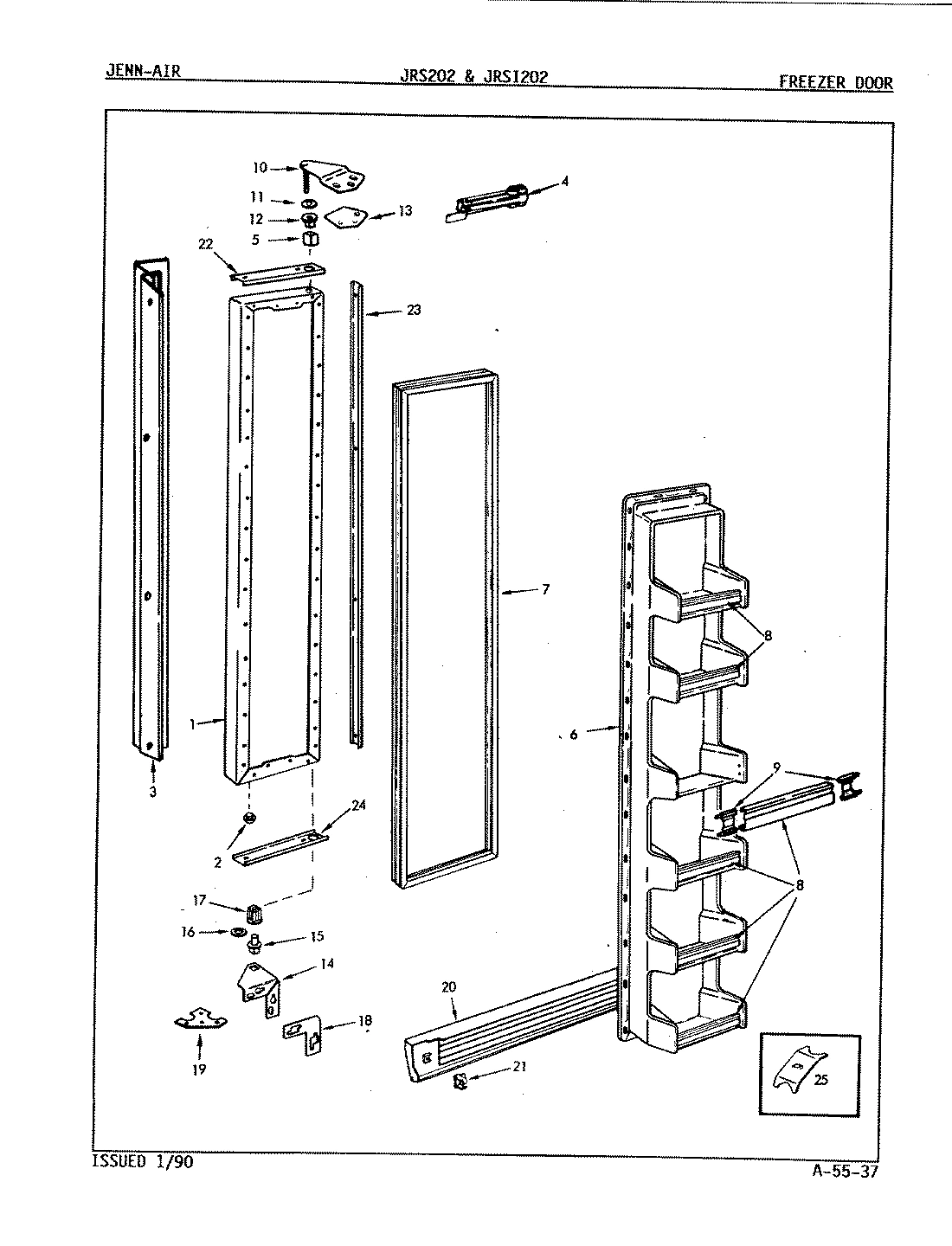

02 - FREEZER DOOR

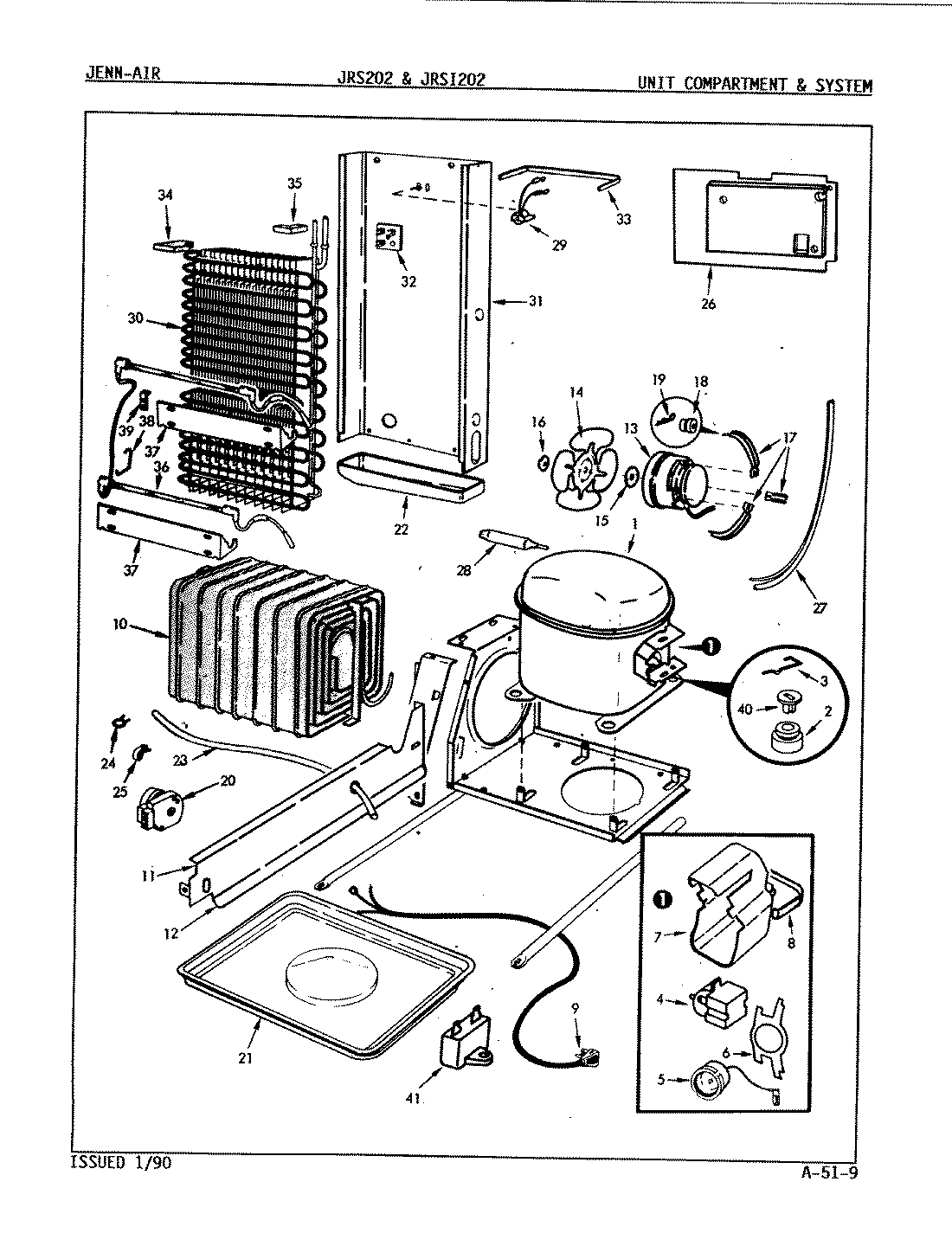

05 - UNIT COMPARTMENT & SYSTEM

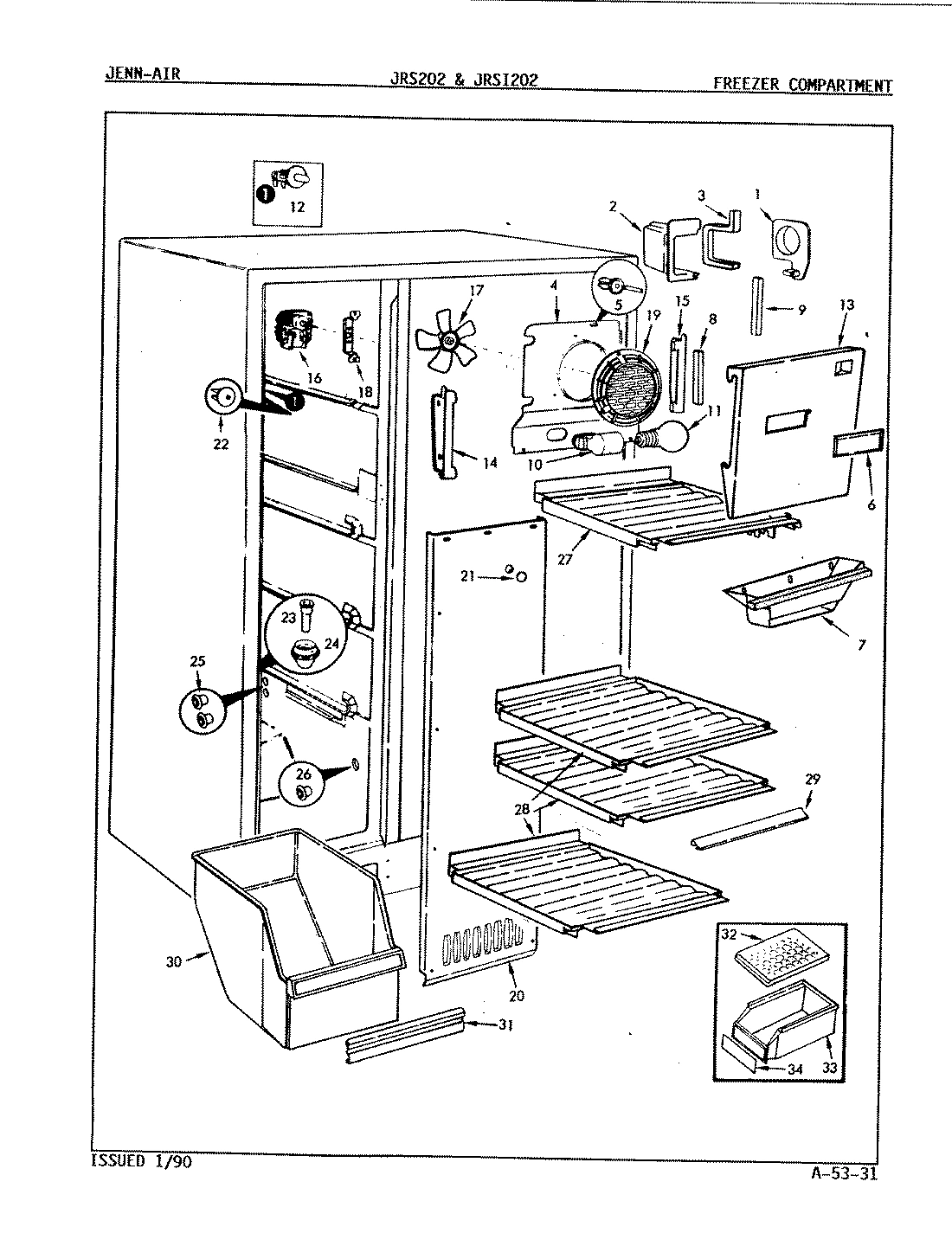

01 - FREEZER COMPARTMENT

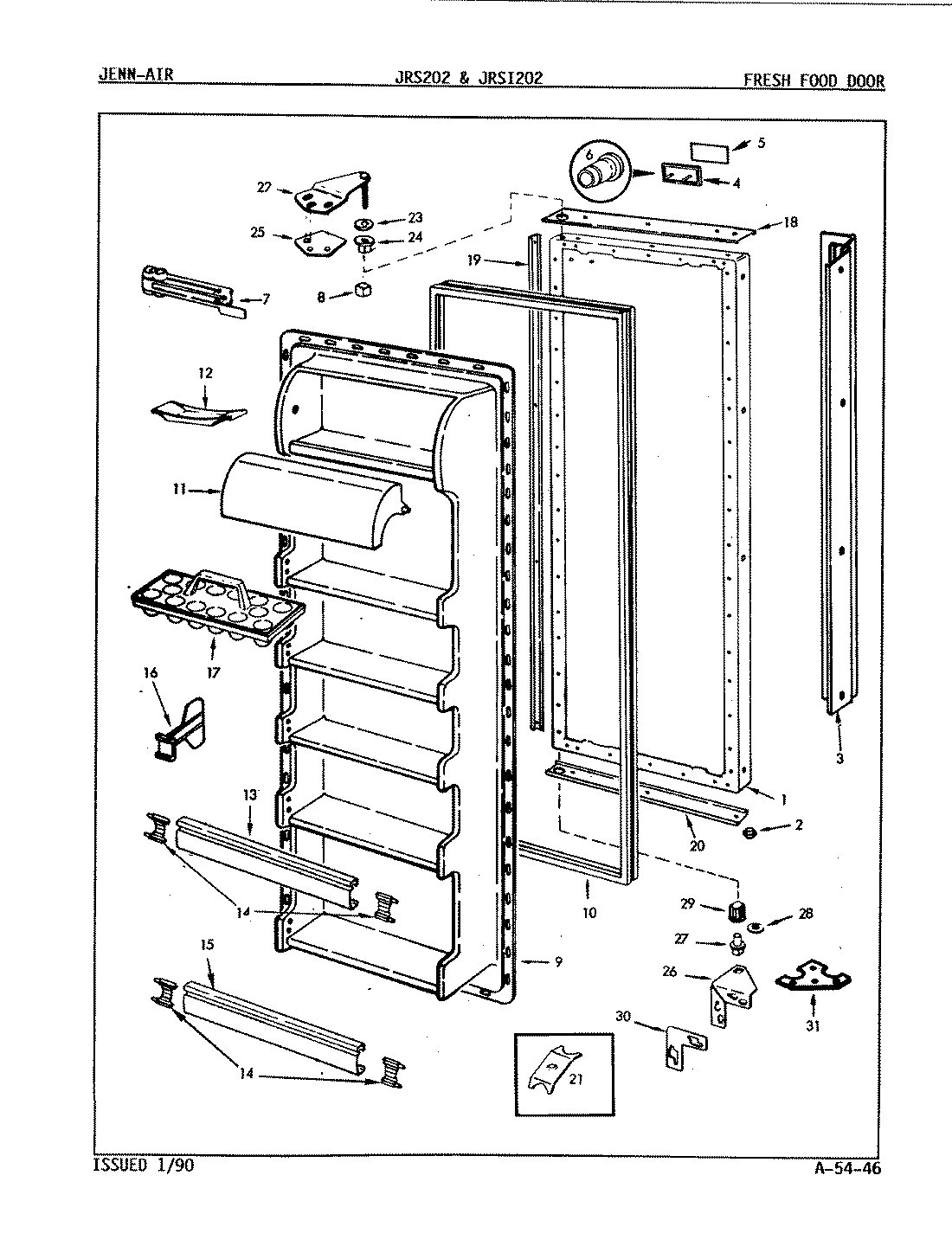

04 - FRESH FOOD DOOR

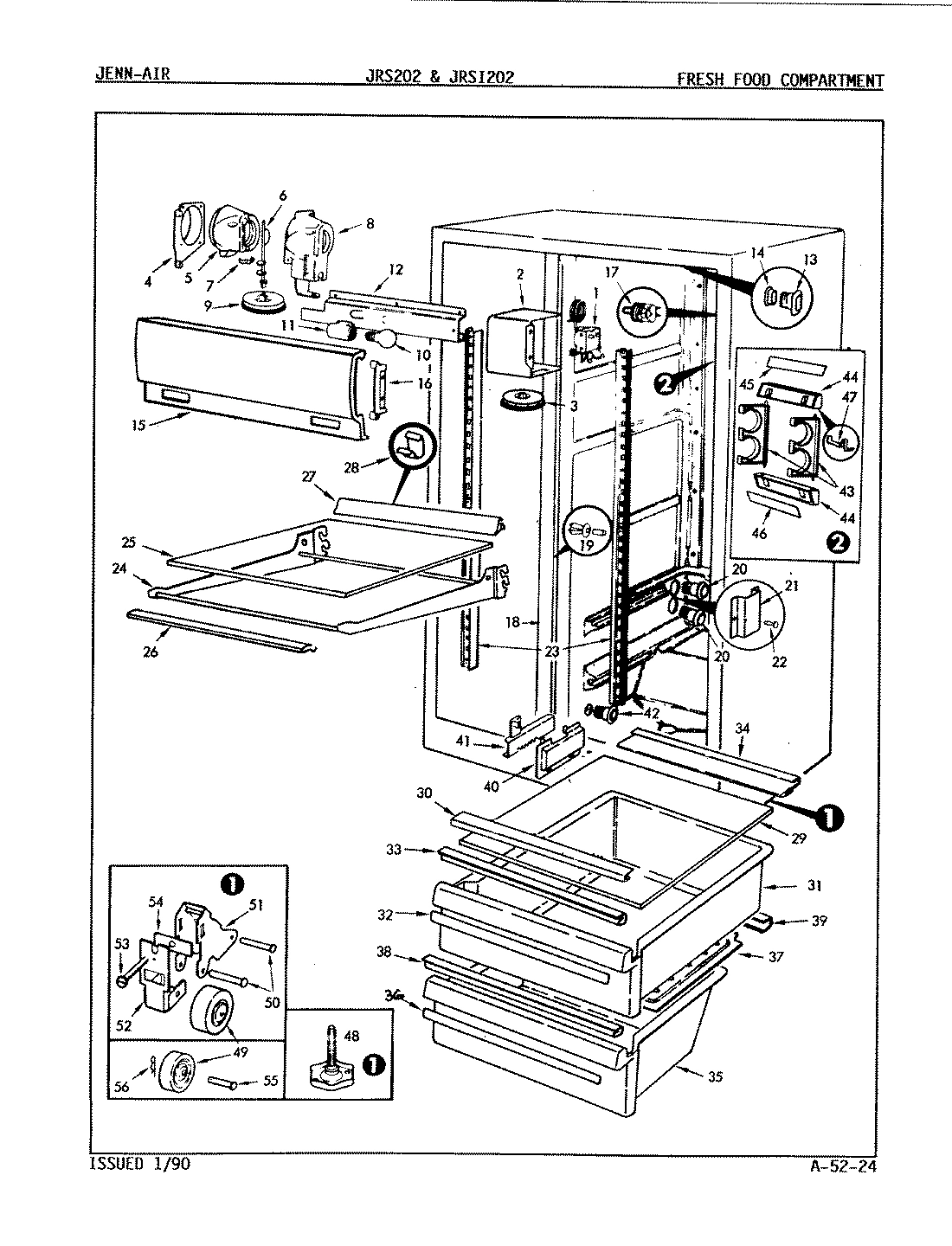

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool JRS202 REFRIGERATOR
1
OUTER PANEL-ALMOND WPL 666871AM Contact Us For Availability
1
OUTER PANEL-WHITE WPL 666871WW Contact Us For Availability
1
COMPRESSOR (NET) WPL RA996 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
OUTER PANEL, (ALMOND) WPL 666881AM Contact Us For Availability
1
OUTER PANEL, (WHITE) WPL 666881WW Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288141 Contact Us For Availability
1
INSULATOR,TEMPERATURE CONTROL WPL 528981 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
PLUG WPL 495039900 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
SCREW WPL 652754 Contact Us For Availability
3
DOOR HANDLE WPL 667201 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
DOOR TRIM WPL 667202 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
4
RELAY, START WPL 655291 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269031 Contact Us For Availability
4
BEZEL, NAMEPLATE WPL 666411 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
OVERLOAD WPL 5306780 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
INSERT WPL 666461 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
INNER PANEL WPL 59433205 Contact Us For Availability
6
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
6
INSERT WPL 657061 Contact Us For Availability
6
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
7
INSULATION, CLOSER WPL 526131 Contact Us For Availability
7
BRACKET, CLOSER WPL 526141 Contact Us For Availability
7
CLOSER, DOOR WPL 544851 Contact Us For Availability
7
GASKET, DOOR WPL 5371223 Contact Us For Availability
7
COVER, TERMINAL WPL 651891 Contact Us For Availability
7
SEAL WPL 655185 Contact Us For Availability
7
IM DUCT WPL 656751 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
SEAL SLEEVE WPL 559901 Contact Us For Availability
8
TRIM WPL 5925886 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
9
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
9
LINER, DOOR WPL 6564311 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 298938 Contact Us For Availability
9
SCREW WPL 4000011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
GASKET WPL 537127 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
DOOR, DAIRY WPL 66184233 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
TRAY, BUTTER WPL 299362 Contact Us For Availability
12
HOUSING WPL 597401 Contact Us For Availability
13
FAN MOTOR WPL 2805612 Contact Us For Availability
13
SCREW WPL 4080151 Contact Us For Availability
13
SHIELD, LIGHT WPL 656543 Contact Us For Availability
13
TRIM, DOOR SHELF WPL 5925884 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
14
RETAINER WPL 652461 Contact Us For Availability
14
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
SHELF TRIM WPL 6663718 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557814 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
16
ORGANIZER, SHELF WPL 665224 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
SPACER WPL 655121 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
TRAY, EGG WPL 600669 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
PERIMETER TRIM WPL 667161 Contact Us For Availability
18
MULLION WPL 590261AM Contact Us For Availability
18
CHANNEL,MULLION DIVID.(WHITE) WPL 590261WW Contact Us For Availability
19
PERIMETER TRIM WPL 667191 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
FAN GRID WPL 626891 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
19
STUD, (WHITE) WPL 5992013 Contact Us For Availability
19
STUD, (ALM) WPL 599209 Contact Us For Availability
20
KICKPLATE WPL 564776 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 665562 Contact Us For Availability
20
COVER, COIL WPL 652244 Contact Us For Availability
20
PERIMETER TRIM WPL 667181 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
21
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
21
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
21
SCREW WPL 40002612 Contact Us For Availability
21
CLIP WPL 667231 Contact Us For Availability
21
PAN, DRAIN WPL 298394 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
22
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
22
COVER, UPPER HINGE (CHROME) WPL 668751 Contact Us For Availability
22
SCREW WPL 998687 Contact Us For Availability
22
PERIMETER TRIM WPL 667111 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
NUT WPL 538211 Contact Us For Availability
22
PLATE WPL 620591 Contact Us For Availability
23
WASHER WPL 521851 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
DRAIN TUBE WPL 265279 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
24
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
24
PERIMETER TRIM WPL 667131 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
FRAME, SHELF WPL 656184 Contact Us For Availability
25
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
25
ACHOR, SCREW WPL 667991 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
GLASS SHELF WPL 6559831 Contact Us For Availability
26
SCREW WPL 4030625 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
26
HINGE, LOWER WPL 6063012 Contact Us For Availability
26
TRIM WPL 666491 Contact Us For Availability
27
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA4364510 Contact Us For Availability
27
SHELF, FRZ. WPL 6572212 Contact Us For Availability
27
TRIM WPL 6527610 Contact Us For Availability
28
WASHER WPL 542331 Contact Us For Availability
28
SHELF, FRZ. WPL 6572211 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
29
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
29
TRIM,FRZR SHELVES(FRONT&BACK) WPL 666481 Contact Us For Availability
29
GLASS SHELF WPL 6559833 Contact Us For Availability
30
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
DRAWER, FRZ. WPL 6663724 Contact Us For Availability
30
TRIM WPL 652551 Contact Us For Availability
31
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
31
INSERT WPL 6558381 Contact Us For Availability
31
PAN, CRISPER WPL 6663716 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
ICE CUBE TRAY WPL 601121 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
33
PAN WPL 665921 Contact Us For Availability
33
TRIM WPL 666501 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
INSERT WPL 6061412 Contact Us For Availability
34
SEAL WPL 660921 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
PAN, MEAT WPL 6663720 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
INSERT WPL 6558379 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
COVER, MEAT PAN WPL 656081 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
40
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
40
WIRE HARNESS WPL 664951 Contact Us For Availability
40
CONTROL HOUSING WPL 657372 Contact Us For Availability
41
CAPACITOR, RUN WPL 661211 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
42
WIRE HARNESS WPL 664541 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
43
SCREW WPL 4000171 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
INSERT, WINE RACK (PLAIN) WPL 6575319 Contact Us For Availability
46
INSERT WPL 6575321 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
52
SCREW WPL 6527517 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
56
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
56
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
× ![]()
Login and Registration Form
