Model Maytag JMV9186WB2 MICROWAVE – Common Parts & Diagrams
01 - COVER SHEET

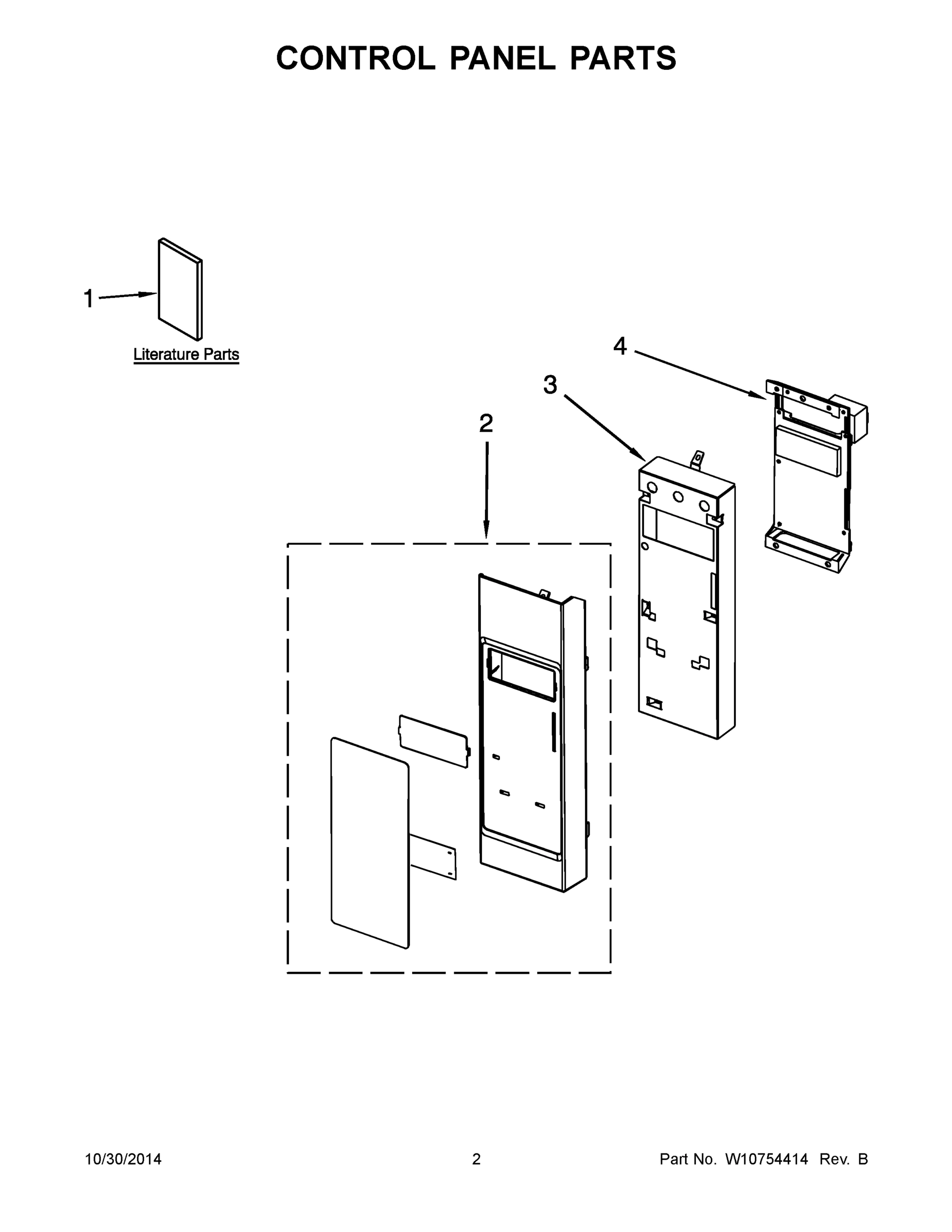

02 - CONTROL PANEL PARTS

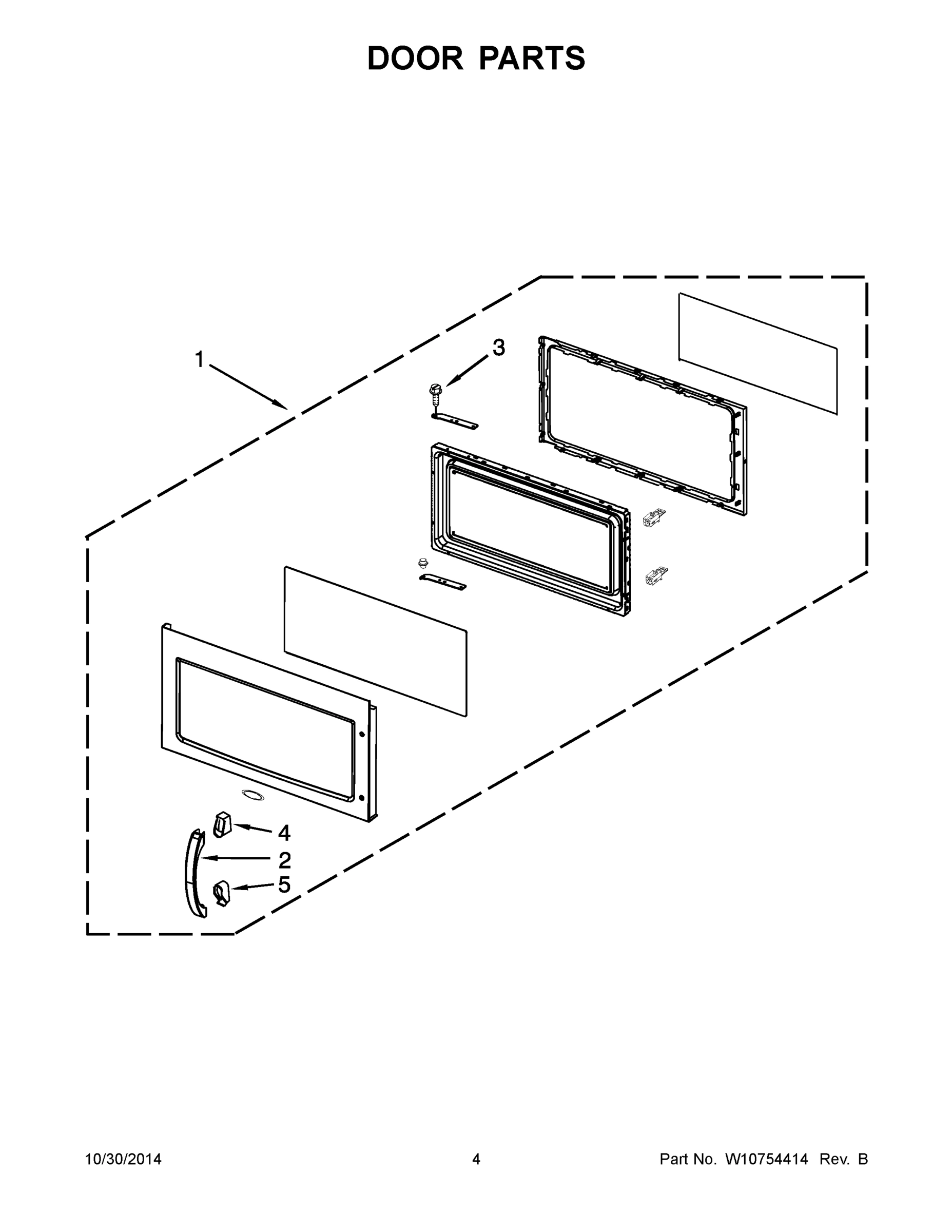

03 - DOOR PARTS

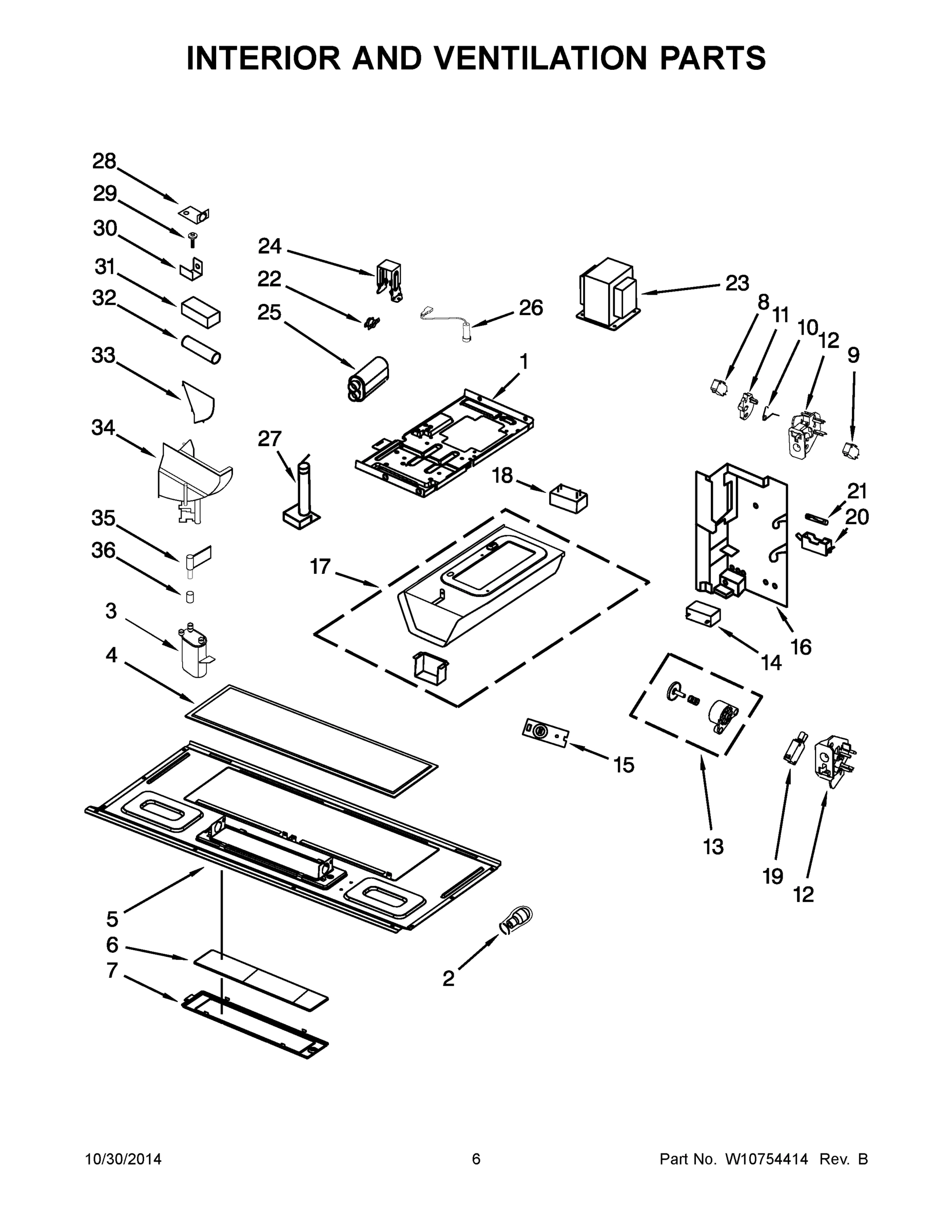

04 - INTERIOR AND VENTILATION PARTS

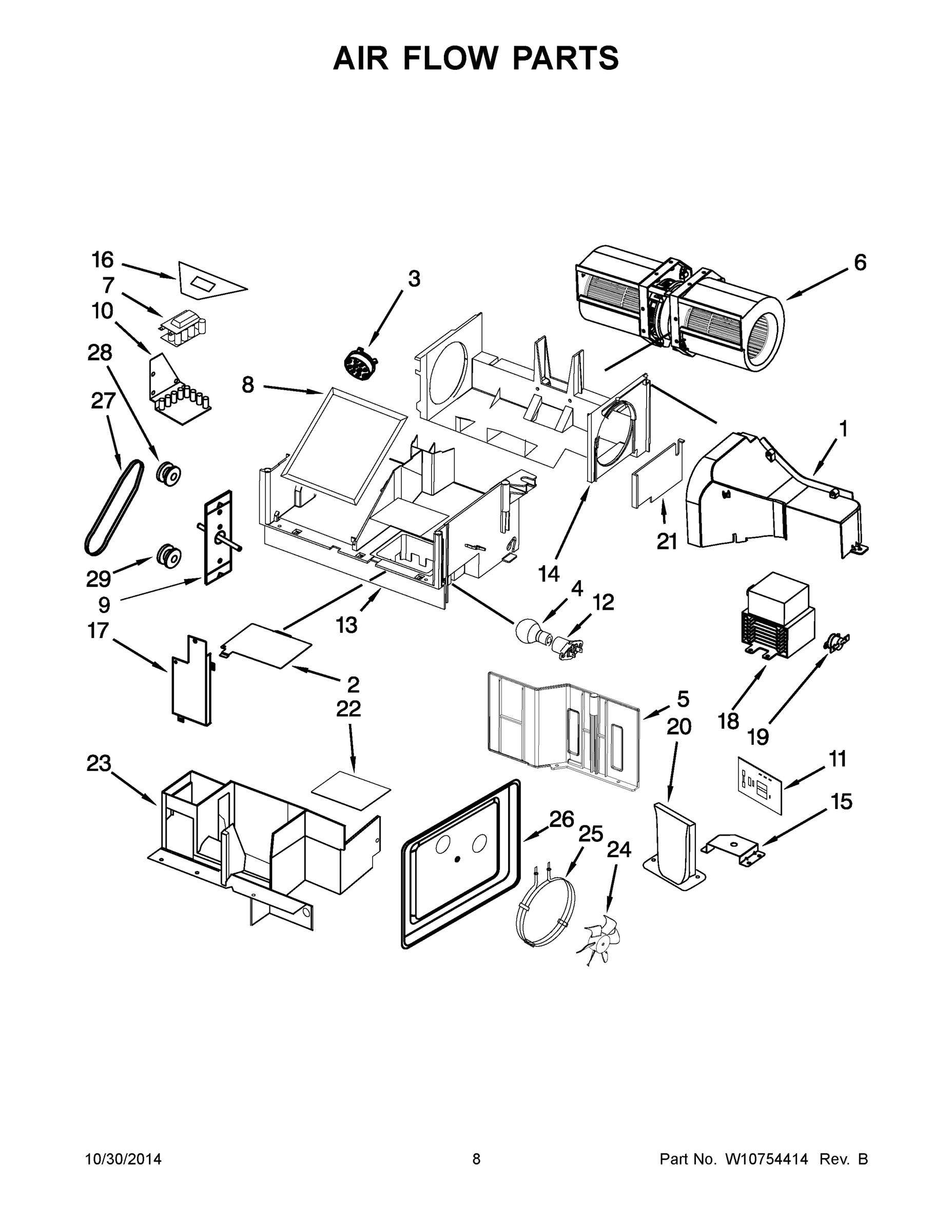

05 - AIR FLOW PARTS

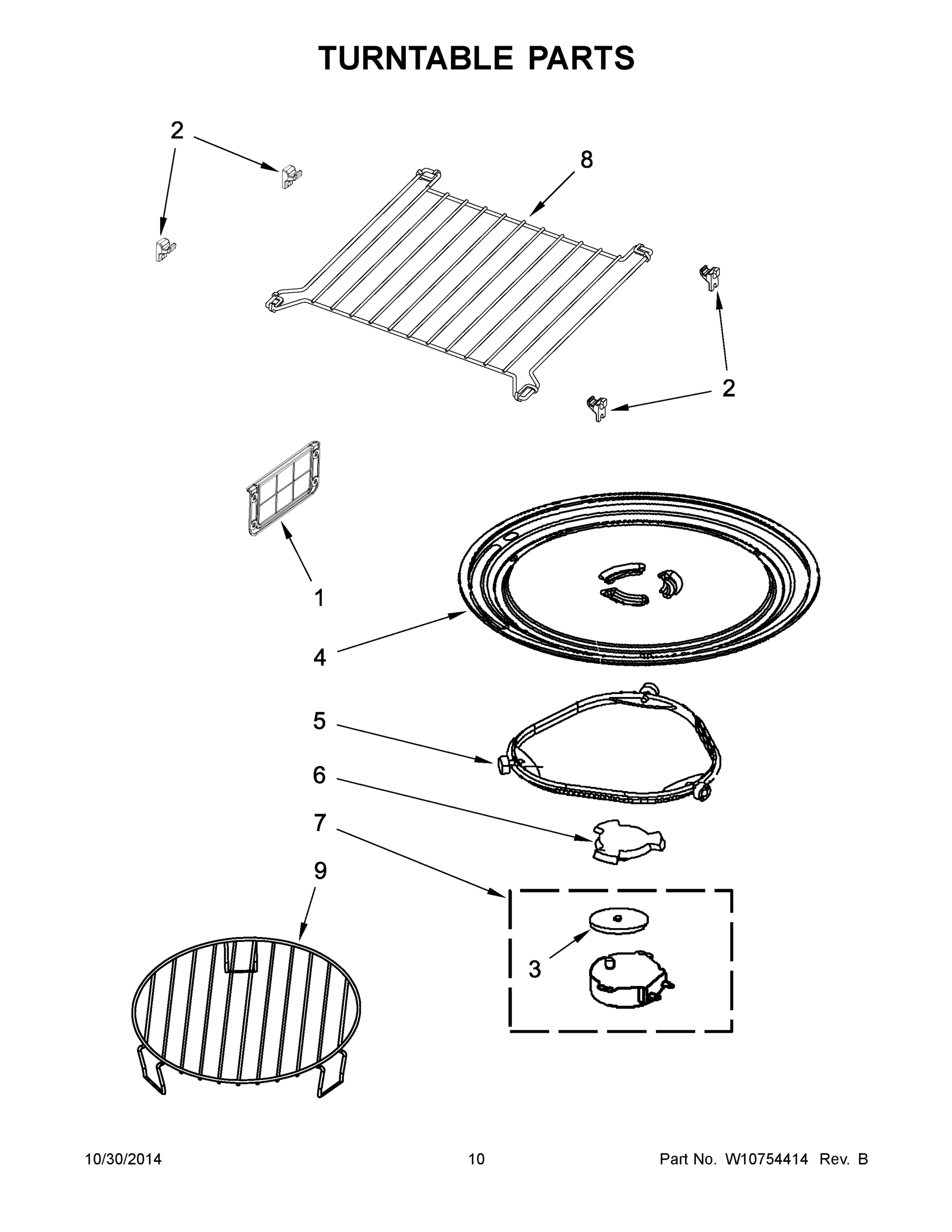

06 - TURNTABLE PARTS

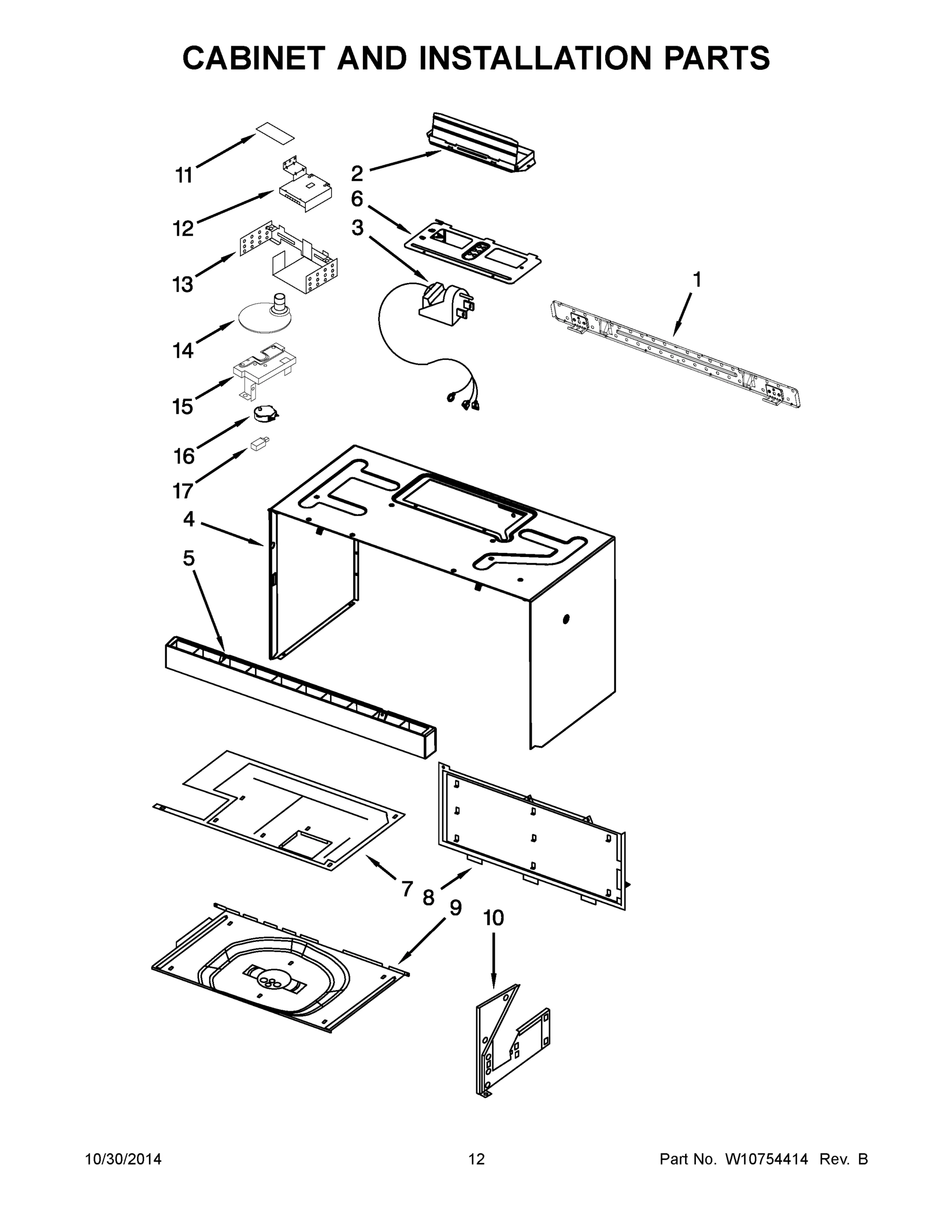

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag JMV9186WB2 MICROWAVE
1
MAY W10247296 MAY W10247296 Contact Us For Availability
1
DOOR, COMPLETE (WHITE) MAY W10310709 Contact Us For Availability
1
MAY W10248270 MAY W10248270 Contact Us For Availability
1
MAY W10640886 MAY W10640886 Contact Us For Availability
1
MAY W10310700 MAY W10310700 Contact Us For Availability
1
MAY W10440498 MAY W10440498 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10505265 Contact Us For Availability
1A
DOOR, COMPLETE (BLACK) MAY W10310710 Contact Us For Availability
1B
QUICK REFERENCE GUIDE MAY W10285422 Contact Us For Availability
1B
DOOR, COMPLETE (STAINLESS) MAY W10310706 Contact Us For Availability
1C
MAY W10608086 MAY W10608086 Contact Us For Availability
1C
DOOR, COMPLETE (PRO-STYLE) MAY W10310707 Contact Us For Availability
1D
DOOR, COMPLETE (GOLDEN BRONZE) MAY W10310708 Contact Us For Availability
2
MAY W10310718 MAY W10310718 Contact Us For Availability
2
MAY W10310704 MAY W10310704 Contact Us For Availability
2
MAY W10208564 MAY W10208564 Contact Us For Availability
2
MAY 8206382 MAY 8206382 Contact Us For Availability
2
HOOK, MICROWAVE RACK MAY W10245207 Contact Us For Availability
2
MAY W10725323 MAY W10725323 Contact Us For Availability
2A
MAY W10310719 MAY W10310719 Contact Us For Availability
2A
MAY W10310705 MAY W10310705 Contact Us For Availability
2B
MAY W10310715 MAY W10310715 Contact Us For Availability
2B
MAY W10310701 MAY W10310701 Contact Us For Availability
2C
MAY W10310716 MAY W10310716 Contact Us For Availability
2C
MAY W10310702 MAY W10310702 Contact Us For Availability
2D
MAY W10317698 MAY W10317698 Contact Us For Availability
2D
MAY W10310703 MAY W10310703 Contact Us For Availability
3
MAY W10245199 MAY W10245199 Contact Us For Availability
3
MAY W10138802 MAY W10138802 Contact Us For Availability
3
THERMOACTUATOR, FORCED CONVECTION MAY 8206082 Contact Us For Availability
3
MAY W10245178 MAY W10245178 Contact Us For Availability
3
MAY 8184109 MAY 8184109 Contact Us For Availability
3
MAY W10654511 MAY W10654511 Contact Us For Availability
4
MAY W10259219 MAY W10259219 Contact Us For Availability
4
MAY W10420761 MAY W10420761 Contact Us For Availability
4
MAY W10208631 MAY W10208631 Contact Us For Availability
4
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
4
MAY 4393799 MAY 4393799 Contact Us For Availability
4
MAY W10244765 MAY W10244765 Contact Us For Availability
4A
BRACKET, HANDLE (UPPER) (BLACK, STAINLESS, & MAY W10420755 Contact Us For Availability
4A
MAY W10245176 MAY W10245176 Contact Us For Availability
5
MAY W10420762 MAY W10420762 Contact Us For Availability
5
MAY W10245196 MAY W10245196 Contact Us For Availability
5
MAY W10245192 MAY W10245192 Contact Us For Availability
5
MAY W10444886 MAY W10444886 Contact Us For Availability
5
MAY W10310714 MAY W10310714 Contact Us For Availability
5A
BRACKET, HANDLE (LOWER) (BLACK, STAINLESS, & MAY W10420756 Contact Us For Availability
5A
MAY W10310713 MAY W10310713 Contact Us For Availability
5B
BRACKET, HANDLE (LOWER) (PRO-STYLE) MAY W10420764 Contact Us For Availability
5B
GRILLE, VENT (STAINLESS) MAY W10310711 Contact Us For Availability
5C
MAY W10310712 MAY W10310712 Contact Us For Availability
6
MAY W10210875 MAY W10210875 Contact Us For Availability
6
MOTOR, FAN ASSEMBLY MAY W10249323 Contact Us For Availability
6
MAY W10444887 MAY W10444887 Contact Us For Availability
6
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
7
MAY W10210873 MAY W10210873 Contact Us For Availability
7
MOTOR, CONVECTION MAY W10249326 Contact Us For Availability
7
MAY W10466421 MAY W10466421 Contact Us For Availability
7
ASSEMBLY, TOP PLATE MAY W10248268 Contact Us For Availability
8
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
8
MAY 8206230 MAY 8206230 Contact Us For Availability
8
MAY W10637931 MAY W10637931 Contact Us For Availability
8
ASSEMBLY, BACK PLATE MAY W10248267 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
ASSEMBLY, BEARING MAY W10249507 Contact Us For Availability
9
MAY W10440082 MAY W10440082 Contact Us For Availability
9
ASSEMBLY, BOTTOM PLATE MAY W10249318 Contact Us For Availability
10
MAY W10156812 MAY W10156812 Contact Us For Availability
10
MAY W10399840 MAY W10399840 Contact Us For Availability
10
ASSEMBLY, RIGHT PLATE MAY W10248279 Contact Us For Availability
11
MAY W10156811 MAY W10156811 Contact Us For Availability
11
MAY W10623627 MAY W10623627 Contact Us For Availability
11
MAY W10499304 MAY W10499304 Contact Us For Availability
12
MAY 8206419 MAY 8206419 Contact Us For Availability
12
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
12
MAY W10310722 MAY W10310722 Contact Us For Availability
12A
MAY W10156813 MAY W10156813 Contact Us For Availability
13
ASSEMBLY, PISTON MAY W10197758 Contact Us For Availability
13
MAY W10640887 MAY W10640887 Contact Us For Availability
13
MAY W10508582 MAY W10508582 Contact Us For Availability
14
MAY W10605897 MAY W10605897 Contact Us For Availability
14
MAY W10640888 MAY W10640888 Contact Us For Availability
14
MAY W10546149 MAY W10546149 Contact Us For Availability
15
THERMISTOR MAY W10163422 Contact Us For Availability
15
BRACKET, NOISE FILTER MAY W10313274 Contact Us For Availability
15
MAY W10546152 MAY W10546152 Contact Us For Availability
16
MAY W10640884 MAY W10640884 Contact Us For Availability
16
MAY W10139750 MAY W10139750 Contact Us For Availability
16
MAY W10310726 MAY W10310726 Contact Us For Availability
17
MAY W10310720 MAY W10310720 Contact Us For Availability
17
MAY W10249328 MAY W10249328 Contact Us For Availability
17
MAY W10310727 MAY W10310727 Contact Us For Availability
18
MAY W10245190 MAY W10245190 Contact Us For Availability
18
MAY W10245183 MAY W10245183 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
19
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
20
PLATE, WATERPROOF MAY W10164716 Contact Us For Availability
21
MAY W10245182 MAY W10245182 Contact Us For Availability
22
CAVITY, THERMAL CUTOUT MAY W10248275 Contact Us For Availability
22
FOIL, CAVITY LAMP MAY W10249511 Contact Us For Availability
23
MAY W10733411 MAY W10733411 Contact Us For Availability
23
MAY W10640893 MAY W10640893 Contact Us For Availability
24
MAY W10532063 MAY W10532063 Contact Us For Availability
24
MAY W10249510 MAY W10249510 Contact Us For Availability
25
CAPACITOR, HIGH VOLTAGE MAY W10343300 Contact Us For Availability
25
MAY W10249509 MAY W10249509 Contact Us For Availability
26
MAY W10492278 MAY W10492278 Contact Us For Availability
26
ASSEMBLY, CHAMBER MAY W10249508 Contact Us For Availability
27
SUPPORT, HIGH VOLTAGE DIODE MAY W10245188 Contact Us For Availability
27
MAY W10249504 MAY W10249504 Contact Us For Availability
28
MAY W10259248 MAY W10259248 Contact Us For Availability
28
MAY W10249505 MAY W10249505 Contact Us For Availability
29
THERMOSTAT, CONVECTION MAY 8206068 Contact Us For Availability
29
MAY W10249506 MAY W10249506 Contact Us For Availability
30
CLIP MAY 8206223 Contact Us For Availability
31
MAY W10245194 MAY W10245194 Contact Us For Availability
32
MAY W10138793 MAY W10138793 Contact Us For Availability
33
MAY W10248274 MAY W10248274 Contact Us For Availability
34
MAY W10248276 MAY W10248276 Contact Us For Availability
35
MAY W10248277 MAY W10248277 Contact Us For Availability
36
MAY W10248278 MAY W10248278 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, INSTALLATION, HARDWARE MAY 8205948 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MAY W10557525 MAY W10557525 Contact Us For Availability
NI
MAY W10557527 MAY W10557527 Contact Us For Availability
NI
MAY W10753802 MAY W10753802 Contact Us For Availability
× ![]()
