Model Whirlpool JMV8208BCS MICROWAVE – Common Parts & Diagrams
04 - SUPPLEMENTAL INFORMATION

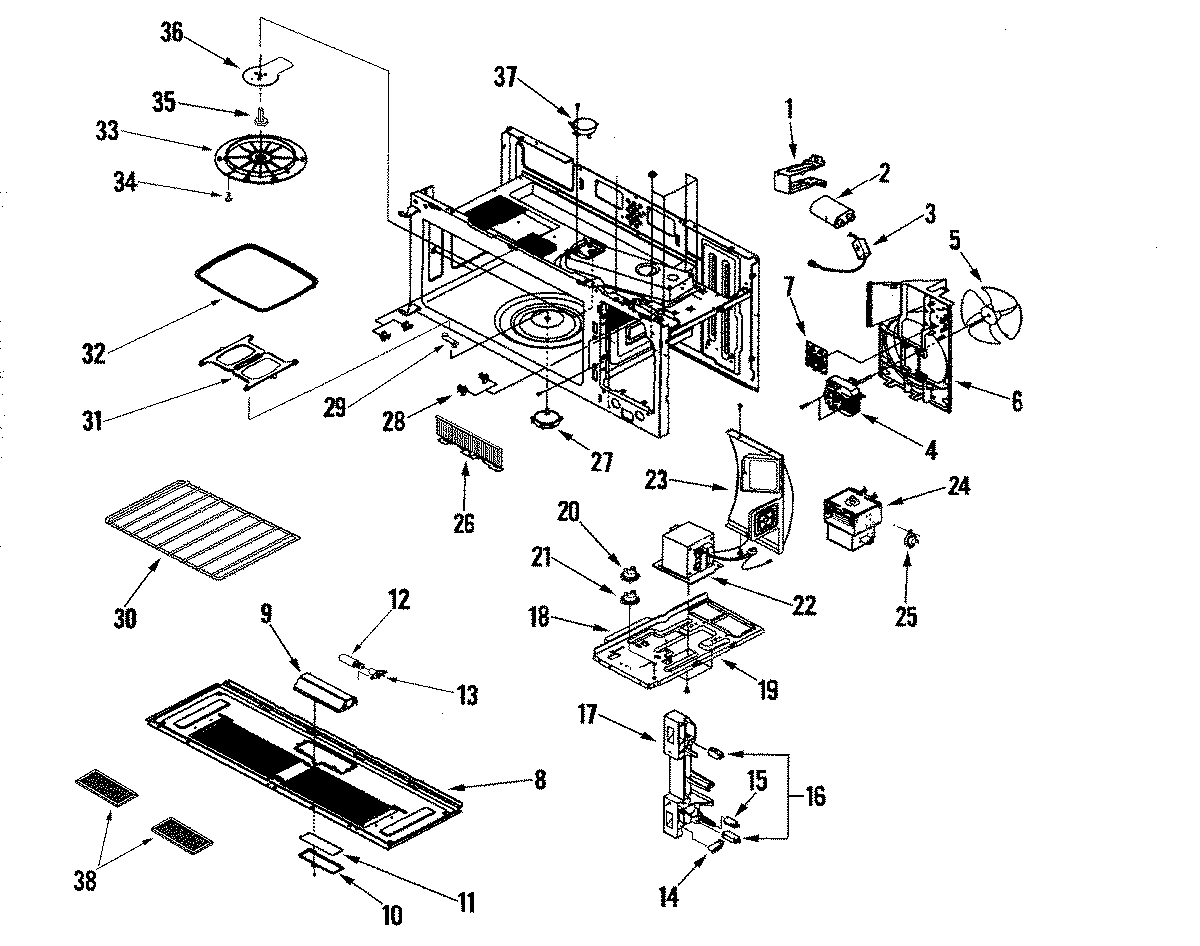

01 - BASE/CAVITY/INTERNAL CONTROLS

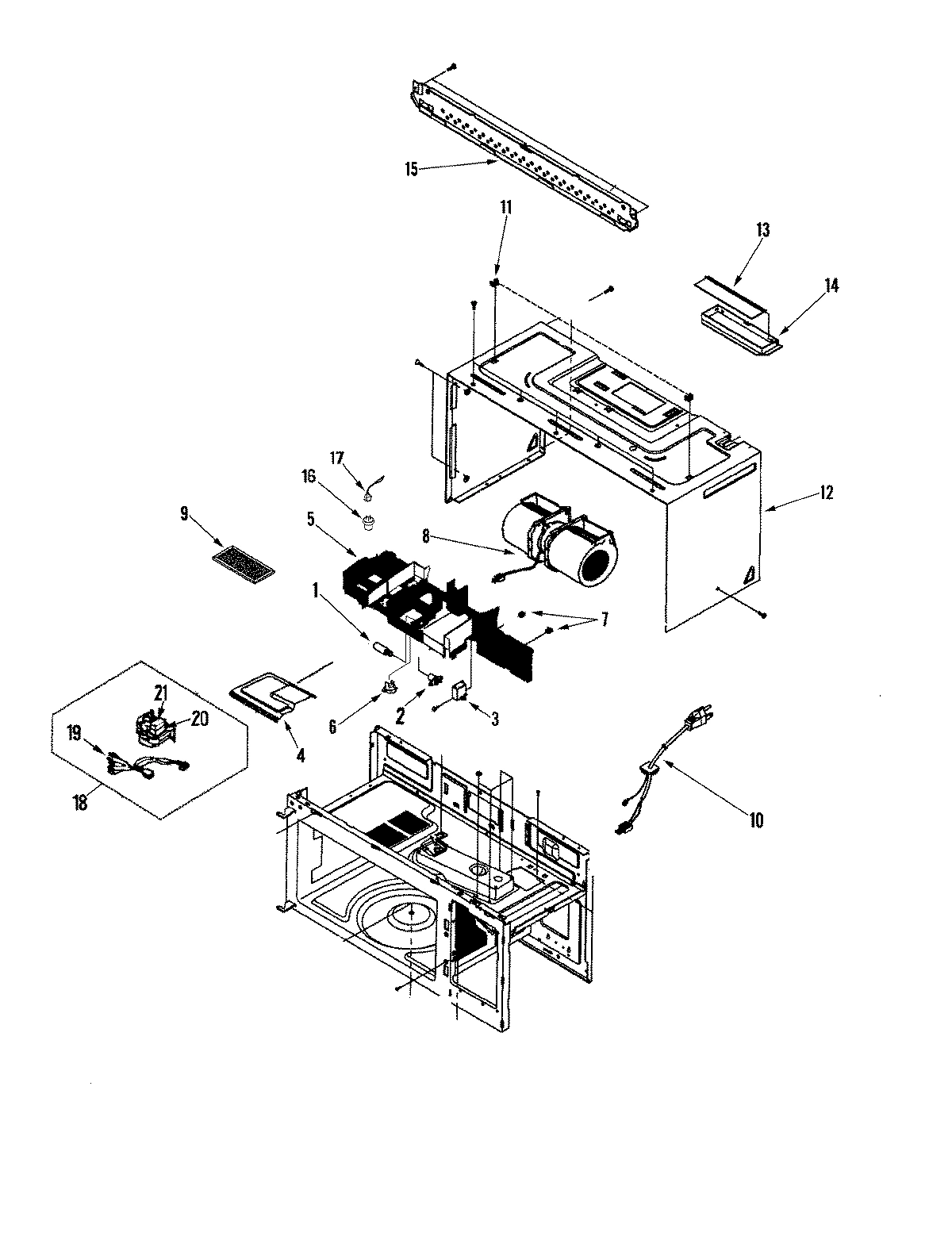

02 - BODY/BLOWER MOTOR

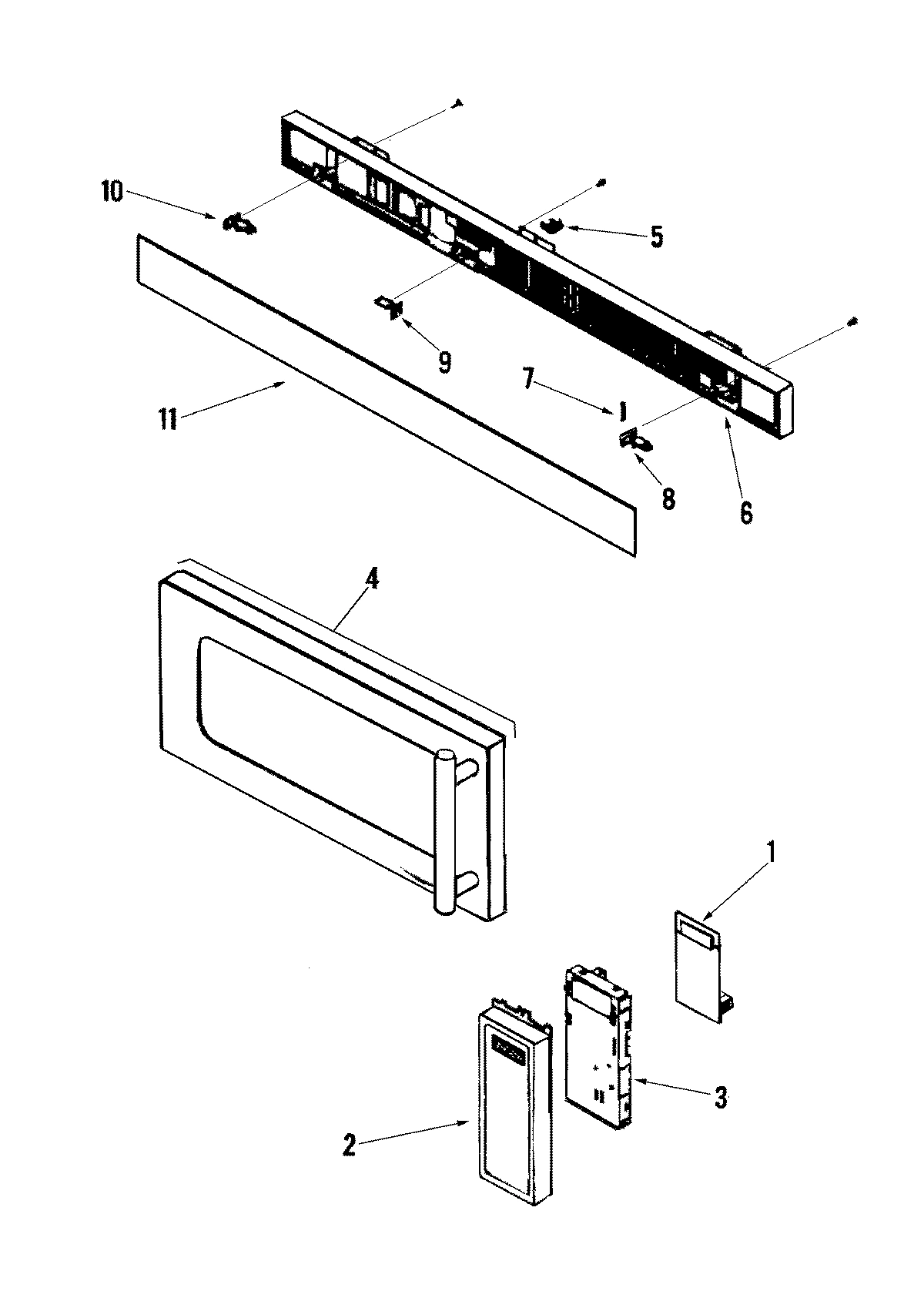

03 - CONTROL PANEL/DOOR/GRILLE
Common parts from model Whirlpool JMV8208BCS MICROWAVE
1
BRACKET-HVC WPL DE6100115A Contact Us For Availability
1
LAMP, HALOGEN WPL 4713001165 Contact Us For Availability
1
ASY PCB PARTS WPL W10127101 Contact Us For Availability
2
ASY-WIRE HARNESS WPL DE9600535A Contact Us For Availability
2
CAPACITOR WPL 2501001016 Contact Us For Availability
2
SOCKET-LAMP HALOGEN WPL DE4700032B Contact Us For Availability
2
ASY-CONTROL PANEL (STL) WPL DE9401402J Contact Us For Availability
3
ASY-HARDWARE x WPL DE9290505G Contact Us For Availability
3
ASSY-HVD WPL DE9170063D Contact Us For Availability
3
CAPACITOR, MOTOR WPL DE5950002A Contact Us For Availability
3
ASY-BKT-C/PANEL WPL DE9700633A Contact Us For Availability
4
MOTOR FAN WPL DE3110177E Contact Us For Availability
4
BRACKET, DUCT (U) WPL DE6100806A Contact Us For Availability
4
ASY DOOR(STL) !! WPL DE9401398F Contact Us For Availability
5
BLADE, FAN WPL DE3190051A Contact Us For Availability
5
ASY-DUCT UPPER WPL DE9700635B Contact Us For Availability
5
BRACKET GRILLE WPL DE6100823A Contact Us For Availability
6
COVER-MOTOR WPL DE6300141A Contact Us For Availability
6
SW-THERMO WPL DE4720059A Contact Us For Availability
6
GRILLE (BLK) WPL DE6401455A Contact Us For Availability
7
ASSY NOISE FILTER,SN-UF12B,250 WPL DE9600400B Contact Us For Availability
7
NUT, MOUNTING WPL DE6030063A Contact Us For Availability
7
SPRING ETC-LOUVER,JVM-2070,HSW WPL DE6100527A Contact Us For Availability
8
BASE-BOTTOM WPL DE6100406B Contact Us For Availability
8
MOTOR VENTILATION WPL DE3100028A Contact Us For Availability
8
HINGE-GRILLE(R) WPL DE6100128A Contact Us For Availability
9
BRACKET-BOTTOM LAMP WPL DE6100407C Contact Us For Availability
9
FILTER, CHARCOAL WPL DE6300367D Contact Us For Availability
9
HINGE-GRILLE(M) WPL DE6100177A Contact Us For Availability
10
COVER-GLASS COOKTOP ----SNA WPL DE6300137A Contact Us For Availability
10
ASSY-POWER CORD WPL DE9600218A Contact Us For Availability
10
HINGE-GRILLE(L) WPL DE6100129A Contact Us For Availability
11
GLASS-COOKTOP LAMP WPL DE6400911A Contact Us For Availability
11
ASSY-HOLDER NUT WPL DE9290508A Contact Us For Availability
11
COVER, GRILLE (STL) WPL DE9700656A Contact Us For Availability
12
PANEL-OUTER (BLK) WPL DE6400754A Contact Us For Availability
13
COVER-DAMPER WPL DE7160051A Contact Us For Availability
14
LEVER-SWITCH LOWER WPL DE6690106B Contact Us For Availability
14
DAMPER-MAIN WPL DE7240022A Contact Us For Availability
15
SWITCH, MICRO WPL 3405001033 Contact Us For Availability
15
PLATE-MOUNTING WPL DE7000378A Contact Us For Availability
16
SWITCH, MICRO (125/250 VAC) WPL 3405001034 Contact Us For Availability
16
SENSOR, GAS WPL DE3260011A Contact Us For Availability
16
HOLDER-SENSOR WPL DE6100525A Contact Us For Availability
17
LATCH-BODY,MODULAR-2,PP,-,-,-, WPL DE6600168A Contact Us For Availability
17
WIRE HARNESS-S WPL DE3940678A Contact Us For Availability
18
CUSHION-SPONGE WPL DE6300008F Contact Us For Availability
18
MOTOR-DRIVE WPL DE3110154C Contact Us For Availability
18
BRACKET-CAM PLATE WPL DE6100118A Contact Us For Availability
18
CAM-LOUVER WPL DE7200145A Contact Us For Availability
18
ASY-CAM LOUVER WPL DE9700423A Contact Us For Availability
19
BASE-PLATE WPL DE6100415A Contact Us For Availability
19
WIRE HARNESS-CAM WPL DE3900361A Contact Us For Availability
20
SWITCH, MICRO WPL 3405001051 Contact Us For Availability
21
THERMOSTAT WPL DE4720034A Contact Us For Availability
21
SWITCH, MICRO WPL 3405001050 Contact Us For Availability
22
TRANS H.V. WPL DE2600125B Contact Us For Availability
23
BRACKET-DUCT REAR WPL DE6100411A Contact Us For Availability
25
THERMOSTAT WPL DE4720007A Contact Us For Availability
26
COVER-FRONT WPL DE6300138A Contact Us For Availability
27
MOTOR, DRIVE WPL DE3110173A Contact Us For Availability
28
HOLDER-RACK WPL DE6100375A Contact Us For Availability
29
ASY-COUPLER WPL DE9700648A Contact Us For Availability
30
RACK-WIRE ----SNA WPL DE7500036A Contact Us For Availability
31
GUIDE, TRAY WPL DE6100855A Contact Us For Availability
32
TRAY, COOKING WPL DE6300383A Contact Us For Availability
33
COVER-STIRRER WPL DE7160121A Contact Us For Availability
34
BUTTON, LOCK WPL DE6620095B Contact Us For Availability
35
HOLDER-STIRRER WPL DE6100804A Contact Us For Availability
36
BLADE-STIRRER WPL DE6600184A Contact Us For Availability
37
MOTOR DRIVE WPL DE3100040A Contact Us For Availability
38
FILTER-AIR WPL DE6300196A Contact Us For Availability
× ![]()
