Model Whirlpool JMV8208ACW MICROWAVE – Common Parts & Diagrams
03 - CAVITY

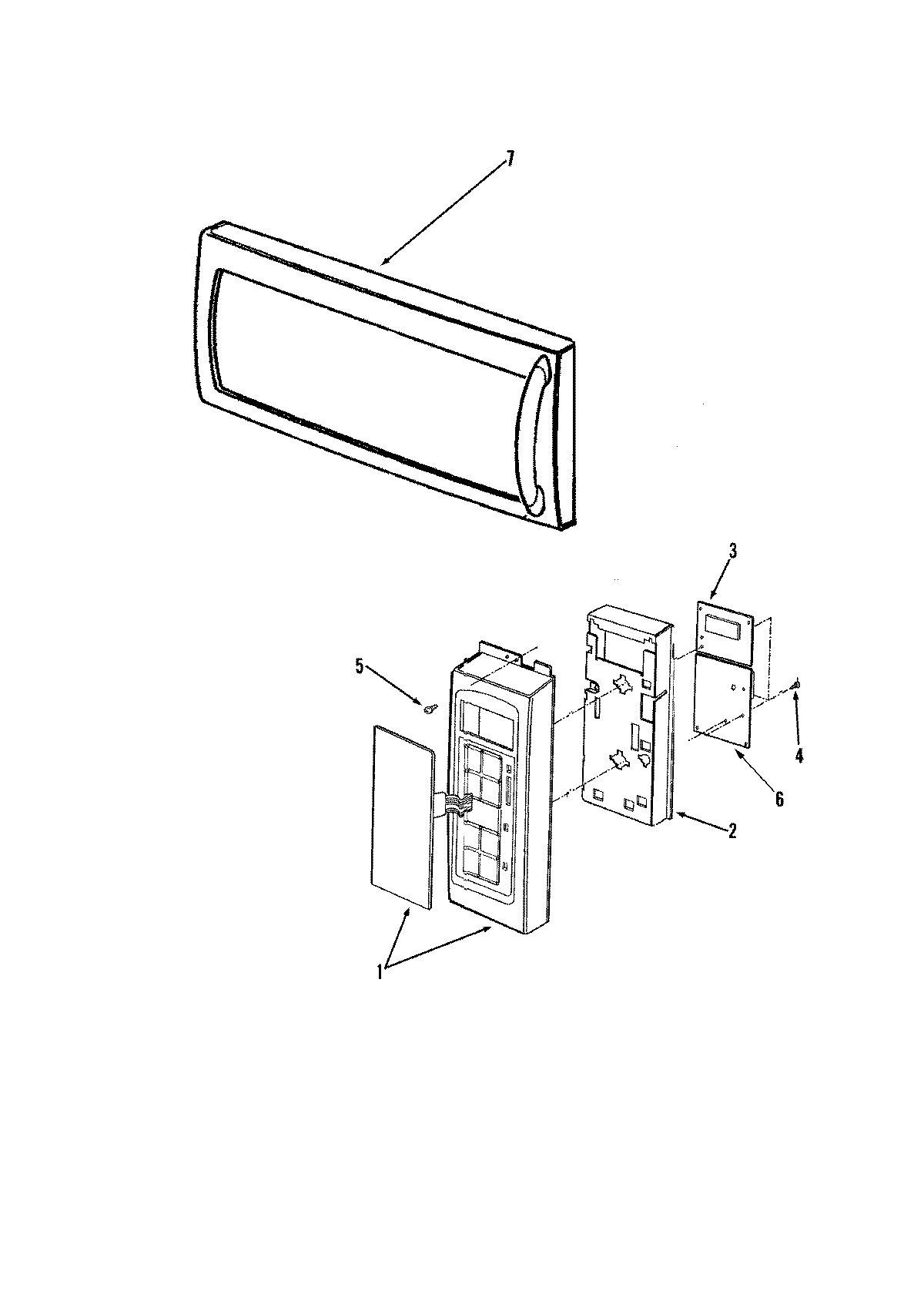

04 - CONTROL PANEL/DOOR ASSEMBLY

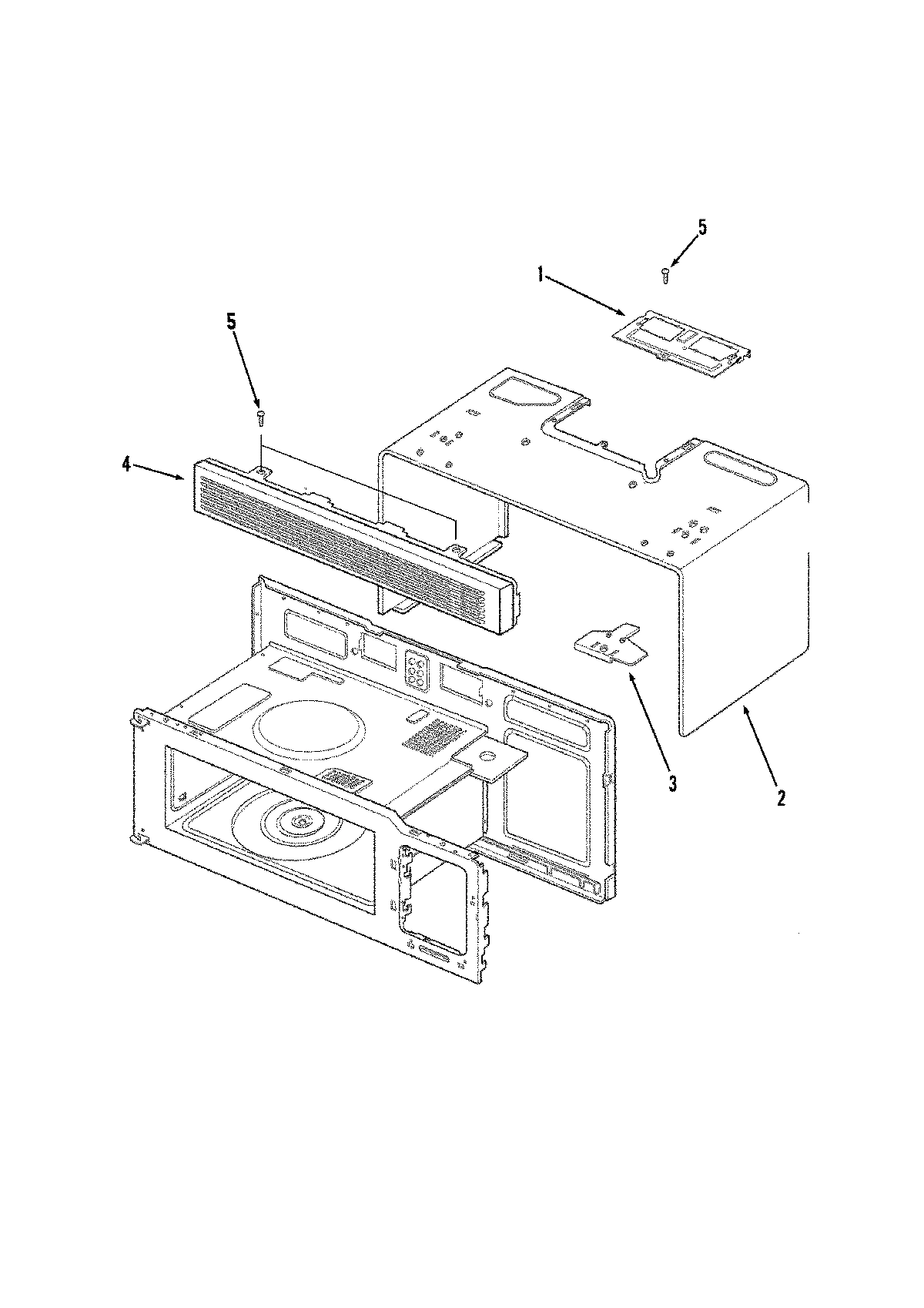

05 - OUTER CASE/VENT GRILLE
06 - SUPPLEMENTAL INFORMATION

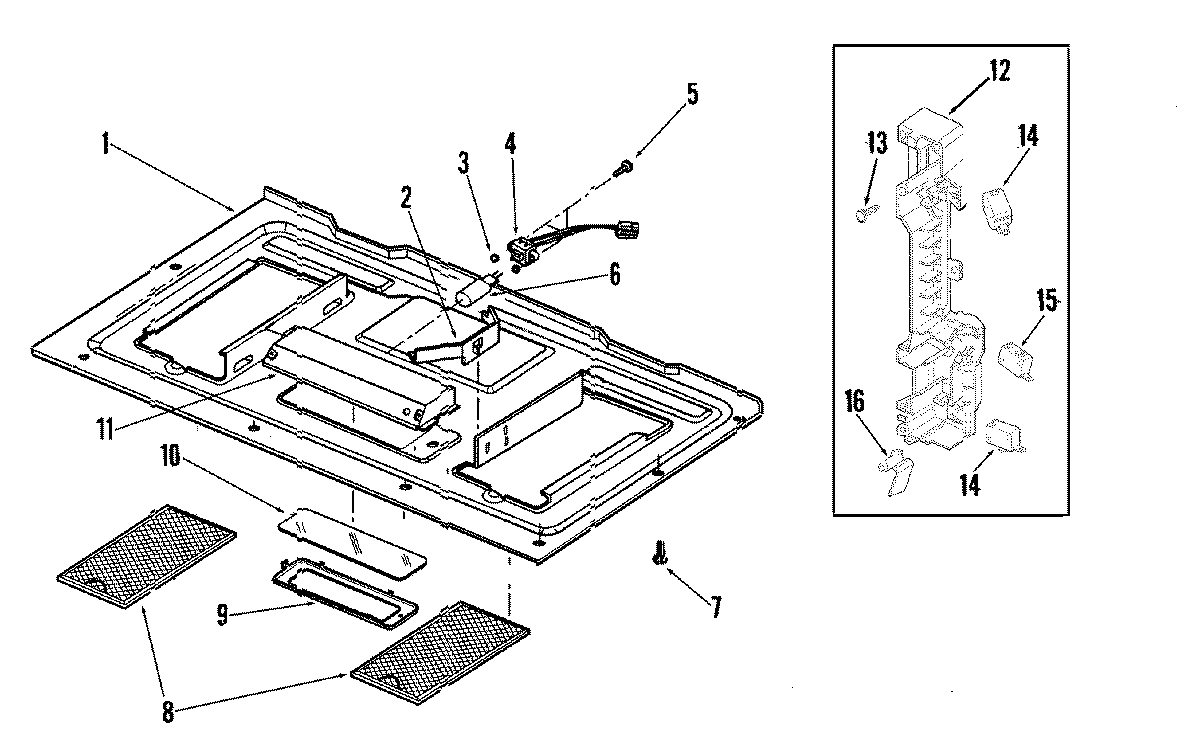

01 - BASE/LATCH BOARD ASSEMBLY

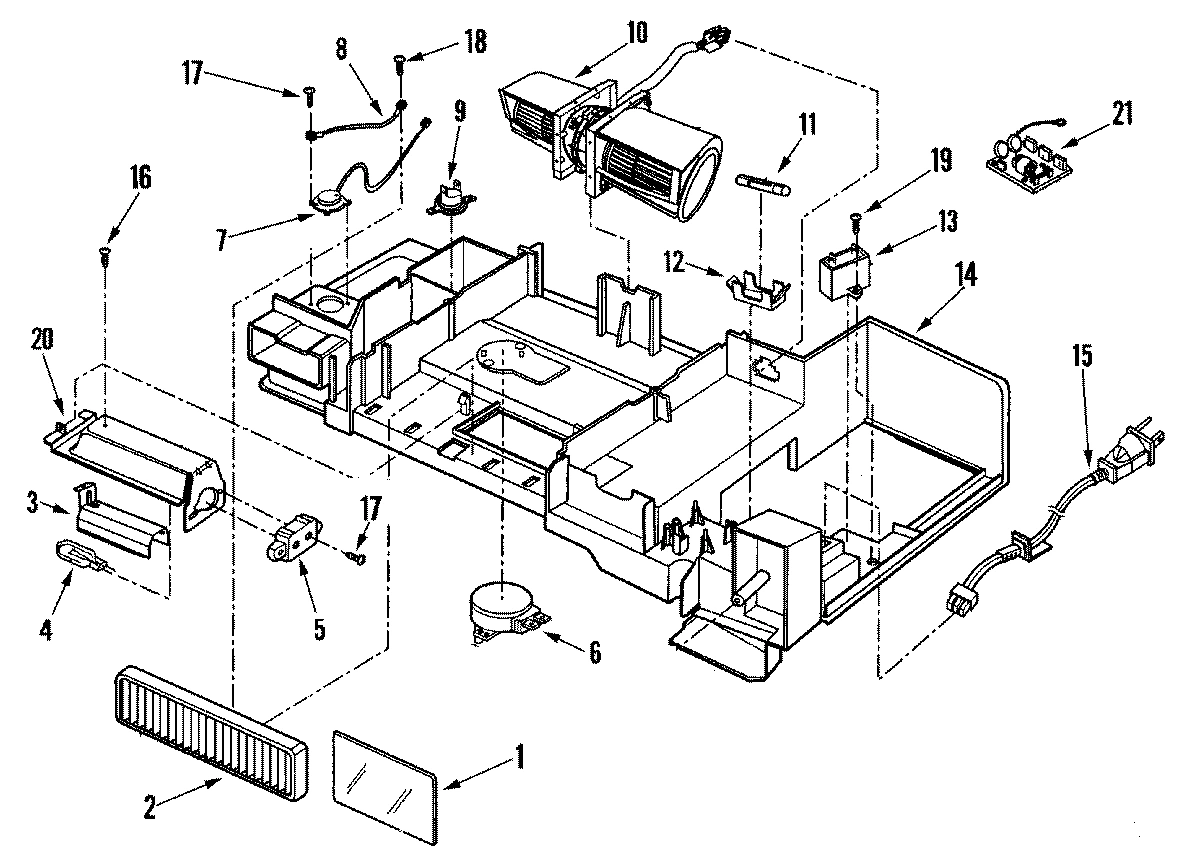

02 - BLOWER MOTOR
Common parts from model Whirlpool JMV8208ACW MICROWAVE
1
TRANSFORMER WPL 53001649 Contact Us For Availability
1
CONTROL PANEL/SWITCH ASY (WHT) WPL 53001503 Contact Us For Availability
1
MOUNT WPL 53001407 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8112P27160 Contact Us For Availability
1
PLATE, BASE WPL 53001457 Contact Us For Availability
1
GLASS WPL 53001753 Contact Us For Availability
2
MOTOR, FAN (D-SHAFT) WPL 53001650 Contact Us For Availability
2
BRACKET, CONTROL PANEL WPL R0130653 Contact Us For Availability
2
CASE, OUTER (WHT) WPL 53001526 Contact Us For Availability
2
HARNESS, WIRE WPL 53001856 Contact Us For Availability
2
PROTECTOR WPL 53001418 Contact Us For Availability
3
GUIDE, SUCTION WPL 53001540 Contact Us For Availability
3
BOARD, CONTROL (PCB) WPL 53001711 Contact Us For Availability
3
BRACKET, MOUNTING WPL R9800364 Contact Us For Availability
3
KIT, INSTALLATION WPL 53001458 Contact Us For Availability
3
TEMPLATE WPL 53001799 Contact Us For Availability
3
PLATE, MOUNTING PLATE WPL 59001113 Contact Us For Availability
3
NUT WPL 53001464 Contact Us For Availability
3
REFLECTOR WPL 53001417 Contact Us For Availability
4
GUIDE, AIR WPL 53001651 Contact Us For Availability
4
SCREW, TRUSS HD WPL R0654185 Contact Us For Availability
4
GRILLE, VENT (WHT) WPL 53001640 Contact Us For Availability
4
HOLDER ASSEMBLY (LAMP) WPL 53001405 Contact Us For Availability
5
PLATE, BOTTOM WPL 53001653 Contact Us For Availability
5
SCREW, TAP TH WPL R9800359 Contact Us For Availability
5
SCREW, MACHINE (PAN HEAD) WPL 53001542 Contact Us For Availability
5
HOLDER ASSEMBLY WPL 53001732 Contact Us For Availability
6
BOARD, CONTROL-LWR (PCB) WPL 53001712 Contact Us For Availability
6
MOTOR, STIRRER BLADE WPL 53001406 Contact Us For Availability
7
SCREW, TRUSS HD S/TAP WPL W11380570 No Longer Available
7
GUIDE, AIR WPL 53001533 Contact Us For Availability
7
DOOR ASSEMBLY (WHT) WPL 53001638 Contact Us For Availability
7
SENSOR ASSEMBLY WPL 53001432 Contact Us For Availability
8
THERMOSTAT - MAG WPL R9900542 Contact Us For Availability
8
WIRE WPL R9800470 Contact Us For Availability
9
BRACKET, LAMP WPL 53001414 Contact Us For Availability
10
BRACKET, CAPACITOR WPL 53001427 Contact Us For Availability
10
GLASS, LAMP WPL 53001408 Contact Us For Availability
10
MOTOR, VENTILATION WPL 53001510 Contact Us For Availability
11
MOTOR, TURNTABLE WPL 53001440 Contact Us For Availability
11
REFLECTOR WPL 53001416 Contact Us For Availability
12
COVER, STIRRER FAN WPL 53001654 Contact Us For Availability
12
BRACKET, LATCH WPL R0130612 Contact Us For Availability
13
SCREW, SPECIAL D WPL R9800691 Contact Us For Availability
13
CAPACITOR WPL 53001344 Contact Us For Availability
14
SUPPORT, STIRRER FAN WPL 53001655 Contact Us For Availability
14
DUCT WPL 53001541 Contact Us For Availability
15
HOLDER, SUPPORT WPL 53001657 Contact Us For Availability
15
CORD, POWER WPL R9800466 Contact Us For Availability
16
FAN, STIRRER WPL 53001656 Contact Us For Availability
16
LEVER, LATCH WPL R9800416 Contact Us For Availability
17
RING ASSEMBLY WPL 53001535 Contact Us For Availability
17
SCREW, PAN HEAD WPL 53001463 Contact Us For Availability
18
ROTATING RING ASSEMBLY WPL 53001534 Contact Us For Availability
18
SCREW, TRUSS HD WPL R0654183 Contact Us For Availability
19
TRAY, GLASS WPL 53001532 Contact Us For Availability
20
TRAY, PLASTIC WPL 53001538 Contact Us For Availability
20
COVER, LAMP WPL 53001731 Contact Us For Availability
21
BLADE, FAN(ROUND SHAFT) WPL 53001252 Contact Us For Availability
21
ASSY, FUSE BLOCK/NOISE FILTER WPL R9800472 Contact Us For Availability
22
SHELF WPL 53001537 Contact Us For Availability
23
SUPPORT, SHELF WPL 53001033 Contact Us For Availability
25
FILTER ASSEMBLY WPL 53001565 Contact Us For Availability
26
COVER, INNER WPL 53001854 Contact Us For Availability
× ![]()
