Model Whirlpool JMV8196ACQ MICROWAVE – Common Parts & Diagrams

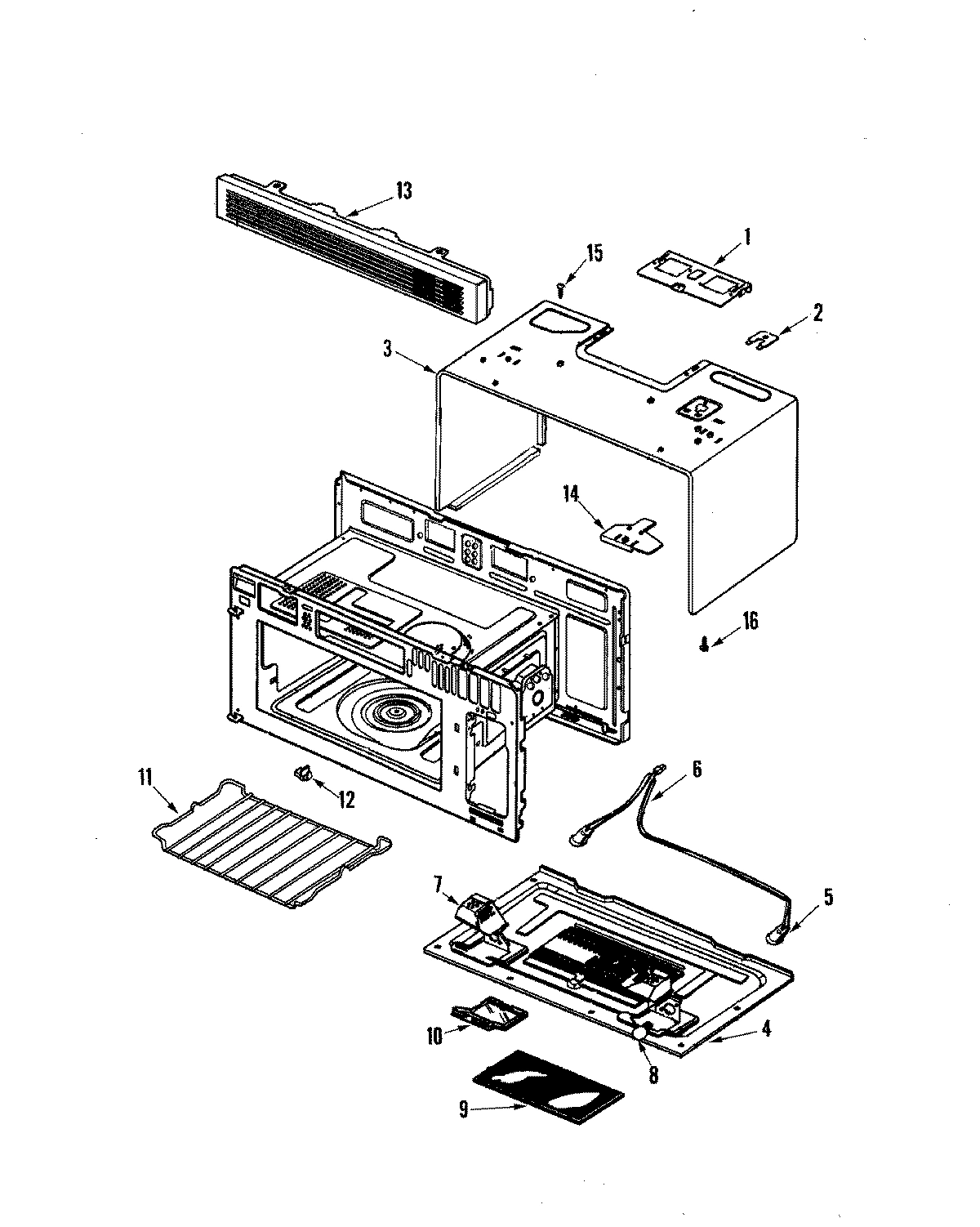

01 - BASE & CAVITY

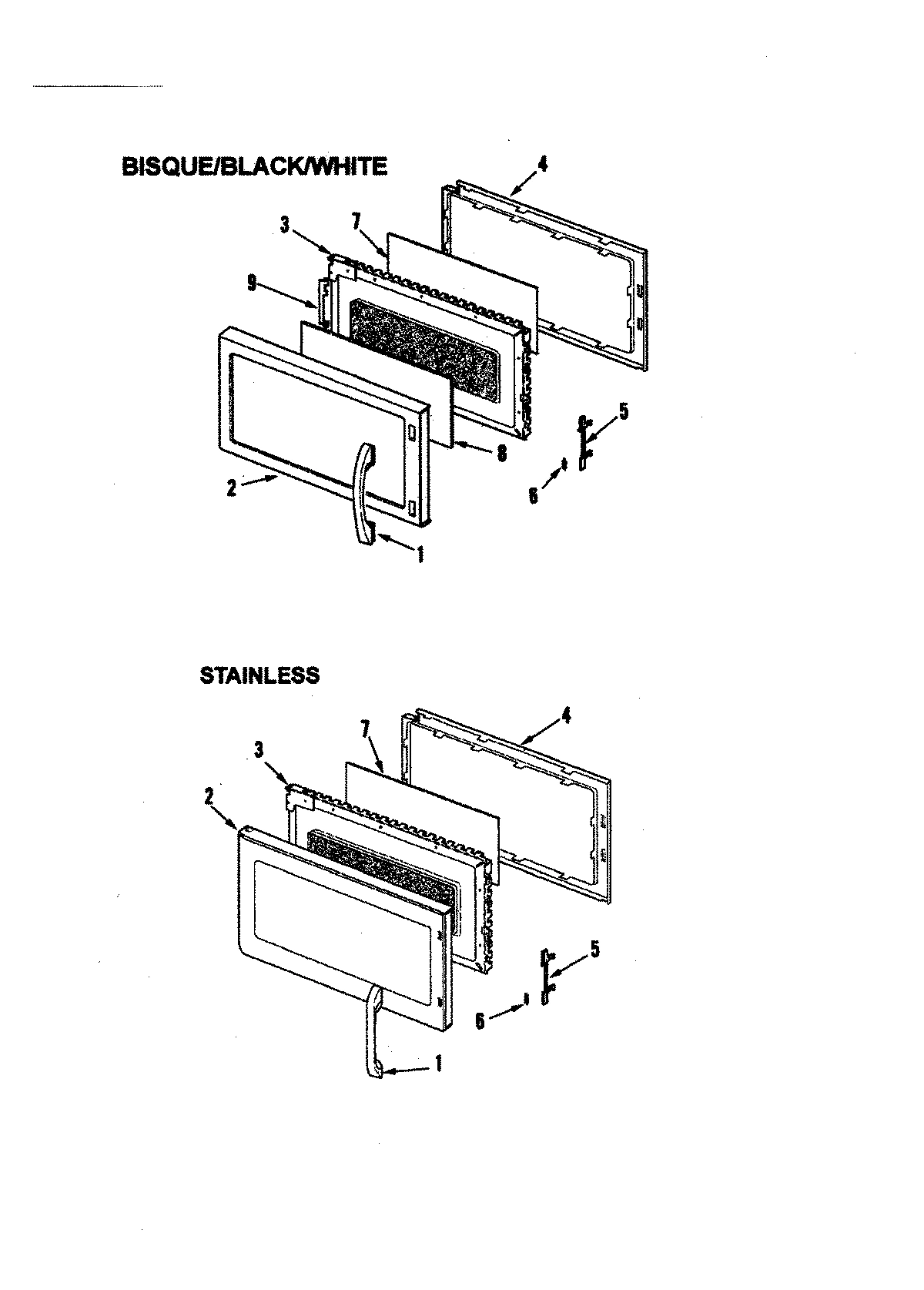

03 - DOOR

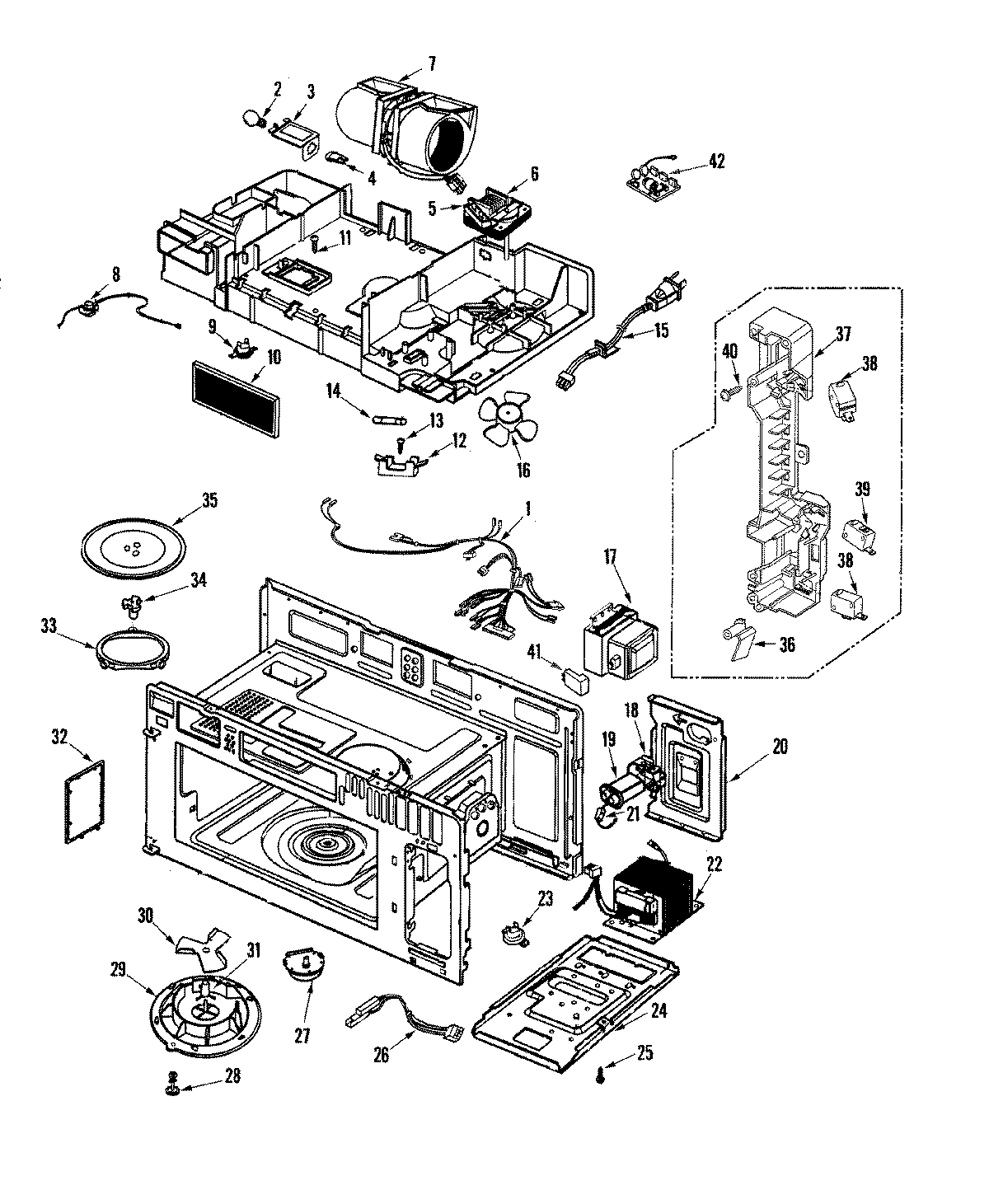

05 - INTERIOR CONTROLS

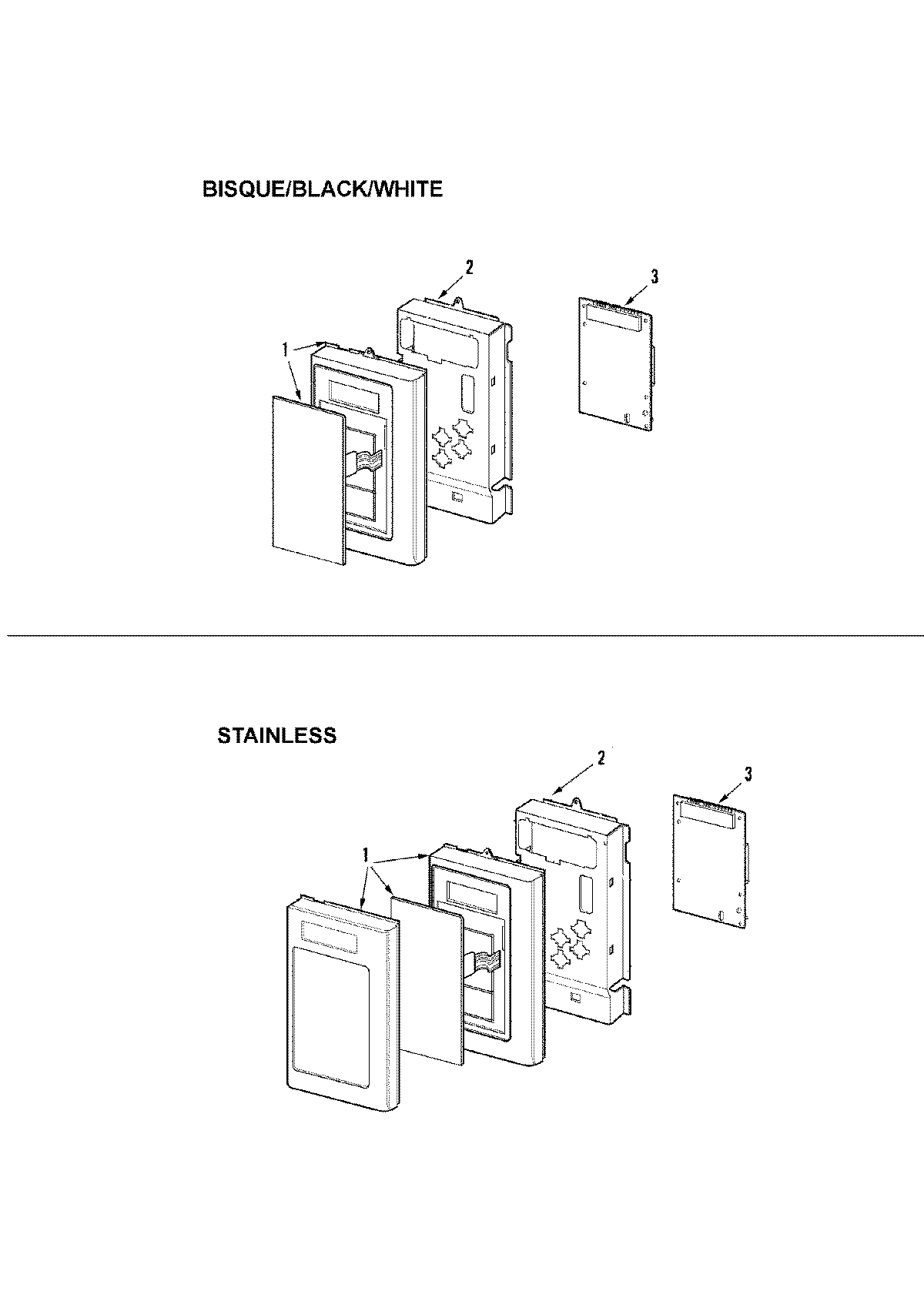

02 - CONTROL PANEL

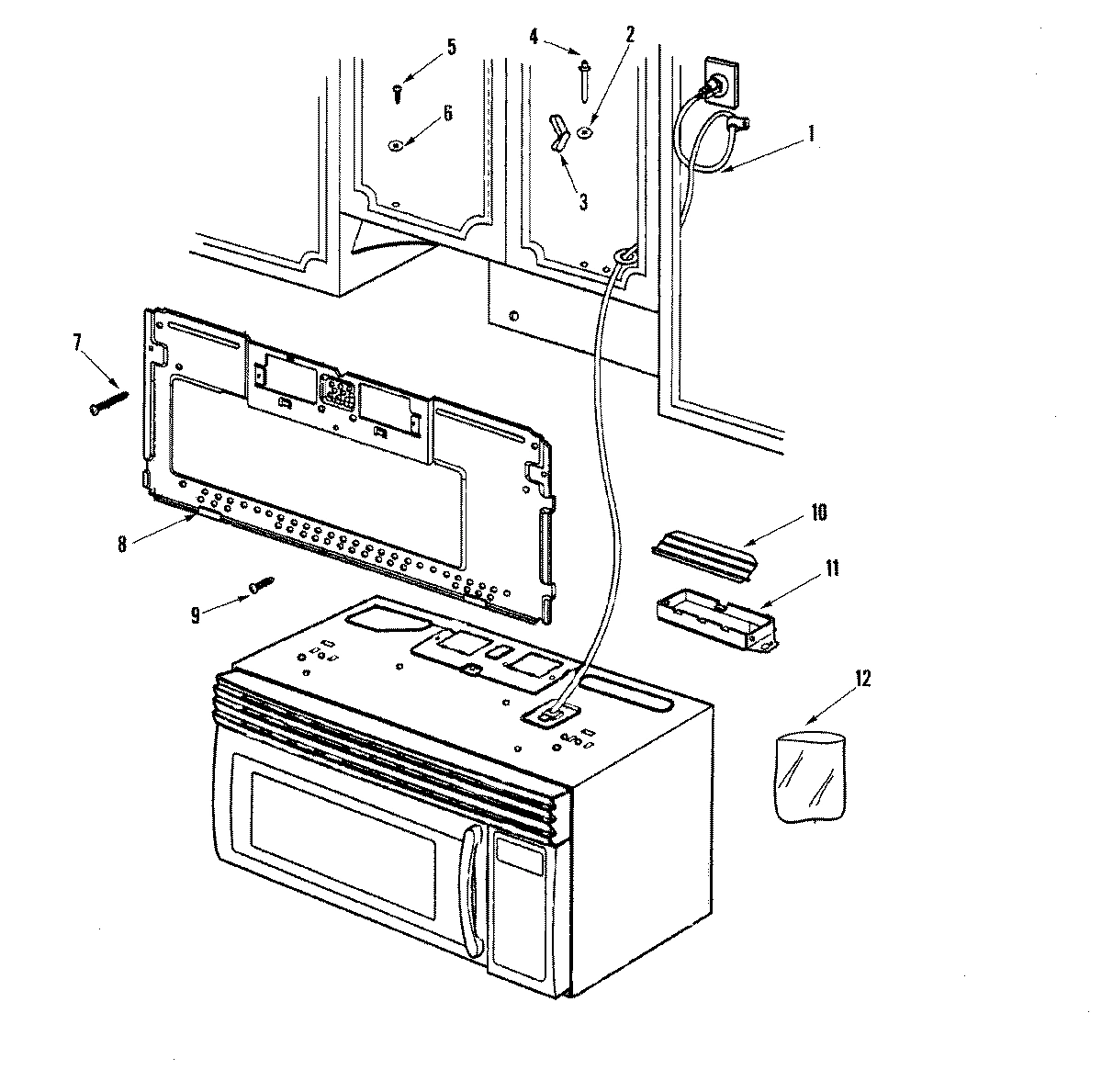

04 - INSTALLATION
06 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool JMV8196ACQ MICROWAVE
1
MOUNT, PLATE WPL R0130606 Contact Us For Availability
1
SCREW, TAP TH WPL R9800359 Contact Us For Availability
1
HANDLE, DOOR (BSQ) WPL 53001053 Contact Us For Availability
1
LEAD WIRE ASSEMBLY WPL 53001178 Contact Us For Availability
1
CORD, POWER WPL R9800466 Contact Us For Availability
1
SWITCH, M`BRANE W/CTR PNL(BSQ) WPL 53001050 Contact Us For Availability
1
MANUAL, USE & CARE WPL 53001177 Contact Us For Availability
2
COVER, POWER CORD WPL R9800374 Contact Us For Availability
2
PANEL, DOOR (BSQ) WPL R0130638 Contact Us For Availability
2
BRACKET, CONTROL PANEL WPL R0130596 Contact Us For Availability
2
MANUAL, SERVICE (OTR M/W OVEN) WPL 16021668 Contact Us For Availability
3
CABINET (BSQ) WPL R0130643 Contact Us For Availability
3
FRAME, DOOR WPL 53001007 Contact Us For Availability
3
COVER WPL R9800462 Contact Us For Availability
3
SCREW, PAN HD WPL R0654180 Contact Us For Availability
3
BOARD, CONTROL WPL 59001032 Contact Us For Availability
3
WING NUT WPL R9800479 Contact Us For Availability
4
PLATE, BASE WPL R0130626 Contact Us For Availability
4
SOCKET, LAMP WPL R9800407 Contact Us For Availability
4
CHOKE, COVER WPL 53001008 Contact Us For Availability
4
ROD WPL R9800497 Contact Us For Availability
5
LATCH, DOOR WPL R9900260 Contact Us For Availability
5
FUSE ASSY WPL R9800459 Contact Us For Availability
5
SCREW WPL R9800487 Contact Us For Availability
6
WIRE, LEAD ASSY WPL R0130611 Contact Us For Availability
6
SPRING, LATCH WPL 59001098 Contact Us For Availability
6
MOTOR, FAN WPL R0130627 Contact Us For Availability
6
SCREW, TAP TH WPL R9800412 Contact Us For Availability
6
WASHER WPL R9800489 Contact Us For Availability
7
REFLECTOR (RT) WPL R0130599 Contact Us For Availability
7
REFLECTOR (LT) WPL R0130600 Contact Us For Availability
7
TAPE, SEAL WPL R0130589 Contact Us For Availability
7
MOTOR, VENTILATION WPL R0130628 Contact Us For Availability
7
BOLT, TOGGLE WPL R9800480 Contact Us For Availability
8
GLASS, DOOR WPL 53001059 Contact Us For Availability
8
SENSOR ASSY WPL R0130646 Contact Us For Availability
8
SCREW, PAN HD S/TAP WPL R0654030 Contact Us For Availability
8
PLATE, MOUNTING PLATE WPL 59001113 Contact Us For Availability
9
BAFFLE (BSQ) WPL R0130639 Contact Us For Availability
9
THERMOSTAT, BIMETAL WPL R9900321 Contact Us For Availability
9
BOLT, LAG WPL R9800483 Contact Us For Availability
10
COVER, LAMP WPL R0130614 Contact Us For Availability
10
DAMPER, AIR WPL R9800478 Contact Us For Availability
11
SHELF WPL 53001175 Contact Us For Availability
11
ADAPTER, EXHAUST WPL R9800473 Contact Us For Availability
12
SCREW, TRUSS HD WPL R0654183 Contact Us For Availability
12
HOLDER, SHELF WPL 53001176 Contact Us For Availability
12
KIT, MTG HARDWARE WPL R9800681 Contact Us For Availability
13
GRILLE, VENT GRILL (BSQ) WPL 53001063 Contact Us For Availability
14
BRACKET, MOUNTING WPL R9800364 Contact Us For Availability
18
BRACKET, CAPACITOR WPL R0130615 Contact Us For Availability
20
GUIDE, AIR WPL R0130618 Contact Us For Availability
22
TRANSFORMER, H.V. WPL R0130620 Contact Us For Availability
23
SCREW TAPPING,PAN HEAD WPL R0131307 Contact Us For Availability
23
THERMOSTAT, BIMETAL WPL R0131460 Contact Us For Availability
24
SCREW, TAPPING TRUSS HEAD WPL W11380570 No Longer Available
24
PLATE, BOTTOM WPL R0130613 Contact Us For Availability
26
WIRE, LEAD ASSY WPL R0130624 Contact Us For Availability
27
MOTOR, TURN TABLE WPL R0130610 Contact Us For Availability
29
COVER, STIRRER FAN WPL R0131687 Contact Us For Availability
30
FAN, STIRRER WPL R0130619 Contact Us For Availability
31
HOLDER, STIRRER FAN WPL R0130616 Contact Us For Availability
32
COVER, WAVE GUIDE WPL R0130601 Contact Us For Availability
33
RING, ROTATING ASSY WPL R0130609 Contact Us For Availability
34
SHAFT, TURN TABLE WPL R0130605 Contact Us For Availability
35
TRAY, GLASS WPL R0130603 Contact Us For Availability
36
LEVER, LATCH WPL R9800416 Contact Us For Availability
37
BRACKET, LATCH WPL R0130612 Contact Us For Availability
40
SCREW WPL R0654111 Contact Us For Availability
41
ASSY, CHOKE FILTER WPL R9800442 Contact Us For Availability
42
ASSY, FUSE BLOCK/NOISE FILTER WPL R9800472 Contact Us For Availability
× ![]()
