Model Whirlpool JMV8166BAS MICROWAVE – Common Parts & Diagrams
01 - BASE/CAVITY/INTERNAL CONTROLS

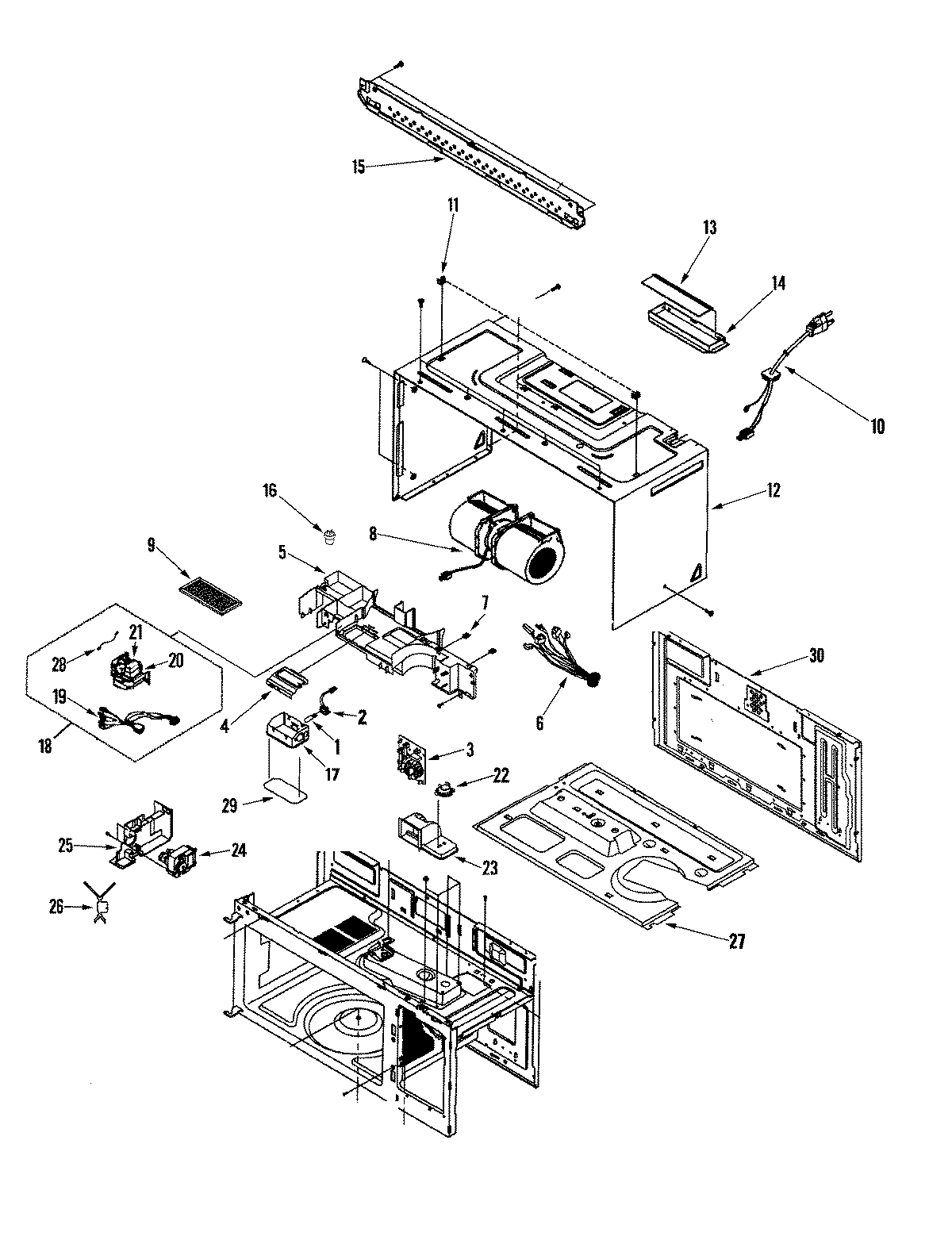

02 - BODY/BLOWER MOTOR

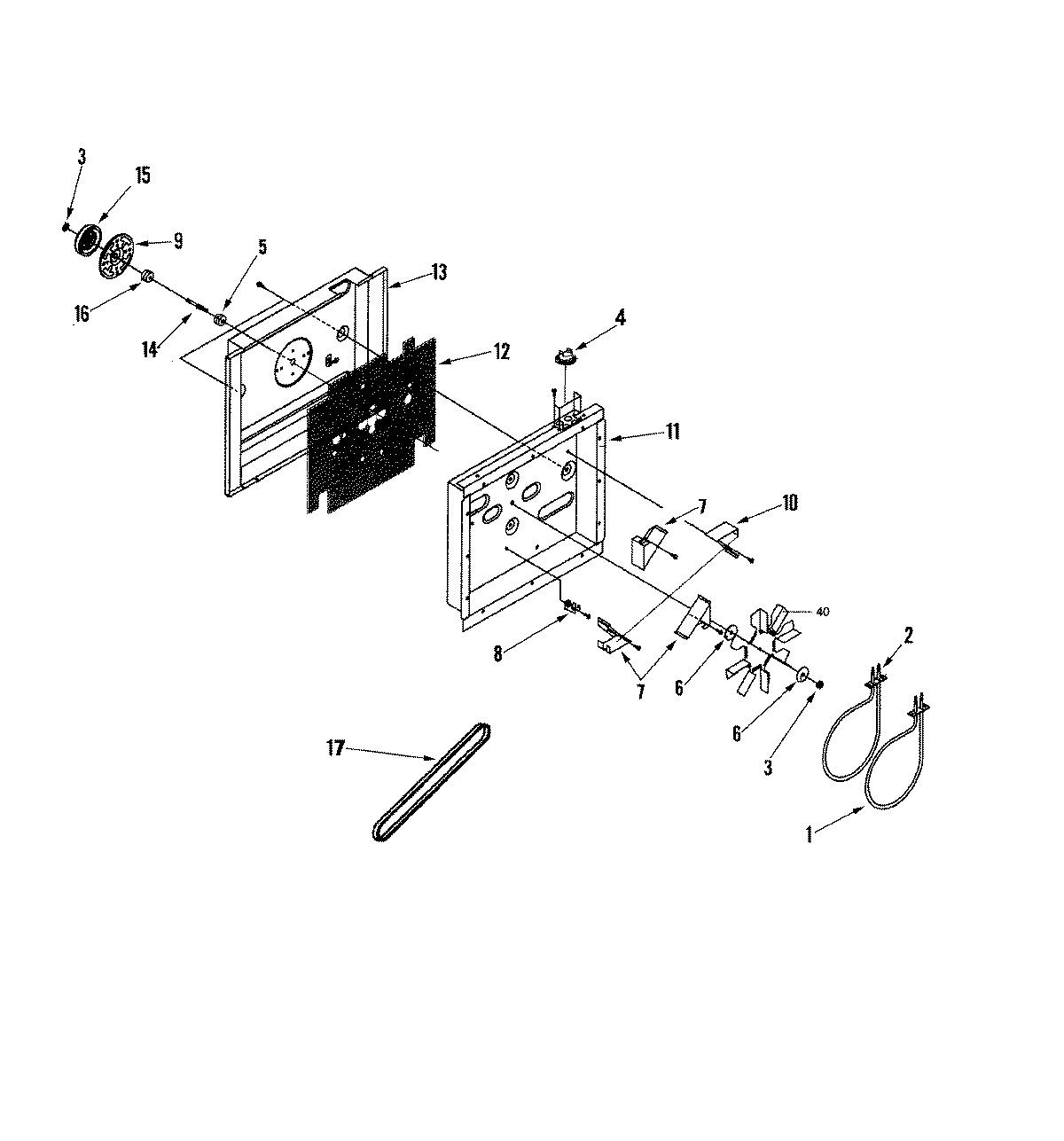

04 - CONVECTION FAN ASSEMBLY

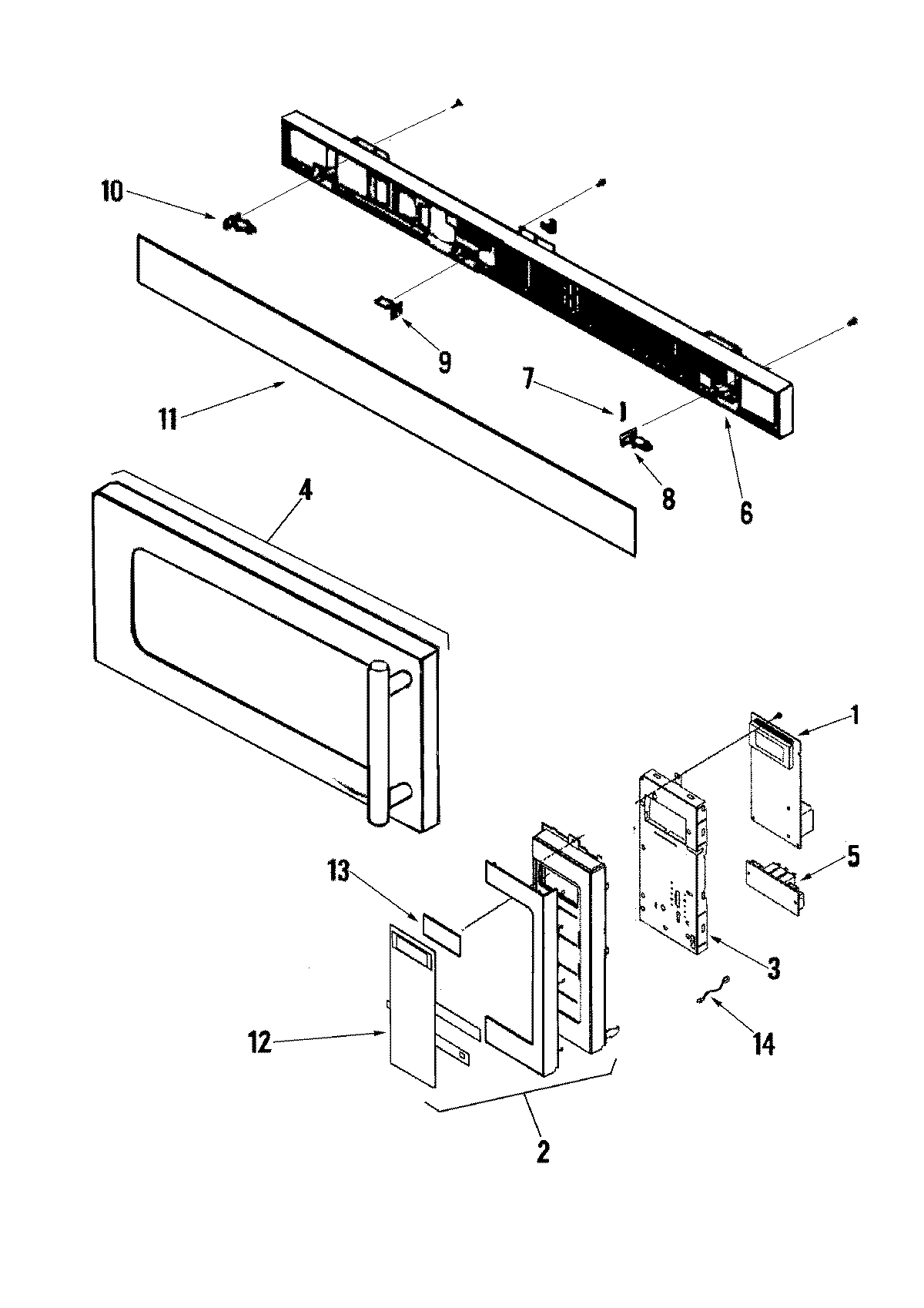

03 - CONTROL PANEL/DOOR/GRILLE
05 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool JMV8166BAS MICROWAVE
1
LAMP, HALOGEN WPL 4713001165 Contact Us For Availability
1
HEATER-CONVECTION WPL DE4700030A Contact Us For Availability
1
ASY PCB (UPR) WPL W10127103 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8112P29960 Contact Us For Availability
1
MANUAL, USE & CARE WPL W10177939 Contact Us For Availability
2
SOCKET-LAMP HALOGEN WPL DE4700032A Contact Us For Availability
2
HEATER-CONVECTION WPL DE4700031A Contact Us For Availability
2
SWITCH MEMBRANE WPL DE3400234A Contact Us For Availability
2
ASY CONTROL-PANEL (STL) WPL DE9401402C Contact Us For Availability
2
ASY-WIRE HARNESS A WPL DE9600537A Contact Us For Availability
3
ASSY-HVD WPL DE9170063D Contact Us For Availability
3
ASSY NOISE FILTER,SN-UF12A,250 WPL DE9600400A Contact Us For Availability
3
NUT-HEXAGON FLANGE WPL 6021001149 Contact Us For Availability
3
ASY-BKT-C/PANEL WPL DE9700633A Contact Us For Availability
3
ASY-HARDWARE WPL DE9290505G Contact Us For Availability
4
MOTOR FAN WPL DE3110177E Contact Us For Availability
4
BRACKET-DUCT(U) WPL DE6100493A Contact Us For Availability
4
THERMOSTAT WPL DE4720029A Contact Us For Availability
4
ASY DOOR(STL) !! WPL DE9401398F Contact Us For Availability
4
SCREW-LAG WPL DE6010111A Contact Us For Availability
4
BOLT-TOGGLE WPL DE6020022A Contact Us For Availability
4
NUT-TOGGLE WPL DE6030022A Contact Us For Availability
4
GROMMET WPL DE6310011A Contact Us For Availability
4
BOLT-FLAT WPL DE9700672A Contact Us For Availability
5
ASY PCB (LWR) WPL W10127105 Contact Us For Availability
5
BLADE, FAN WPL DE3190051A Contact Us For Availability
5
DUCT-UPPER WPL DE6700177A Contact Us For Availability
5
SPACER-BEARING,SMV9165,SILICON WPL DE6000032A Contact Us For Availability
6
COVER-MOTOR WPL DE6300141A Contact Us For Availability
6
ASY-WIRE HARNESS C WPL DE9600556A Contact Us For Availability
6
WASHER-DOOR WPL DE6040019A Contact Us For Availability
6
GRILLE (BLK) WPL DE6401455A Contact Us For Availability
7
GUIDE-AIR(BOTTOM) WPL DE6100502A Contact Us For Availability
7
NUT, MOUNTING WPL DE6030063A Contact Us For Availability
7
BRACKET-AIR GUIDE WPL DE6100550A Contact Us For Availability
7
SPRING ETC-LOUVER,JVM-2070,HSW WPL DE6100527A Contact Us For Availability
8
BASE-BOTTOM WPL DE6100406B Contact Us For Availability
8
MOTOR VENTILATION WPL DE3100028C Contact Us For Availability
8
HOLDER-HEATER WPL DE6100602A Contact Us For Availability
8
HINGE-GRILLE(R) WPL DE6100128A Contact Us For Availability
9
BRACKET-BOTTOM LAMP WPL DE6100407C Contact Us For Availability
9
FILTER, CHARCOAL WPL DE6300367D Contact Us For Availability
9
HOLDER-BEARING WPL DE6100619A Contact Us For Availability
9
HINGE-GRILLE(M) WPL DE6100177A Contact Us For Availability
10
COVER-GLASS COOKTOP WPL DE6300137B Contact Us For Availability
10
ASSY-POWER CORD WPL DE9600218A Contact Us For Availability
10
BRACKET-GUIDE WPL DE6100690A Contact Us For Availability
10
HINGE-GRILLE(L) WPL DE6100129A Contact Us For Availability
11
GLASS-COOKTOP LAMP WPL DE6400911A Contact Us For Availability
11
ASSY-HOLDER NUT WPL DE9290508A Contact Us For Availability
11
BRACKET-CASING WPL DE6100718A Contact Us For Availability
11
COVER, GRILLE (STL) WPL DE9700656A Contact Us For Availability
12
PANEL-OUTER (BLK) WPL DE6401144A Contact Us For Availability
12
ADIABATIC CASING WPL DE6200032A Contact Us For Availability
13
SOCKET-LAMP HALOGEN WPL DE4700032B Contact Us For Availability
13
COVER-DAMPER WPL DE7160051A Contact Us For Availability
13
COVER-CASING WPL DE6300176A Contact Us For Availability
14
LEVER-SWITCH LOWER WPL DE6690106B Contact Us For Availability
14
DAMPER-MAIN WPL DE7240022A Contact Us For Availability
14
SHAFT-FAN WPL DE6600137A Contact Us For Availability
15
SWITCH, MICRO WPL 3405001033 Contact Us For Availability
15
PLATE-MOUNTING WPL DE7000378A Contact Us For Availability
15
PULLEY-FAN CASING WPL DE6600155A Contact Us For Availability
16
SENSOR, GAS WPL DE3260011A Contact Us For Availability
16
HOLDER-SENSOR WPL DE6100525A Contact Us For Availability
16
BEARING-FAN WPL DE6610017A Contact Us For Availability
17
LATCH-BODY WPL DE6600084A Contact Us For Availability
17
BRACKET-OVEN WPL DE6100486A Contact Us For Availability
17
BAND-RUBBER WPL DE6900361A Contact Us For Availability
18
ASSY-COVER ADIBATIC RIGHT WPL DE9700432A Contact Us For Availability
18
MOTOR-DRIVE WPL DE3110154C Contact Us For Availability
18
BRACKET-CAM PLATE WPL DE6100118A Contact Us For Availability
18
CAM-LOUVER WPL DE7200145A Contact Us For Availability
18
ASY-CAM LOUVER WPL DE9700423A Contact Us For Availability
19
BASE-PLATE WPL DE6100490A Contact Us For Availability
19
WIRE HARNESS-CAM WPL DE3900361A Contact Us For Availability
20
THERMOSTAT WPL DE4720034A Contact Us For Availability
20
SWITCH, MICRO WPL 3405001051 Contact Us For Availability
21
SW-THERMO WPL DE4720059A Contact Us For Availability
21
SWITCH, MICRO WPL 3405001050 Contact Us For Availability
22
TRANS H.V WPL DE2600122A Contact Us For Availability
22
THERMOSTAT WPL DE4720007A Contact Us For Availability
23
BRACKET-REAR WPL DE6100489A Contact Us For Availability
23
DUCT-EXHAUST WPL DE6700186A Contact Us For Availability
24
MOTOR CONVECTION WPL DE3100032A Contact Us For Availability
25
GUIDE-AIR (HEATER) WPL DE6100601A Contact Us For Availability
26
COVER-FRONT WPL DE6300207A Contact Us For Availability
26
PULLEY-FAN MOTOR WPL DE6600135A Contact Us For Availability
27
MOTOR, DRIVE WPL DE3110172A Contact Us For Availability
27
ASSY-COVER ADIBATIC UPPER WPL DE9700426A Contact Us For Availability
28
HOLDER-RACK WPL DE6100501A Contact Us For Availability
28
CBF LEAD WIRE-E WPL DE3900364A Contact Us For Availability
29
COUPLER WPL DE6700181A Contact Us For Availability
29
GLASS-OVEN LAMP WPL DE6401088A Contact Us For Availability
30
RACK-WIRE WPL DE7500044A Contact Us For Availability
30
ASSY-PANEL BACK,SMV9165,ASSY-A WPL DE9700433A Contact Us For Availability
31
ASSY-GUIDE ROLLER WPL DE9700368B Contact Us For Availability
32
TRAY, GLASS COOKING WPL DE7420016A Contact Us For Availability
33
COVER-STIRRER WPL DE7160121A Contact Us For Availability
34
BUTTON, LOCK WPL DE6620095B Contact Us For Availability
35
HOLDER-STIRRED WPL DE6100160A Contact Us For Availability
36
BLADE-STIRRER WPL DE6600127A Contact Us For Availability
37
MOTOR, DRIVE WPL DE3110173A Contact Us For Availability
38
FILTER-AIR WPL DE6300196A Contact Us For Availability
39
CAPACITOR, MOTOR WPL DE5950002A Contact Us For Availability
40
SWITCH, MICRO (125/250 VAC) WPL 3405001034 Contact Us For Availability
41
MOTOR SYNCHRONOUS WPL DE3110095B Contact Us For Availability
42
WIRE HARNESS-B WPL DE3900358B Contact Us For Availability
43
GUIDE-AIR(MGT) WPL DE6100498A Contact Us For Availability
44
TRAY-CONVECTION WPL DE6300234A Contact Us For Availability
45
CAM-MOTOR WPL DE6600136A Contact Us For Availability
46
DAMPER-GASKET WPL DE6600154A Contact Us For Availability
47
DAMPER-SWING WPL DE6600156A Contact Us For Availability
48
ROD-DAMPER WPL DE7000394A Contact Us For Availability
49
SENSOR-THERMISTOR WPL DE3210013A Contact Us For Availability
× ![]()
