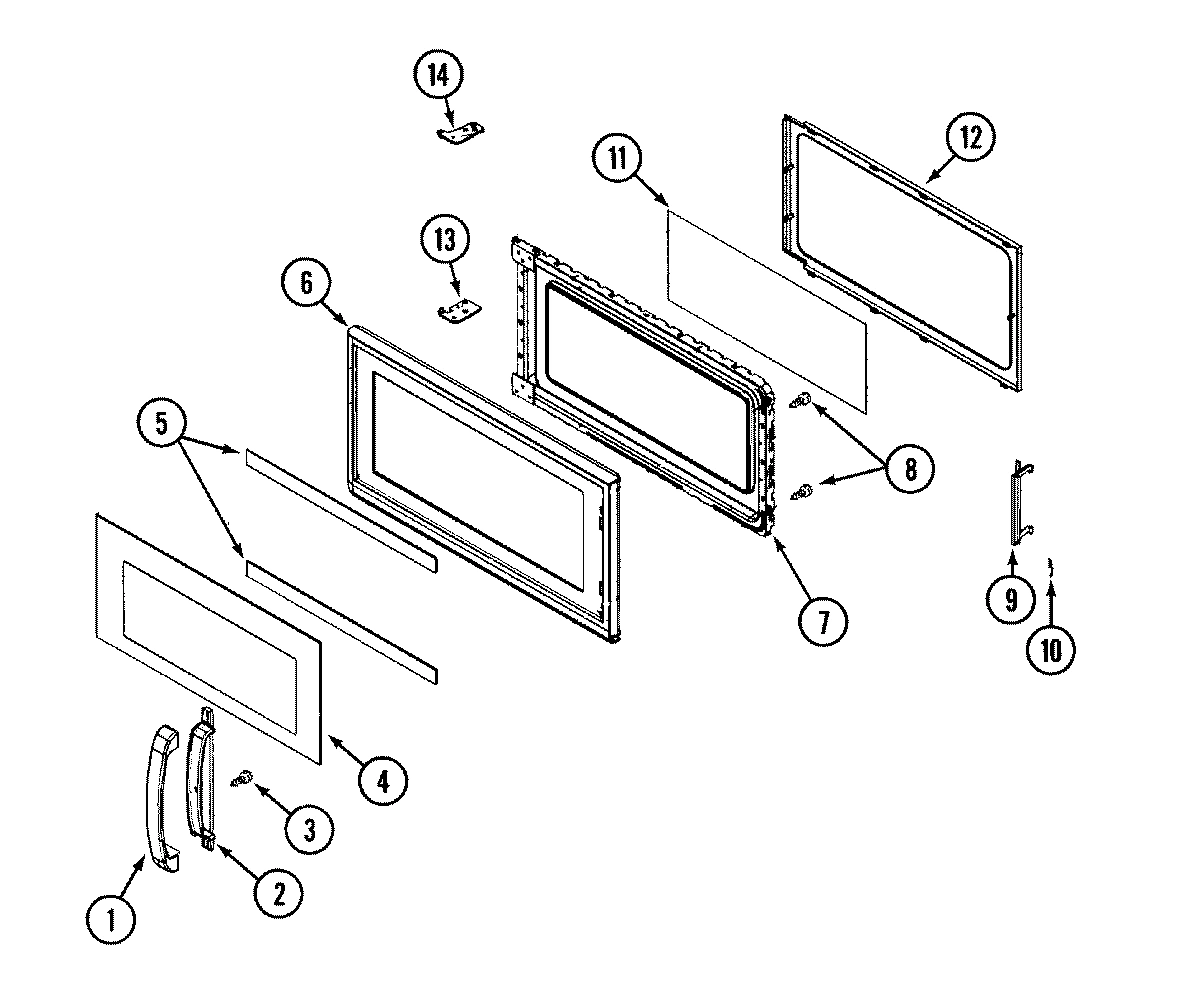

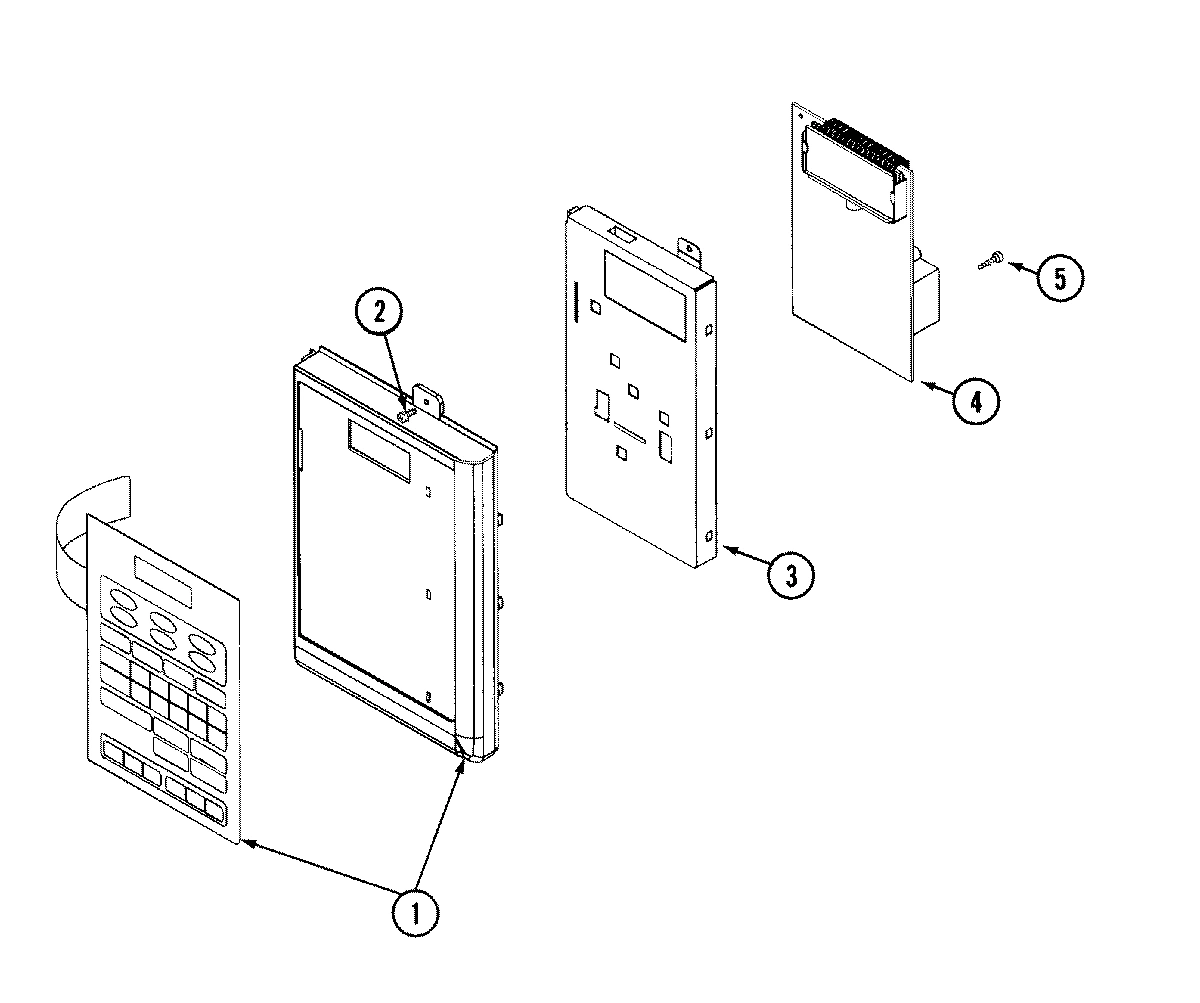

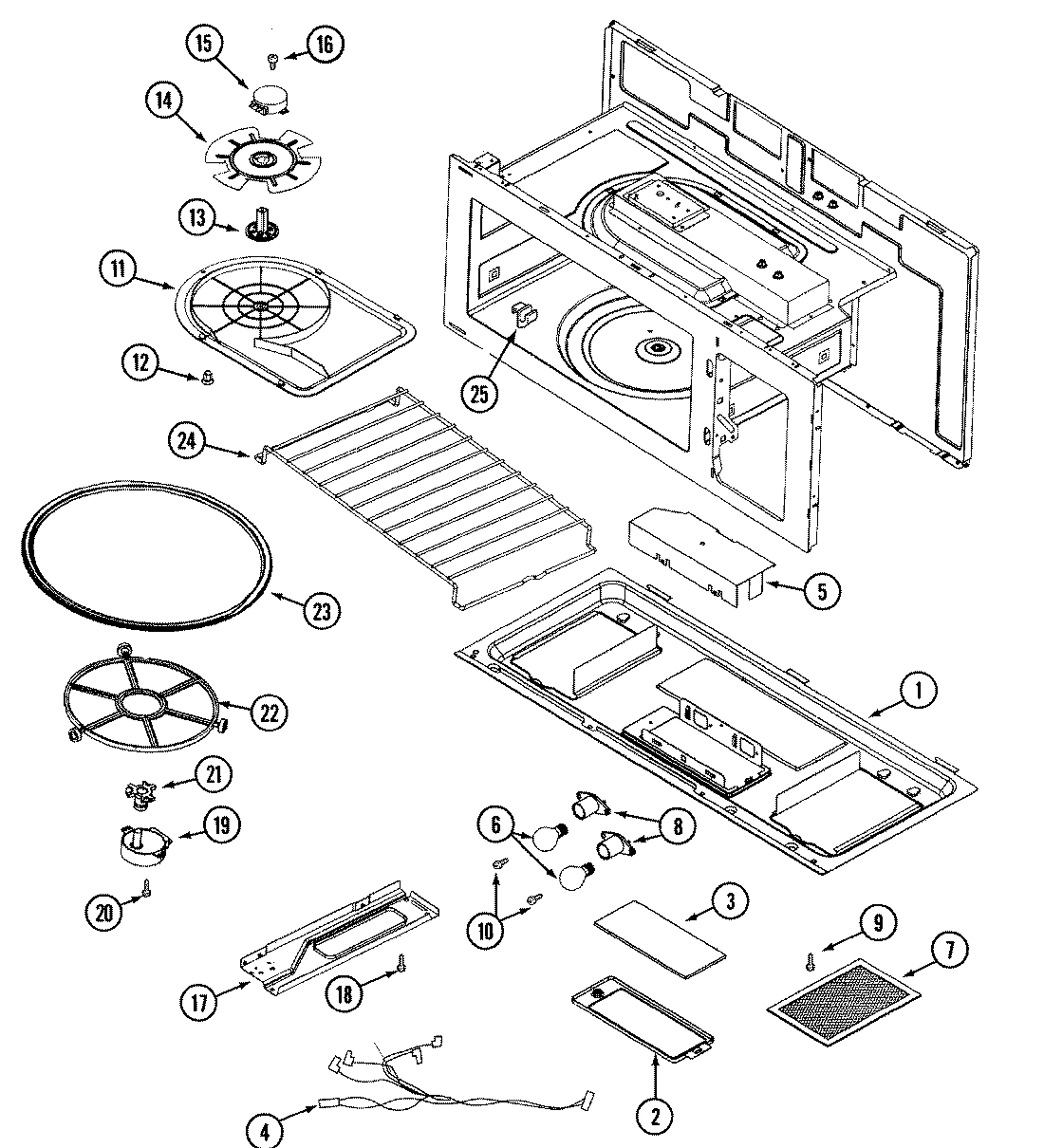

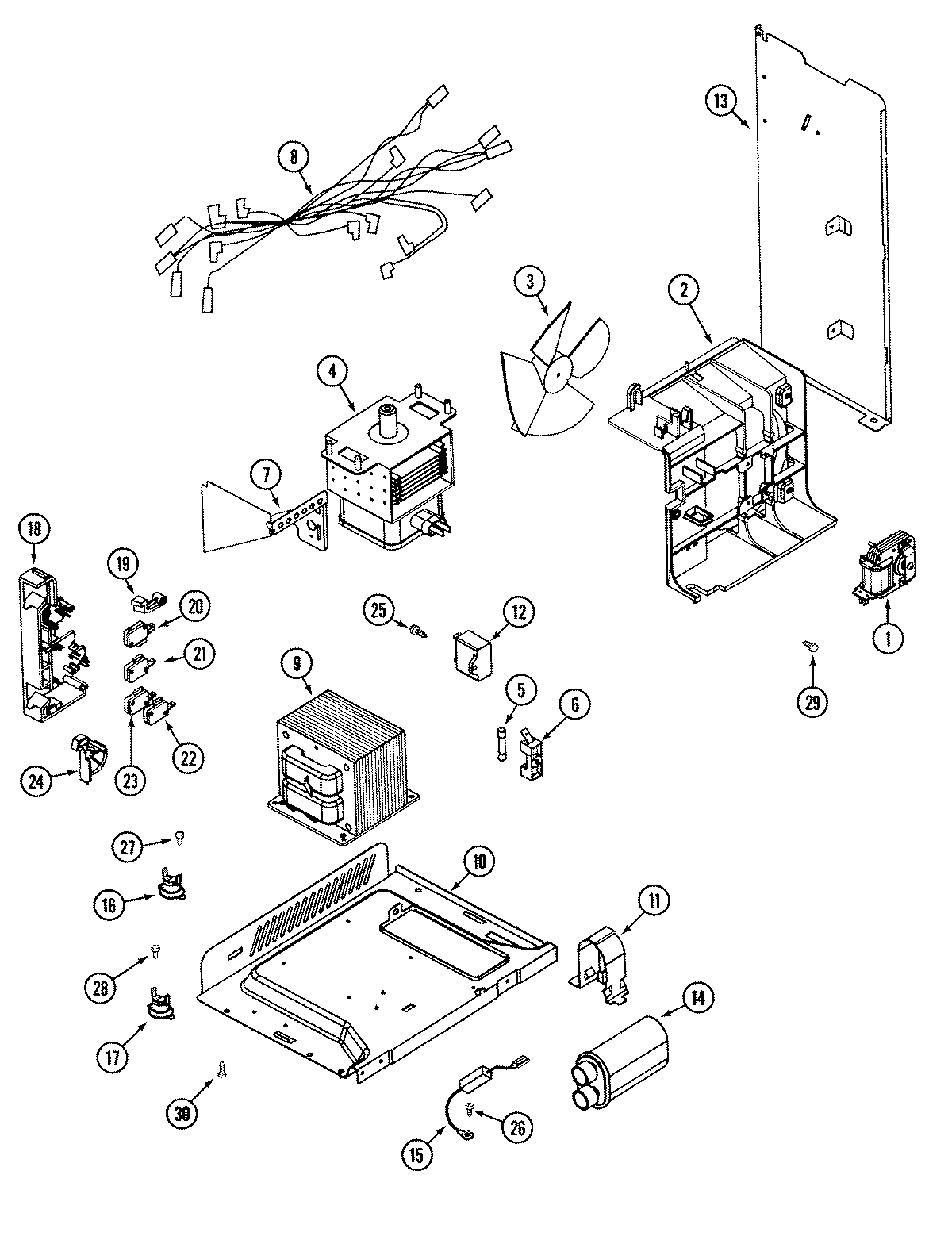

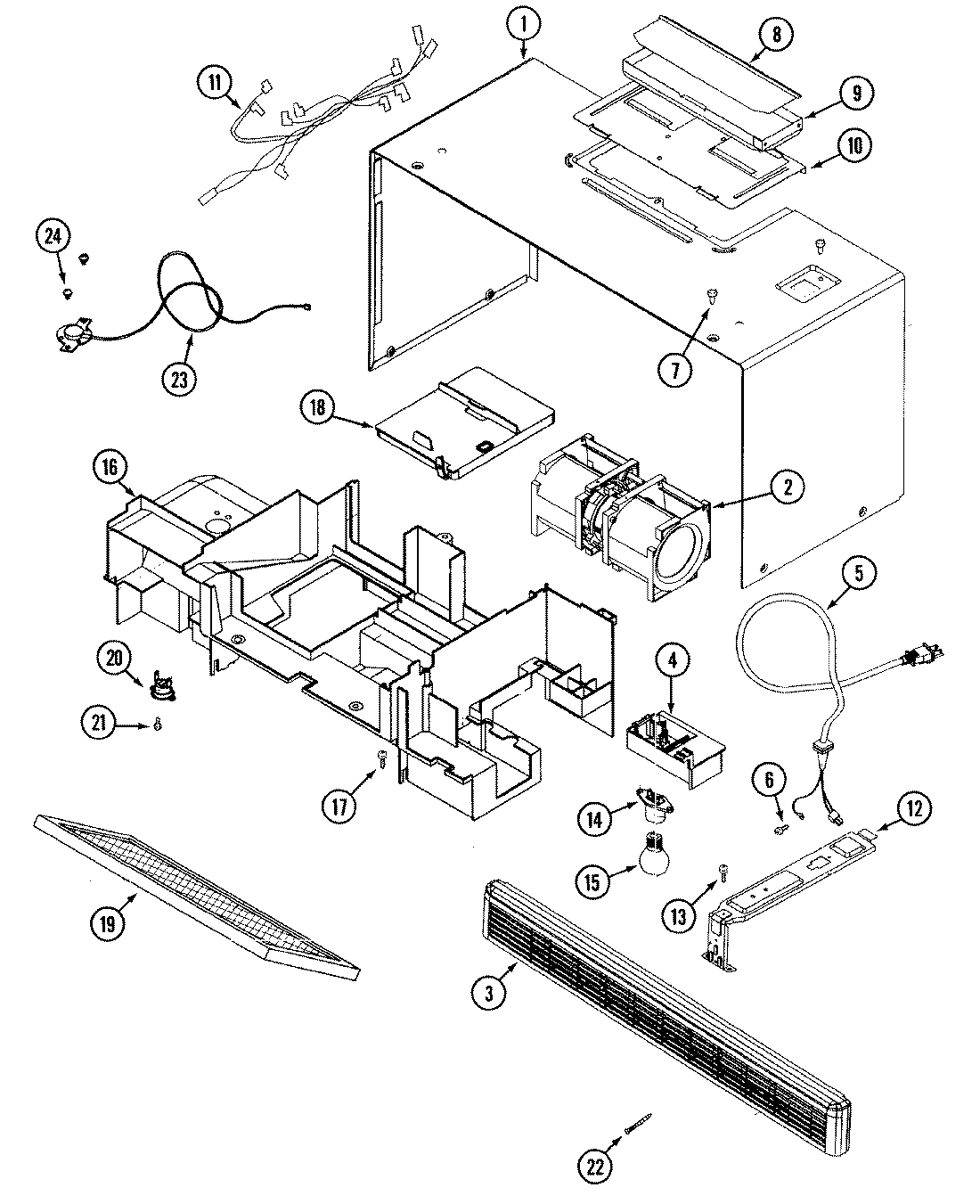

Model Whirlpool JMV8000ADW MICROWAVE – Common Parts &amp; Diagrams

1

MOTOR, FAN WPL 56001112 Contact Us For Availability

1

SCREW WPL 715485 Contact Us For Availability

1

WRAPPER (WHT) WPL 56001144 Contact Us For Availability

1

CONTROL TRIM & SWITCH ASSY-WHT WPL 56001265 Contact Us For Availability

2

WP56001136 Whirlpool Microwave Door Handle Backorder WPL WP56001136 $117.84

2

SCREW WPL 56001149 Contact Us For Availability

2

GUIDE, WIND WPL 56001111 Contact Us For Availability

2

MOTOR, VENTILATION WPL 56001095 Contact Us For Availability

3

WP56001173 Whirlpool Microwave Screw Backorder WPL WP56001173 $1.22

3

COVER, BULB WPL 56001072 Contact Us For Availability

3

FAN, BLADE WPL 56001026 Contact Us For Availability

3

GRILLE, AIR (WHT) WPL 56001148 Contact Us For Availability

3

PLATE, BACK WPL 56001064 Contact Us For Availability

4

MAGNETRON WPL 56001103 Contact Us For Availability

4

BRACKET, RECEPTACLE WPL 56001090 Contact Us For Availability

4

BARRIER, SCREEN (OUTER-WHT) WPL 56001167 Contact Us For Availability

4

BOARD, CONTROL (PCB) WPL 56001178 Contact Us For Availability

5

WPM0805101 Whirlpool Microwave Replacement Fu In Stock WPL WPM0805101 $5.35

5

INSULATOR, BULB WPL 56001073 Contact Us For Availability

5

SCREW WPL 56001120 Contact Us For Availability

5

CORD, POWER WPL 56001172 Contact Us For Availability

5

TAPE, DOOR GLASS WPL 12001463 Contact Us For Availability

6

8206232A Whirlpool Microwave 40W 125V Incande In Stock WPL 8206232A $6.34

6

FRAME, DOOR (WHT) WPL 56001130 Contact Us For Availability

7

HARNESS, BULB WPL 56001171 Contact Us For Availability

7

FILTER, LAMP WPL 56001102 Contact Us For Availability

7

HARNESS, MAIN WIRE WPL 56001175 Contact Us For Availability

7

HARNESS, THERMOSTAT WPL 56001176 Contact Us For Availability

7

LINING, DOOR (WHT) WPL 56001127 Contact Us For Availability

8

COVER, DAMPER WPL 56001092 Contact Us For Availability

8

MANUAL, USE & CARE WPL 74003821 Contact Us For Availability

9

TRANSFORMER (HV) WPL 56001108 Contact Us For Availability

9

GUIDE, DAMPER WPL 56001093 Contact Us For Availability

9

HOOK, LATCH WPL 56001065 Contact Us For Availability

10

BASE (RT) WPL 56001107 Contact Us For Availability

10

COVER, MOTOR WPL 56001094 Contact Us For Availability

10

SPRING, HOOK WPL 56001066 Contact Us For Availability

11

COVER, STIRRER WPL 56001074 Contact Us For Availability

11

HOLDER, CAPACITOR WPL 56001106 Contact Us For Availability

11

SCREEN, DOOR (INNER) WPL 56001121 Contact Us For Availability

BUTTON, LOCKING WPL 56001177 Contact Us For Availability

CAPACITOR (RUNNING) WPL 56001109 Contact Us For Availability

BRACKET, SUPPORT WPL 56001091 Contact Us For Availability

GASKET (BLK) WPL 56001132 Contact Us For Availability

COUPLER, STIRRER WPL 56001075 Contact Us For Availability

GUIDE, AIR (OUTLET) WPL 56001113 Contact Us For Availability

SCREW WPL 56001150 Contact Us For Availability

HINGE (LOWER) WPL 56001067 Contact Us For Availability

RECEPTACLE, BULB WPL 56001070 Contact Us For Availability

BLADE, STIRRER WPL 56001076 Contact Us For Availability

CAPACITOR (HV) WPL 56001105 Contact Us For Availability

HINGE (UPPER) WPL 56001068 Contact Us For Availability

15

WPR9800486 Whirlpool Microwave High Voltage D In Stock WPL WPR9800486 $17.13

16

THERMOSTAT WPL 56001140 Contact Us For Availability

16

DUCT, AIR GUIDE WPL 56001088 Contact Us For Availability

17

BASE, LEFT WPL 56001078 Contact Us For Availability

17

THERMOSTAT WPL 56001104 Contact Us For Availability

18

BRACKET, SWITCH WPL 56001097 Contact Us For Availability

18

COVER, MOTOR WPL 56001087 Contact Us For Availability

19

WP56001084 Whirlpool Microwave Charcoal Filte Backorder WPL WP56001084 $18.87

19

MOTOR, TURNTABLE WPL 56001079 Contact Us For Availability

19

LEVER, SWITCH WPL 56001098 Contact Us For Availability

20

WP56001036 Whirlpool Microwave Power Switch Backorder WPL WP56001036 $61.38

20

THERMOSTAT WPL 56001085 Contact Us For Availability

21

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

21

SWITCH, MICRO-MONITOR WPL 56001100 Contact Us For Availability

21

COUPLER, MOTOR WPL 56001041 Contact Us For Availability

22

ROLLER/GUIDE WPL 56001080 Contact Us For Availability

22

SWITCH, SECONDARY WPL 56001037 Contact Us For Availability

22

SCREW WPL 56001181 Contact Us For Availability

23

TRAY, GLASS WPL 56001082 Contact Us For Availability

23

SENSOR, HUMIDITY WPL 56001086 Contact Us For Availability

24

RACK WPL 56001083 Contact Us For Availability

24

LEVER, LOCK WPL 56001101 Contact Us For Availability

24

SCREW WPL 56001153 Contact Us For Availability

25

SUPPORTS, RACK WPL 56001096 Contact Us For Availability

26

LABEL, COOK CODE WPL 56001276 Contact Us For Availability

27

KIT, MOUNTING HARDWARE WPL 56001183 Contact Us For Availability

27

PLATE, WALL MTG WPL 56001184 Contact Us For Availability

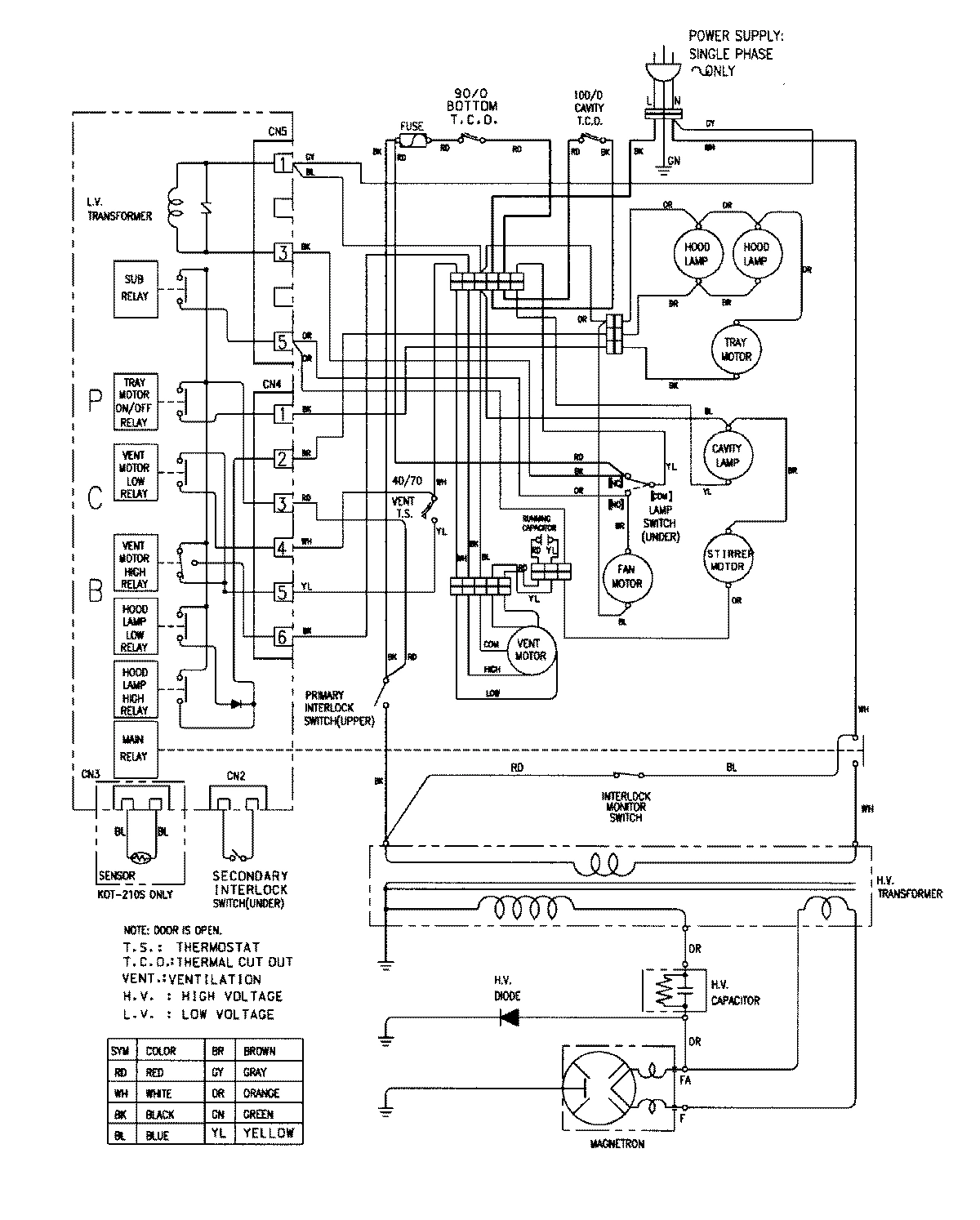

NI

WIRING INFORMATION WPL 15002357 Contact Us For Availability
