Model Whirlpool JMC9158BAB13 MICROWAVE – Common Parts & Diagrams

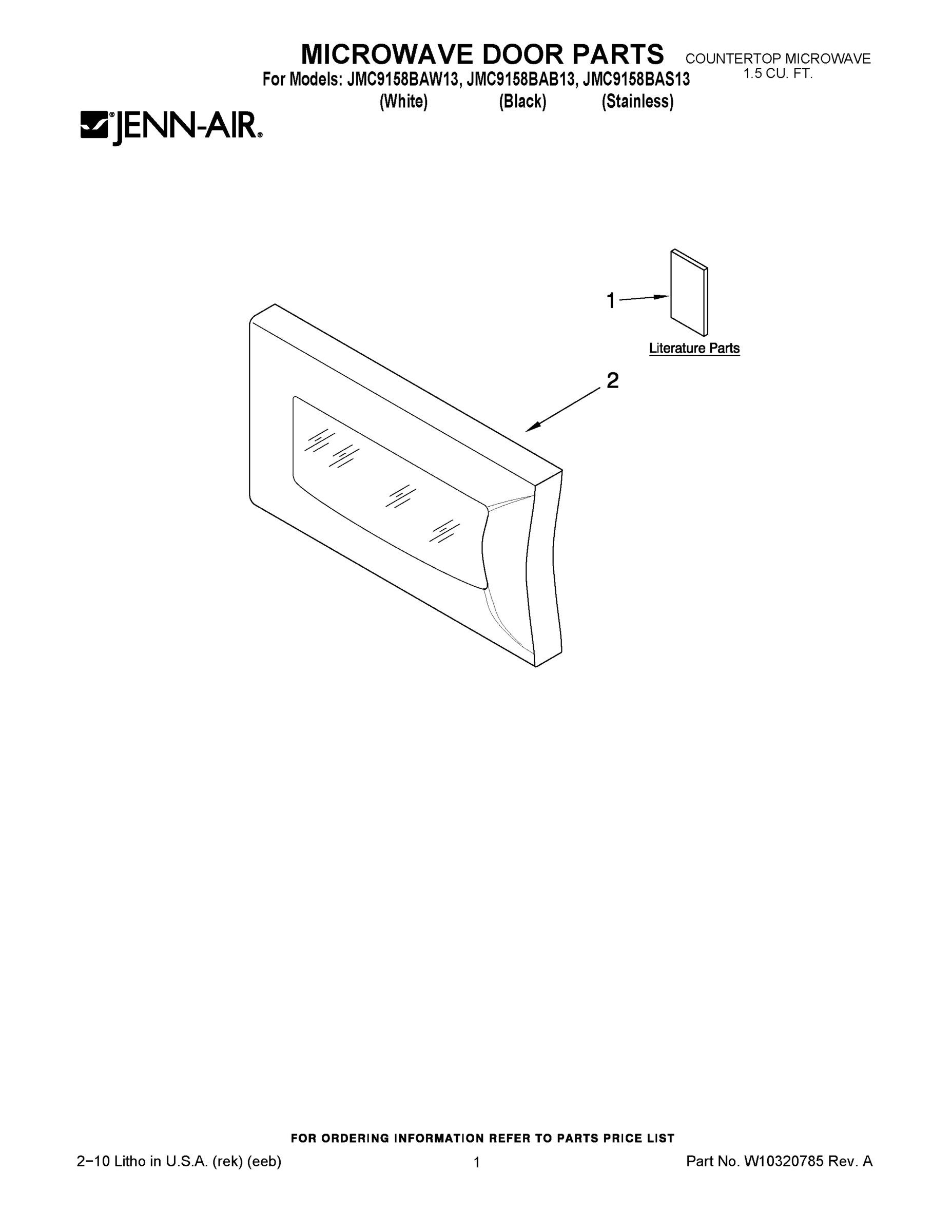

01 - MICROWAVE DOOR PARTS

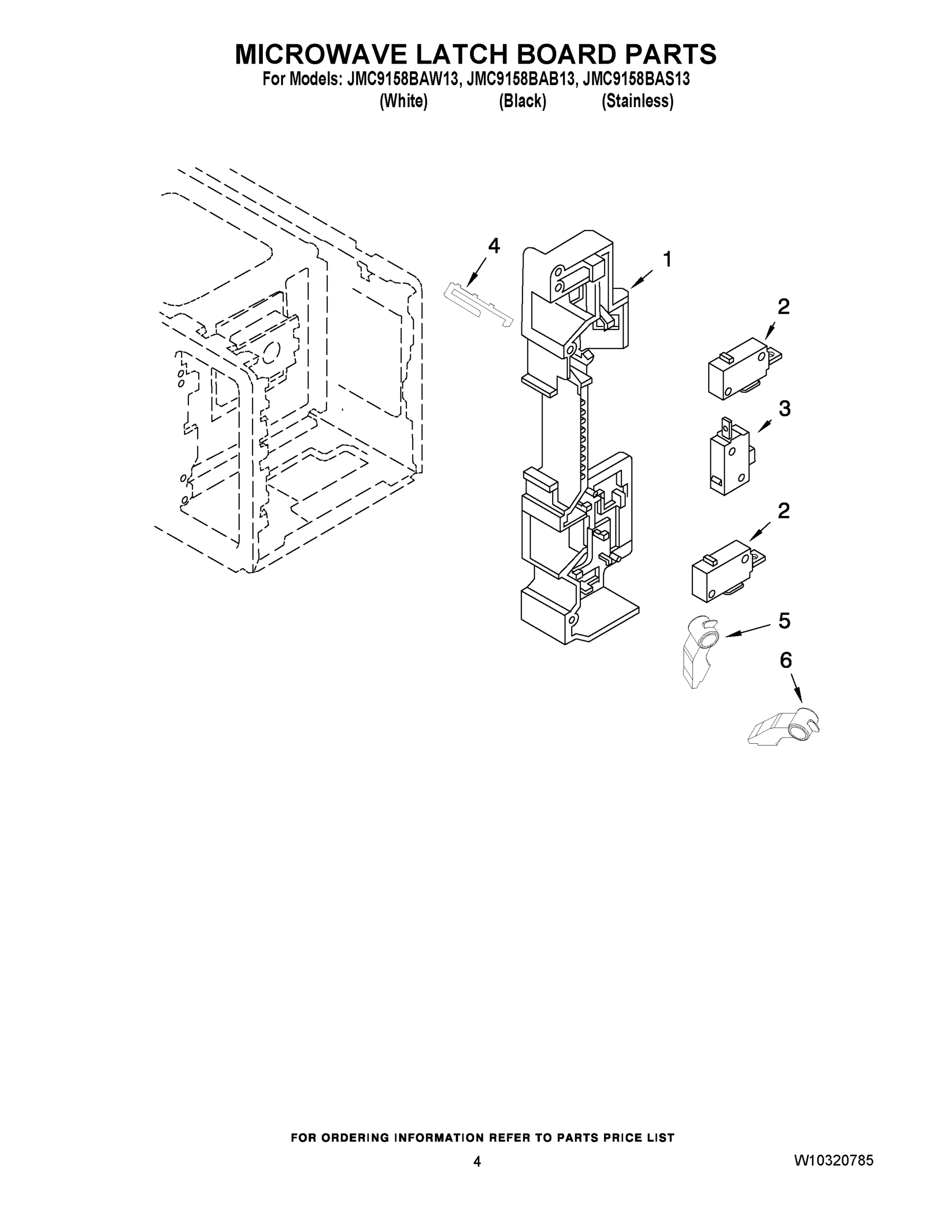

04 - MICROWAVE LATCH BOARD PARTS

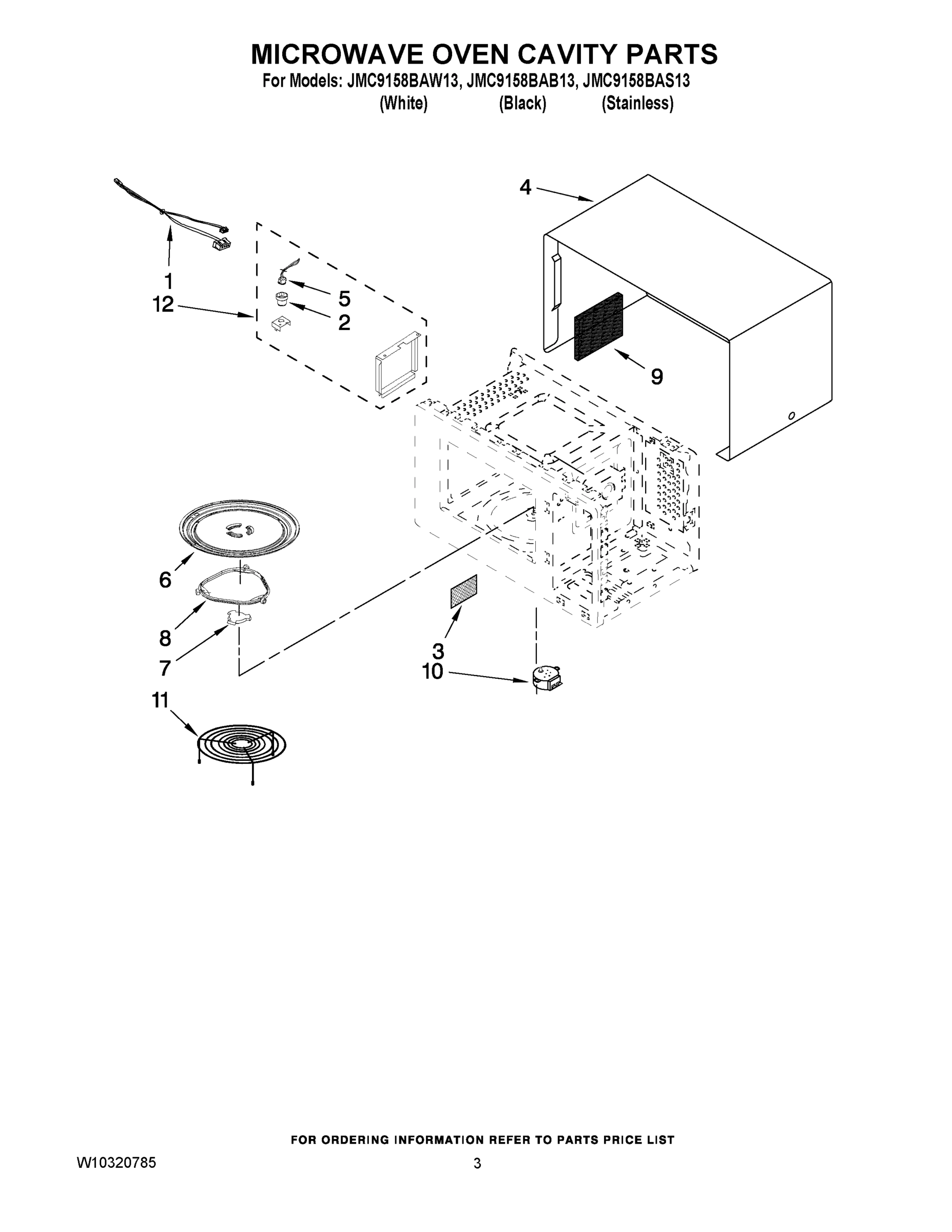

03 - MICROWAVE OVEN CAVITY PARTS

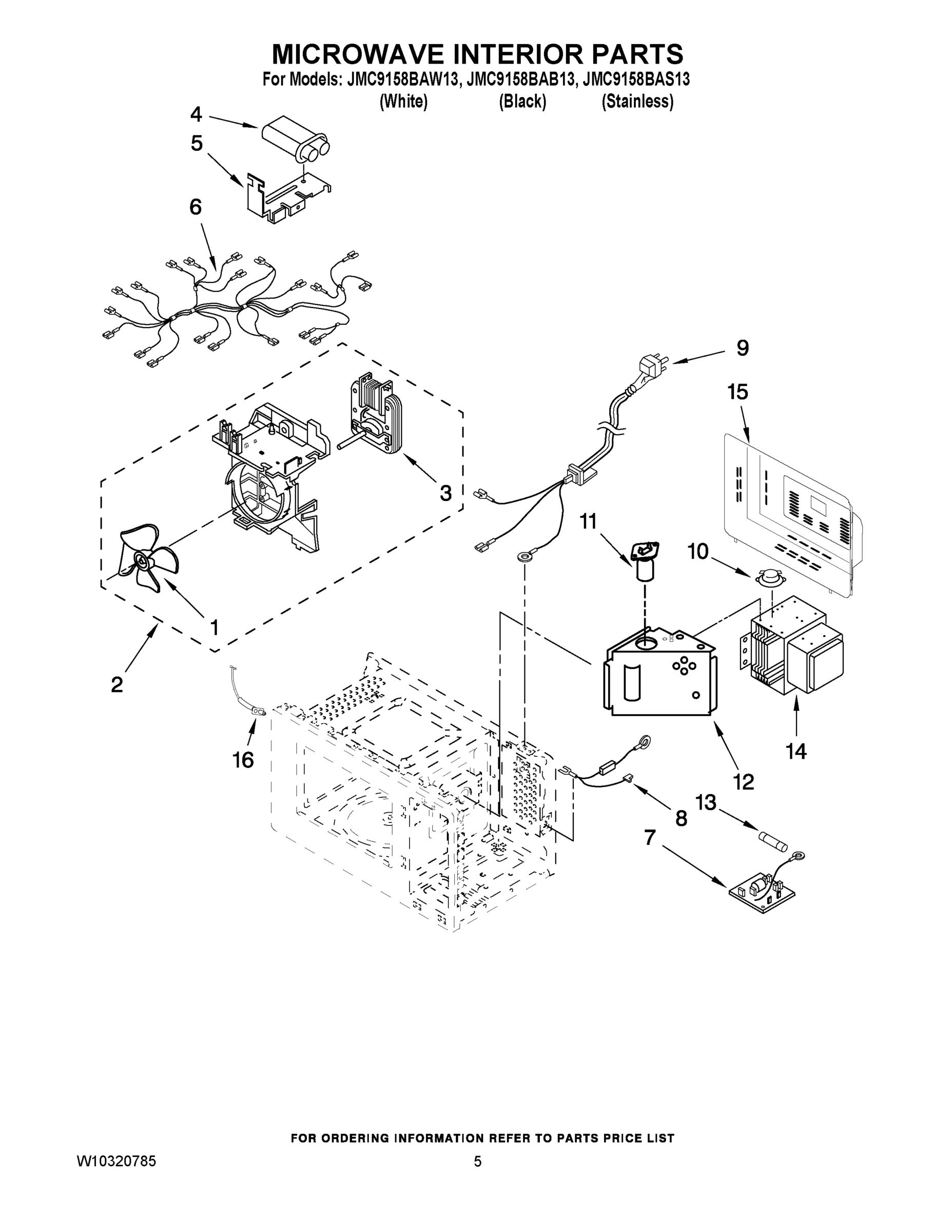

05 - MICROWAVE INTERIOR PARTS

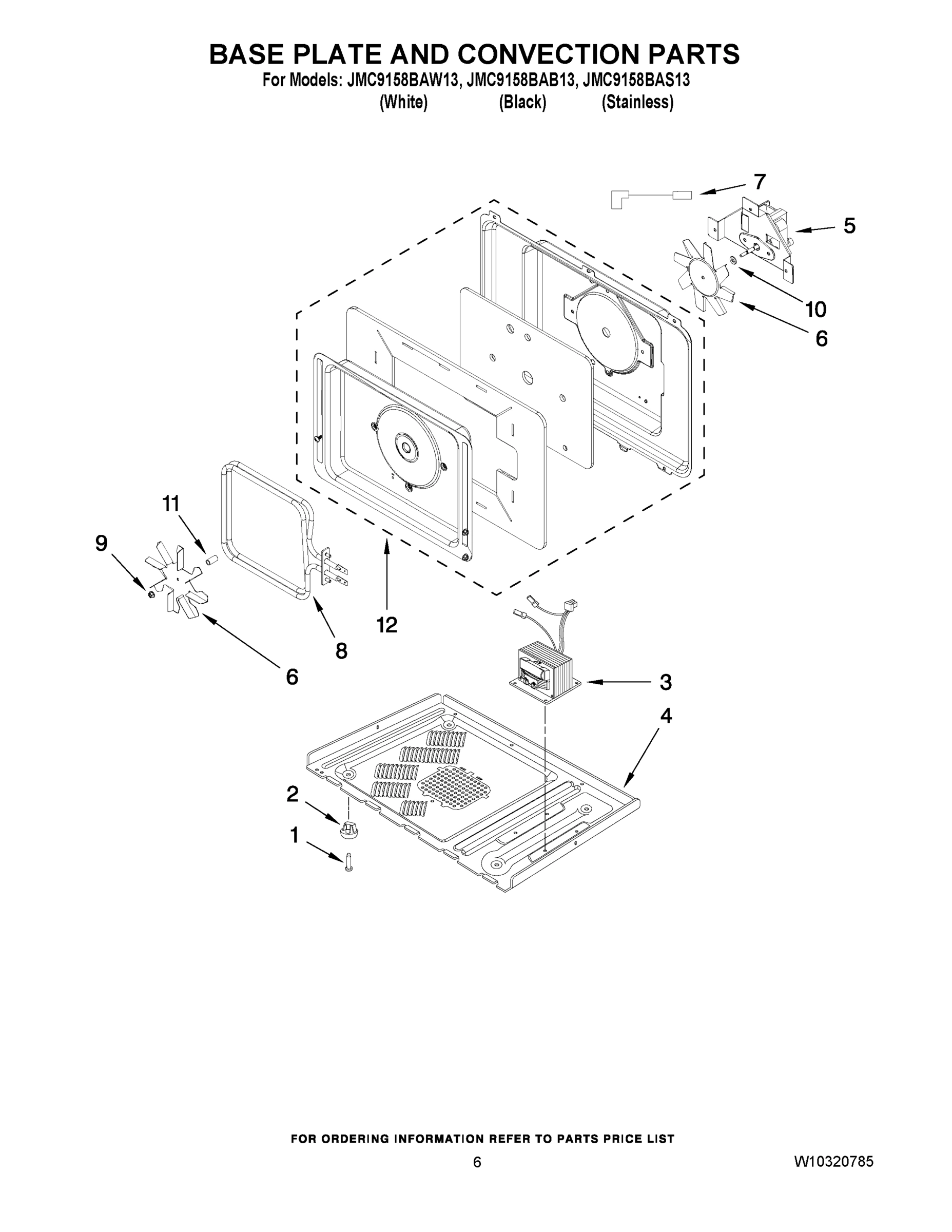

06 - BASE PLATE AND CONVECTION PARTS

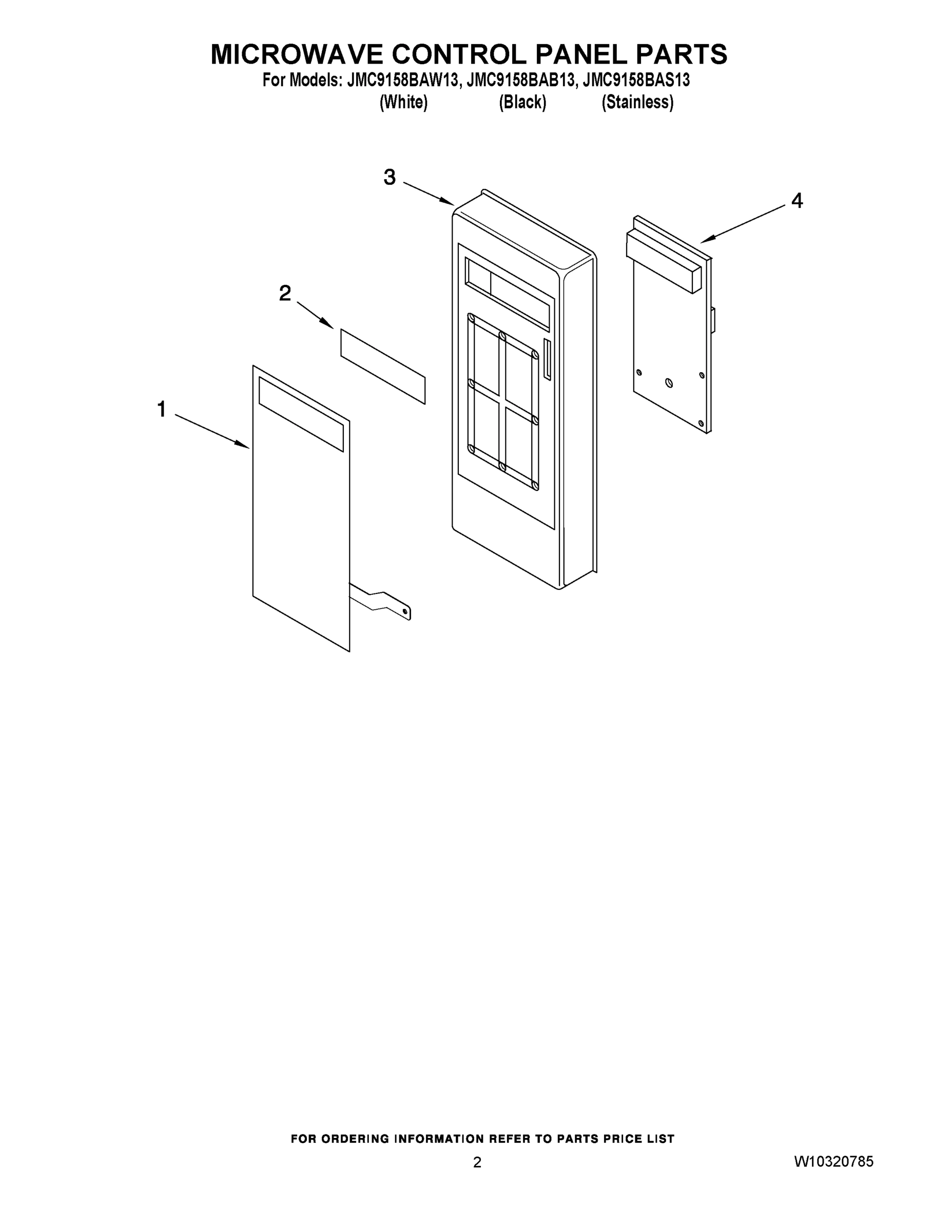

02 - MICROWAVE CONTROL PANEL PARTS
Common parts from model Whirlpool JMC9158BAB13 MICROWAVE
1
U & C GUIDE WPL W10177948 Contact Us For Availability
1
BODY, LATCH WPL DE7200137F Contact Us For Availability
1
BLADE-FAN WPL DE3190057A Contact Us For Availability
1
PIN, FOOT WPL DE6060025A Contact Us For Availability
1
SW., MEMBRANE (BLACK) WPL DE3400229A Contact Us For Availability
1
SW., MEMBRANE (WHITE) WPL DE3400229B Contact Us For Availability
1
SW., MEMBRANE (STAINLESS) WPL DE3400229C Contact Us For Availability
2
COMPLETE, DOOR (BLACK) WPL DE9401364D Contact Us For Availability
2
COMPLETE, DOOR (WHITE) WPL DE9401364E Contact Us For Availability
2
COMPLETE, DOOR (STAINLESS) WPL DE9401364F Contact Us For Availability
2
SWITCH, MICRO(2) (125/250 VAC) WPL 3405001034 Contact Us For Availability
2
SENSOR, GAS WPL DE3260011A Contact Us For Availability
2
GUIDE, SUCTION WPL W10284507 Contact Us For Availability
2
LEG WPL DE6140065A Contact Us For Availability
2
WINDOW-DISPLAY WPL DE6401526A Contact Us For Availability
3
SWITCH-MICRO WPL 3405001032 Contact Us For Availability
3
COVER, MGT WPL DE6300376A Contact Us For Availability
3
MOTOR-FAN WPL DE3110155T Contact Us For Availability
3
TRANSFORMER WPL DE2600123A Contact Us For Availability
3
PANEL, CONTROL (BLACK) WPL DE6401499A Contact Us For Availability
3
PANEL, CONTROL (WHITE) WPL DE6401499B Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) WPL DE6401501A Contact Us For Availability
4
STOPPER, LATCH WPL DE6600117D Contact Us For Availability
4
OUTER, CASE (BLACK/STAINLESS) WPL DE7030033V Contact Us For Availability
4
OUTER, CASE (WHITE) WPL W10284503 Contact Us For Availability
4
H.V. CAPACITOR WPL 2501001011 Contact Us For Availability
4
ASSY, BASE PLATE WPL DE8010032P Contact Us For Availability
4
PCB WPL RAS158000 Contact Us For Availability
5
LEVER, SWITCH WPL DE6600093A Contact Us For Availability
5
HARNESS, SENSOR WPL DE9600315B Contact Us For Availability
5
H.V.C BRACKET WPL DE6150170A Contact Us For Availability
5
CONVECTION, MOTOR WPL DE3110171C Contact Us For Availability
6
LEVER, SWITCH WPL DE6600094A Contact Us For Availability
6
TRAY, GLASS WPL DE7400023A Contact Us For Availability
6
ASSEMBLY, LEADWIRE WPL DE9600500A Contact Us For Availability
6
BLADE-FAN WPL DE3190019B Contact Us For Availability
7
SHAFT, TURNTABLE WPL DE6700206A Contact Us For Availability
7
FILTER, NOISE WPL DE9600399B Contact Us For Availability
7
WIRE, LEAD WPL DE3930153B Contact Us For Availability
8
RING, TURNTABLE WPL DE9700192C Contact Us For Availability
8
H.V. DIODE CABLE WPL DE9170063A Contact Us For Availability
8
HEATER WPL DE4770077C Contact Us For Availability
9
CUSHION-RUBBER WPL DE6390035G Contact Us For Availability
9
POWER CORD WPL DE3910102F Contact Us For Availability
9
FLANGE, NUT WPL DE6030016B Contact Us For Availability
10
MOTOR, DRIVE WPL DE3110104A Contact Us For Availability
10
THERMOSTAT WPL DE4720030A Contact Us For Availability
10
WASHER, MOTOR WPL DE6040014B Contact Us For Availability
11
RACK, WIRE WPL DE9700136H Contact Us For Availability
11
LAMP, BASELESS WPL 4713001012 Contact Us For Availability
11
BUSH-MOTOR WPL DE7230016B Contact Us For Availability
12
ASSY, BRACKET WPL W10284510 Contact Us For Availability
12
DUCT, AIR WPL DE6300348A Contact Us For Availability
12
ASSEMBLY, COVER WPL W10284499 Contact Us For Availability
13
FUSE WPL 3601001198 Contact Us For Availability
15
COVER-BACK WPL DE6300346A Contact Us For Availability
16
SENSOR, THERM. WPL DE3210013A Contact Us For Availability
× ![]()
