Model Whirlpool JMC8130DDR10 MICROWAVE – Common Parts & Diagrams

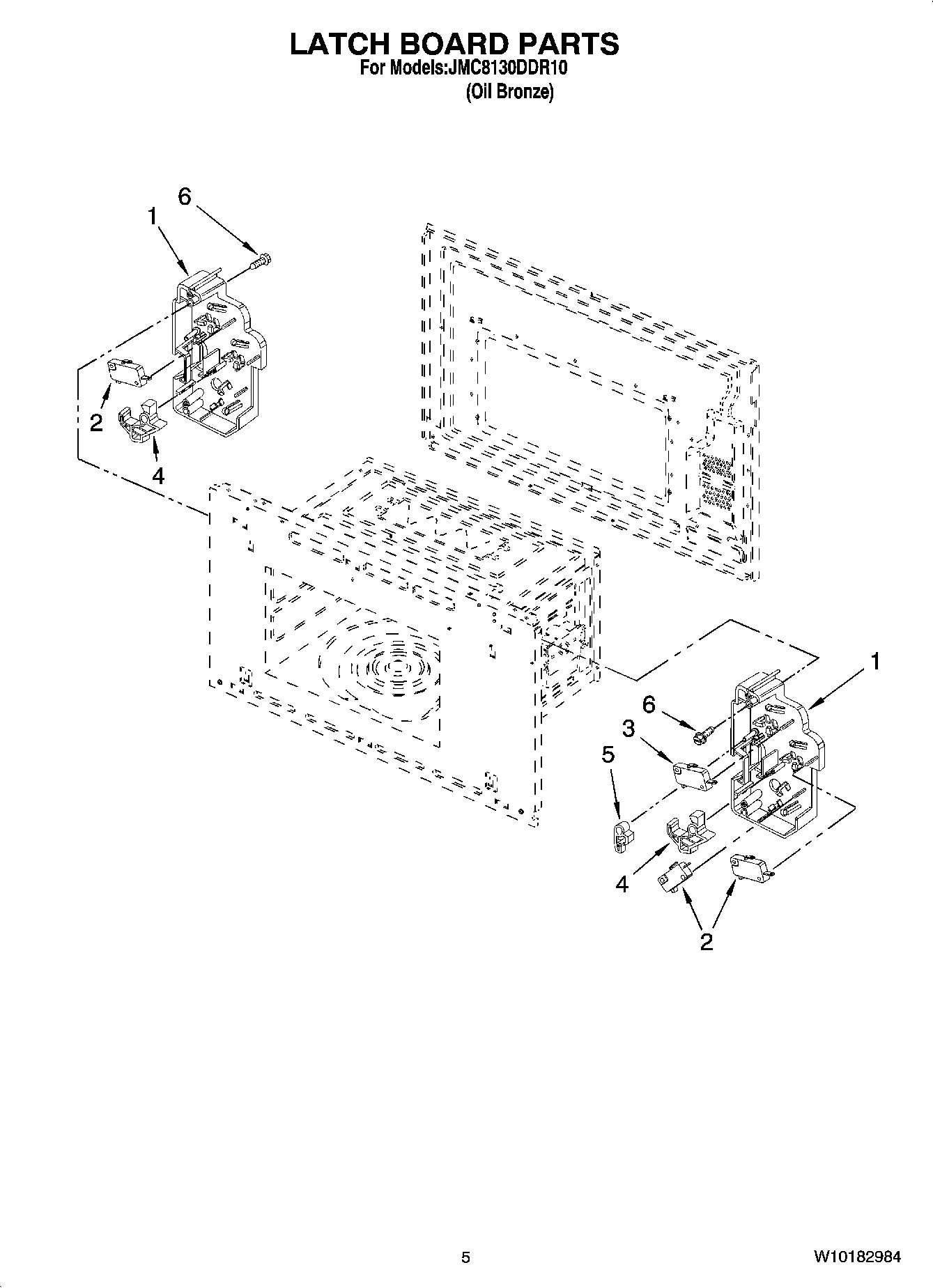

04 - LATCH BOARD PARTS

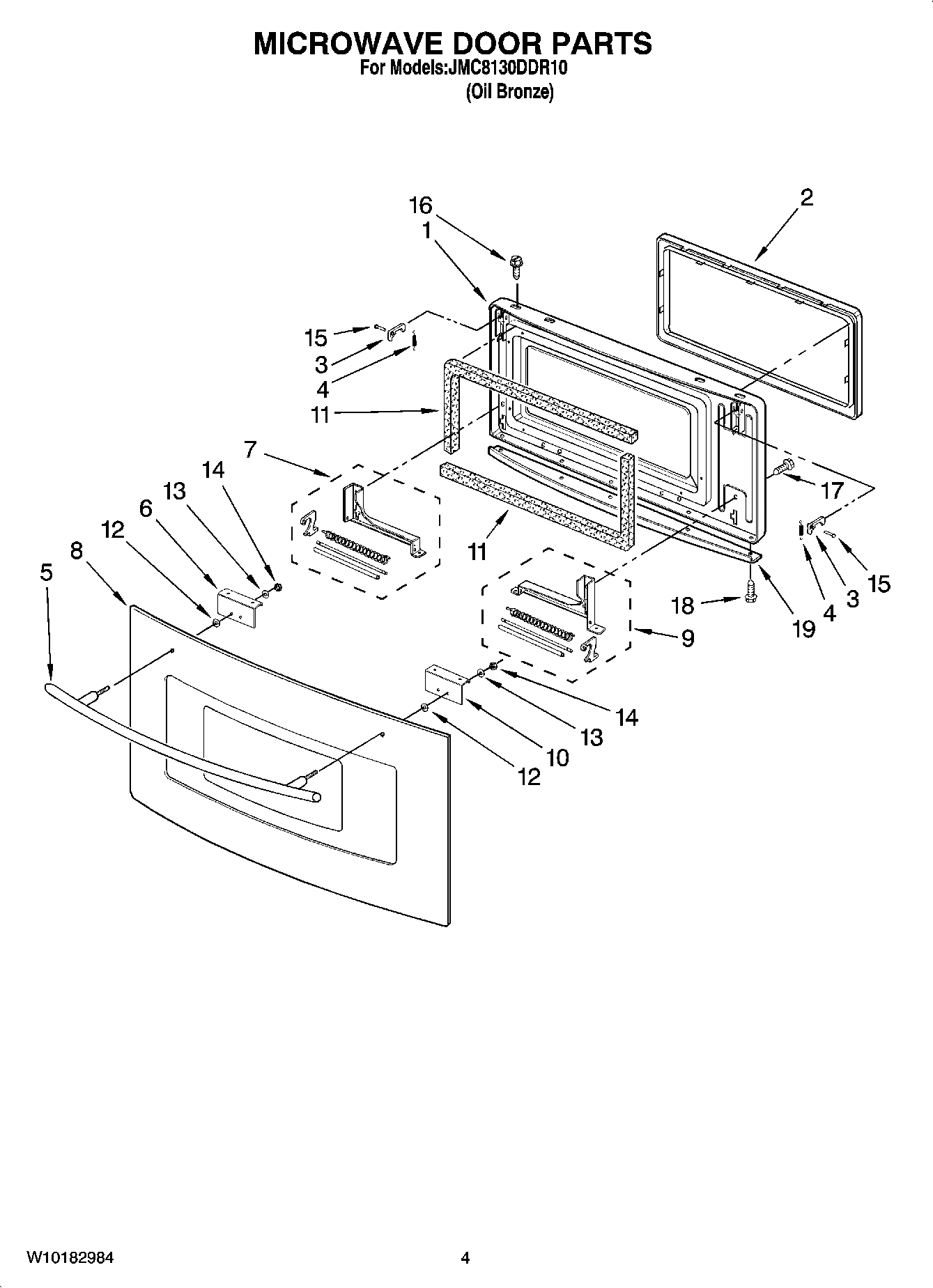

03 - MICROWAVE DOOR PARTS

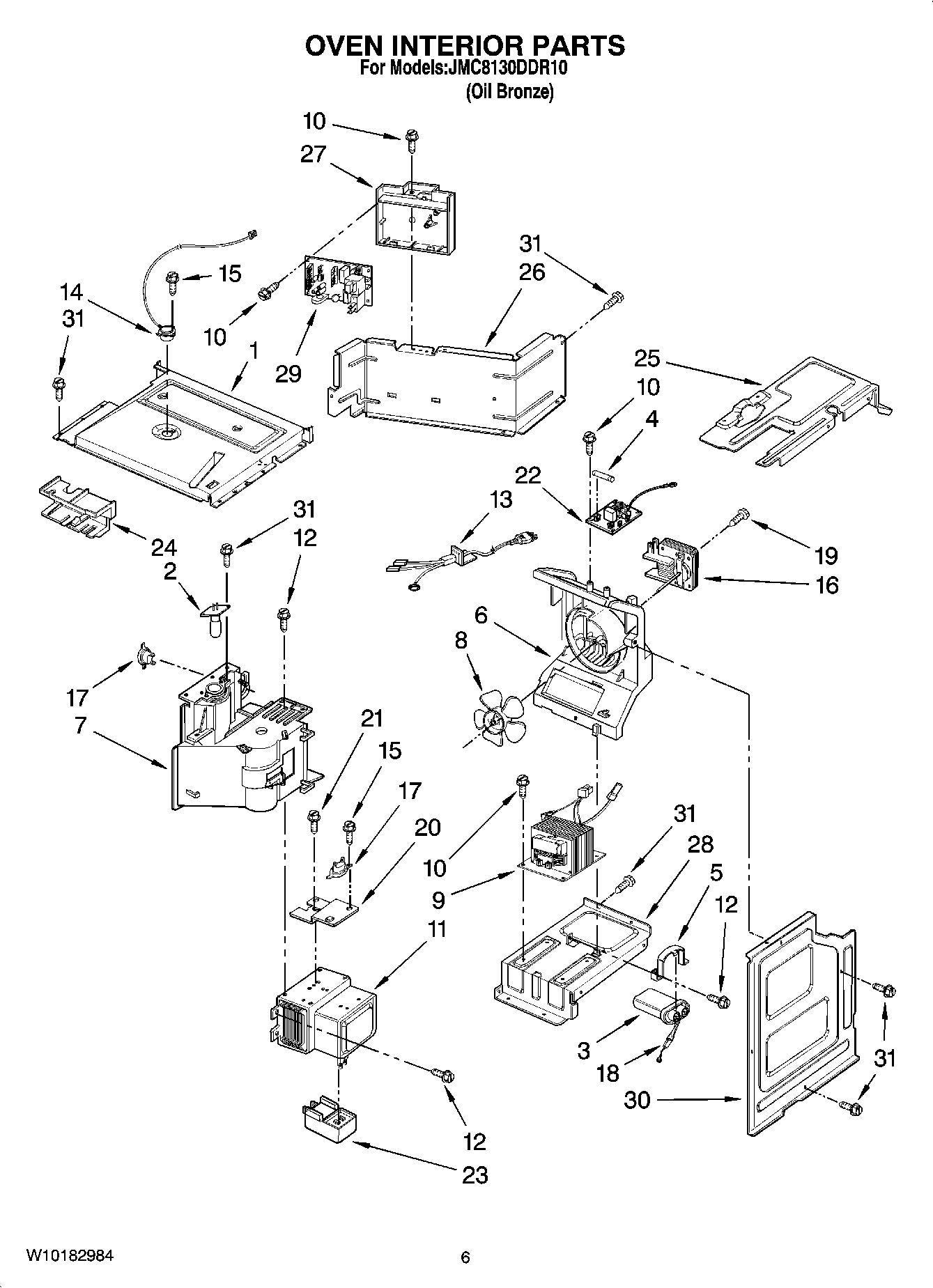

05 - OVEN INTERIOR PARTS

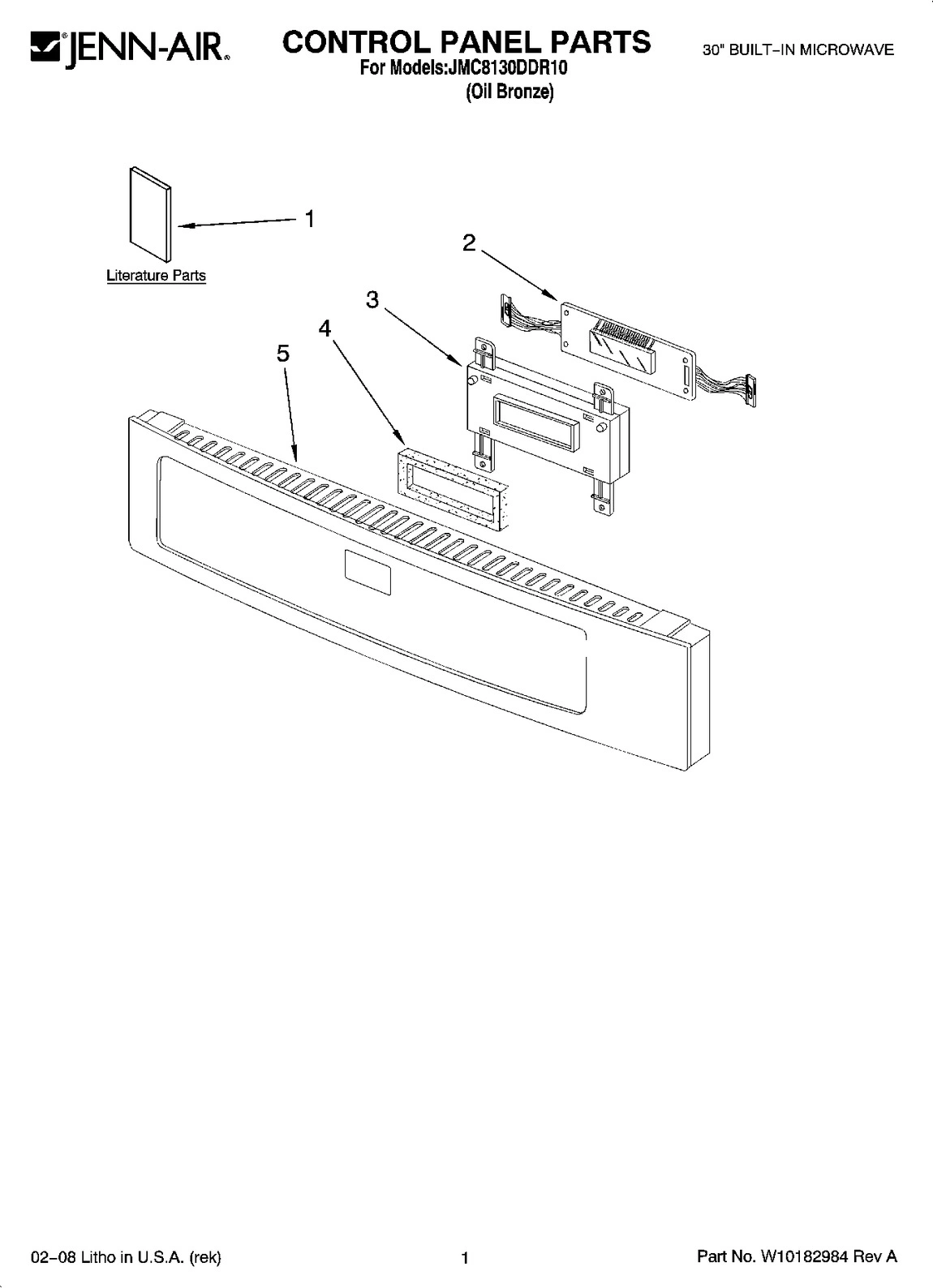

01 - CONTROL PANEL PARTS

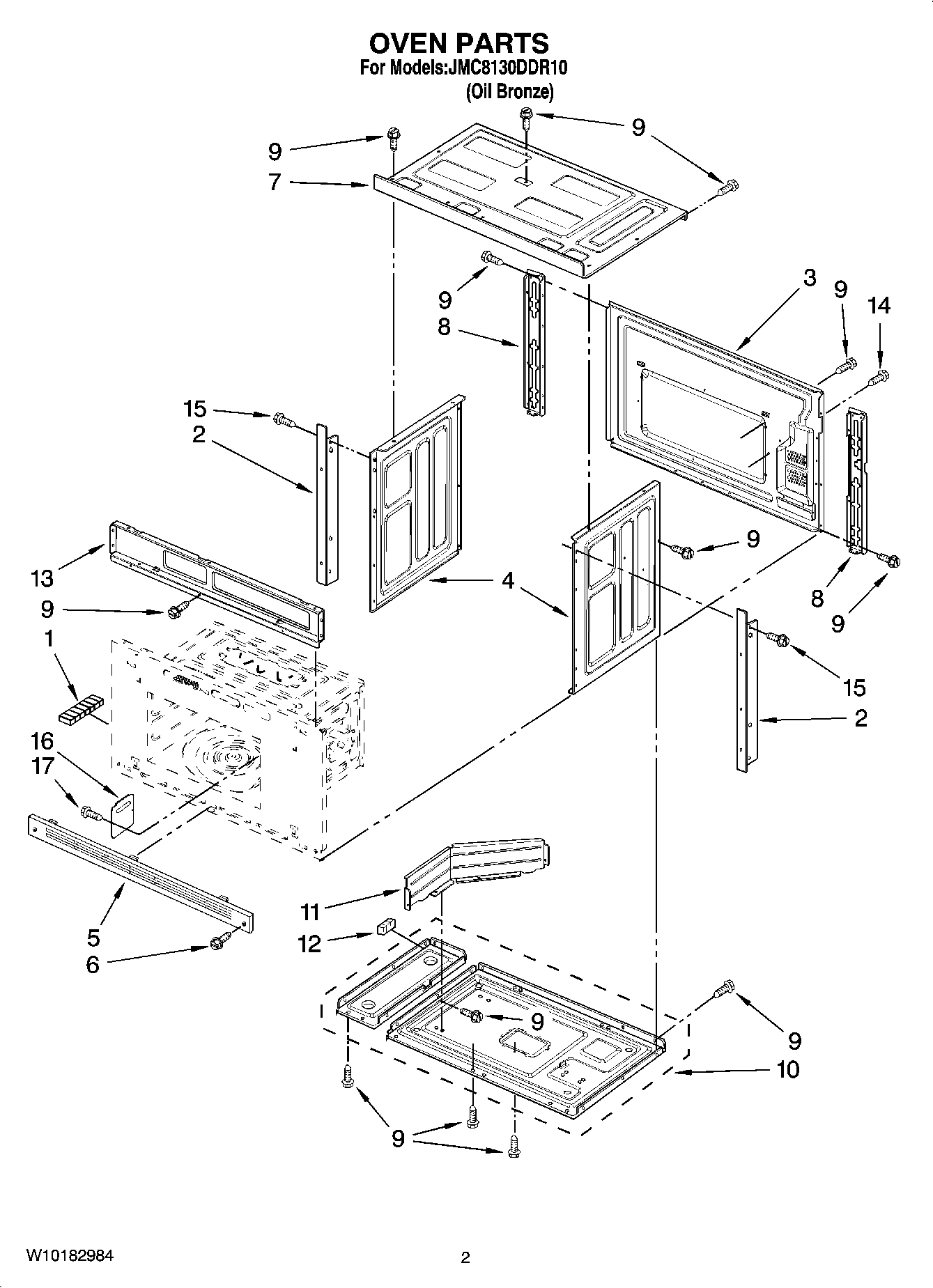

02 - OVEN PARTS

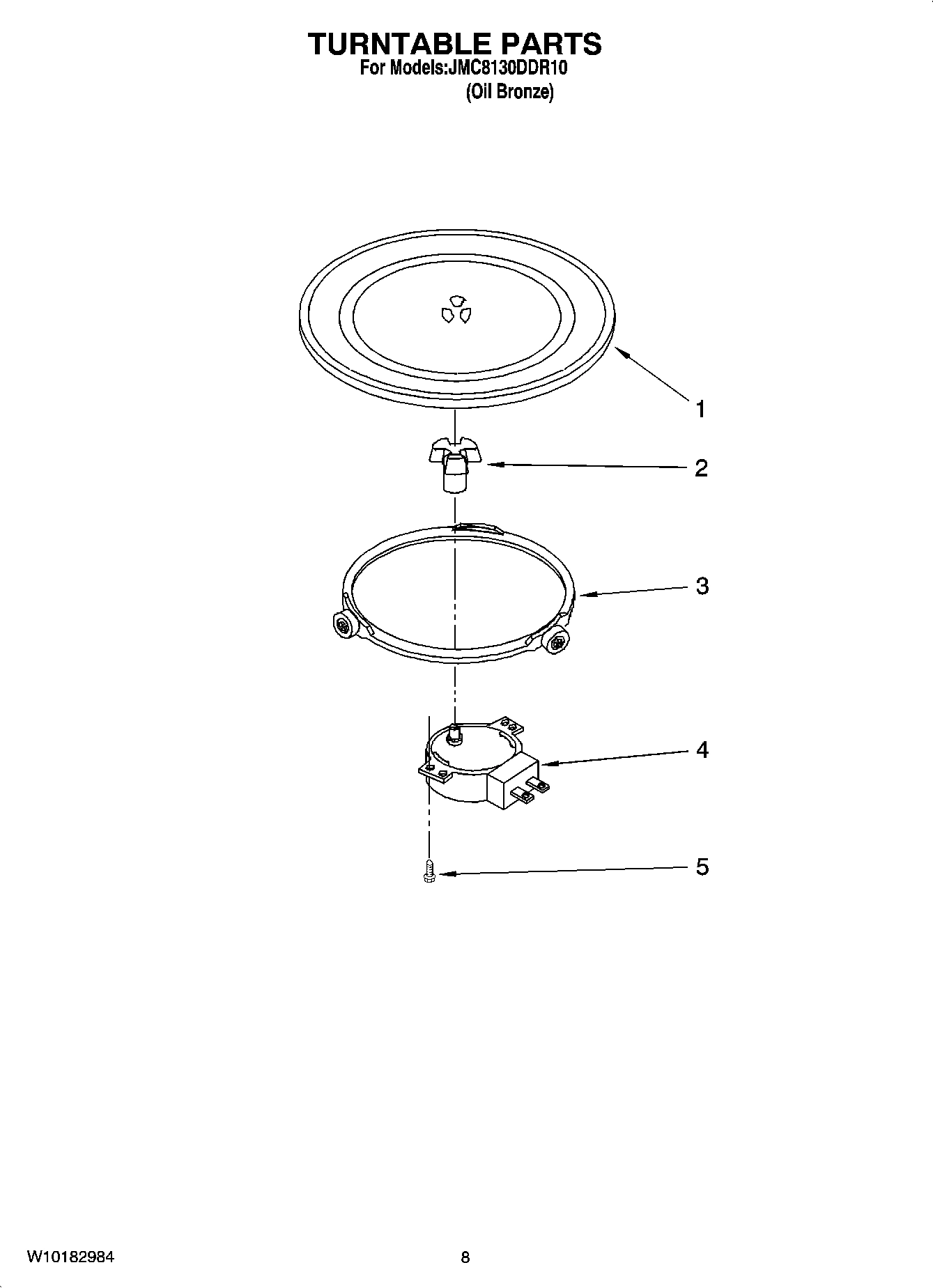

06 - TURNTABLE PARTS, OPTIONAL PARTS
Common parts from model Whirlpool JMC8130DDR10 MICROWAVE
1
Frame, Door WPL 53001287 Contact Us For Availability
1
Tunnel, Air WPL W10153234 Contact Us For Availability
1
Use & Care Guide WPL 53001218 Contact Us For Availability
1
Installation Instructions WPL W10182897 Contact Us For Availability
1
CUSHION WPL R9800398 Contact Us For Availability
2
Microcomputer WPL W10165850 Contact Us For Availability
2
COVER, CHOKE WPL 53001219 Contact Us For Availability
2
Trim, Side (LH) WPL 53001262 Contact Us For Availability
2
Trim, Side (RH) WPL 53001263 Contact Us For Availability
2
SHAFT, TURN TABLE WPL R0130605 Contact Us For Availability
3
LATCH WPL 53001220 Contact Us For Availability
3
Bracket, Control WPL 53001241 Contact Us For Availability
3
Cover, Back WPL 53001261 Contact Us For Availability
3
Ring, Rotating WPL R0130677 Contact Us For Availability
4
LEVER WPL 53001247 Contact Us For Availability
4
SPRING WPL 53001221 Contact Us For Availability
4
CUSHION WPL 53001245 Contact Us For Availability
4
Side, Chassis (Right Side) WPL 53001268 Contact Us For Availability
4
Side, Chassis (Left Side) WPL 53001269 Contact Us For Availability
4
MOTOR, TURNTABLE WPL 53001025 Contact Us For Availability
5
LEVER WPL 53001249 Contact Us For Availability
5
Handle, Door WPL 53001222 Contact Us For Availability
5
BRACKET, CAPACITOR WPL 53001248 Contact Us For Availability
5
Panel, Control (Oil Bronze) WPL W10179020 Contact Us For Availability
5
Trim, Bottom WPL 53001264 Contact Us For Availability
5
Screw WPL R0654180 Contact Us For Availability
6
Bracket, LH WPL 53001224 Contact Us For Availability
6
GUIDE, SUCTION WPL 53001250 Contact Us For Availability
6
Screw WPL R9800360 Contact Us For Availability
7
Hinge, LH WPL 53001225 Contact Us For Availability
7
DUCT WPL 53001251 Contact Us For Availability
7
Top, Chassis WPL 53001267 Contact Us For Availability
8
Glass, Door WPL W10179009 Contact Us For Availability
8
Blade, Fan WPL 53001252 Contact Us For Availability
8
Bracket, Back (LH) WPL 53001270 Contact Us For Availability
8
Bracket, Back (RH) WPL 53001271 Contact Us For Availability
9
Screw WPL W11380570 No Longer Available
9
Hinge, RH WPL 53001235 Contact Us For Availability
9
Transformer, H.V. WPL 53001253 Contact Us For Availability
10
Bracket, RH WPL 53001238 Contact Us For Availability
10
Base, Plate WPL 53001278 Contact Us For Availability
11
Cushion, Door WPL 53001280 Contact Us For Availability
11
BARRIER WPL 53001273 Contact Us For Availability
12
WASHER WPL 53001286 Contact Us For Availability
12
Cushion WPL W10182900 Contact Us For Availability
13
Washer, Sprg Lck WPL 53001282 Contact Us For Availability
13
CORD, POWER WPL 53001254 Contact Us For Availability
13
Bracket, Cntrl WPL 53001289 Contact Us For Availability
14
Screw WPL R0654178 Contact Us For Availability
14
NUT WPL 53001283 Contact Us For Availability
14
SENSOR ASSEMBLY WPL 53001255 Contact Us For Availability
15
PIN, LATCH WPL 53001281 Contact Us For Availability
15
Screw WPL R0654183 Contact Us For Availability
15
Screw WPL R0131307 Contact Us For Availability
16
SCREW WPL 53001284 Contact Us For Availability
16
Motor, Fan WPL 53001256 Contact Us For Availability
16
CANOPY, MICA WPL R0130667 Contact Us For Availability
17
SCREW WPL 53001285 Contact Us For Availability
17
Thermostat WPL R0131025 Contact Us For Availability
18
Screw, Tap WPL R9800309 Contact Us For Availability
19
Trim, Door Btm WPL 53001234 Contact Us For Availability
19
Screw WPL R9800411 Contact Us For Availability
20
Bracket, Therm. WPL 53001258 Contact Us For Availability
21
Screw WPL R9900293 Contact Us For Availability
22
FILTER ASSEMBLY WPL 53001259 Contact Us For Availability
23
Filter, Choke WPL 53001565 Contact Us For Availability
24
GUIDE, AIR WPL 53001260 Contact Us For Availability
25
BARRIER WPL 53001272 Contact Us For Availability
26
BARRIER WPL 53001274 Contact Us For Availability
27
Base, PCB WPL 53001275 Contact Us For Availability
28
Bottom WPL 53001277 Contact Us For Availability
29
Board, Power WPL 53001291 Contact Us For Availability
30
Plate, Shield WPL 53001276 Contact Us For Availability
NI
Harness, Main WPL 53001257 Contact Us For Availability
NI
WIRING HARNESS PARTS WPL ARI3623A59 Contact Us For Availability
× ![]()
