Model Whirlpool JMC8100ADB MICROWAVE – Common Parts & Diagrams

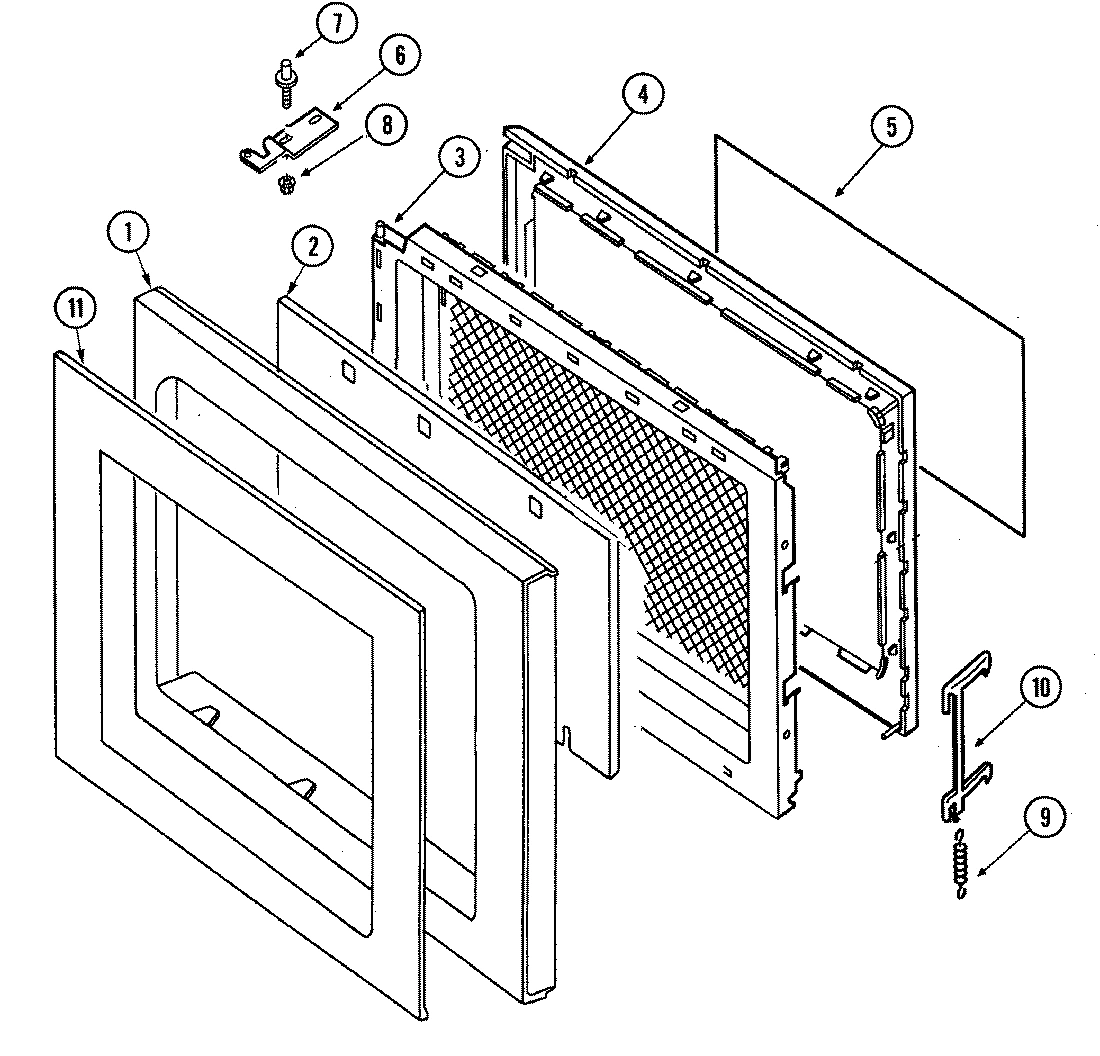

03 - DOOR

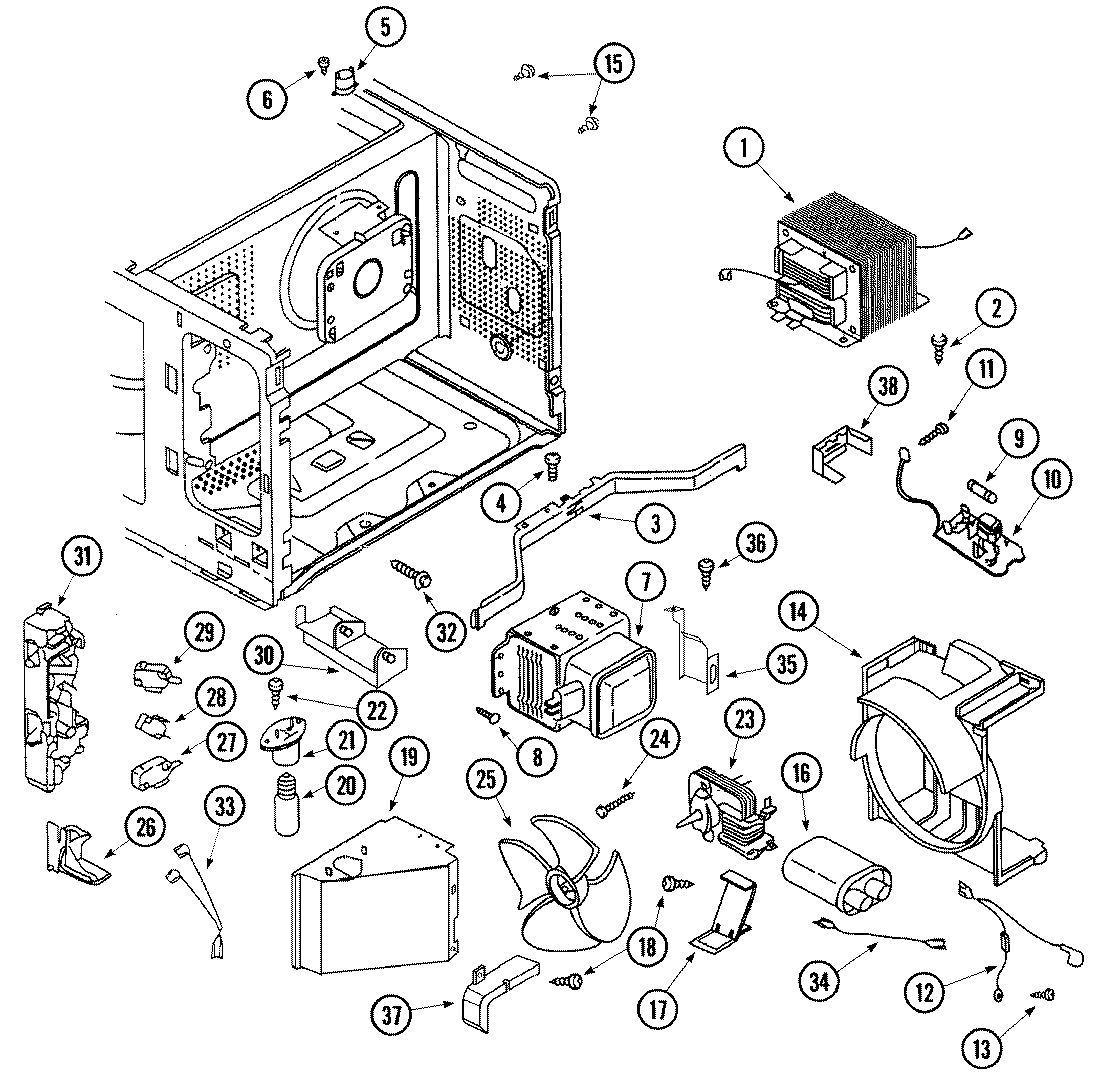

04 - INTERNAL CONTROLS

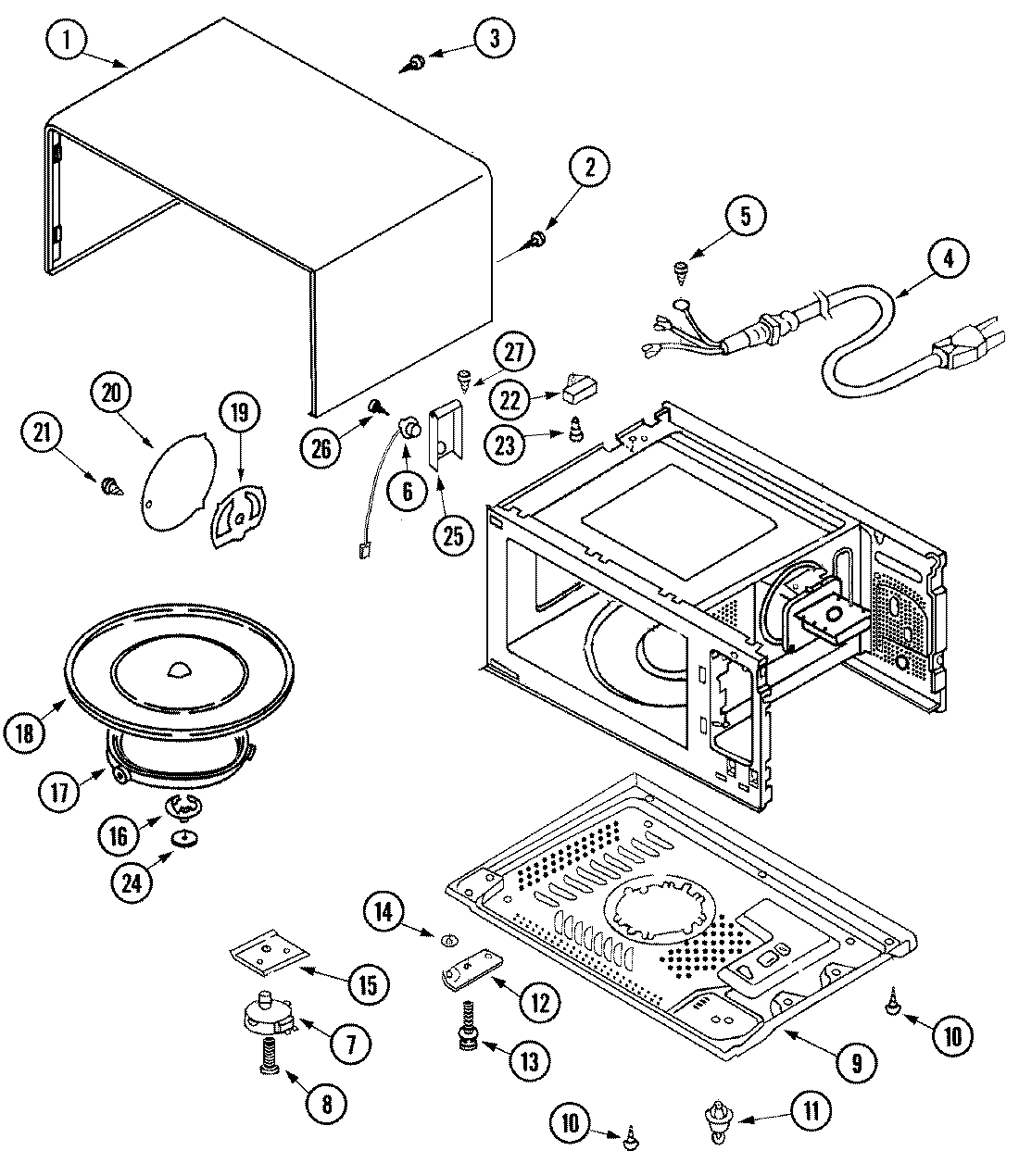

01 - BASE & CAVITY

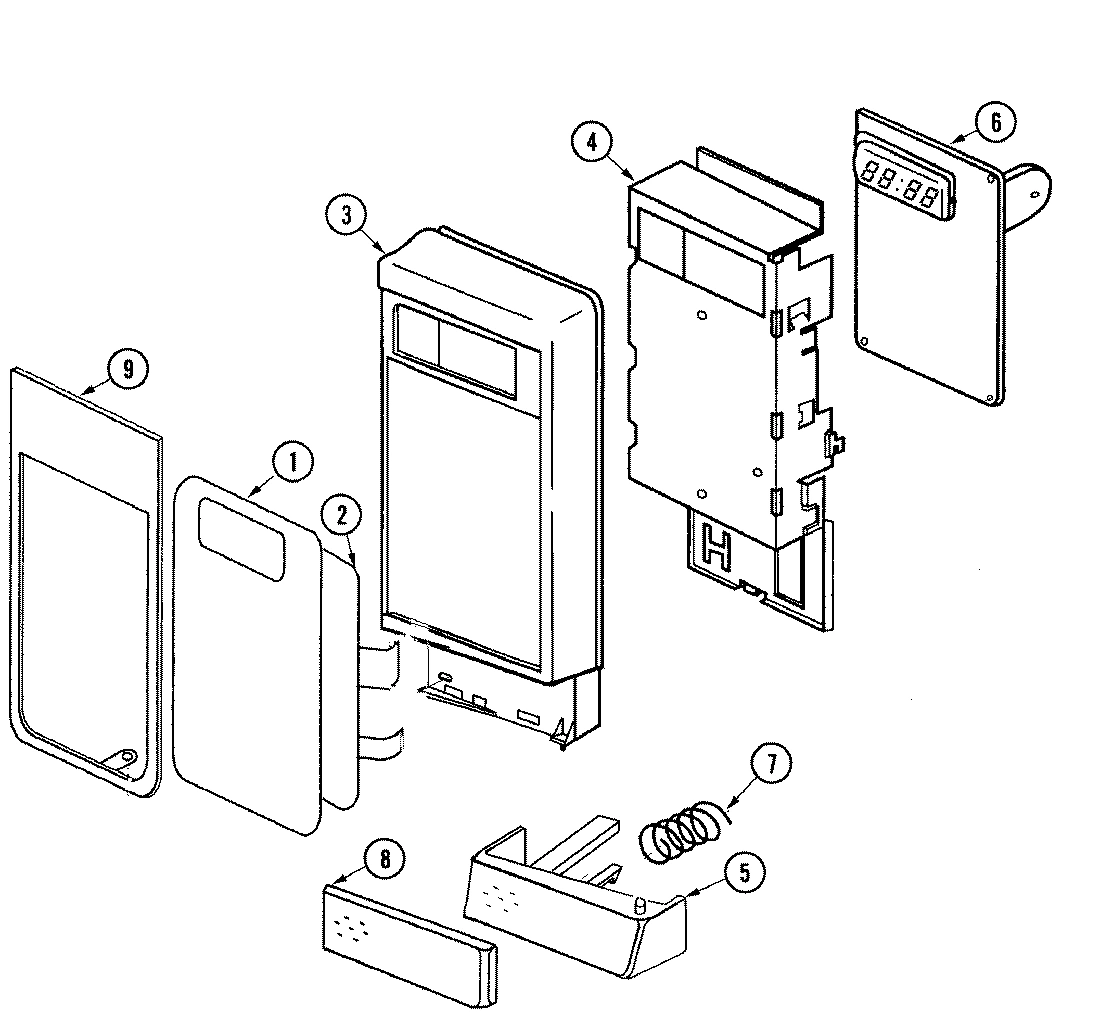

02 - CONTROL PANEL

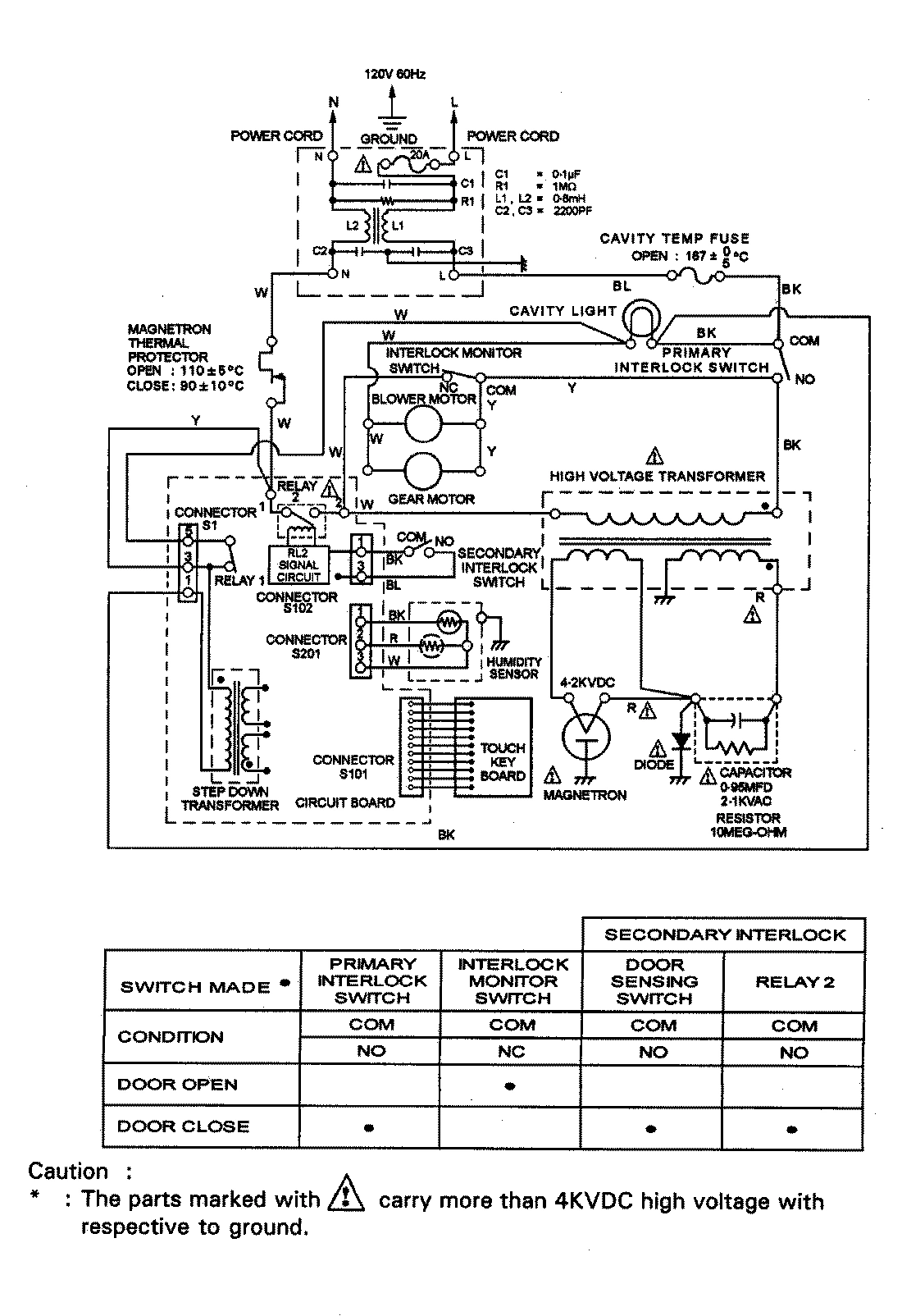

06 - WIRING INFORMATION
05 - TRIM KIT
Common parts from model Whirlpool JMC8100ADB MICROWAVE
1
FRAME, DOOR (OUTER-BLK) WPL 58001304 Contact Us For Availability
1
TRANSFORMER, H.V. WPL 58001214 Contact Us For Availability
1
CABINET (BLK) WPL 58001187 Contact Us For Availability
1
OVERLAY, CONTROL (BLK) WPL 58001291 Contact Us For Availability
1
WIRING INFORMATIN WPL 15002947 Contact Us For Availability
1
SEE NOTE FOR TRIM KIT SEE MODEL NUMBER:JXA103 WPL Y00000000 Contact Us For Availability
2
PANEL, DOOR (OUTER WINDOW) WPL 58001305 Contact Us For Availability
2
SCREW WPL 58001189 Contact Us For Availability
2
TOUCHPAD, CONTROL BOARD WPL 58001280 Contact Us For Availability
3
FRAME, DOOR (INNER-BLK) WPL 58001182 Contact Us For Availability
3
STAY, CAVITY & MAGNETRON WPL 58001215 Contact Us For Availability
3
SCREW (TRG TRS+SRT 4X10) WPL 58001037 Contact Us For Availability
3
FRAME, CONTROL BOARD (BLK) WPL 58001293 Contact Us For Availability
4
CHOKE, DOOR WPL 58001183 Contact Us For Availability
4
SCREW ETG TRS 4X10 WPL 58001216 Contact Us For Availability
4
CORD, POWER WPL 58001191 Contact Us For Availability
4
BASE, CONTROL WPL 58001208 Contact Us For Availability
4
SCREW TPG+TRS+SRT 4X10 WPL 58001209 Contact Us For Availability
5
SCREEN, DOOR (INNER) WPL 58001184 Contact Us For Availability
5
SCREW (S-T TRS+SRT 4X10) WPL 58001040 Contact Us For Availability
5
LEVER, DOOR RELEASE (BLK) WPL 58001286 Contact Us For Availability
6
HINGE, DOOR (UPPER) WPL 58001185 Contact Us For Availability
6
SENSOR ASSY. WPL 58001147 Contact Us For Availability
6
SCREW (TPG BIN 3X10 Z1) WPL 58001011 Contact Us For Availability
6
BOARD, CONTROL AND CIRCUIT WPL 58001284 Contact Us For Availability
7
MAGNETRON WPL 58001218 Contact Us For Availability
7
MOTOR, GEAR WPL 58001192 Contact Us For Availability
7
SPRING, DOOR LEVER WPL 58001014 Contact Us For Availability
8
NUT, HEX WPL 58001026 Contact Us For Availability
8
BOLT HEX 4X10 WPL 58001219 Contact Us For Availability
9
SPRING, LATCH WPL 58001029 Contact Us For Availability
10
LATCH, DOOR WPL 58001028 Contact Us For Availability
10
MANUAL, USE & CARE (TRI) WPL 58001288 Contact Us For Availability
11
FOOT (PLASTIC INCLDS CLIP) WPL 58001194 Contact Us For Availability
12
WIRE, LEAD (W/DIODE) WPL 58001064 Contact Us For Availability
12
HINGE, LOWER WPL 58001195 Contact Us For Availability
13
BOLT, HEX (5X14) WPL 58001025 Contact Us For Availability
14
PARTITION, SPACE WPL 58001222 Contact Us For Availability
14
WASHER 5X10X0.8 WPL 58001196 Contact Us For Availability
15
INSULATION WPL 58001046 Contact Us For Availability
16
CAPACITOR, HV (.95 UF/2.1 KV) WPL 58001062 Contact Us For Availability
16
SHAFT, TURNTABLE WPL 58001050 Contact Us For Availability
17
BAND, CAPACITOR WPL 58001223 Contact Us For Availability
17
BASE, ROLLER ASSY. WPL 58001155 Contact Us For Availability
18
TURNTABLE WPL 58001156 Contact Us For Availability
19
DUCT, MAGNETRON EXHAUST WPL 58001224 Contact Us For Availability
19
ANTENNA (COMPLETE) WPL 58001197 Contact Us For Availability
20
COVER, ANTENNA WPL 58001198 Contact Us For Availability
21
SOCKET, LAMP WPL 58001042 Contact Us For Availability
21
SCREW TPG TRS 4X6 WPL 58001199 Contact Us For Availability
22
FUSE, THERMAL WPL 58001010 Contact Us For Availability
23
MOTOR WPL 58001073 Contact Us For Availability
24
WASHER WPL 58001049 Contact Us For Availability
25
FAN, BLOWER WPL 58001072 Contact Us For Availability
25
DUCT, SENSOR ASSEMBLY WPL 58001200 Contact Us For Availability
26
SCREW (TPG PAN 3X6 Z1) WPL 58001009 Contact Us For Availability
28
SWITCH, MONITOR INTERLOCK WPL 58001078 Contact Us For Availability
29
SWITCH, PRIMARY INTERLOCK WPL 58001077 Contact Us For Availability
30
LEVER, LATCH WPL 58001225 Contact Us For Availability
32
SCREW (ETG TRS 4X10 N2) WPL 58001067 Contact Us For Availability
33
HARNESS, DOOR SENSING WPL 58001075 Contact Us For Availability
34
WIRE, LEAD ASSY WPL 58001063 Contact Us For Availability
35
DUCT, MAGNETRON INTAKE WPL 58001226 Contact Us For Availability
37
DUCT, TRANSFORMER WPL 58001227 Contact Us For Availability
38
BRACKET, FUSE WPL 58001228 Contact Us For Availability
× ![]()
