Model Whirlpool JMC7000ADW MICROWAVE – Common Parts & Diagrams

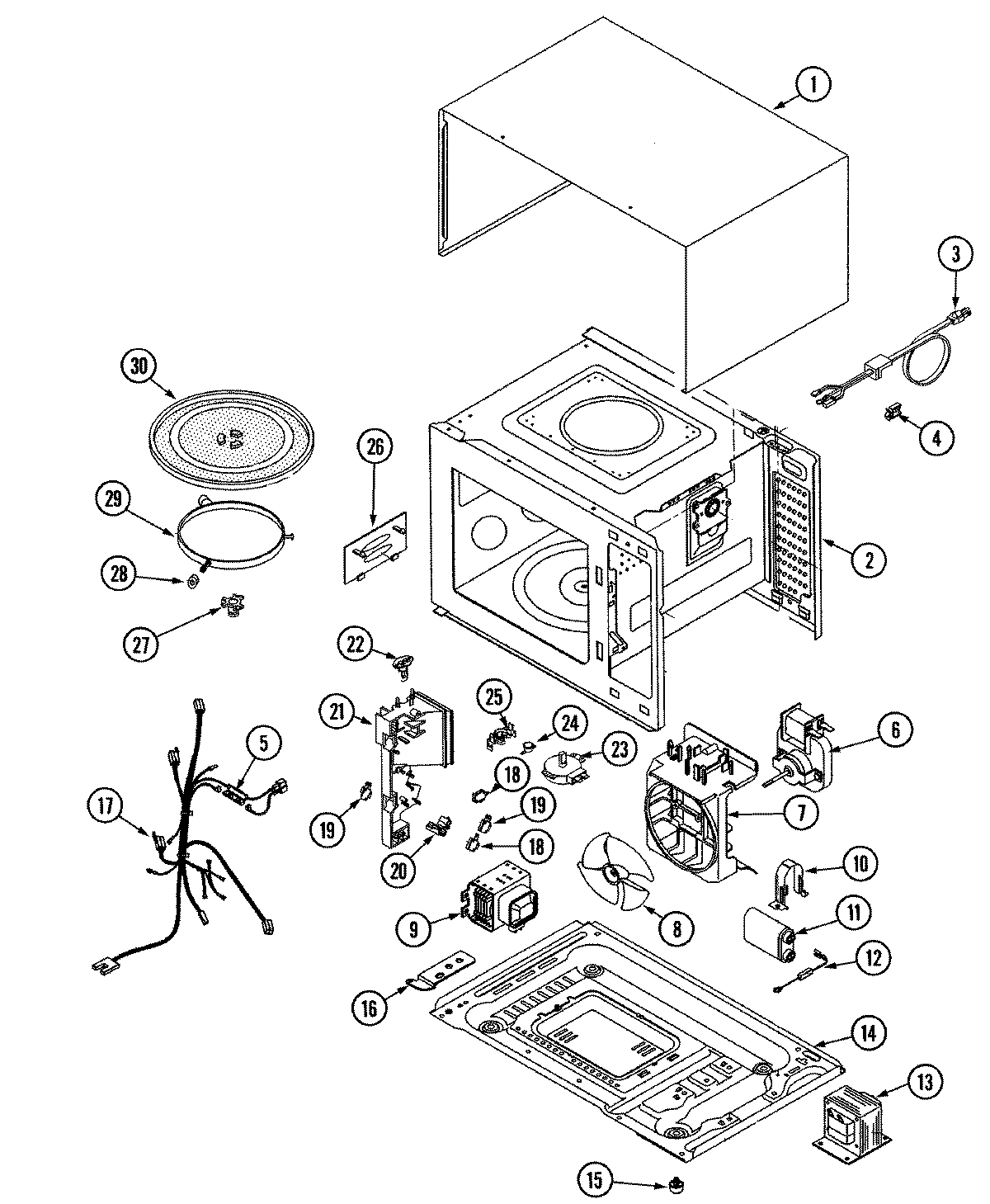

01 - CABINET-BASE-CAVITY

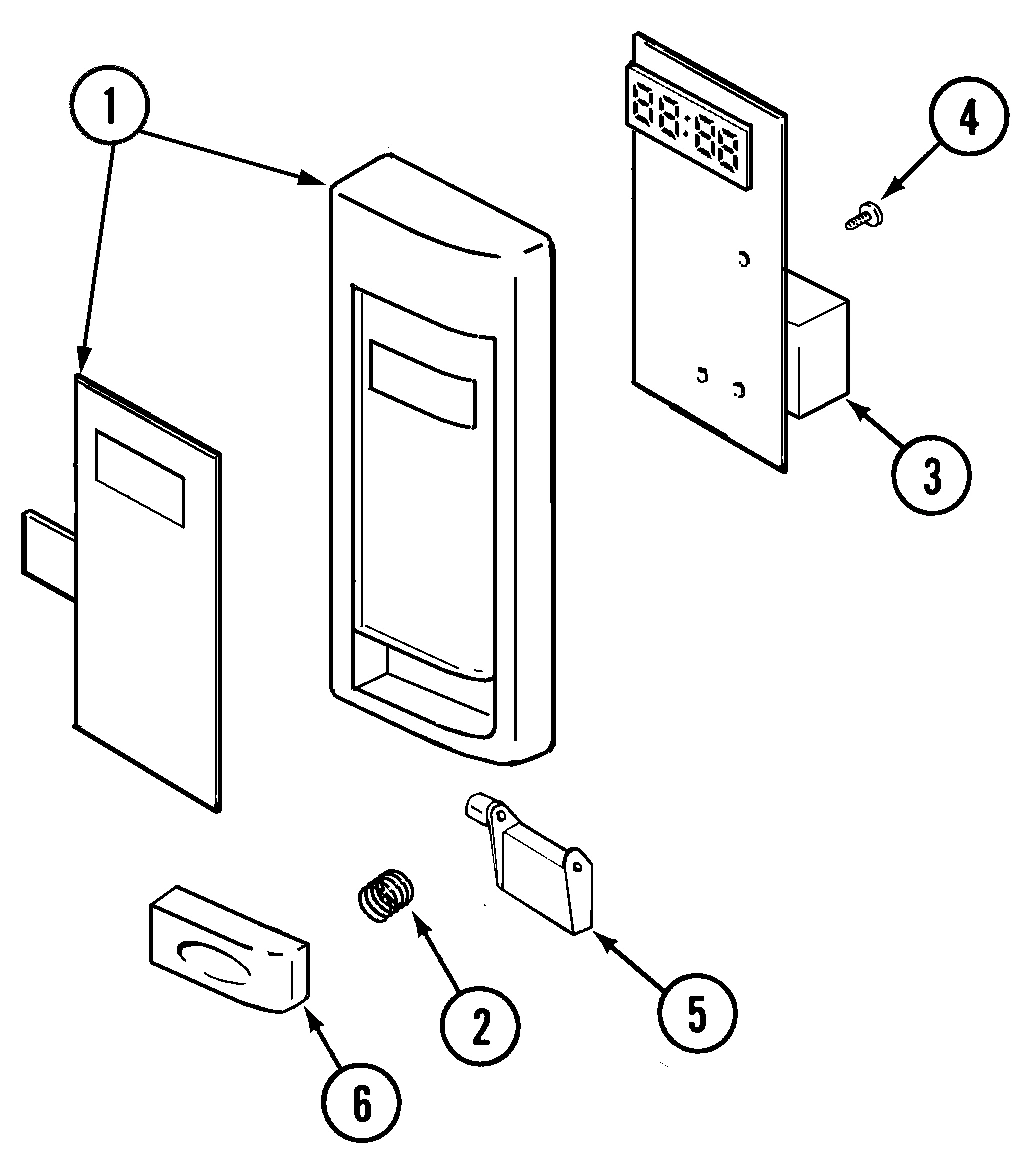

02 - CONTROL PANEL

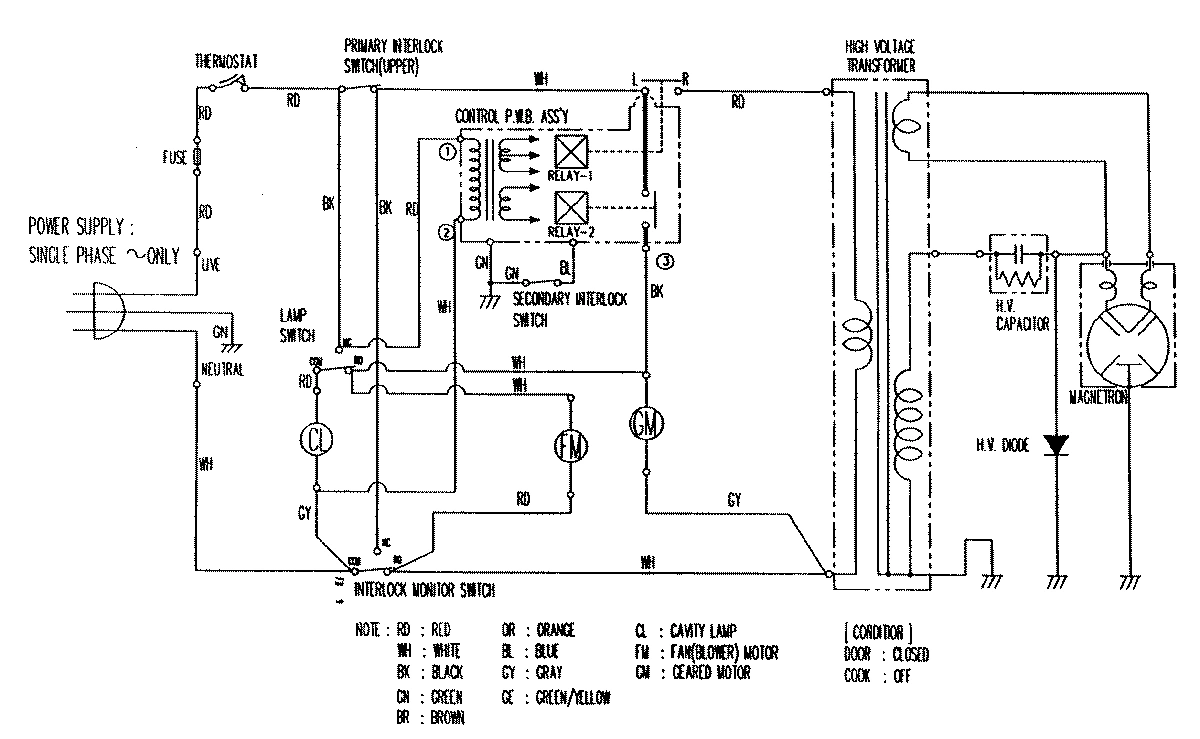

04 - WIRING INFORMATION

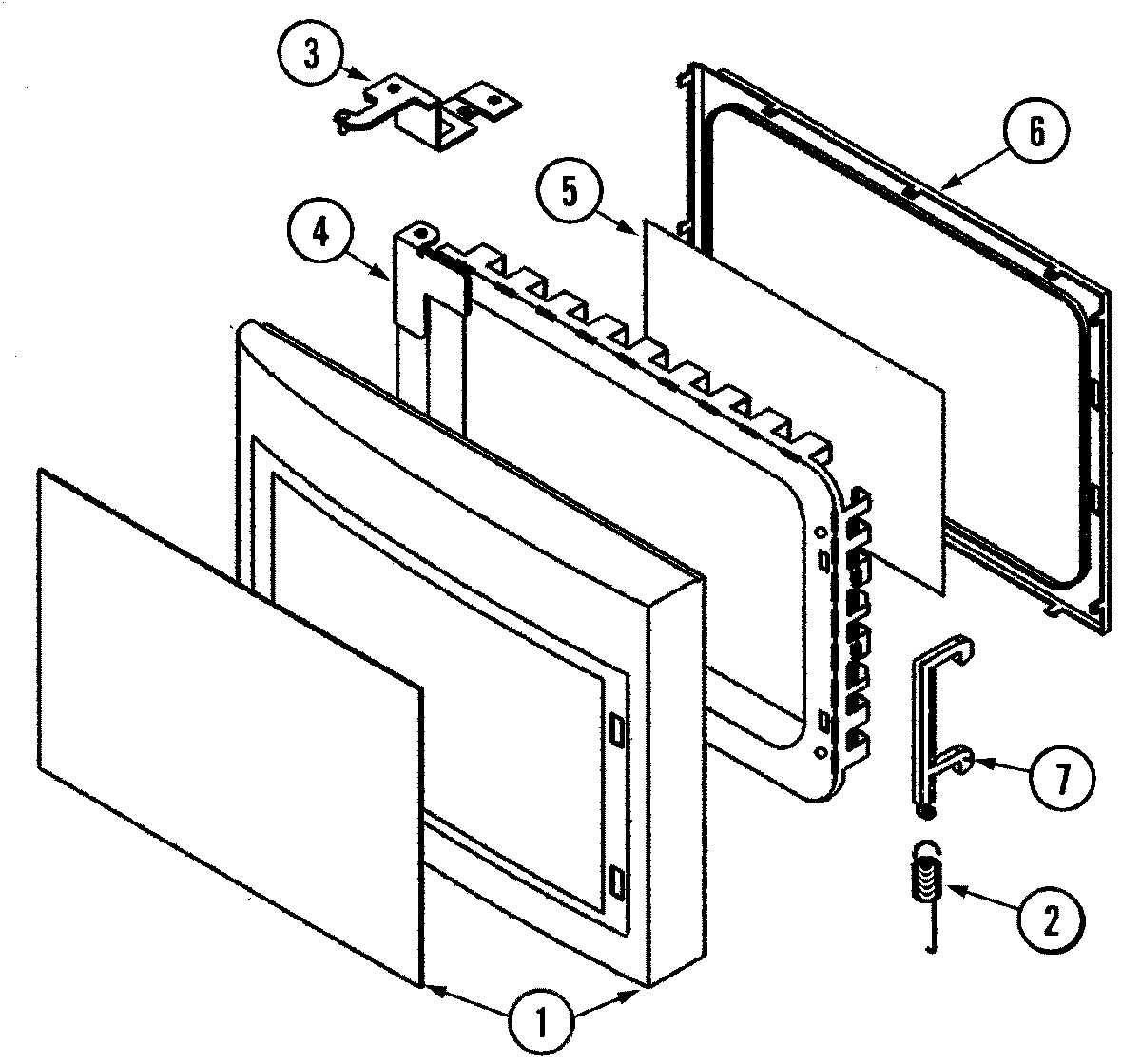

03 - DOOR
Common parts from model Whirlpool JMC7000ADW MICROWAVE
1
SCREW WPL 56001210 Contact Us For Availability
1
CONTROL TRIM & SWITCH ASSY-WHT WPL 56001257 Contact Us For Availability
1
DOOR FRAME & WINDOW ASSY (WHT) WPL 56001250 Contact Us For Availability
2
CAVITY WPL 56001209 Contact Us For Availability
2
SPRING, BUTTON WPL 56001011 Contact Us For Availability
2
SPRING, HOOK WPL 56001200 Contact Us For Availability
3
CORD, POWER WPL 56001211 Contact Us For Availability
3
SCREW WPL 56001222 Contact Us For Availability
3
BOARD, CONTROL WPL 56001202 Contact Us For Availability
3
BOARD, CONTROL (PCB) WPL 56001396 Contact Us For Availability
3
HINGE, DOOR WPL 56001203 Contact Us For Availability
4
CLAMP, POWER CORD WPL 56001212 Contact Us For Availability
4
WELD, DOOR (WHT) WPL 56001205 Contact Us For Availability
5
HOLDER, FUSE WPL 56001213 Contact Us For Availability
5
LEVER, DOOR WPL 56001192 Contact Us For Availability
5
SCREEN, DOOR (INNER) WPL 56001207 Contact Us For Availability
6
MOTOR, FAN WPL 56001112 Contact Us For Availability
6
SCREW WPL 56001214 Contact Us For Availability
6
BUTTON, DOOR (WHT) WPL 56001189 Contact Us For Availability
6
GASKET, DOOR WPL 56001206 Contact Us For Availability
7
GUIDE, WIND WPL 56001215 Contact Us For Availability
7
MANUAL, USE & CARE WPL 74004453 Contact Us For Availability
7
HOOK, DOOR WPL 56001199 Contact Us For Availability
8
FAN, BLADE WPL 56001026 Contact Us For Availability
9
SCREW WPL 56001216 Contact Us For Availability
9
MAGNETRON WPL 56001239 Contact Us For Availability
10
SCREW WPL 56001217 Contact Us For Availability
10
HOLDER, CAPACITOR WPL 56001218 Contact Us For Availability
11
CAPACITOR WPL 56001219 Contact Us For Availability
13
TRANSFORMER WPL 56001221 Contact Us For Availability
14
BASE WPL 56001223 Contact Us For Availability
15
FOOT, BASE WPL 56001224 Contact Us For Availability
16
SCREW WPL 56001153 Contact Us For Availability
16
HINGE, LOWER WPL 56001225 Contact Us For Availability
17
HARNESS, MAIN WPL 56001226 Contact Us For Availability
19
SWITCH, SECONDARY WPL 56001037 Contact Us For Availability
20
LEVER, LOCK WPL 56001228 Contact Us For Availability
21
BRACKET, INTERLOCK SWITCH WPL 56001229 Contact Us For Availability
22
BULB/ SOCKET ASSY WPL 56001034 Contact Us For Availability
23
MOTOR, TURNTABLE WPL 56001231 Contact Us For Availability
24
THERMOSTAT WPL 56001232 Contact Us For Availability
25
HOLDER, THERMOSTAT WPL 56001233 Contact Us For Availability
26
COVER, WAVE GUIDE WPL 56001234 Contact Us For Availability
27
COUPLER, TRAY WPL 56001235 Contact Us For Availability
28
ROLLER, TRAY WPL 56001236 Contact Us For Availability
29
ROLLER GUIDE W/ROLLERS WPL 56001237 Contact Us For Availability
30
TRAY, GLASS WPL 56001238 Contact Us For Availability
31
LABEL, COOK CODE WPL 56001275 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002570 Contact Us For Availability
× ![]()
