Model Whirlpool JMC5200BAW14 MICROWAVE – Common Parts & Diagrams
01 - MICROWAVE DOOR PARTS

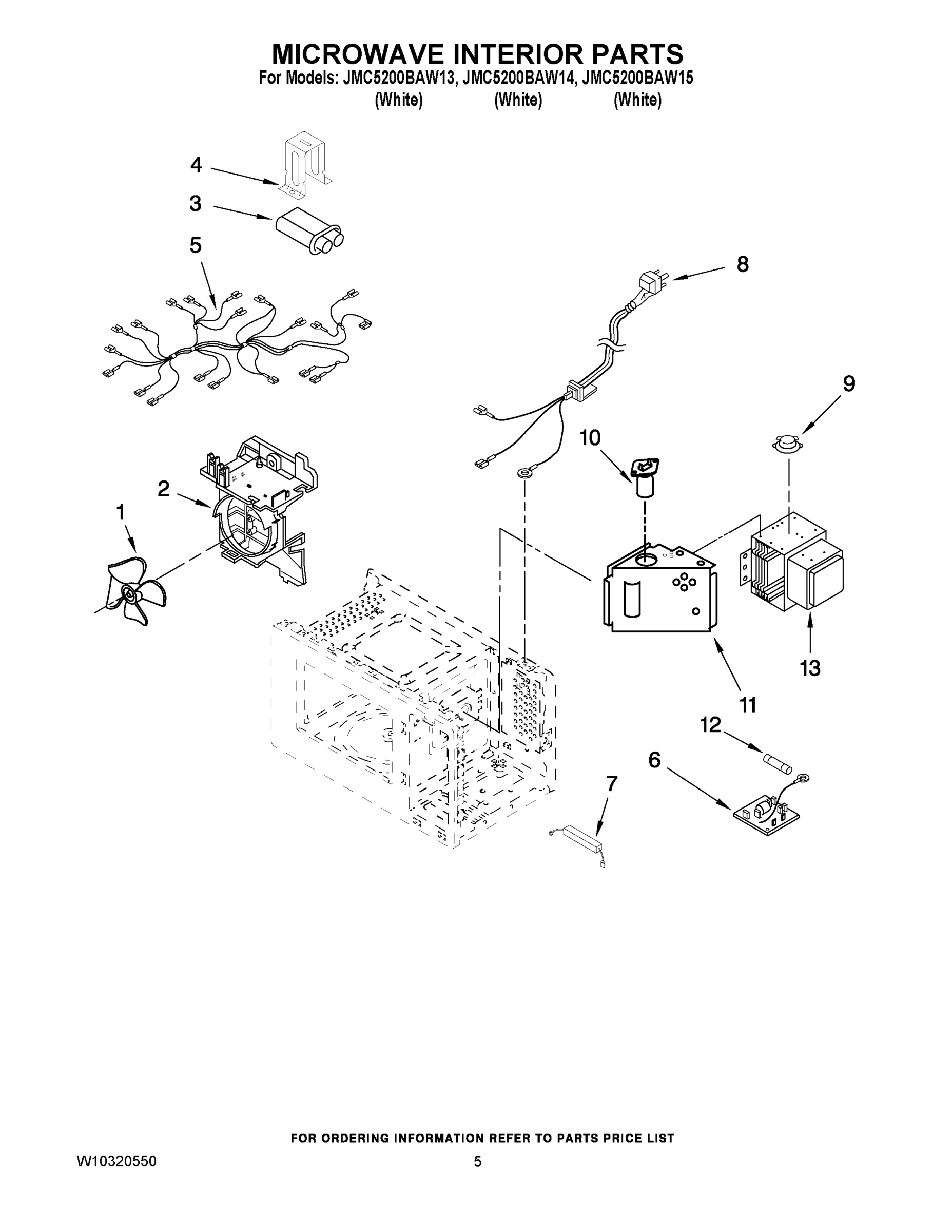

05 - MICROWAVE INTERIOR PARTS

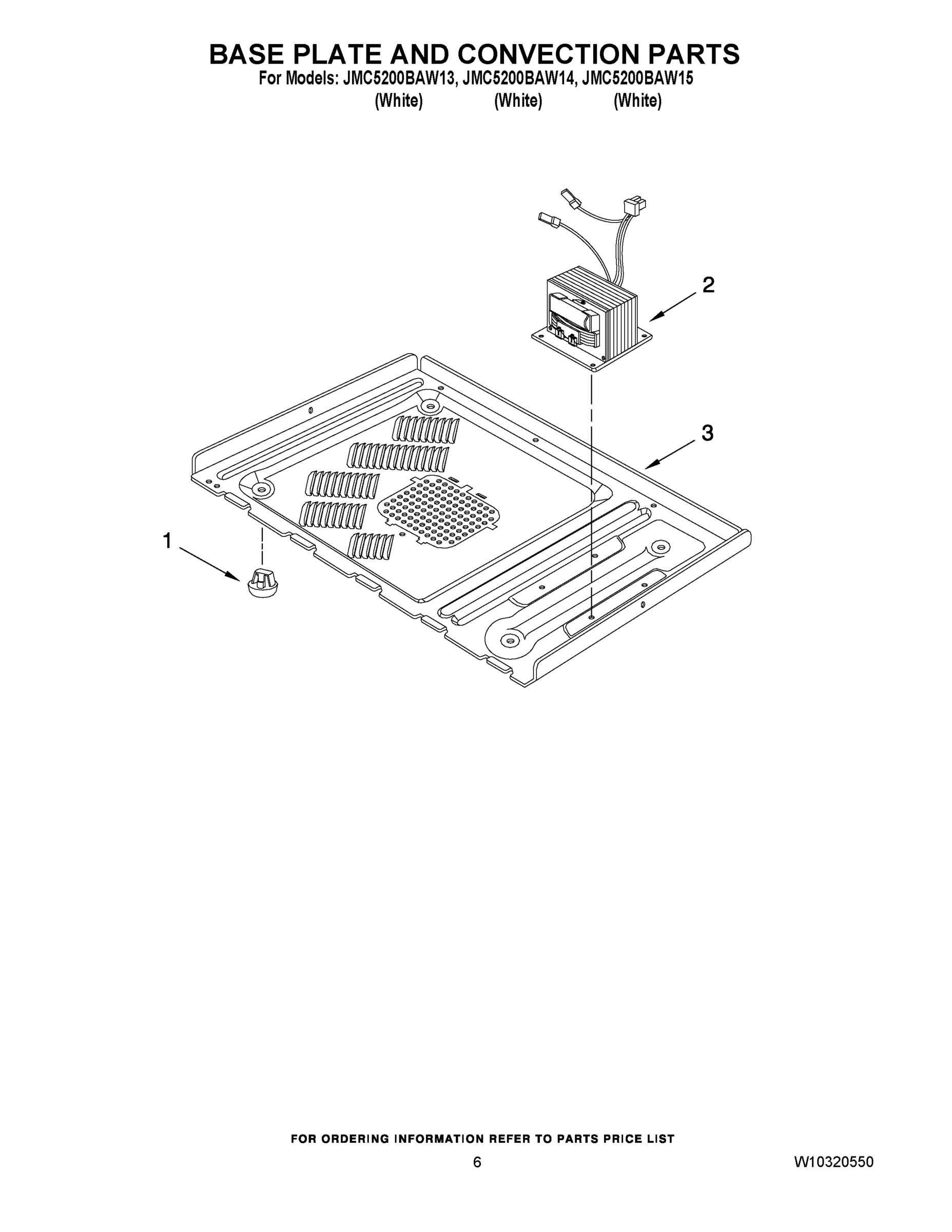

06 - BASE PLATE AND CONVECTION PARTS
02 - MICROWAVE CONTROL PANEL PARTS

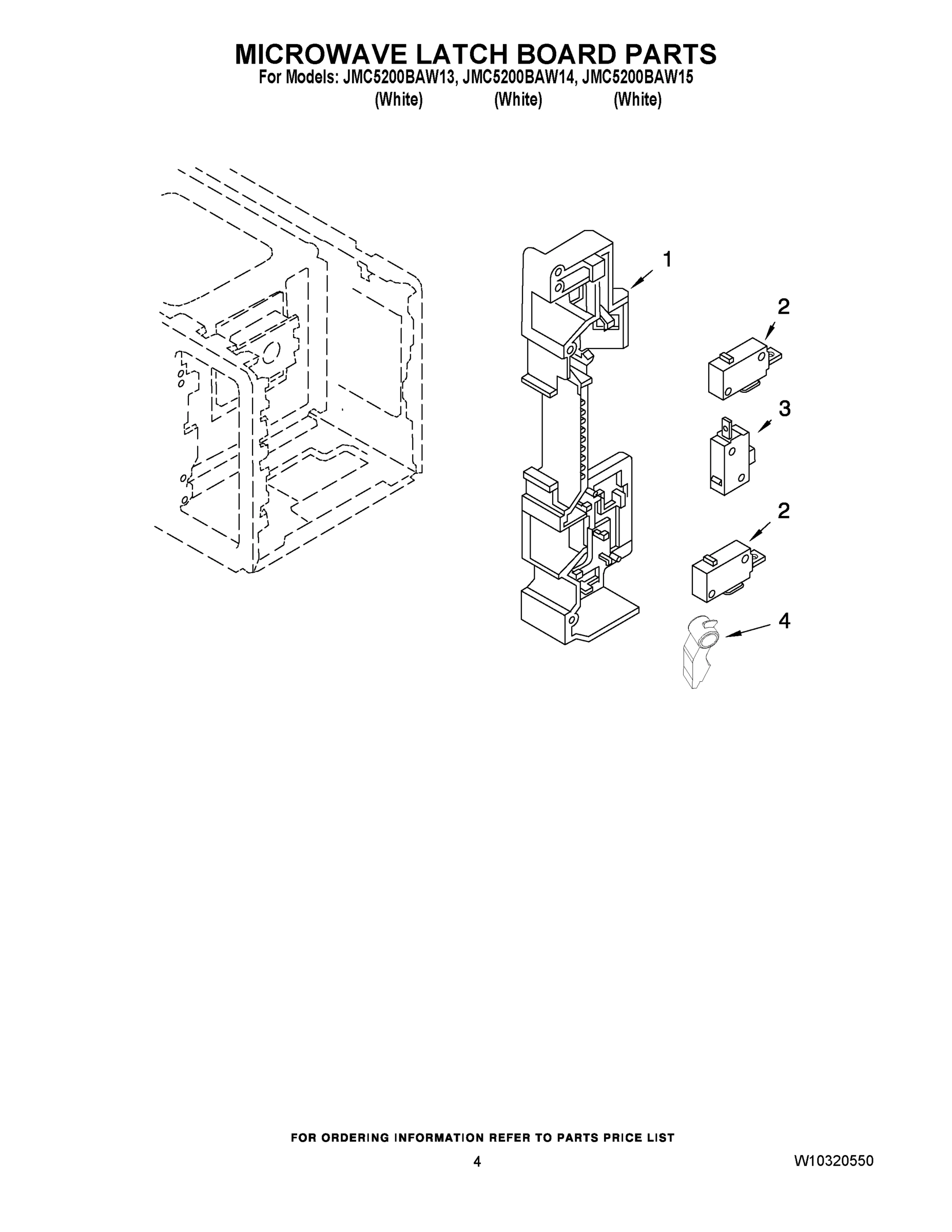

04 - MICROWAVE LATCH BOARD PARTS

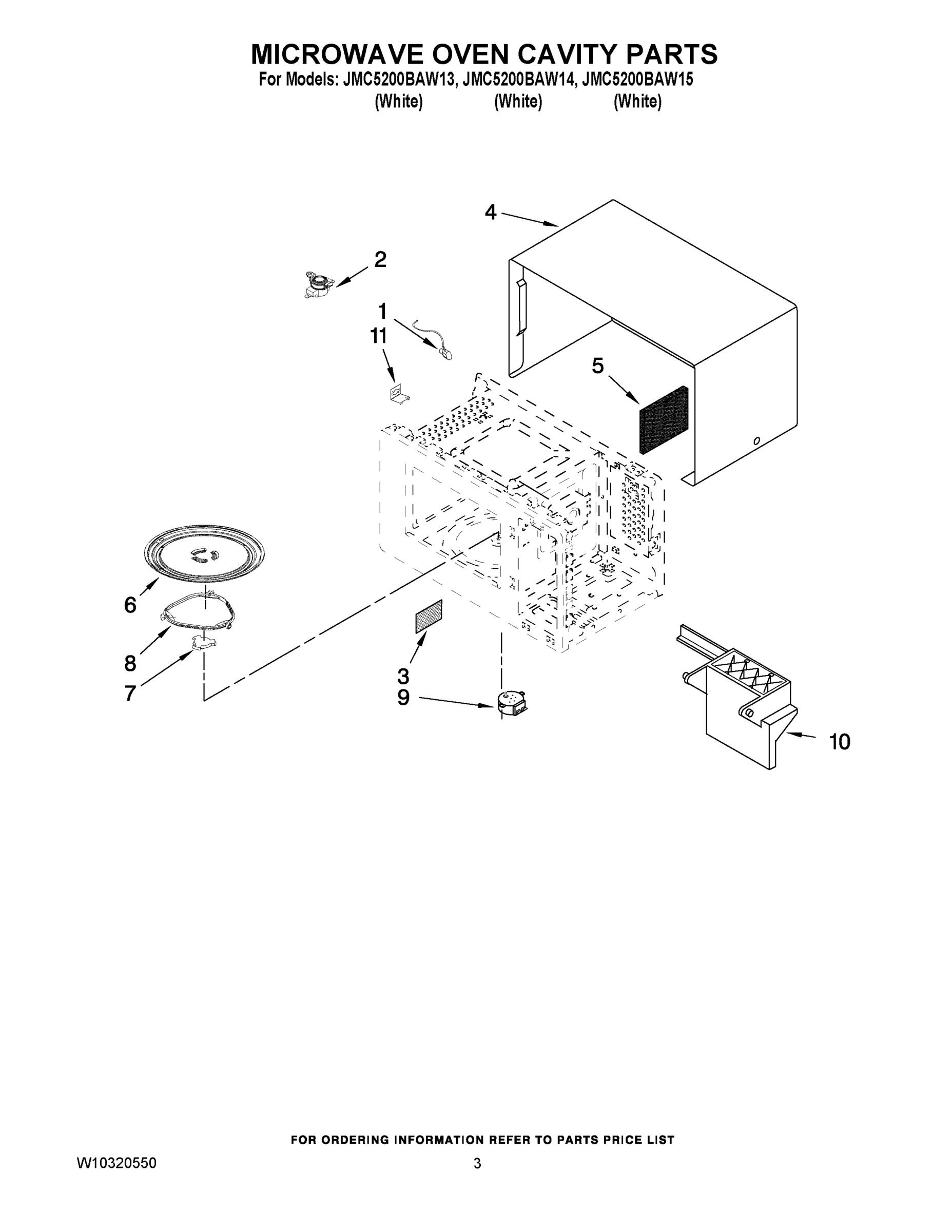

03 - MICROWAVE OVEN CAVITY PARTS
Common parts from model Whirlpool JMC5200BAW14 MICROWAVE
1
U & C GUIDE (SERIES 13) WPL W10177947 Contact Us For Availability
1
BLADE, FAN WPL DE3190051A Contact Us For Availability
1
LEG WPL DE6140066A Contact Us For Availability
1
SW., MEMBRANE (WHITE SERIES 10) WPL DE3400230C Contact Us For Availability
1
SW., MEMBRANE (WHITE SERIES 15) WPL W10261277 Contact Us For Availability
1
BODY-LATCH WPL DE7200138A Contact Us For Availability
1
SENSOR, HUMIDITY (SERIES 15) WPL DE3260011A Contact Us For Availability
1
SENSOR, HUMIDITY (SERIES 10) WPL DE9700585B Contact Us For Availability
2
DOOR (WHITE) WPL DE9401342D Contact Us For Availability
2
COVER, MOTOR WPL DE7100165A Contact Us For Availability
2
TRANSFORMER (SERIES 10) WPL DE2600061B Contact Us For Availability
2
TRANSFORMER (SERIES 14) WPL W10258323 Contact Us For Availability
2
SPRING-BUTTON WPL DE6170026A Contact Us For Availability
2
SWITCH, MICRO (125/250 VAC) WPL 3405001034 Contact Us For Availability
2
THERMOSTAT WPL DE4720173A Contact Us For Availability
3
H.V. CAPACITOR WPL 2501001016 Contact Us For Availability
3
PLATE, BASE WPL DE8010032K Contact Us For Availability
3
BUTTON, PUSH (WHITE) WPL DE6401502A Contact Us For Availability
3
SWITCH, MICRO WPL 3405001033 Contact Us For Availability
3
COVER-MGT WPL DE7160449A Contact Us For Availability
4
PCB (SERIES 15) WPL W10261245 Contact Us For Availability
4
H.V.C BRACKET WPL DE6150170A Contact Us For Availability
4
PCB (SERIES 10) WPL RAS520000 Contact Us For Availability
4
LEVER, SWITCH WPL DE6600088B Contact Us For Availability
4
OUTER, CASE (WHITE) WPL DE6401341B Contact Us For Availability
5
ASSEMBLY, LEADWIRE WPL DE9600392A Contact Us For Availability
5
ASSY, CONTROL (WHITE SERIES 10) WPL DE9401387E Contact Us For Availability
5
ASSY, CONTROL (WHITE SERIES 15) WPL W10261266 Contact Us For Availability
5
CUSHION-RUBBER WPL DE6390035G Contact Us For Availability
6
FILTER, NOISE WPL DE9600399B Contact Us For Availability
6
WINDOW-DISPLAY WPL DE6740179A Contact Us For Availability
6
TRAY, GLASS WPL DE7420002C Contact Us For Availability
7
H.V. DIODE CABLE WPL DE9170063D Contact Us For Availability
7
SHAFT, TURNTABLE WPL DE6700214A Contact Us For Availability
8
POWER CORD WPL DE3900040G Contact Us For Availability
8
RING, TURNTABLE WPL DE9700401B Contact Us For Availability
9
THERMOSTAT WPL DE4720030A Contact Us For Availability
9
MOTOR-DRIVE WPL DE3110154A Contact Us For Availability
10
LAMP, BASELESS WPL DE0700005A Contact Us For Availability
10
LEVER-DOOR WPL DE6690113A Contact Us For Availability
11
DUCT, AIR WPL DE7100012A Contact Us For Availability
11
BRACKET-SENSOR WPL DE6100097A Contact Us For Availability
12
FUSE WPL 3601001198 Contact Us For Availability
× ![]()
