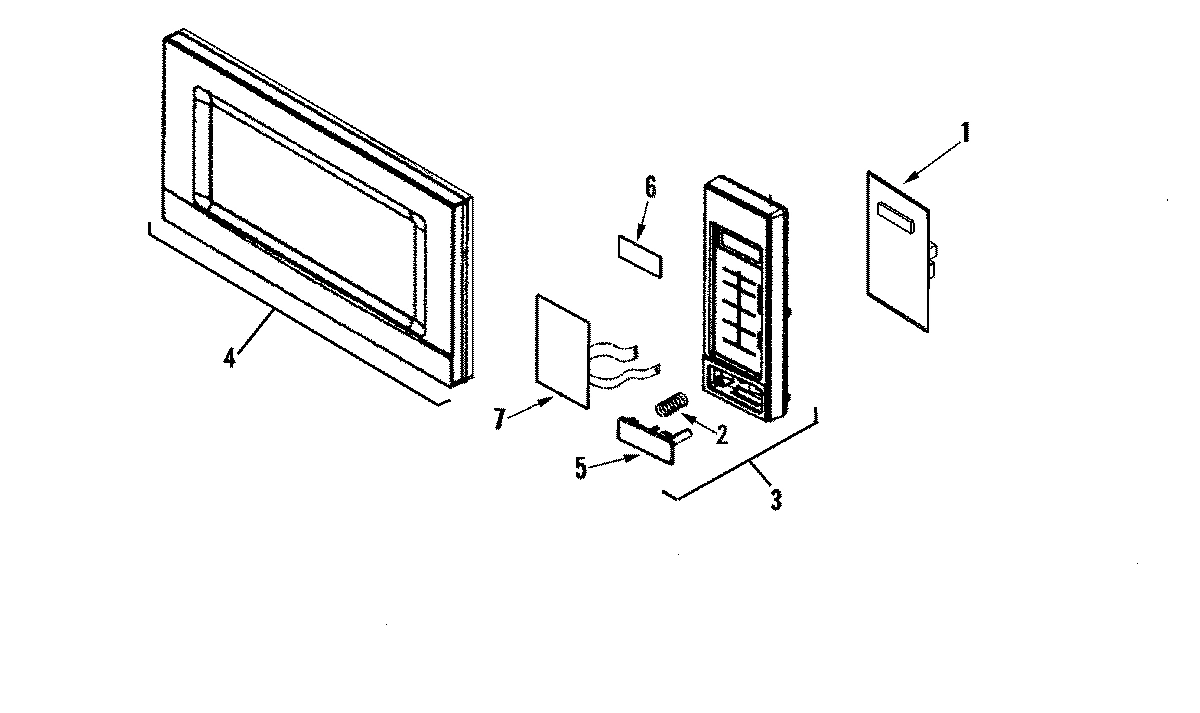

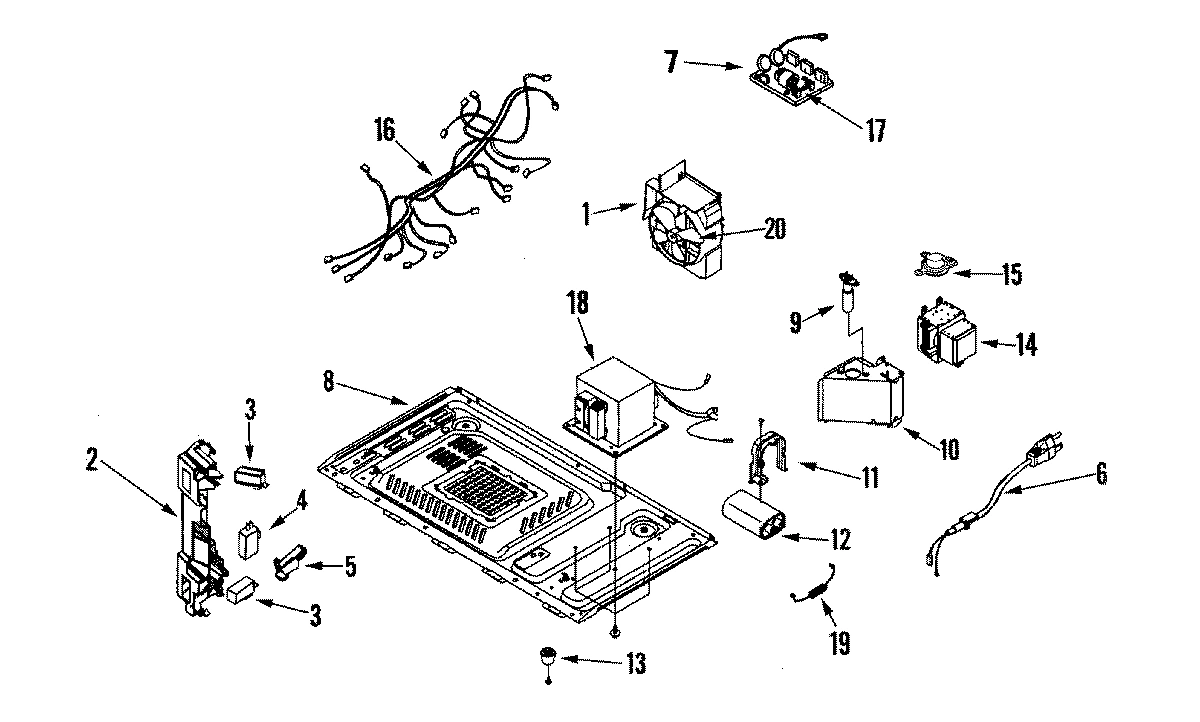

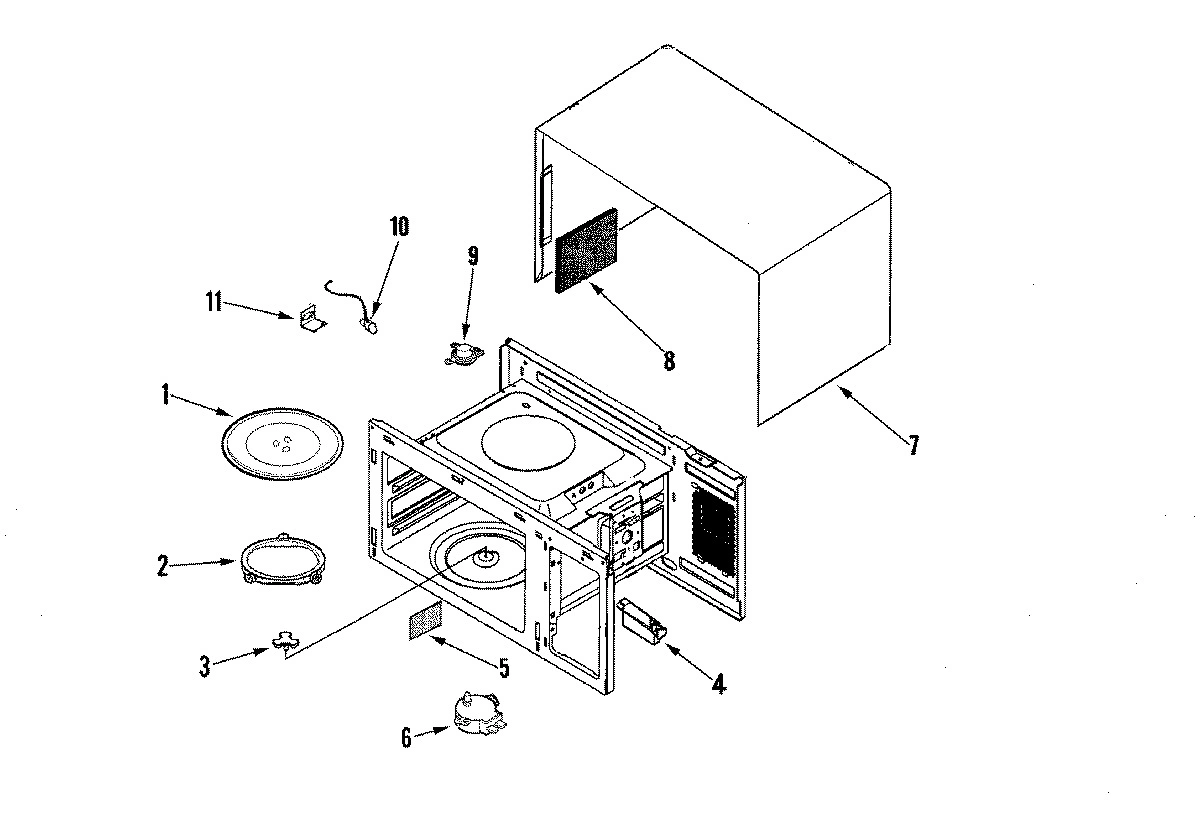

Model Whirlpool JMC5200BAW MICROWAVE – Common Parts & Diagrams

1
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8112P30660 Contact Us For Availability
View on Model
1
TRAY-COOKING
TRAY-COOKING WPL DE7420002C Contact Us For Availability
View on Model
1
COVER, MOTOR
COVER, MOTOR WPL DE7100165A Contact Us For Availability
View on Model
1
PCB
PCB WPL RAS520000 Contact Us For Availability
View on Model
2
ASSY-GUIDE ROLLER,MR87/MR89,PI
ASSY-GUIDE ROLLER,MR87/MR89,PI WPL DE9700401B Contact Us For Availability
View on Model
2
BODY-LATCH
BODY-LATCH WPL DE7200138A Contact Us For Availability
View on Model
2
SPRING-BUTTON
SPRING-BUTTON WPL DE6170026A Contact Us For Availability
View on Model
3
COUPLER
COUPLER WPL DE6700214A Contact Us For Availability
View on Model
3
SWITCH, MICRO (125/250 VAC)
SWITCH, MICRO (125/250 VAC) WPL 3405001034 Contact Us For Availability
View on Model
3
ASY-CONTROL PANEL (WHT)
ASY-CONTROL PANEL (WHT) WPL DE9401387E Contact Us For Availability
View on Model
4
LEVER-DOOR
LEVER-DOOR WPL DE6690113A Contact Us For Availability
View on Model
4
SWITCH, MICRO
SWITCH, MICRO WPL 3405001033 Contact Us For Availability
View on Model
4
ASY-DOOR (WHT)
ASY-DOOR (WHT) WPL DE9401342D Contact Us For Availability
View on Model
5
COVER-MGT
COVER-MGT WPL DE7160449A Contact Us For Availability
View on Model
5
LEVER, SWITCH
LEVER, SWITCH WPL DE6600088B Contact Us For Availability
View on Model
5
PUSH-BUTTON (WHT)
PUSH-BUTTON (WHT) WPL DE6401502A Contact Us For Availability
View on Model
6
MOTOR-DRIVE
MOTOR-DRIVE WPL DE3110154A Contact Us For Availability
View on Model
6
ASY POWER CORD
ASY POWER CORD WPL DE3900040G Contact Us For Availability
View on Model
6
WINDOW-DISPLAY
WINDOW-DISPLAY WPL DE6740179A Contact Us For Availability
View on Model
7
PANEL-OUTER (WHT)
PANEL-OUTER (WHT) WPL DE6401341B Contact Us For Availability
View on Model
7
ASSY NOISE FILTER
ASSY NOISE FILTER WPL DE9600399B Contact Us For Availability
View on Model
7
SWITCH MEMBRANE
SWITCH MEMBRANE WPL DE3400230C Contact Us For Availability
View on Model
8
CUSHION-RUBBER
CUSHION-RUBBER WPL DE6390035G Contact Us For Availability
View on Model
8
BASE-PLATE
BASE-PLATE WPL DE8010032K Contact Us For Availability
View on Model
9
THERMOSTAT
THERMOSTAT WPL DE4720173A Contact Us For Availability
View on Model
9
LAMP-INCANDESCENT
LAMP-INCANDESCENT WPL DE0700005A Contact Us For Availability
View on Model
10
ASY SENSOR-HUMIDITY
ASY SENSOR-HUMIDITY WPL DE9700585B Contact Us For Availability
View on Model
10
COVER-AIR
COVER-AIR WPL DE7100012A Contact Us For Availability
View on Model
11
BRACKET-SENSOR
BRACKET-SENSOR WPL DE6100097A Contact Us For Availability
View on Model
11
BRACKET-HVC
BRACKET-HVC WPL DE6150170A Contact Us For Availability
View on Model
12
CAPACITOR
CAPACITOR WPL 2501001016 Contact Us For Availability
View on Model
13
FOOT
FOOT WPL DE6140066A Contact Us For Availability
View on Model
15
THERMOSTAT
THERMOSTAT WPL DE4720030A Contact Us For Availability
View on Model
16
HARNESS, WIRE
HARNESS, WIRE WPL DE9600392A Contact Us For Availability
View on Model
17
CARTRIDGE, FUSE
CARTRIDGE, FUSE WPL 3601001198 Contact Us For Availability
View on Model
18
TRANS-H.V
TRANS-H.V WPL DE2600061B Contact Us For Availability
View on Model
19
ASSY-HVD
ASSY-HVD WPL DE9170063D Contact Us For Availability
View on Model
20
BLADE, FAN
BLADE, FAN WPL DE3190051A Contact Us For Availability
View on Model
